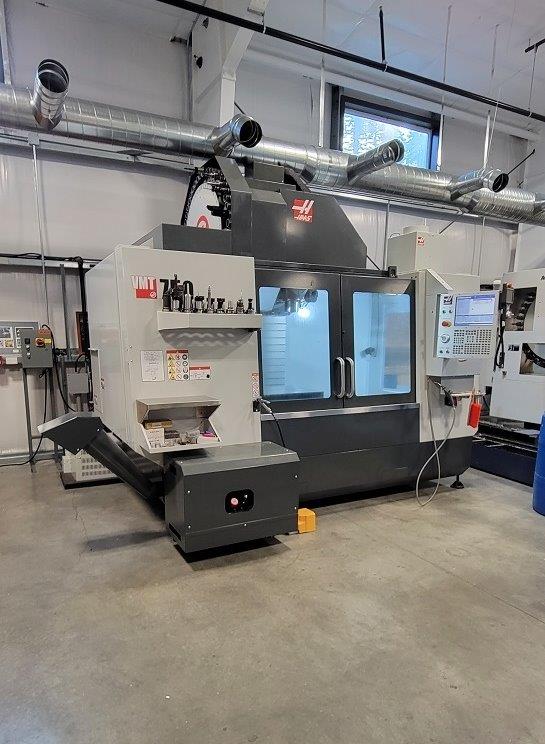

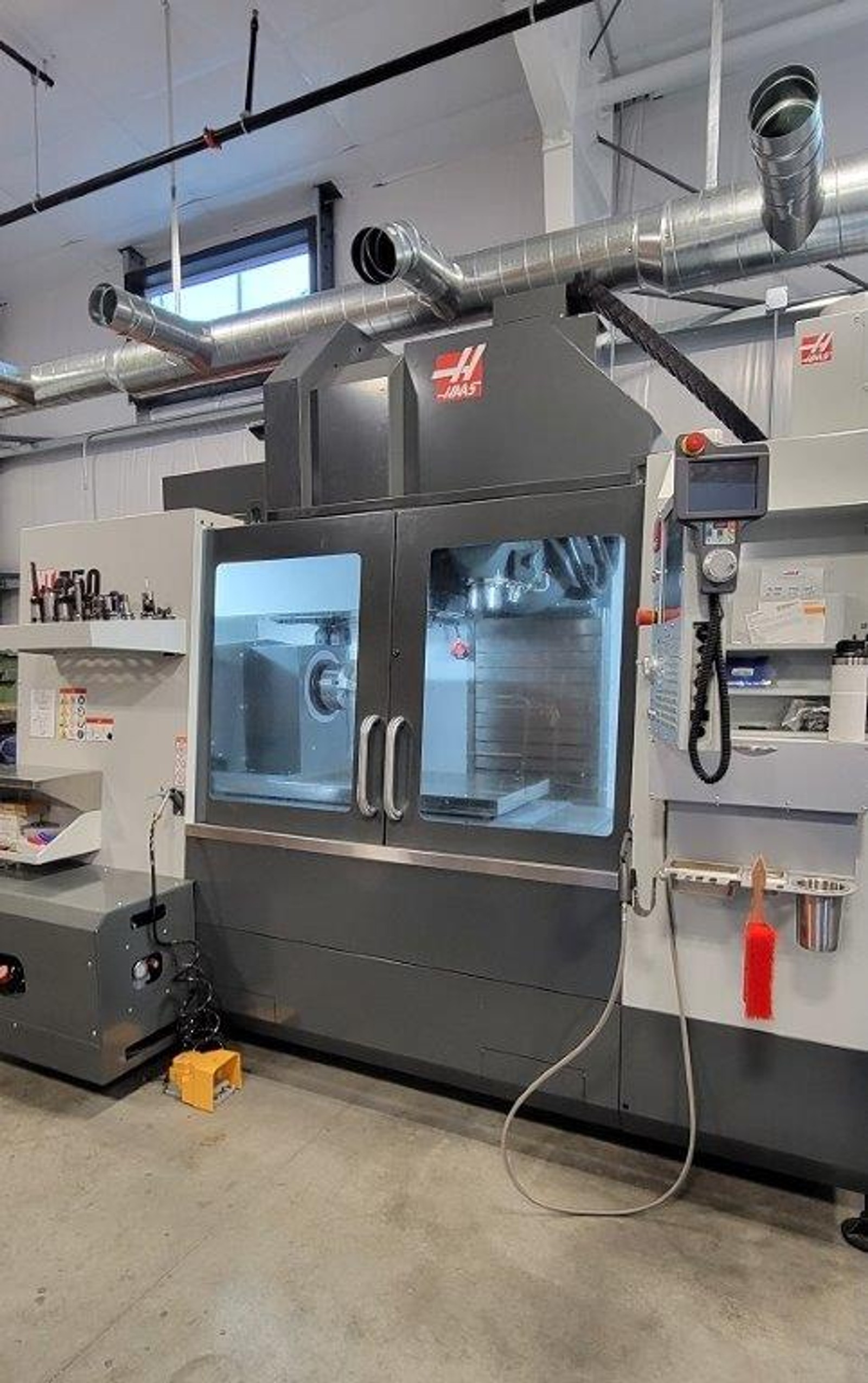

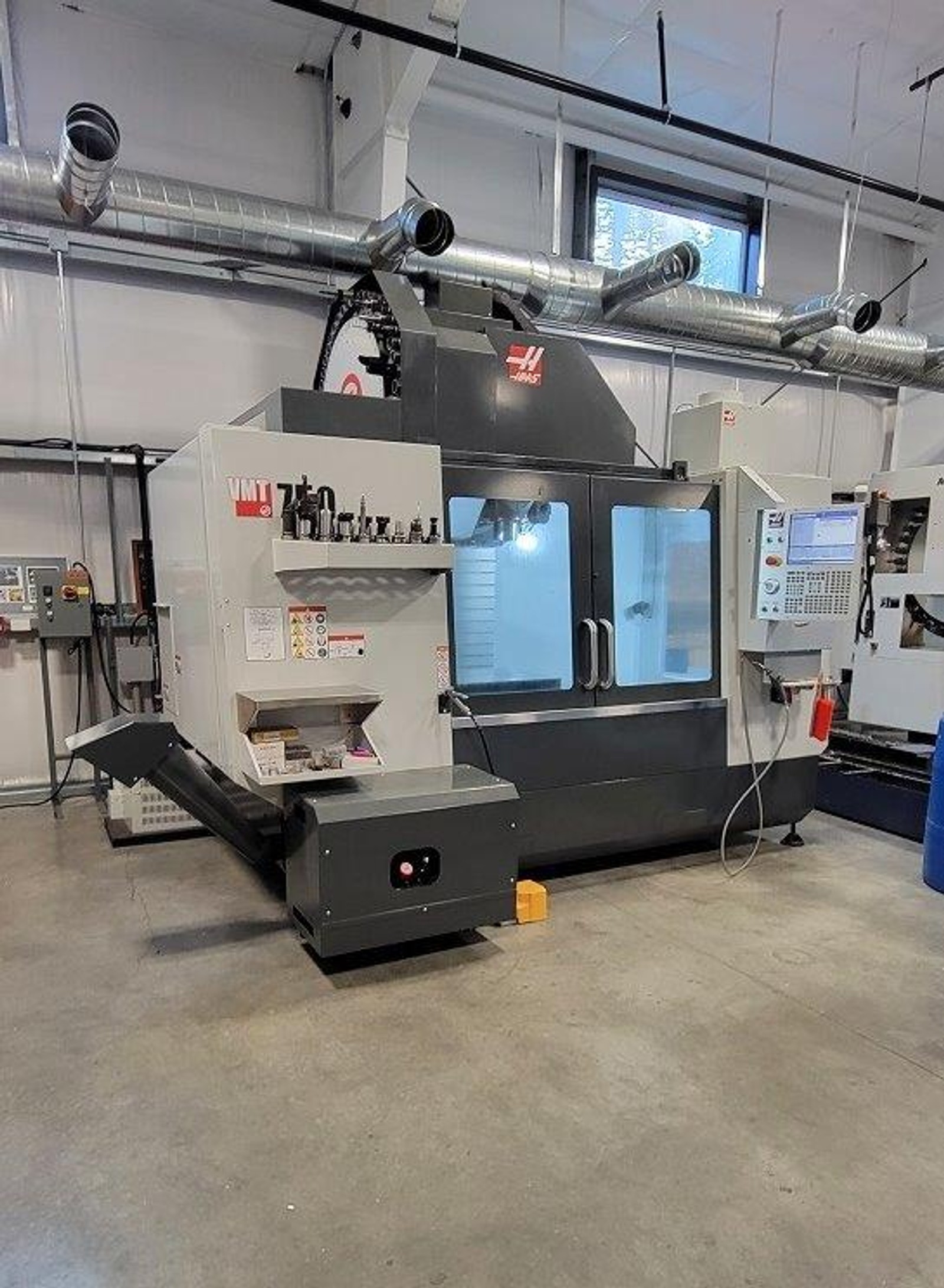

2021 HAAS VMT-750

Manufacturer

HAAS

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

497435

Model

VMT-750

Dealer Location

Maryland

Request a Quote
View Contact Information

Spec Sheet

TABLE DIMENSIONS................ 24" X 54"
TABLE LOAD CAPACITY............. 1,000 LBS
X-AXIS TRAVEL................... 25"
Y-AXIS TRAVEL................... -13.0" TO 3.5"
Z-AXIS TRAVEL................... 31"
SPINDLE MOTOR................... 20 HP
SPINDLE SPEED................... 8,1000 RPM
SPINDLE TAPER................... HSK-63A/T
B-AXIS TILT TRAVEL.............. 0 TO 90 DEGREES
CHUCK SIZE...................... 8.3"
TURNING SPINDLE NOSE............ A2-6
TURNING SPINDLE MOTOR........... 30 HP
TURNING SPINDLE SPEED........... 4,000 RPM
BAR CAPACITY.................... 2.5"
SPINDLE BORE.................... 3.5"
RAPID TRAVERSE RATE............. 710 IPM
CUTTING FEEDRATE................ 500 IPM
TOOL CHANGER.................... 50 ATC SIDE-MOUNT
TOOL TYPE....................... HSK-A63

EQUIPPED WITH:
0-90 DEG. B-AXIS SPINDLE ROTATION
HSK-T/A63 TAPER SPINDLE W/BRAKE FOR TURNING OPERATIONS
8100 RPM GREASE-PACKED SPINDLE, BELT DRIVE
ENCLOSED EXHAUST SYSTEM
HIGH PRESSURE FLOOD COOLANT SYSTEM
300 PSI THROUGH SPINDLE COOLANT
WIRELESS INTUITIVE PROBING SYSTEM (WIPS), RENISHAW
CHIP AUGER
NEXTGEN CONTROL
AUTOMATIC TOOL PRESETTER
CNC CONTROL CABINET COOLER
PROGRAMMABLE COOLANT
WIFI CAMERA
REMOTE JOG HANDLE (RJH-TOUCH-XL)
COOLANT CHILLER
AUXILIARY COOLANT FILTER SYSTEM
MACROS
ROTATION AND SCALING
RIGID TAPPING
TCPC AND DWO (TOOL CENTER POINT CONTROL & DYNAMIC WORK OFFSETS)
M19 SPINDLE ORIENT
VPS EDITING
MEDIA DISPLAY
1GB MEMORY
WIRELESS NETWORKING
COMPENSATION TABLES
ALL AVAILABLE TOOLING, AS PICTURED
-TOOLING ASSUMED TO BE IN INCLUDED:
----HSK63A TOOL HOLDERS FOR HAAS VMT-750
* 21 ER HOLDERS
* 7 HSK63A SANDVICK TURNING HOLDERS WITH HEADS
* 9 HEATSHRINK HOLDERS
* 2 WELDON HOLDERS
* PROBE
* 10 SETS OF HARD JAWS
* 3 SETS OF SOFT JAWS

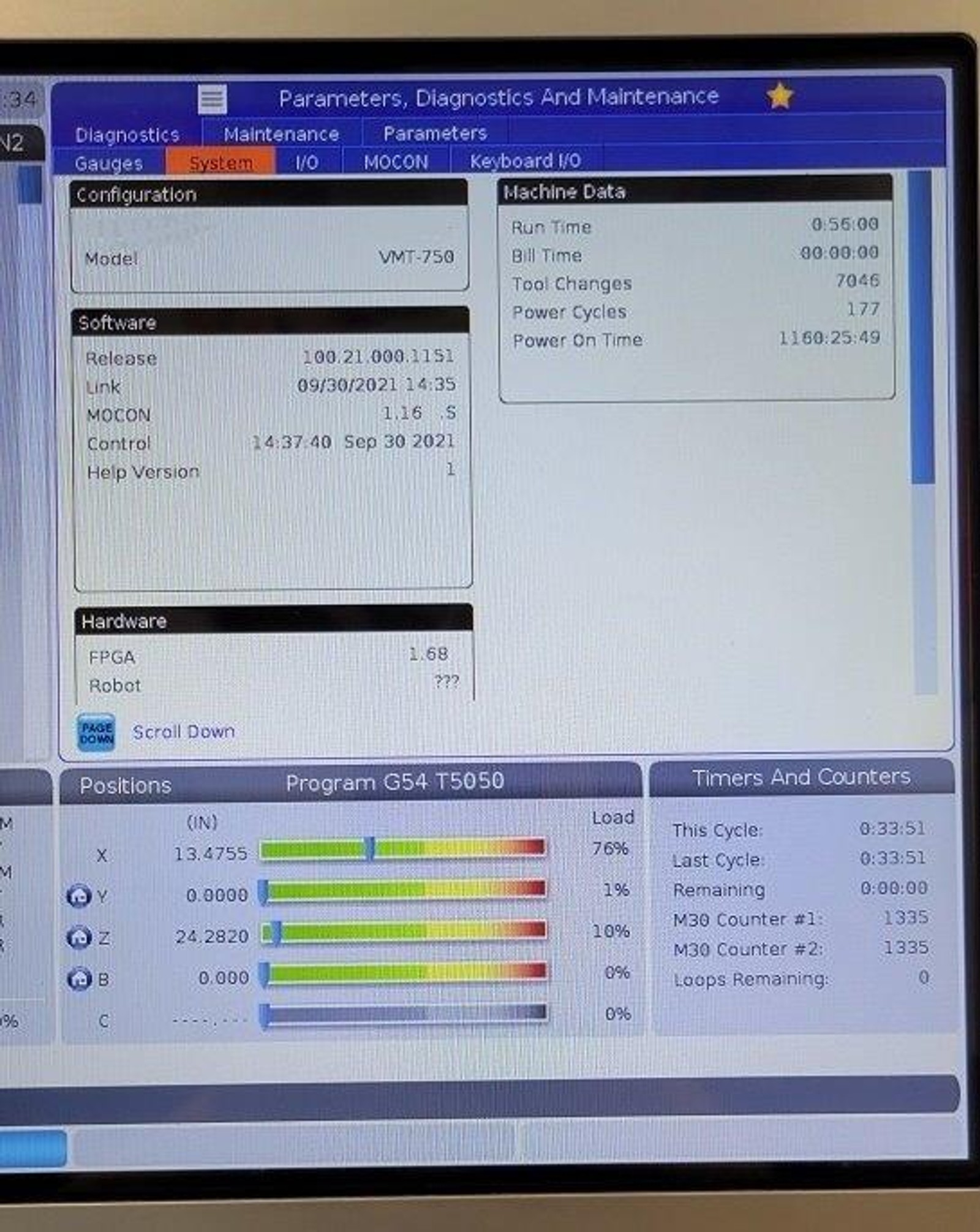

*** MACHINE SHOWS 1,160 HOURS OF POWER ON TIME (AS OF 10/14/2022)

*** MACHINE WAS PURCHASED FOR A JOB THAT DID NOT MATERIALIZE. MACHINE IS AVAILABLE IMMEDIATE AND IS IN "LIKE NEW" CONDITION

== COST OF MACHINE WHEN PURCHASED NEW AS EQUIPPED ABOVE: OVER $200,000 INCLUDING TOOLING
