X: 23.6", Y: 15.7", Z: 12.2" travels and auto threading capability

Manufacturer

MITSUBISHI

Category

EDM Machines

Type

ELECTRIC DISCHARGE MACHINES, WIRE, CNC

Stock

68812

Model

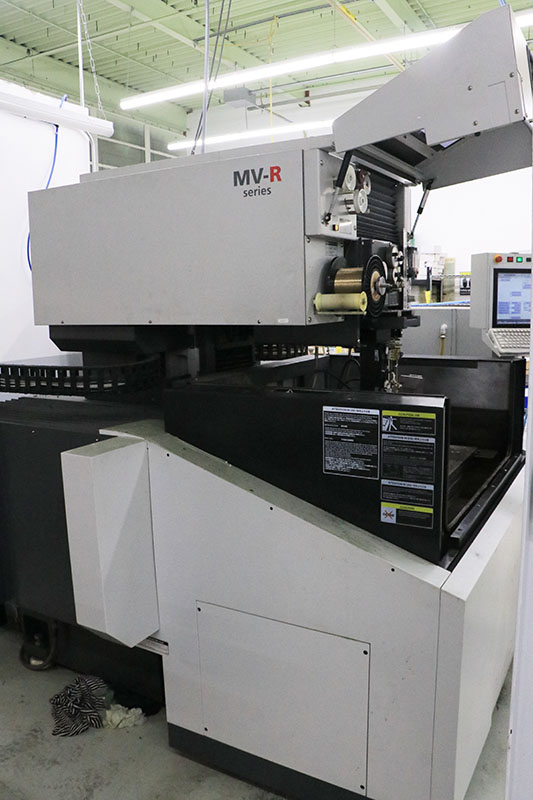

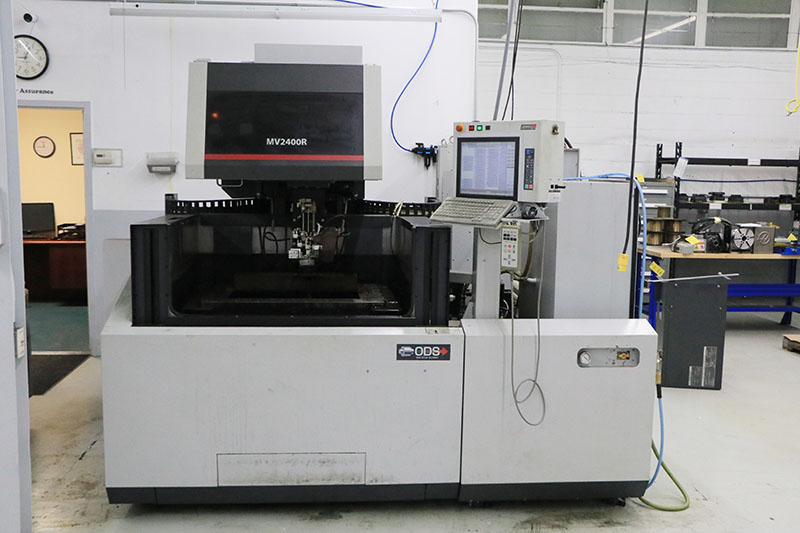

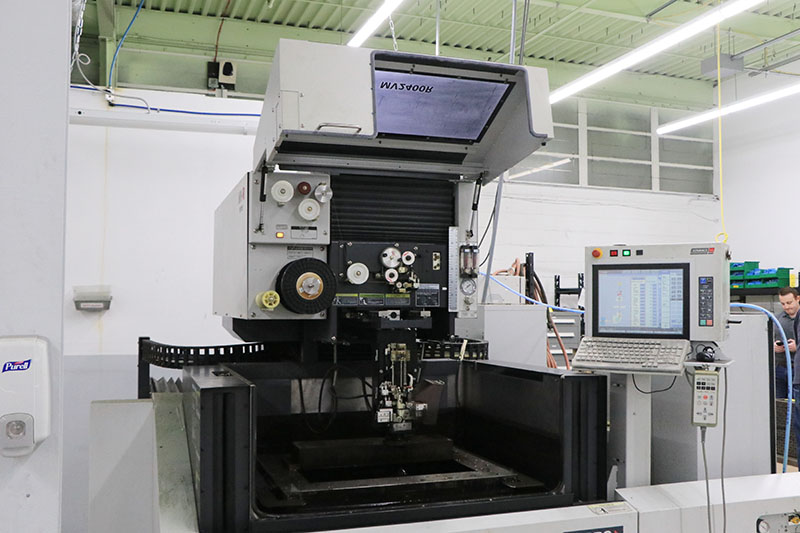

MV-2400R

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

X:......................... 23.6"
Y:......................... 15.7"
Z:......................... 12.2"
Auto Threading (Yes/No:.... Yes
Dimensions:................ 105" W x 119.3" D x 84.6" H
Weight:.................... 7,716 lbs
Max Workpiece Dimensions:.. 41.3" x 32.3" x 12"
Max Workpiece Weight:...... 3,307 lbs

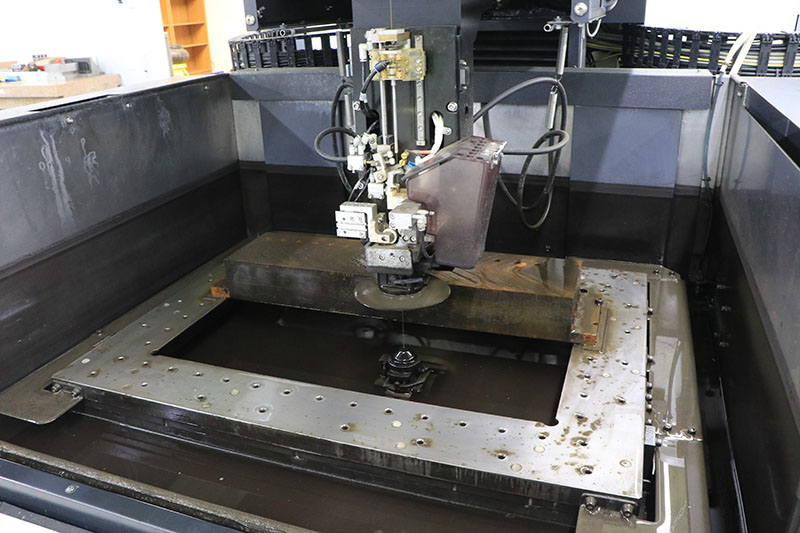

Table Dimensions:.......... 33" x 25.2" (4-Sided)
Machine Travels (XxYxZ):... 23.6" x 15.7" x 12.2"
Machine Travels (UxV):..... 2.9" x 2.9"
Max Taper Angle:........... 10.2"
Wire Diameter:............. 0.004" to 0.012"

Equipped with:

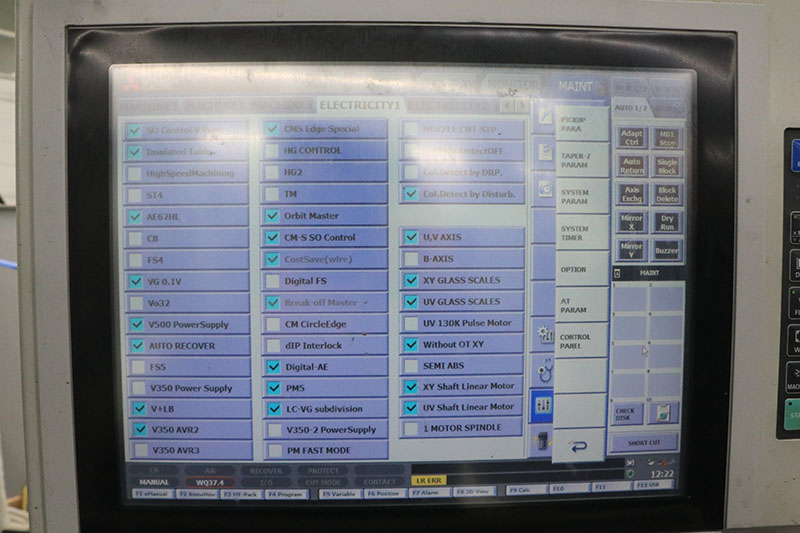

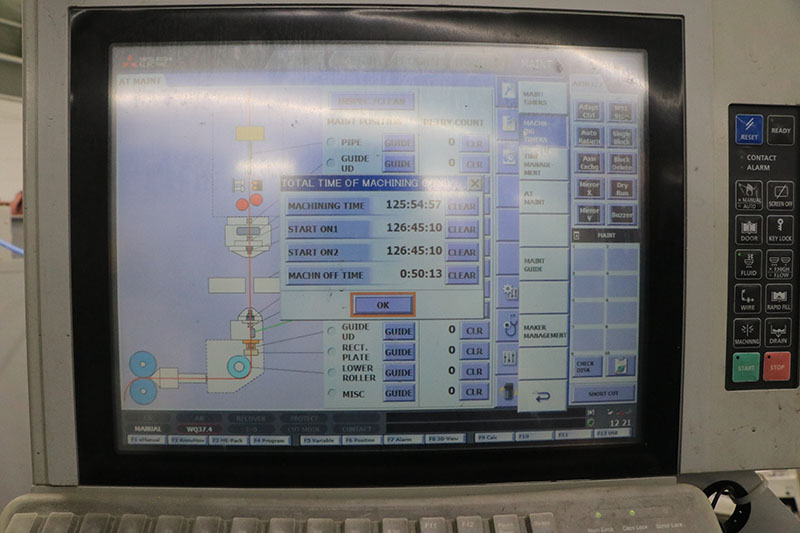

ADVANCE PLUS Control

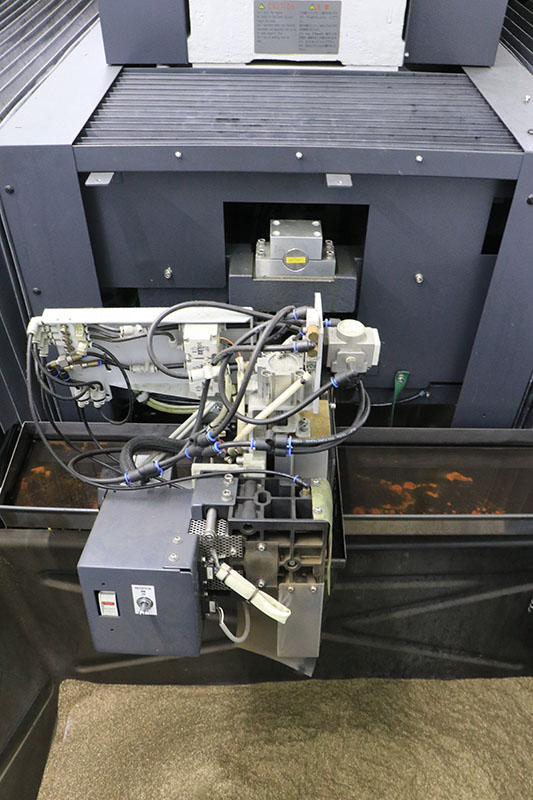

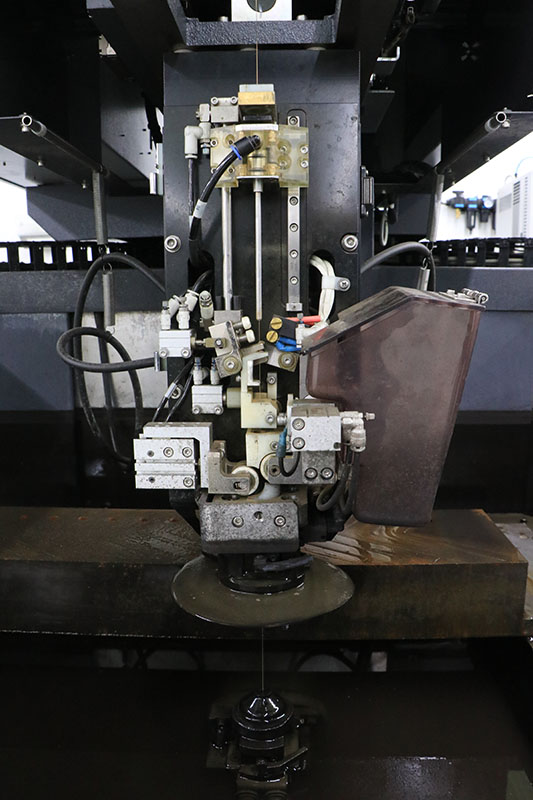

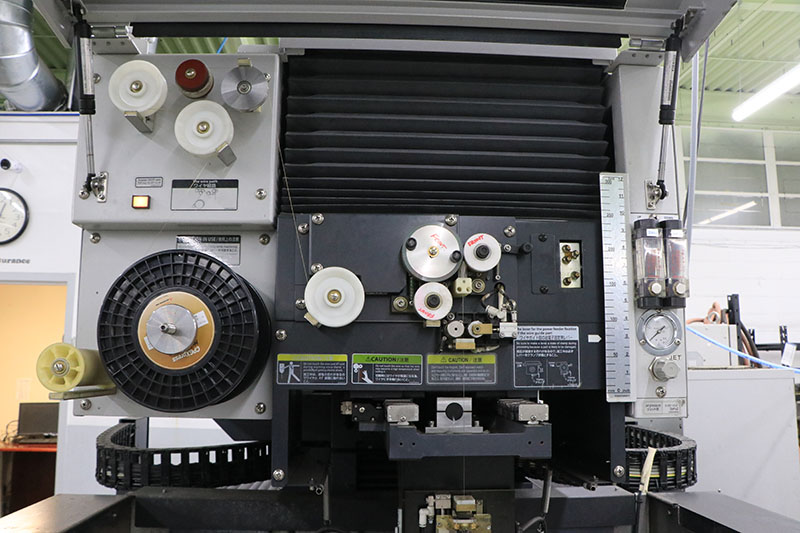

Automatic Wire Threading

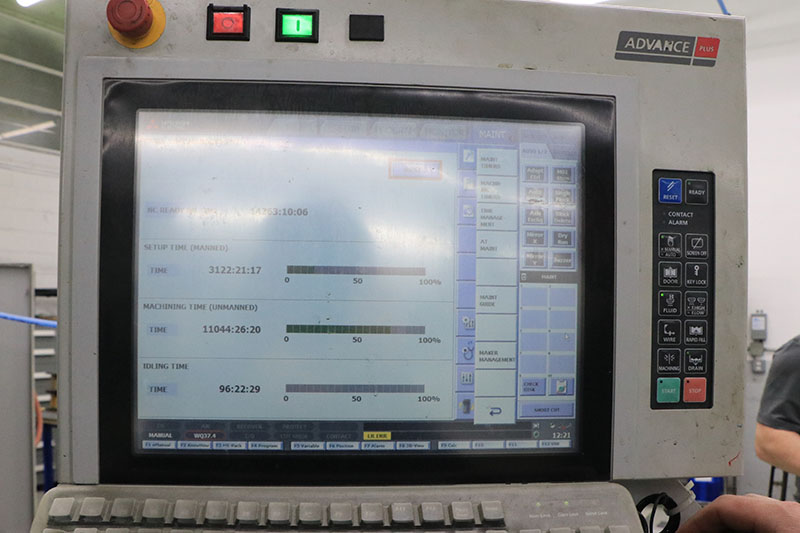

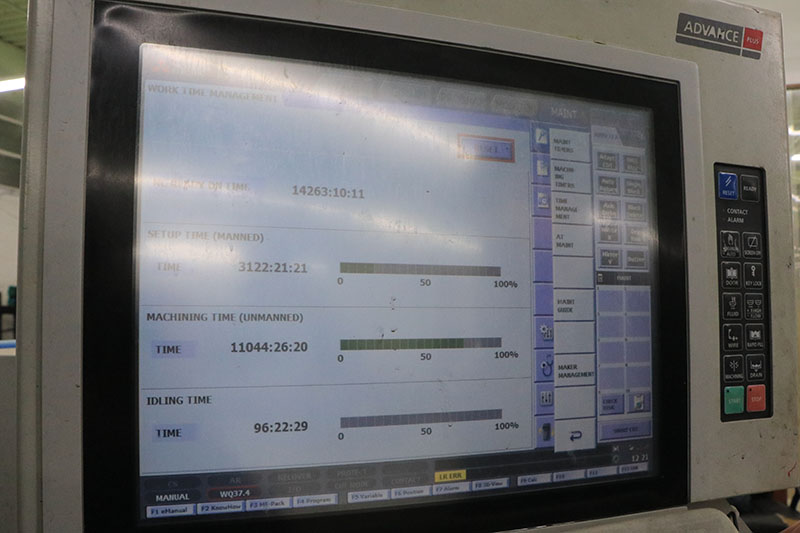

LOW HOURS WITH 11,044 MACHINING TIME
