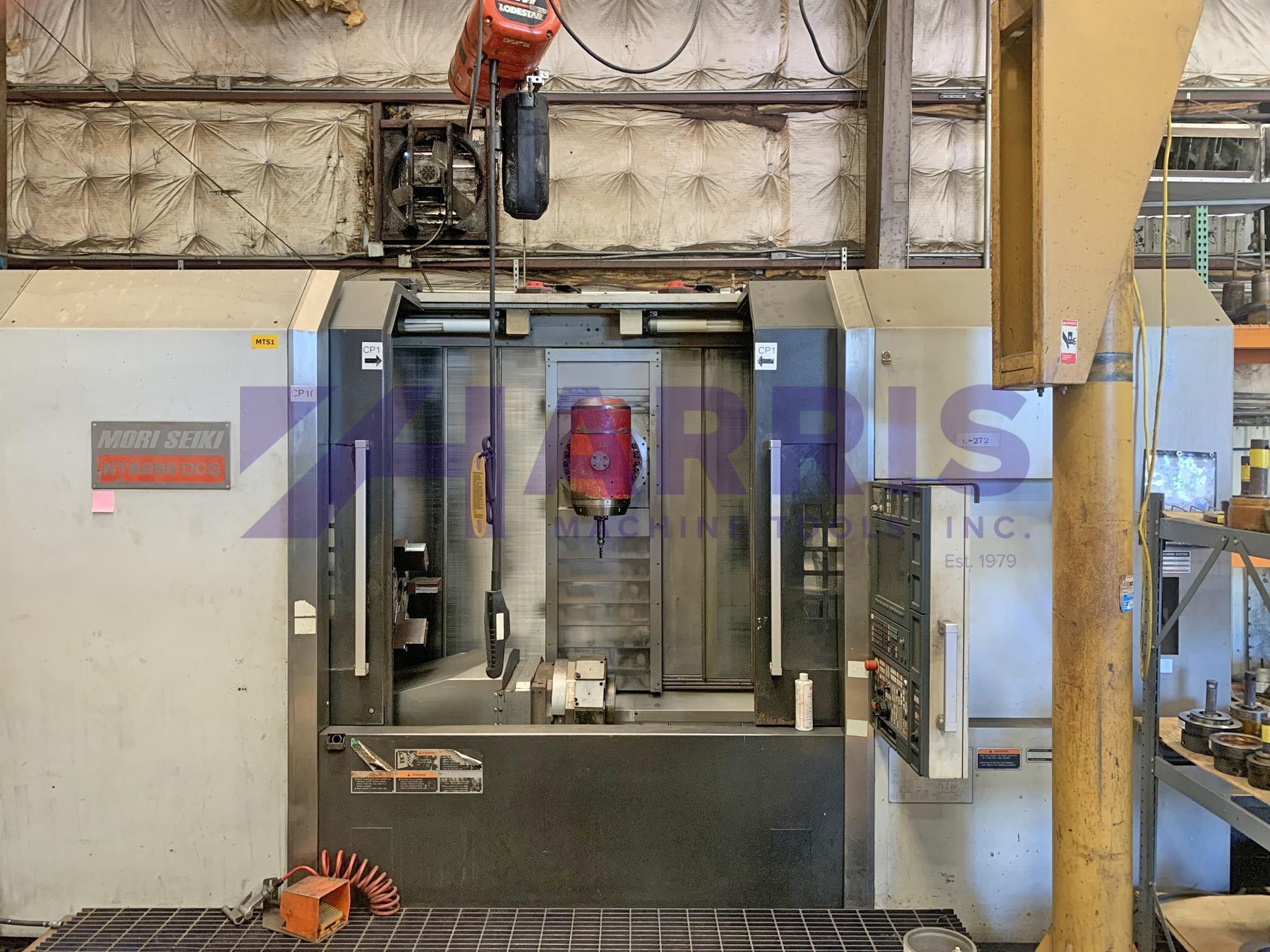

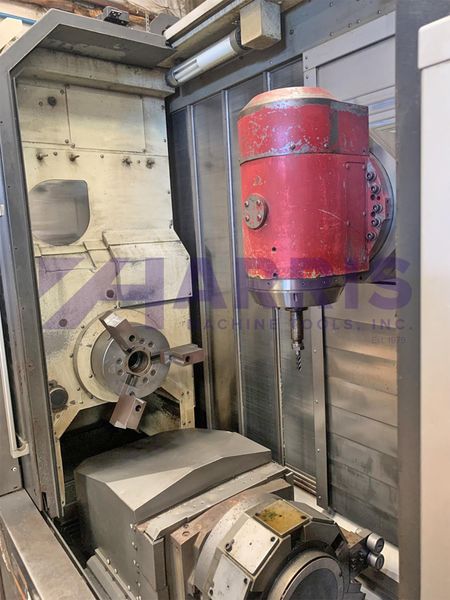

Used, 2006 Mori Seiki NT4250/1500SZ CNC Multi-Tasking Turning Center

Manufacturer

Maximum Swing (Head 1): 28.7"
Maximum Swing (Head 2): 28.7"

Swing Over Cross Slide: 28.7” / 15.7” (Turret 2)

Maximum Distance Between Centers (S & SZ): 73.3”

Maximum Turning Length (SZ): 60.7”

Maximum Turning Diameter: 25.9” / 13.7” (Turret 2)

X1 Axis Travel: 24.6″ + 4.9″‘

X2 Axis Travel Turret: 7.7”

Z1 Axis Travel: 61.0″ + 3.9″

Z2 Axis Travel Turret: 60.0”

Y Axis Travel: +/– 8.3”

B Axis Minimum Index Angle / Index Range: +/– 120 Deg.

C Axis Travel Main / Sub: 0.0001 Deg.

Spindle Bore Main: 3.6”

Bar Capacity (1 & 2 ): 3.1”

Spindle Nose (1 & 2): A2–8

Spindle Speeds (1 & 2): 4000 RPM

Spindle Drive Motor (1 & 2): 30 HP

Rapid Traverse (X / Y / Z): 1968 / 1968 / 1181 IPM

Rapid Traverse Turret (X2 / Z2): 1181 / 1181 IPM

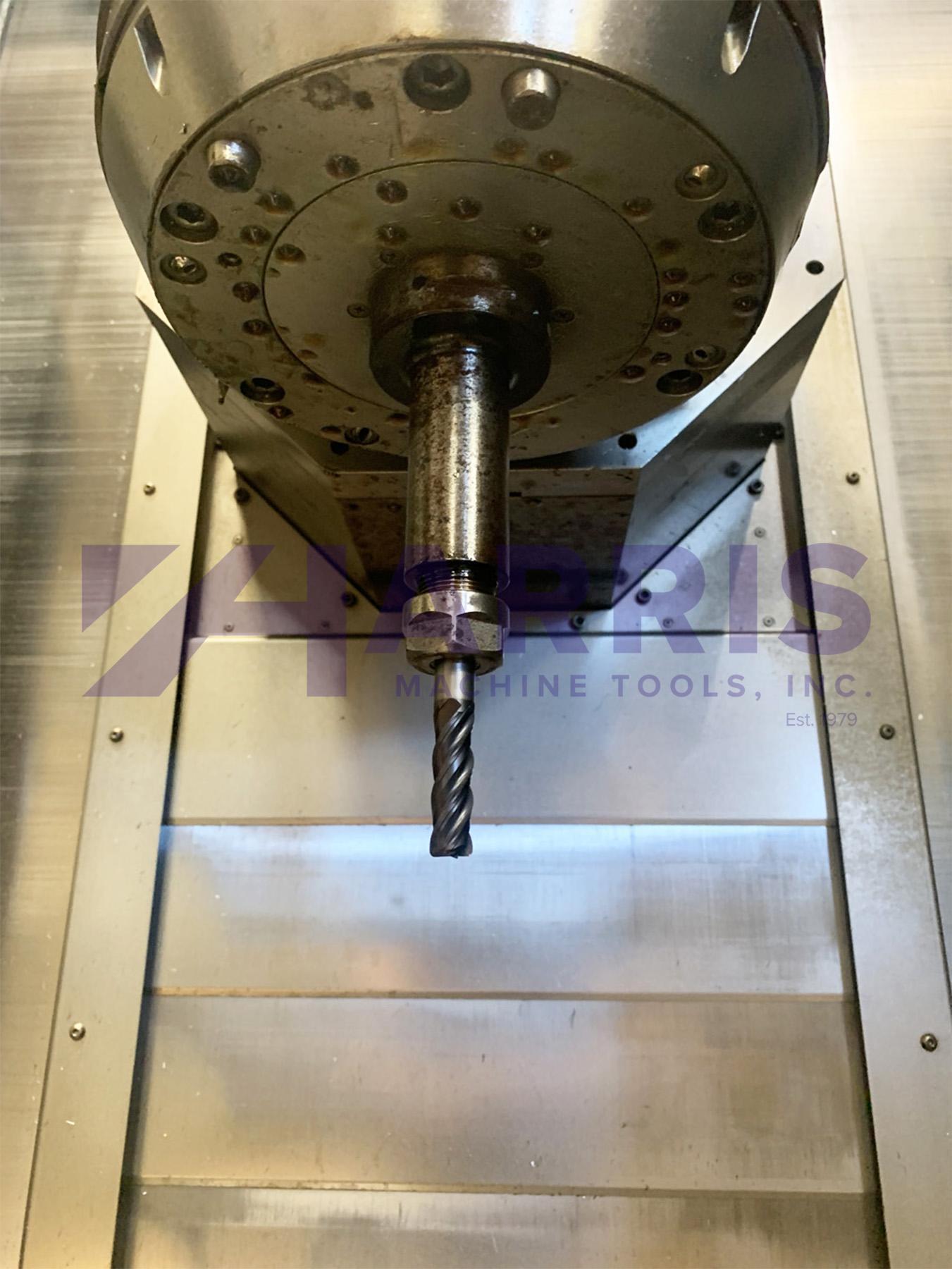

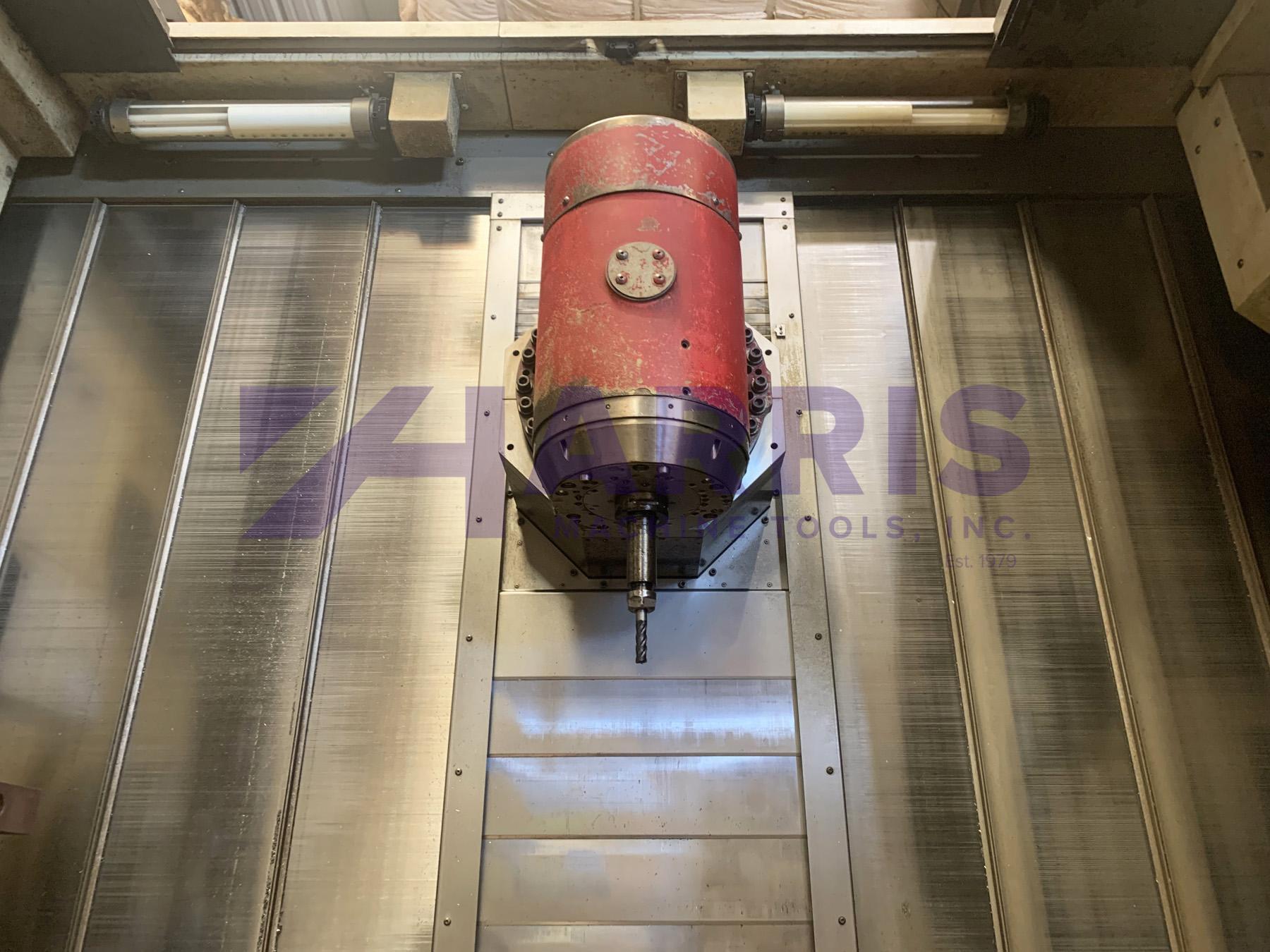

Tool Spindle Speed: 12,000 RPM

Tool Spindle Drive Motor: 24.7 HP

Number of Tool Changer / Type: 40 ATC / C6

Turret Indexing Time: 1.6 secs.

Turret Configuration: 12 Station

Machine Weight 56,320 Lbs.

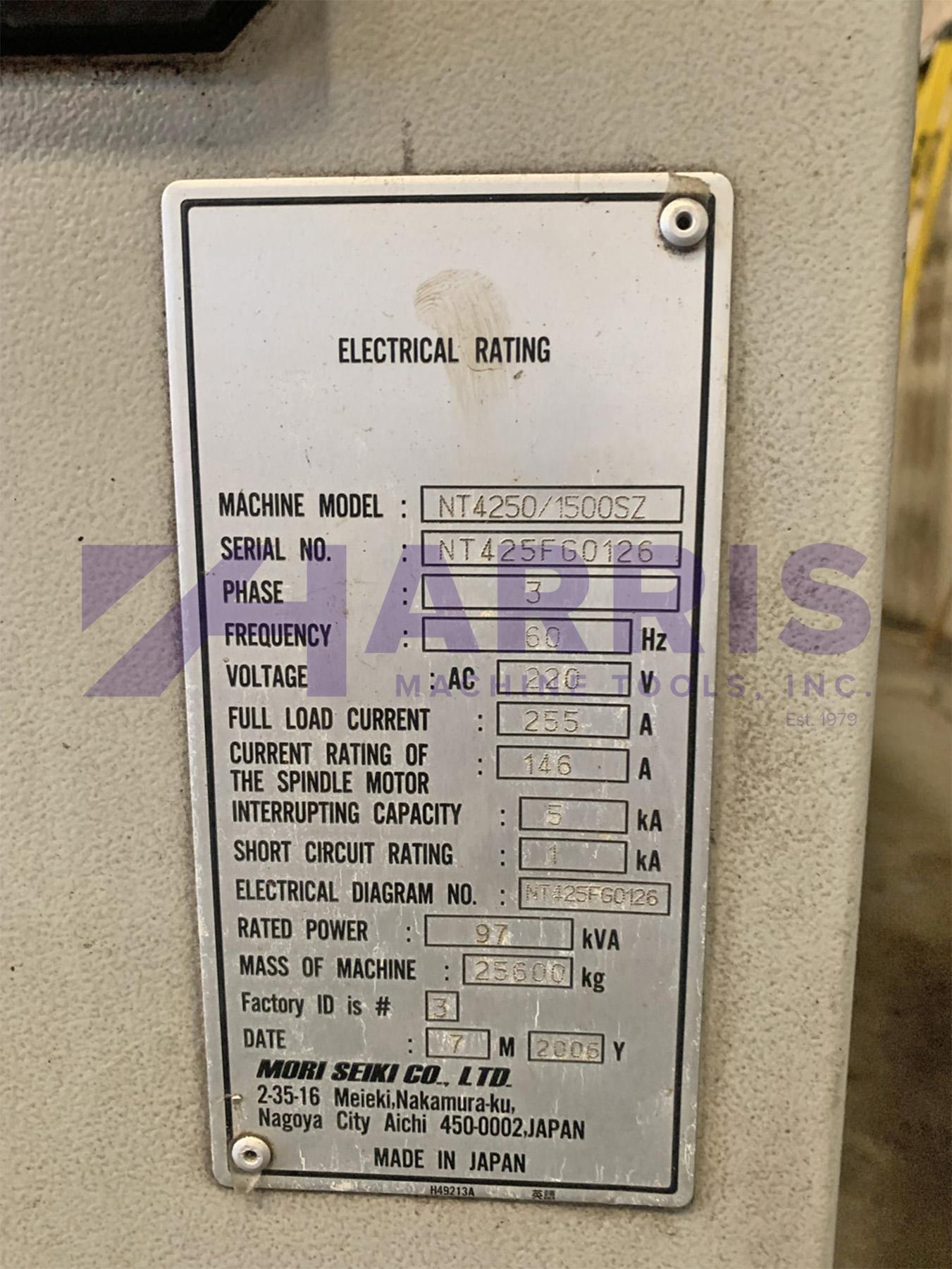

Electrical: 220V / 3Ph / 60Hz

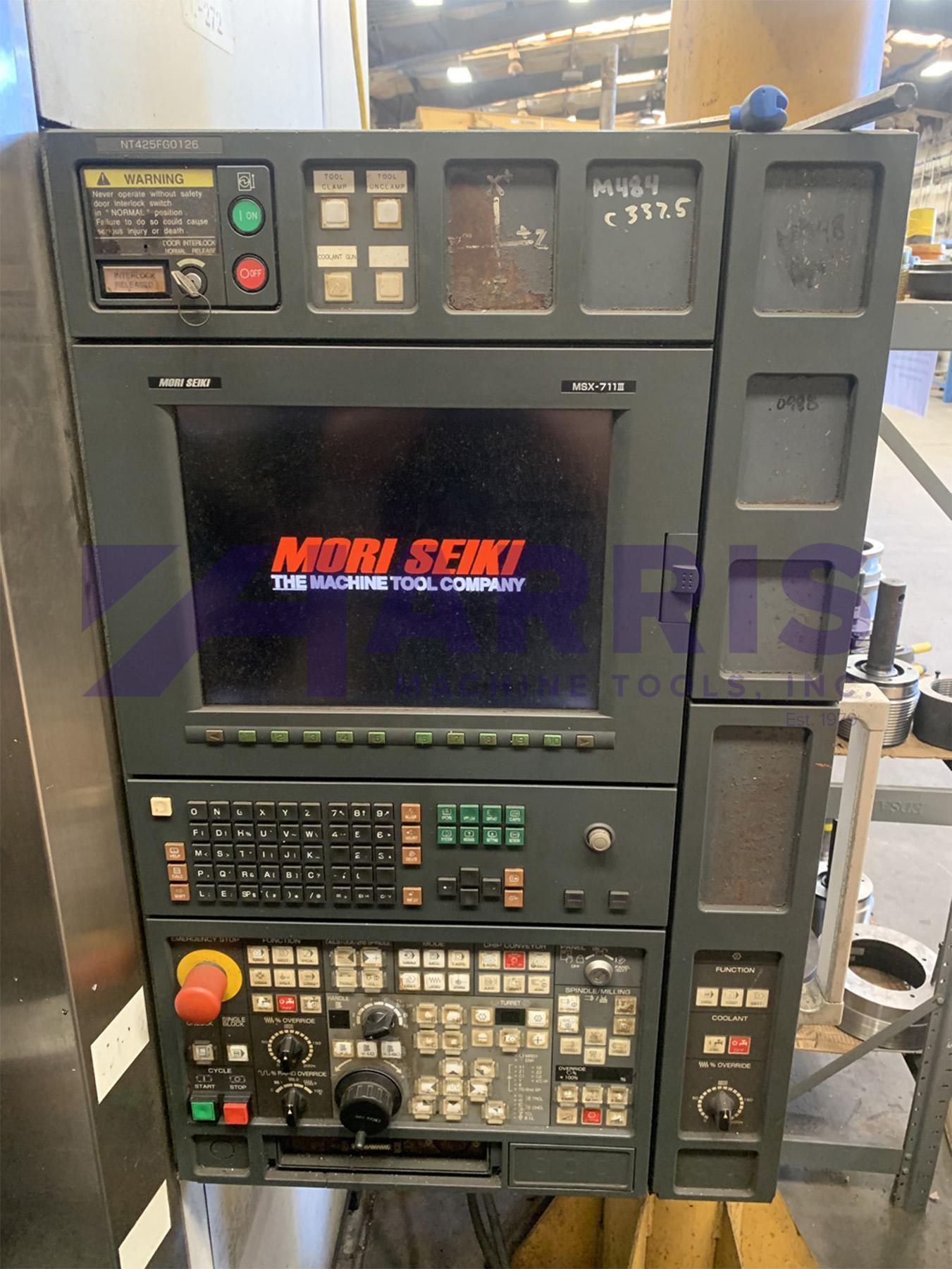

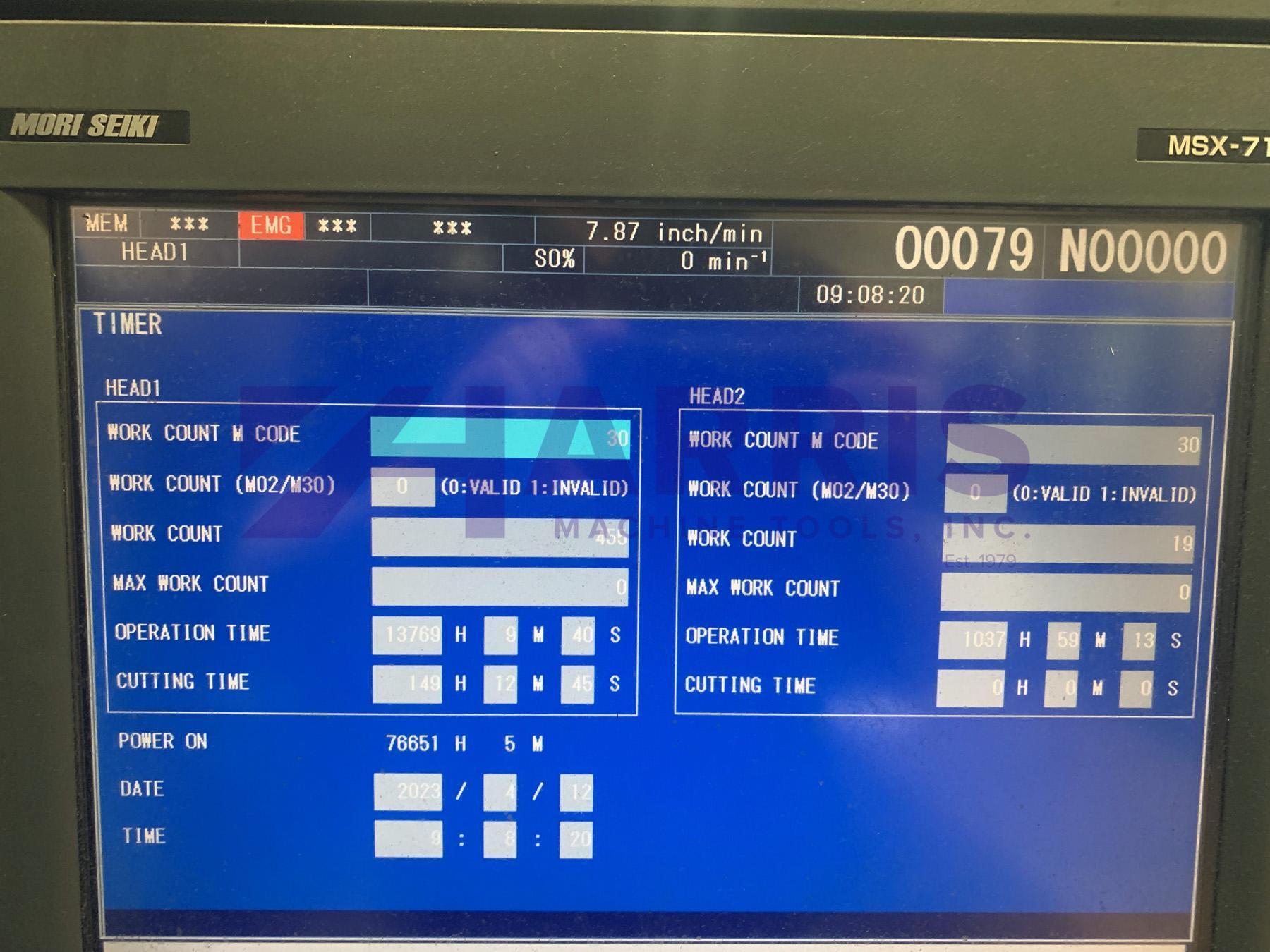

CNC Control: Mori Seiki MSX-711 III

Note: All Specifications Subject to Verification
