Mitsubishi MVR-35 5-Face, X-236", Y-137", 128" BTWC, 65" U/R, 6K RPM, Angle Head, ATC, AAC, 40 HP, Fanuc 18iM #32783

Manufacturer

MITSUBISHI

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

32783

Model

MVR-35

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32783

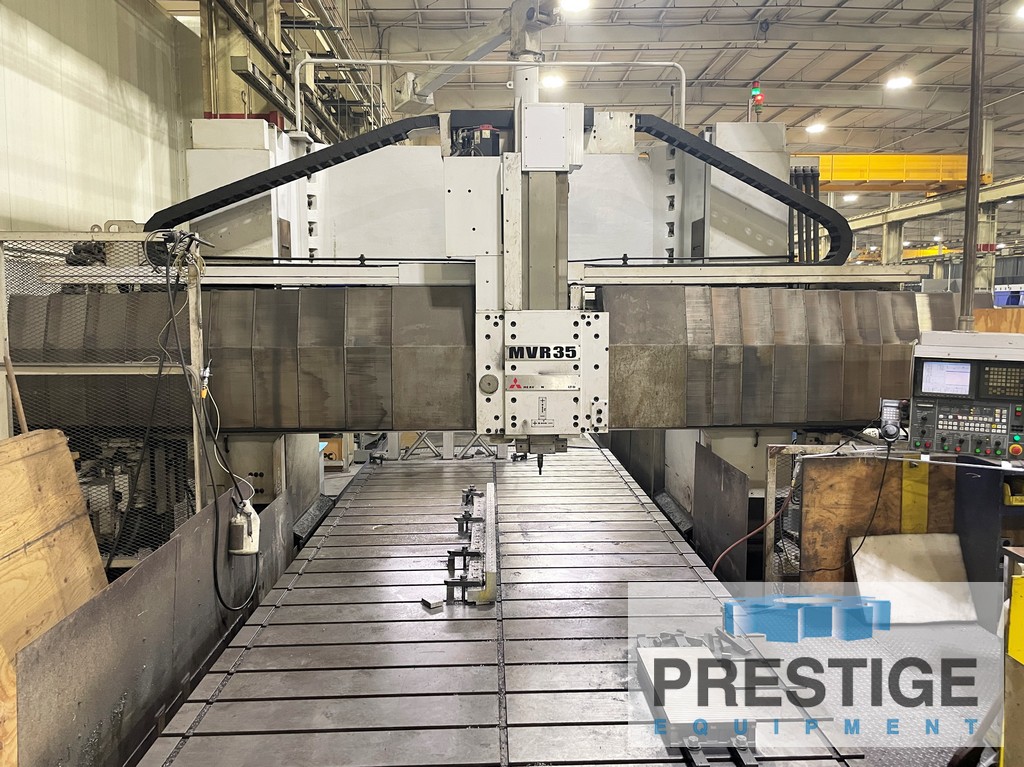

Mitsubishi MVR-35 5-Face CNC Vertical Milling Machine

FEATURES:

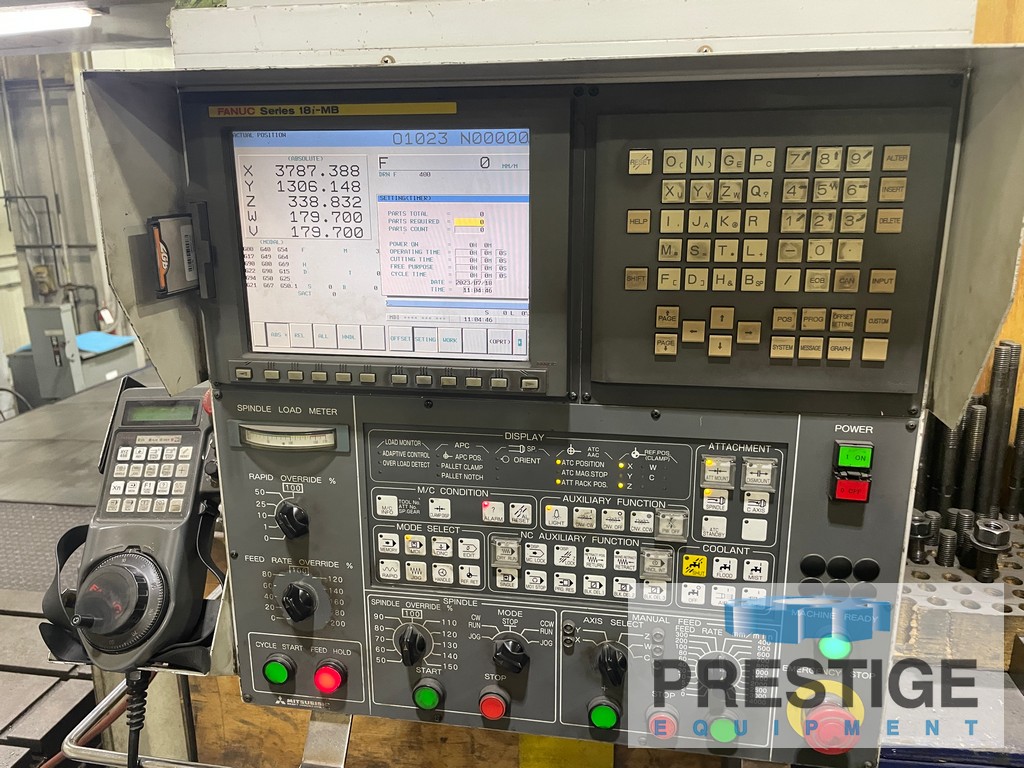

Fanuc 18i-MB CNC Controls
50-Station Automatic Tool Changer
2-Station Automatic Attachment Changer

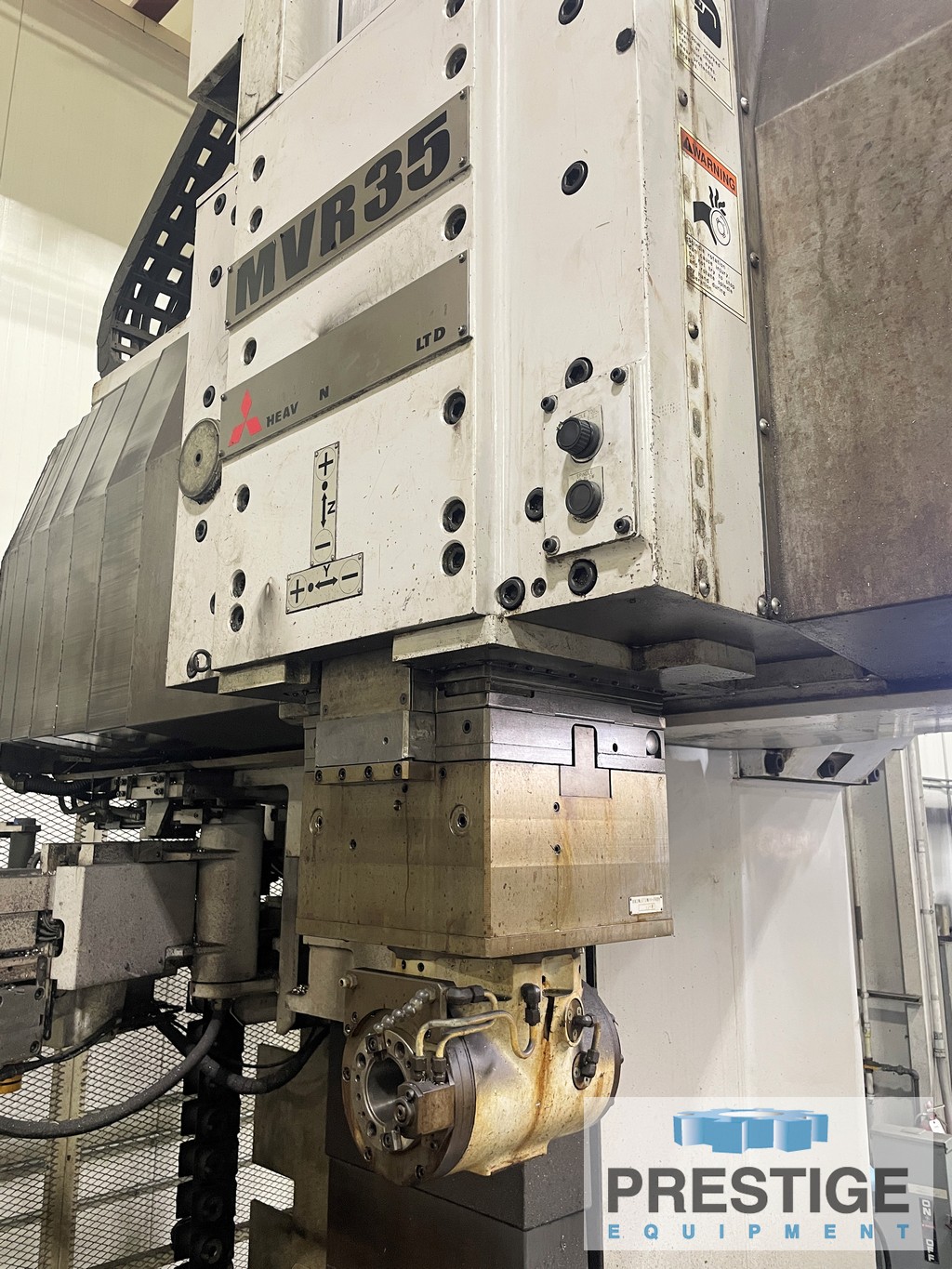

Right Angle Head with 5-Degree Indexing

SPECIFICATIONS:
X-Axis Travel, Table .................. 244.09"
Y-Axis Travel, Head ................... 137.79"
Z-Axis Travel, Ram Stroke ............. 27.56"
W-Axis Travel, Cross Rail Vertical .... 43.31"
Distance Between Columns .............. 127.95"
Table Size ............................ 236.22"x 98.42"
Table Load Capacity ................... 77,000 Lbs.
Ram Cross Section ..................... 13.78" x 13.78"
Spindle End to Table Surface .......... 64.96"
Spindle Speeds ........................ 20 to 6000 RPM
Spindle Taper ......................... #50 Taper
Spindle Drive Motor ................... 30 HP / 40 HP
Machine Weight, Without Options ....... 132,000 lbs

EQUIPPED WITH:
Fanuc 18iMB CNC Controls
Right Angle Head with 5-Degree Indexing
2-Station Automatic Attachment Changer
50-Station Automatic Tool Changer
Way Covers on All Ways
Coolant System
Chip Conveyors
