HAAS TR-310 Dual-Axis Trunnion Rotary Table, 12.20" Platter, 500 Lb. Capacity, A-Axis +/-120 Deg., New 2020, #32788

Manufacturer

HAAS

Category

Tables

Type

TABLES, CNC

Stock

32788

Model

TR-310

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32788

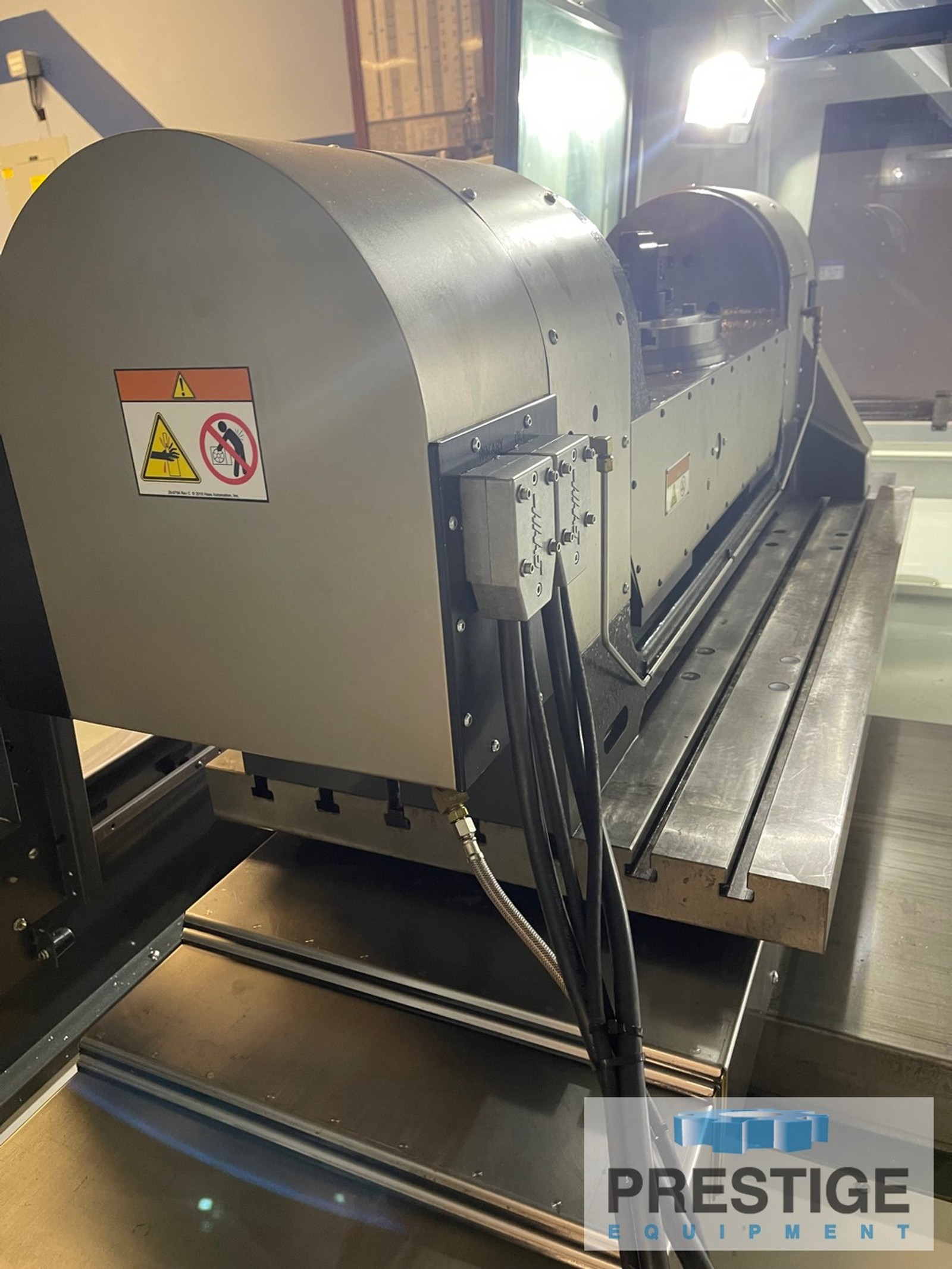

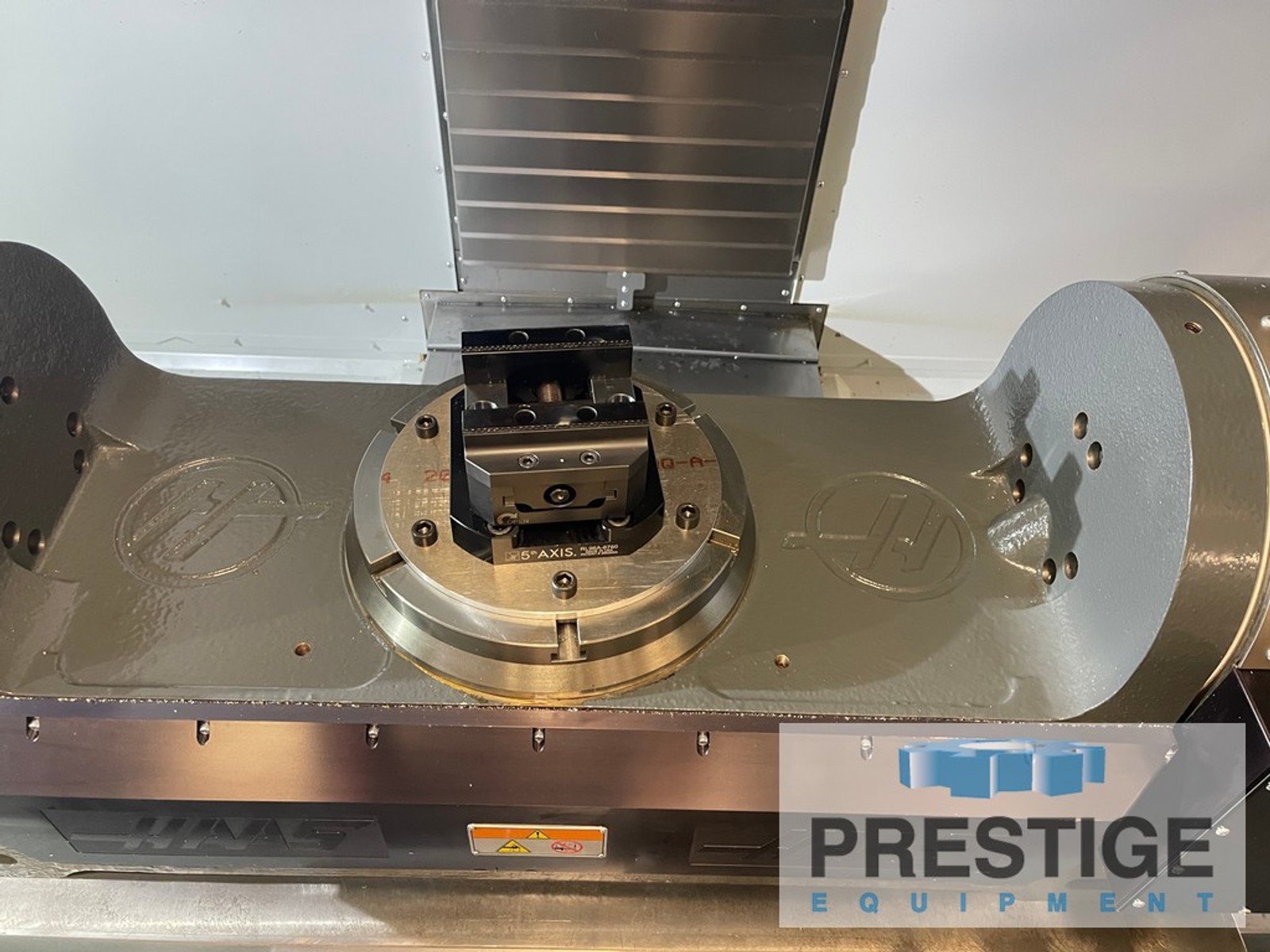

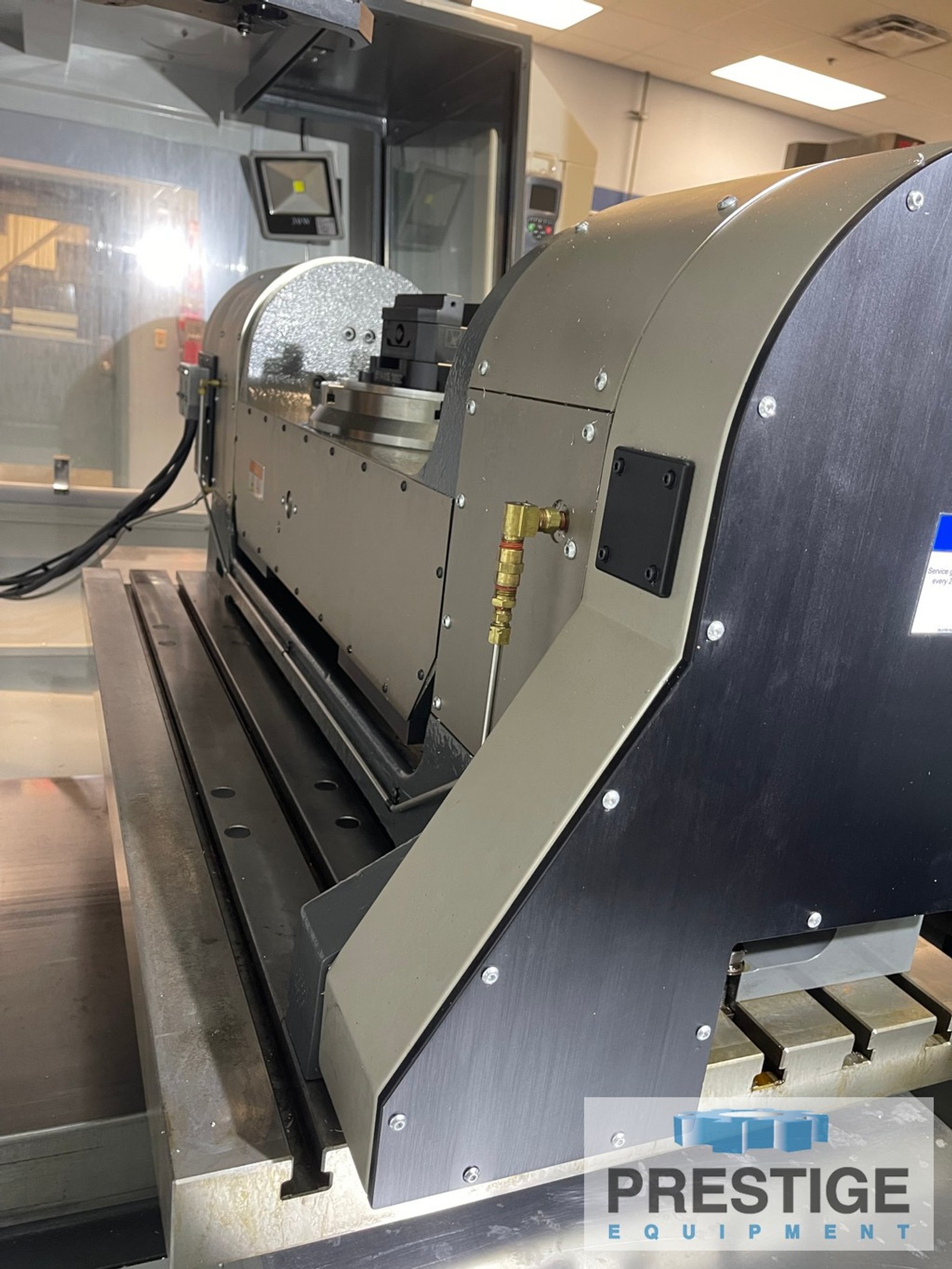

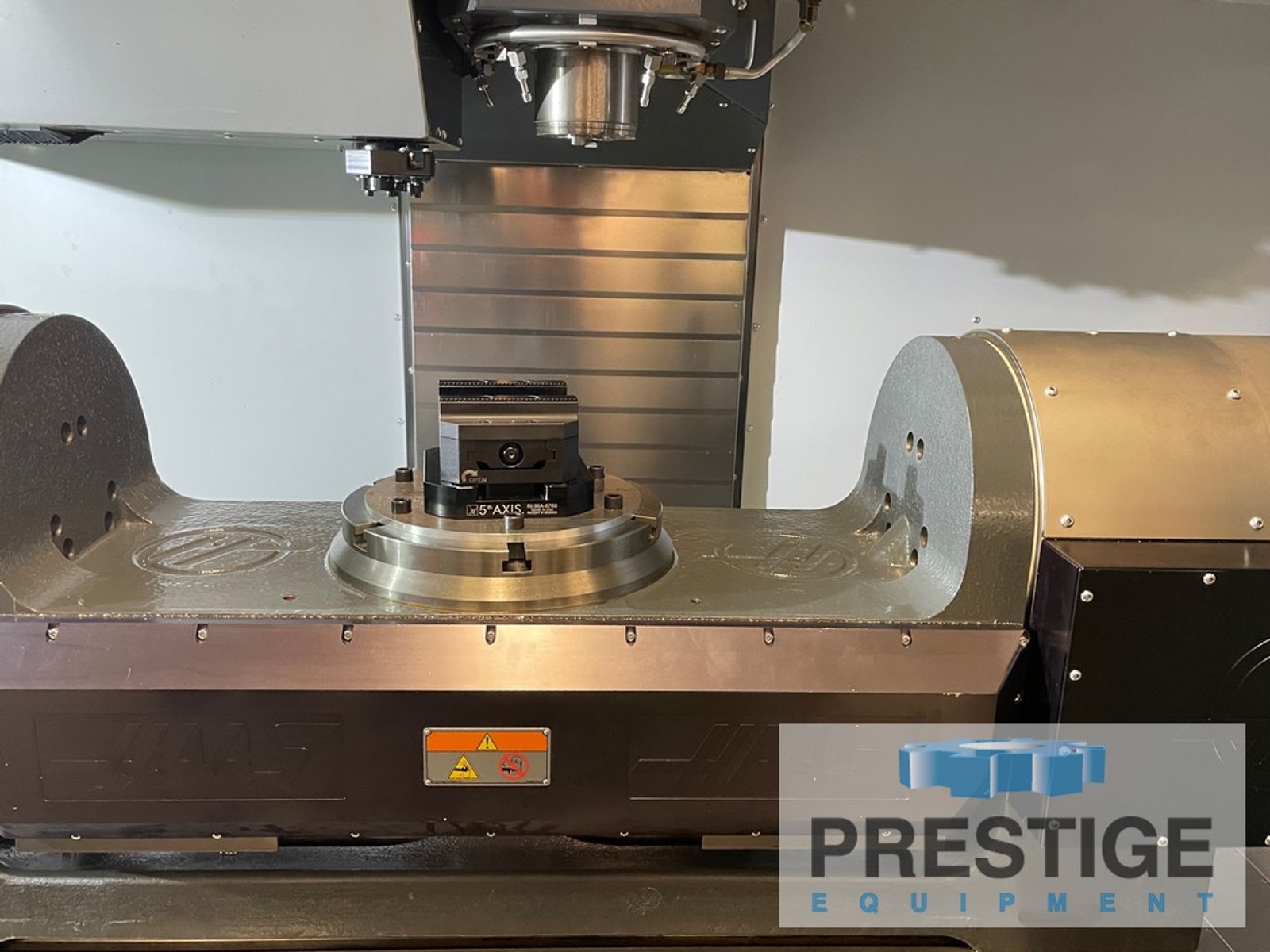

HAAS TR-310 Dual-Axis Trunnion Rotary Table

CAPACITY:
Platter Diameter ...................... 12.20"
Maximum Weight on Platter ............. 500 Lbs.
Maximum Swing of Part ................. 31"
Number of Standard T-Slots ............ 6 @ 60 Deg.

SPINDLE A (TILT):
Maximum Speed ......................... 50 Deg./Sec.
Max. Torque ........................... 300 FT/LBF
Backlash .............................. 30 arc-sec
Gear Ratio ............................ 72:1"
Timing ................................ 3:1
Brake Torque (100 PSI/6.9 Bar) ........ 1000 Ft/Lbf

SPINDLE B (ROTARY):
Maximum Speed ......................... 50 Deg./sec
Maximum Torque ........................ 300 Ft-lbf
Runout Max ............................ 0.0010"
Backlash .............................. 30 arc-sec
Gear Ratio ............................ 72:1
Timing ................................ 3:1
Brake Torque (100 PSI/6.9 Bar) ........ 100 Ft/Lbf

INDEXING-A (TILT):
Maximum Rotation/Step ................. +/-120 Deg.
Resolution ............................ 0.001 Deg.
Accuracy .............................. +/- 15 arc-sec
Repeatability ......................... 10 arc-sec

INDEXING-B (ROTARY):
Maximum Rotation/Step ................. 999.999 Deg
Resolution ............................ 0.001 Deg
Repeatability ......................... 10 arc-sec

NOTE:
Shipping Dimensions ................... 70" x 30" x 34"
Weight ................................ 2,200 Lbs.

NOTE:
Coming out of Government Facility. Only used a handful of times

No Video Available
