Haas VF-2TR 5-Axis, 30,000 RPM, Wireless Probe, 24 Side Mount ATC, TR160 Trunnion Table, New 2012, #32753

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

32753

Model

VF-2TR

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32753

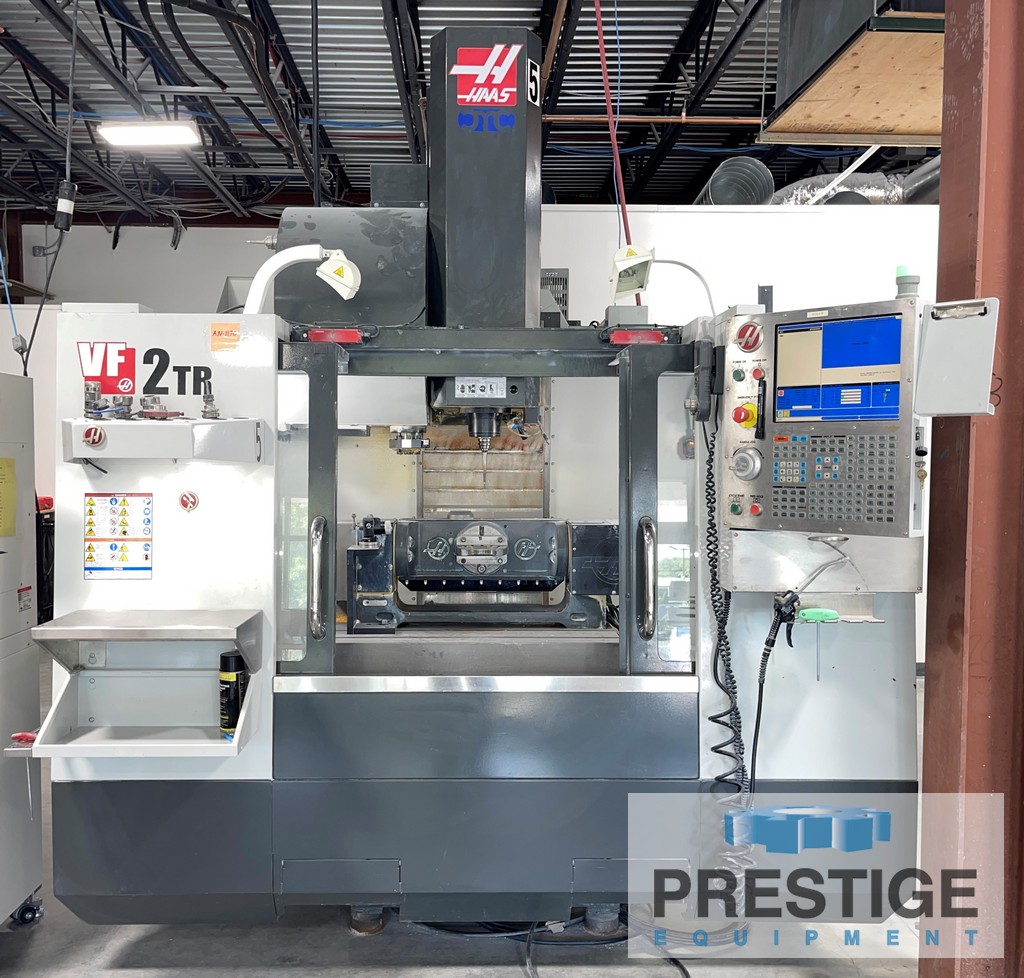

Haas VF-2TR 5-Axis CNC Vertical Machining Center

FEATURES:

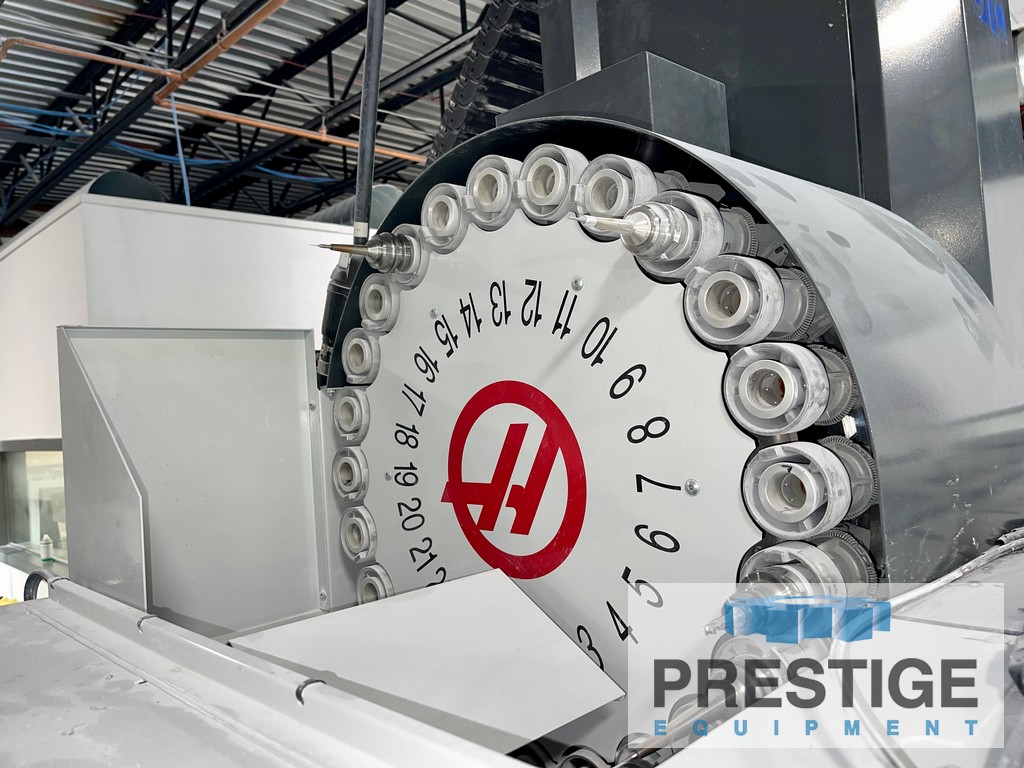

24 Station Side Mounted Tool Changer
30,000 RPM

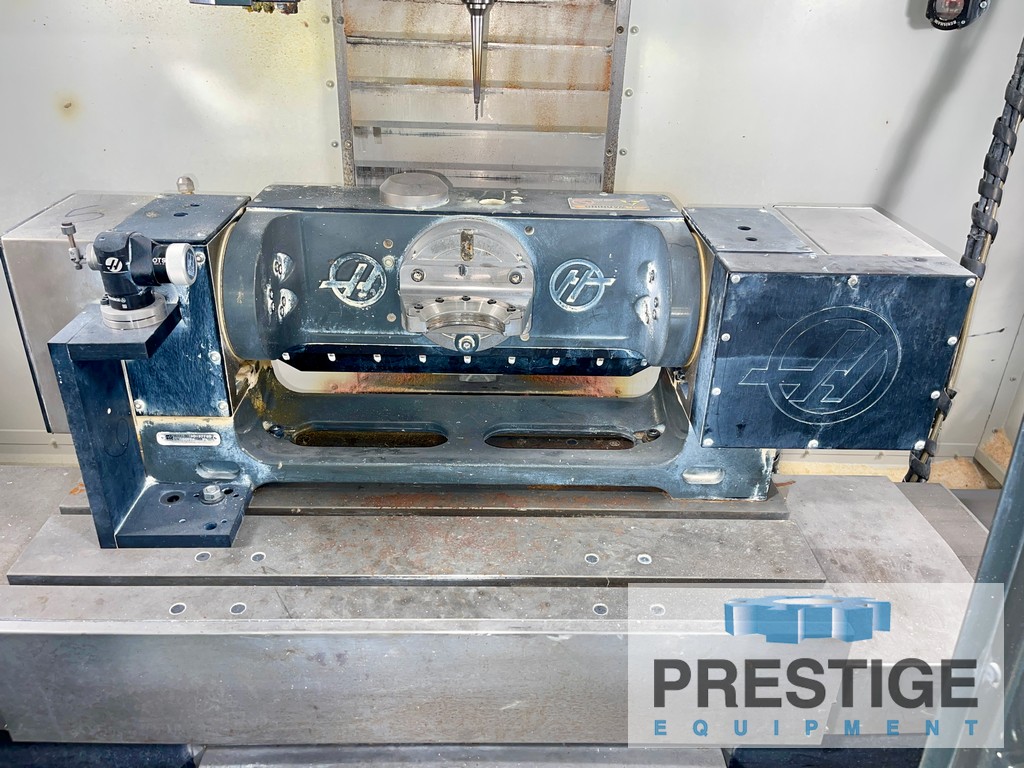

Haas TR-160 Dual Axis Trunnion Rotary Table
Wireless Intuitive Probing System

CAPACITY:
X-Axis Travels ........................ 30"
Y-Axis Travels ........................ 16"
Z-Axis Travel ......................... 20"
Table Size ............................ 36" x 14"
Maximum Weight on Table ............... 3,000 Lbs.
Spindle Speeds ........................ 30,000 RPM
Spindle Taper ......................... BT #30
Spindle Motor (208/230) ............... 20 HP
Rapid Feed Rates (X,Y,Z) .............. 1000 IPM
Tool Changer .......................... 24 ATC
Approximate Weight .................... 8,500 lbs

EQUIPPED WITH:

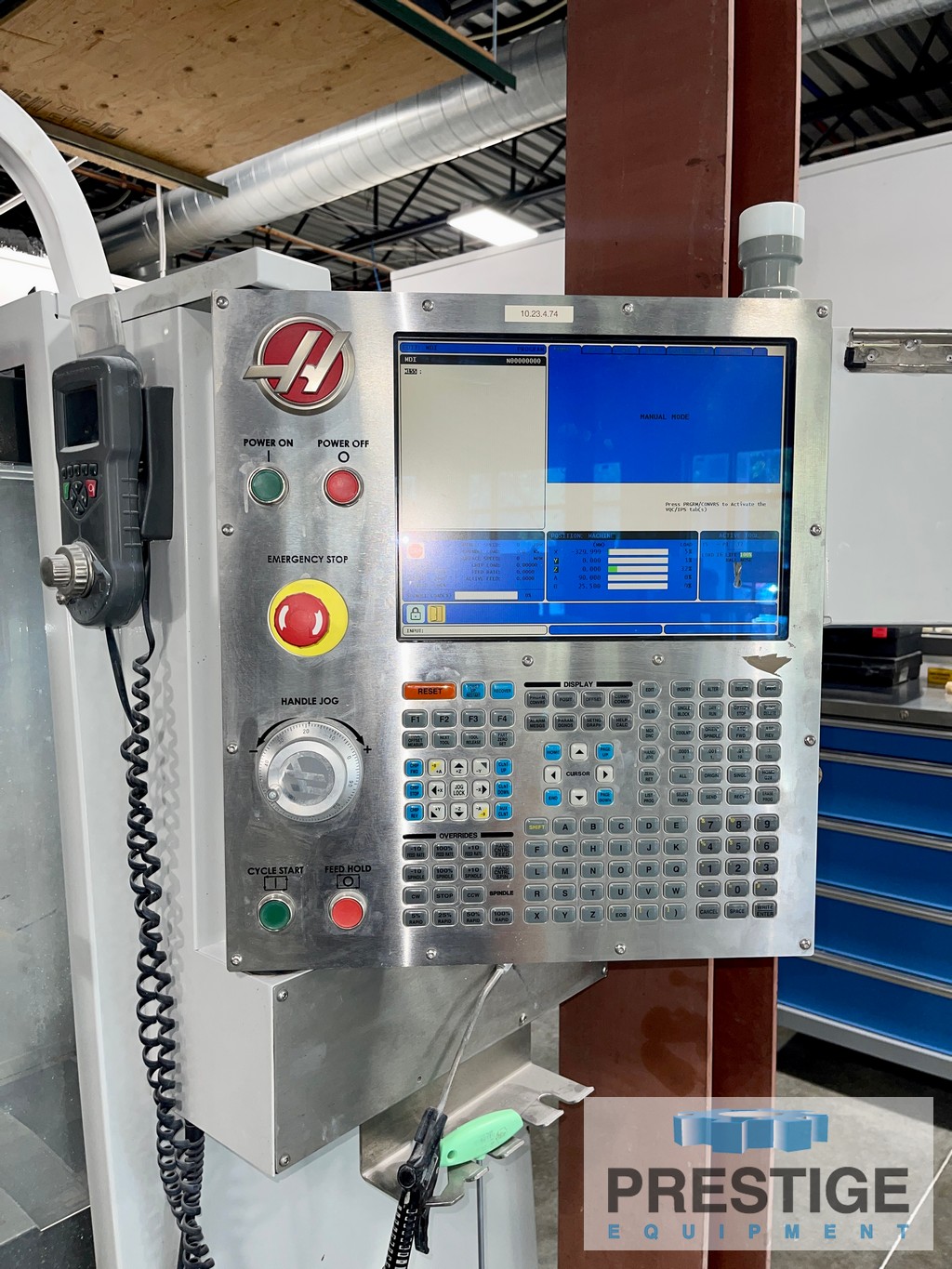

Haas CNC Control
Ethernet Interface
User Definable Macros
Wireless Intuitive Probing System
High Speed Machining
24-Station Side Mounted Automatic Tool Changer
30,000 RPM Spindle
Coordinate Rotation & Scaling
Spindle Orientation
High Intensity Lighting
Haas Low Maintenance Coolant
Pre-Wired for 4th & 5th Axis
Haas TR160 Dual-Axis Trunnion Rotary Table
Remote Jog Handle
Chip Auger

NOTE:
Inspect in Plant Under Power
