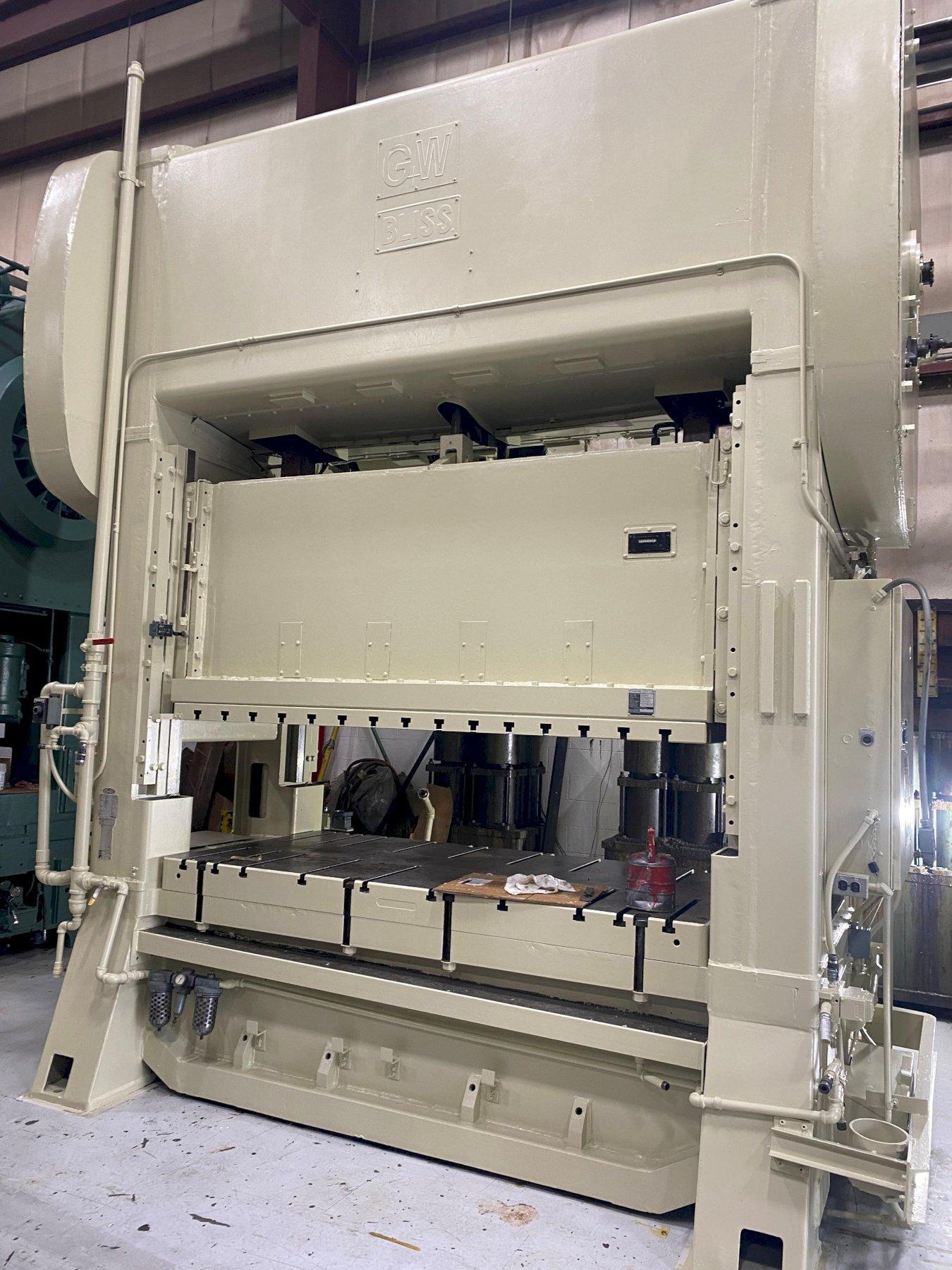

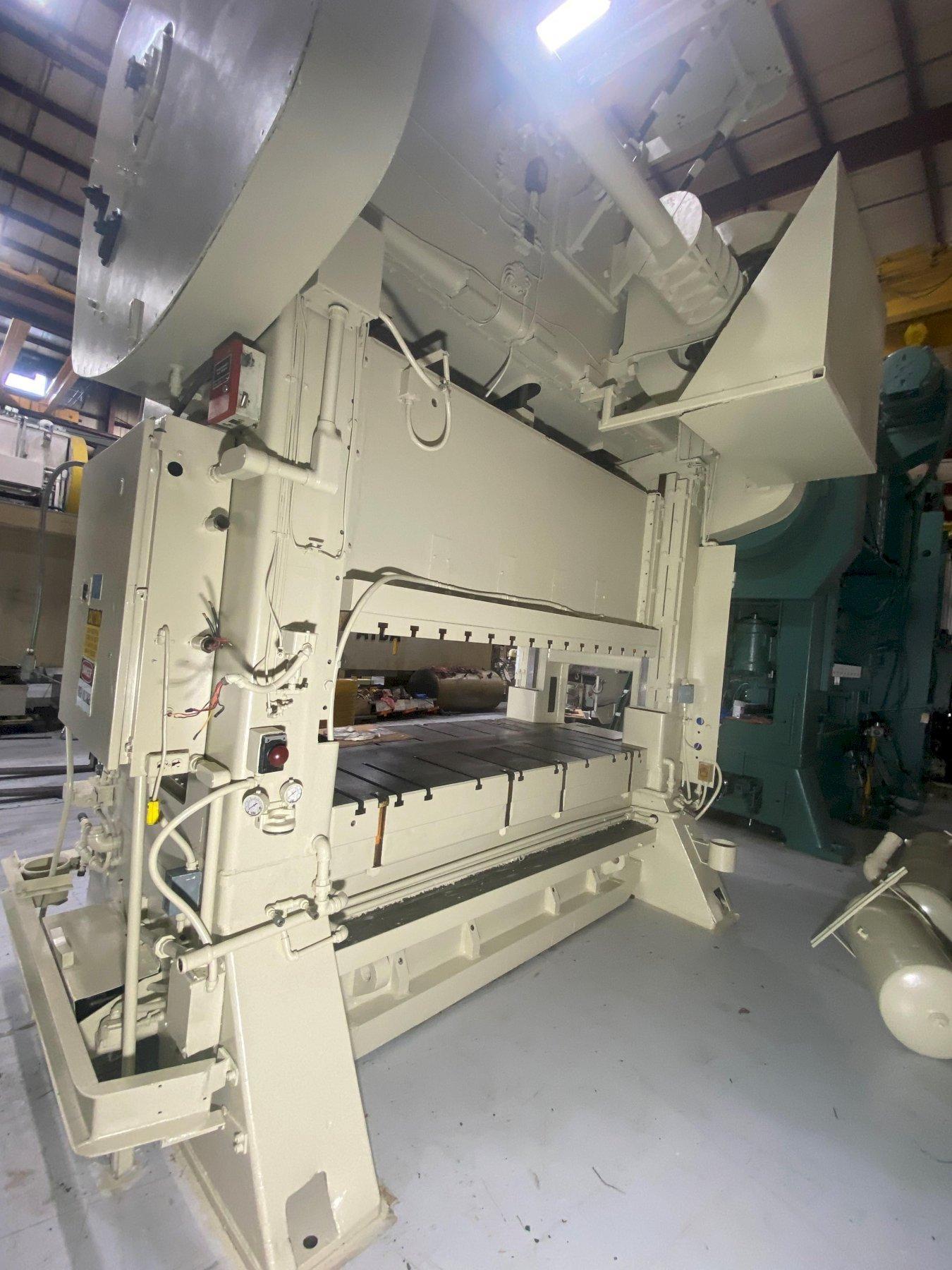

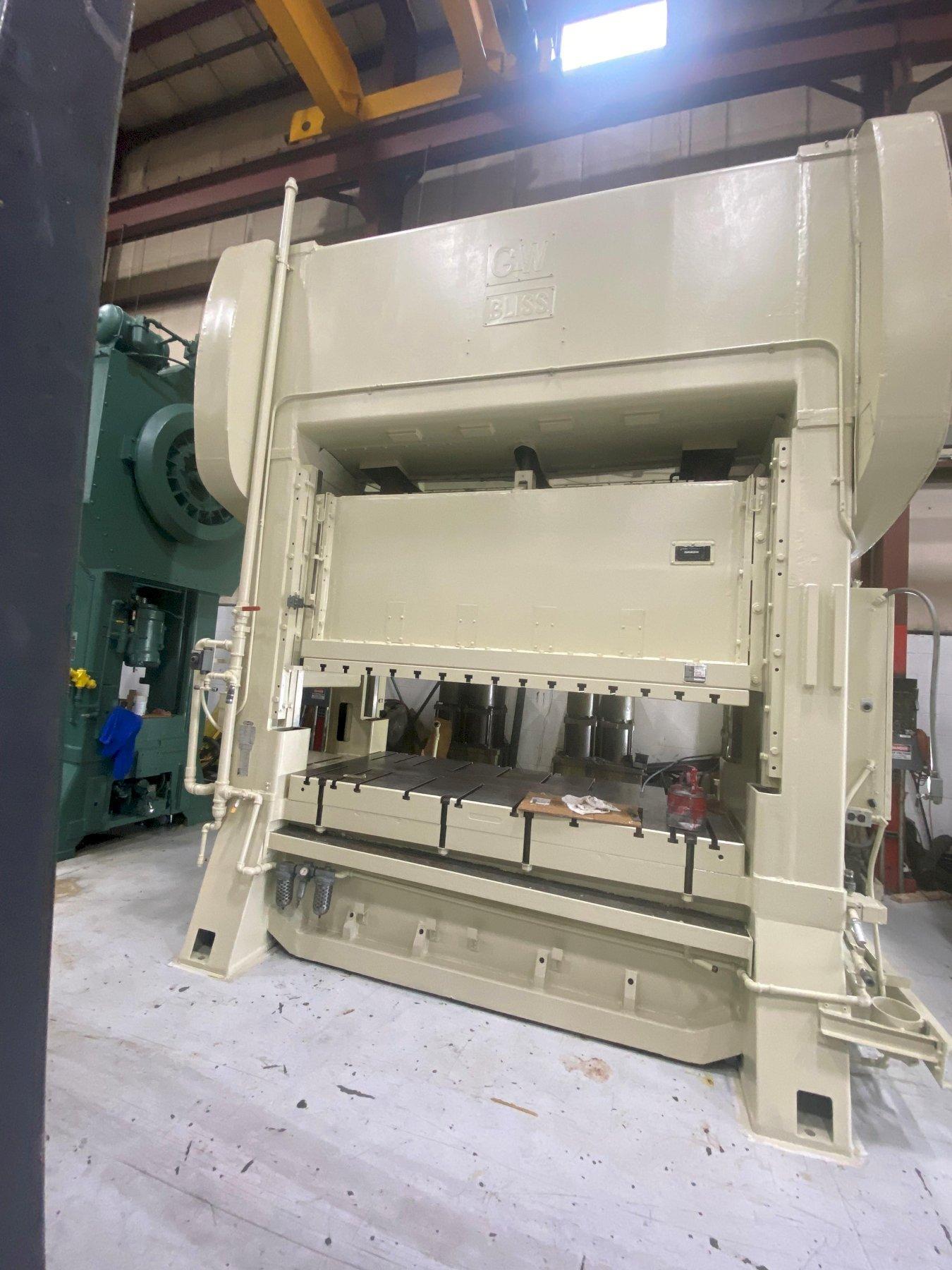

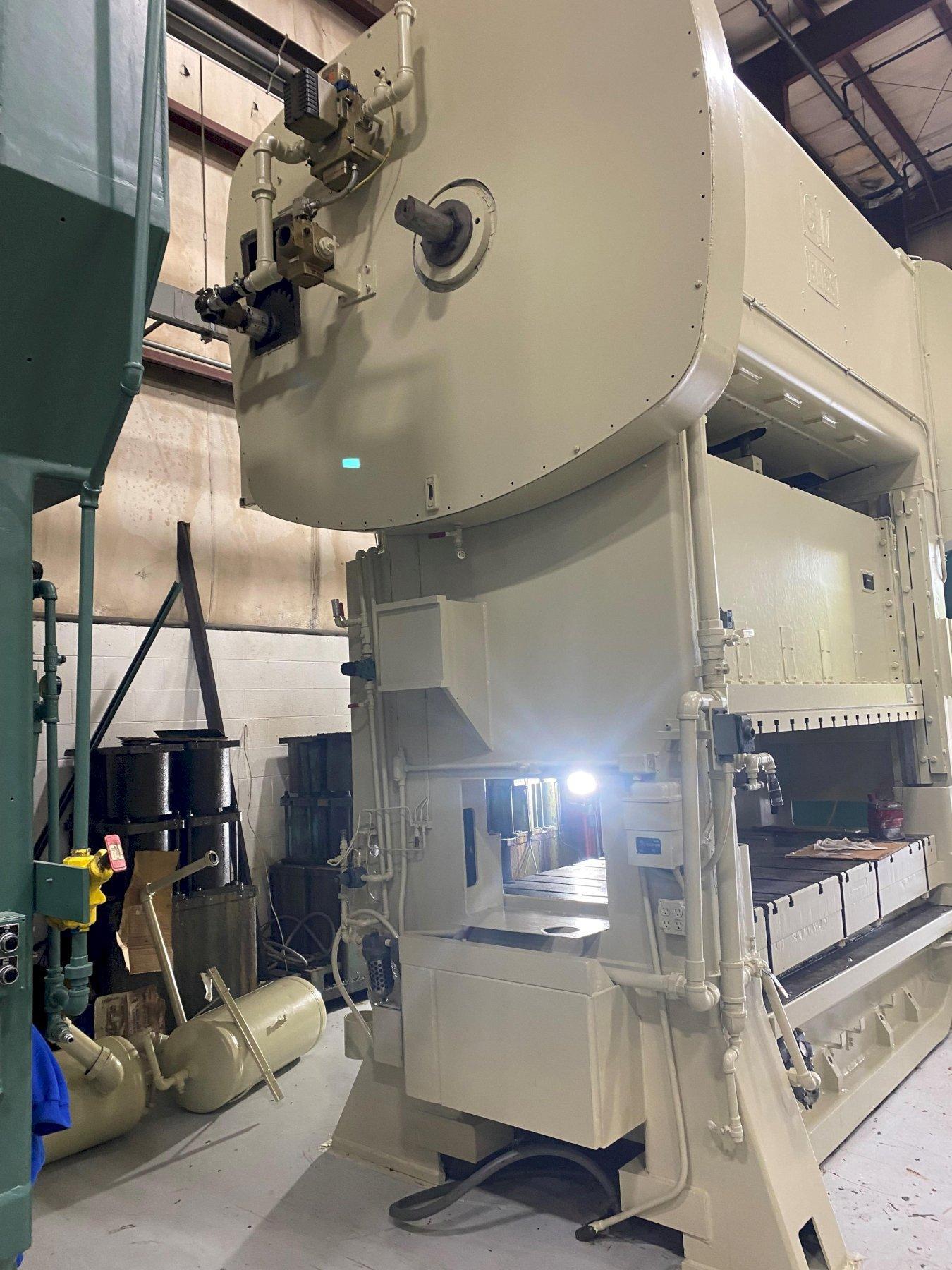

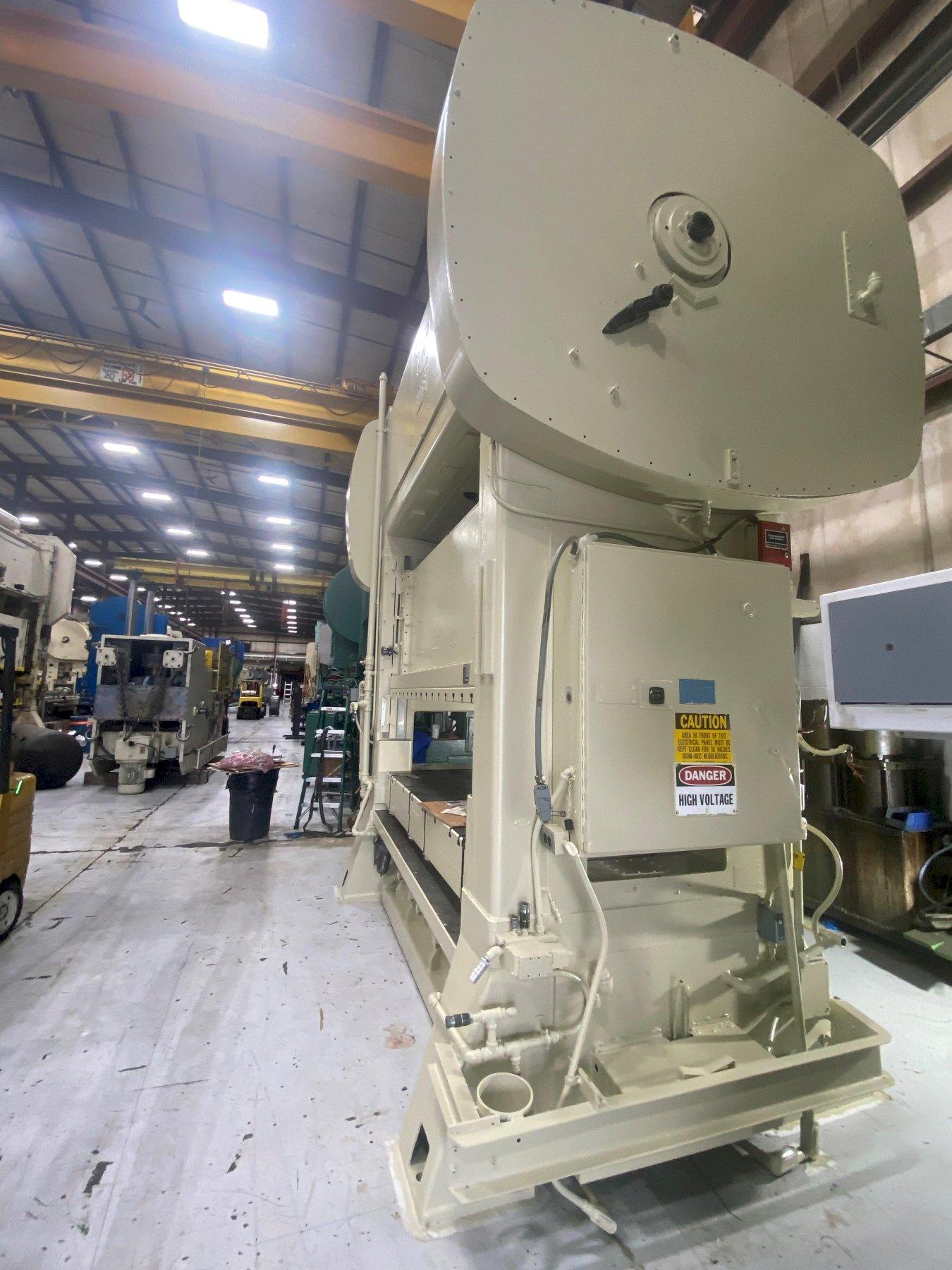

200 Ton BLISS SC2-200-96-48 Used Straight Side Mechanical Metal Stamping Press For Sale, Rebuild

Manufacturer

BLISS

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2412

Model

SC2-200-96-48 SSDC Press

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 200
Stroke - 8 inches
Shut Height - 30 inches
Adjustment - 10 inches
Bed Size - 96" LR x 48" FB
Ram Area - 96" LR x 48" FB
SPM - 35-70 VSPM


Standard Specifications
Used Bliss Press Model SC2-200-96-48
Straight Side Double Crank Press
200 ton Capacity
8" Stroke
30" Shut Height
10" Adjustment
96" LR x 48" FB Bed Area
96" LR x 48" FB Slide Area
35-70 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram Plate and Bolster
Single End Drive
Motors and Controls
24.5" Wide Windows
Floor Standing

New Optional Electrical Package Not included in Price:
Toledo Integrated Press Pilot 150 Clutch and Brake Controller
Toledo Integrated DPP 2.0 PLS DIE PRO UNIT
8 channel PLS Outouts
8 Channel Die Protection Outputs
Emergency Stop and Top Stop Outputs
New Push buttons selector switches and speed controls
Control system to monitor lube System

Price Includes:  Full Mechanical, Electrical, Air and Lubrication Recondition.  All work is performed by party professionals and includes an extended Warranty!  For "As is" pricing loaded onto a truck from our Livonia Michigan warehouse please feel free to contact your sale representative.

This 200-ton Bliss Press can be seen under power in the S&G Press Livonia Warehouse upon completion of Rebuild!

Used 200-ton Bliss Straight Side Press For Sale
