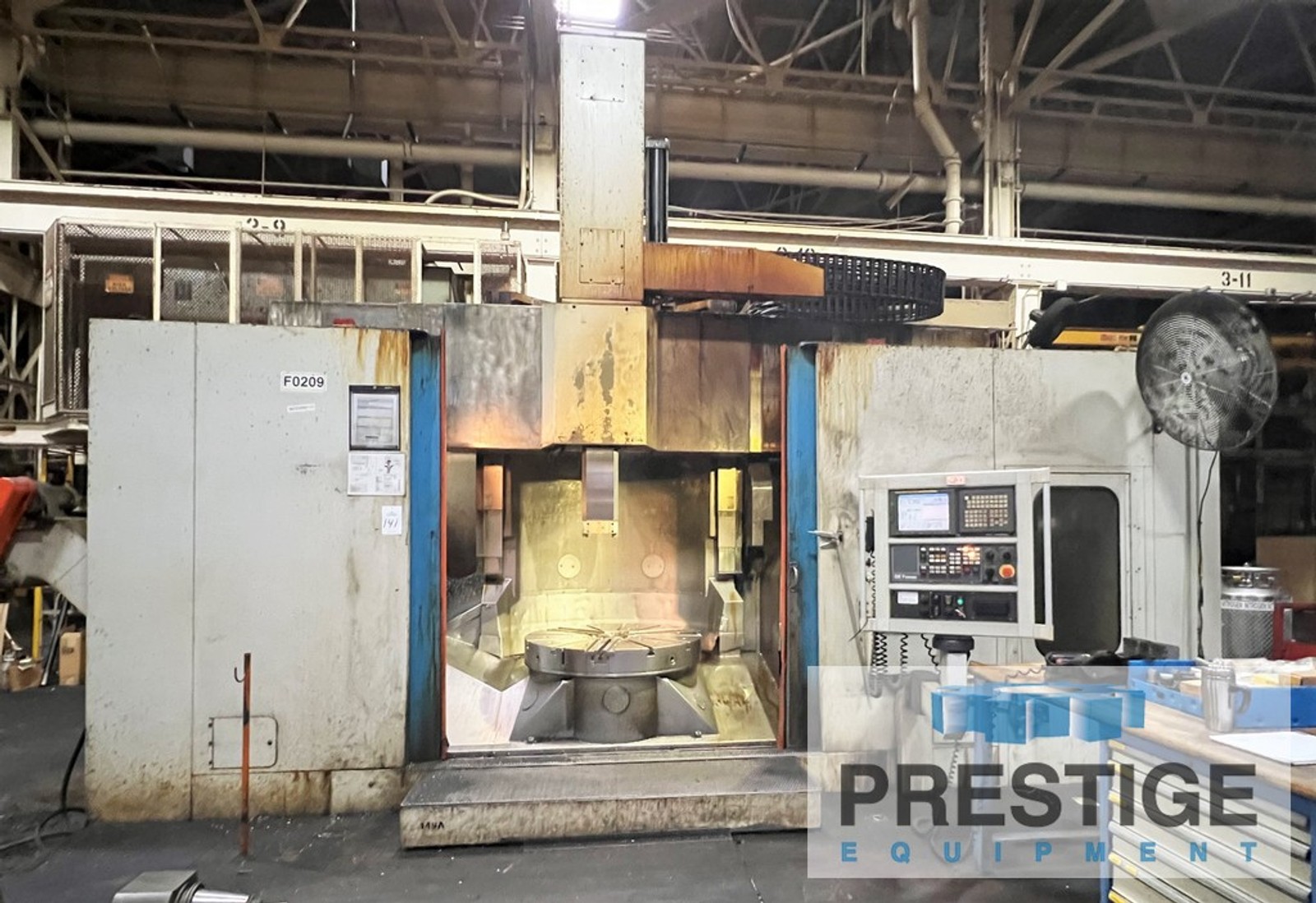

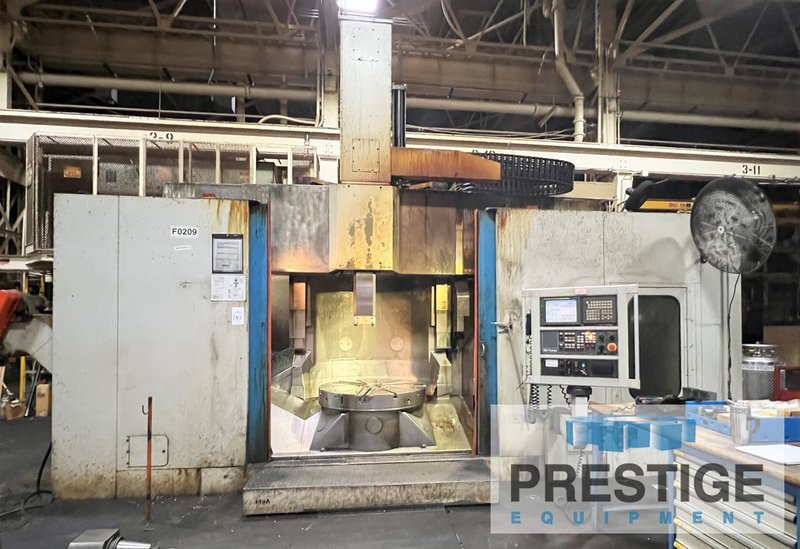

49" Giddings & Lewis VTC-1250, 26 ATC, 66" Swing, 59" Turning Height, 100 HP, Fanuc 160i, #32728

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32728

Model

VTC-1250

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32728

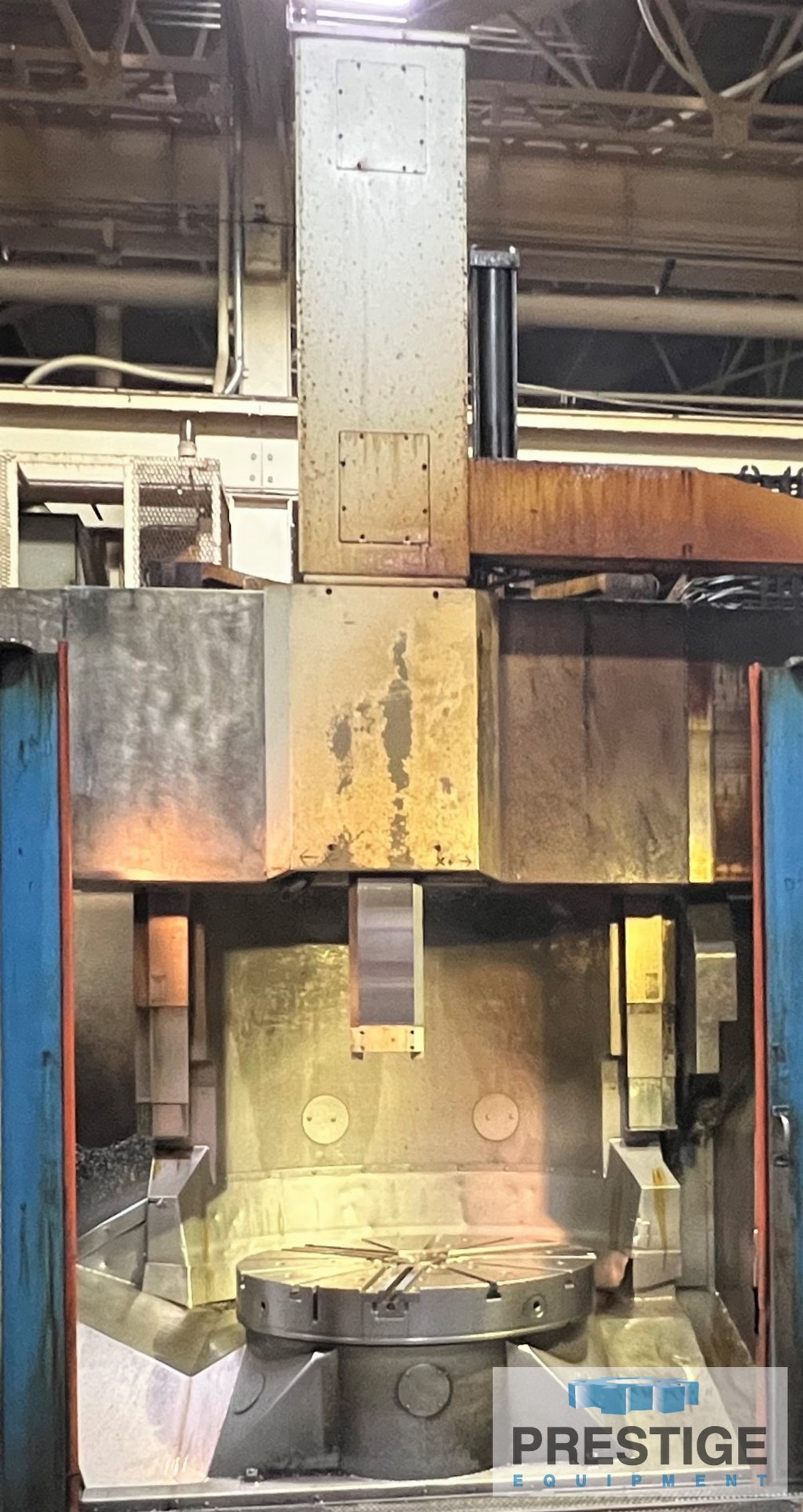

Giddings & Lewis VTC1250 49" CNC Vertical Boring Mill

FEATURES:

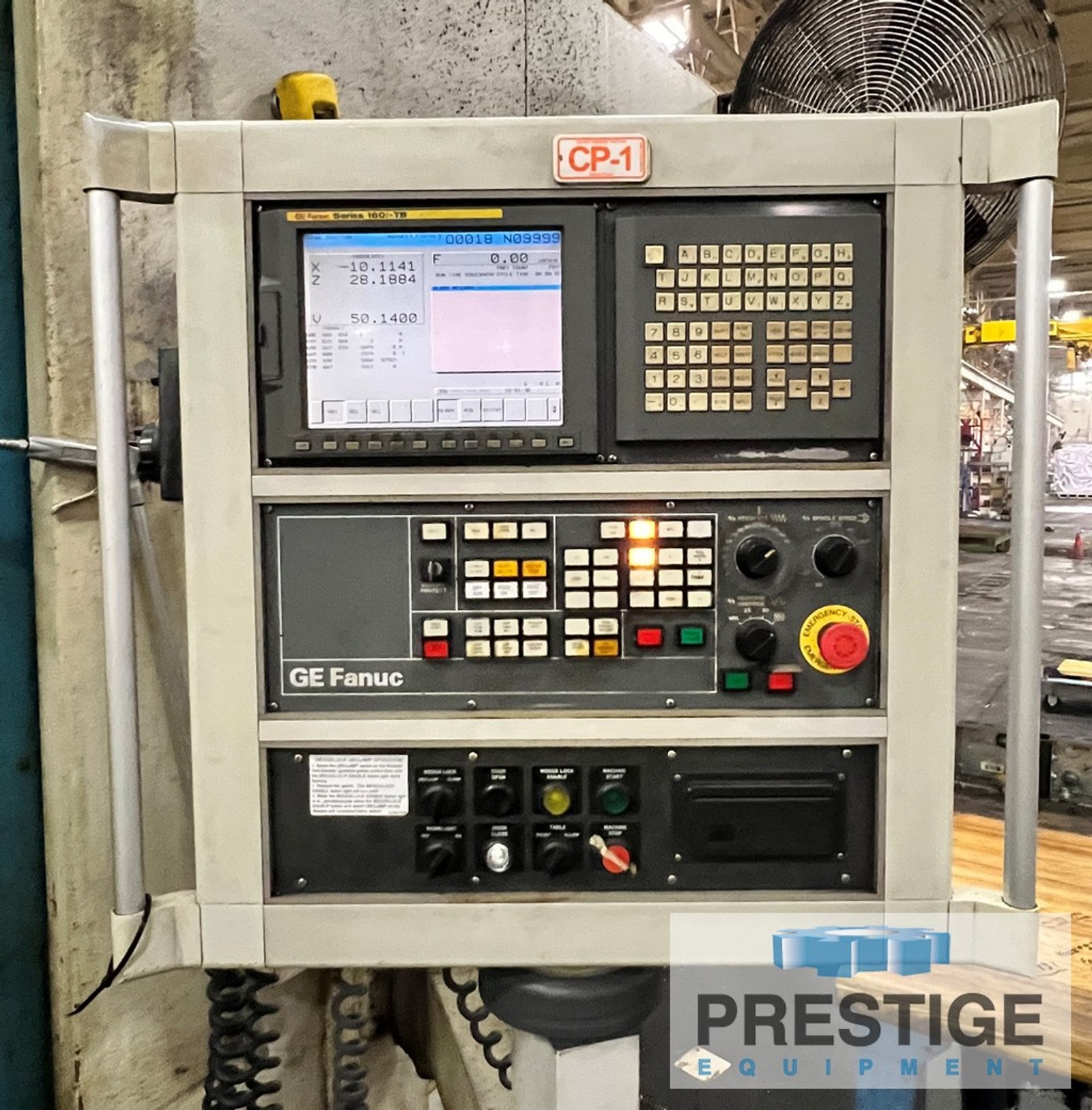

Fanuc 160i-TB CNC Control
49.21" 3-Jaw Hydraulic Chuck

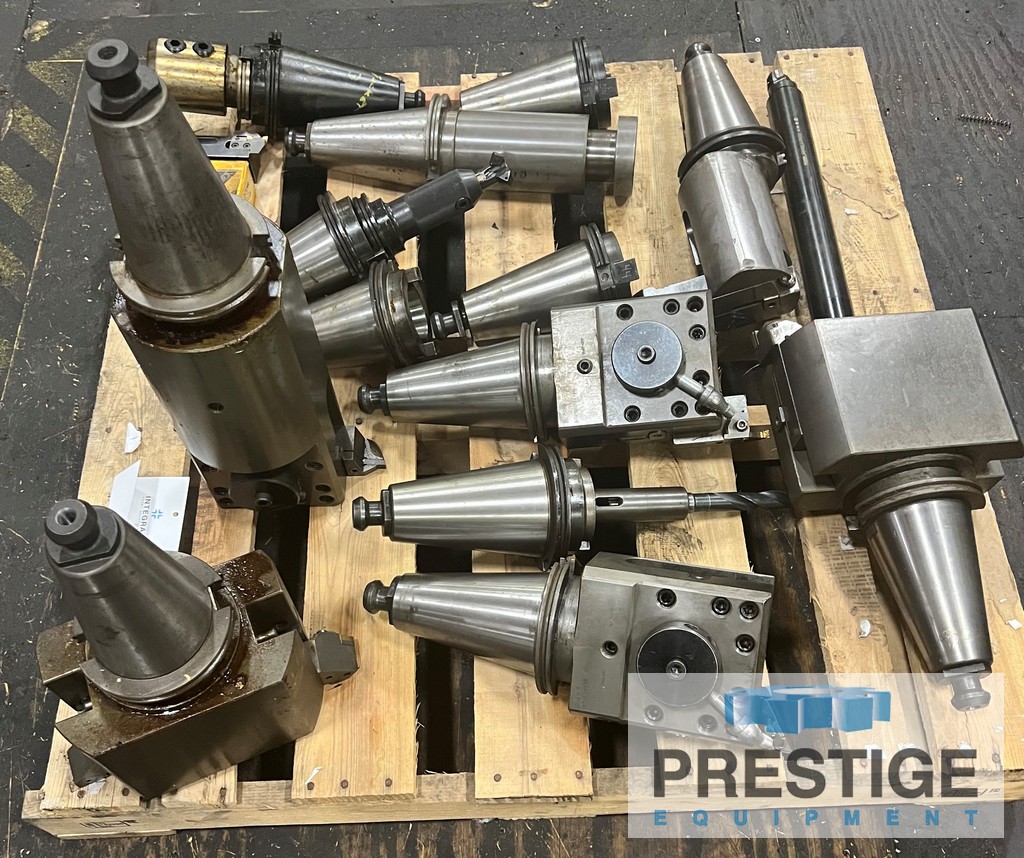

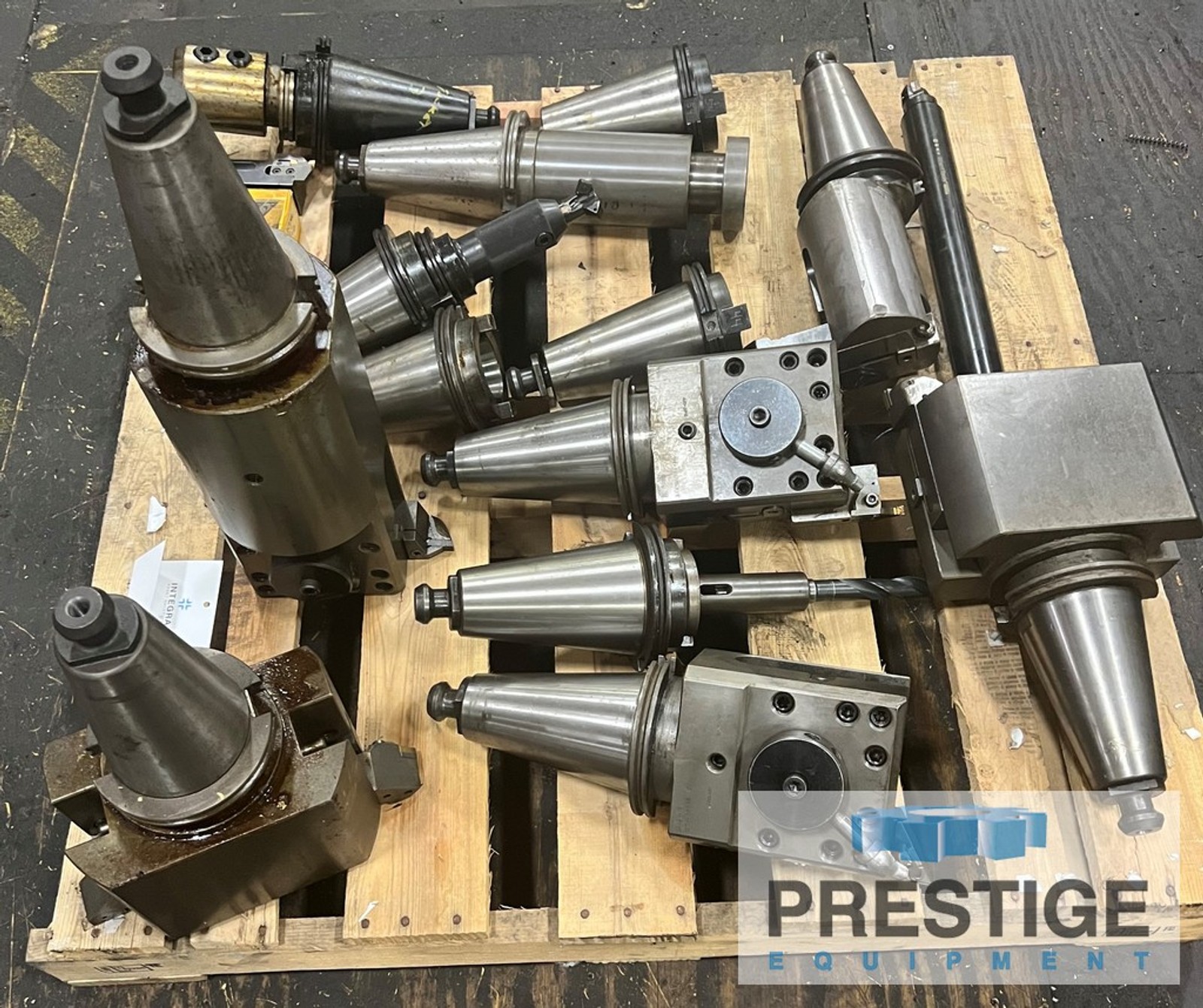

26-Position Automatic Tool Changer (6-Wedge & 20-KM80)
Coolant Through Ram
Thread Cutting
Tool Retract Return Option
Steel Sliding Way Covers
Probing
Heidenhain Linear Scales
Chip Conveyor

Specifications:

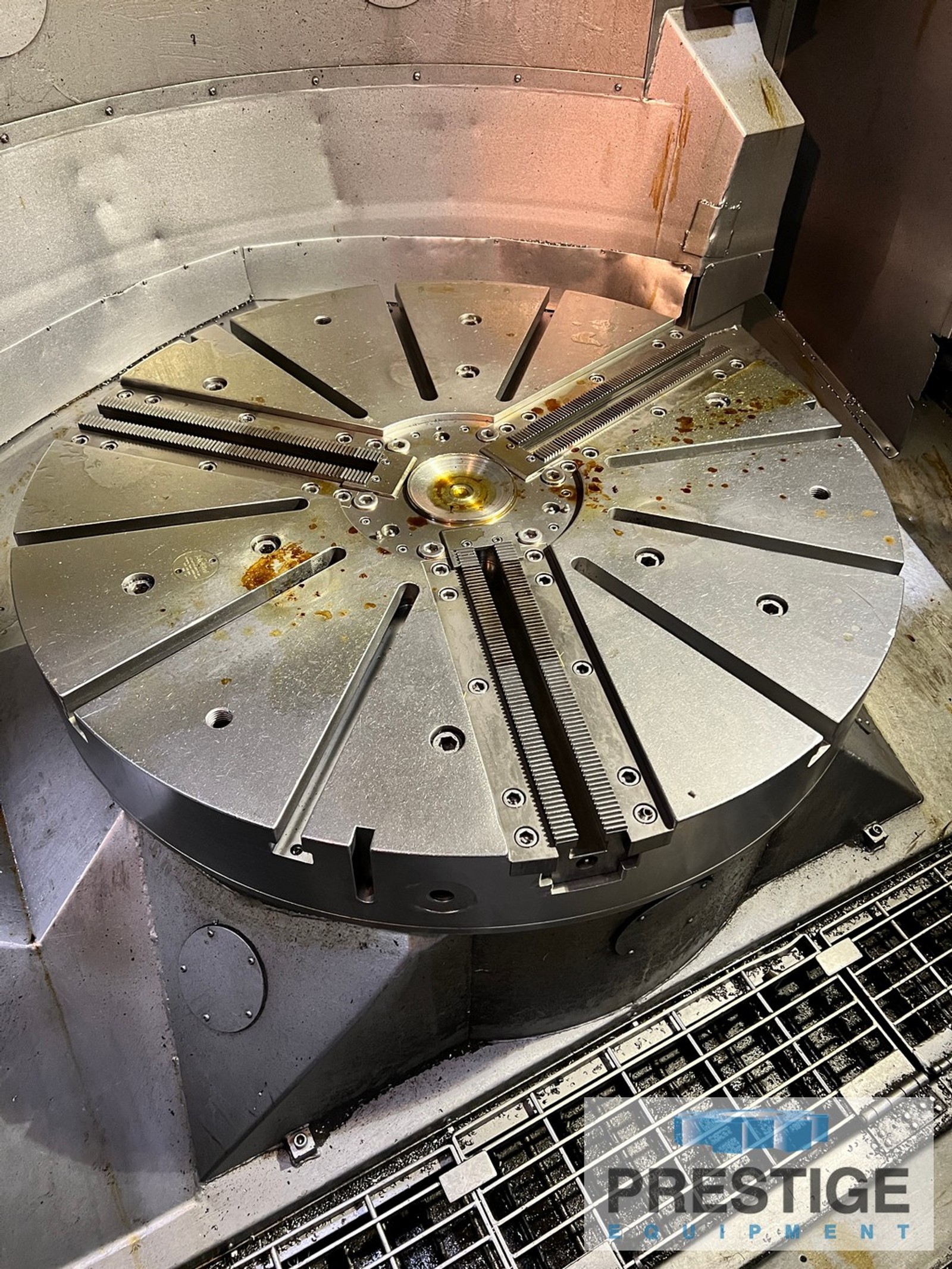

Table Diameter ........................ 49.21"
Maximum Turning Diameter .............. 66.93"
Maximum Height Under Ram Face ......... 59.05"
Ram Stroke, Z-Axis .................... 49.21"
Ram Travel, Left of Center ............ 41.73"
Ram Travel, Right of Center .......... 41.73"

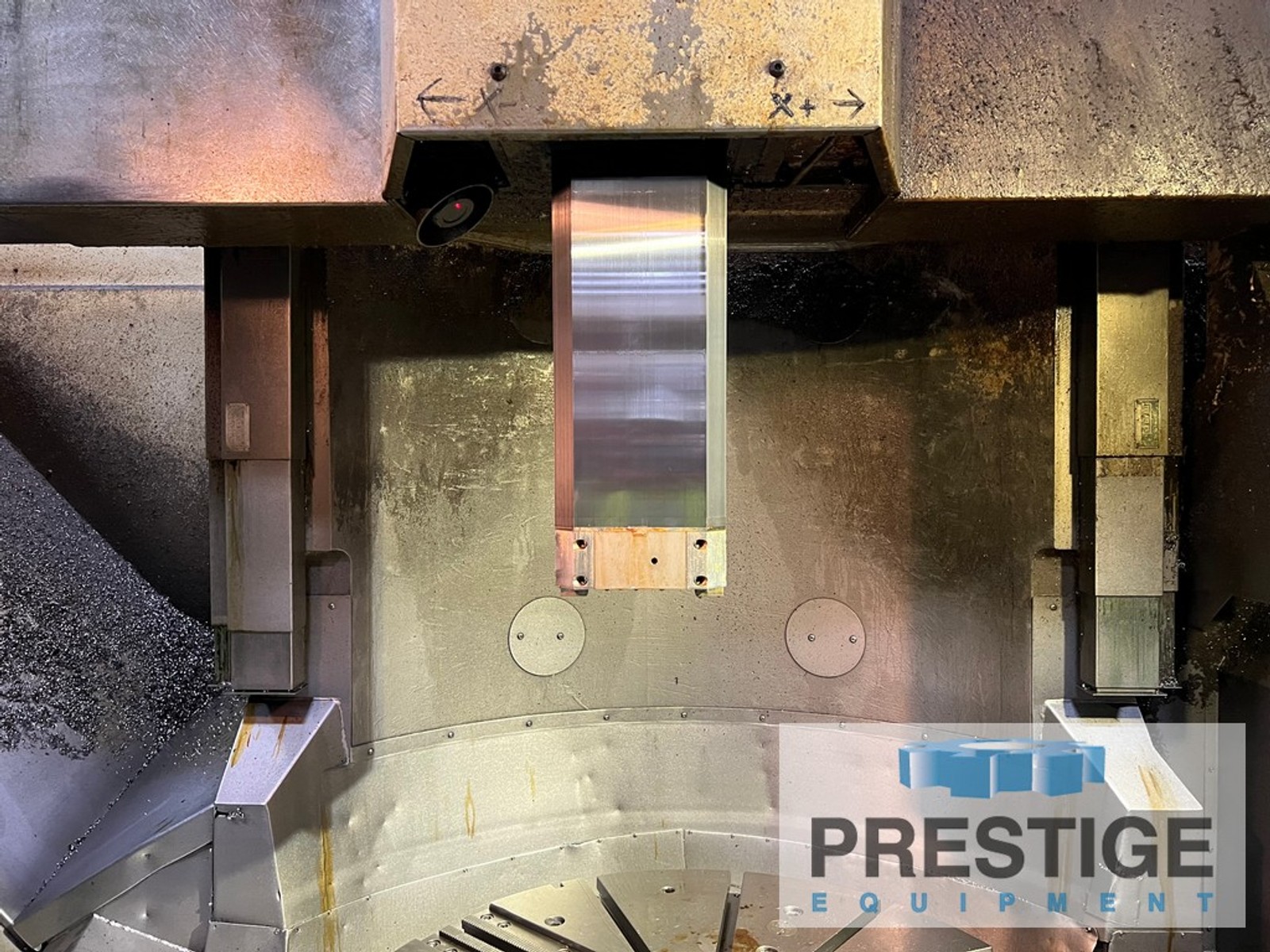

Ram Cross Section .................... 9.84" x 9.84"
Table Speeds, 2-Ranges ................ 4-500 RPM
Table Motor .......................... 100 HP
Rapid Traverse ........................ 787 IPM

EQUIPPED WITH:
Fanuc 160i-TB CNC Control
49.21" 3-Jaw Hydraulic Chuck
26-Position Automatic Tool Changer (6-Wedge & 20-KM80)
Coolant Through Ram
Thread Cutting
Tool Retract Return Option
Steel Sliding Way Covers
Probing
Heidenhain Linear Scales
Chip Conveyor
100 HP Table Drive
