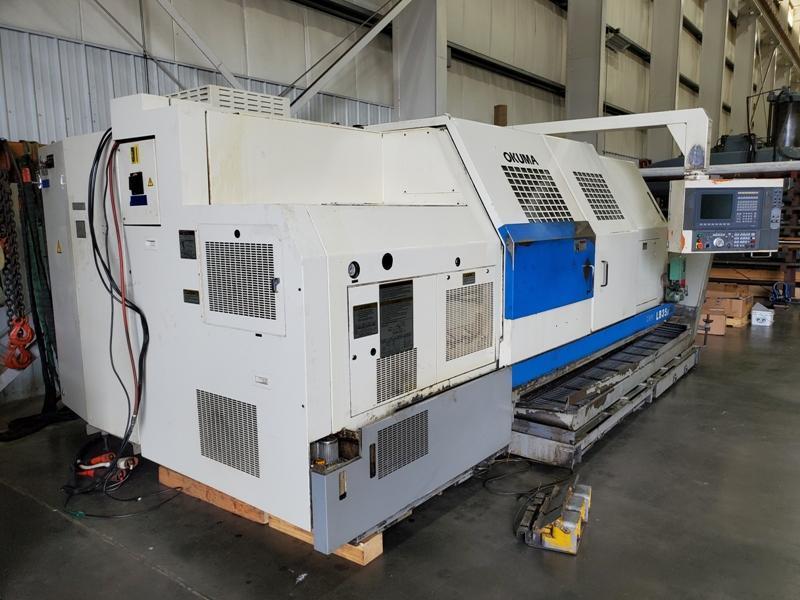

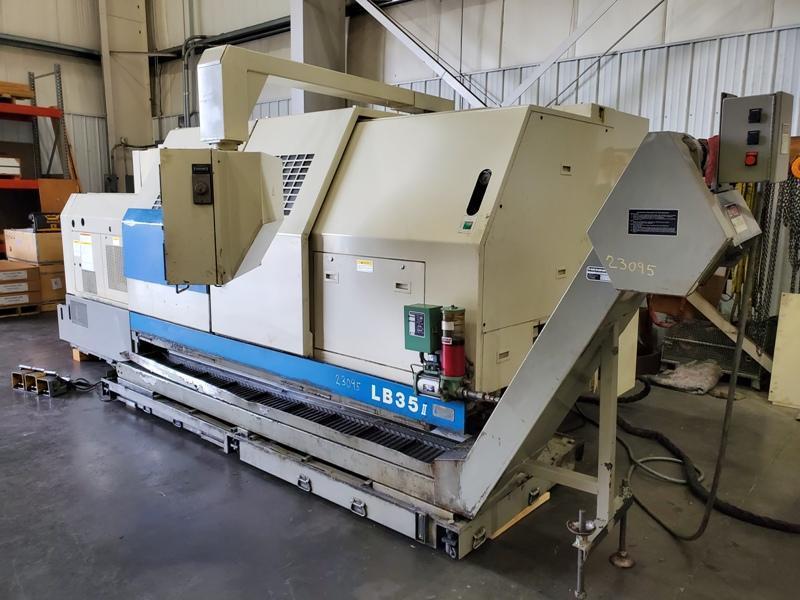

OKUMA LB35II CNC LATHE

Manufacturer

Category

Lathes

Type

LATHES, CHUCKING, CNC

Stock

23095

Model

LB35 II

Dealer Location

Pennsylvania

Request a Quote
View Contact Information

Spec Sheet

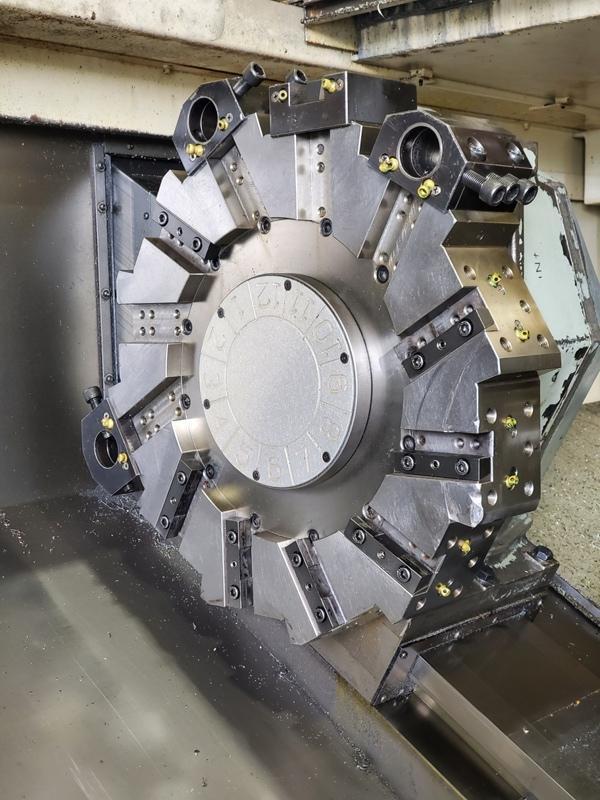

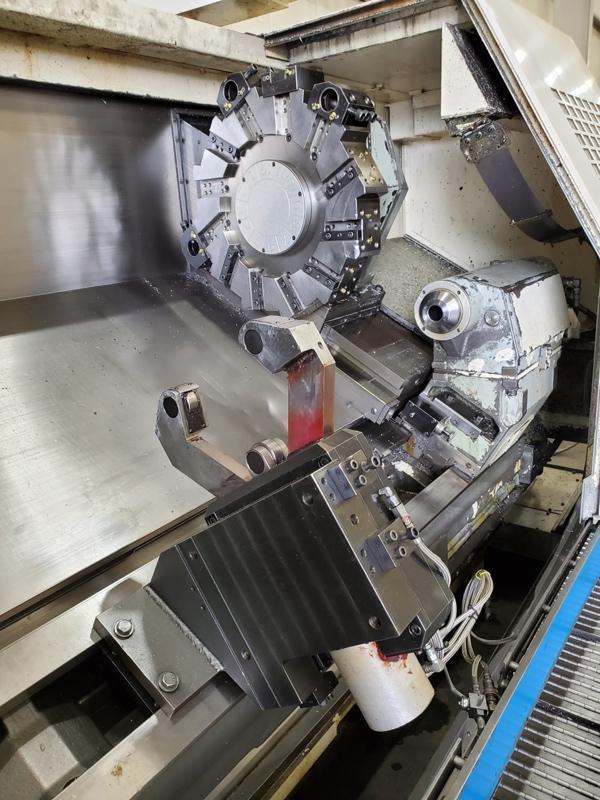

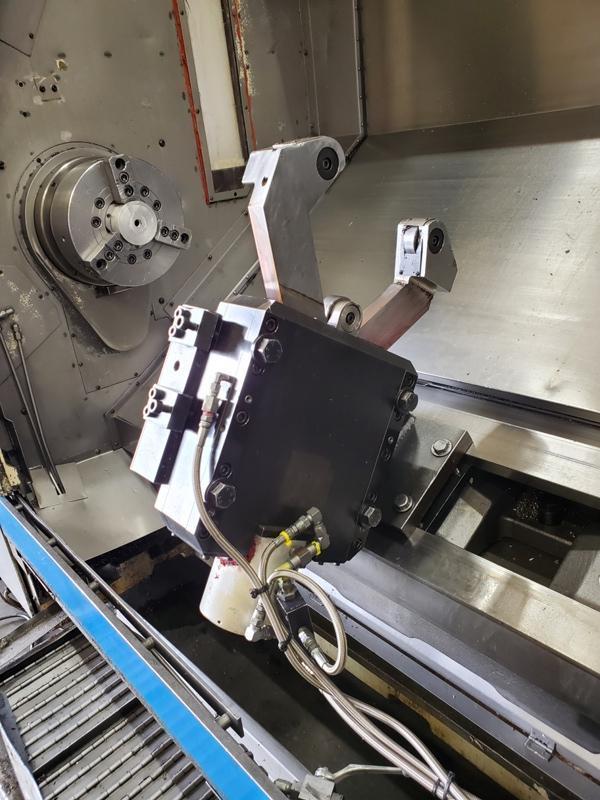

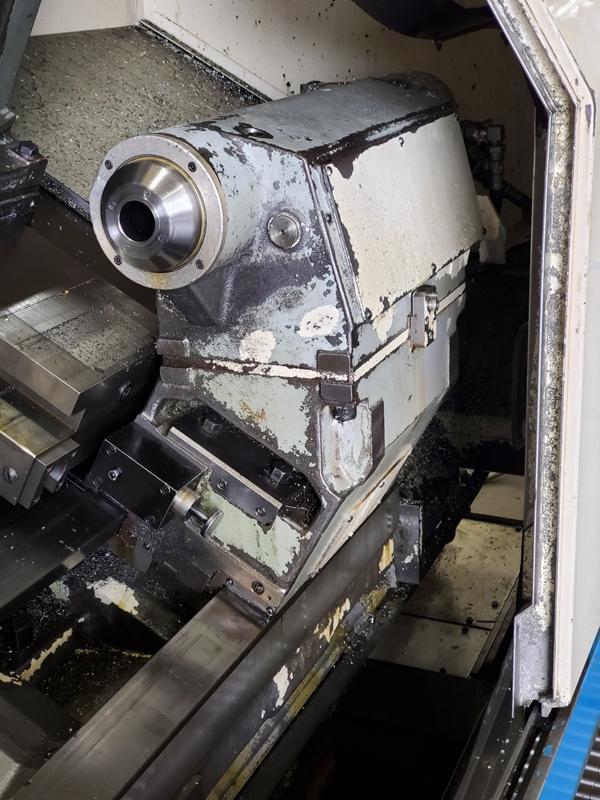

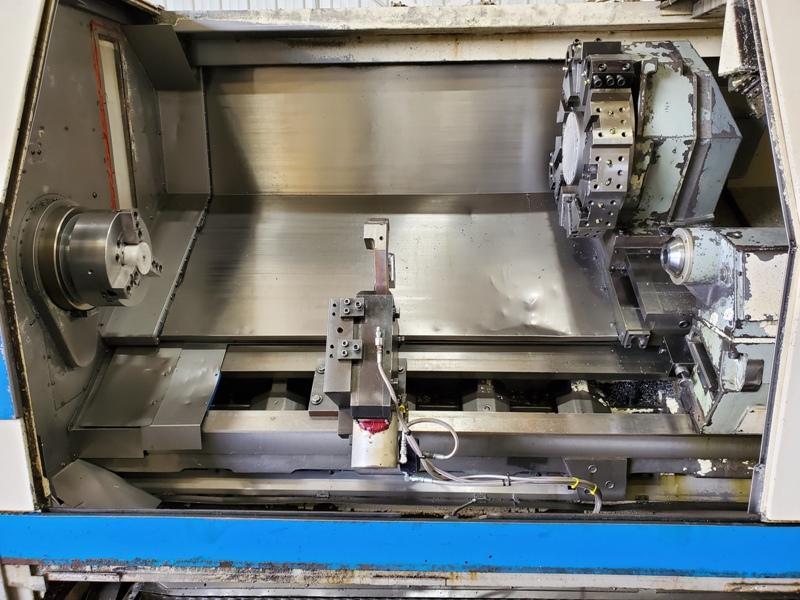

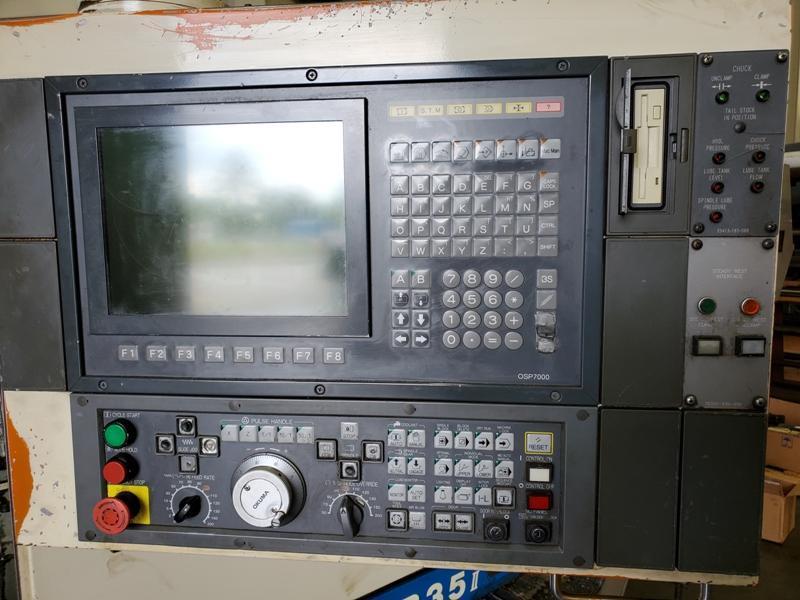

OKUMA LB35II CNC LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $29,500.00 HMC Stock # 23095 Machine Serial No.: Unknown Machine Model No.: LB35II New Date: 1996 Machine just purchased. Please check back later for specifications and photos. OKUMA LB35-II CNC LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA … $29,500.00 HMC Stock # 23095 Machine Serial No.: 0708.0283 Machine Model No.: LB35-II C - 1500 New Date: September 1969 Standard Machining Diameter: 13.78" Maximum Machining Diameter: 18.11" Distance Between Centers: 59" Maximum Swing Over Saddle: 16.93" Spindle Speeds: Up to 3200 RPM Spindle Nose Type: A2-8 Spindle Motor: 40/30 HP Tool Turret Type: V12 Fixed Tool For Lathe Tailstock Taper: #5 Morse Okuma OSP 7000L CNC Control OSP One Touch 1GF-L Software with Manuals EQUIPPED WITH: 8" Roller Type Steady Rest with Lincoln Grease Lubrication System (requires compressed air) Steady Rest is Manually Positional Tailstock is Manually Positional via Towing with the Tool Carriage (1) 12" Kitagawa B212, 3 Jaw Hydraulic Chuck with Fine Serration Master Jaws and Bolt on Top Jaws (1) Advanced Tool Systems Collect Chuck System, #A8-S30H-BB with Assorted S30 Collect Pads (1) Live and (1) Bull Nose and (1) Dead Centers All with #5 Morse Taper (4) Turning Tool Holders (5) Boring Bar Type Tool Holders (5) Boring Bar Bushings Assorted Wrenches, Splash Guards, Cast Iron Machine Mounting Pads Slat Type Chip Conveyor with built in Coolant Tank System Forward – Reverse – Stop Operation for Chip Conveyor Machine is Factory Wired For 220 Volt Operation Machine Has Internal Multi Tap Transformer for the Following Connections: 220/240/380/415/440/480 Volts Full Load Amps: 99.3 / 49.7 Built in Hydraulic System Tank Approx. Maximum Distance Face of Chuck to Tailstock Quill Face: 64" (no center in quill) Separate Adjustable Hydraulic Pressure Controls for Chuck and Tailstock Quill Has a Full Set of OEM Manuals and Schematics and 3-1/2" Computer Disk Backups Overall Size: Machine w/o Chip Conveyor: 192" LR x 99" FB x 90" High (on 4" Blocks) x 28,000 Lbs. Approx. Chip Conveyor / Coolant System: 172" Long x 51" Wide x 75" High x 1,000 Lbs. Approx. Skid of Tooling and Miscellaneous: 28" x 28" x ?? High x ?? Lbs. MORE INFORMATION Copy the links below to see more information as taken form the manuals: https://www.hildebrandmachinery.com/23095-catalogspec.pdf https://www.hildebrandmachinery.com/23095-controlmanual.pdf https://www.hildebrandmachinery.com/23095-igfparameters.pdf https://www.hildebrandmachinery.com/23095-inspectionreport.pdf https://www.hildebrandmachinery.com/23095-machinespecifications.pdf https://www.hildebrandmachinery.com/23095-mcodefunctions.pdf https://www.hildebrandmachinery.com/23095-softwaredata1.pdf https://www.hildebrandmachinery.com/23095-softwaredata2.pdf https://www.hildebrandmachinery.com/23095-technicaldata.pdf
