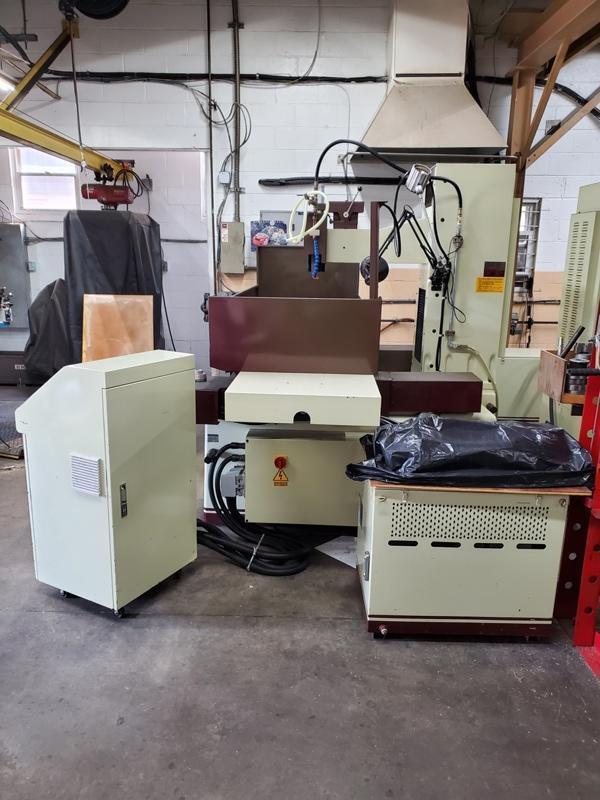

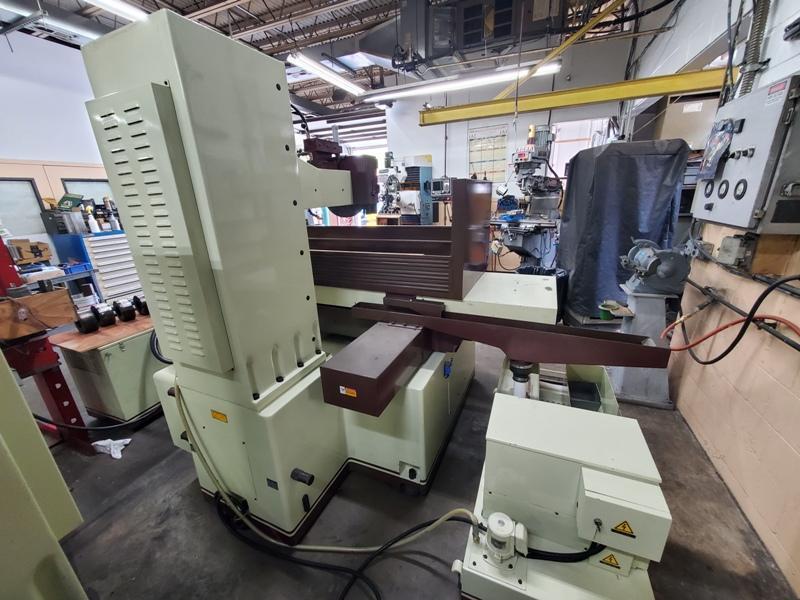

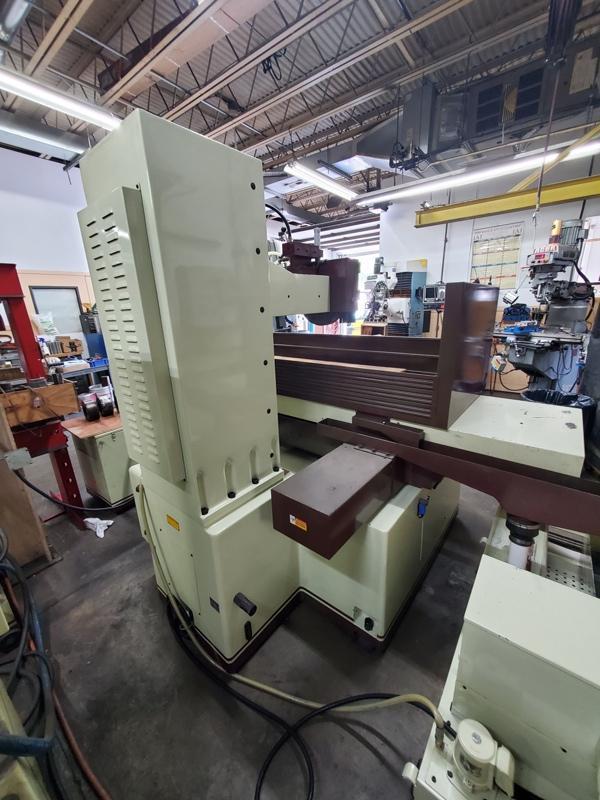

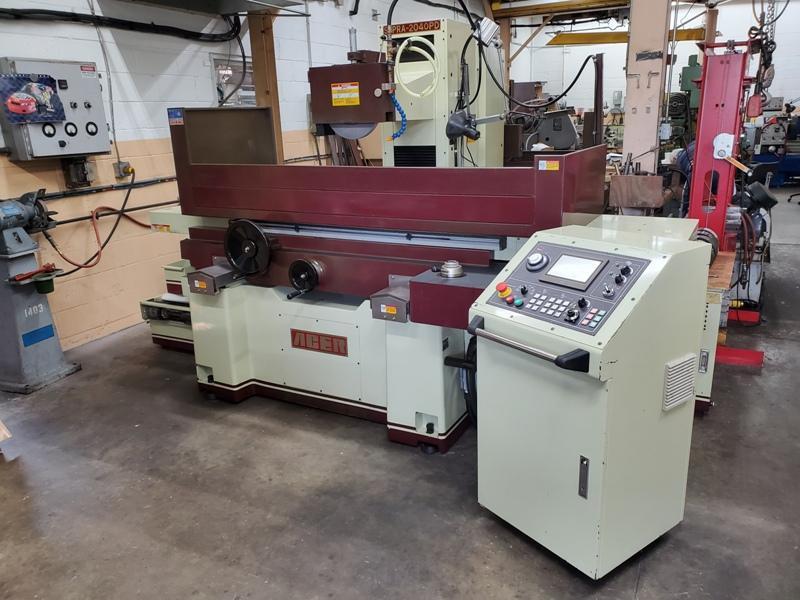

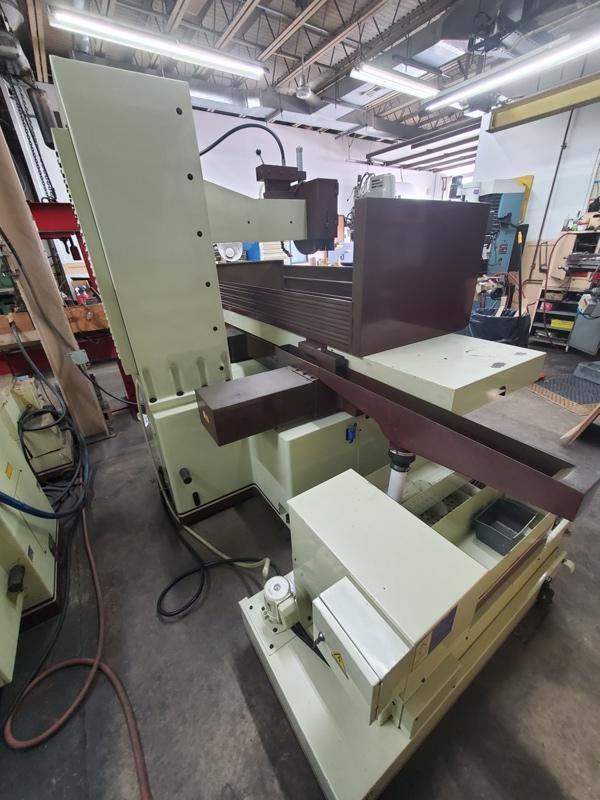

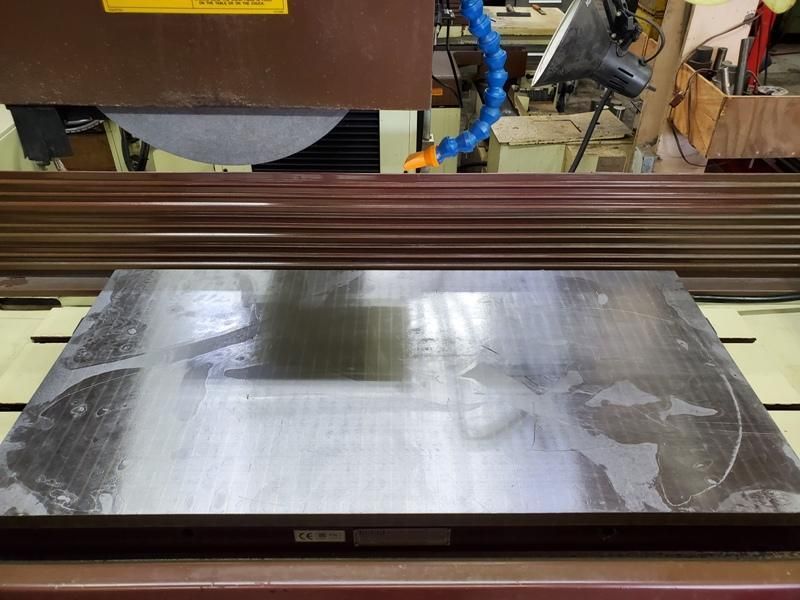

ACER SUPRA 2040PD SURFACE GRINDER

Manufacturer

ACER

Stock

23500

Model

Supra 2040PD

Dealer Location

Pennsylvania

Spec Sheet

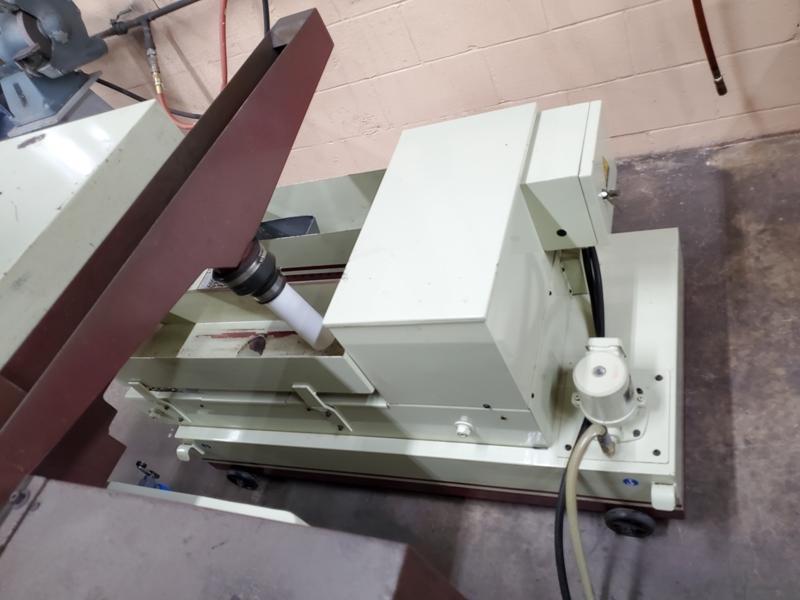

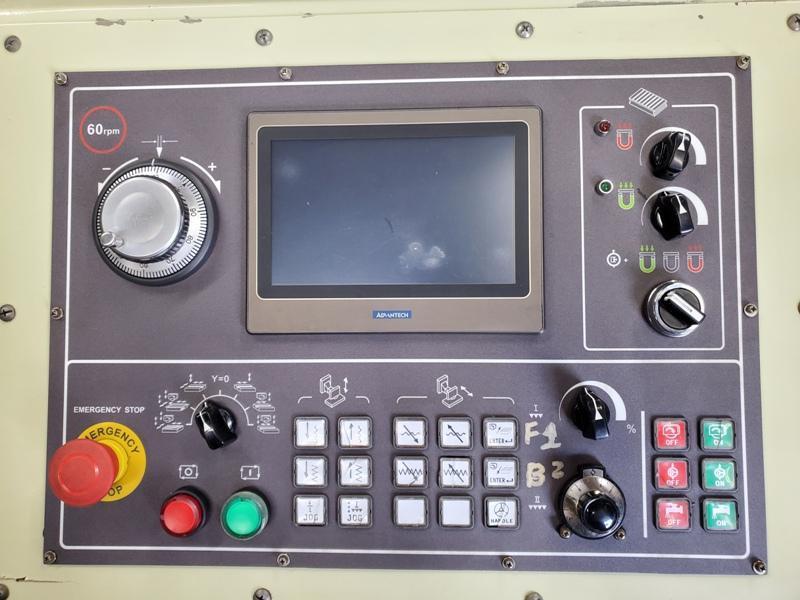

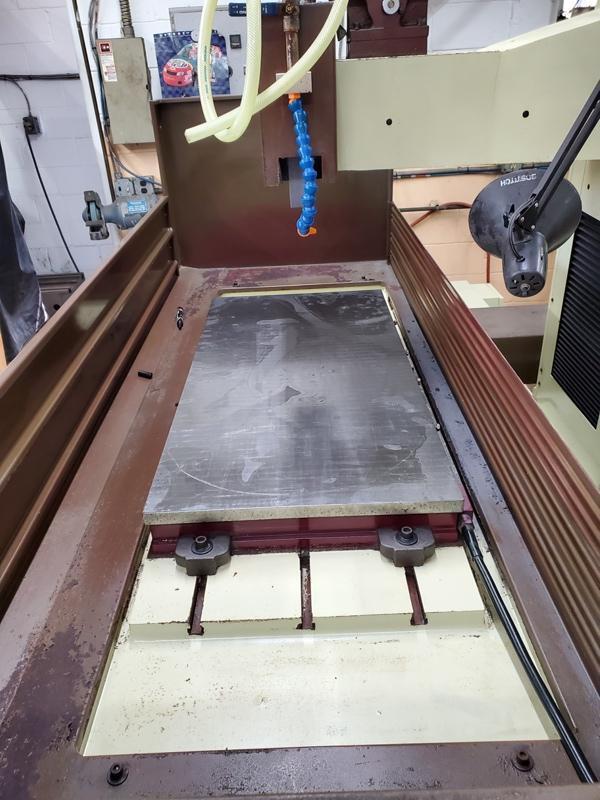

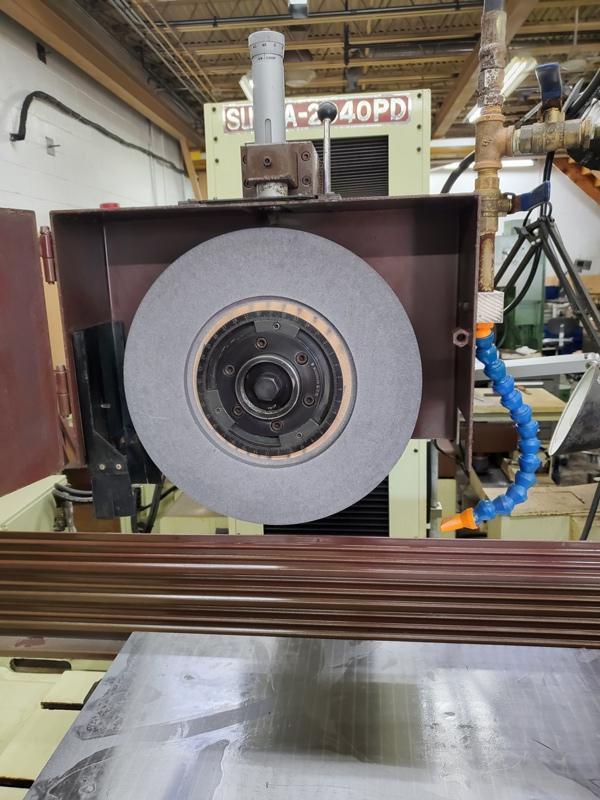

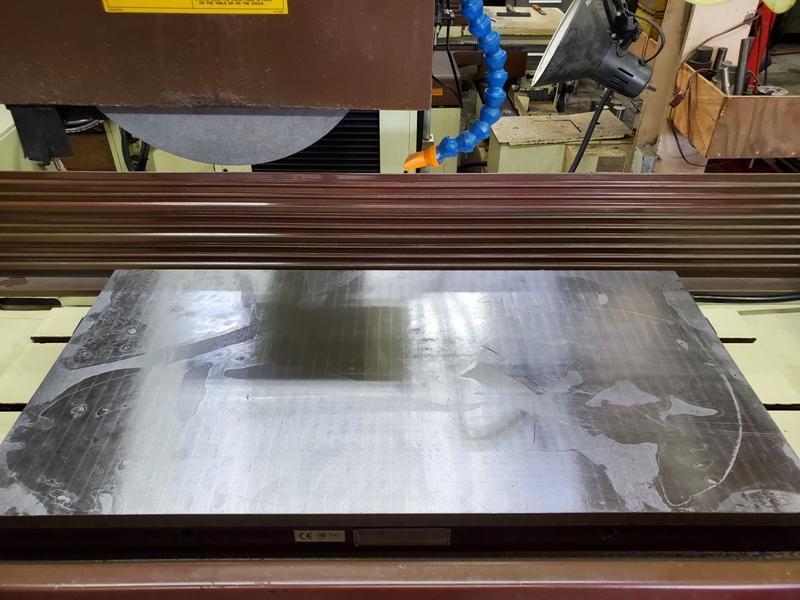

ACER SUPRA 2040PD SURFACE GRINDER PRICE: AS IS WHERE IS In Shop, Wilmington, DE…… $45,000.00 HMC Stock # 23500-N Machine Serial No.: N15100574 Machine Model No.: Supra 2040PD New Date: 2015 Table Area: 15.98" x 40.15" Max. Grinding Length: 40.15" x Grinding Width: 19.68" Max. Distance Spindle Center Line to Table Surface: 24.8" Table Longitudinal Travel – Hydraulic: 41.73" via Manual: 43.30" Variable Table Feed: 196.8 to 984.25 IPM @ 60 Hz Table Load Capacity with Chuck and Part: 1,620 Lbs. Max. Cross Travel of Saddle Automatic Feed Increment: 0.0397" to 0.984" IPM Cross Travel of Saddle Automatic Constant Feed Speed: 20.07" IPM Cross Travel of Saddle Automatic Manual Travel: 0.000787" Vertical Feed of Wheelhead Hand Wheel Per Graduation: 0.000197" Vertical Feed of Wheelhead Automatic Feed: 5.90" IPM Vertical Feed of Wheelhead Step Feed: 0.236" IPM Standard Grinding Wheel Size: 13.97" OD x 1.968" Wide x 5" Bore EQUIPPED WITH: (1) Grinding Wheel Hub 19-3/4" x 39" Acer Standard pole Electromagnetic Chuck PLC Control with Operators Console on Wheels Over-the-Wheel Wheel Dresser Free Standing Coolant System with Filter Acer Control System Operation Manual & Grinder Operation Manual -Parts and Schematics 3 HP Hydraulic System Motor; 1.3 HP Cross Feed Drive Motor; 1/4 HP Rapid Elevation Motor ? HP Coolant System Pump and Conveyor Drive Motors 7-1/2 HP Spindle Motor Wired for 3 Phase, 50/60 Hz, 1750 RPM @ 60 Hz, 230 / 460 Volts Presently Wired for 440 Volt Operation Approx. Floor Space Needed for Operation: 200" LR x 75" FB x 83" High Overall Size for Trucking: Machine 122" LR x 75" FB x 83" High x 10,600 Lbs. Overall Size Does Not Include the Coolant System, Operator Console and Hydraulic System Inch Dimensions are Conversions from Millimeters
