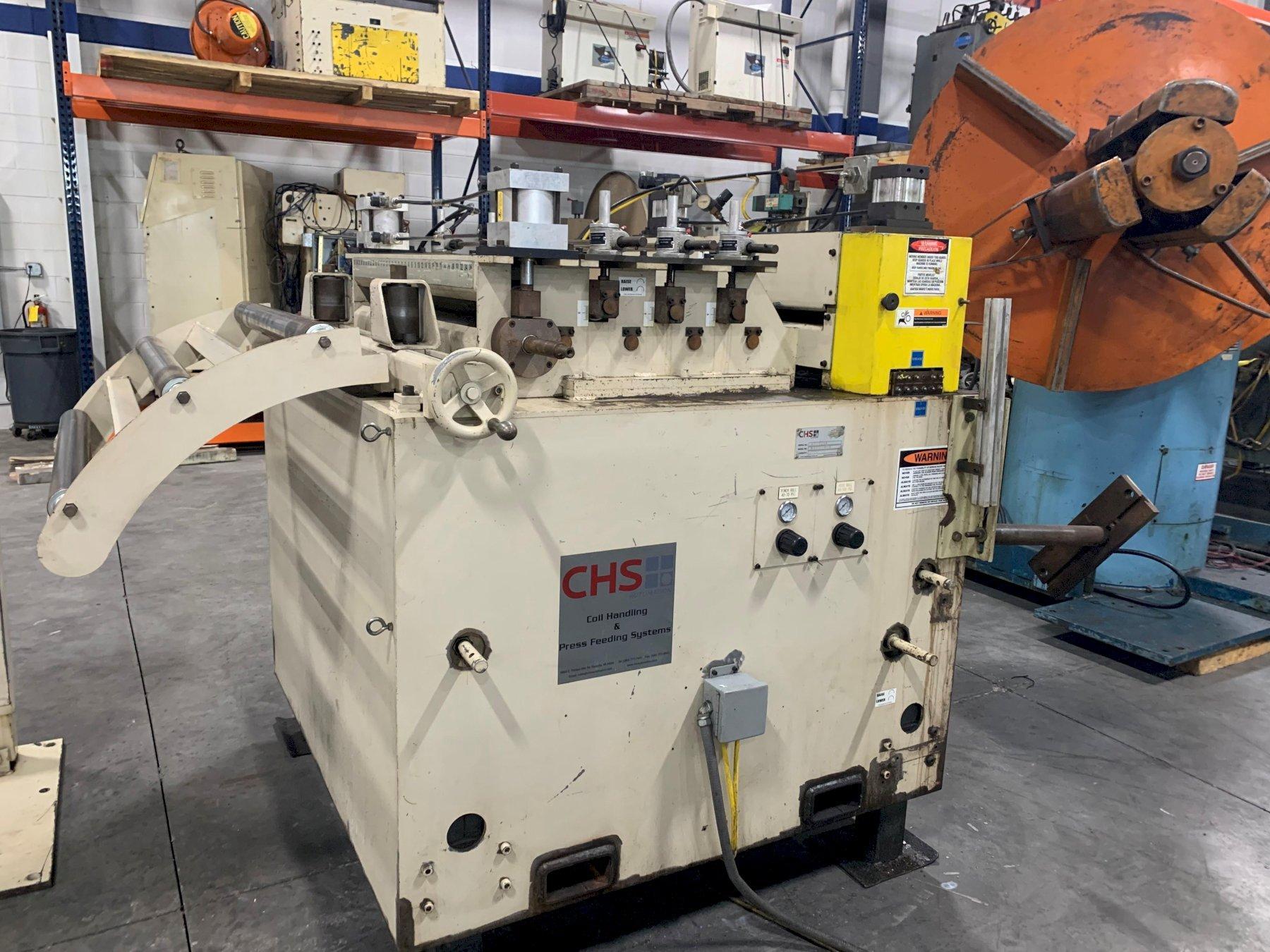

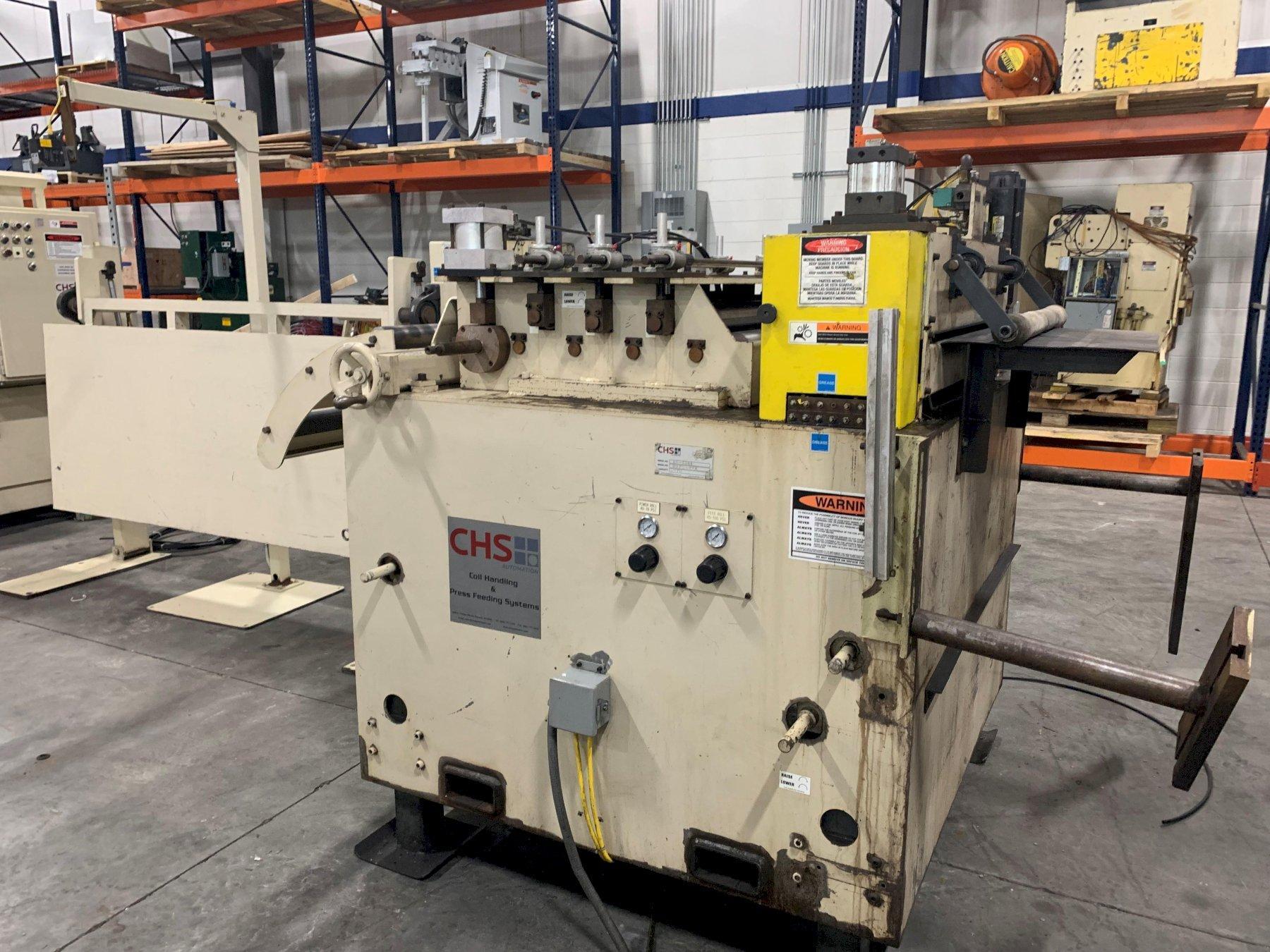

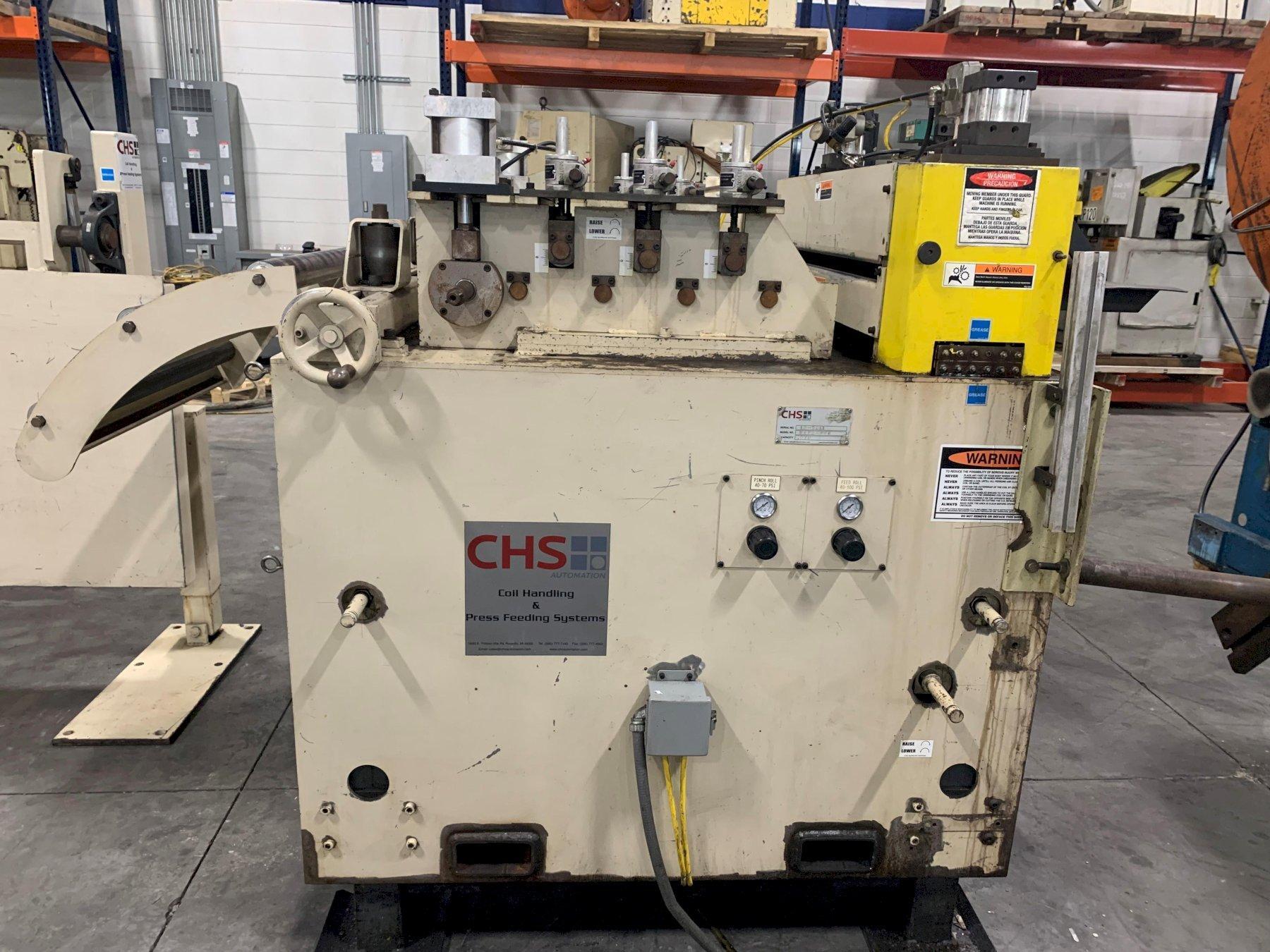

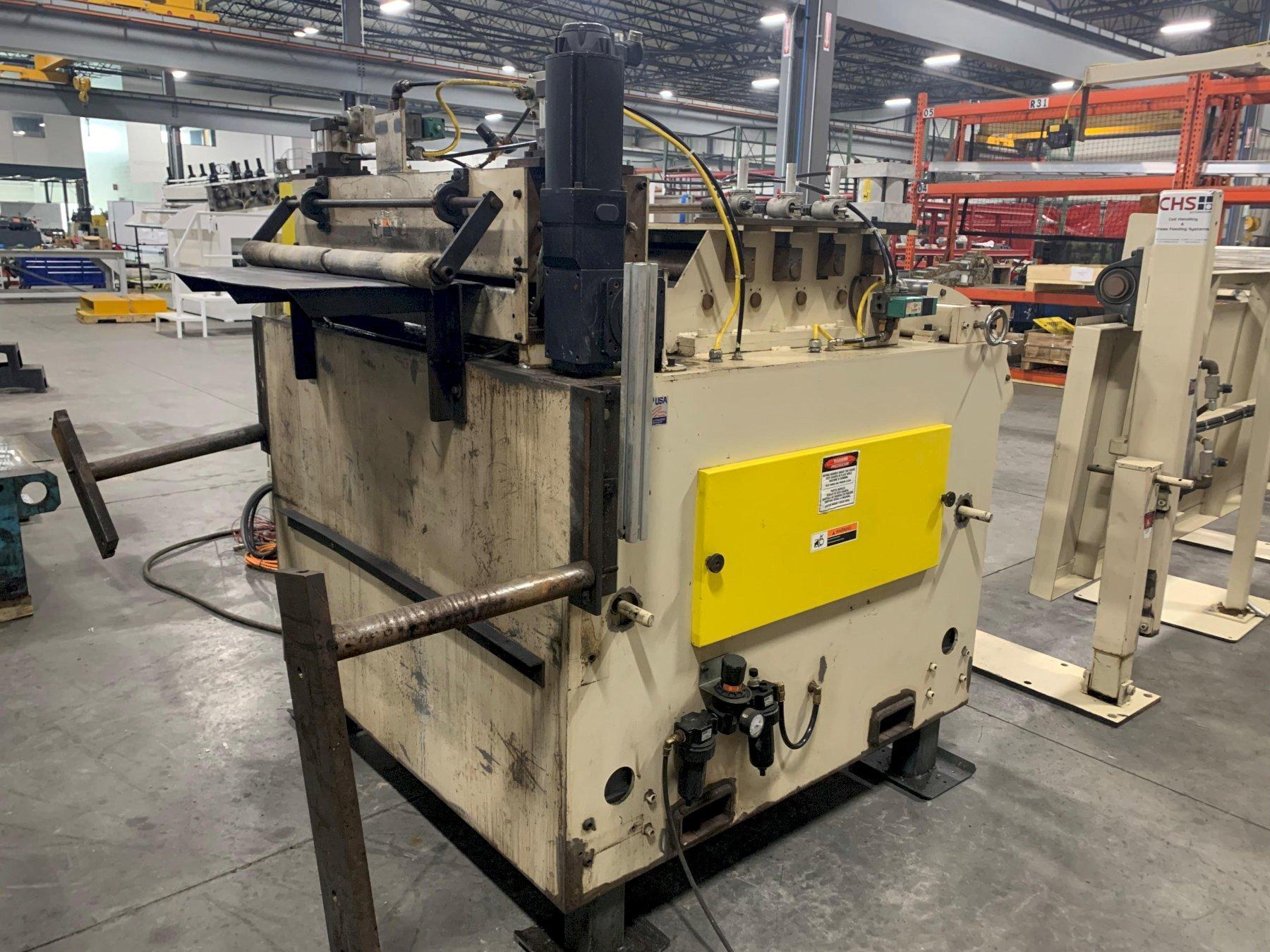

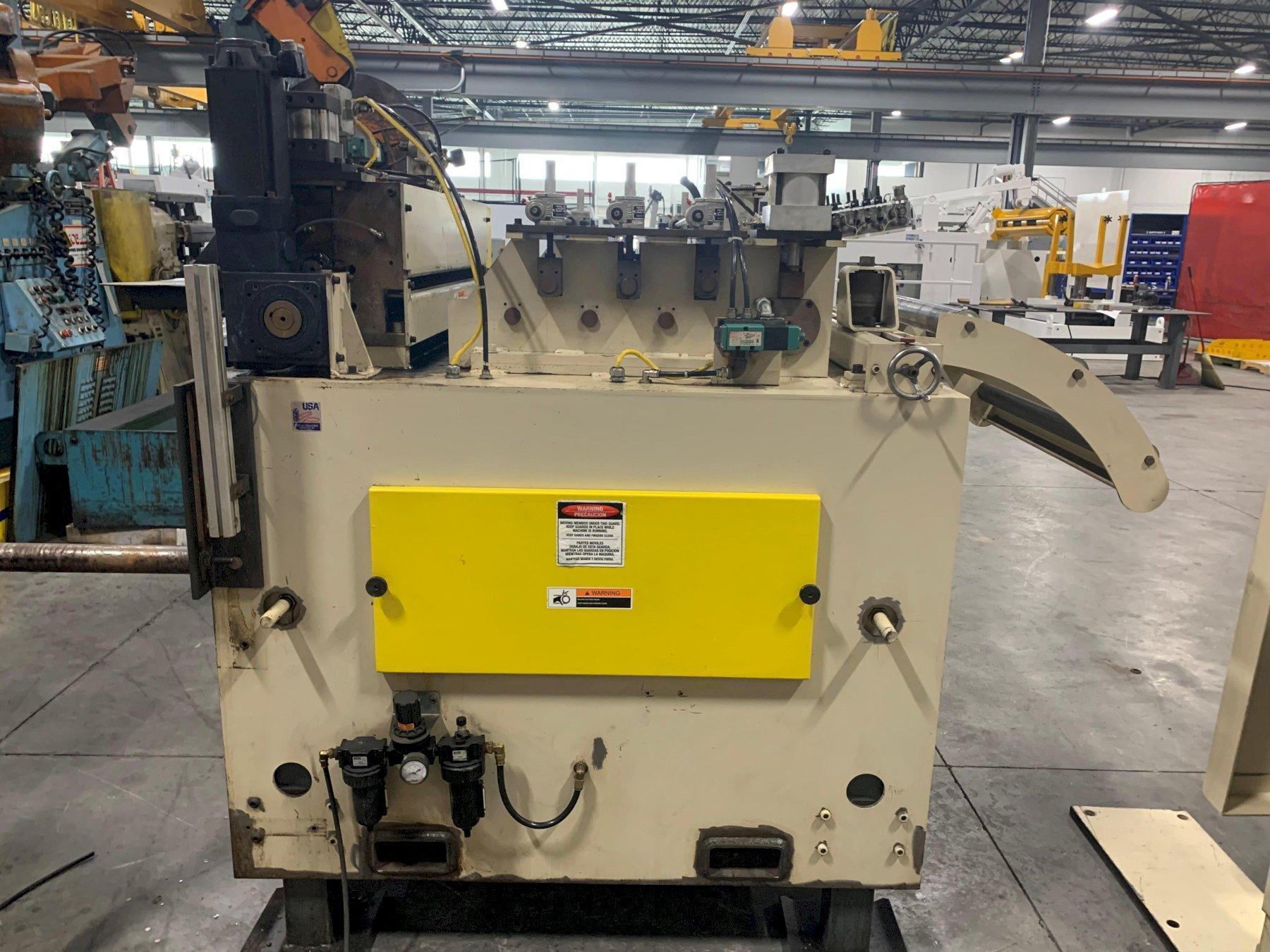

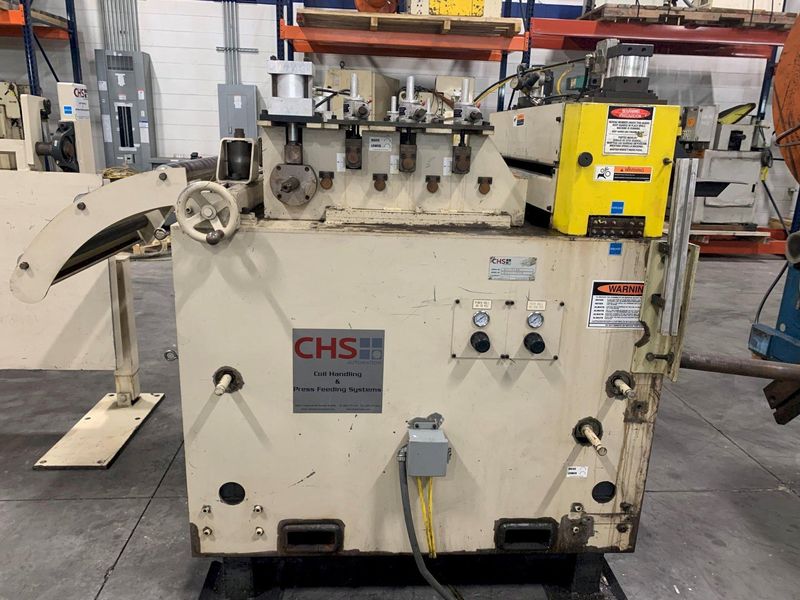

36" CHS Automation Model# DRFS-336 Servo Feed with Straightener, New 2010

Manufacturer

CHS AUTOMATION

Category

Feeders & Straighteners

Type

FEEDING & STRAIGHTENING MACHINES

Stock

2829

Model

DRFS-3-36

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Width - 36 inches
Coil Thickness - .070 inches


Used CHS Automation Servo Roll Feed Straightener Combination Press Feed Specifications:
Model: DRFS-336
Stock width capacity: 36"
Stock thickness capacity: .070" x 36" Wide
Stock thickness capacity: .125" x 12" Wide

CHS Automation Servo Roll Feed Straightener Combination Press Feed Equipment and Features:
3 Inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Centralized lubrication points
Cabinet base mounted with heavy duty pass line adjustment
Solenoid controlled pilot release

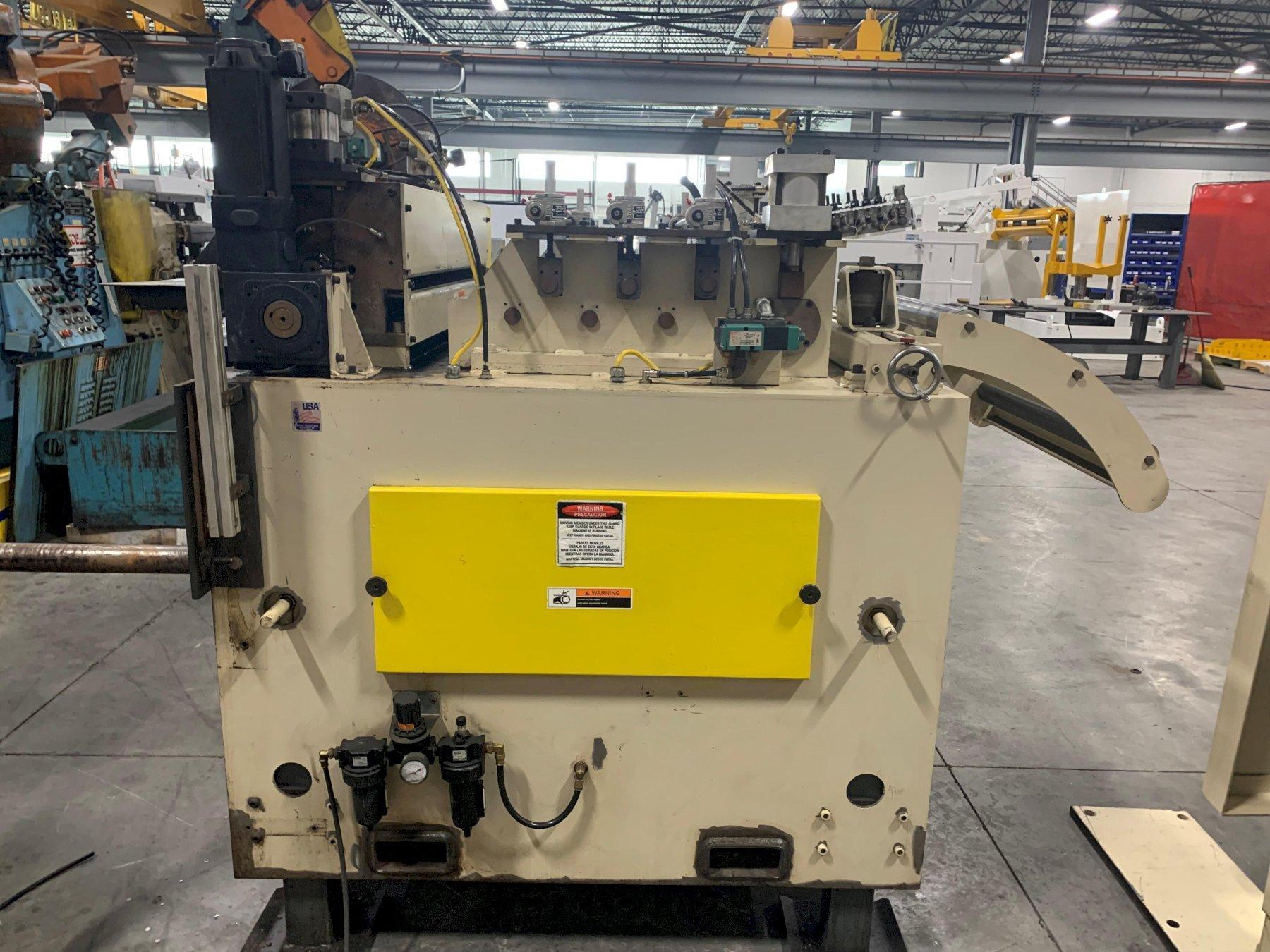

Air pressure / regulators
Straightener Model No.:  PTS-300-7-36
Seven servo feed straightening rolls x 3.00 diameter
Screw jack upper servo feed straightening roll adjustments
Servo feed pinch roll for stock threading (Manual)
Air operated upper pinch roll adjustment

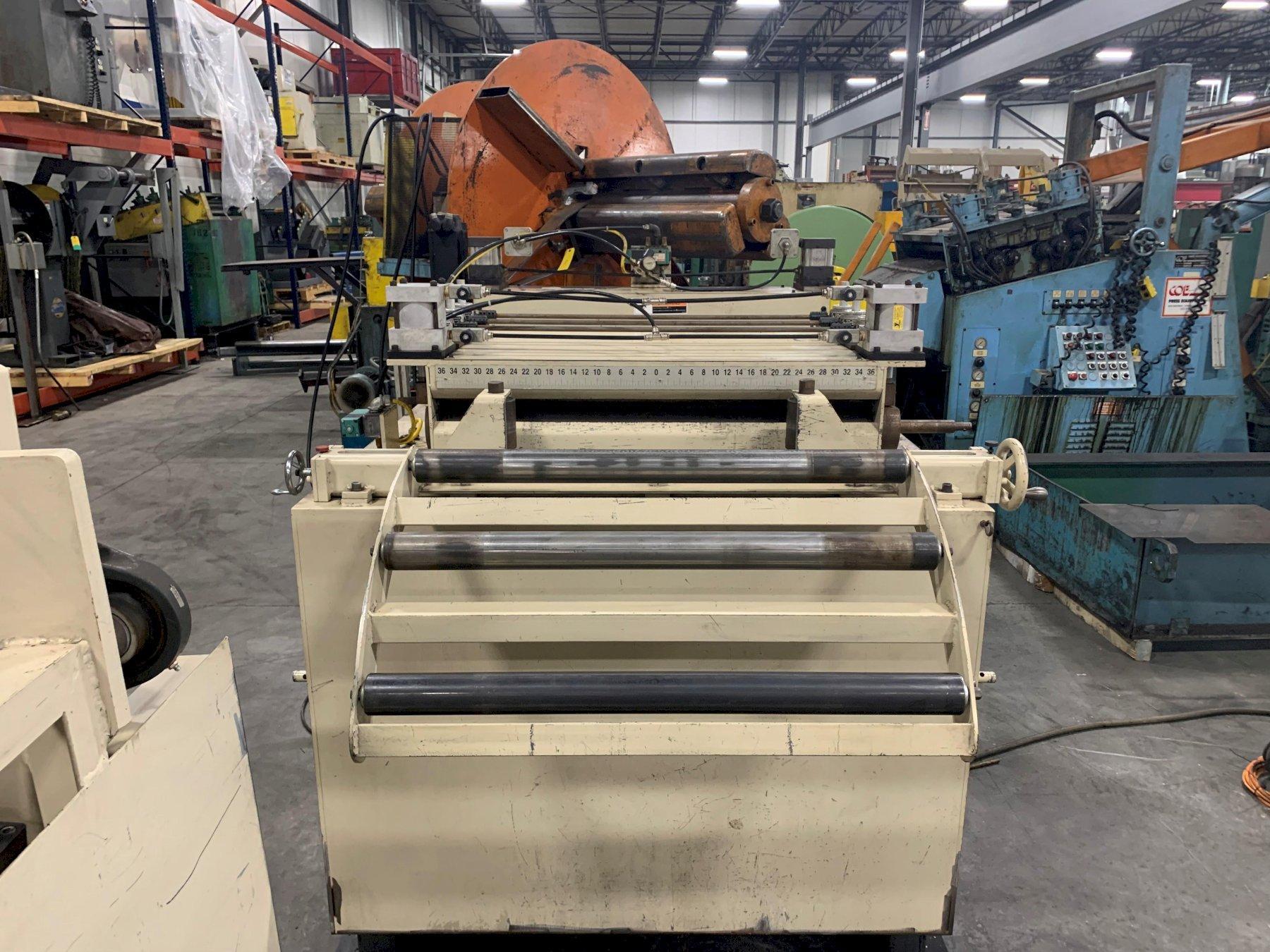

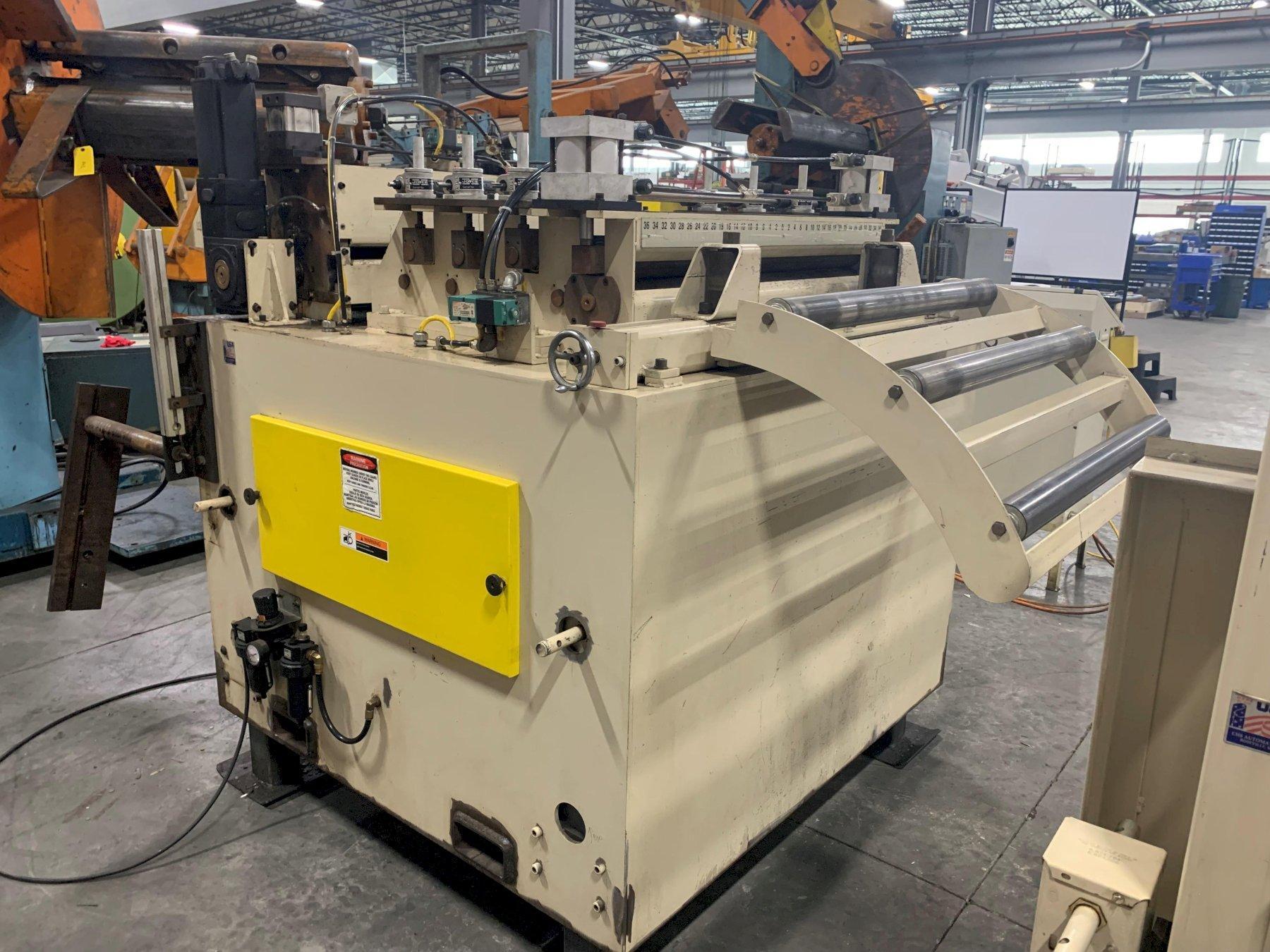

Cascade loop support rollers
Self centering hand crank stock width edge guides

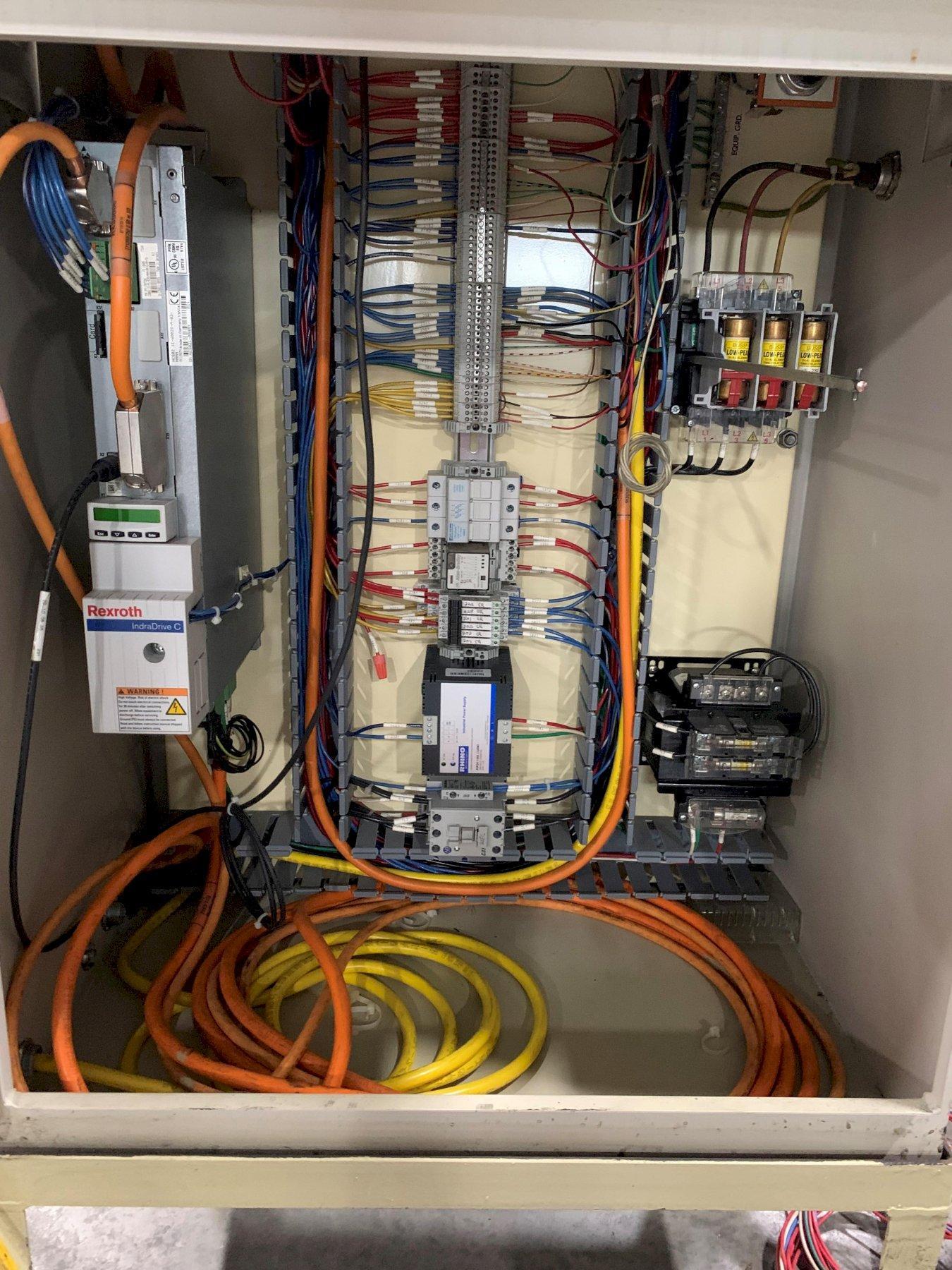

AC servo roll feed drive and controls
Job memory storage
On the fly micro adjustment

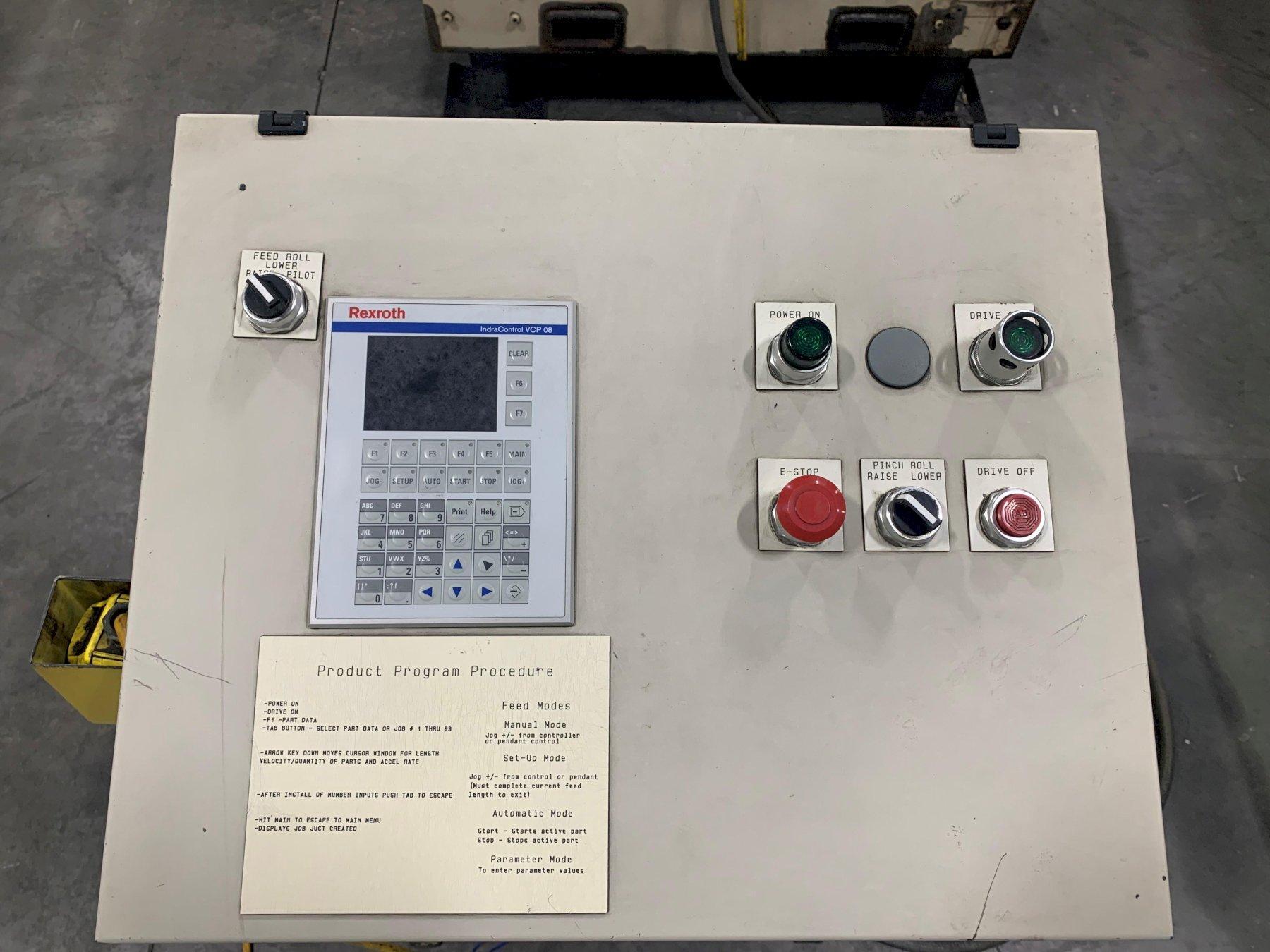

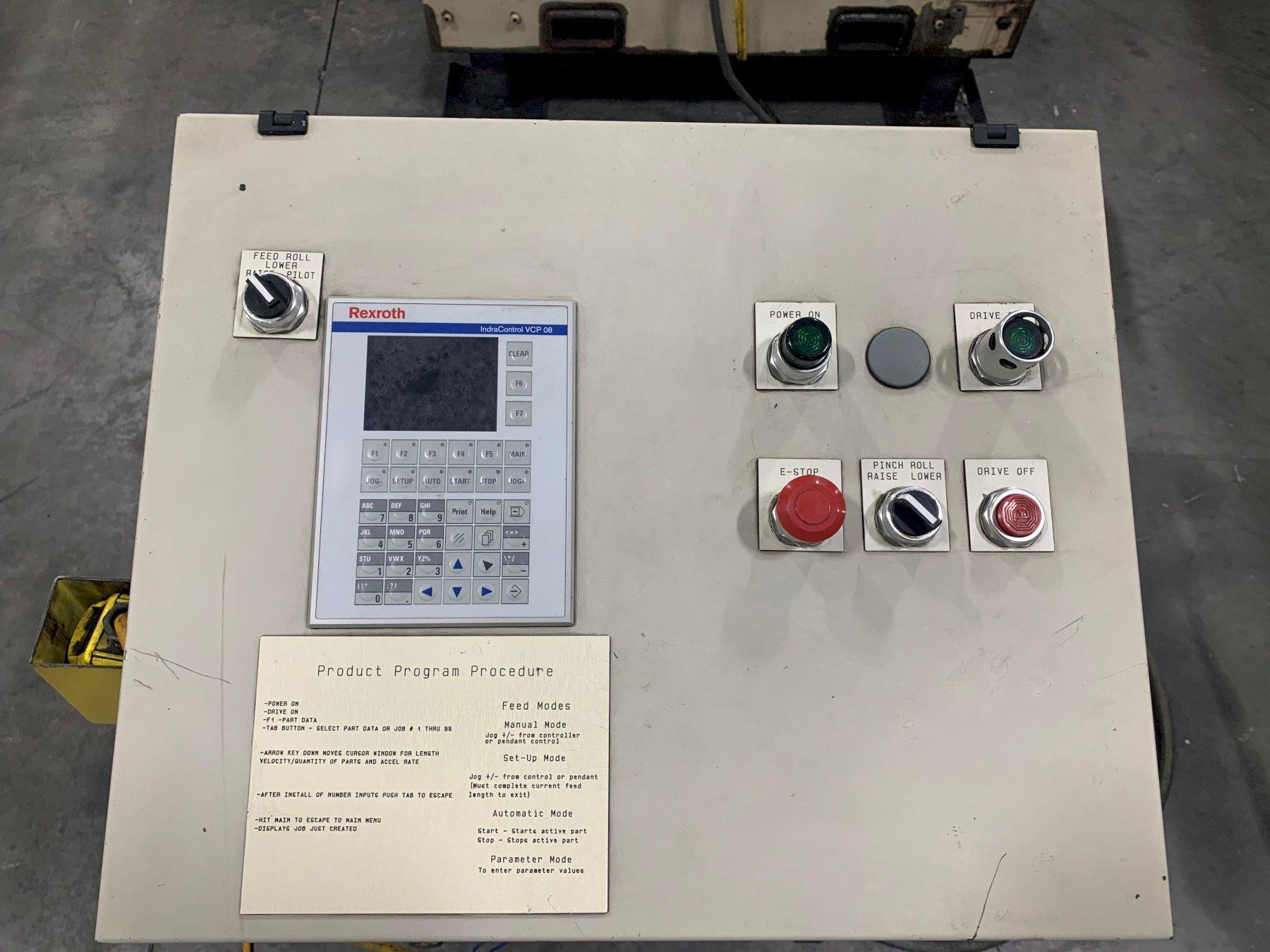

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
End of stock sensor
480 Volt


This Used 36" CHS Automation Servo Feed Straightener can be inspected in Macomb Twp Michigan Facility upon request.

Used Nidec-CHS Coil Servo Feed Straightener For Sale!
