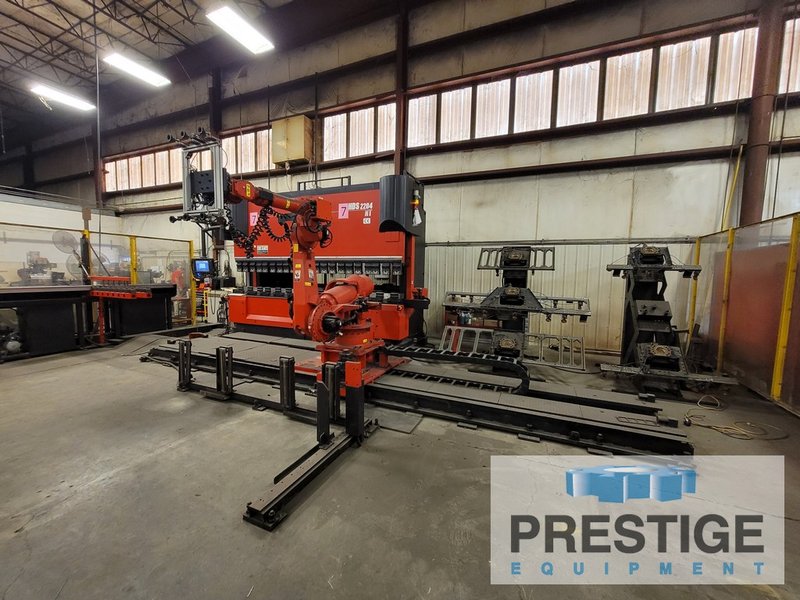

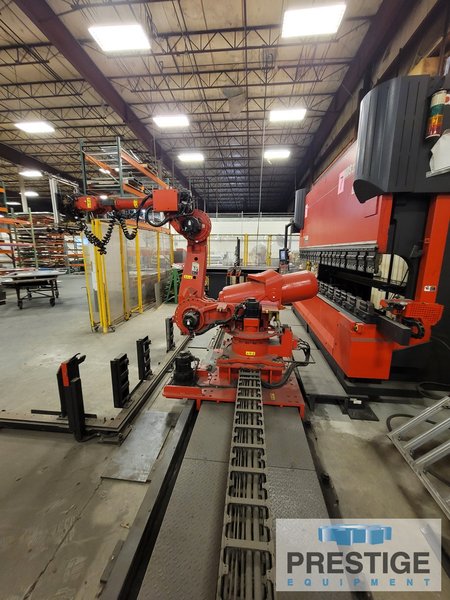

Amada HG2204RH, 220 Ton x 14' 8-Axis CNC, 6-Axis Yaskawa Robotic Manipulator, Part Handling Fixtures, 2011, #32512

Manufacturer

AMADA

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

32512

Model

HG2204RH

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32512

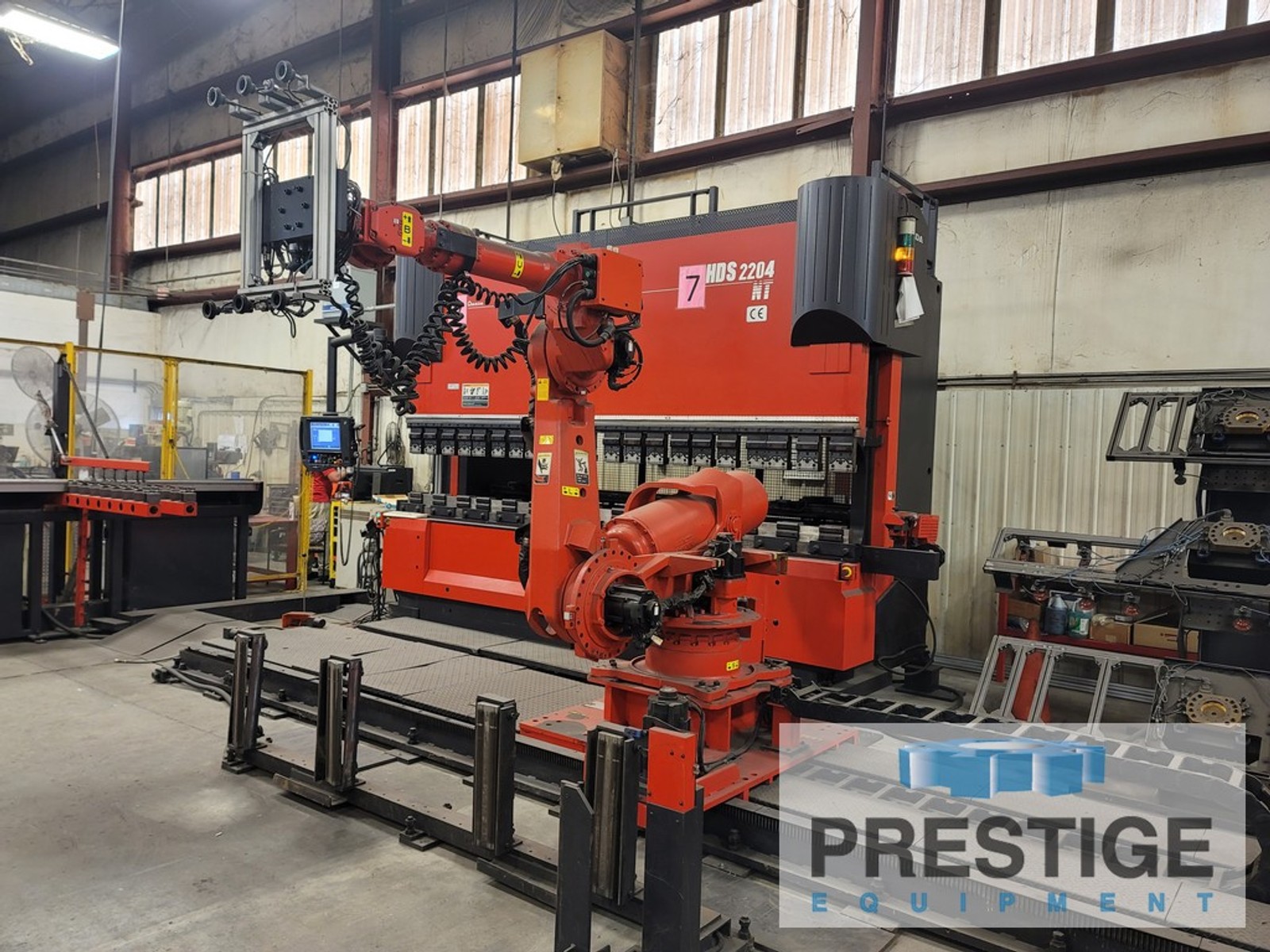

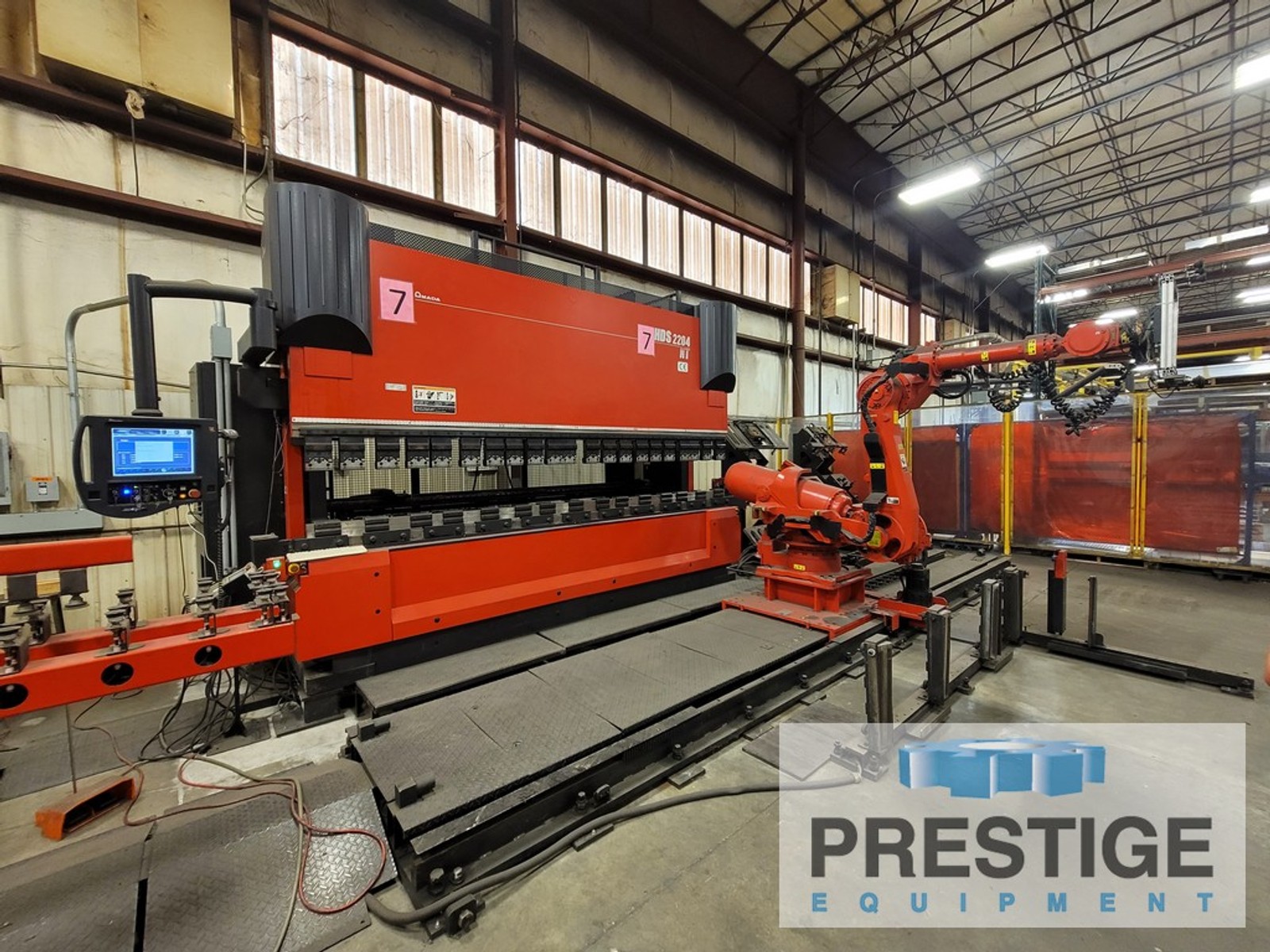

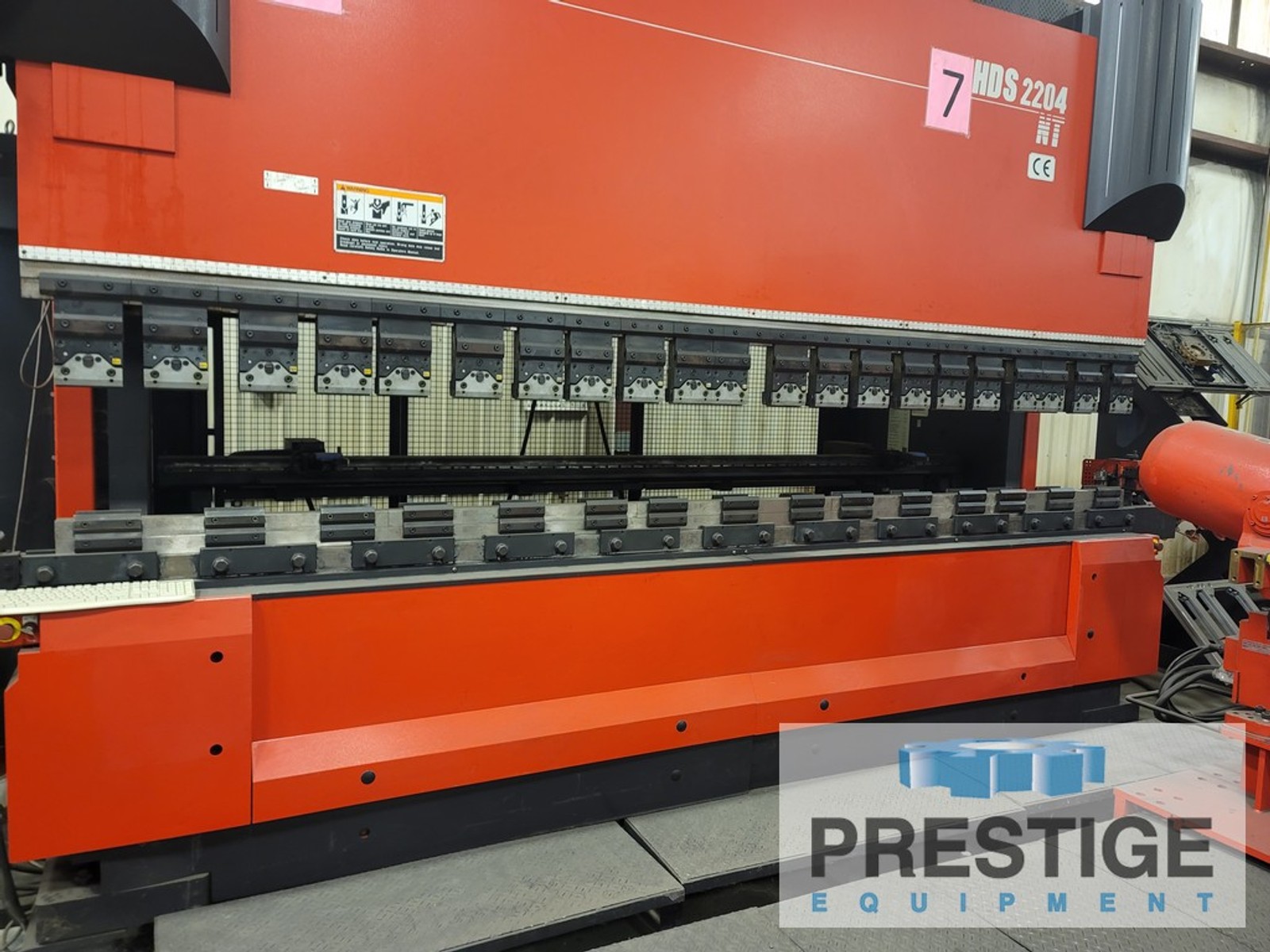

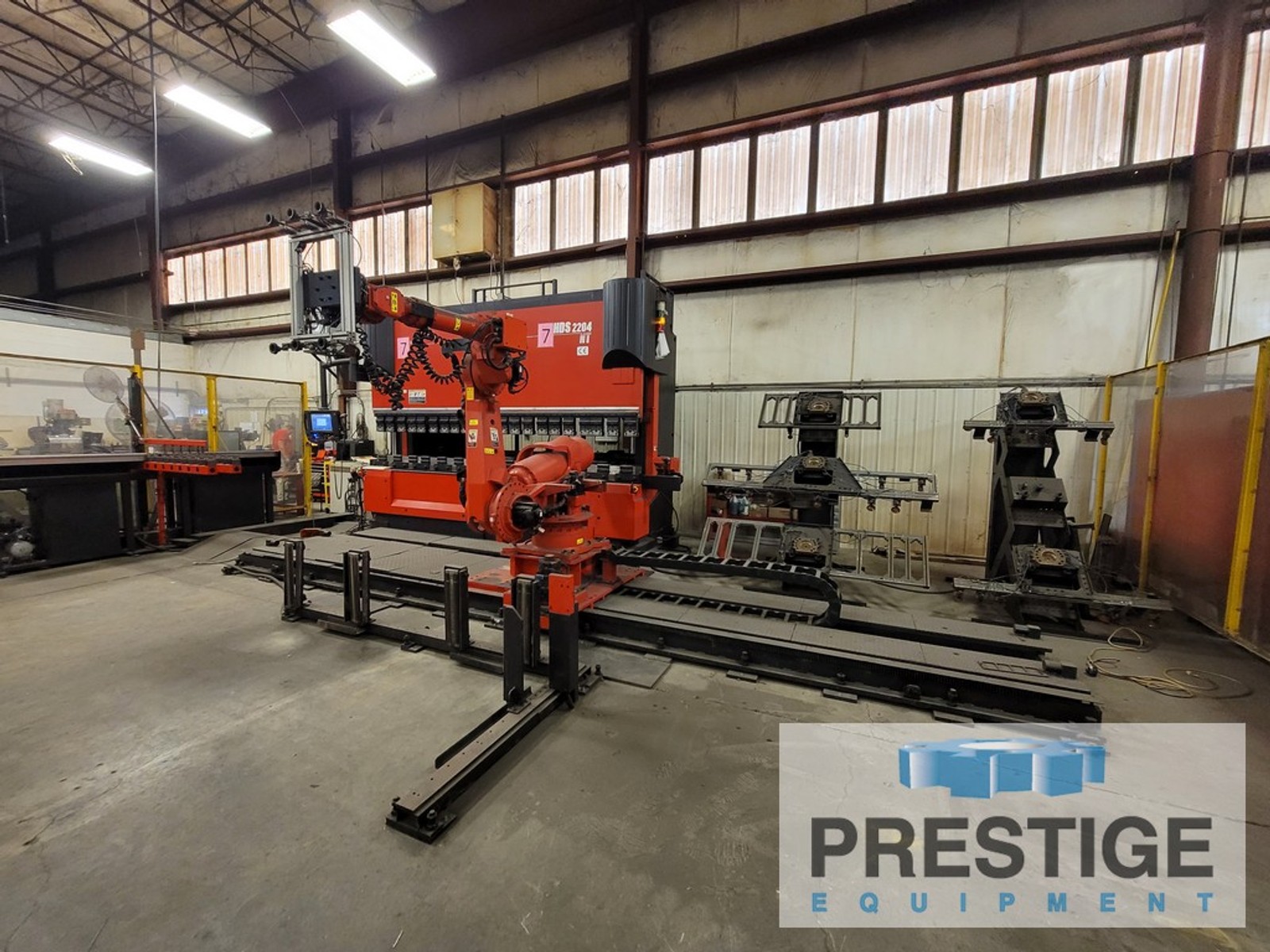

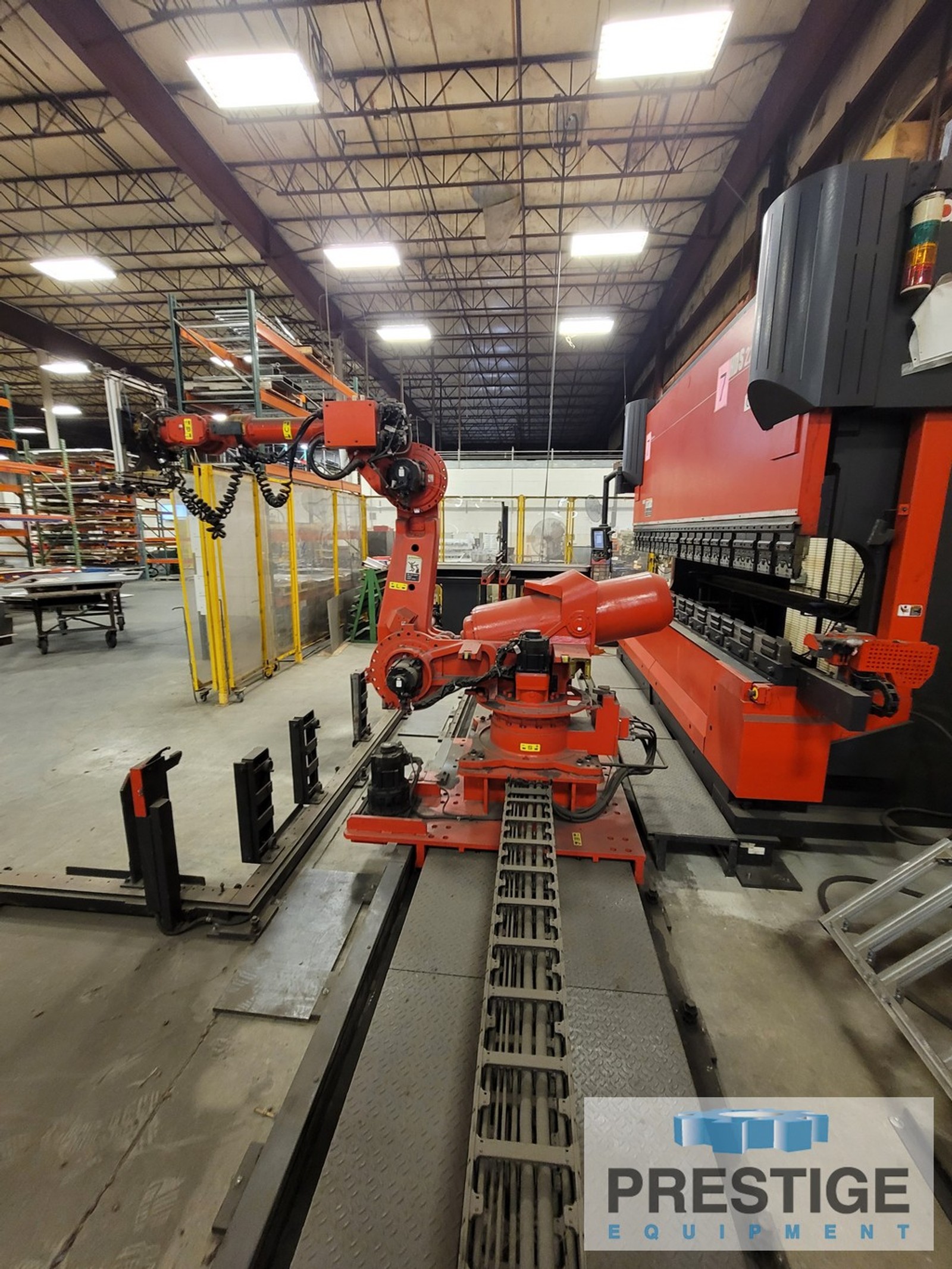

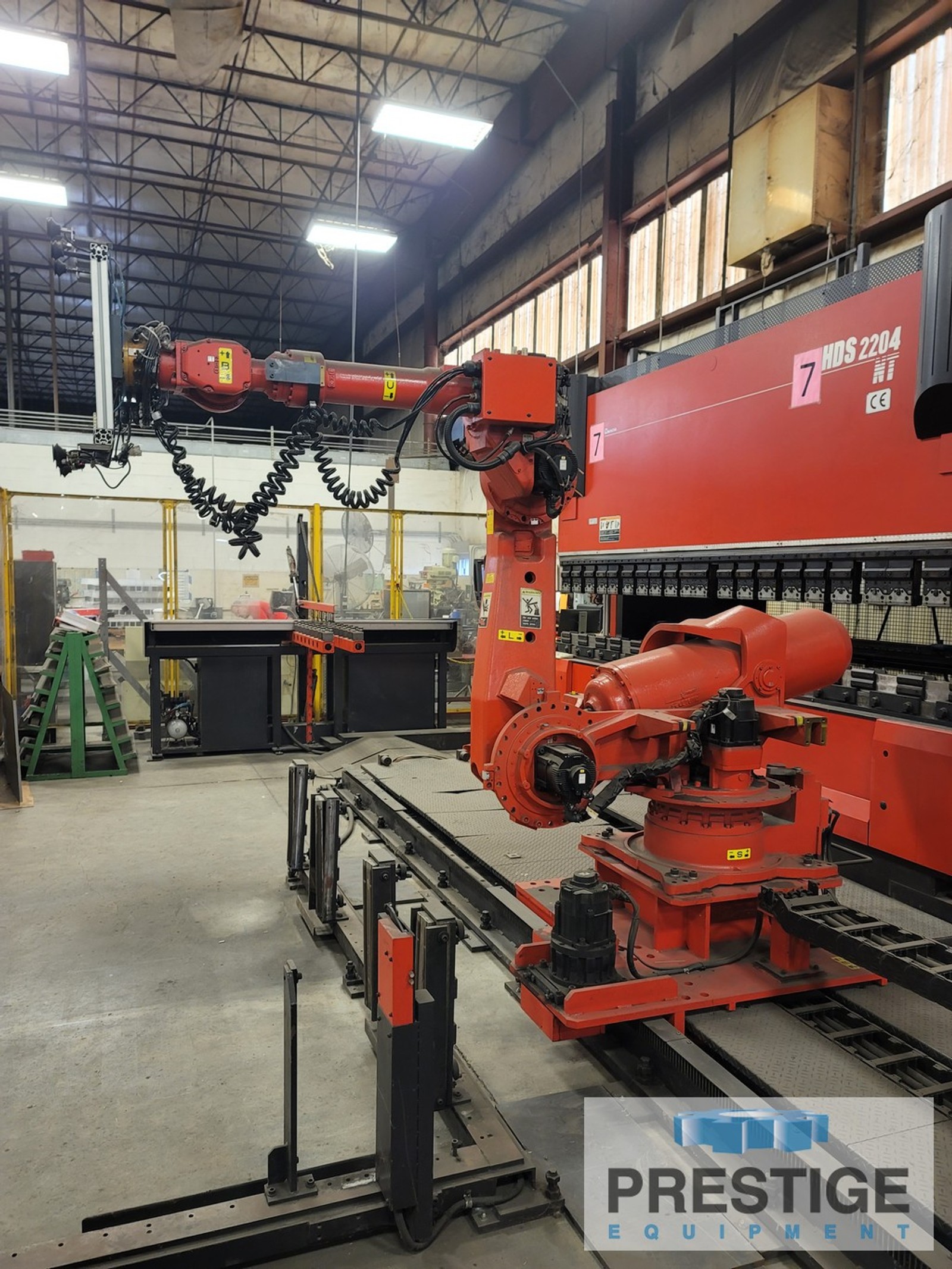

Amada HG2204RH 220 Ton x 14' 8-Axis CNC Press Brake W/Robotic Manipulator

FEATURES:

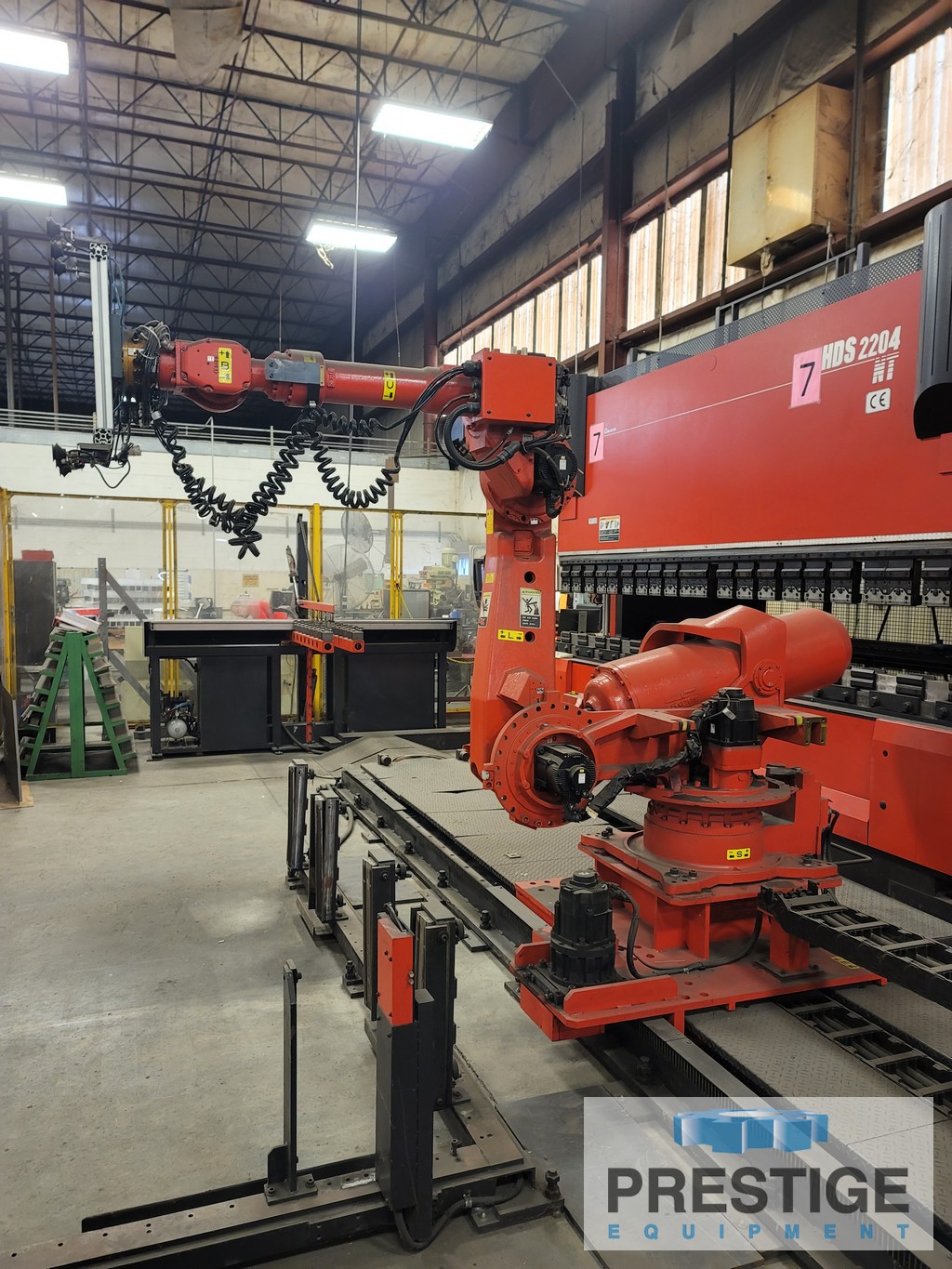

Yaskawa Motoman 6-Axis Robot
5-Axis CNC Back Gauge

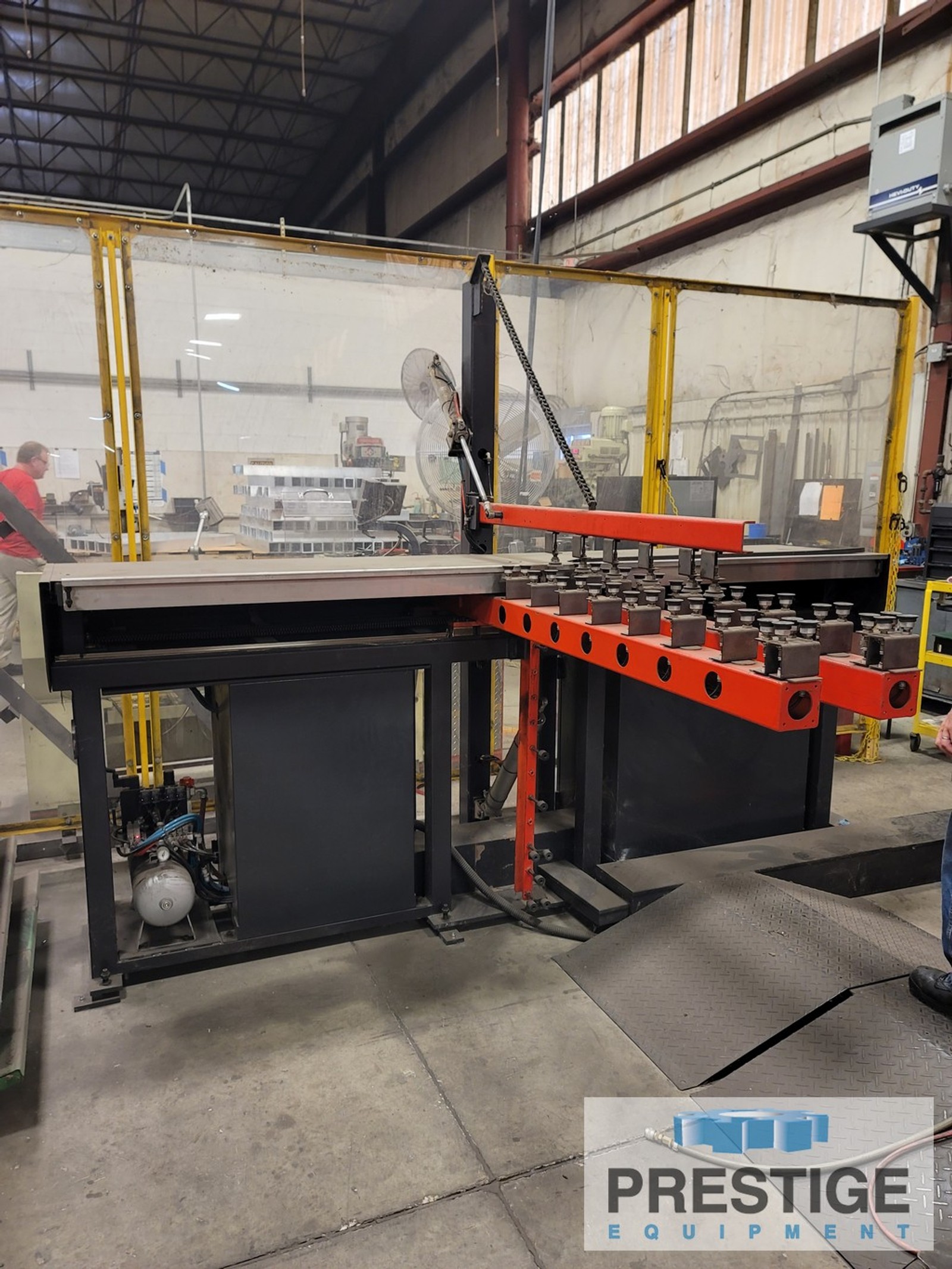

Part Load, Manipulator and Unload System

CAPACITIES:
Maximum Tonnage Capacity .............. 220 Ton
Overall Length Of Bed & Ram ........... 169.3"
Distance Between Housings ............. 148"
Open Height ........................... 20.47"
Throat Depth .......................... 17.7"
Stroke Length ......................... 9.84"
Approach Speed ........................ 7.87 IPS
Bending Speed ......................... .78 IPS
Return Speed .......................... 7.87 IPS
Motor ................................. 27.6 HP
Approximate Machine Weight ............ 50,600 Lbs

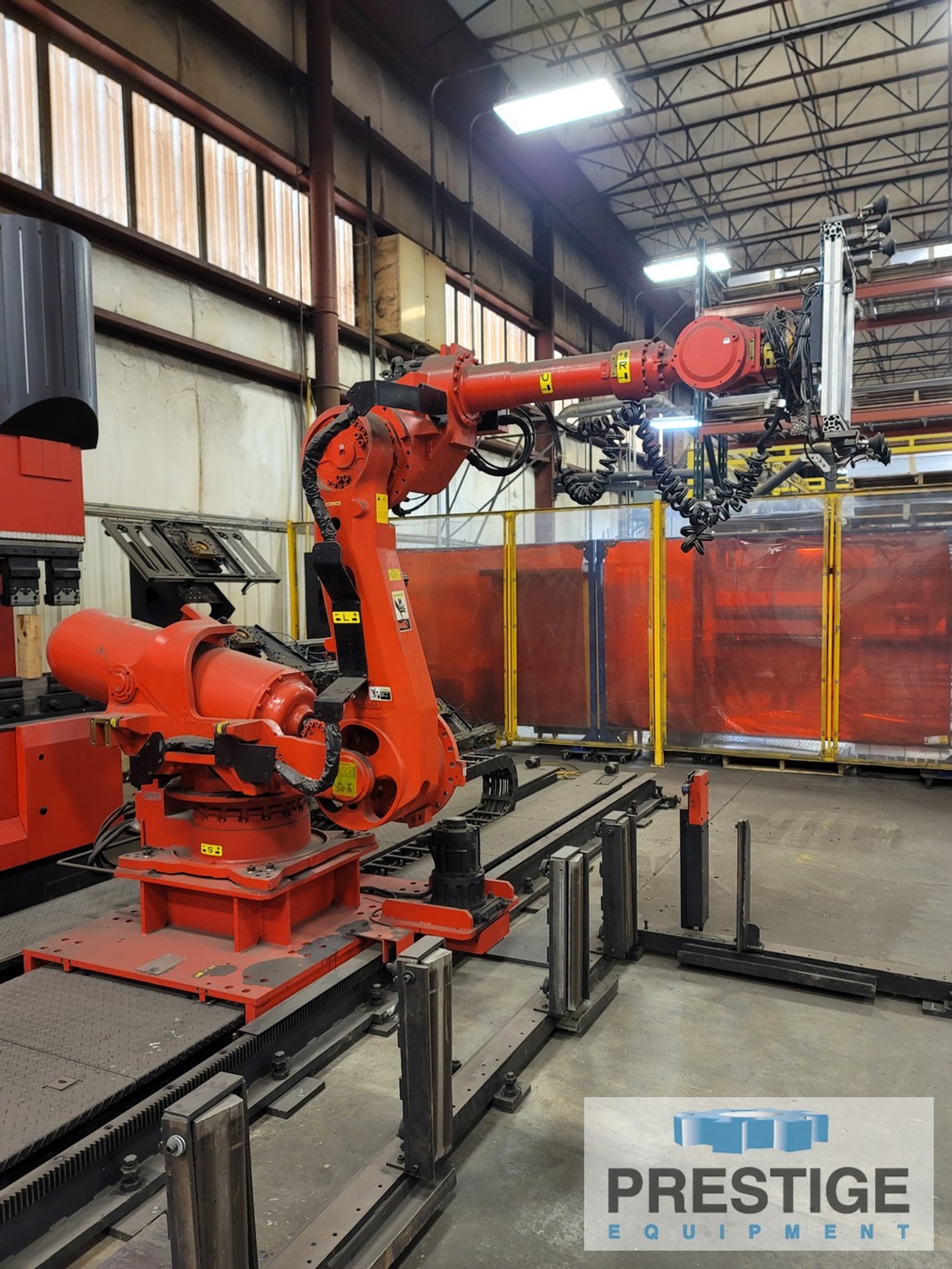

YASKAWA MOTOMAN ROBOT SPECIFICATIONS:
Maximum Payload ....................... 363 Lbs
Controlled Axes ....................... 6
Horizontal Reach ...................... 123.62"
Vertical Reach ........................ 188.26"
Rail Travel ........................... 252"
Maximum Part Size ..................... 59.1" x 157.4"
Minimum Part Size ..................... 3.94" x 39.4"

EQUIPPED WITH:

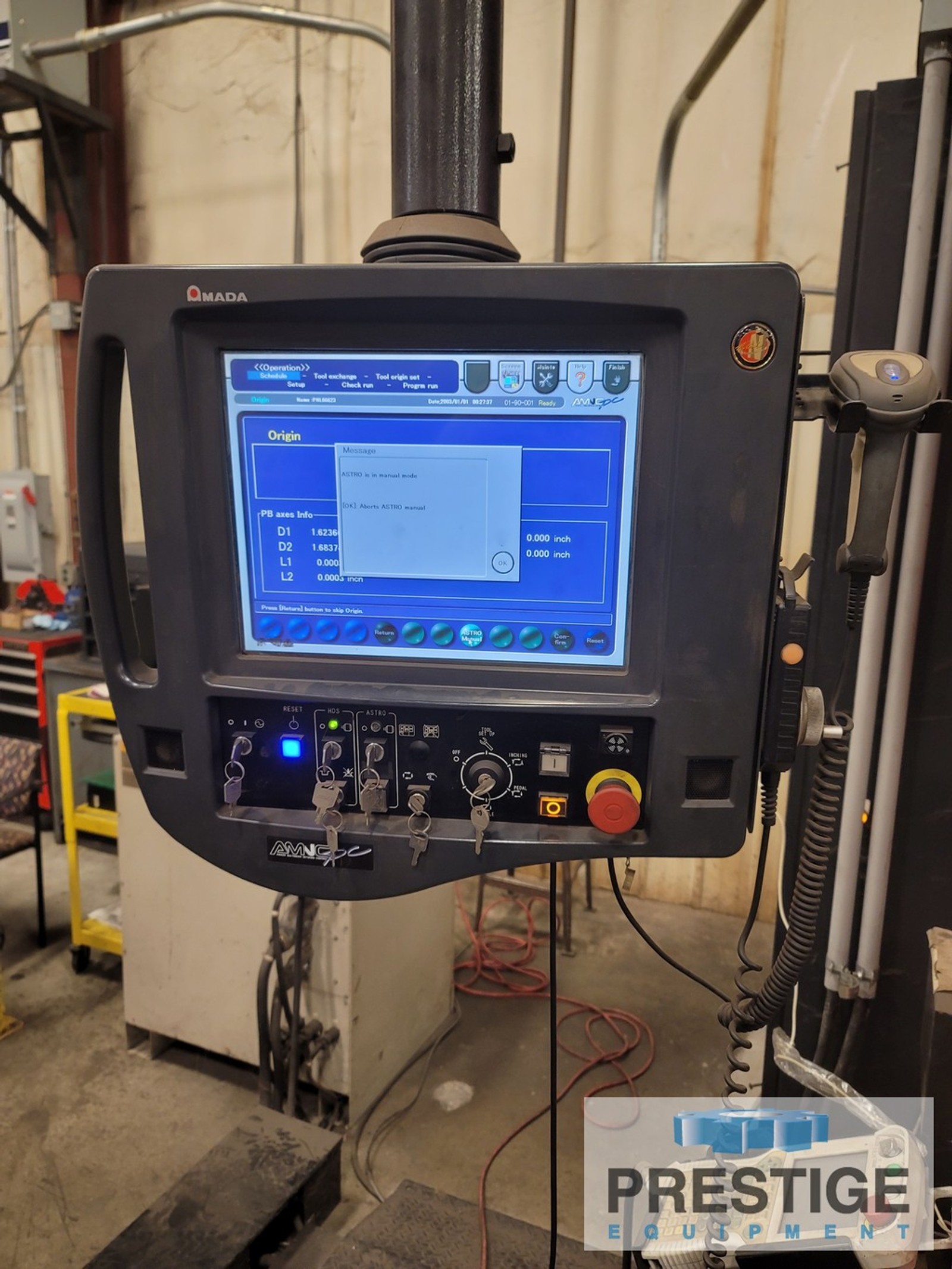

Amada AMNC/PC CNC Control
CNC Hydraulic Bed Crowning
5-Axis CNC Back Gauge
CNC Crowning

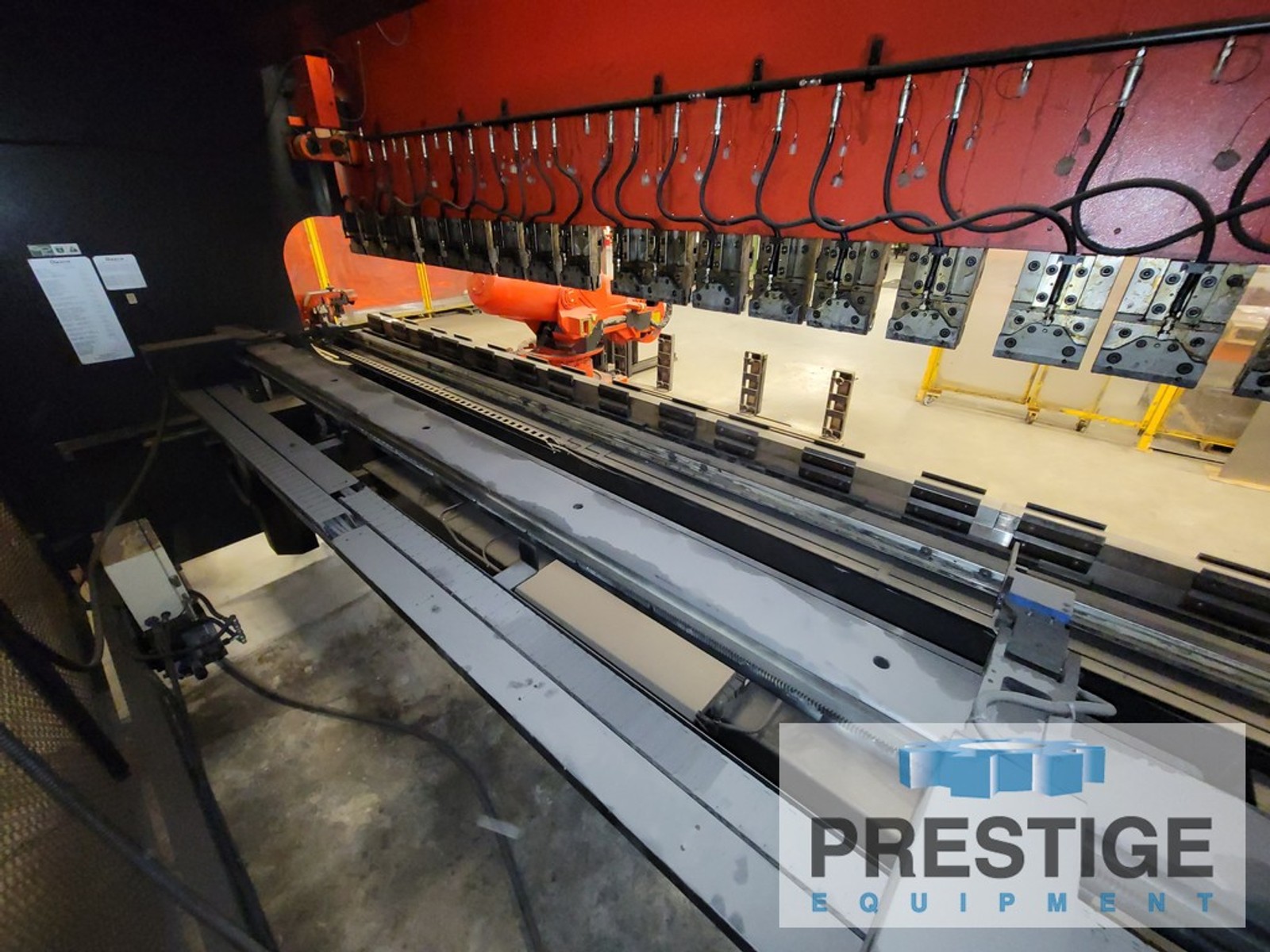

Hydraulic Tool Clamping
Yaskawa 6-Axis CNC Robot

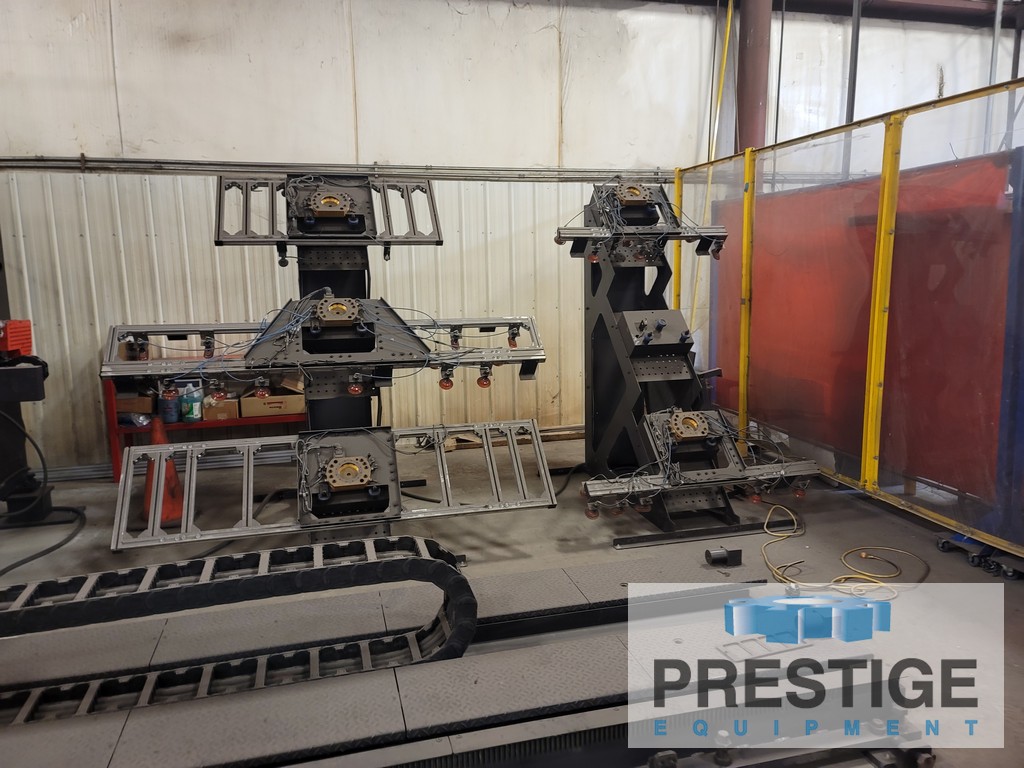

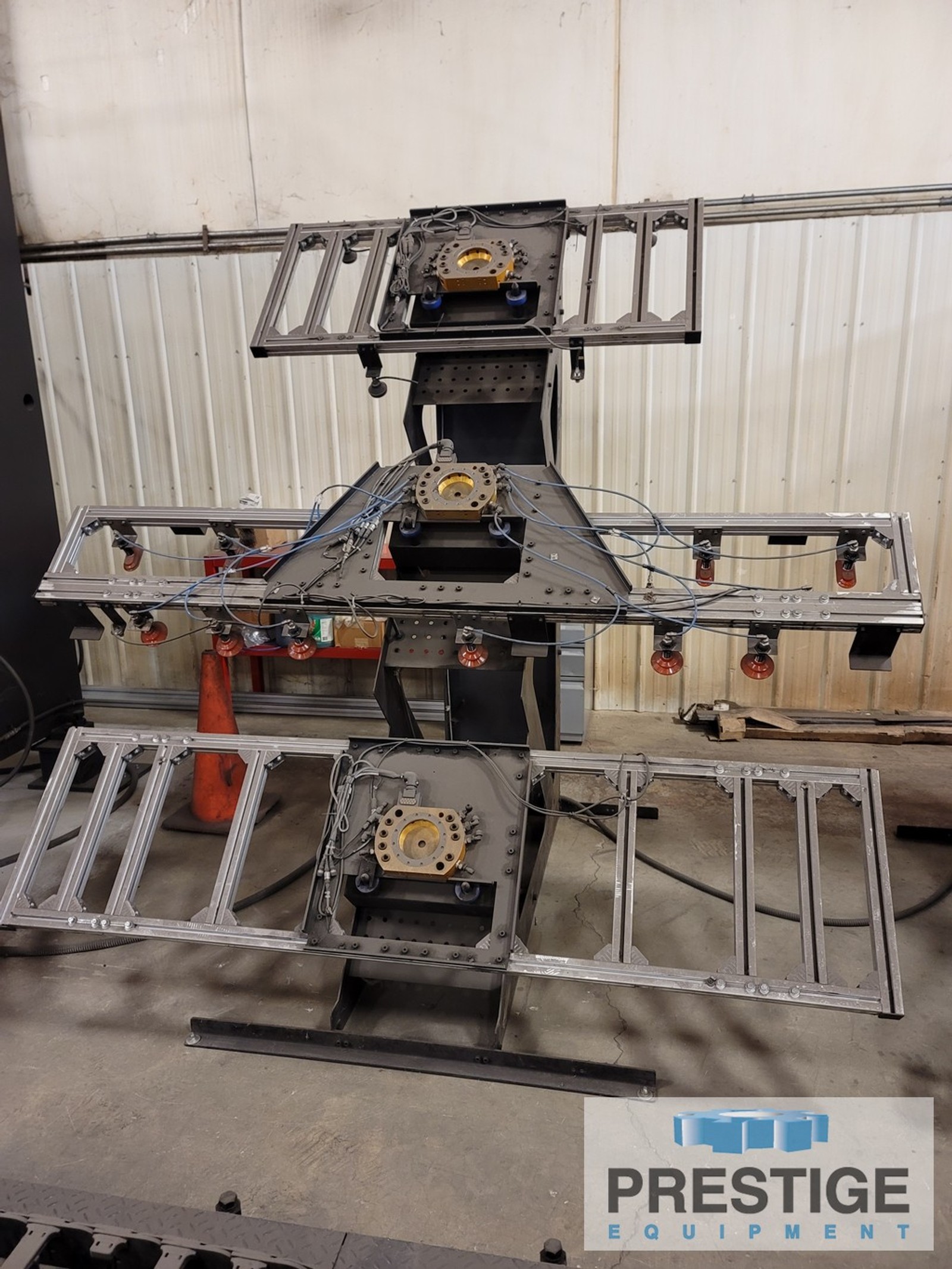

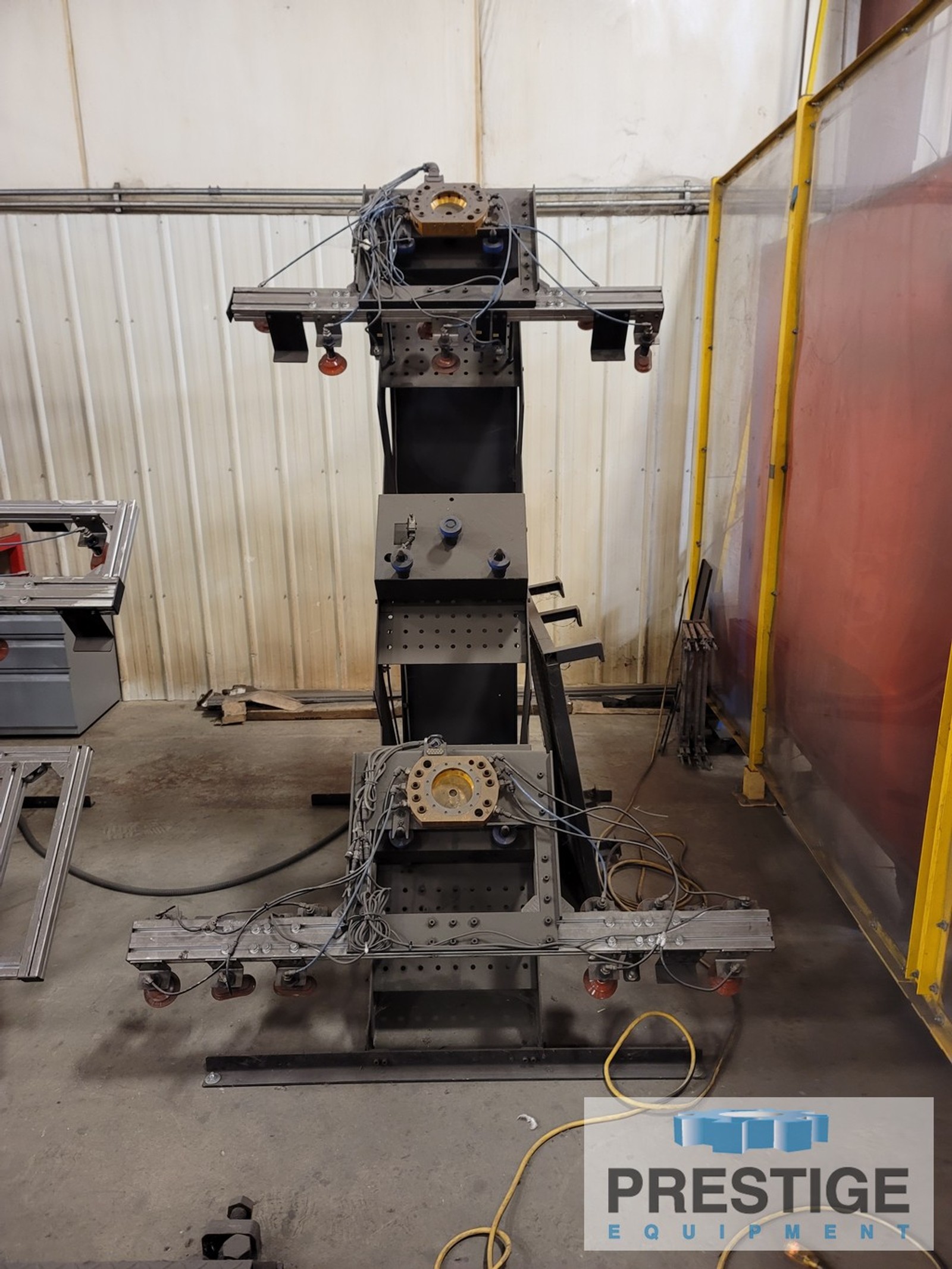

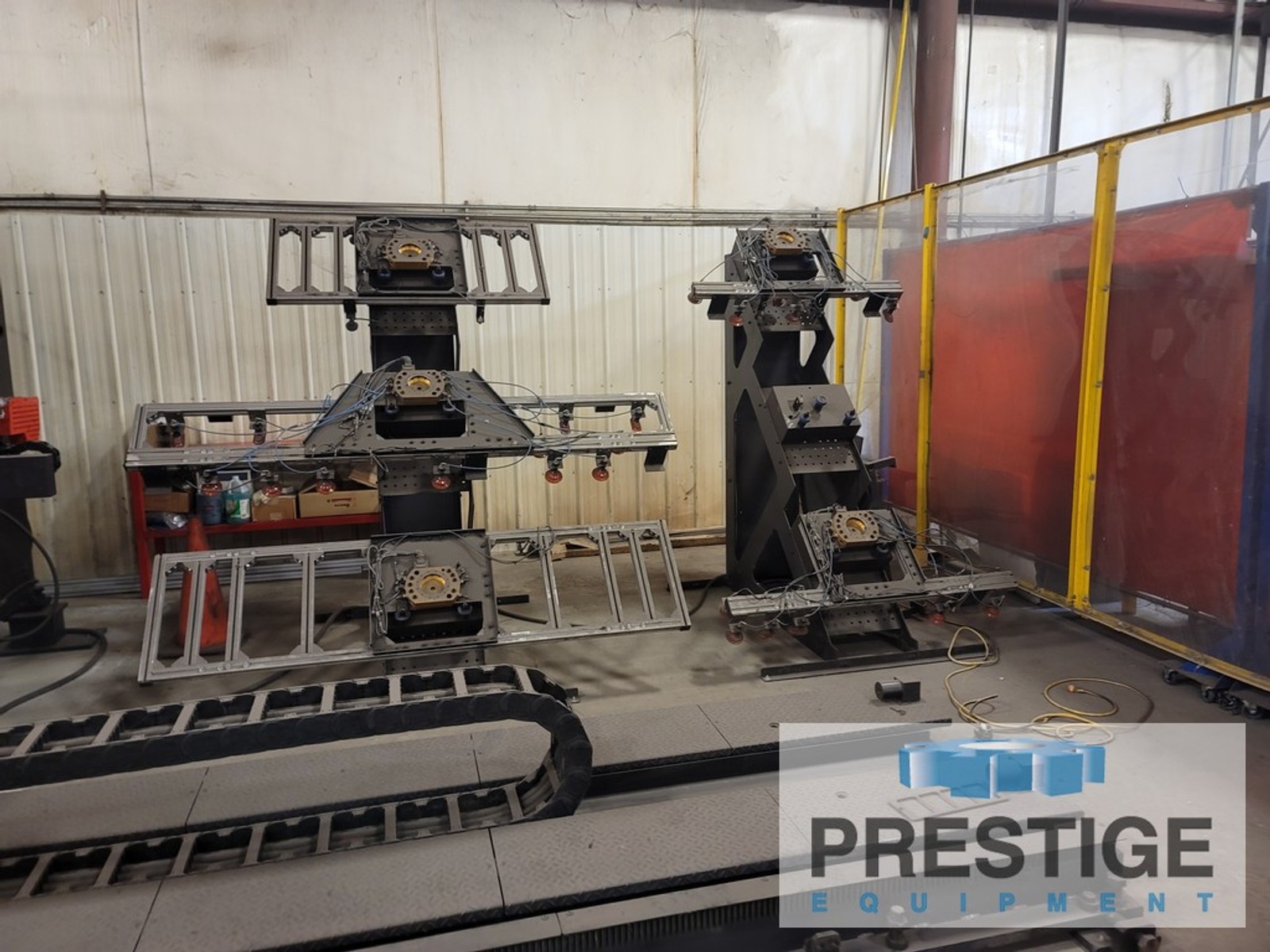

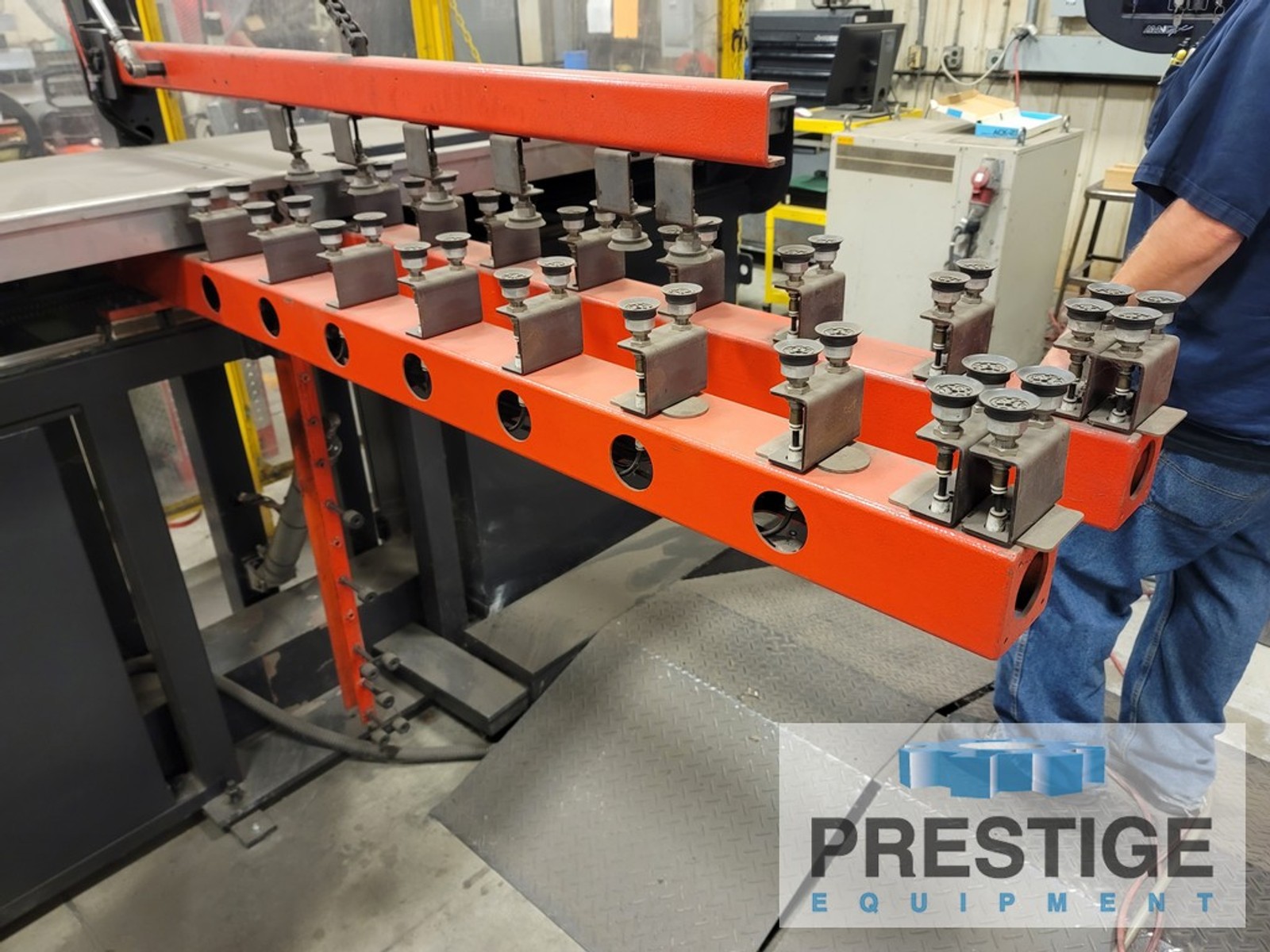

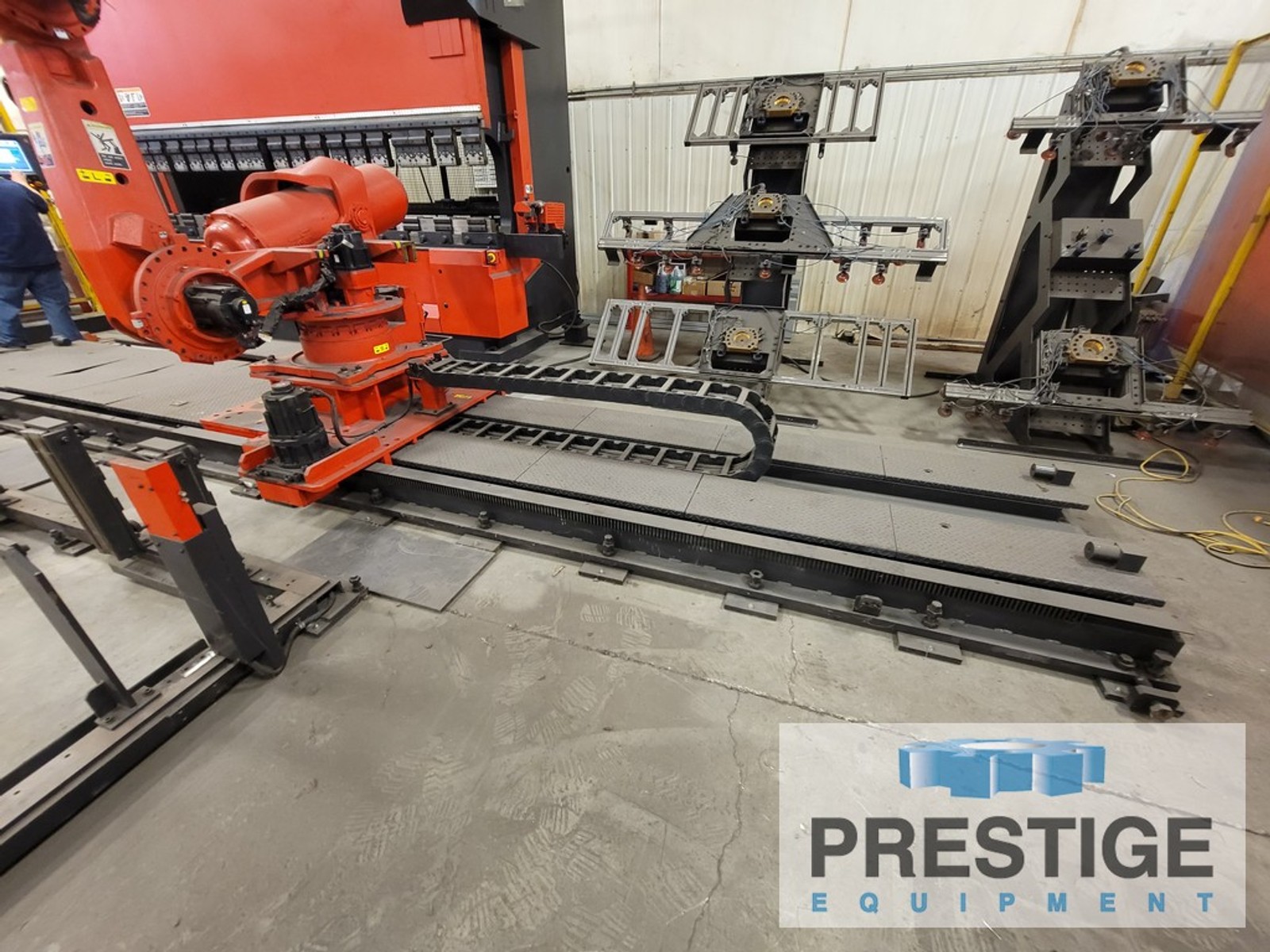

Part Handling Fixtures
Electric Foot Switch
Light Curtains
Flush Floor

NOTE:
Inspect Under Power in Plant
