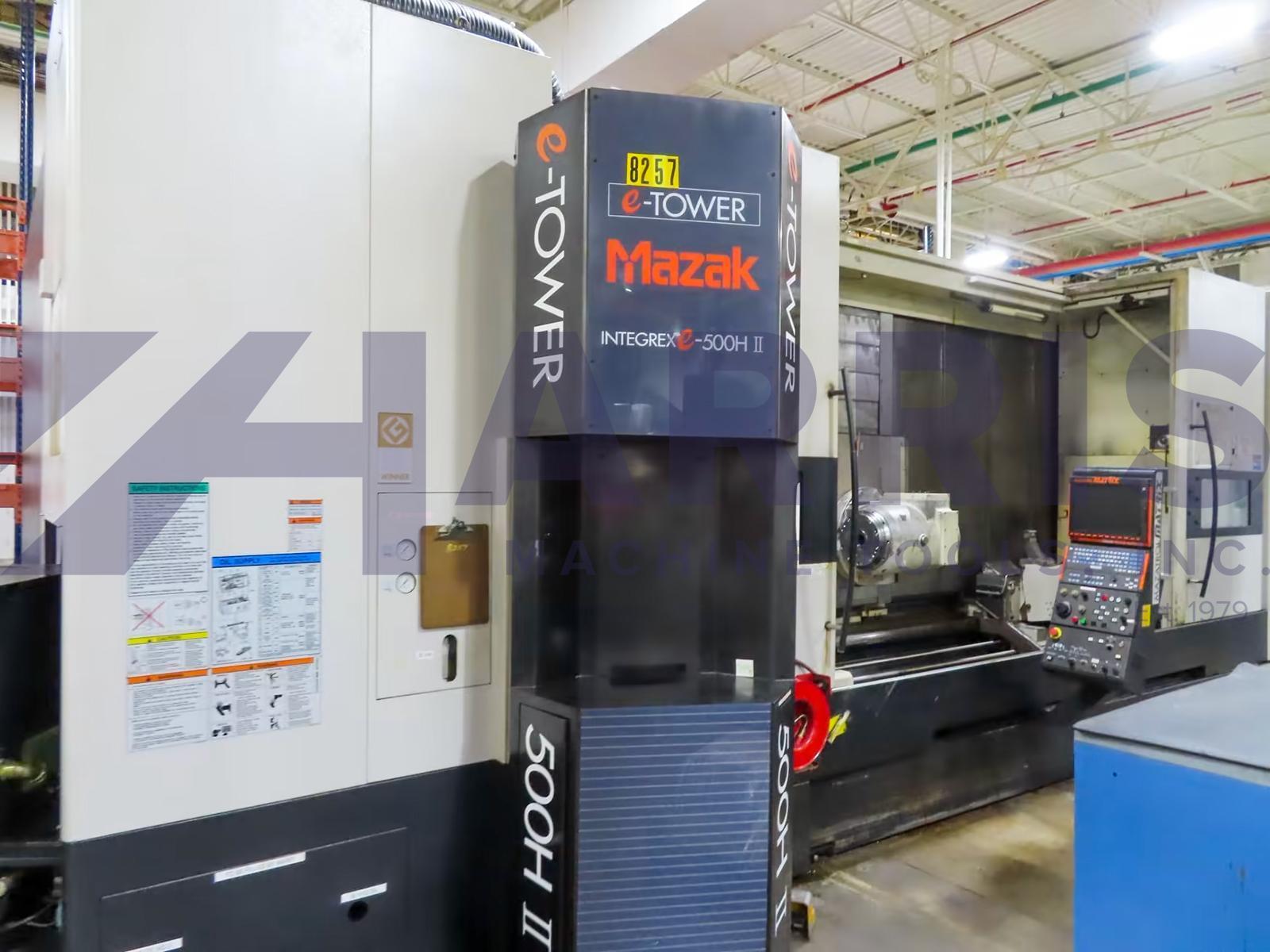

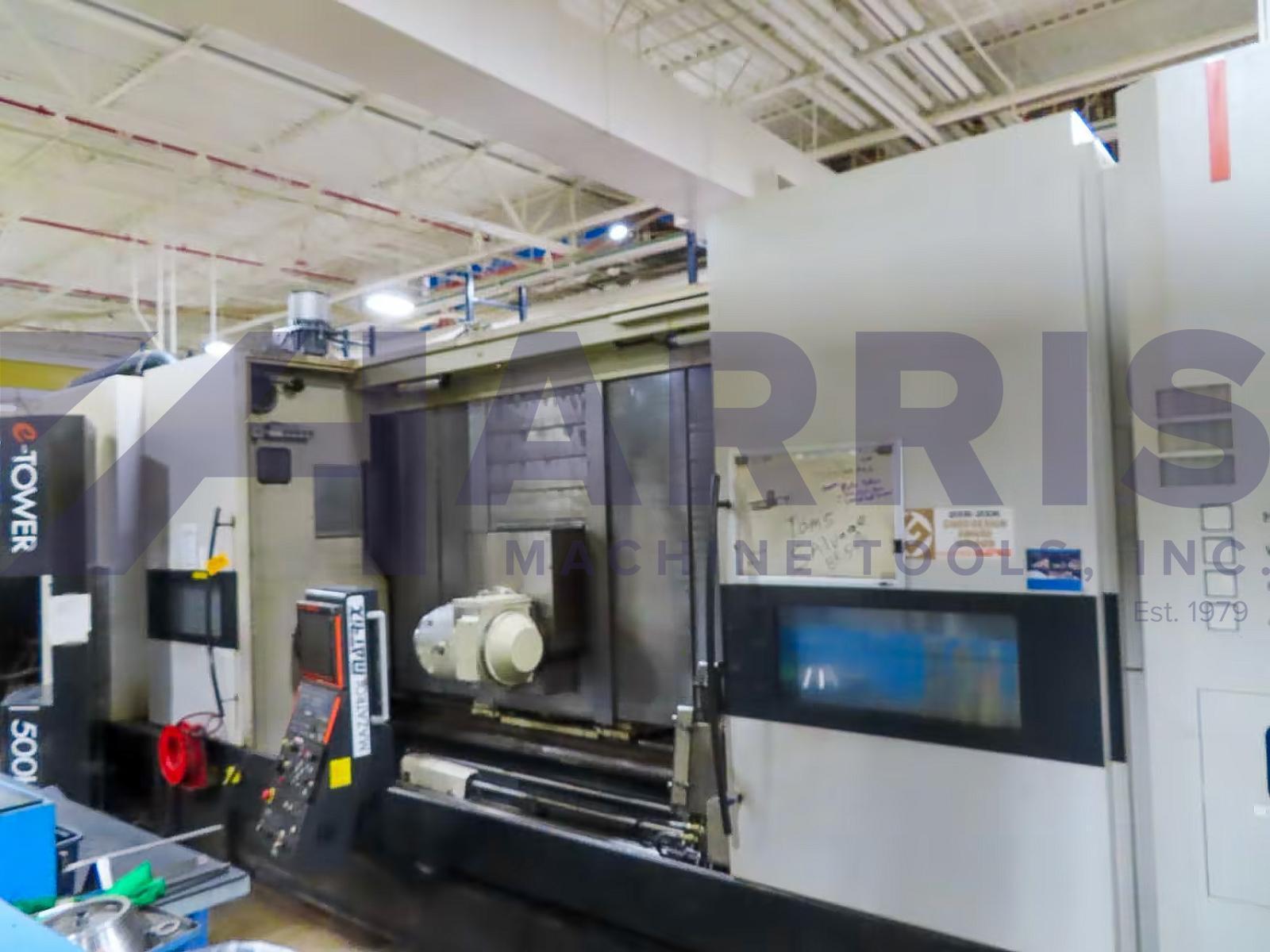

Used, 2007 Mazak Integrex E-500H2 CNC Turning Center (PARTS MACHINE)

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, TURNING

Stock

20058

Model

INTE-E500H2

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet



Mazak Integrex Mdl. Inte E-500H2 CNC Turning Center
20" SMW Autoblok 3-Jaw Chuck
Tailstock

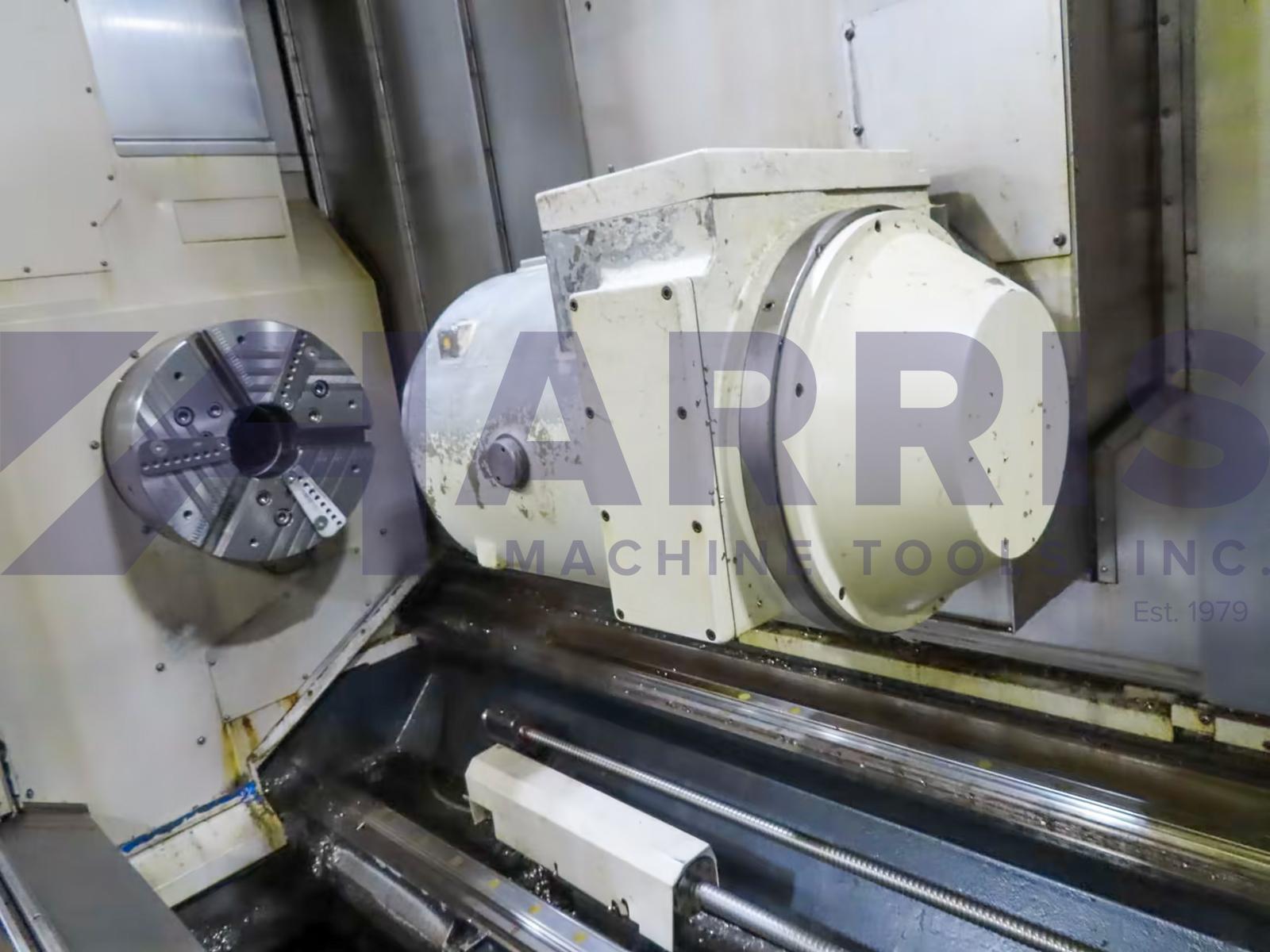

Universal CT 50 Taper Head
SMW Autoblok Self Centering Steady Rest
80 Position ATC
Filter Mist

C-Axis: Yes
Y-Axis: Yes
B-Axis: Yes
Spindle Speed: 1,600 RPM
Spindle Motor: 45 HP
Spindle Bore: 7.28 inches
Live Tooling / Milling: Yes
Live Milling HP: 50 HP
Bar Capacity: 6 inches
Live Milling Max RPM: 10000 RPM
Distance Between Centers: 120 inches
Tool Positions: 80
Max Swing Over Bed: 32.28 inches
Single Turret: Yes
X-Travel: 34 inches
Z-Travel: 122.91 inches
B-Axis Travel: 0.0001 Degree inches
Max Cutting/Turning Diameter: 32.28 inches
Max Turning/Cutting Length: 120.07 inches
Programmable Tailstock: Yes
Chuck Description: SMW Autoblok Hydraulic Chuck KNCS-N-500-155
Chuck Type: Hydraulic
Chuck Size: 20 inches

Additional Machine Specs:
Travels:
 - C-Axis: 0.0001 Degree
- Y-Axis: 19.68”

CAT#50 Universal Head

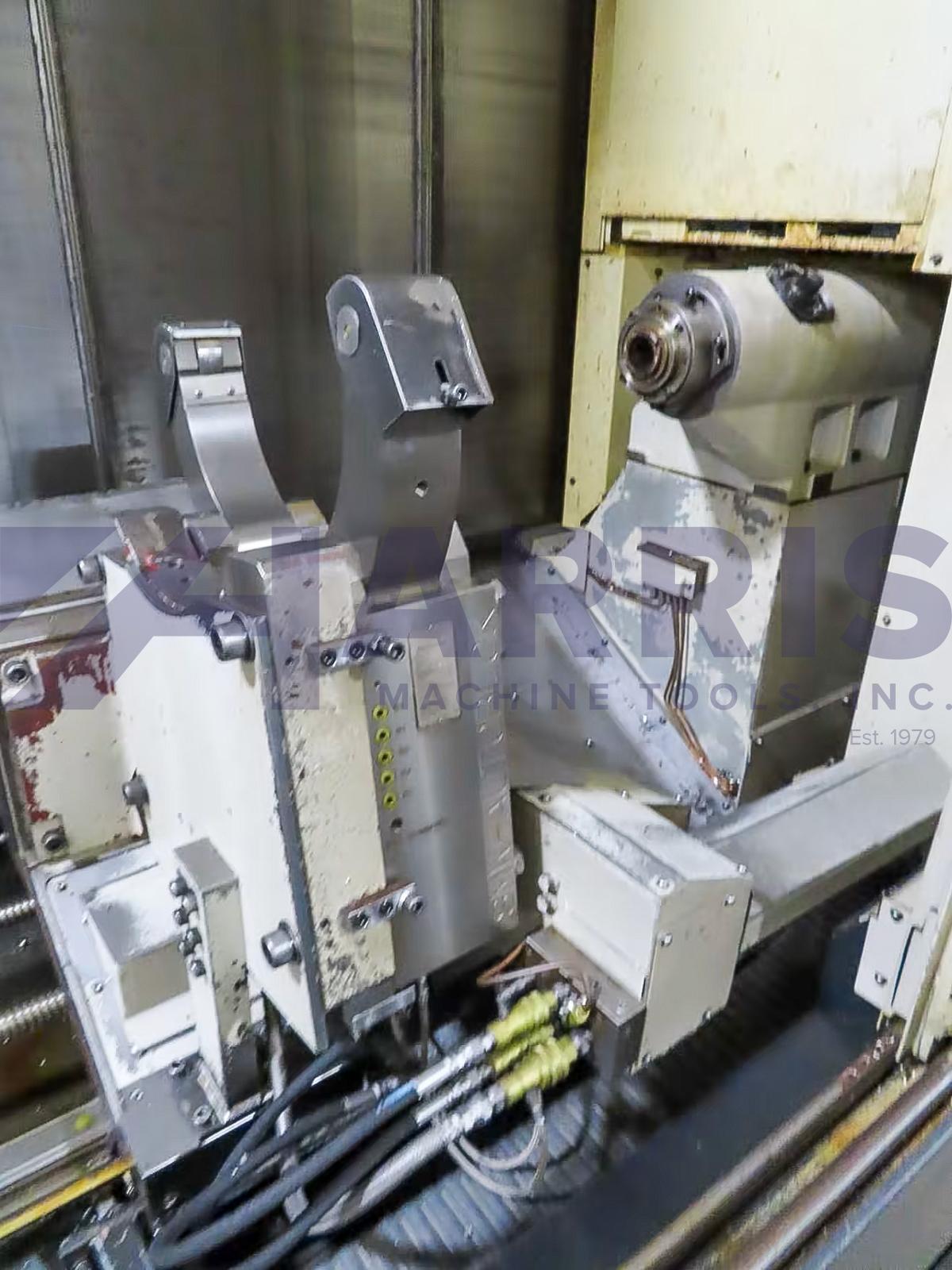

SMW Autoblok SLUZ5 Programmable Steady Rest

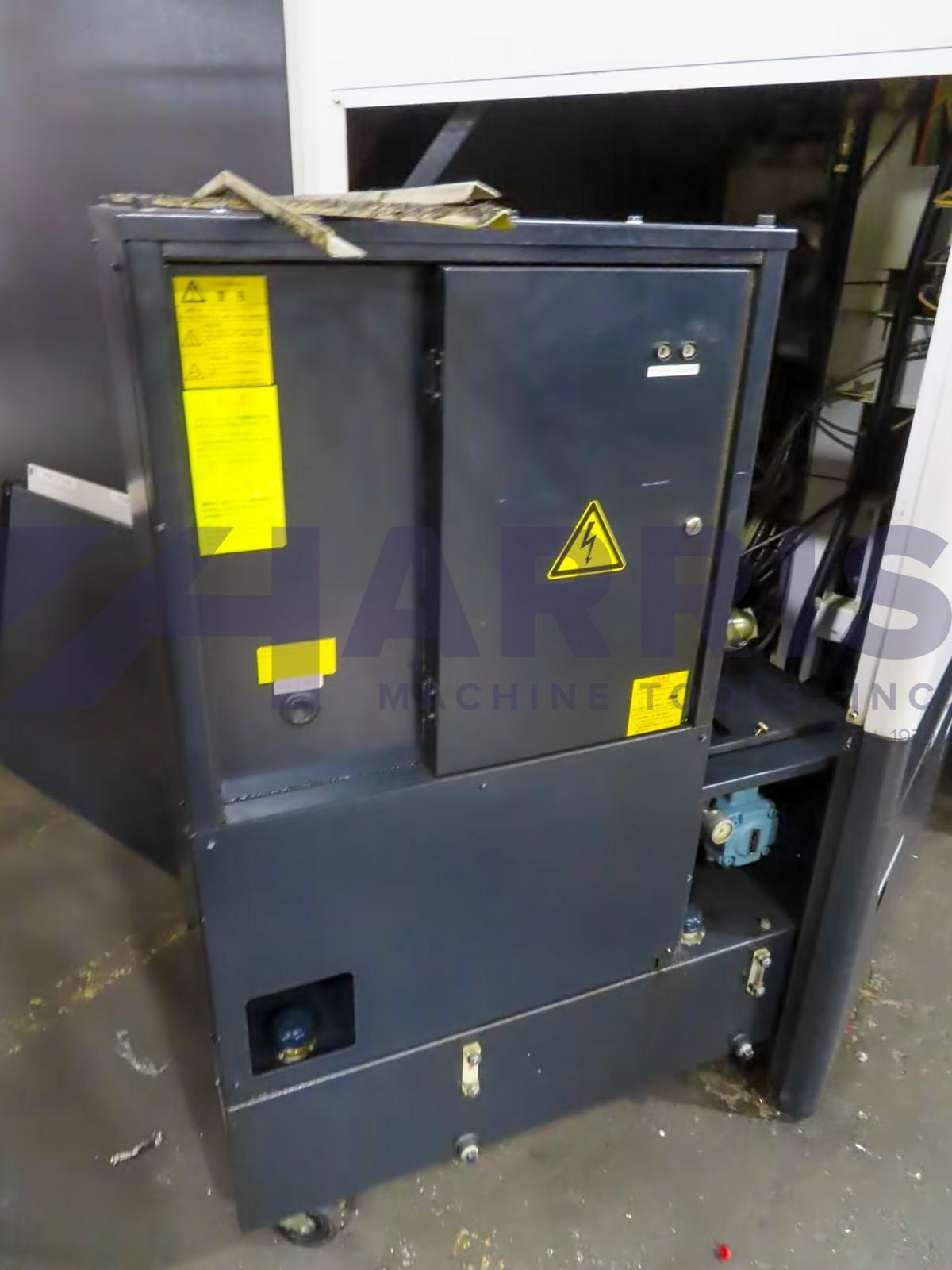

Filter Mist Unit
Long Boring Bar Stocker: 2-Tool Capacity
Automatic Tool Eye
Mazak Monitoring System - B MP10
Renishaw TS-27R Probe System
Coolant Thru-Milling Head
Flush Coolant
Hydraulic Pressure Interlock
Prepped for Flash Tool System
Double Foot Switch, Chuck Open/Close

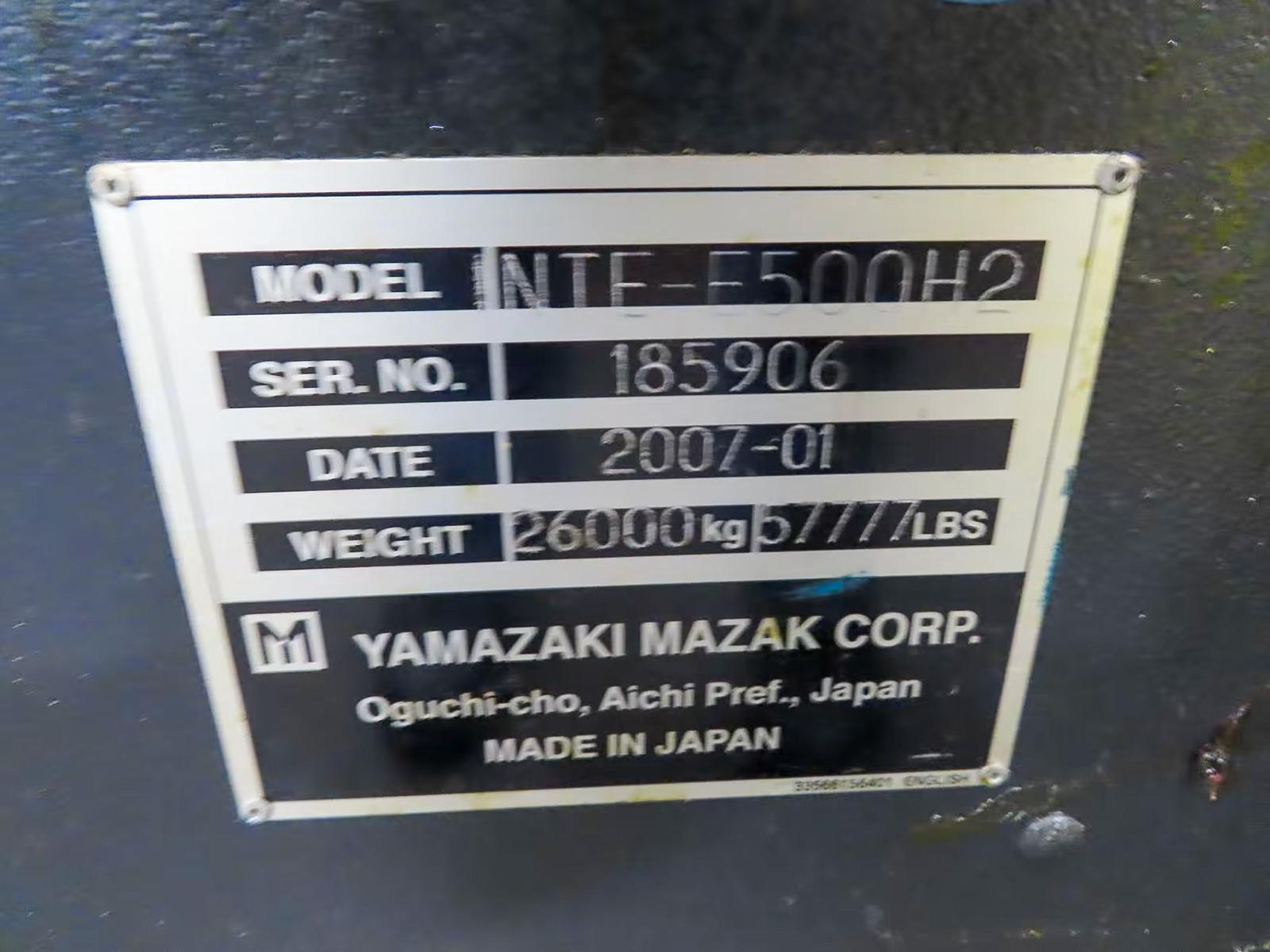

S/N:185906 (2007)

Note: All Specifications Subject to Verification
