Motoman Gantry Welding Cell, X-480", Y-241", Z-72", 72" Headstock/Tailstock, Motoman 6-Axis Robot, 2012, #32742

Manufacturer

Motoman

Category

Welding Machines

Type

WELDERS, SPOT, CNC, ROBOTIC

Stock

32742

Model

Gantry Type

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32742

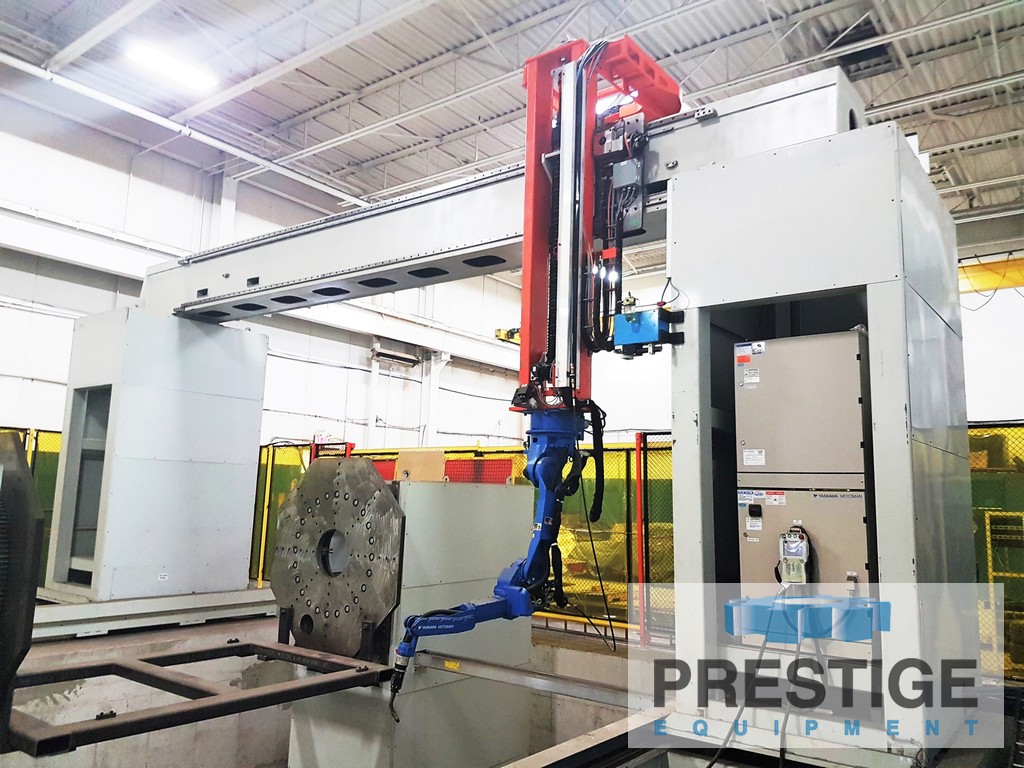

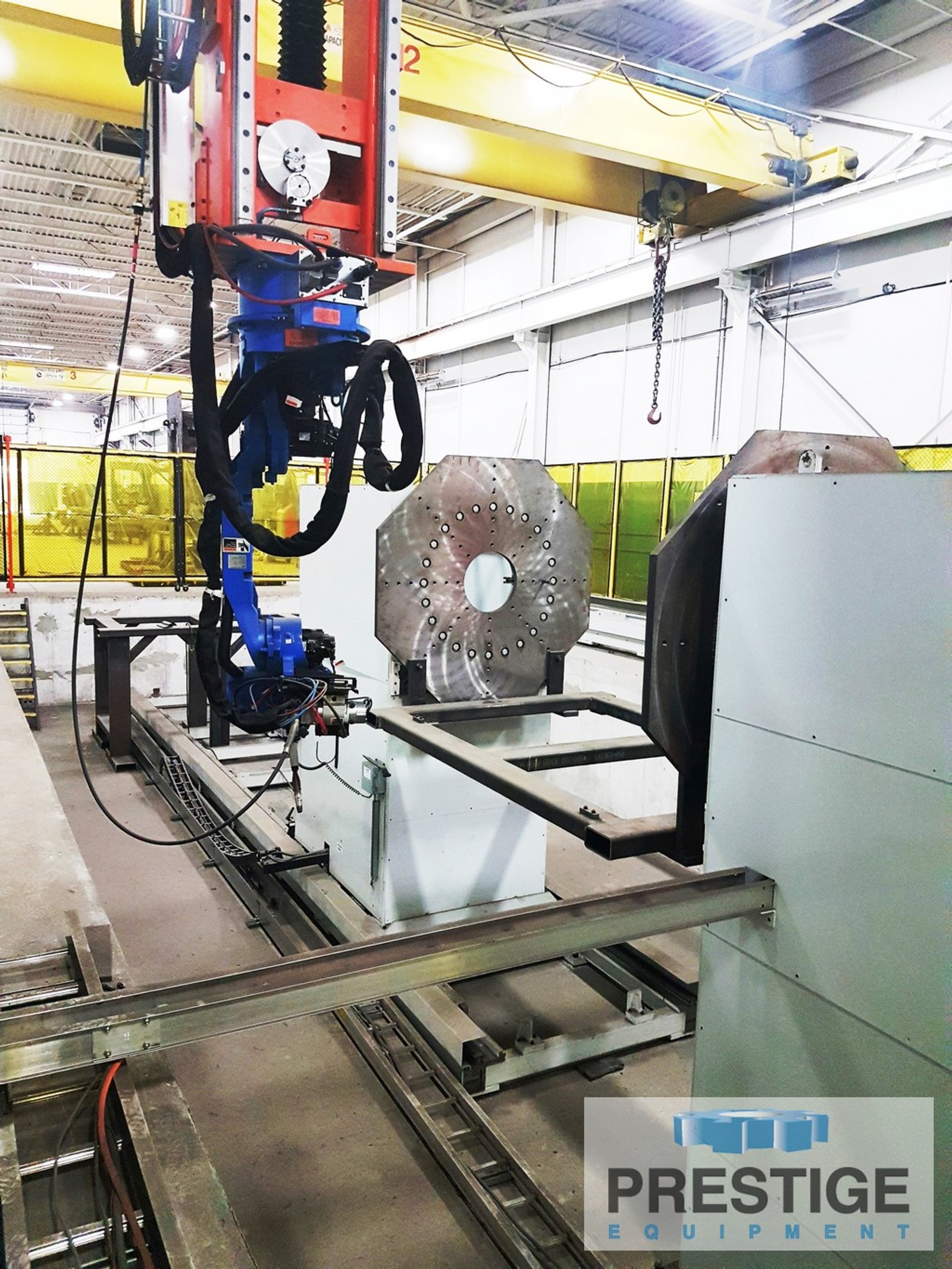

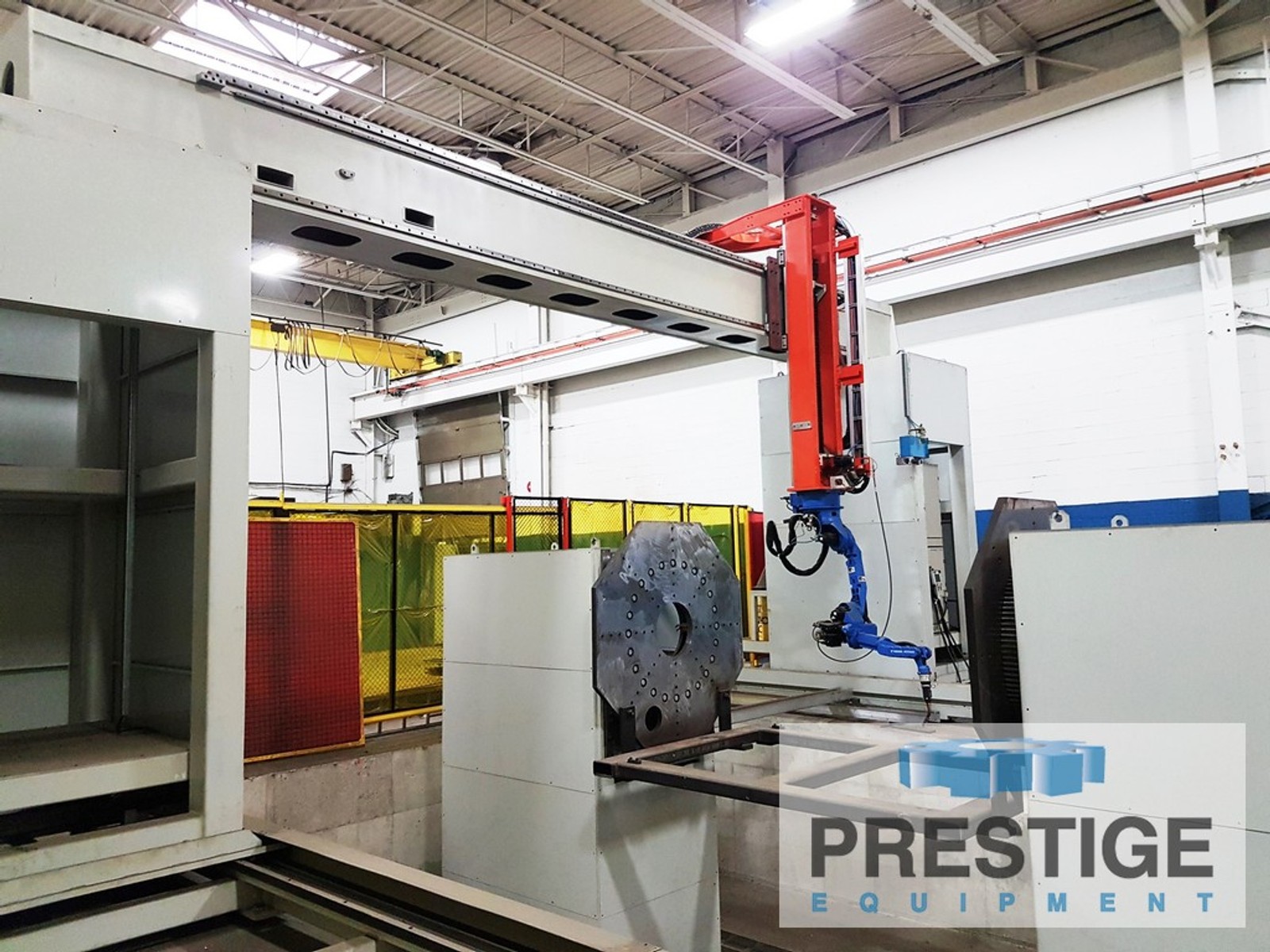

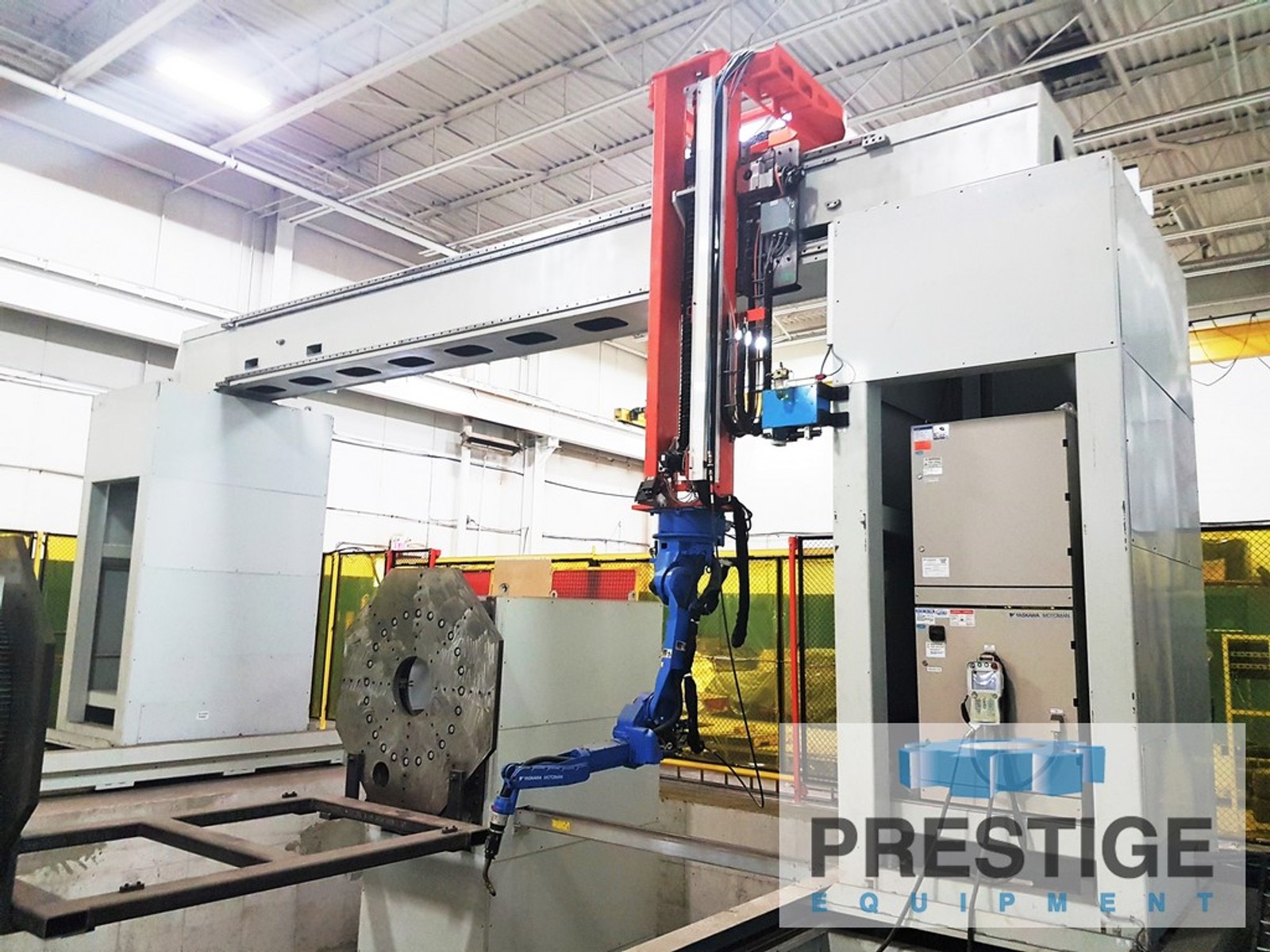

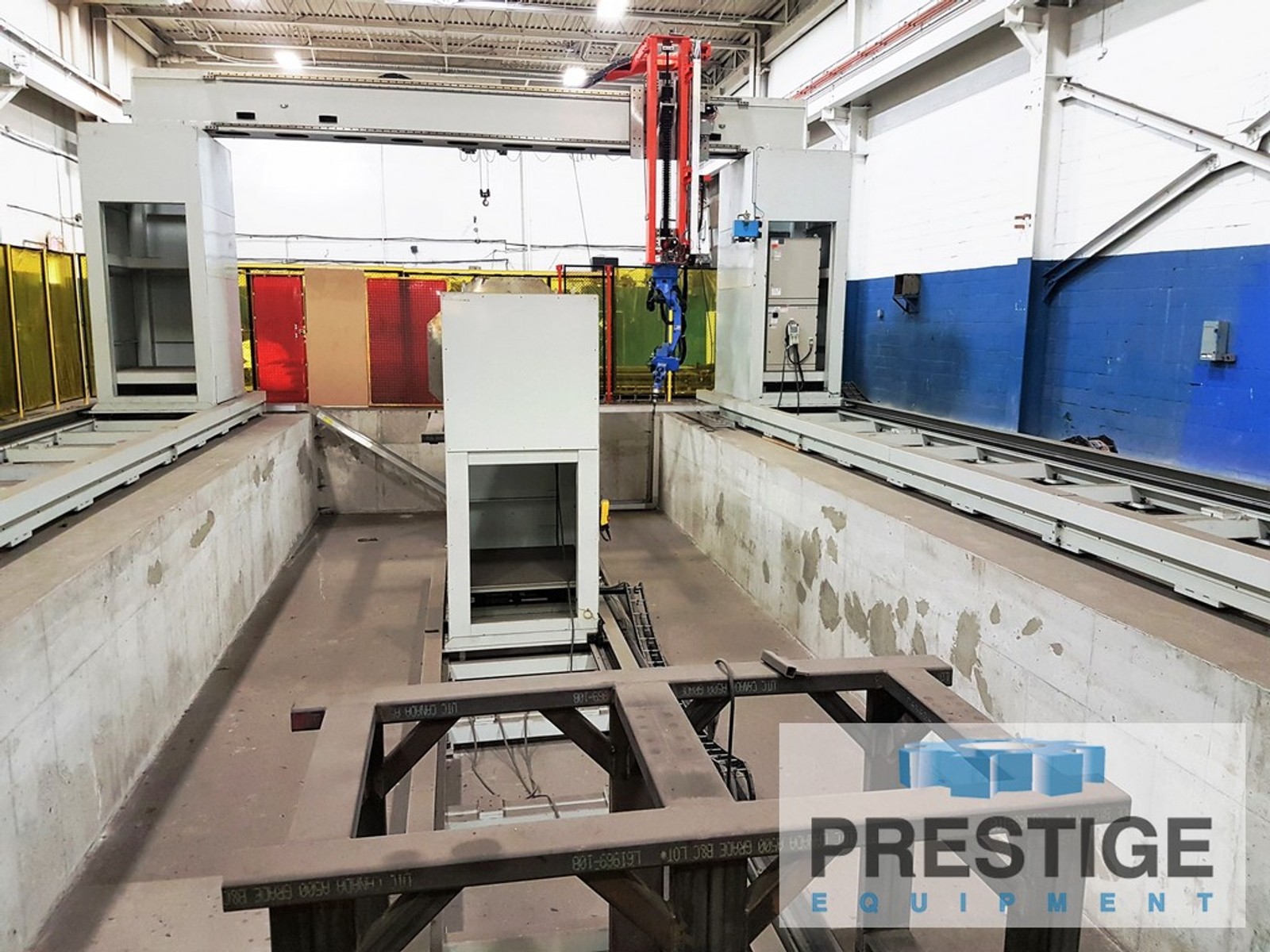

Motoman Gantry Type Robotic Welding Cell

FEATURES:
Motoman DX100 Controller for Robot, Gantry and Rotary Positioner
Motoman MA1900T 6 Axis Robot
Miller Auto-Axcess 675 Weld Controller
Binzel WH650 Water Cooled Torch
72" 60,000 lb Headstock/Tailstock Positioners
Rotary Positioner Torque Capacity: 30,000 lb-ft
Wire Mesh Guarding Fence with Arc Flash Curtains

Specifications:
Gantry Travel, X-Axis ................. 480"
Cross Travel, Y-Axis .................. 241"
Ram Stroke, Z-Axis .................... 72"
Headstock Diameter .................... 72"
Headstock Speed ...................... 1 RPM
Tailstock Diameter .................... 72"
Tailstock Travel ..................... 360"
Distance Between Headstock/Tailstock .. 240" - 480"
Center of Rotation from Floor ......... 59" - 98"
Cell Footprint ........................ 600" x 384"
Cell Max Height ....................... 264"
Cell Min Height ...................... 216"

EQUIPPED WITH:
Motoman DX100 Controller for Robot, Gantry and Rotary Positioner
Motoman MA1900T 6 Axis Robot
Miller Auto-Axcess 675 Weld Controller
Binzel WH650 Water Cooled Torch
72" 60,000 lb Headstock/Tailstock Positioners
Rotary Positioner Torque Capacity: 30,000 lb-ft
Wire Mesh Guarding Fence with Arc Flash Curtains
