Hankook Hanturn-95CM x 8000, 37.4" Swing, 315" Centers, Fanuc 31iA, 10" Bore, Live Milling, Tooling, 2015, #32726

Manufacturer

HANKOOK

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32726

Model

Hanturn 95CM x 8M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32726

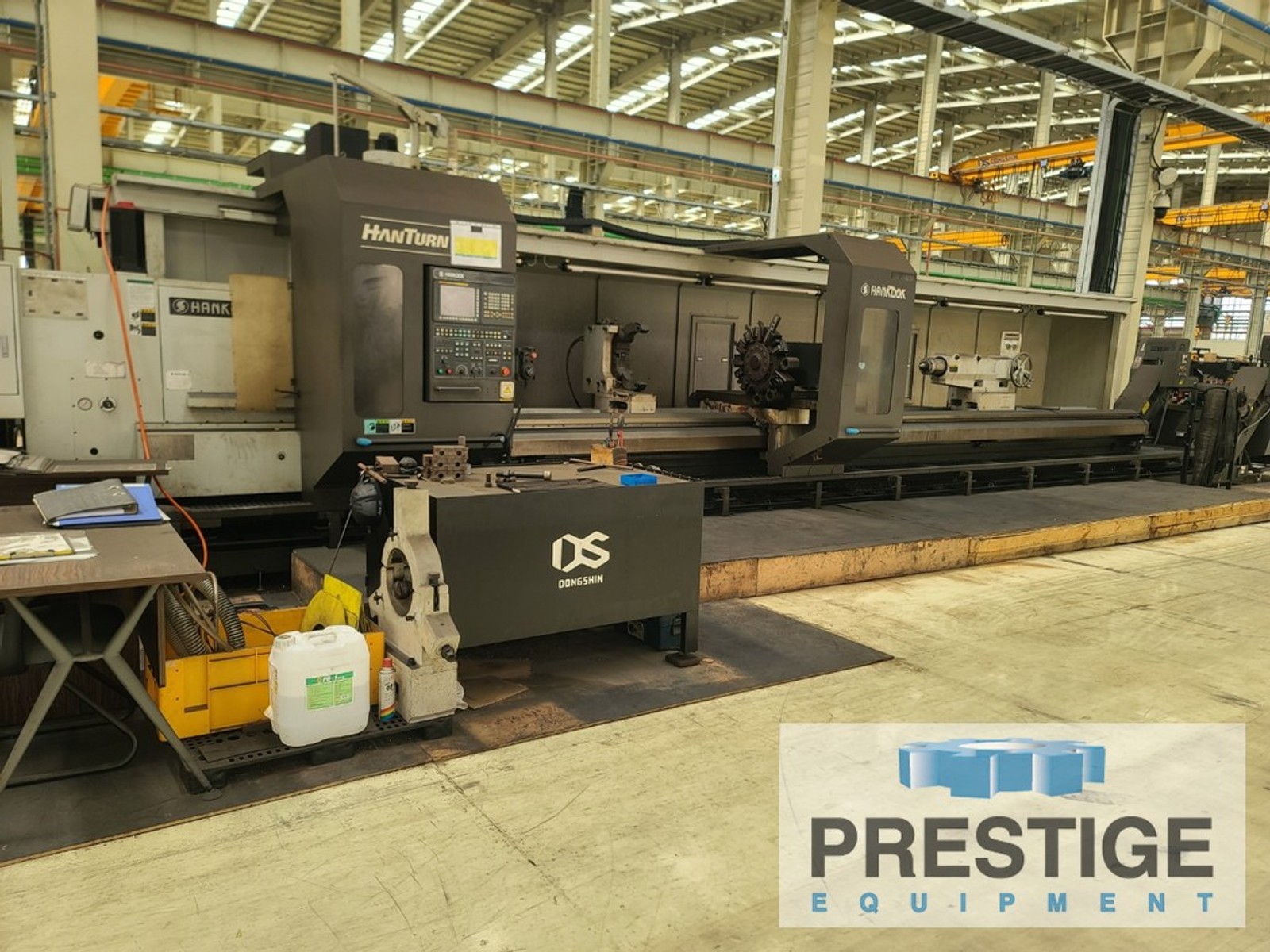

Hankook Hanturn-95CM x 8000 CNC Lathe

FEATURES:

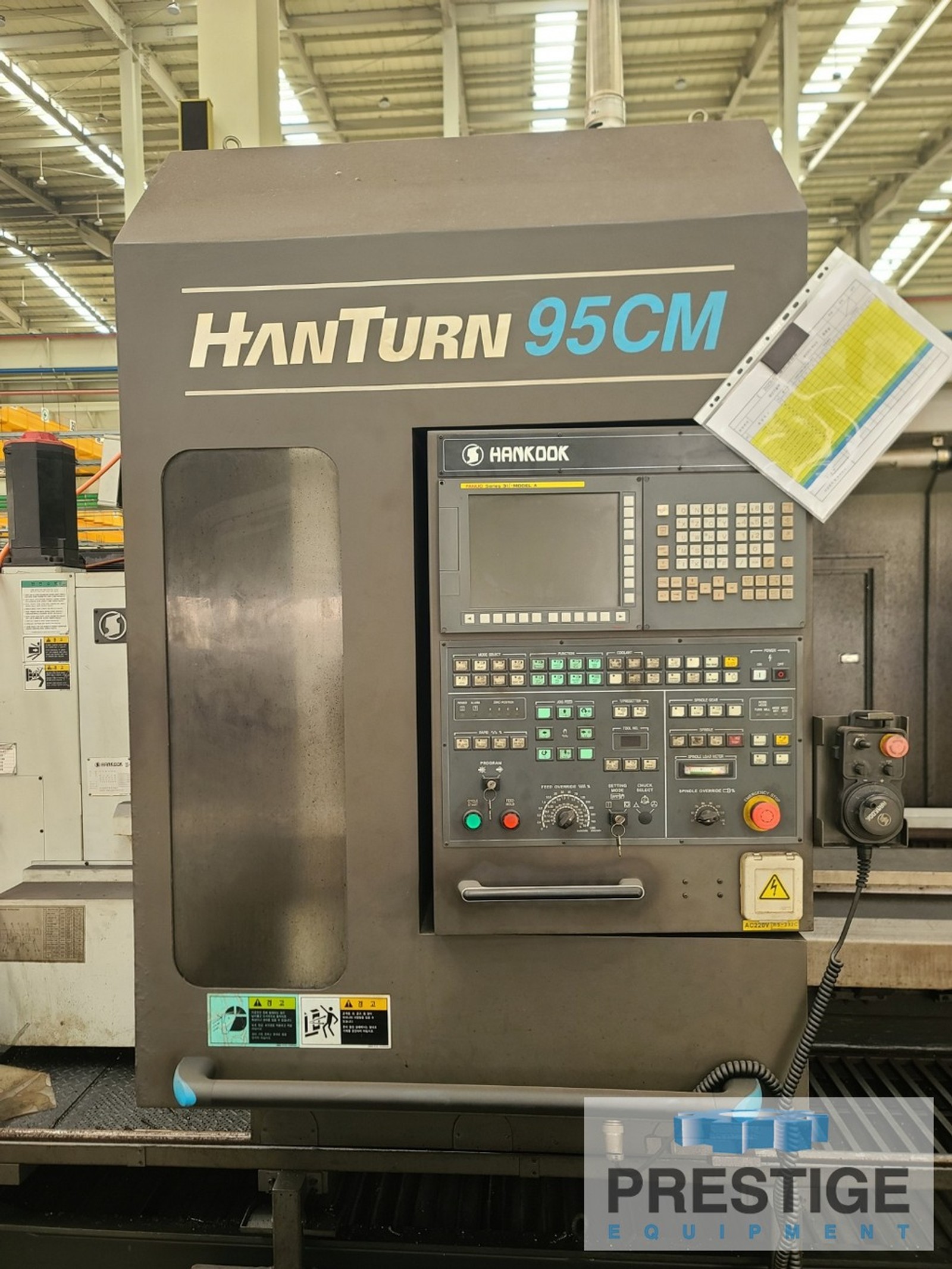

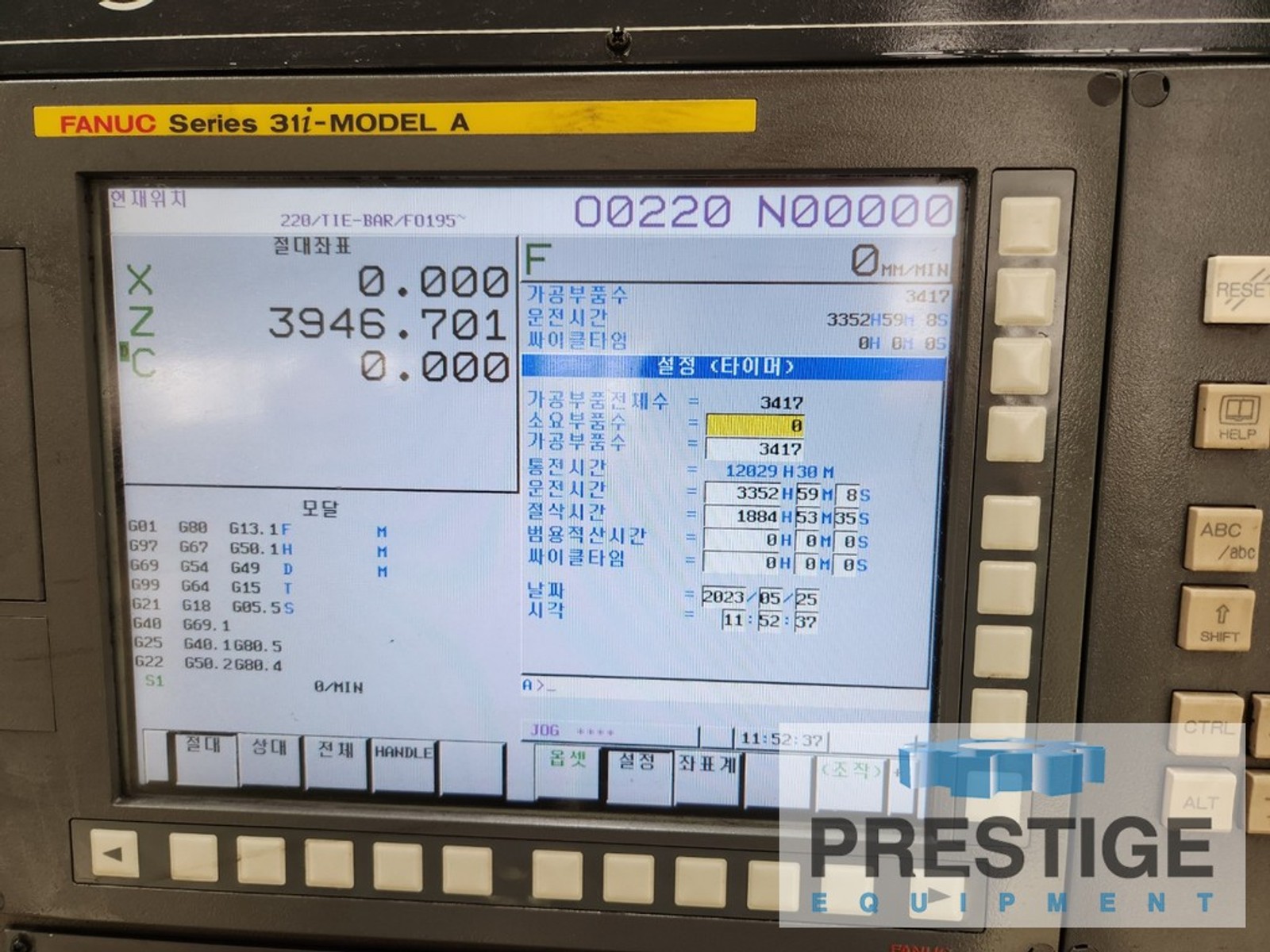

Fanuc 31iA CNC Control
24" 3-Jaw Manual Chuck

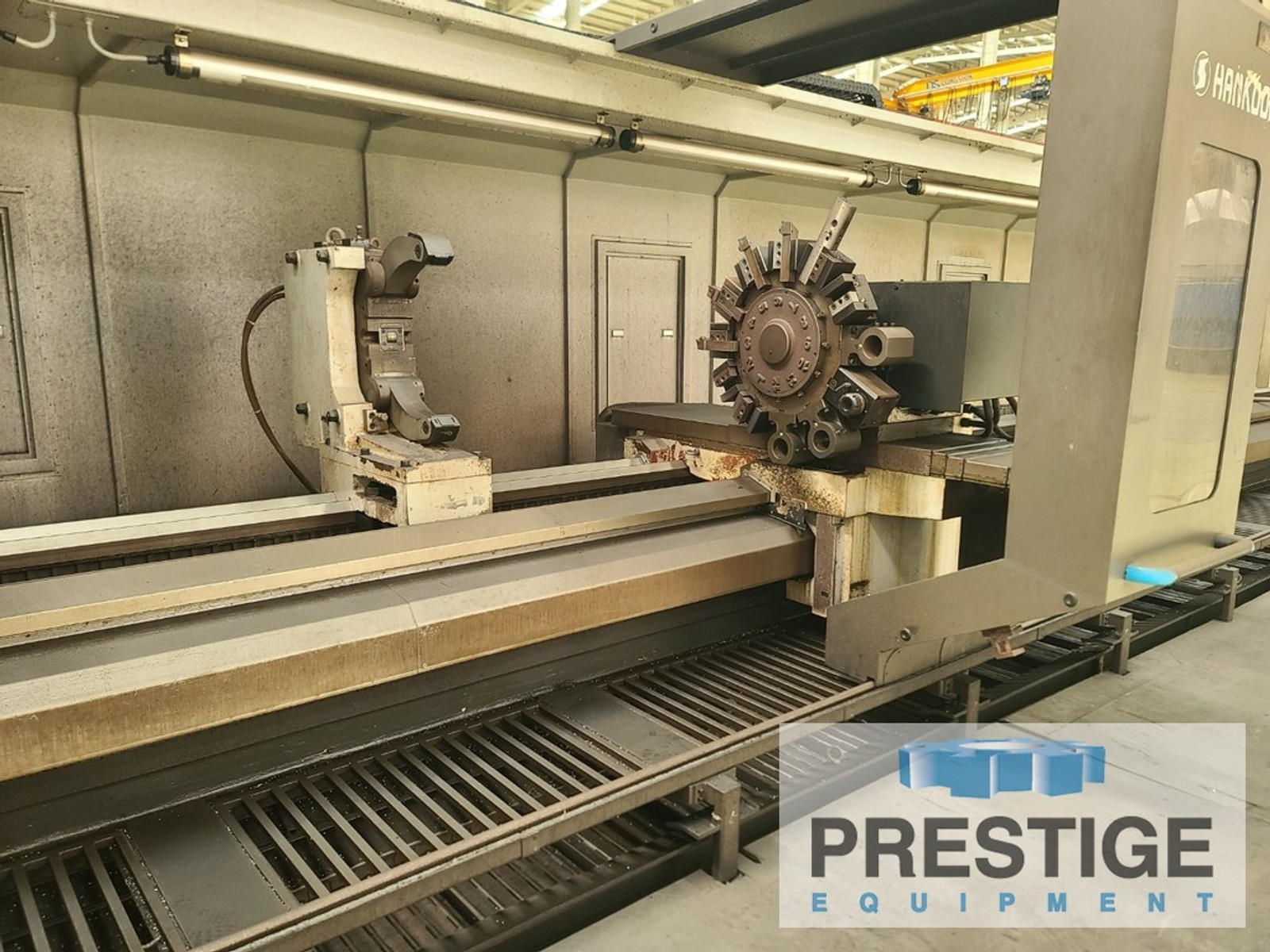

12-Position Turret
Live Milling
C-Axis
10" Spindle Bore
SMW Hydraulic Rest
Tooling

CAPACITIES:
Swing Over Bed ........................ 37.40"
Swing Over Carriage ................... 24.80"
Distance Between Centers .............. 314.96"
Spindle Bore .......................... 10"
Maximum Spindle Speed (2-Ranges) ...... 2-630 RPM
Spindle Nose .......................... A2-11
Milling Speeds ........................ 4,000 RPM
Milling Motor ......................... 9.3 HP
Spindle Drive Motor ................... 30 HP/35 HP
Load Capacity Between Centers ......... 13,200 Lbs.
X-Axis Travel ......................... 21.06"
Z-Axis Travel ......................... 308.85"
Tailstock Quill Diameter .............. 7.08"
Tailstock Spindle Taper ............... MT-6
Tailstock Quill Travel ................ 9.84"
Approximate Machine Weight ............ 32,500 Lbs.

EQUIPPED WITH:
Fanuc 31iA CNC Control
24" 3-Jaw Manual Chuck
12-Position Turret
Live Milling
C-Axis
10" Spindle Bore
SMW Hydraulic Rest (15.74")
Coolant System
Tailstock

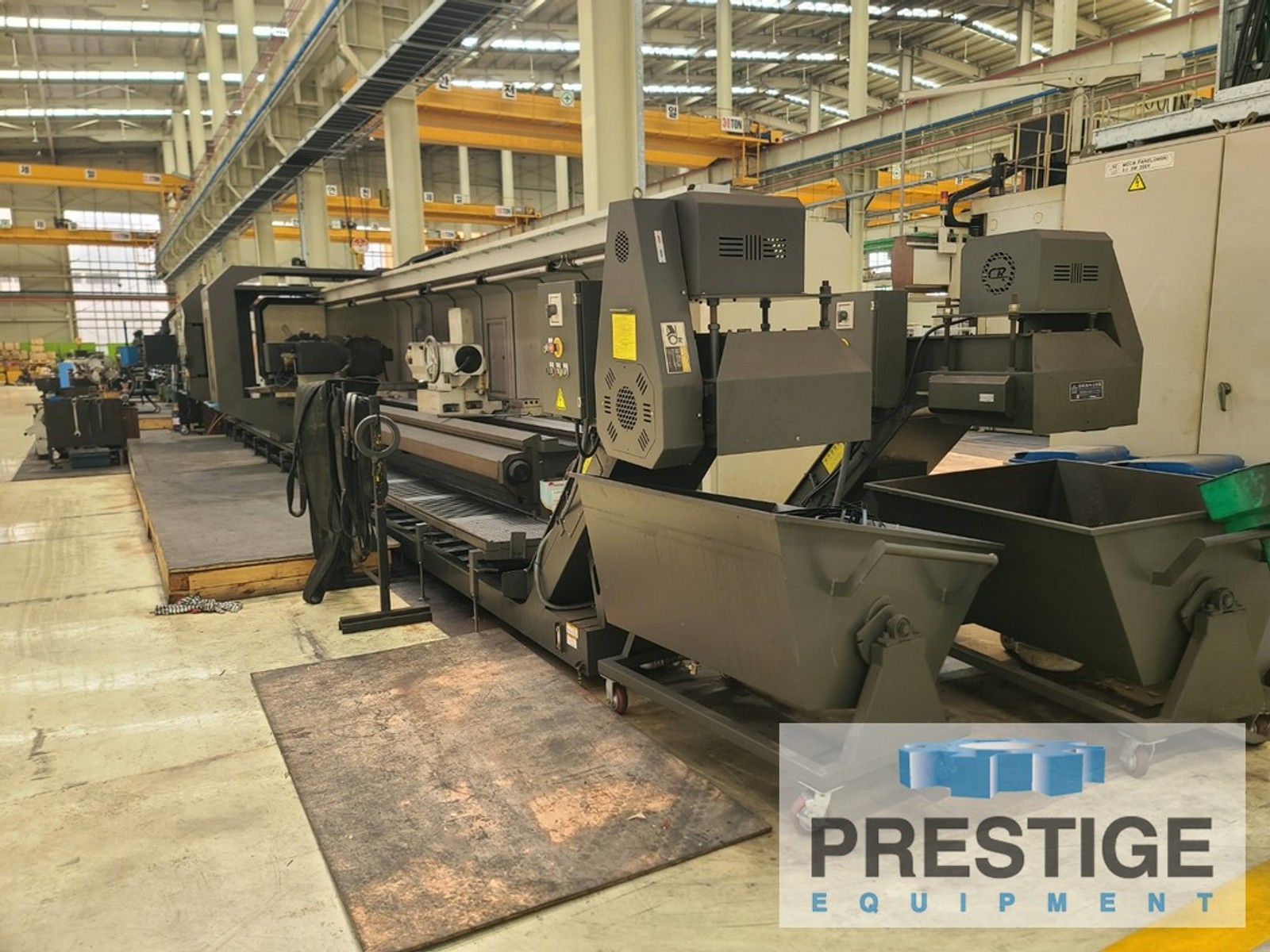

Dual Chip Conveyors

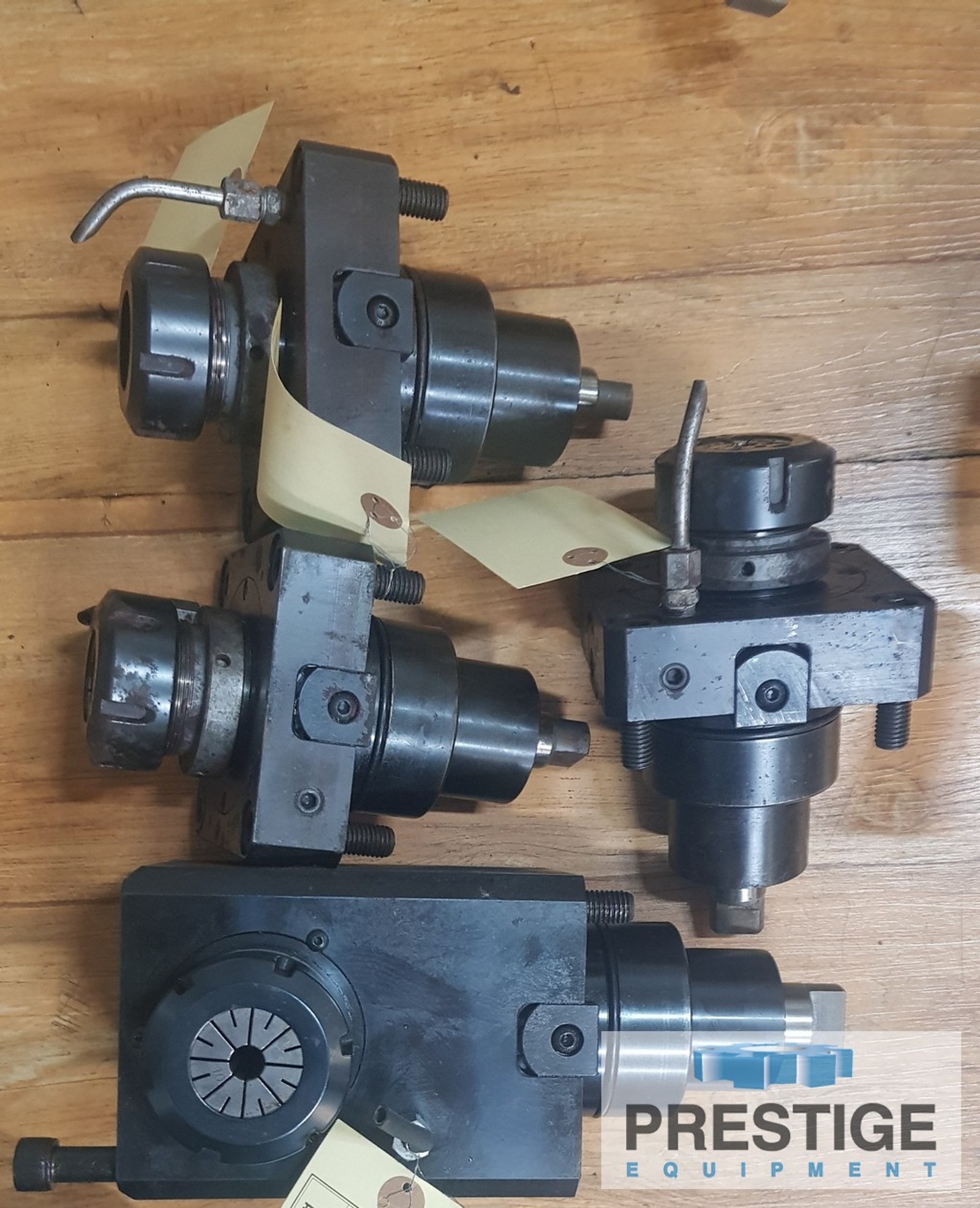

Tooling (4 Angular Milling Holders & Turning Holders)
