AWEA EP-3028F, X-118", Y-110", 90.5" B/C, Fanuc OiMF, 60 ATC, Right Angle Head, Coolant Thru Spindle, 2018, #32725

Manufacturer

AWEA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32725

Model

EP-3028F

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32725

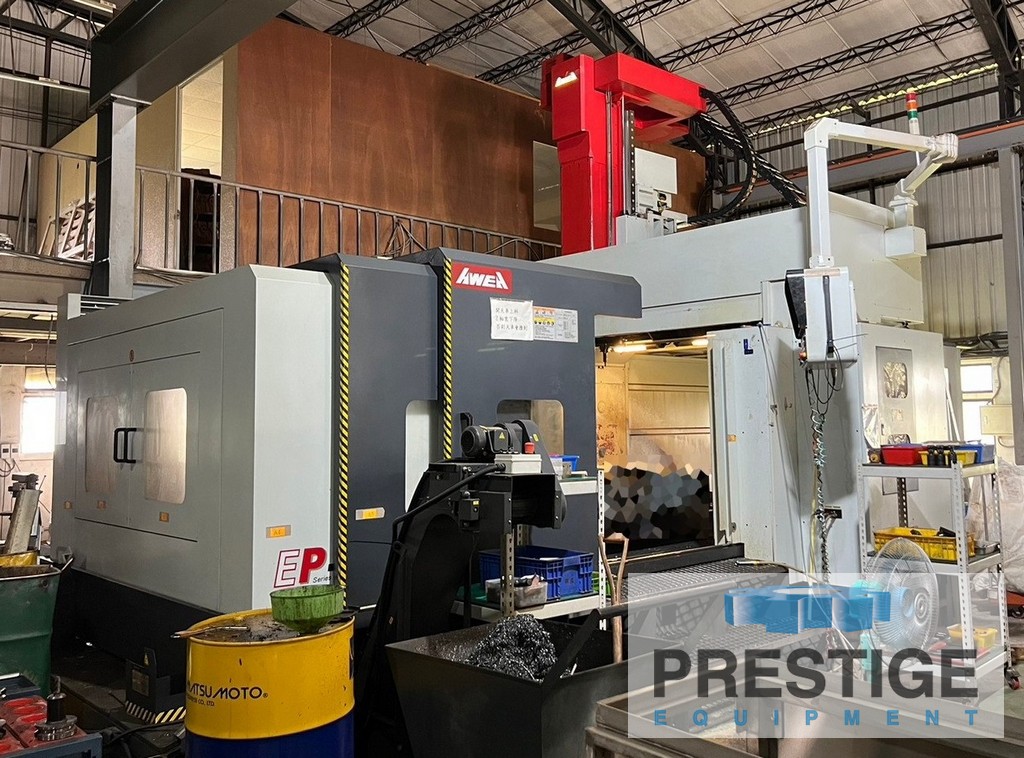

AWEA EP-3028F CNC Double Column Vertical Machining Center

FEATURES:
Fanuc OiMF CNC Control

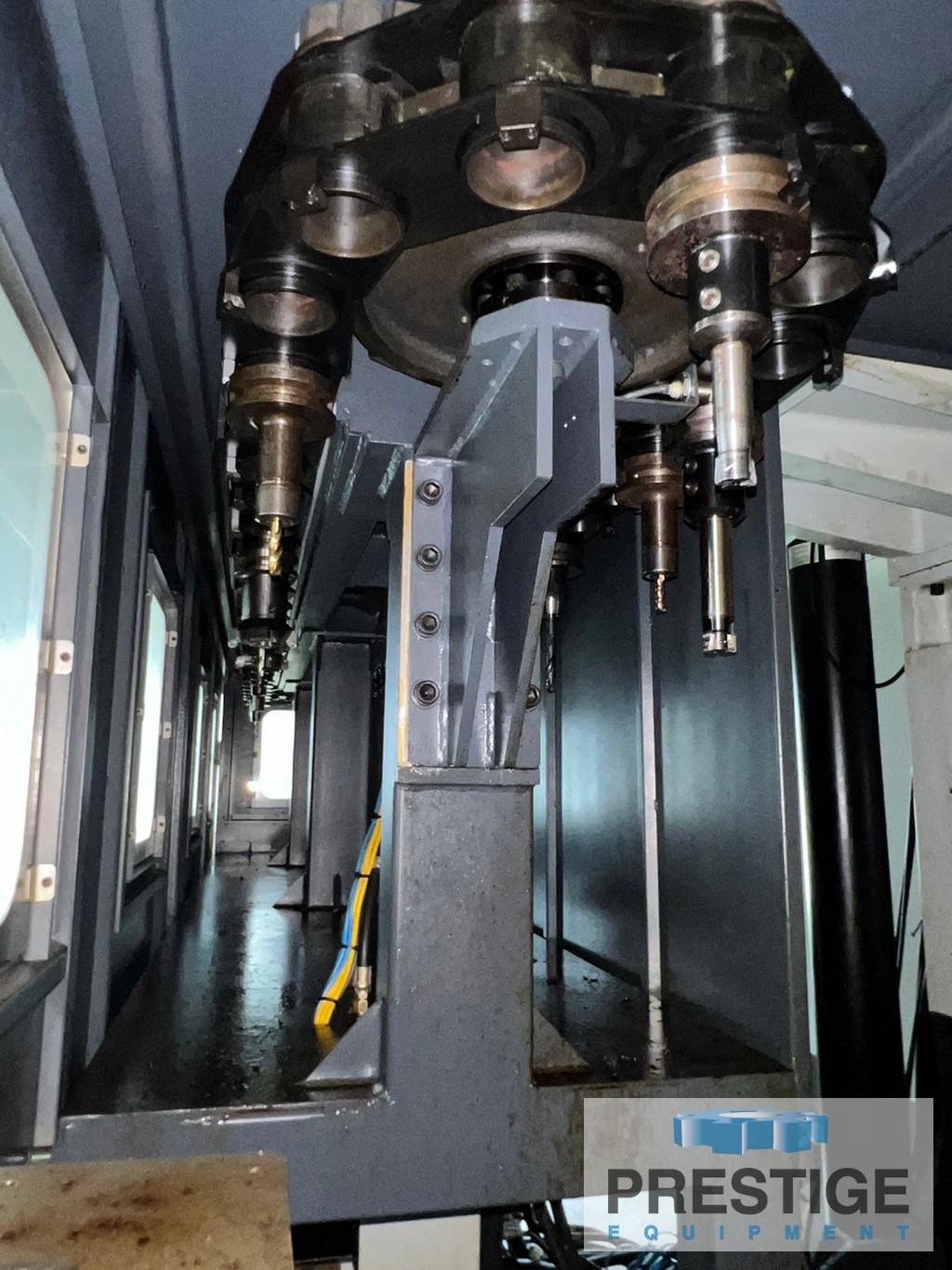

60-Position Automatic Tool Changer

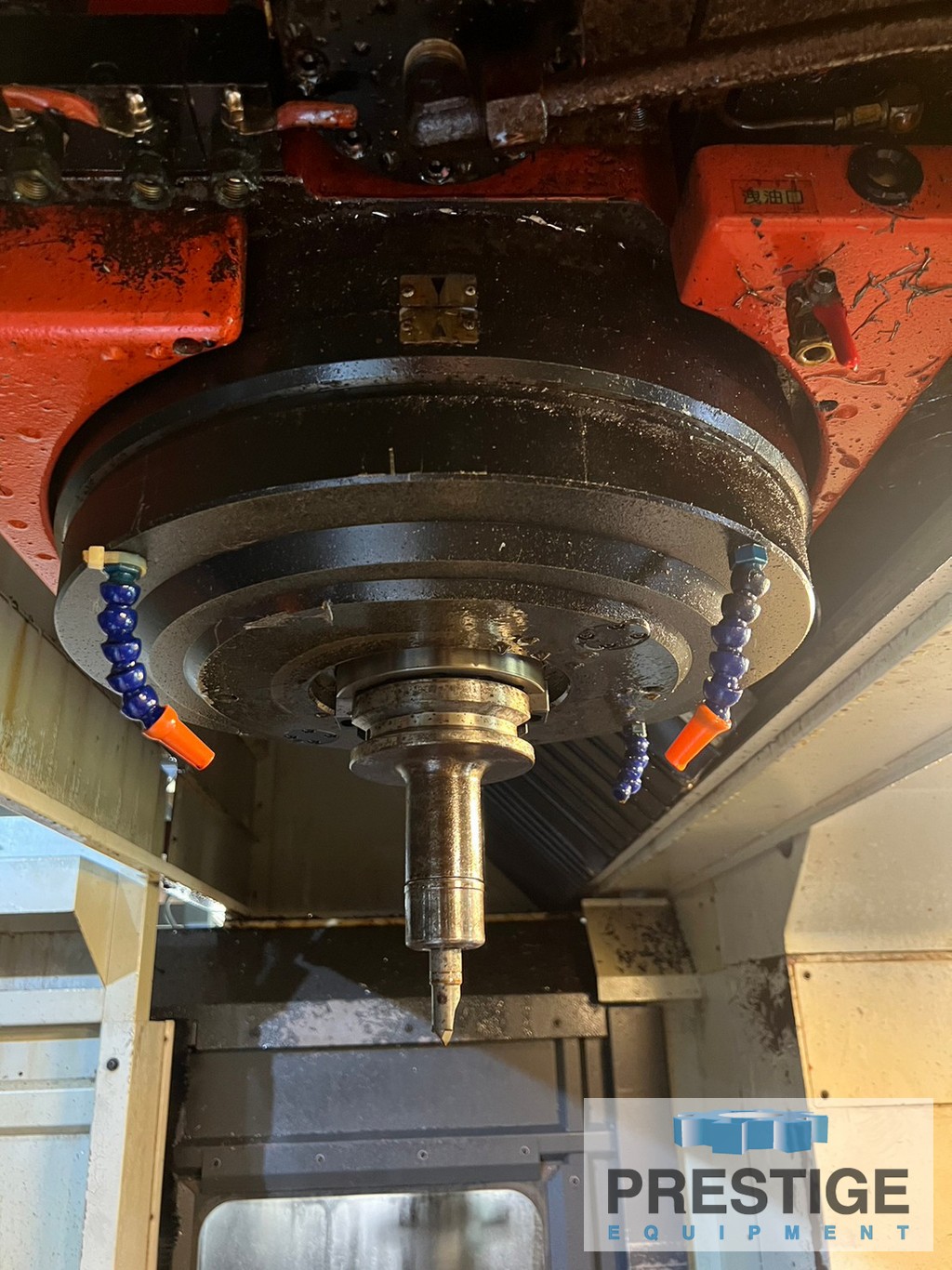

Right Angle Head (5 Degree Auto-Index)
Automatic Head Storage
Coolant Thru Spindle

CAPACITY:
X-Axis Travel ......................... 118.11"
Y-Axis Travel ......................... 110.23"
Z-Axis Travel ......................... 38.58"
Distance Between Columns .............. 90.55"
Distance Spindle Nose to Table ........ 15.74"-54.33"

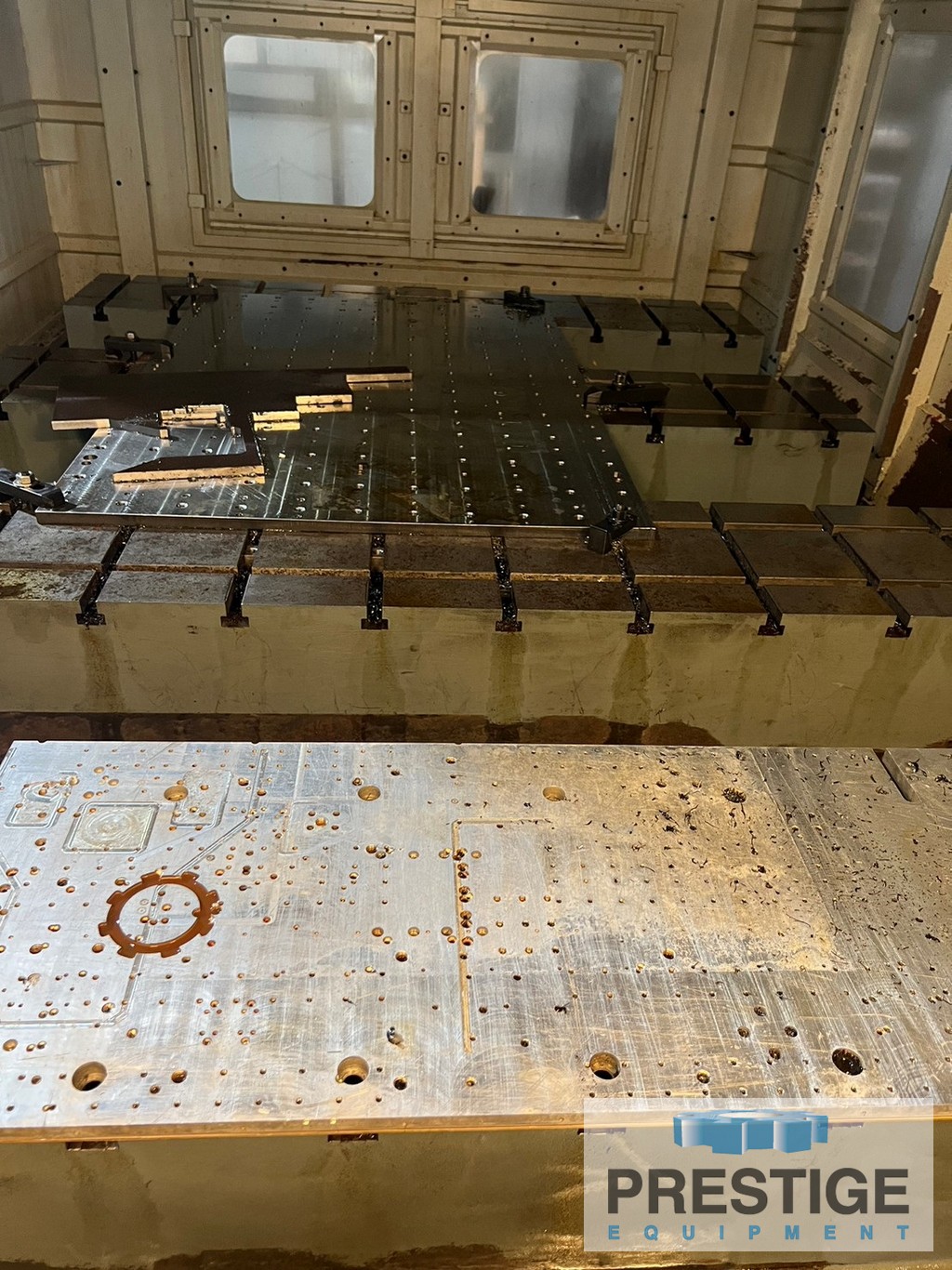

Table Size ............................ 127.95" x 59.05"
Table Load Capacity ................... 22,000 lbs
Spindle Speeds, Geared Head ........... 6,000 RPM
Spindle Taper ......................... BT 50
Tool Changer .......................... 60 ATC

EQUIPPED WITH:

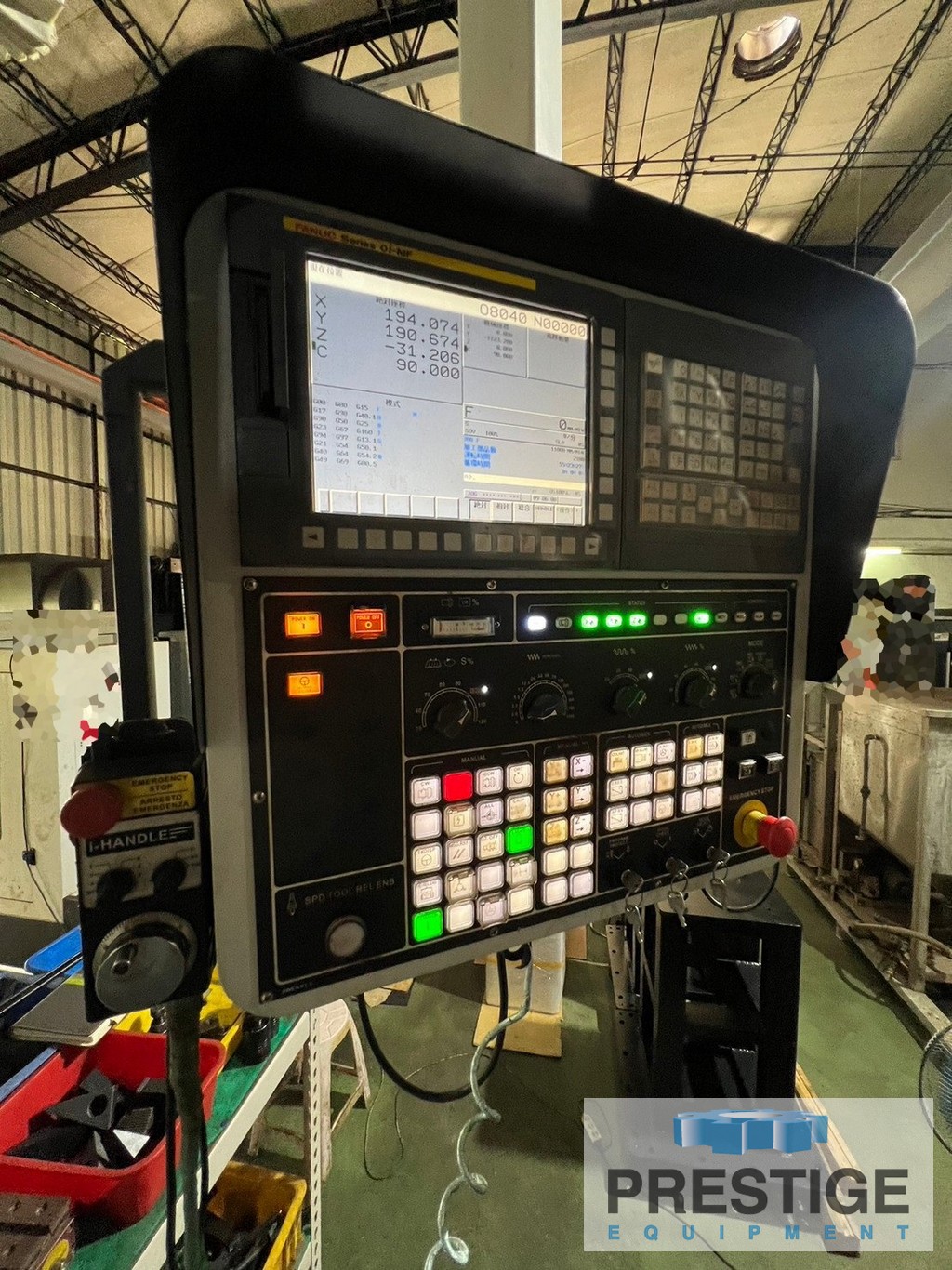

Fanuc OiMF CNC Control w/ 10.4" LCD Screen
60-Position Automatic Tool Changer
Right Angle Head (5 Degree Auto-Index)
Automatic Head Storage
Coolant Thru Spindle
Oil Skimmer

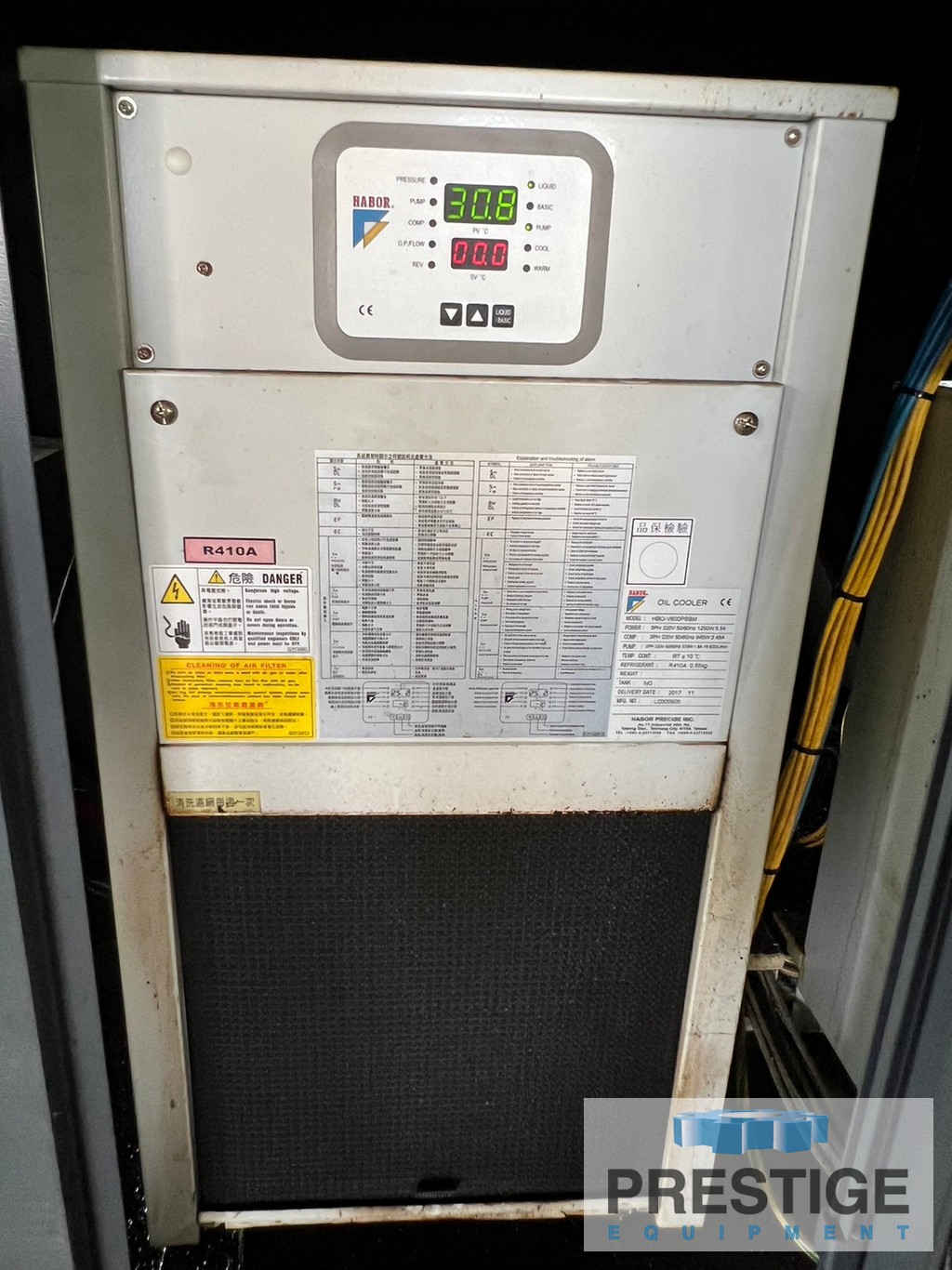

Spindle Oil Chiller
X/Y Axis Heidenhain Linear Scales

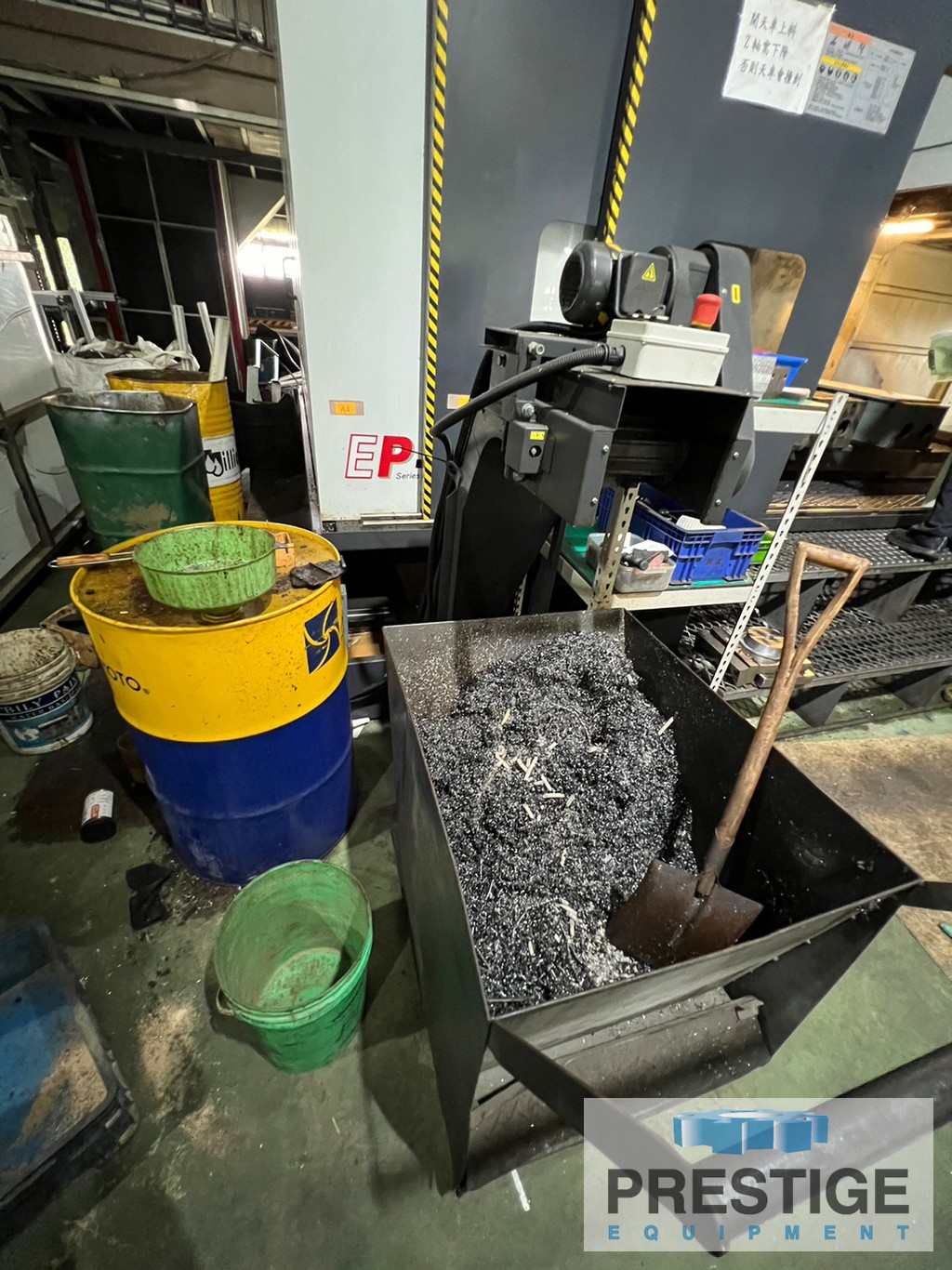

Chip Conveyor
