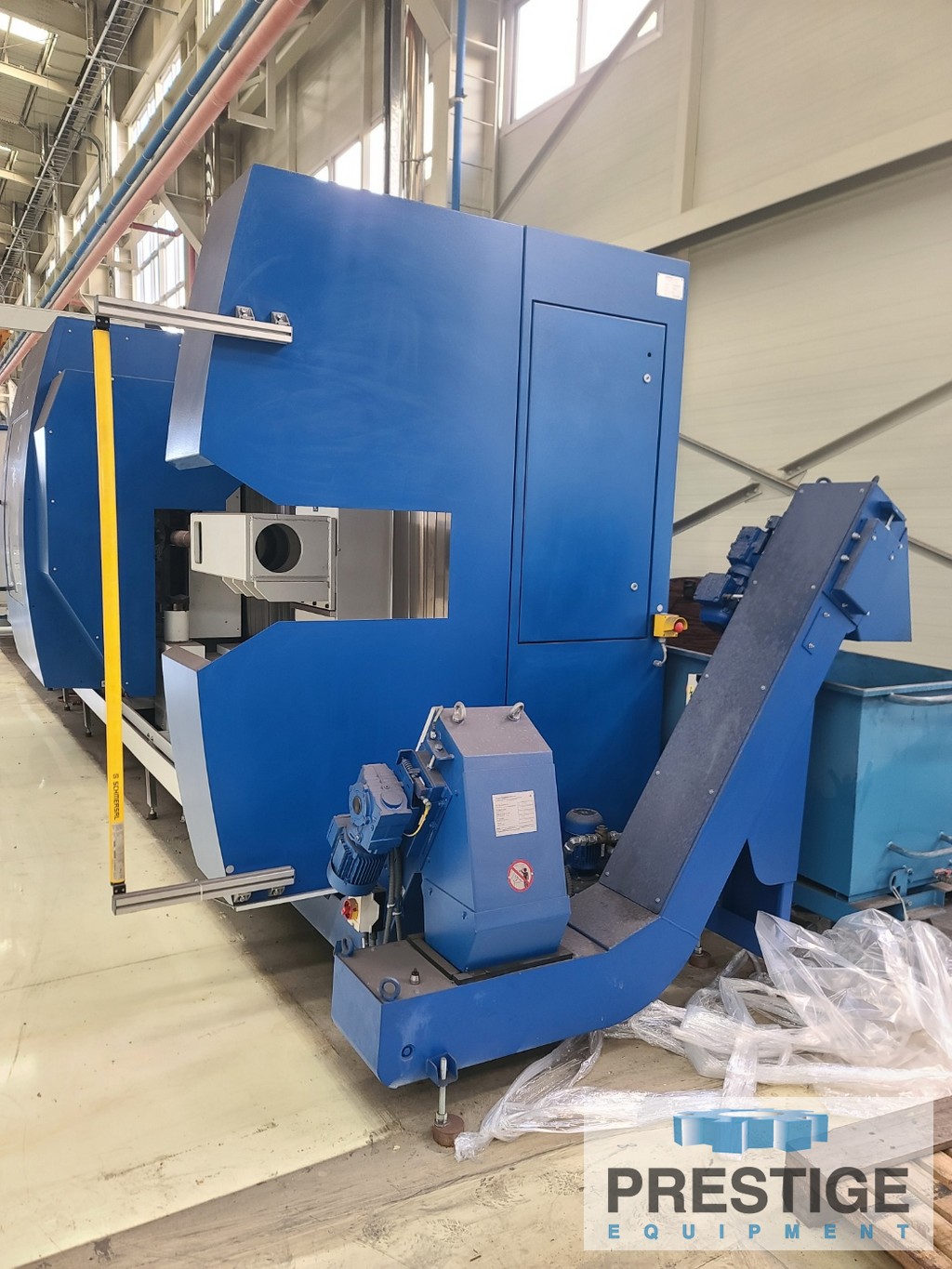

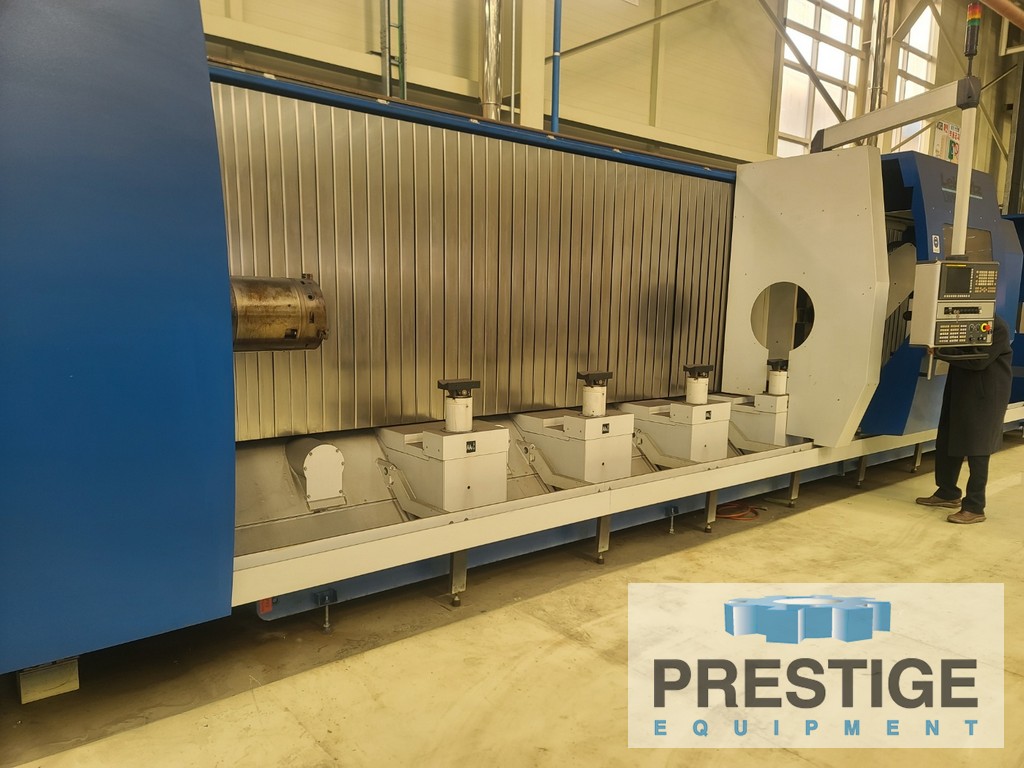

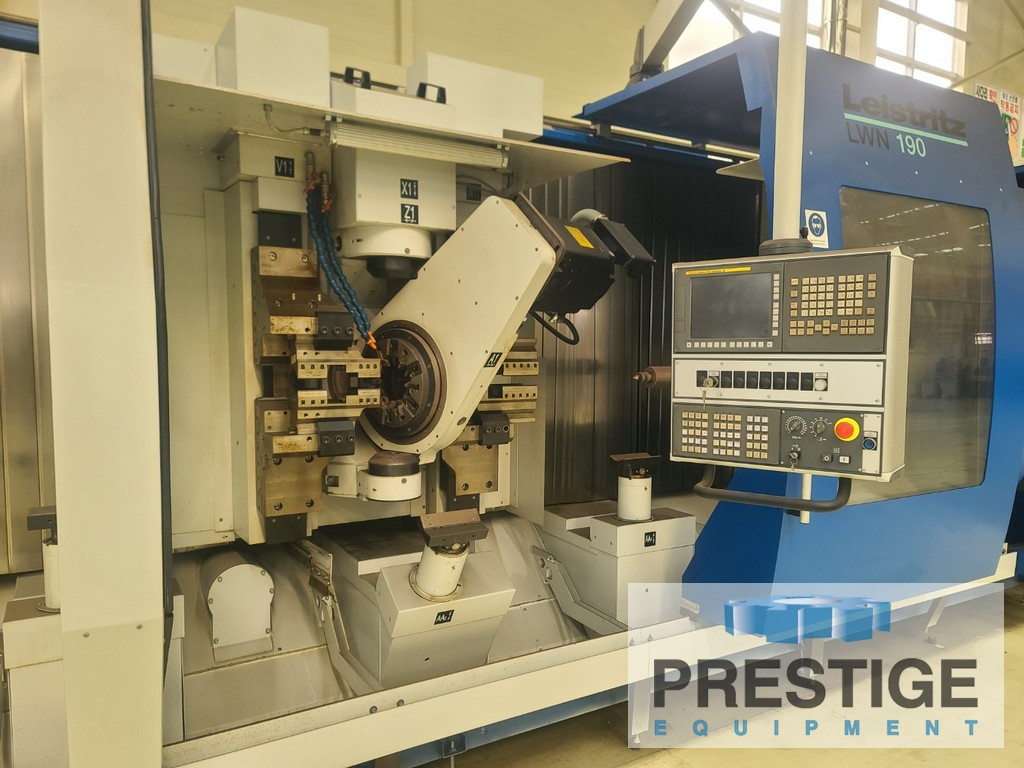

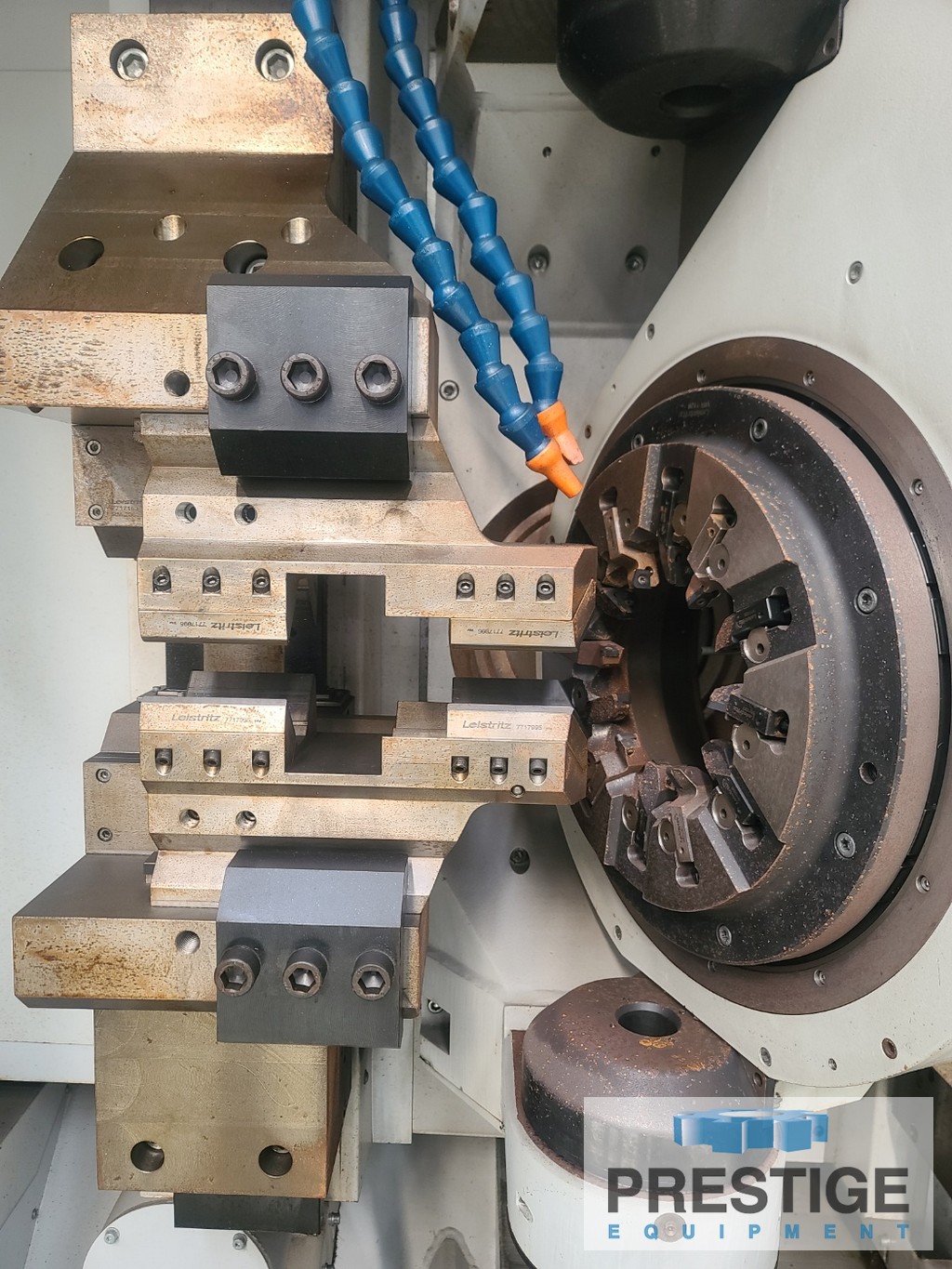

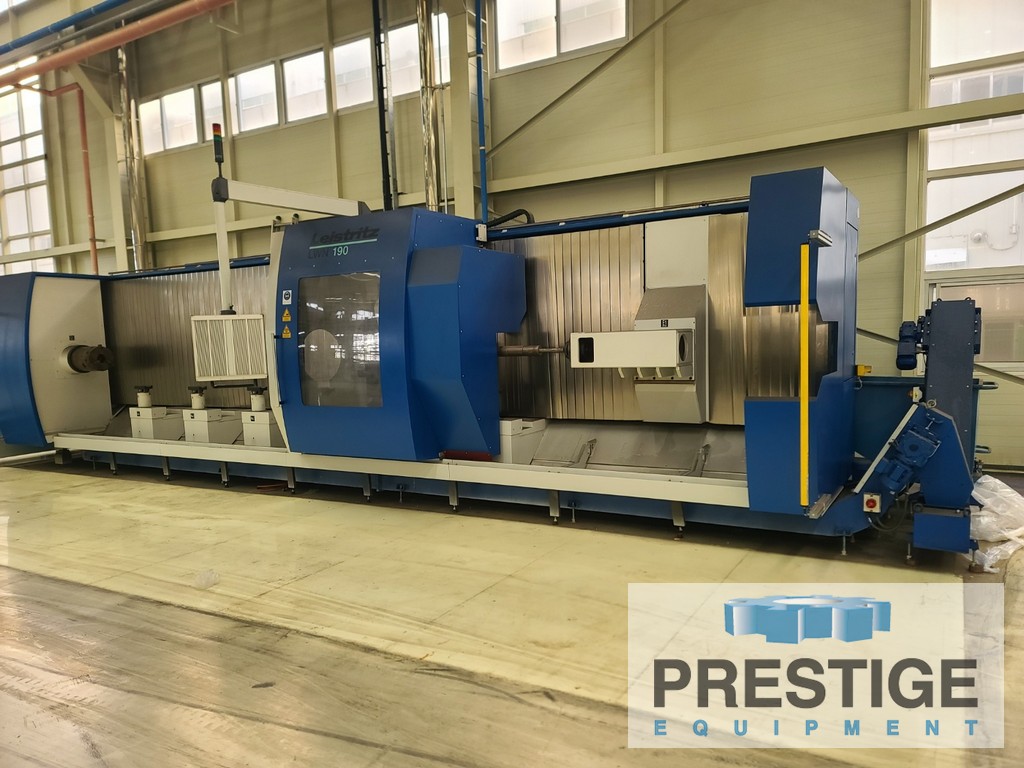

Leistritz LWN-190 CNC Whirling Machine, .59"-3.9" Work Piece Dia., 315" Work Piece Length, Fanuc 31iB, New 2014, #32713

Manufacturer

LEISTRITZ

Category

Lathes

Type

LATHES, WHIRLING, CNC

Stock

32713

Model

LWN-190

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32713
Leistritz LWN-190 CNC Whirling Machine

CAPACITY:
Work Piece Diameter ................... 0.590"-3.93"
Workpiece Length (Customizable)........ 314.96"
Spindle Nose .......................... 4.72"
C-Axis ................................ 0.001 Deg.
Main Motor ............................ 22 HP
Approximate Machine Dimensions ........ 315" x 75" x 90"
Approximate Weight .................... 70,500

EQUIPPED WITH:

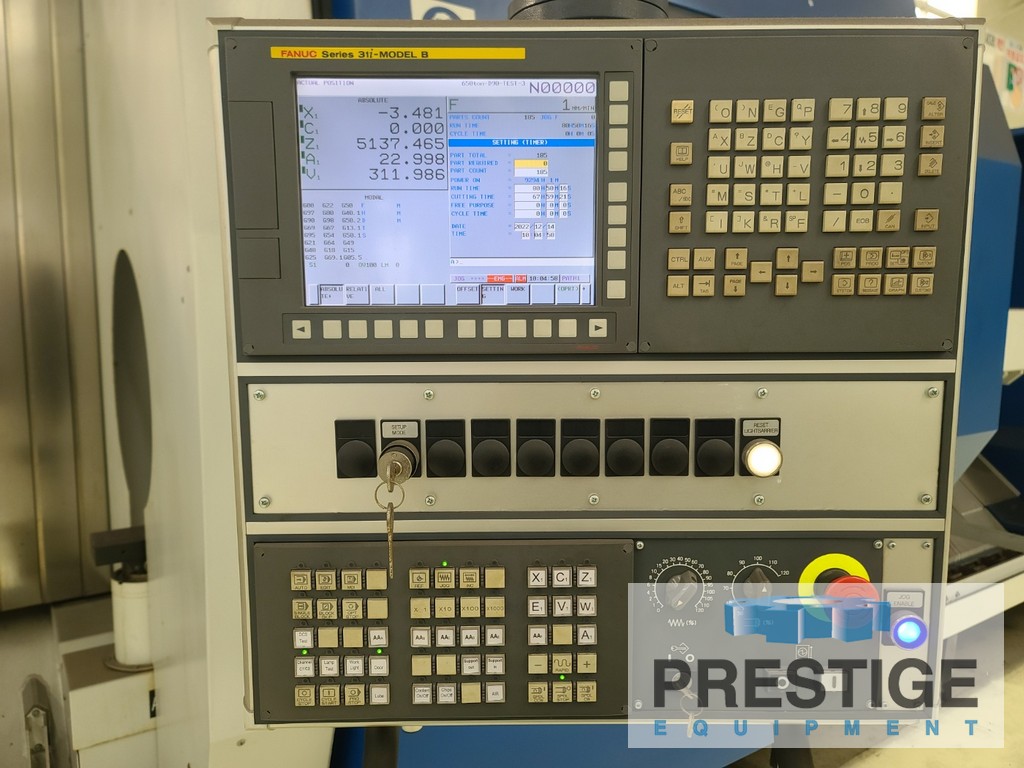

Fanuc 31iB

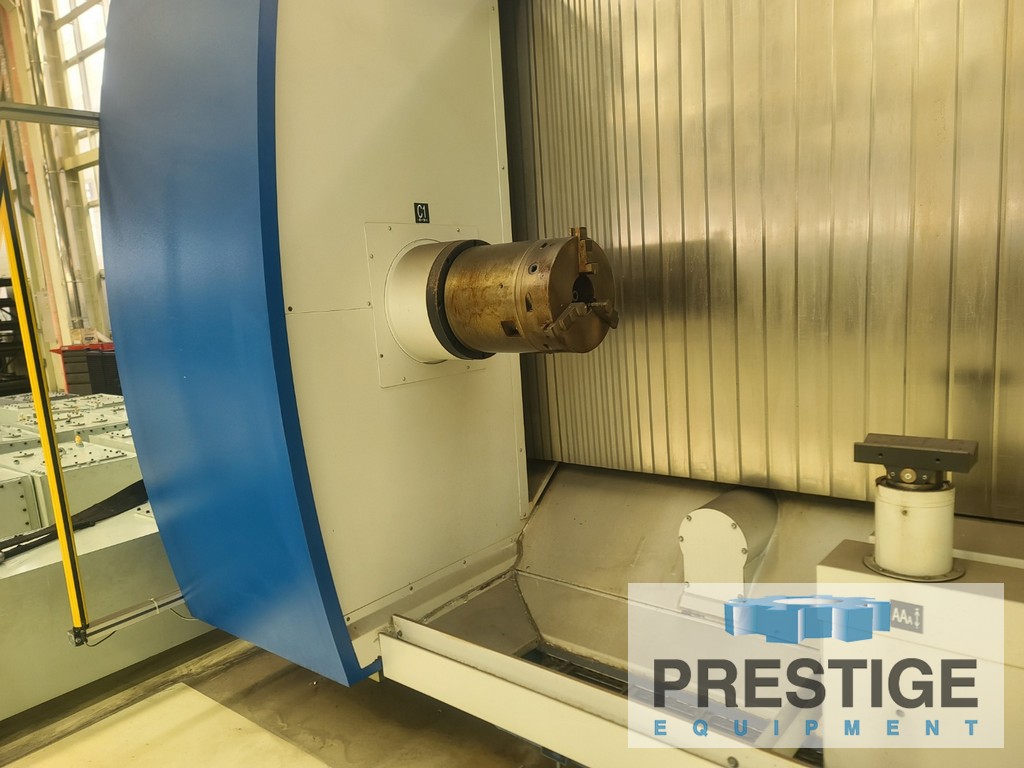

Fast Clamping System

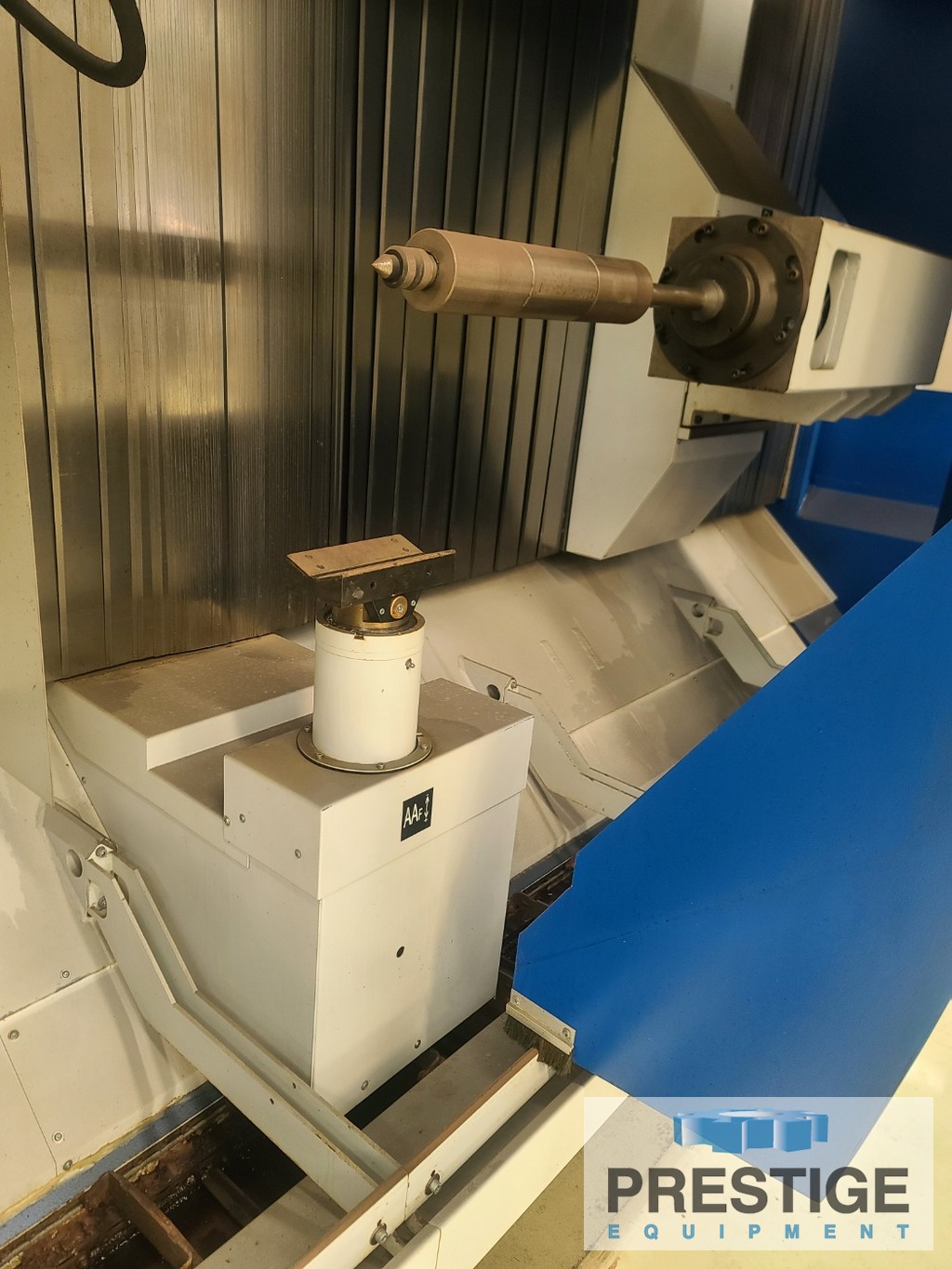

Tailstock
Chip Conveyor

NOTE:
The whirling machine LWN 190 is designed for complete machining of eccentric screws, pump spindles,
plasticizing screws and ball screw spindles. It has a modular design, thereby facilitating extremely
flexible and economical finishing.
