63" x 236" Tru Turn CKD CNC, 49" over C/S, 55" 4-Jaw Chuck, Steady Rest, Fanuc 0i CNC, 2023 #32600

Manufacturer

TRU TURN

Category

Lathes

Type

LATHES, ENGINE

Stock

32600

Model

CKD

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32600

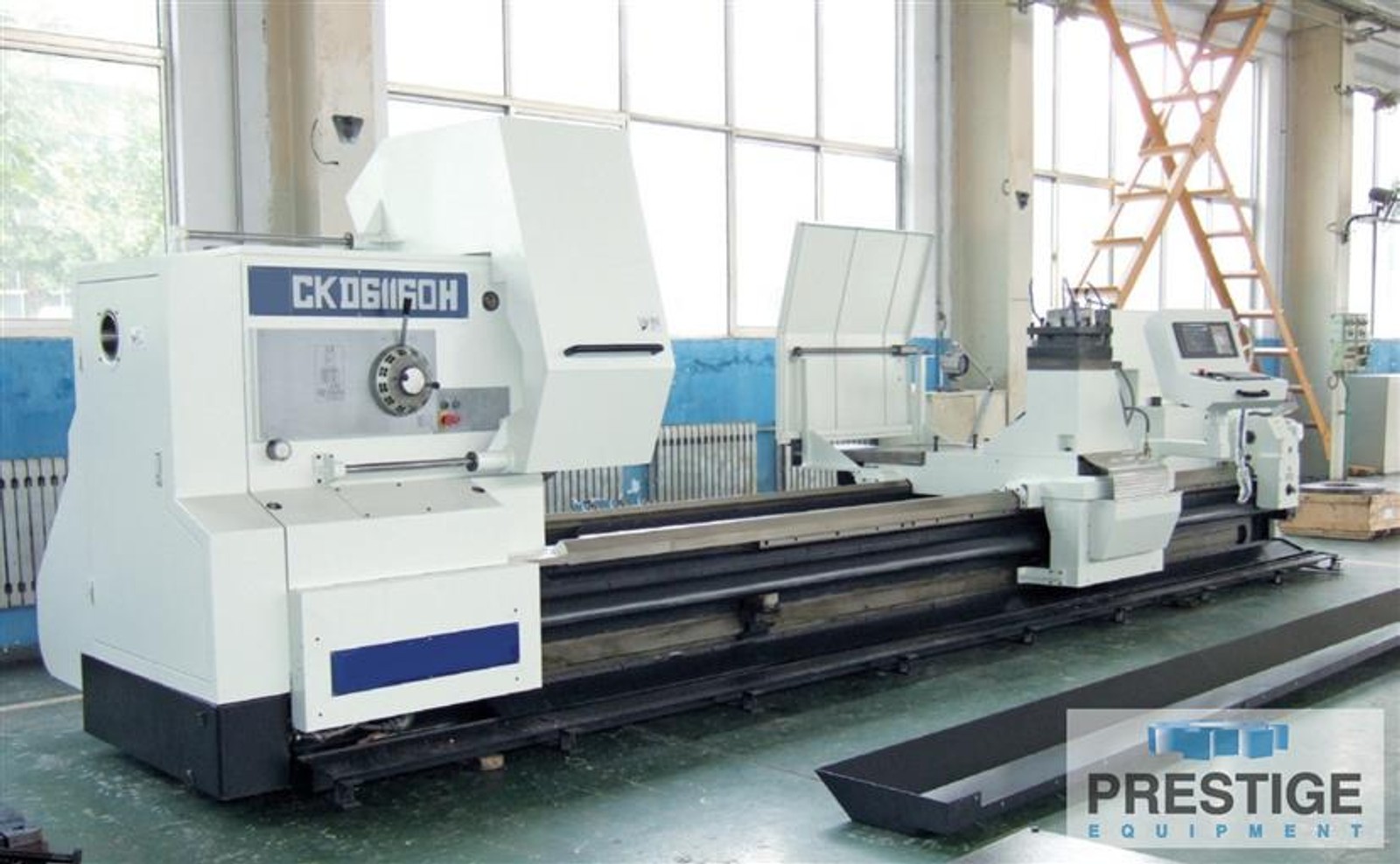

Tru Turn 63" x 236" CKD CNC Lathe

Features:
Fanuc Oi TF5 CNC Controls
55.11" 4-Jaw Chuck
4-Position Tool Post
Center sleeve
Roller Type Steady Rest 120-480MM

Specification:
Swing Over Bed ........................ 64.56"
Swing Over Cross Slide ................ 49.21"
Width of Guide Way .................... 43.3"
Distance Between Centers .............. 236.22"
Spindle Speeds (4-Ranges) ............. 3.15-315 RPM
Spindle Bore .......................... 5.11"
Spindle Motor ........................ 49 HP
Tailstock Diameter .................... 11.02"
Tailstock Travel ...................... 11.81"
Taper of Tailstock Bore ............... 1:7
Weight Capacity ....................... 20 Ton

Standard Accessories:
Fanuc Oi TF5 CNC Controls
55.11" 4-Jaw Chuck
4-Position Tool Post
Center sleeve
Roller Type Steady Rest 120-480MM

Available Options:
21 Speeds manual gears shift with 40 HP Spindle Motor
Ball Screw on Z-Axis up to 6M with NSK Bearings
Hydraulic Shift for 4-Range Speeds
NSK Headstock Spindle Bearings
NSK Tailstock Spindle Bearings
Motorized tailstock
Roller Type Steady Rest 400-700mm
Roller Support (Open Steady Rest)
Levelers


DELIVERY:
5-Months From Order
