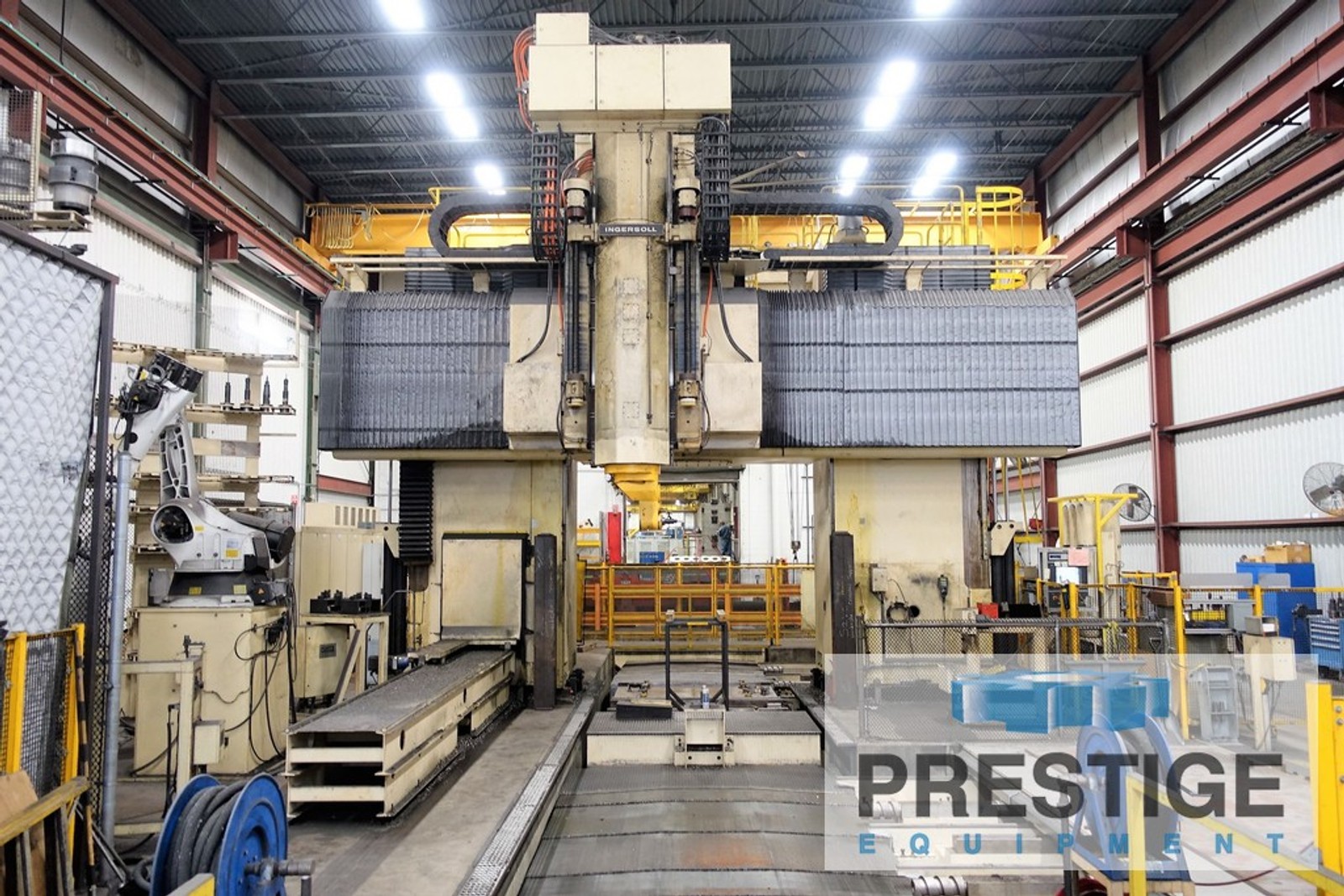

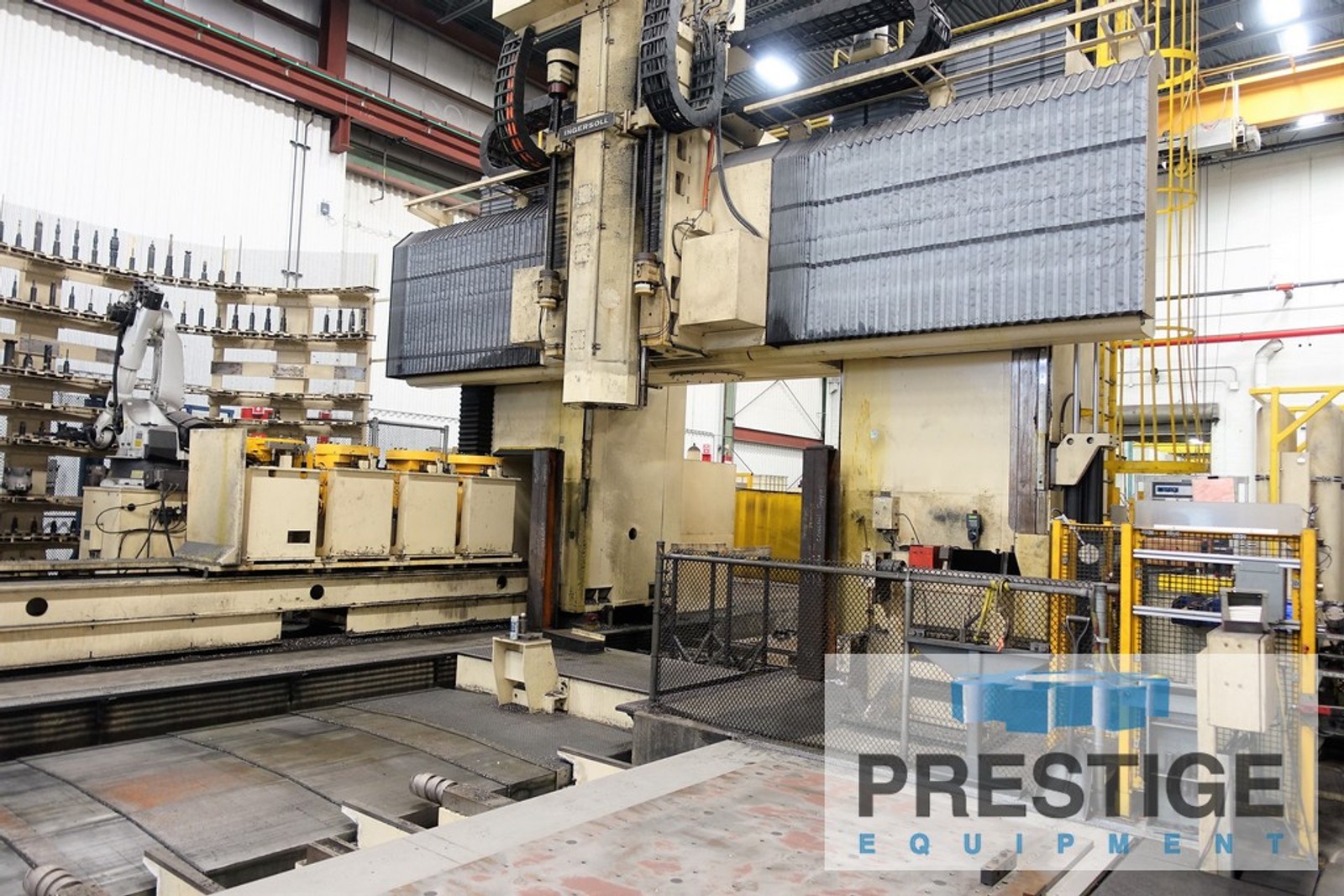

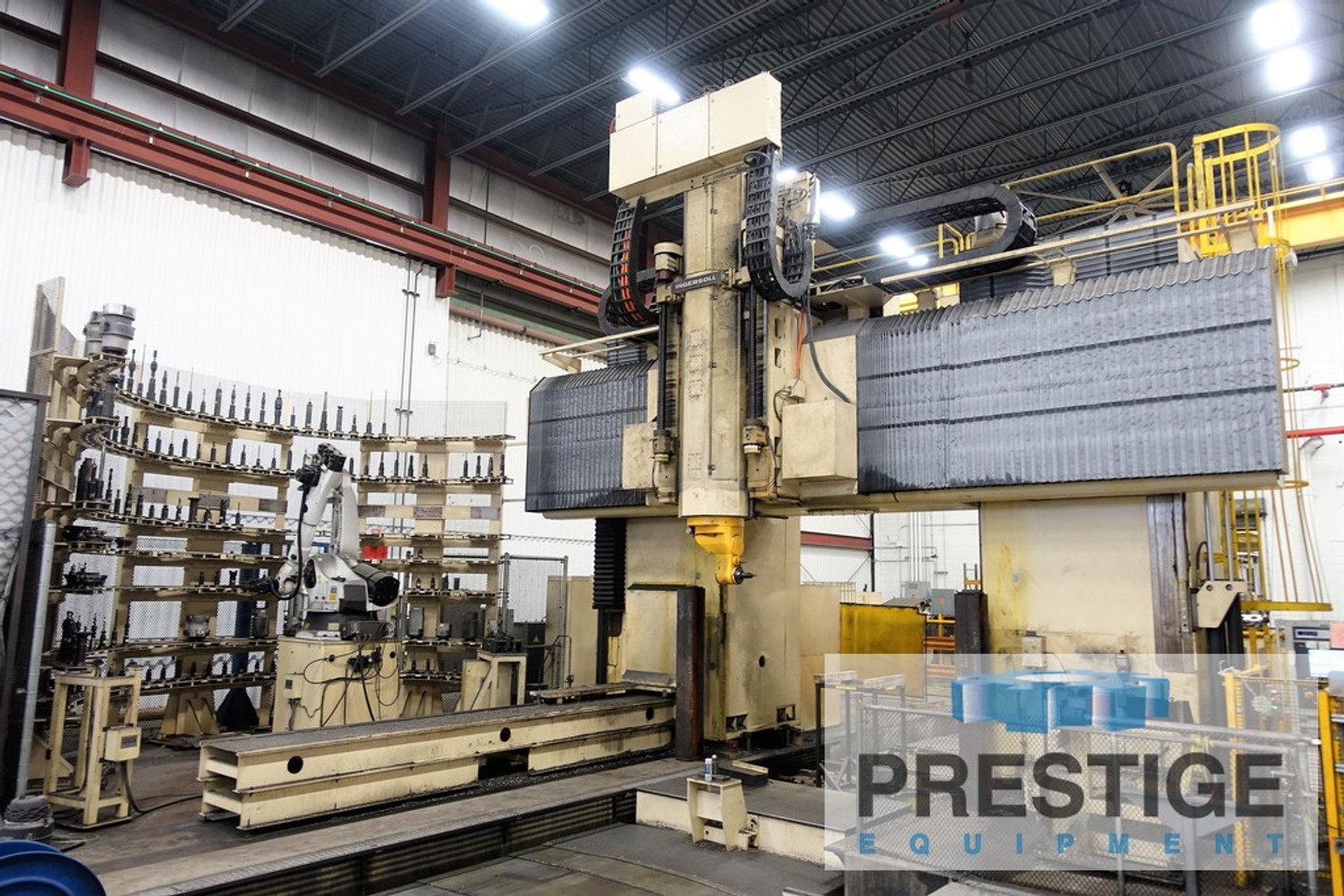

Ingersoll Double Column 5-Axis CNC Bridge Mill W/Pallet Shuttle

FEATURES:

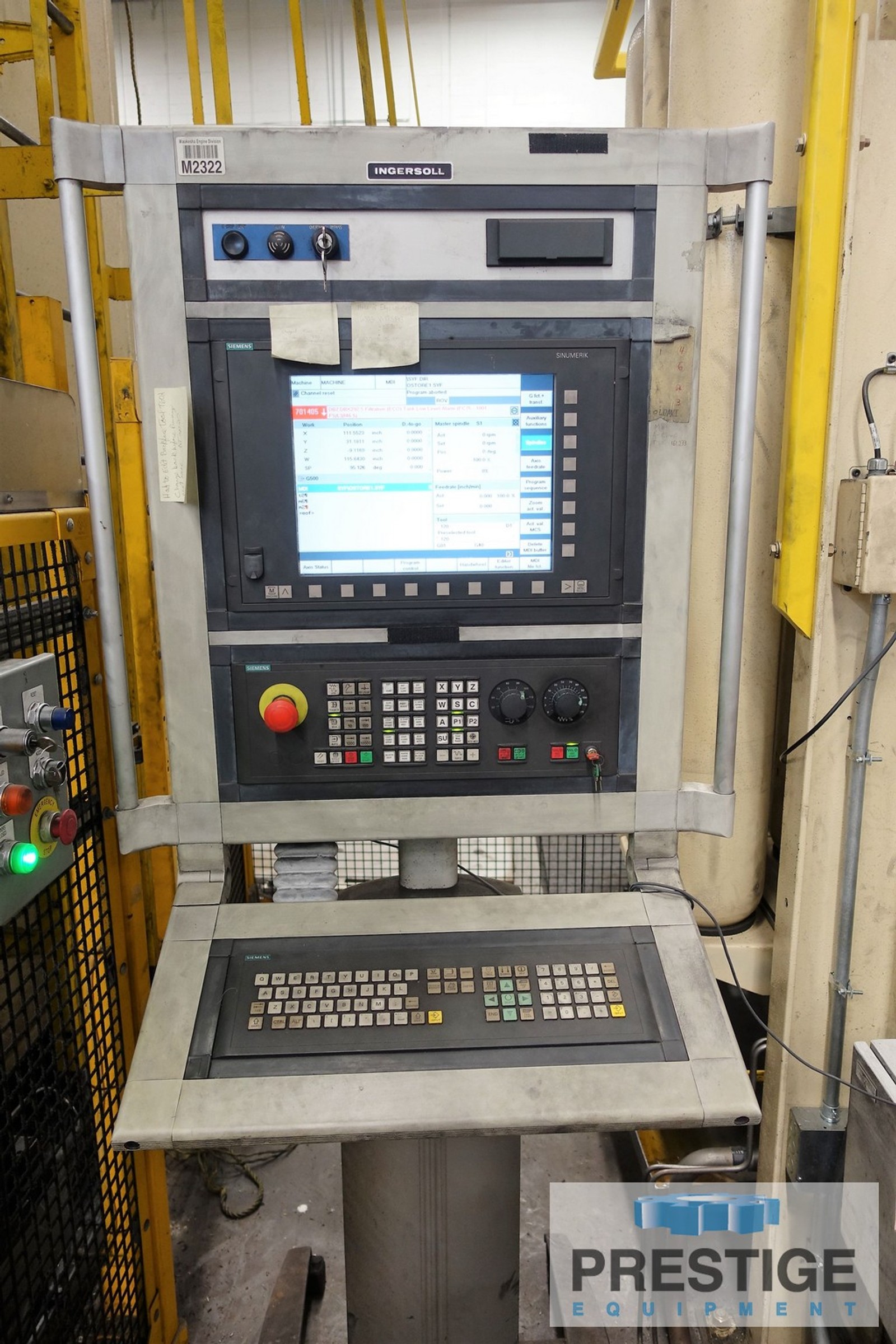

Siemens 840D CNC Controls
Pallet Shuttle System
(4)Interchangeable Spindle Units
Gun Drilling Attachment
Renishaw Probe

TRAVELS:
X-Axis, Table Travel .................. 393.7"
Y-Axis, Horizontal Head Travel ........ 217.1"
Z-Axis, Ram Stroke .................... 59.05"
W-Axis, Rail Travel ................... 59.05"
A-Axis, Twist Head Rotation ........... 360,000 Positions
C-Axis, Twist Head Rotation ........... 360,000 Positions

SPECIFICATIONS:
Distance Between Columns .............. 132"
Distance Ram Face to Table ............ 140"
Pallet Size ........................... 98.43" x 196.85"
Pallet Capacity ....................... 44,000 lbs
Spindle Motor ......................... 140 HP
Spindle Speeds ........................ See Heads
Number of Spindle Units ............... 4
Feed Rate, X-Axis ..................... 1181 IPM
Feed Rates, Y & X Axis ................ 1575 IPM
Feed Rate, W-Axis ..................... 393 IPM
Power Requirements .................... 460/3/60 650 KVA
Full Load ............................. 780 AMPS
Main Breaker .......................... 1000 AMPS

SPINDLE UNITS:
2-Axis Orthogonal Twist Head, HSK160, 134 HP, 0 to 2700 RPM
Right Angle Milling Head, HSK100, 31 HP, 0 to - 1000 RPM
Right Angle Milling Head, HSK100, 53 HP, 0 to 2000 RPM
Swivel Head, HSK63A, 16 HP, 0 to 800 RPM

EQUIPPED WITH:
Siemens 840D CNC Control

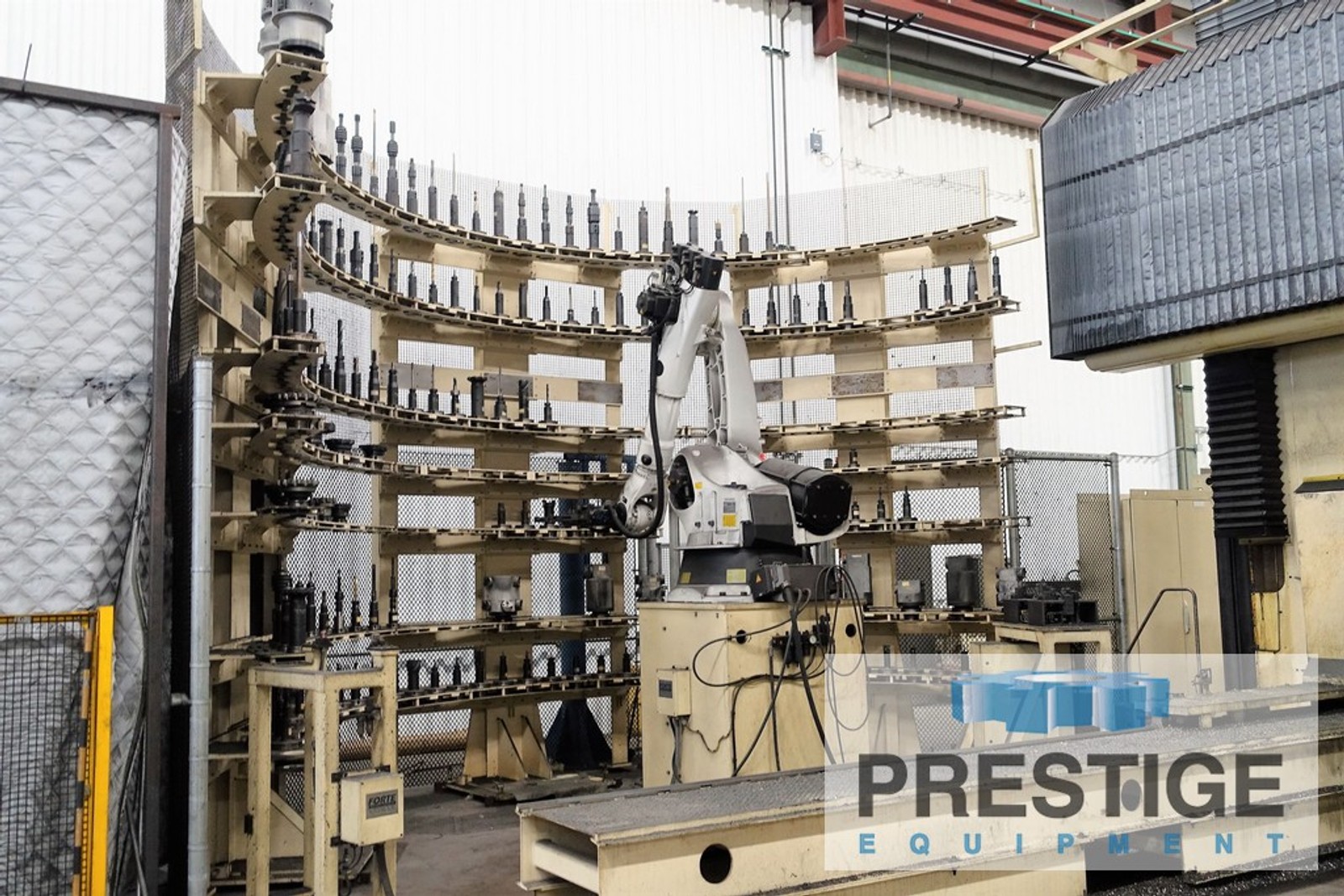

291 Station Automatic Tool Changer

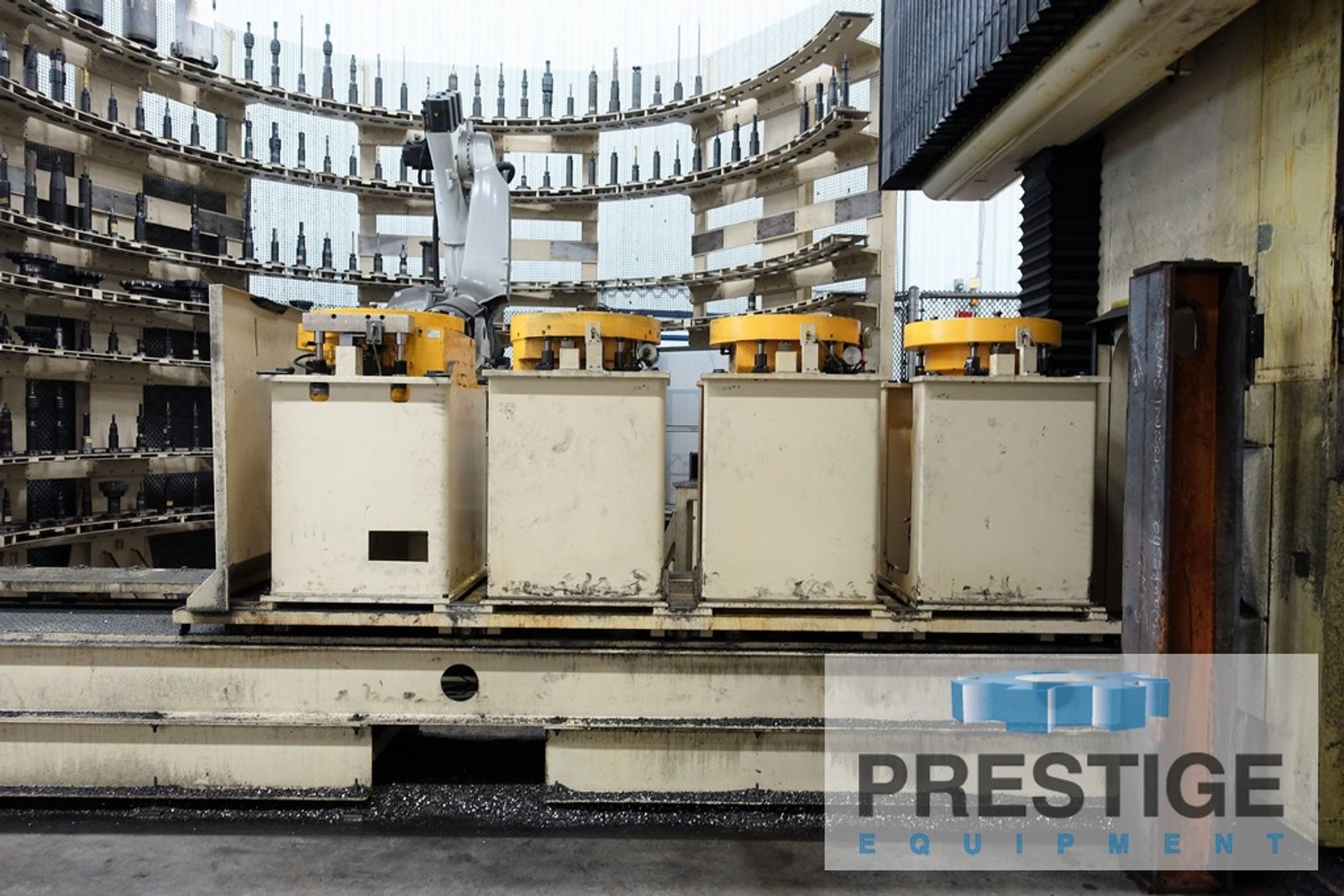

4-Station Automatic Attachment Changer

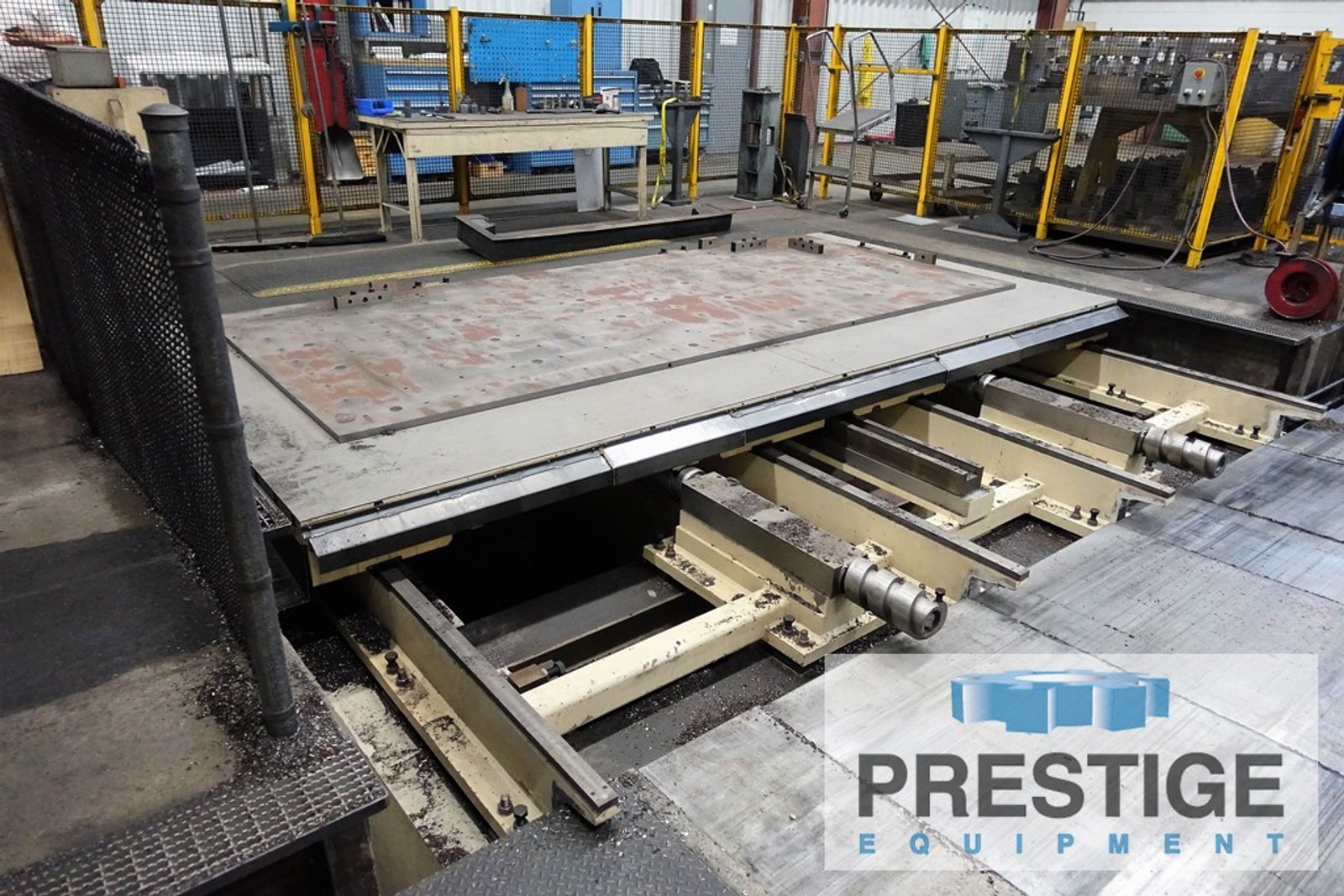

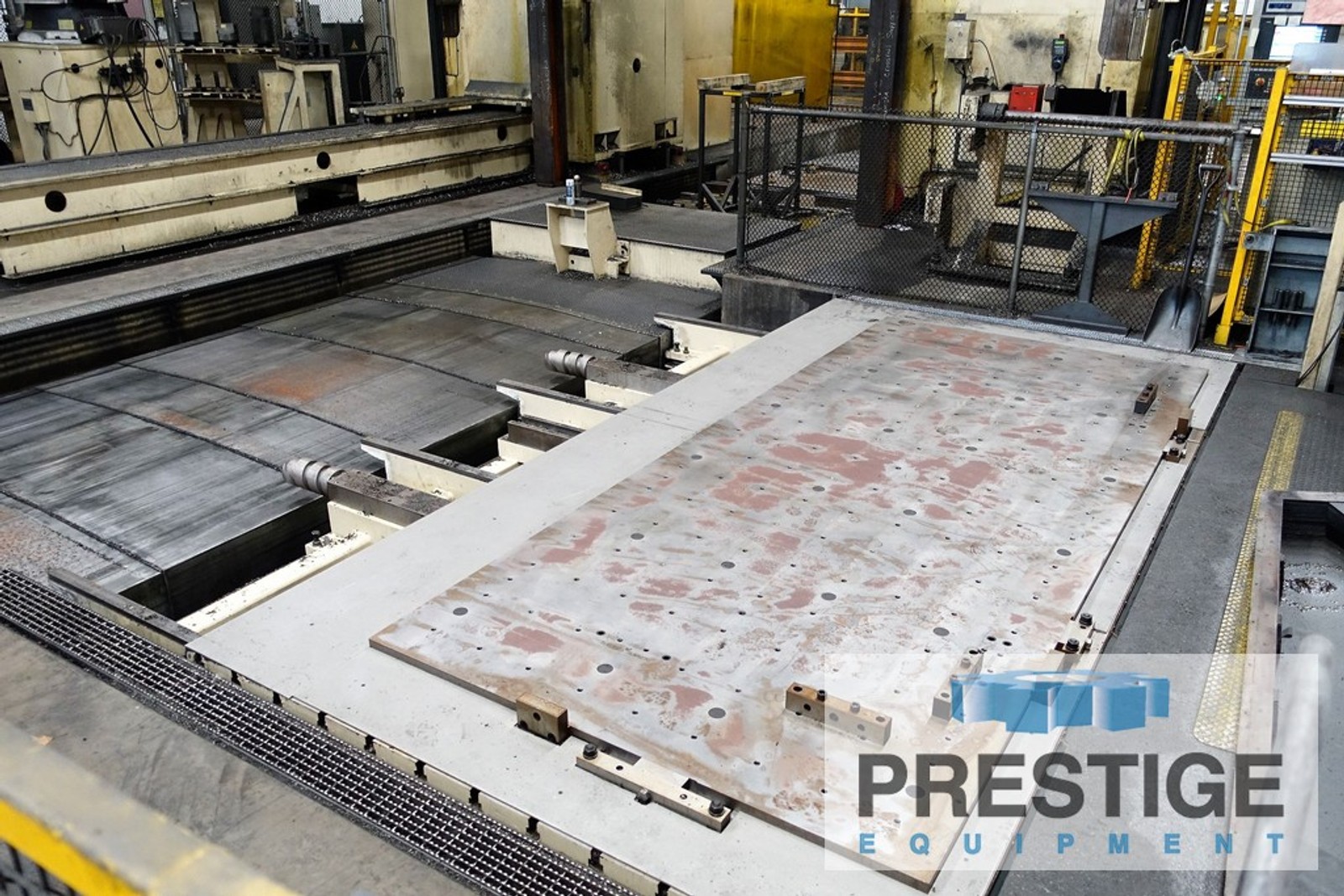

Pallet Shuttle with (2) 98" x 196" Pallets
Through Spindle Coolant
Renishaw Probe System
Gun Drilling Attachment
Chip Conveyor
