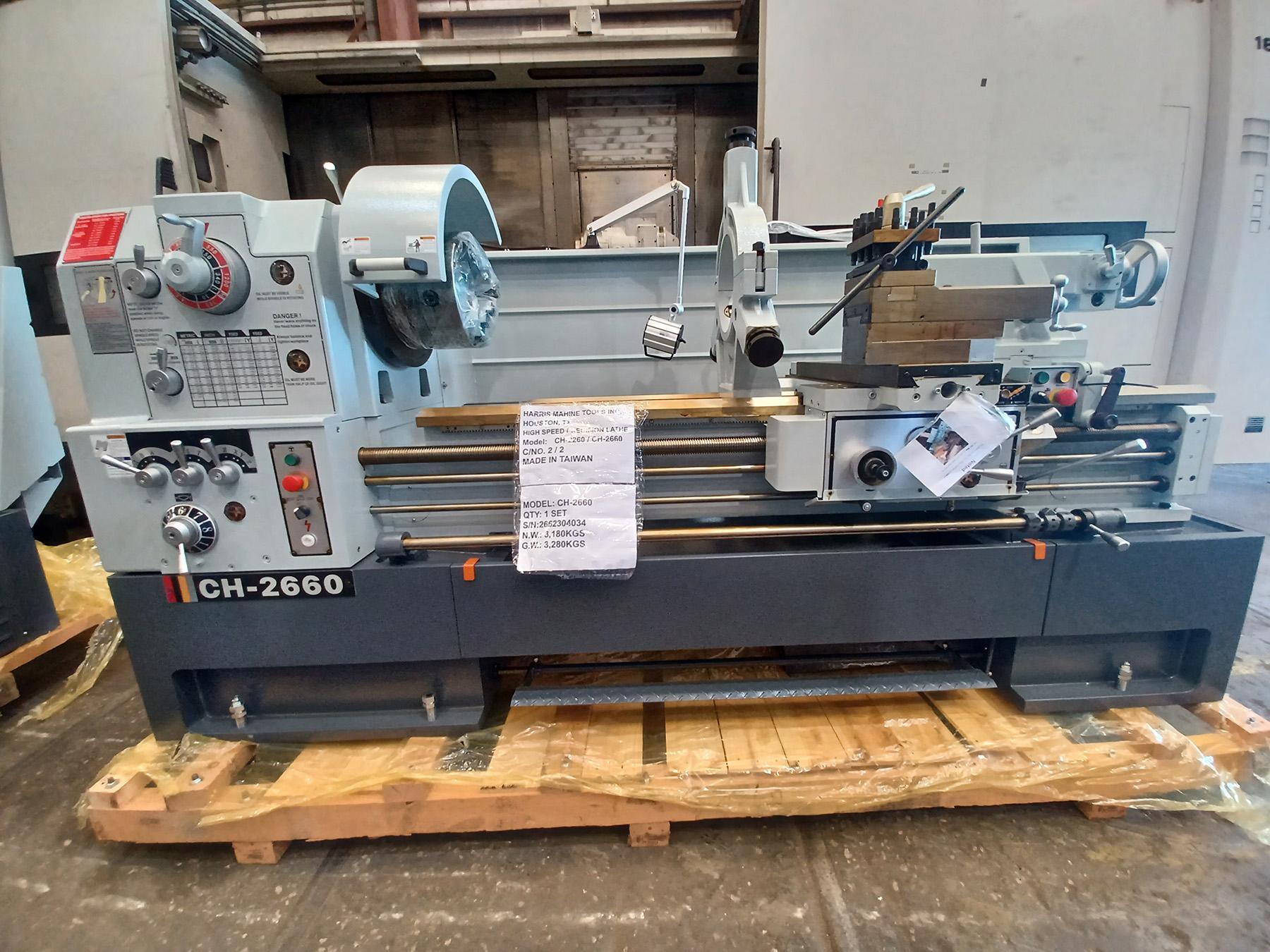

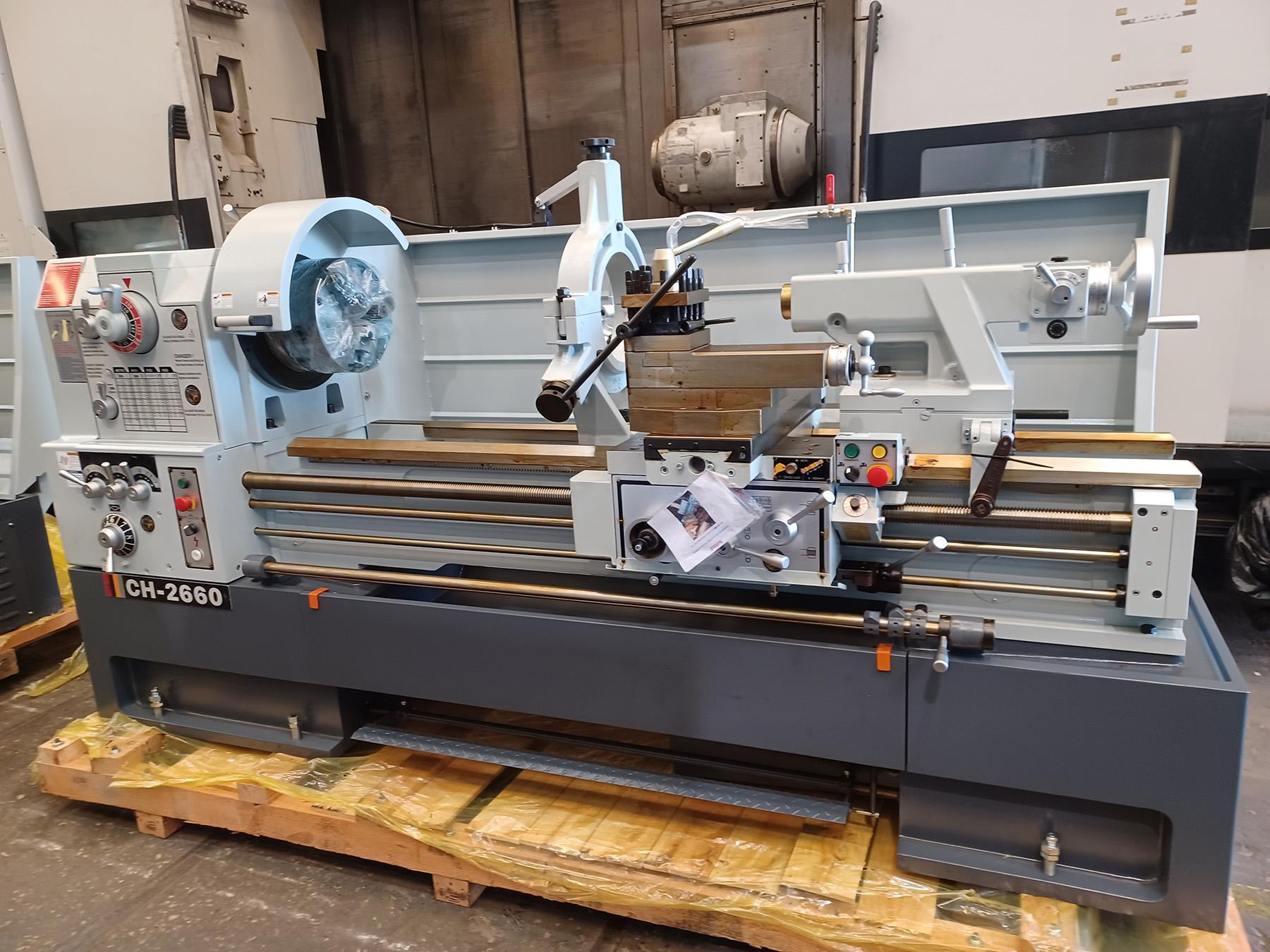

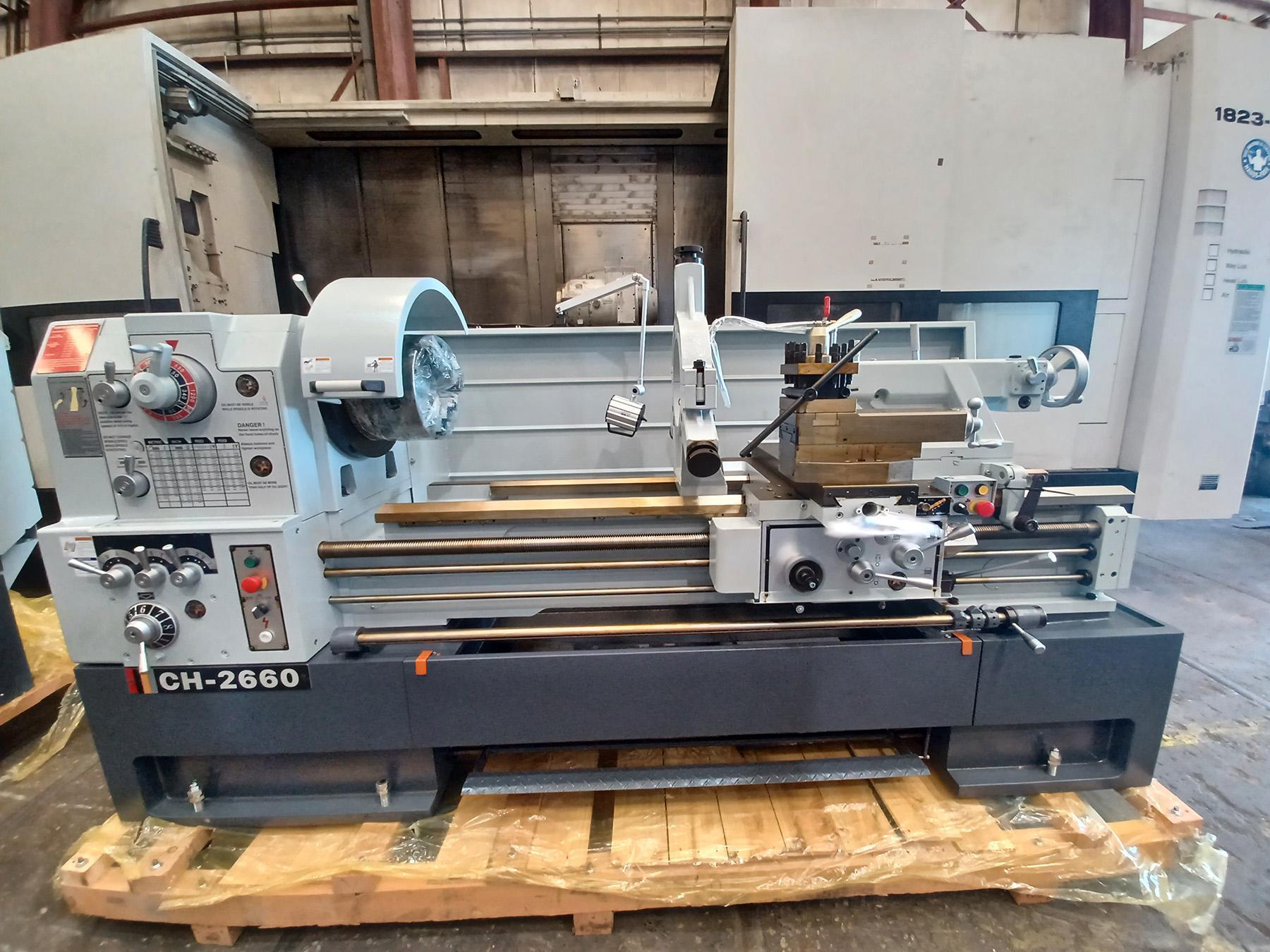

New, SunMaster Model CH-2660 High Speed Lathe

Manufacturer

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

19974

Model

CH-2660

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet



Swing Over Bed: 26"
Swing Over Cross Slide: 17.5"
Swing in Gap: 35.1"
Gap Width: 10.6"
Distance Between Centers: 60"
Bed Width: 15.7"
Center Height: 42"
Spindle Speeds: (12) 13 - 1200 RPM
Spindle Motor: 15 HP
Spindle Bore: 4-1/16"
Spindle Taper and Center: MT-7 / MT-5
Spindle Nose: D1-11
Feed Ranges: 16
Longitudinal Feeds: 0.0012 - 0.039
Cross Feeds: 0.0004 - 0.0117
Leadscrew Diameter / Pitch:  1.77" / 4
Inch Threads: (44) 2 - 72 TPI
Metric Threads: (39) 0.2 - 14 MM
Compound Travel: 9"
Cross Slide Travel: 15.8"
Tailstock Quill Travel: 10"
Tailstock Quill Diameter: 3.15"
Tailstock Taper: MT-5
Coolant Pump Motor: 1/8 HP
OAD (Approximate): 128" x 45" x 67"
Weight (Approximate): 6490 Lbs.

Note: All Specifications Subject to Verification

Stock Machines Equipped with the Following Options:
  • Taper Turning Attachment - 10 Deg., 12" Travel
  • Newall DRO System
  • 12" 3-Jaw Chuck
  • Longitudinal Rapid Traverse
  • Carriage Micro Stop
Standard Equipment:
  • 12" Back Plate
  • MT-7 to MT-5 Headstock Spindle Center Adaptor
  • Chuck Guard
  • 4-Way Tool Post
  • Automatic Longitudinal Feed Stop Bar
  • Thread Chasing Dial
  • LED Work Light
  • Two-Speed Drive Tailstock Spindle
  • Foot Brake System
  • Coolant System with Pump and Piping
  • Pull Drawer Chip Pan
  • Full Length Splash Guard

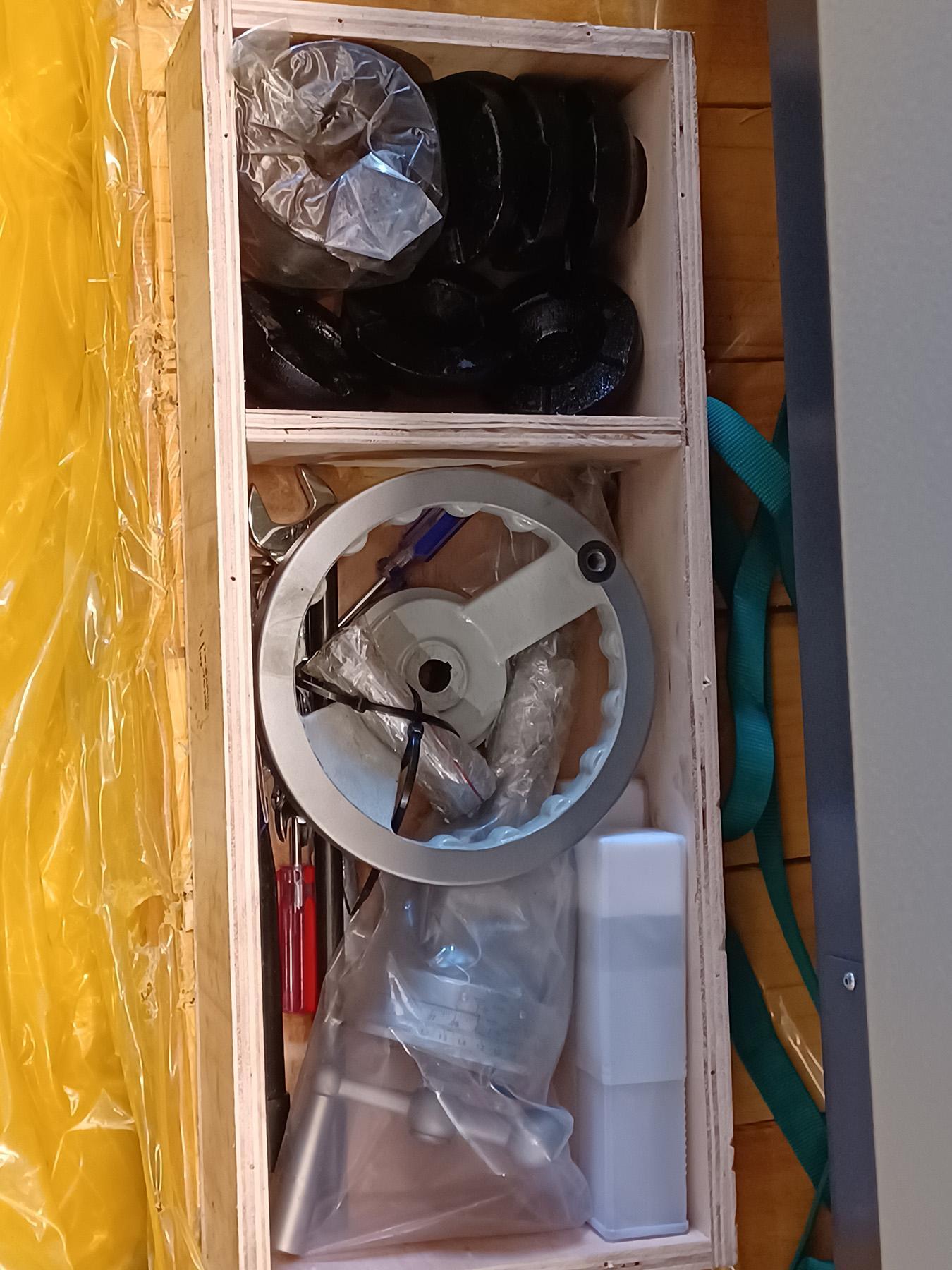

  • Tool Box with Tools
