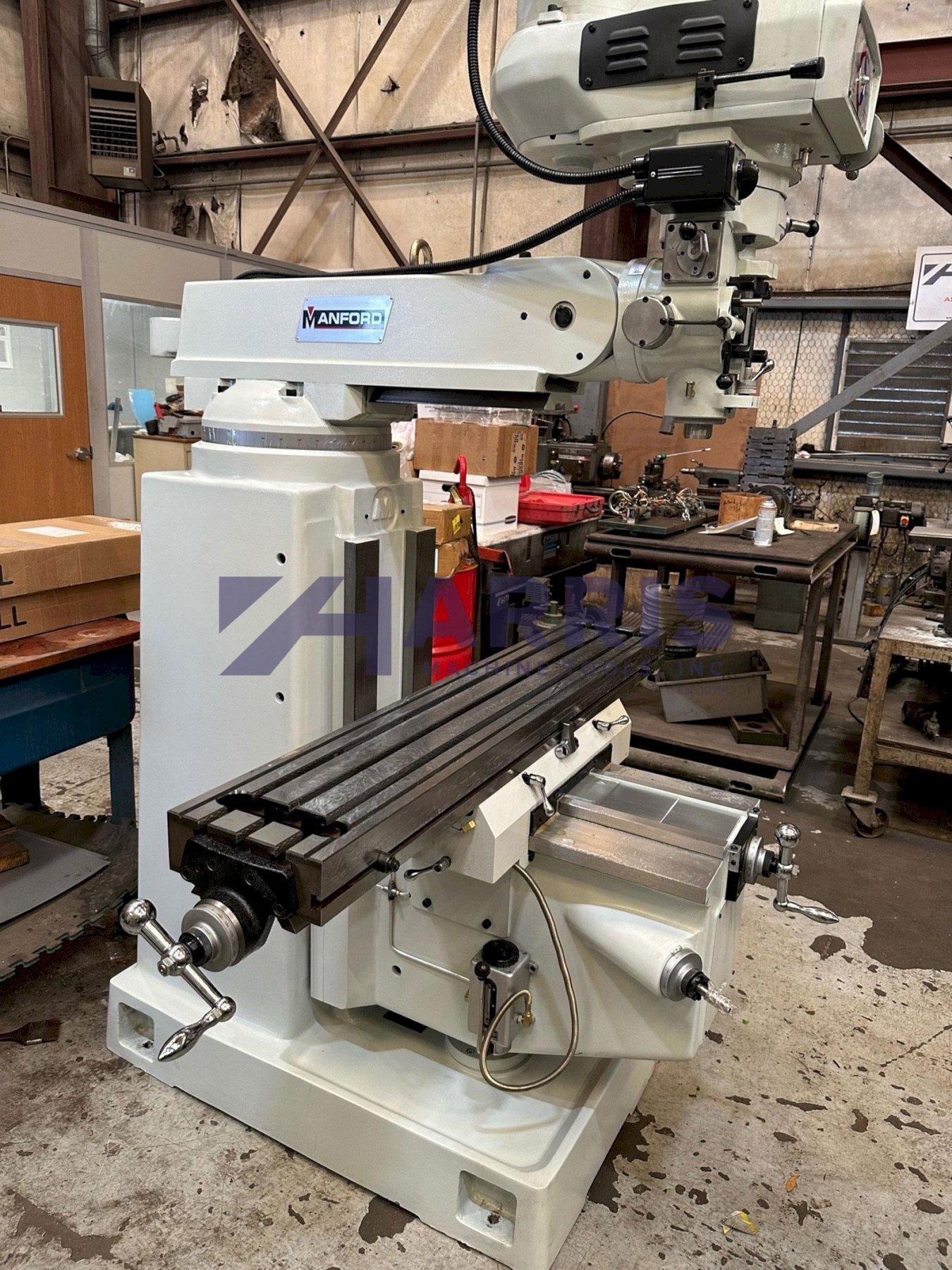

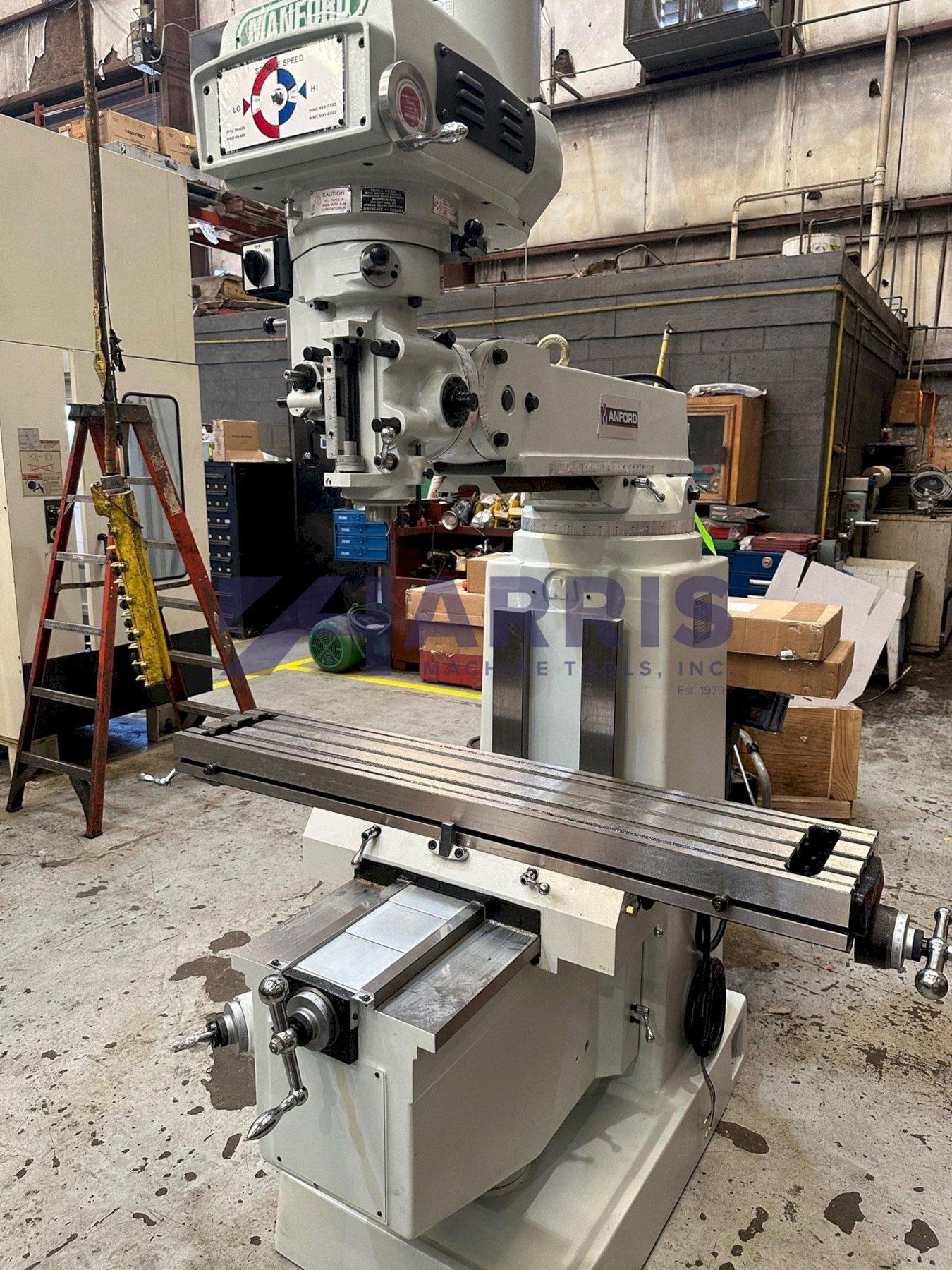

New, Manford Model L-SP-500VS Vertical Turret Milling Machine

Manufacturer

MANFORD

Category

Milling Machines

Type

MILLERS, TURRET

Stock

20041

Model

L-SP-500VS

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet



Table Size: 10" x 54"
T-Slots: (3) 0.629"
Table Longitudinal Travel: 34"
Table Cross Travel: 16"
Knee Vertical Travel: 17"
Ram Travel: 22"
Quill Travel: 5"
Spindle Nose to Table: 3.3" - 21"
Turret Swivel: 360 Deg.
Head Swivel (L-R): +/- 45 Deg.
Head Tilt (Up-Down): +/- 45 Deg.
Spindle to Column: 6.6" - 28.7"
Spindle Speeds: 60 - 4500 RPM
Spindle Motor: 3 HP
Spindle Taper: R8
Quill Feeds: (3) 0.0015, 0.003, 0.006 IPR
OAD: 72.4" x 83.5" x 90" High
Weight (Approximate): 3360 Lbs.'

STOCK MACHINE TO BE OUTFITTED WITH:
X AXIS POWER FEED
2 AXIS NEWALL DRO SYSTEM

Note: All Specifications Subject to Verification
