Doosan Puma V550, 28.7" swing, 24" Chuck, 2,000 RPM, 50 HP, Fanuc 21iTB, #32049

Manufacturer

DOOSAN

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32049

Model

V550

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32049

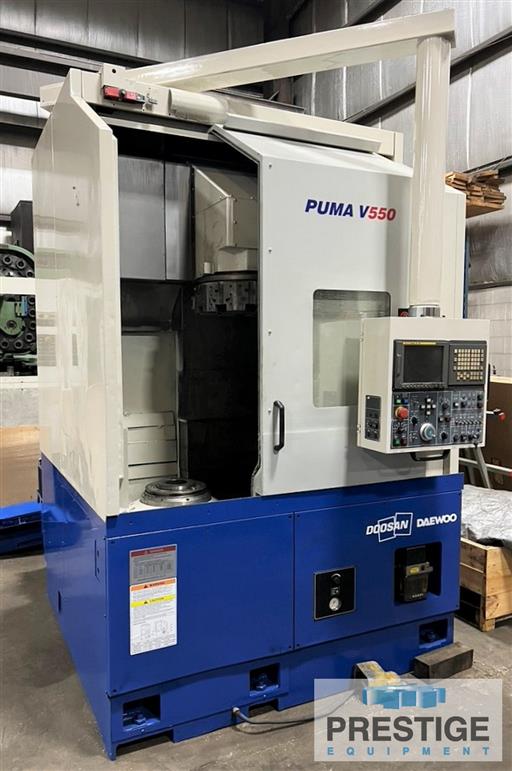

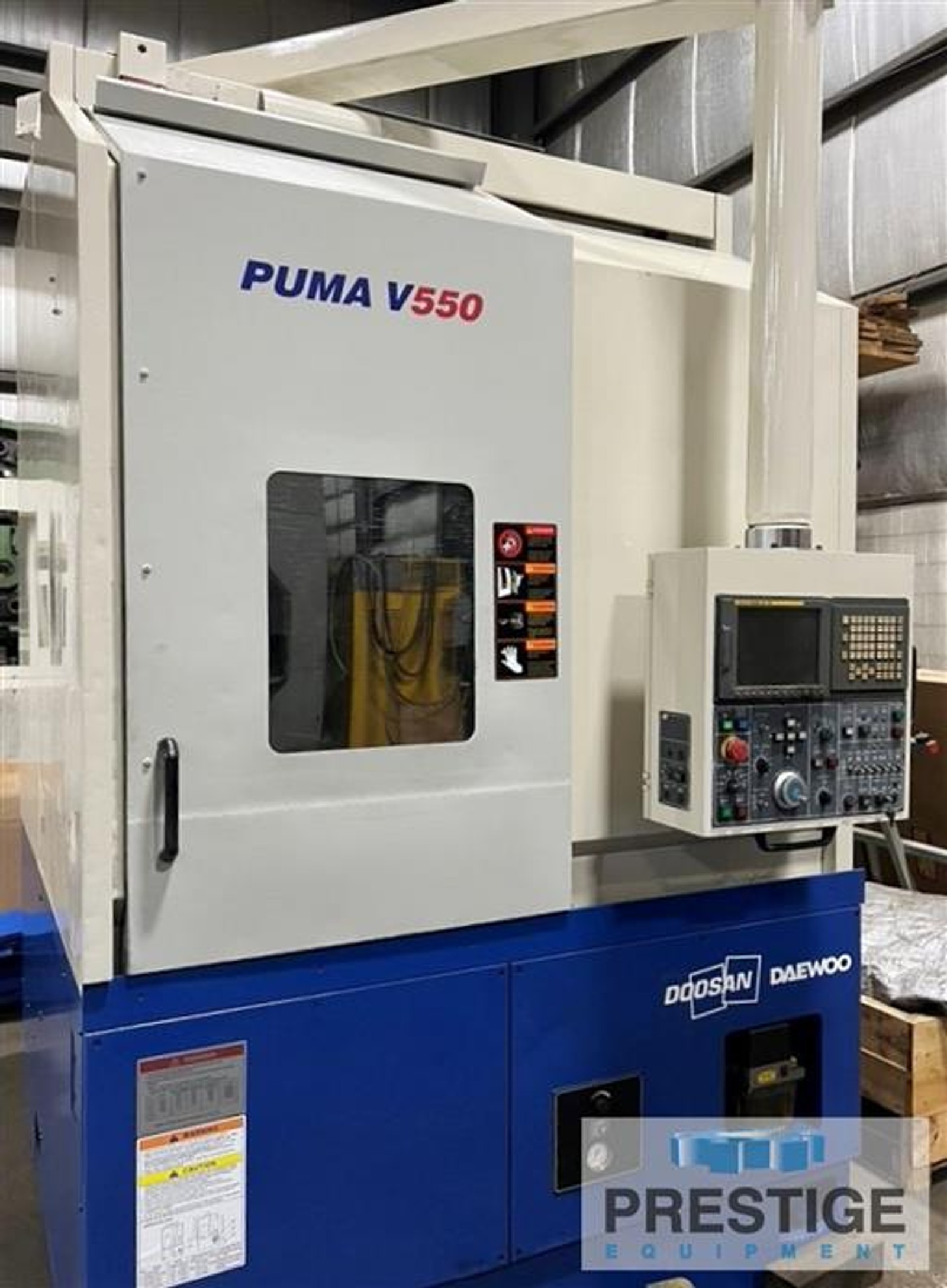

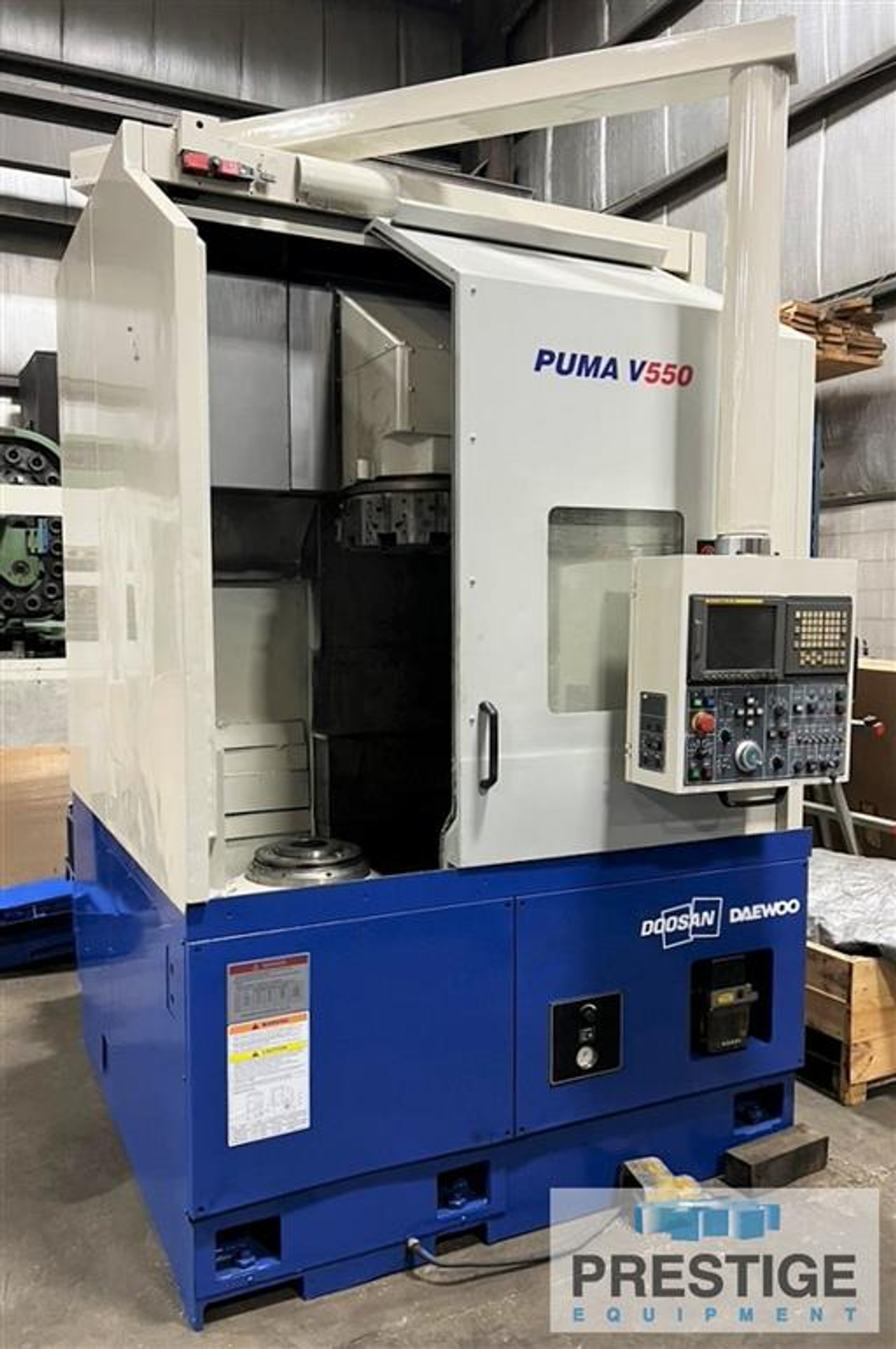

Doosan V550 28" CNC Vertical Turning Lathe

FEATURES:

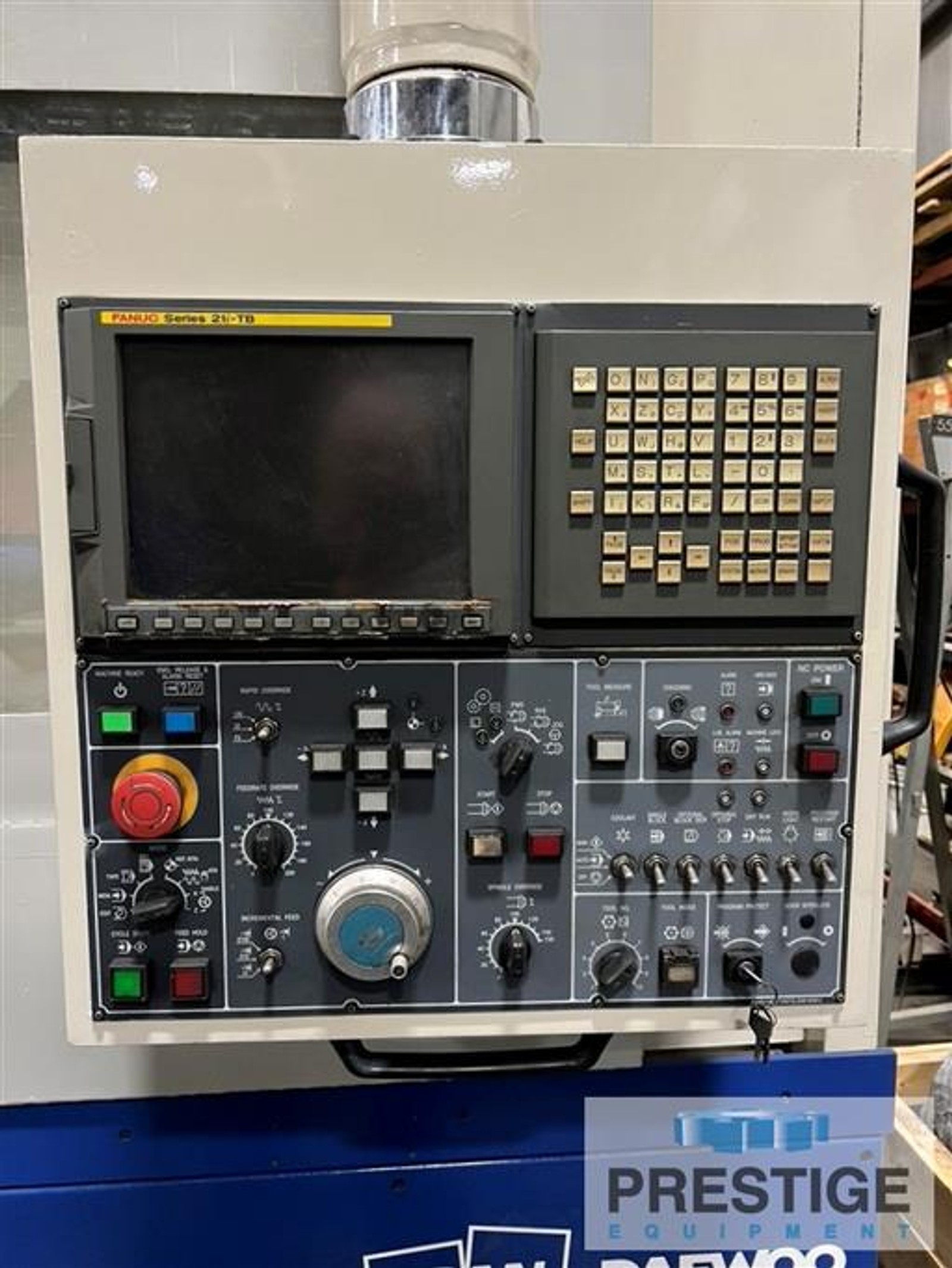

Fanuc 21iTB CNC Control

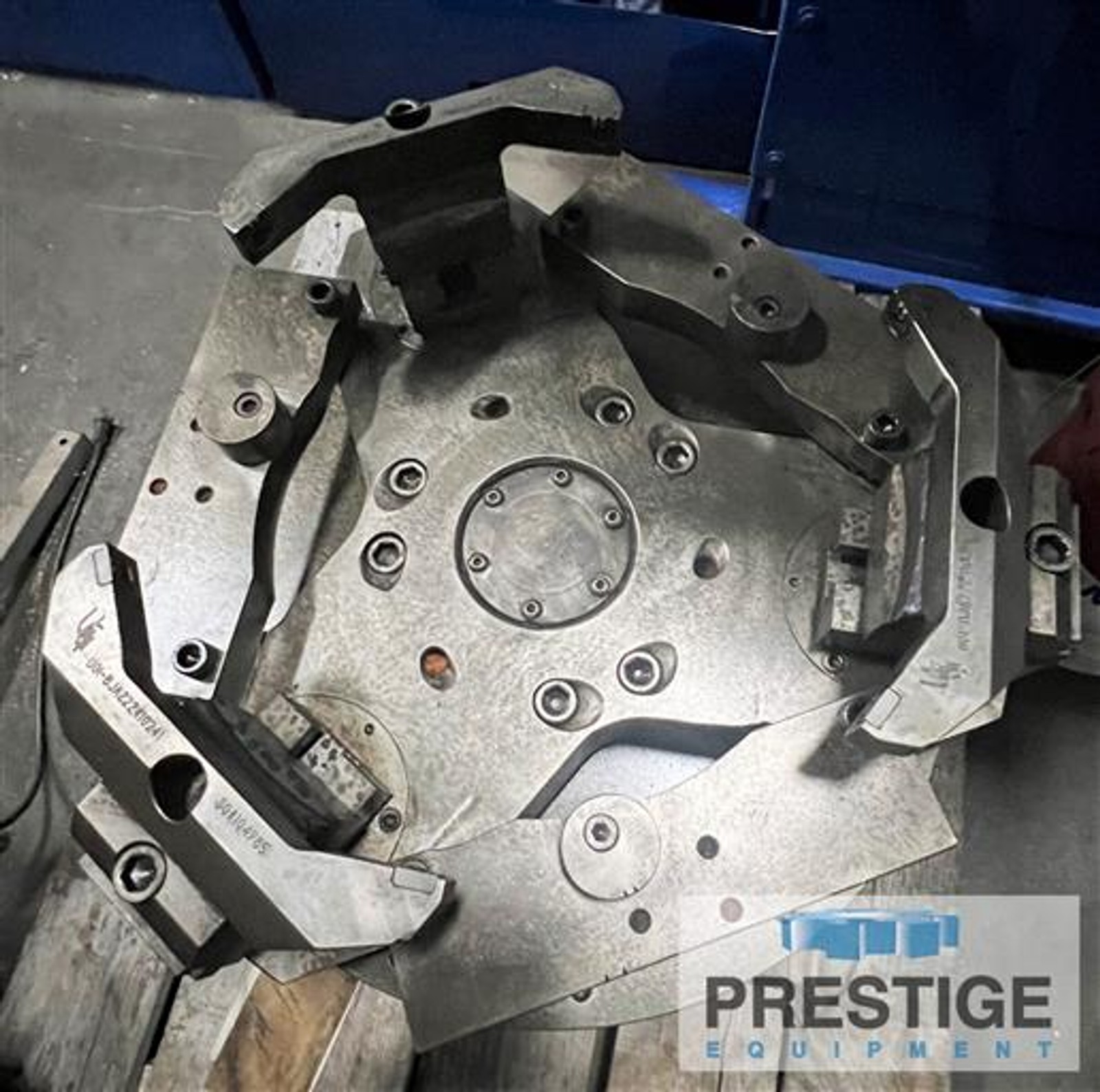

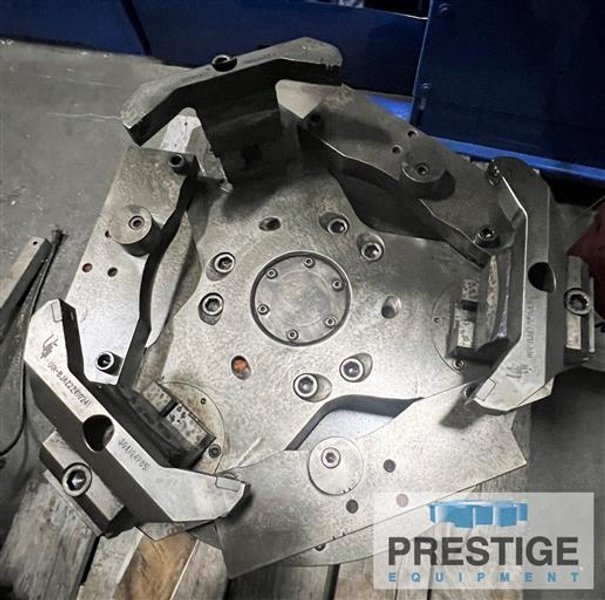

Ultra-Grip 26" Hydraulic Chuck

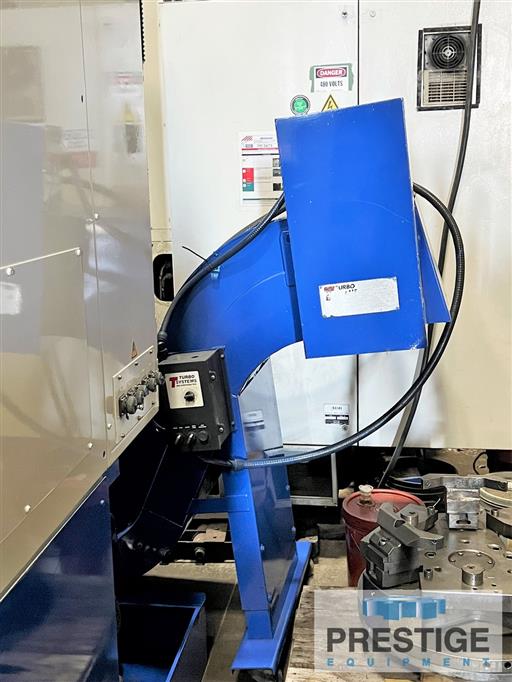

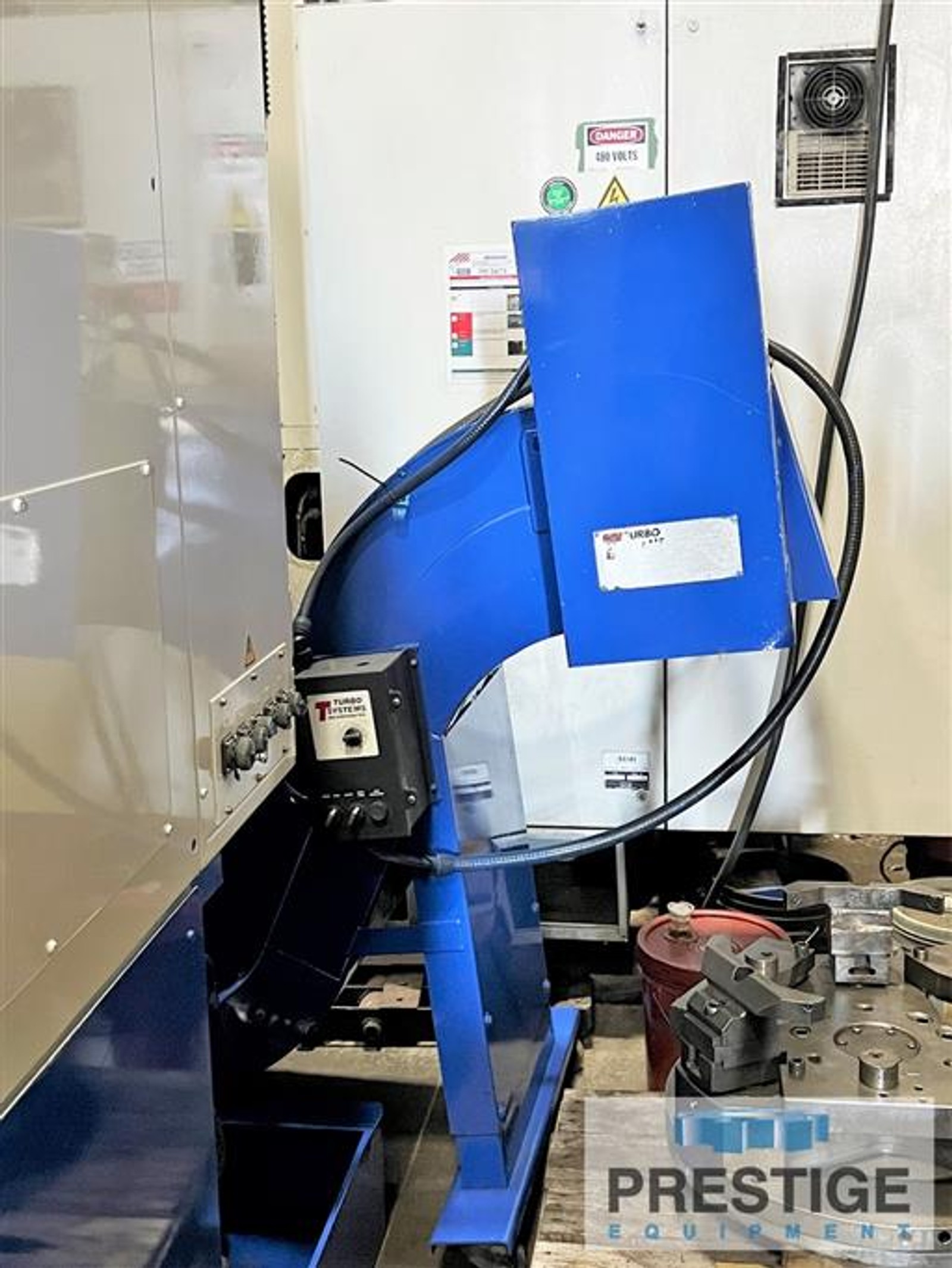

Chip Conveyor

SPECIFICATIONS:
Max. Turning Diameter ................ 28.7"
Max. Turning Height .................. 29.5"
Spindle Speeds ....................... 20-2000 RPM
X-Axis Travel (Ram) .................. 15.4"
Z-Axis Travel (Rail) ................. 31"
X-Axis Guideway Span ................. 15.2"
Z-Axis Guideway Span ................. 24.8"
Rapid Traverse (X-Axis) .............. 472 IPM
Rapid Traverse (Z-Axis) .............. 630 IPM
Max. Feed Rate ....................... 236 IPM
Number Of Tools ...................... 10
Turning Tool Shank Size .............. 1.25" Square
Boring Bar Dia. ...................... 2.5"
Tool Selection ....................... Bi-Directional
Coolant Pump Pressure ................ 65 PSI
Machine Weight ....................... 19,850 Lbs
Machine Dimensions (L x W x H) ....... 75" x 107" x 128"

EQUIPPED WITH:
Fanuc 21iTB CNC Control
Ultra-Grip 26" Hydraulic Chuck
Chip Conveyor
50 HP Spindle Motor
