Salvagnini B3 242 Ton x 13' 7-Axis, 142" BH, 5-Axis B.G., Crowning, Clamping, Angle Measurement Sys., 2014, #31787

Manufacturer

SALVAGNINI

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

31787

Model

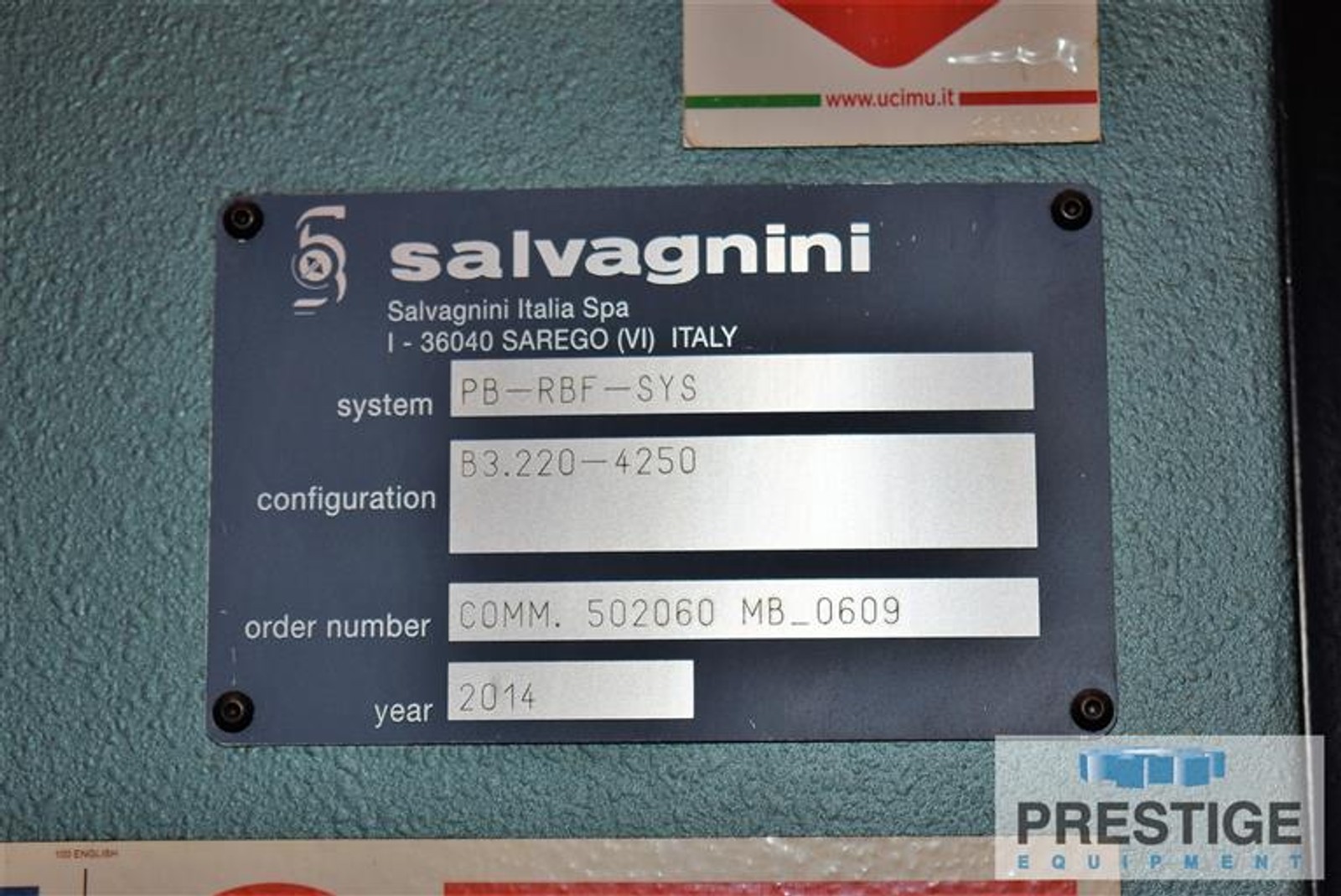

B3 ATA B3.220-4250

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31787

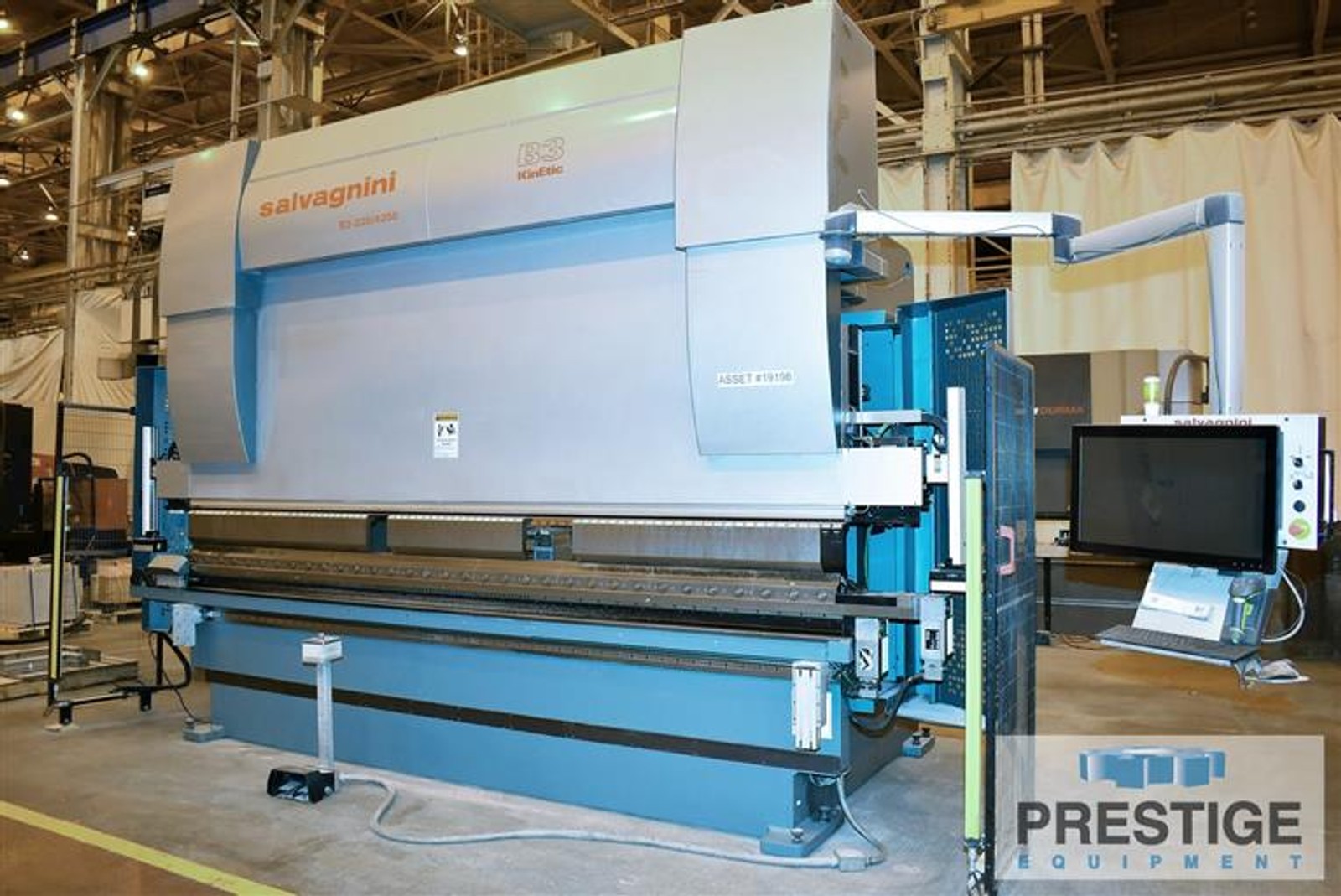

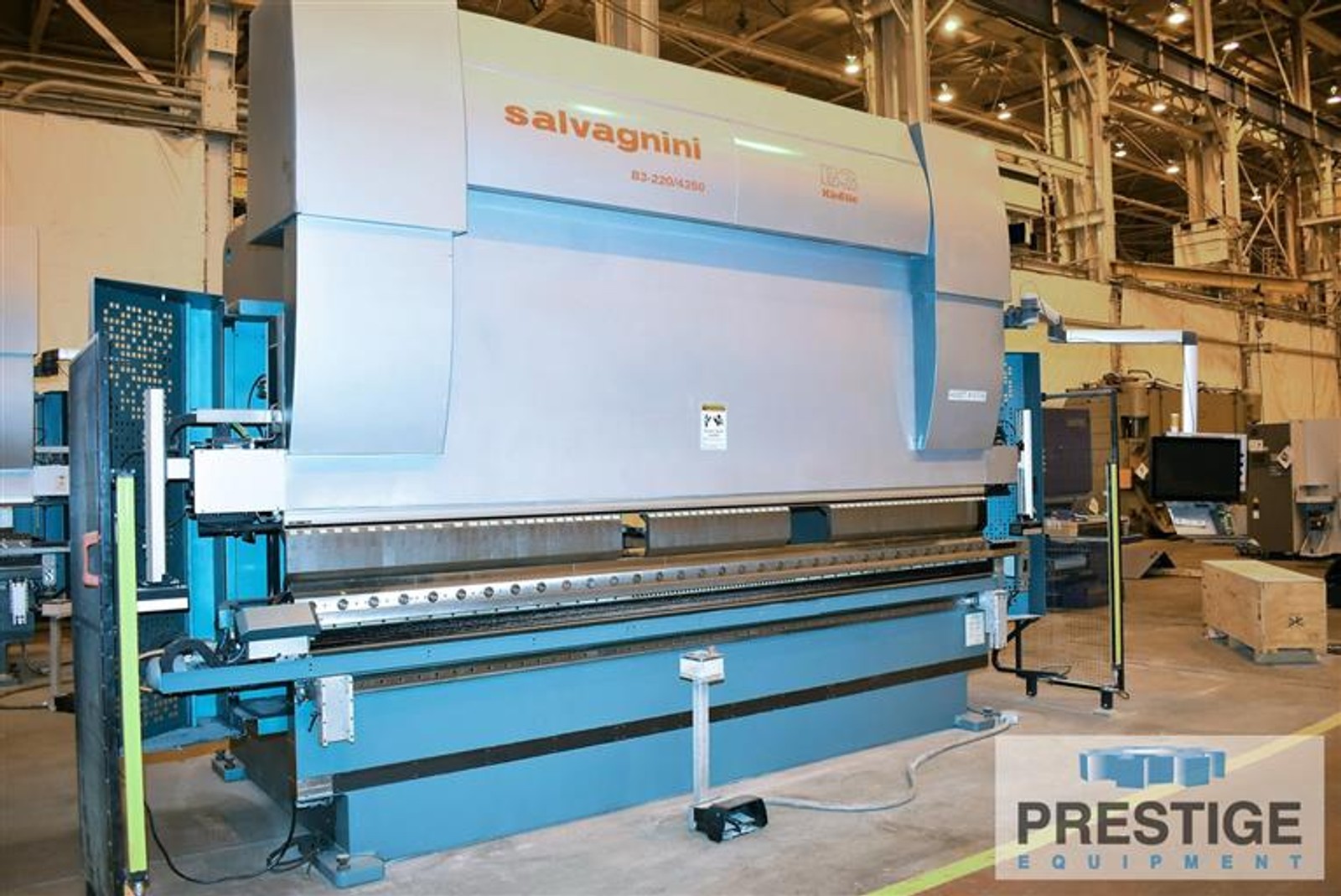

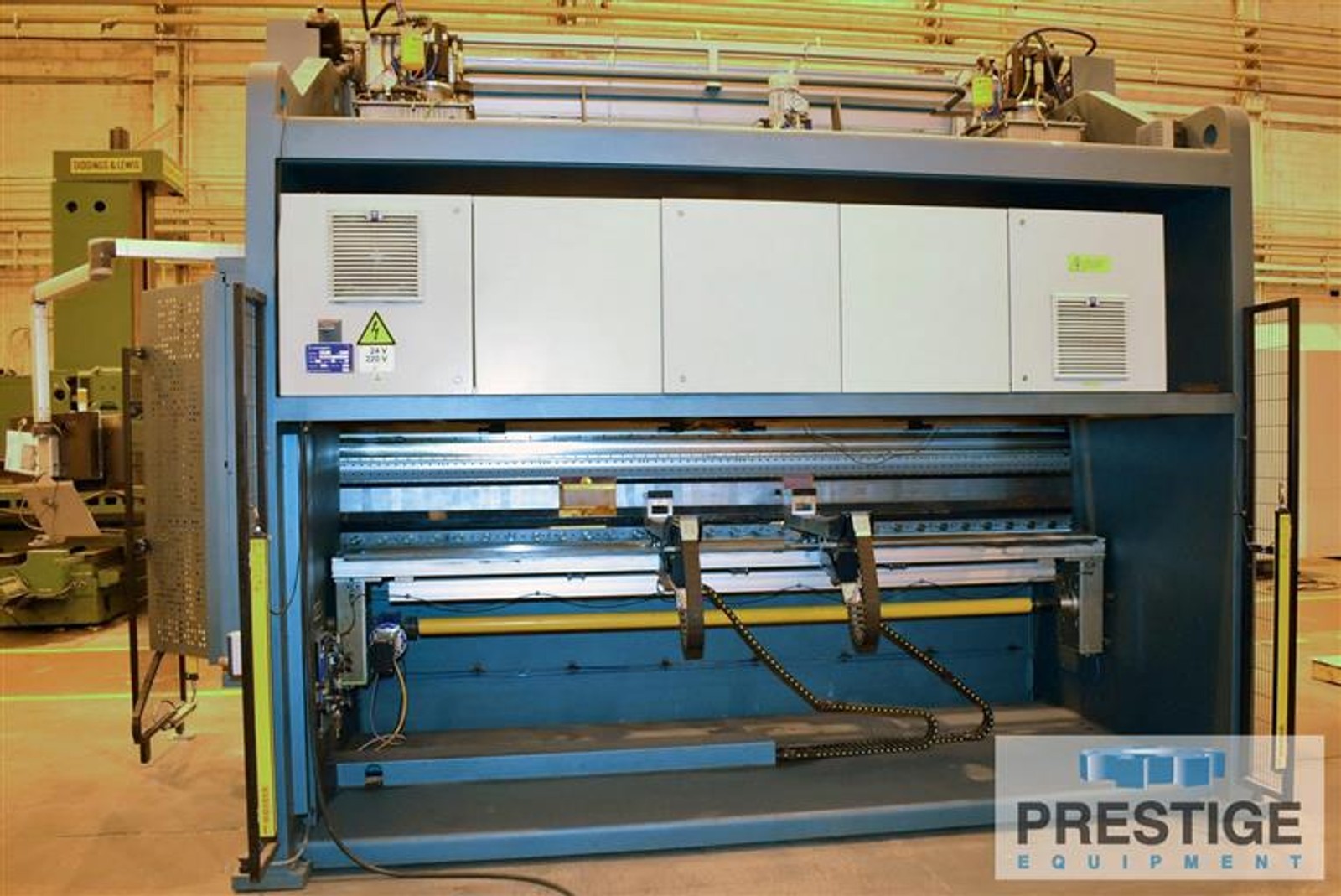

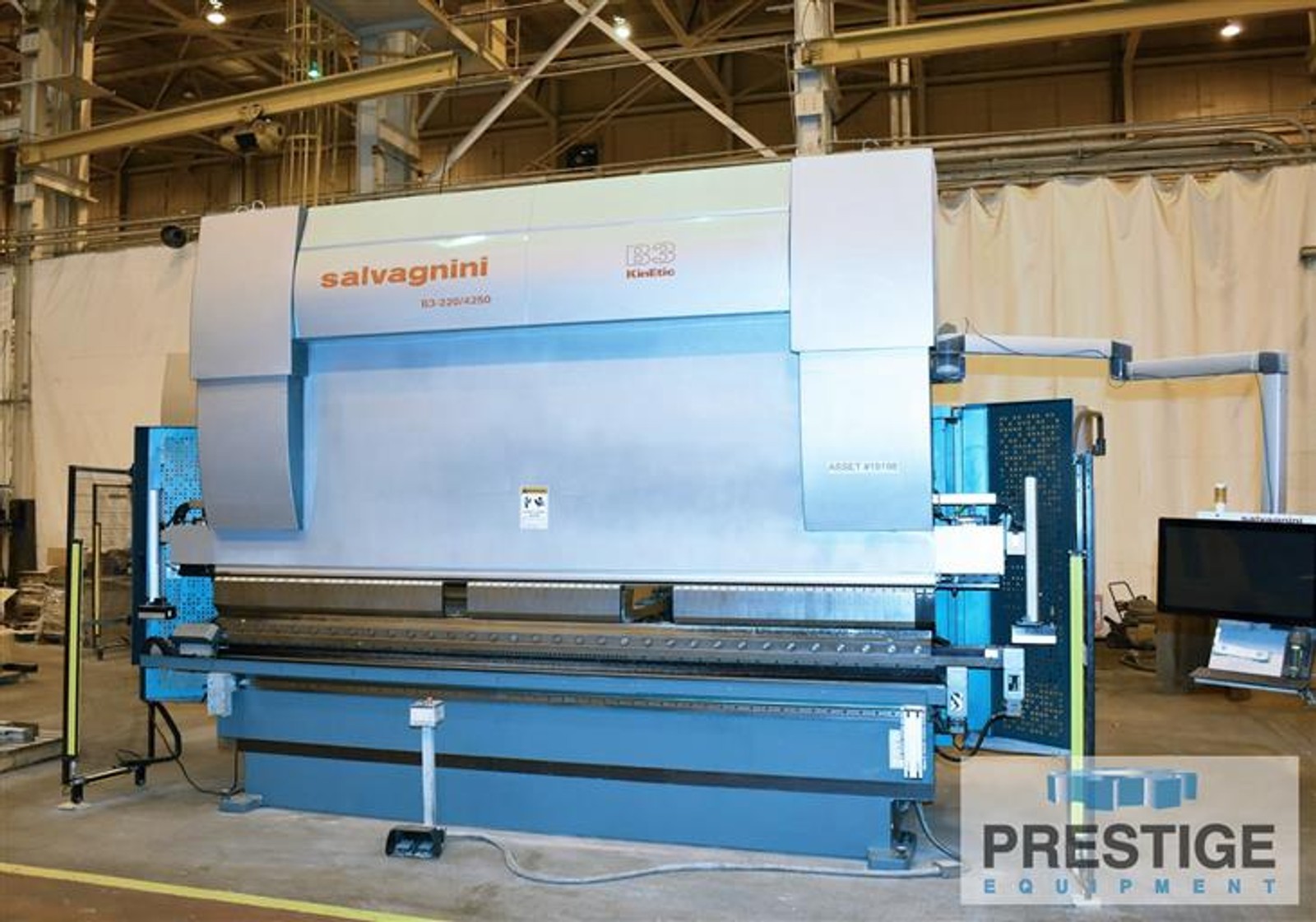

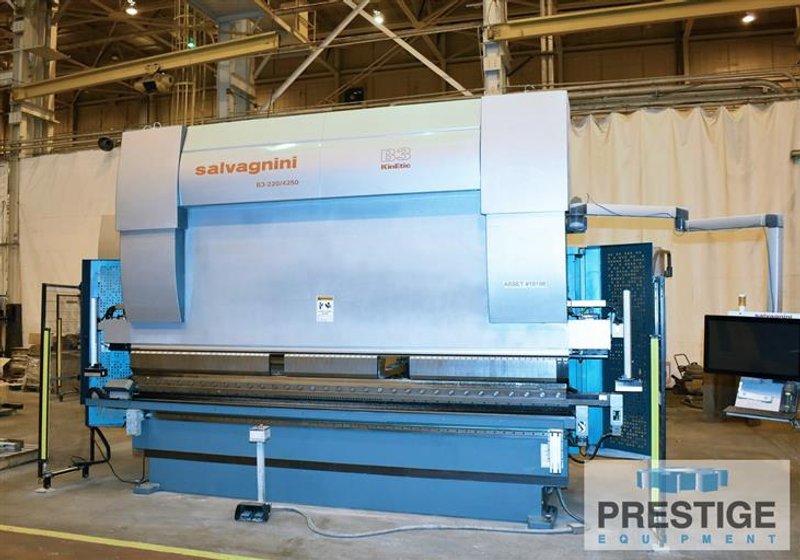

Salvagnini 242 Ton x 13' 7-Axis B3-220/4250 CNC Hydraulic Press Brake, (2) Available

FEATURES:

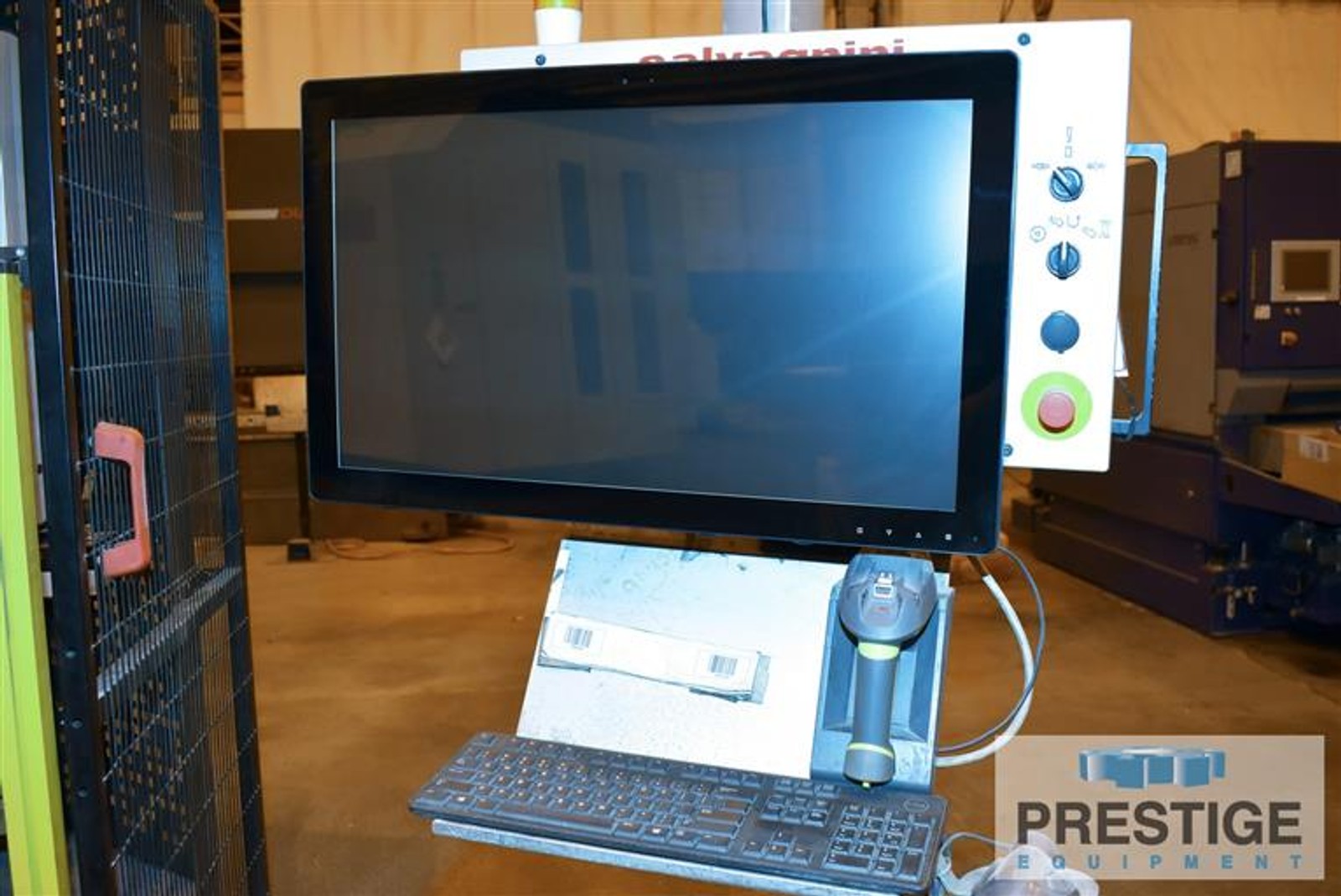

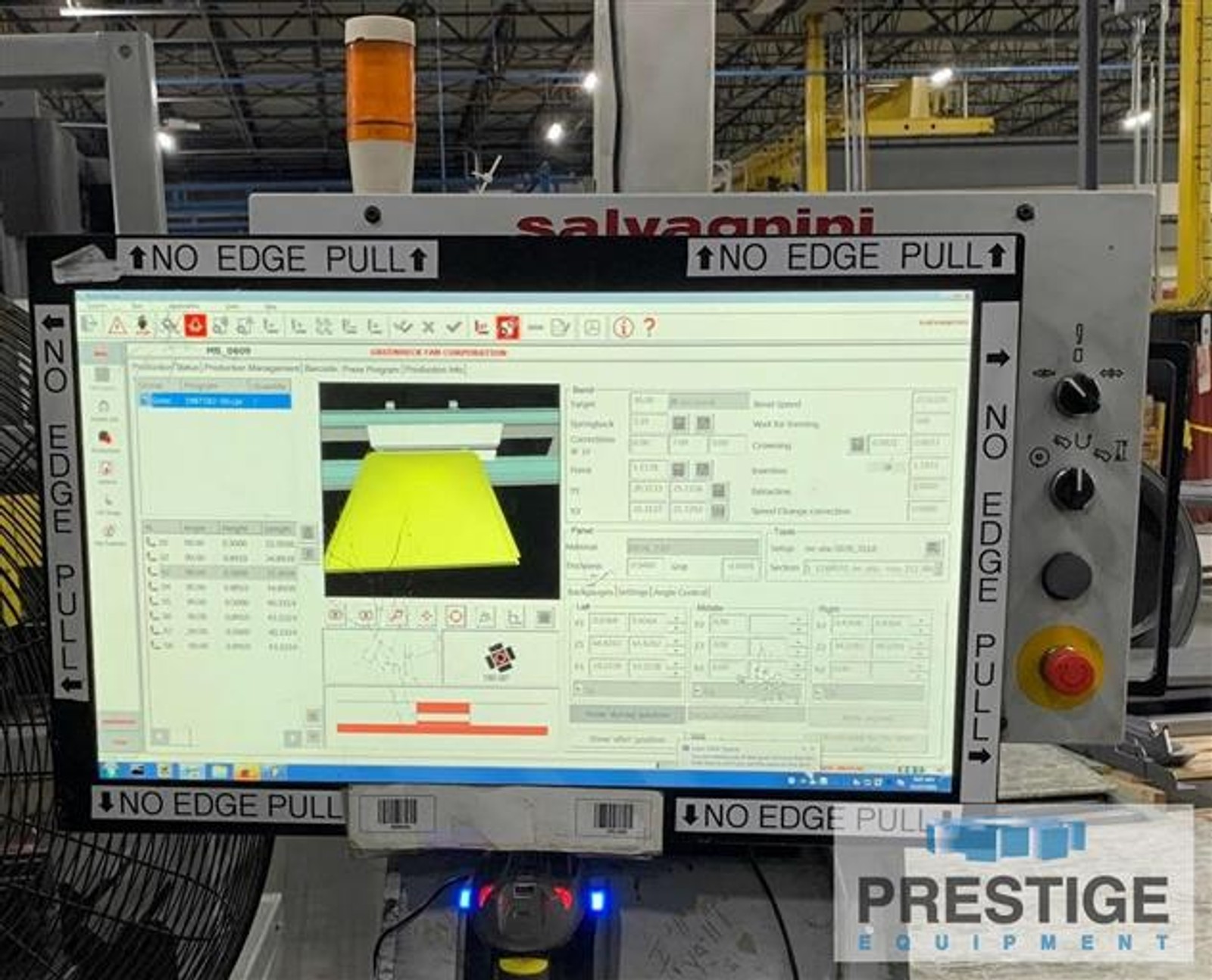

Salvagnini 7-Axis CNC Control With Graphic Display
5-Axis BG7 CNC Back Gauge
Automatic Upper Tool Adjuster (ATA)
Adaptive Crowning
Wila "New Standard" Hydraulic Upper & Lower Clamping

CAPACITY:
Maximum Tonnage Capacity .............. 242 Ton
Overall Length Of Bed & Ram ........... 167.32"
Distance Between Housings ............. 142.51"
Throat Depth .......................... 20.47"
Stroke Length ......................... 17.71"
Maximum Speed ......................... 519.7 IPM
Bending Speed ......................... 42.5 IPM
Main Motor ............................ 34.6 HP
Approximate Dimensions (LxWxH) ........ 209.8" x 81.8" x 145.9"
Approximate Shipping Weight ........... 52,600 Lbs.

EQUIPPED WITH:

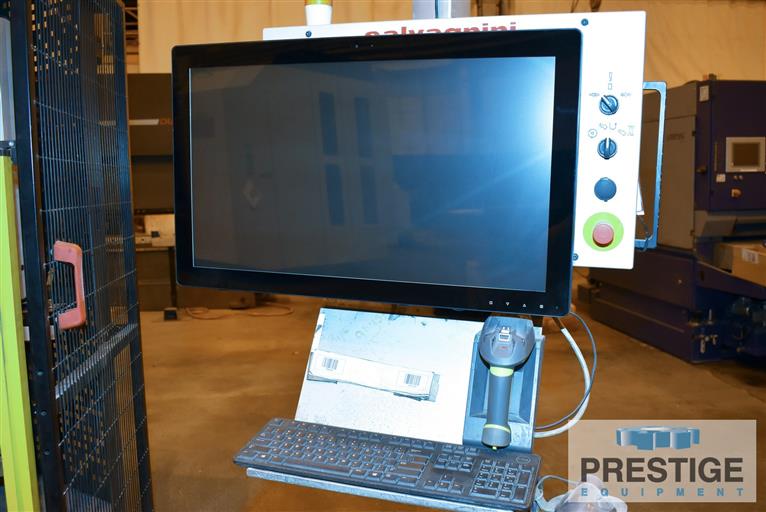

Salvagnini 7-Axis CNC Control With Graphic Display
5-Axis BG7 CNC Back Gauge (X1,X2,Z1,Z2,R)
Adaptive Crowning
Wila Hydraulic Power Upper & Lower Clamping
Automatic Tool Adjuster (ATA) for automatically adjusting upper bending tool length
Heat Exchanger Assembled On The Electric Cabinet

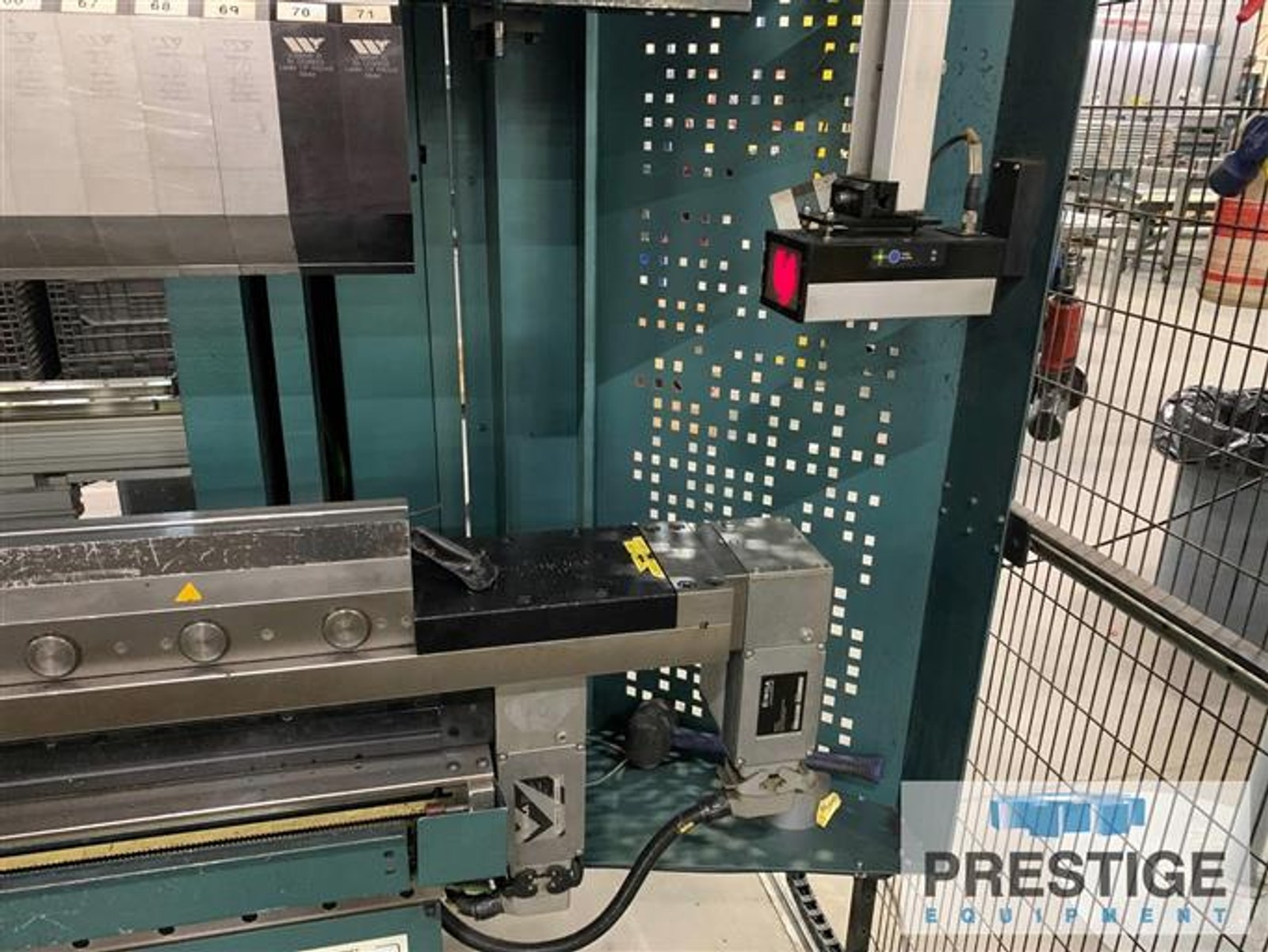

Angle Measurement System (AMS)
MVM Option (Programmable Lower Die Rail)
Fast Bend Safety System With Automatic Height
Oil Cooling Unit
Tool Opening Via Control Console With Foot Switch
Electric Foot Switch

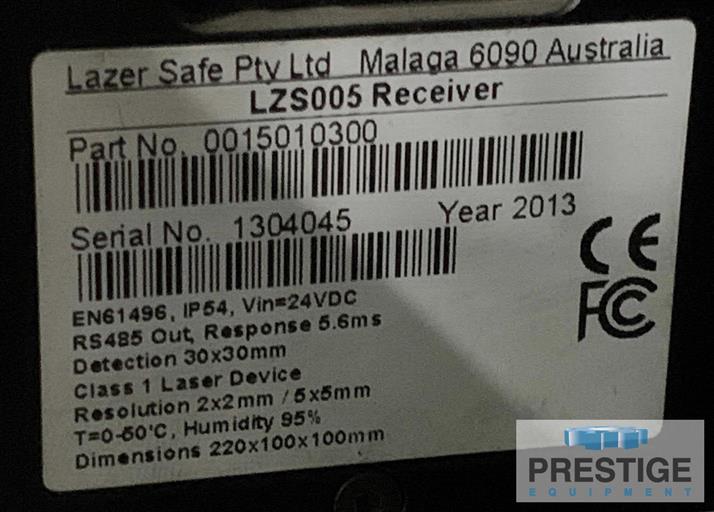

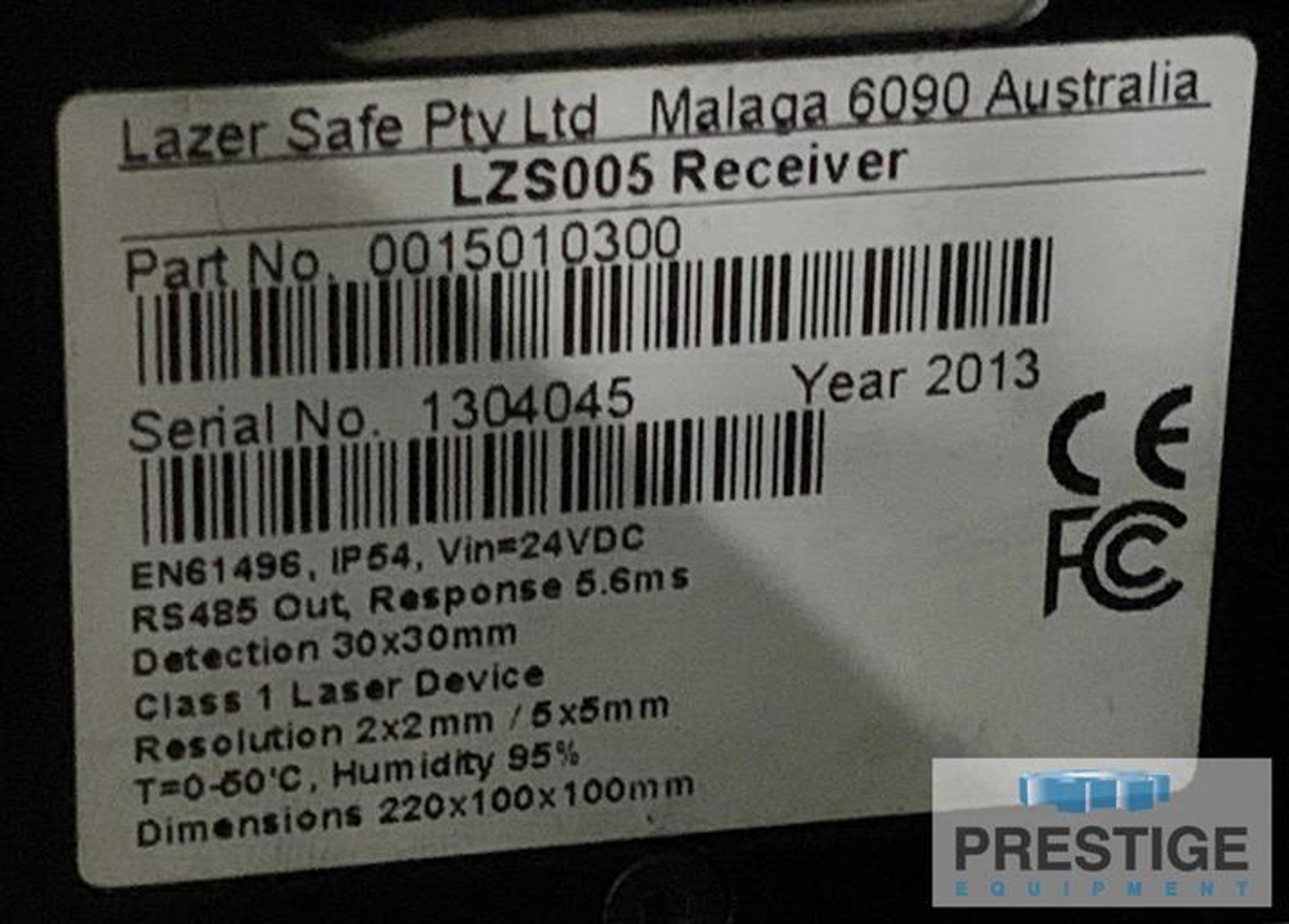

Lazer Safety Light Guarding

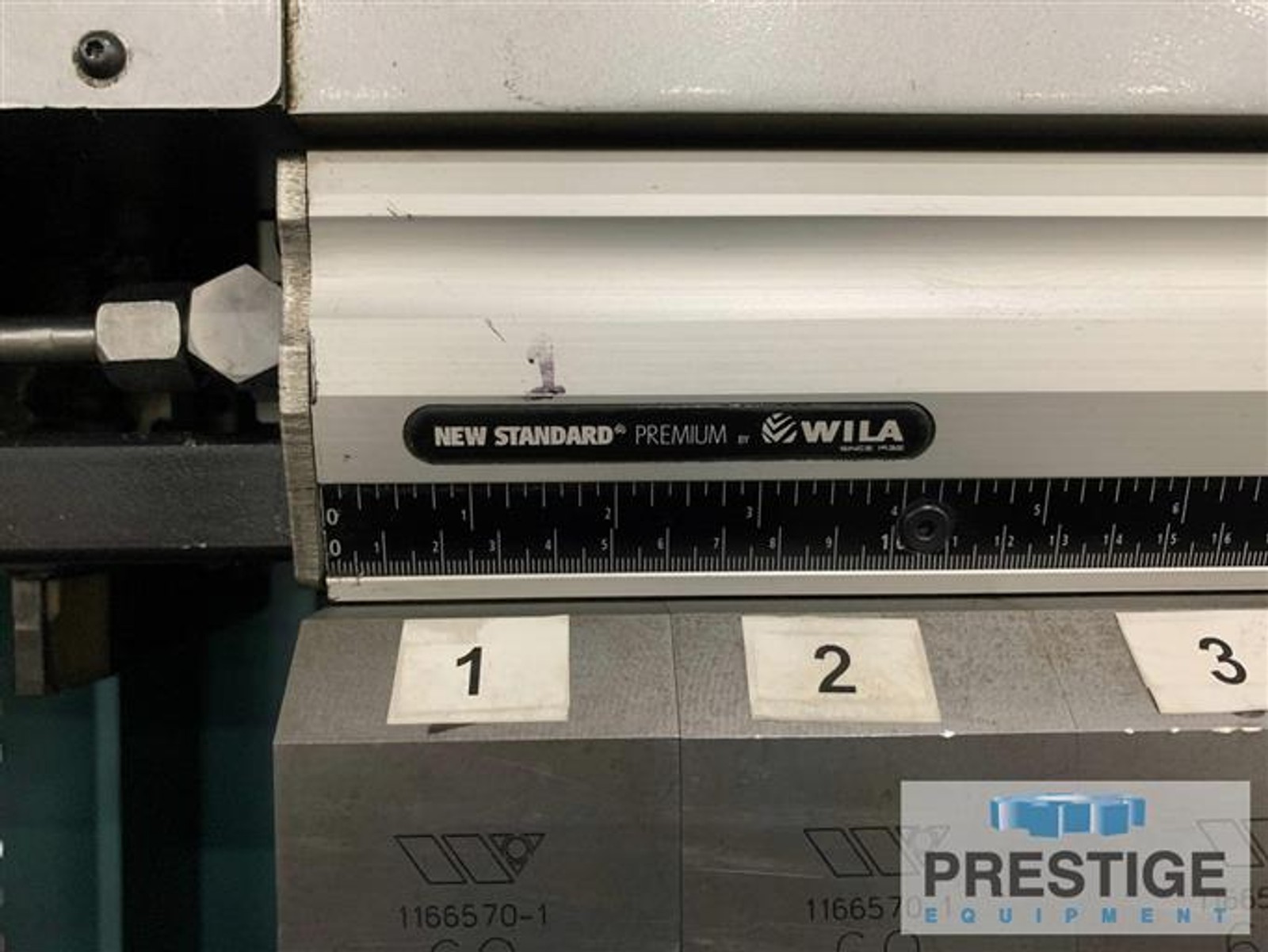

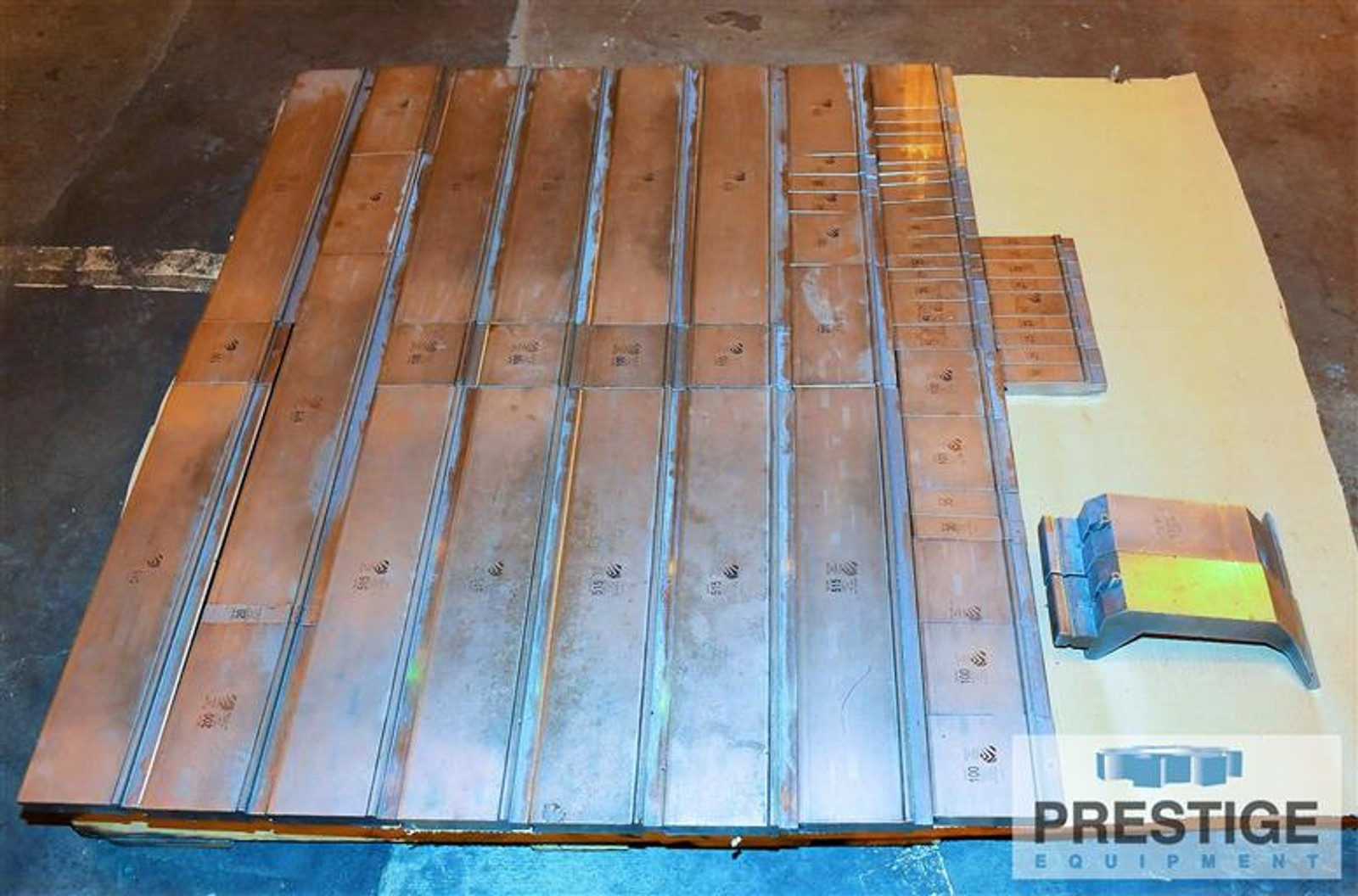

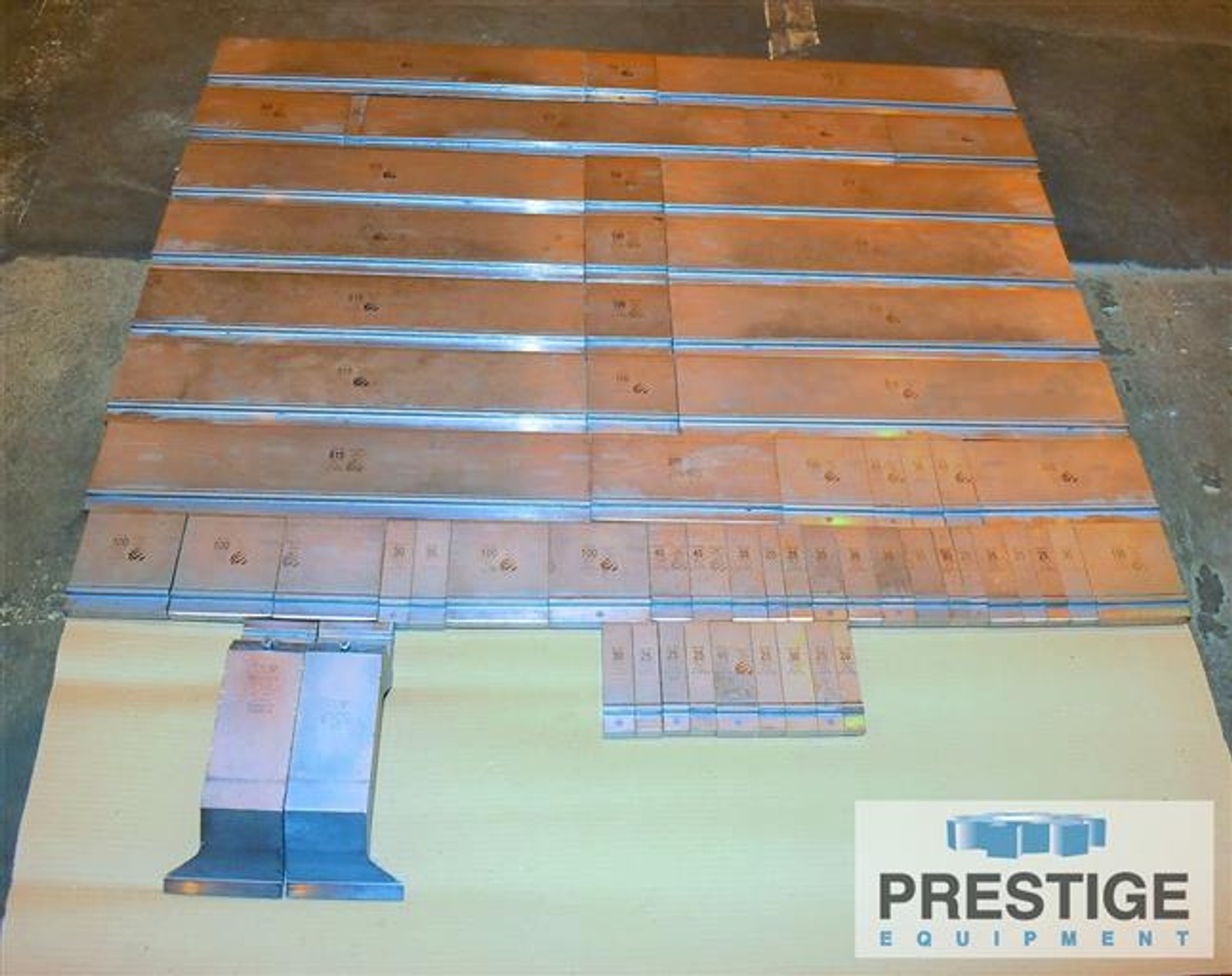

Wila New Standard Tooling System with Machine
Flush Floor

NOTE:
This machine can be inspected under power in our Philadelphia Warehouse.
There are two machines available
