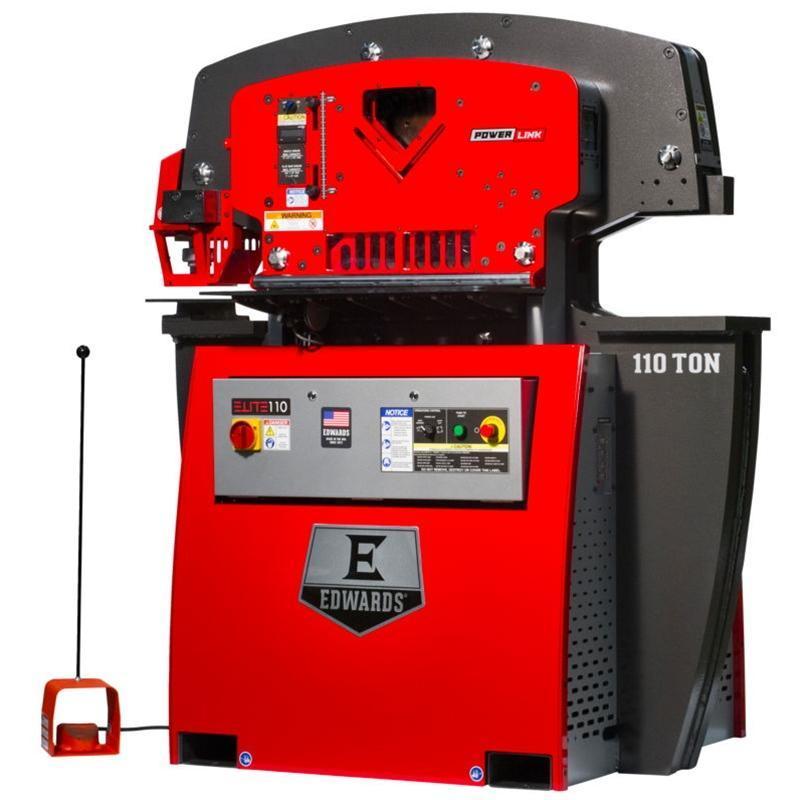

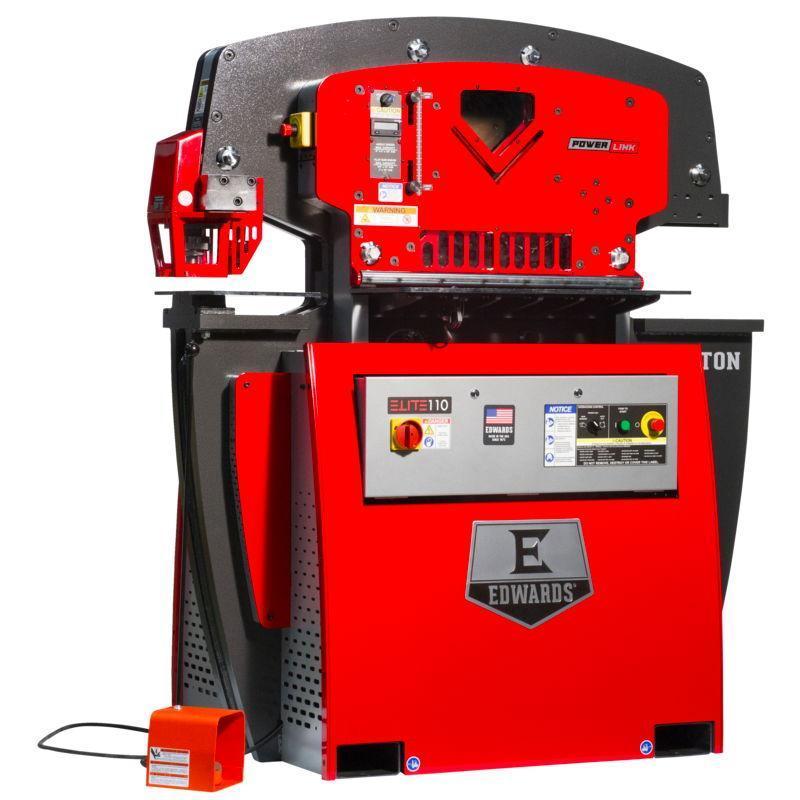

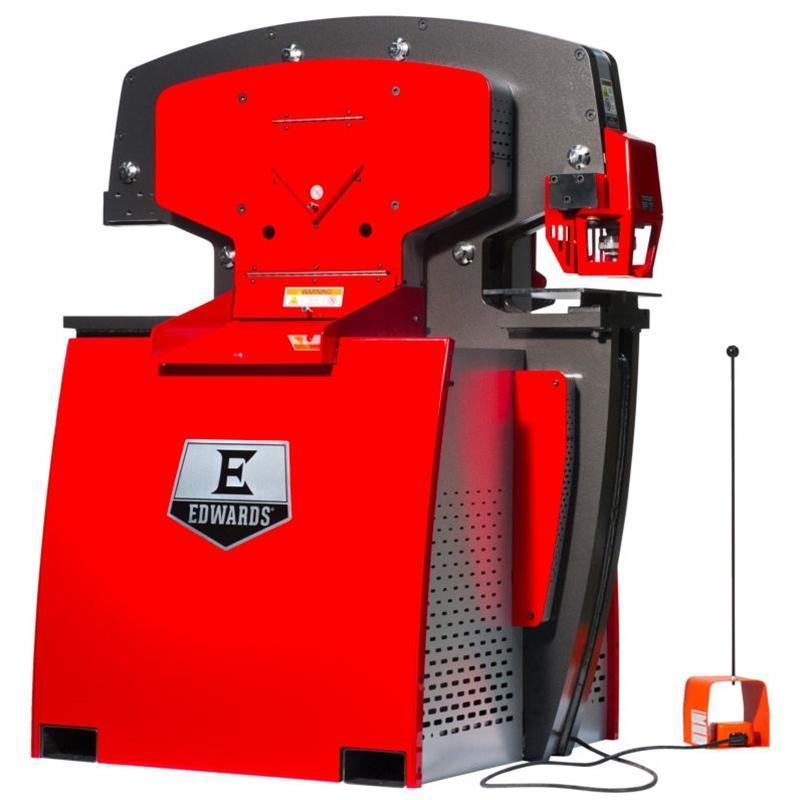

Edwards 110 Ton Elite Ironworker (#4902)

Manufacturer

Category

Punches

Type

IRONWORKERS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



110 Ton Ironworker with Universal Open Tooling System, Hydraulic Hold-Downs, E - Stop / Lockout Tagout, Electrical Stroke Control, Central Lubrication System, Swing - Away Stripper Assembly, Roller Encoder Measuring System, Quick Change Punch Assembly, Premium Gauging Tables and LED Lighting.

GENERAL SPECIFICATIONS
Punch:
Rating:                    110 Tons
Max. Capacity:                1-⅜” Ø in 1” A36
Stroke:                    1-13/16”
Throat Depth:                11-¾”
Open Height:                    8-⅝”
Shut Height:                    6-13/16”
Work Height:                    41”


Flat Bar Shear:
Max Capacity:                ¾” X 14” / 1” X 12”
Max. Round:                    1-¼”
Max. Square:                    1-¼”
Work Height:                    41-½”
Angle Shear:
Max Capacity:                6” X 6” X ½”
Work Height:                    50-⅞”


Open Station:
Throat Depth:                15-½”
Open Height:                    8-⅝”
Shut Height:                    6-13/16”
Stroke:                    1-13/16”
Work Height:                    39-3/16”


General Specifications:
Motor:                         7.5 HP / 208V or 230V
Hydraulic Pump:                10-½ GPM - 2 Stage
Valve Pressure:                3000 PSI
Resevoir:                    17 Gal
Cylinder:                    3-½” Ram


Dimensions:                        42-⅜” X 57-¼” X 66-1/16”
Shipping Weight:                    5,380 Lbs

INCLUDES: Universal Open Tooling System, Hydraulic Hold-Downs, E - Stop / Lockout Tagout, Electrical Stroke Control, Central Lubrication System, Swing - Away Stripper Assembly, Roller Encoder Measuring System, Quick Change Punch Assembly, Premium Gauging Tables and LED Lighting.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
