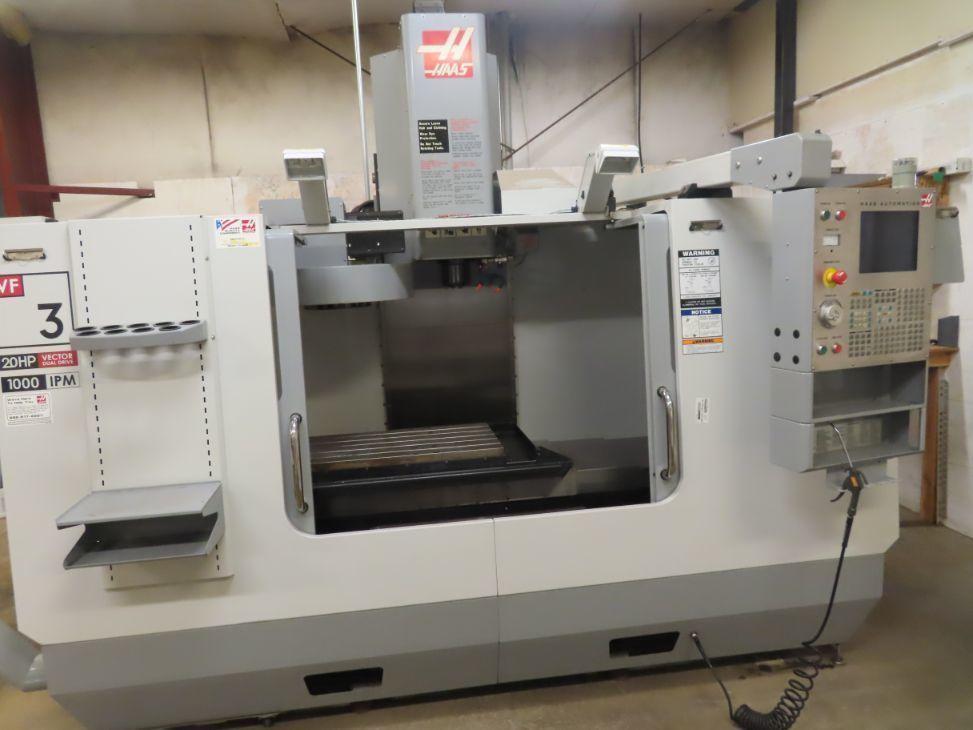

2005 Haas VF-3D Vertical Machining Center (#4898)

Manufacturer

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

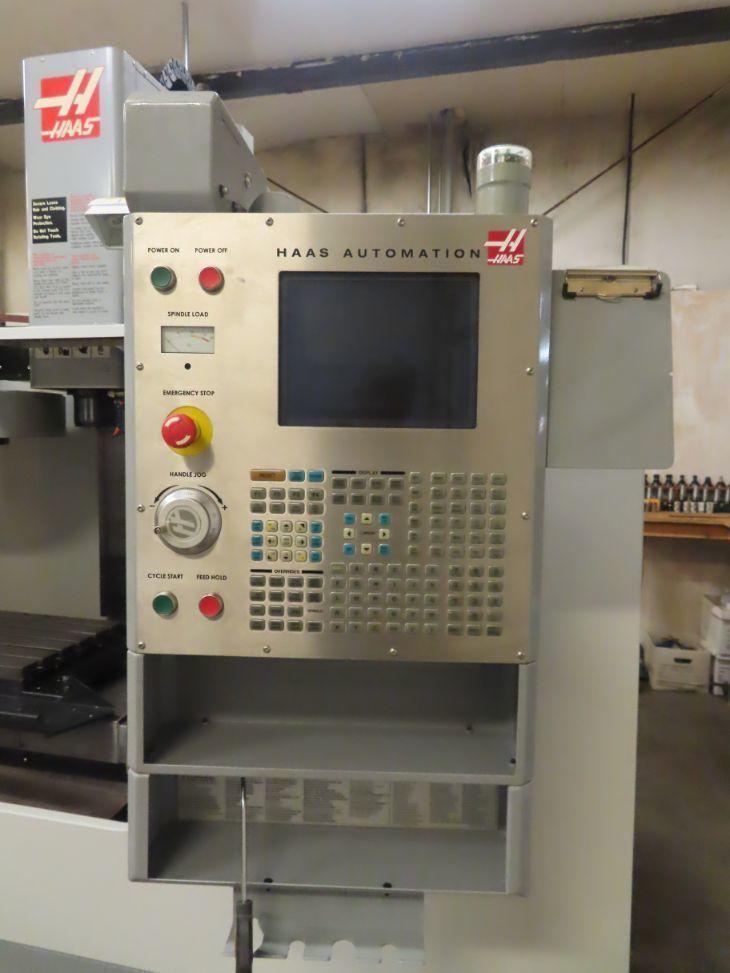

40” X 20” X 25” Vertical Machining Center with Haas 32 - Bit CNC Control w/ 12” CRT Screen, Hard Disk Drive, Floppy & Ethernet Interface, Rigid Tapping, High Intensity Lights, 40 Taper, 55 - Gallon Flood Coolant System, Programmable Coolant, Auger / Scrap Chute, (2) RS-232C USB Ports and 4th - Axis Prewired and Ready.

GENERAL SPECIFICATIONS
Table Size:                        48” X 18”
X - Axis Travels:                    40”
Y - Axis Travels:                    20”
Z - Axis Traves:                    25”
Spindle Taper:                    40
Spindle Speeds:                    7,500 RPM
Spindle Motor Power:                20 HP
Spindle Nose to Table:                4” - 29”
Table Load Max:                     3,500 Lbs
Cutting Feedrate:                    500 IPM
Rapid X, Y, Z:                        1,000 IPM
Tool Changer (ATC):                    20 Slots
Air Requirement:                    4 SCFM @ 100 PSI
Machine Dimensions:                144” X 96” X 110”

INCLUDES: Haas 32 - Bit CNC Control w/ 12” CRT Screen, Hard Disk Drive, Floppy & Ethernet Interface, Rigid Tapping, High Intensity Lights, 40 Taper, 55 - Gallon Flood Coolant System, Programmable Coolant, Auger / Scrap Chute, (2) RS-232C USB Ports and 4th - Axis Prewired and Ready.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
