Traub TNC 42/65DG, Main/Sub Spindle, 2.55" Bar Cap., 17.7" Max. Turning Length,Traub TX 8F CNC Ctrl, #32629

Manufacturer

TRAUB

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

32629

Model

TNC 42/65DG

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32629
Traub TNC 42/65DG CNC Turning Center

FEATURES:

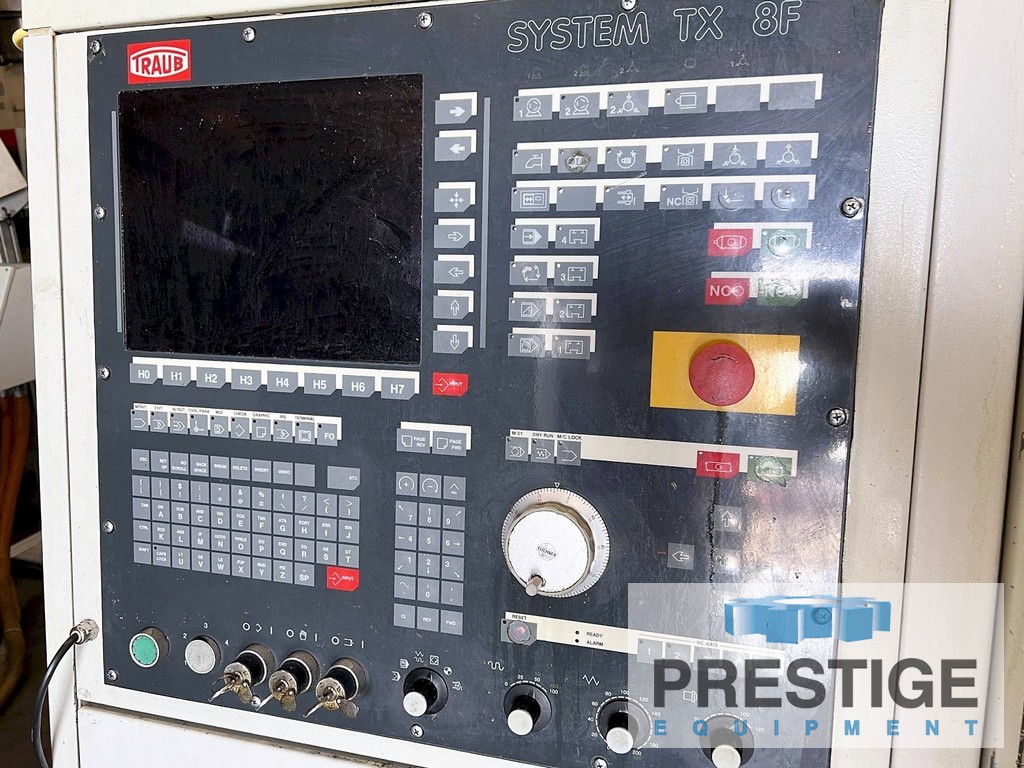

Traub System TX 8F CNC Control

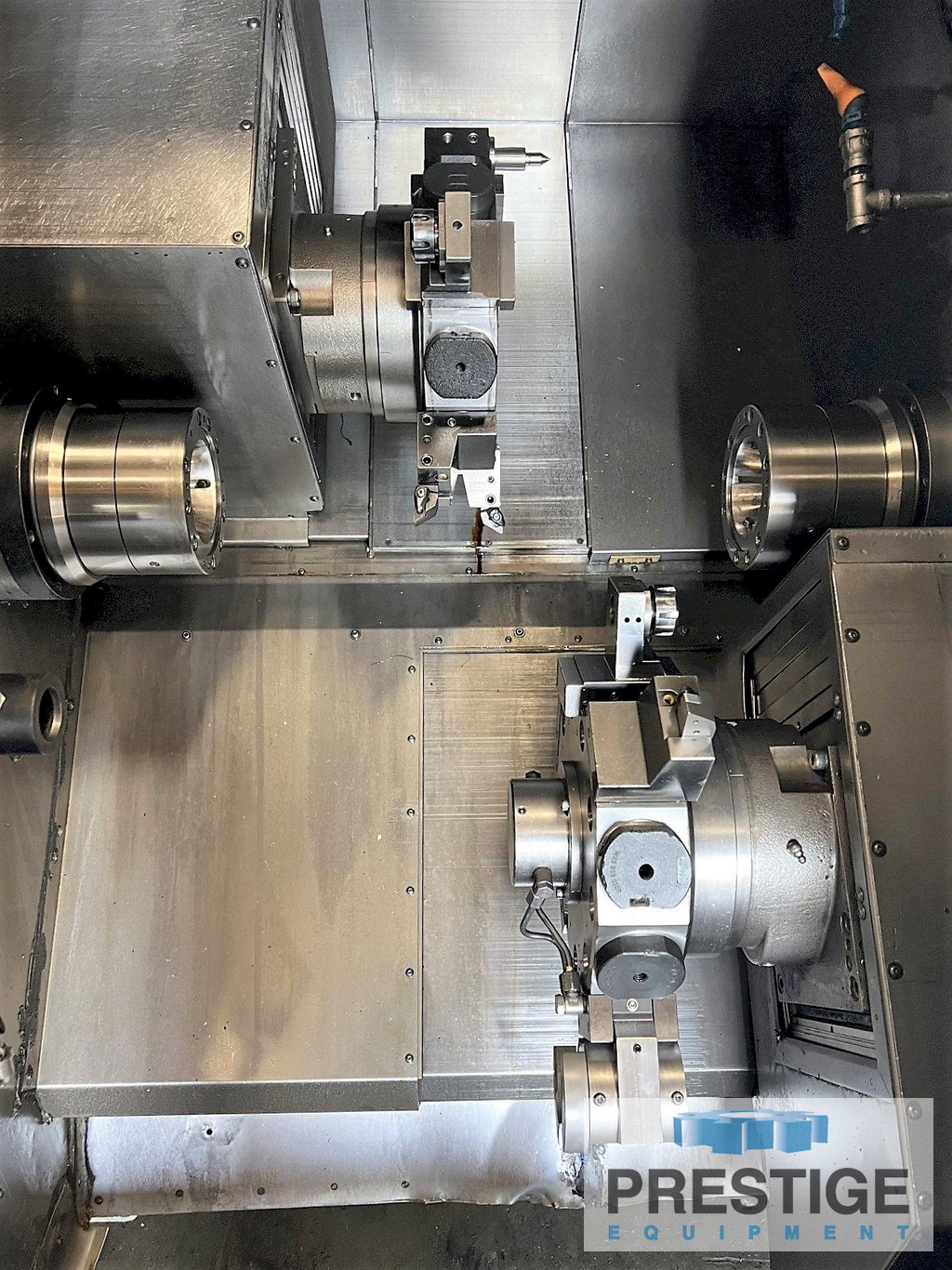

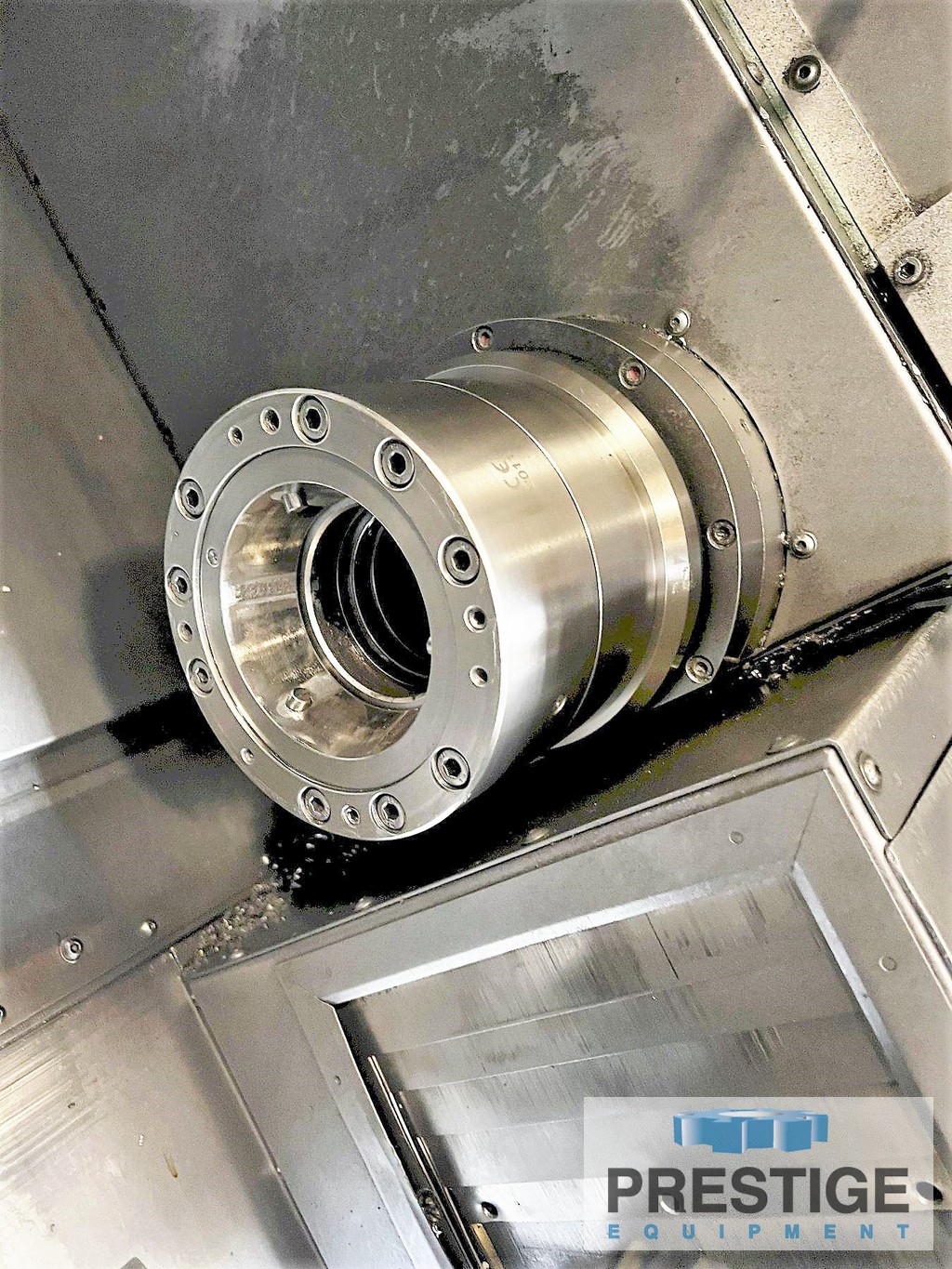

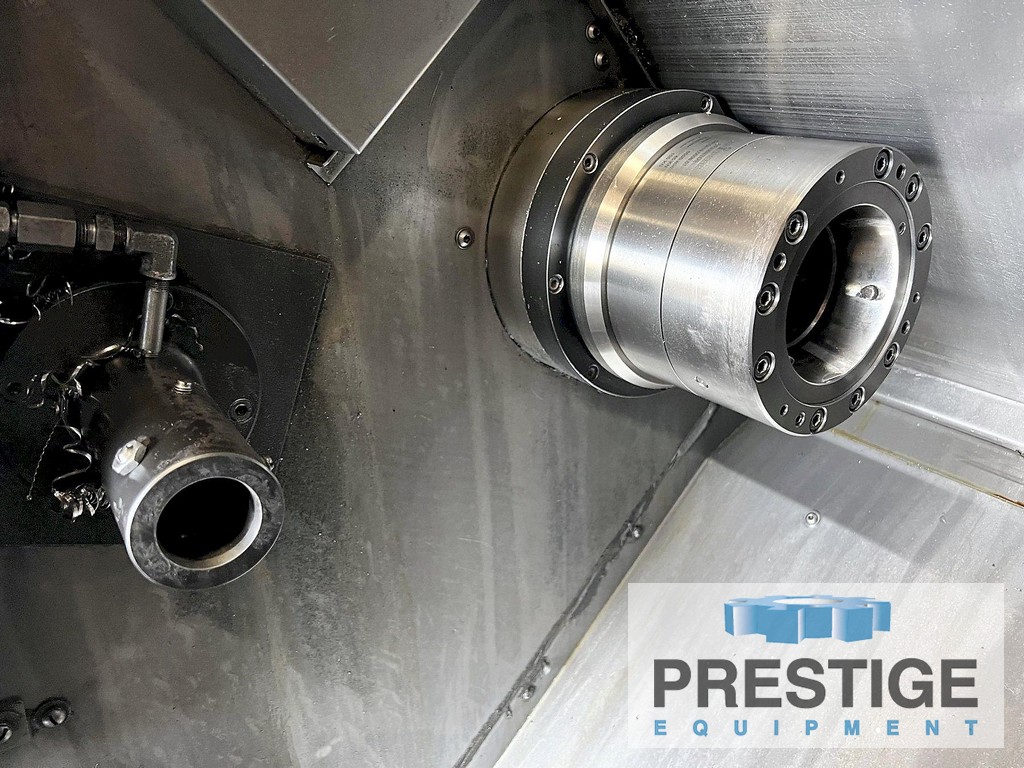

Main/Sub Spindle

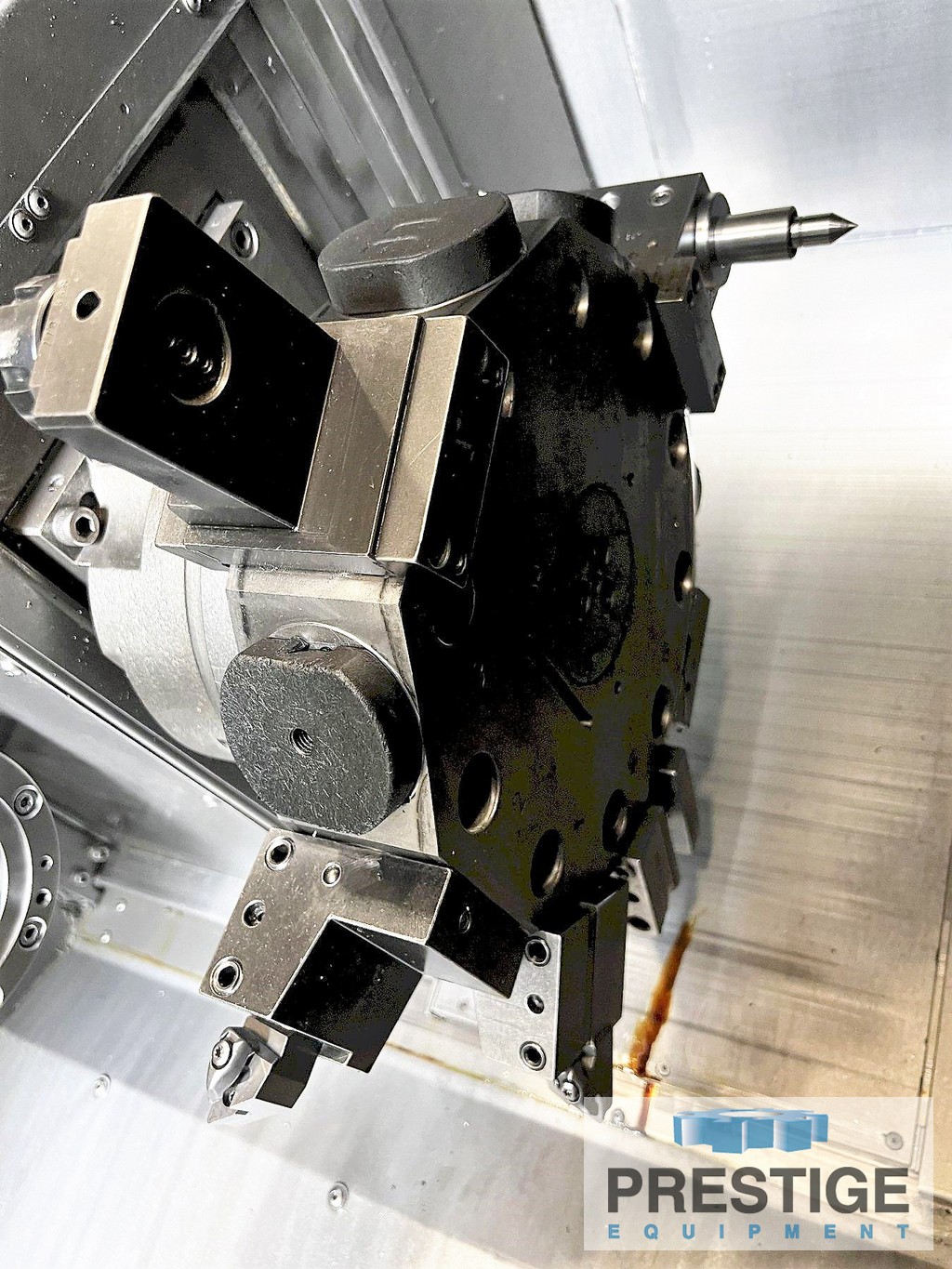

Upper & Lower 10 Station Turrets

SPECIFICATION:
Bar Work Capacity .................... 1.65" - 2.55"
Maximum Turing Length ................. 17.71"
Main Spindle Speed .................... 5,600 RPM
Main Spindle Motor .................... 24 HP
Sub Spindle Speed ..................... 5,600 RPM
Sub Spindle Motor ..................... 14 HP
X-Axis Travel ......................... 5.51"
Z-Axis Travel ......................... 17.71"
X-Axis Rapid Traverse ................. 590.55 IPM
Z-Axis Rapid Traverse ................. 236.22 IPM
Approx. Machine Dimensions ............ 168" x 82" x 76"
Approx. Machine Weight ................ 10,600 Lbs

EQUIPPED WITH:
Traub System TX 8F CNC Control
Main/Sub Spindle
Upper & Lower 10 Station Turrets

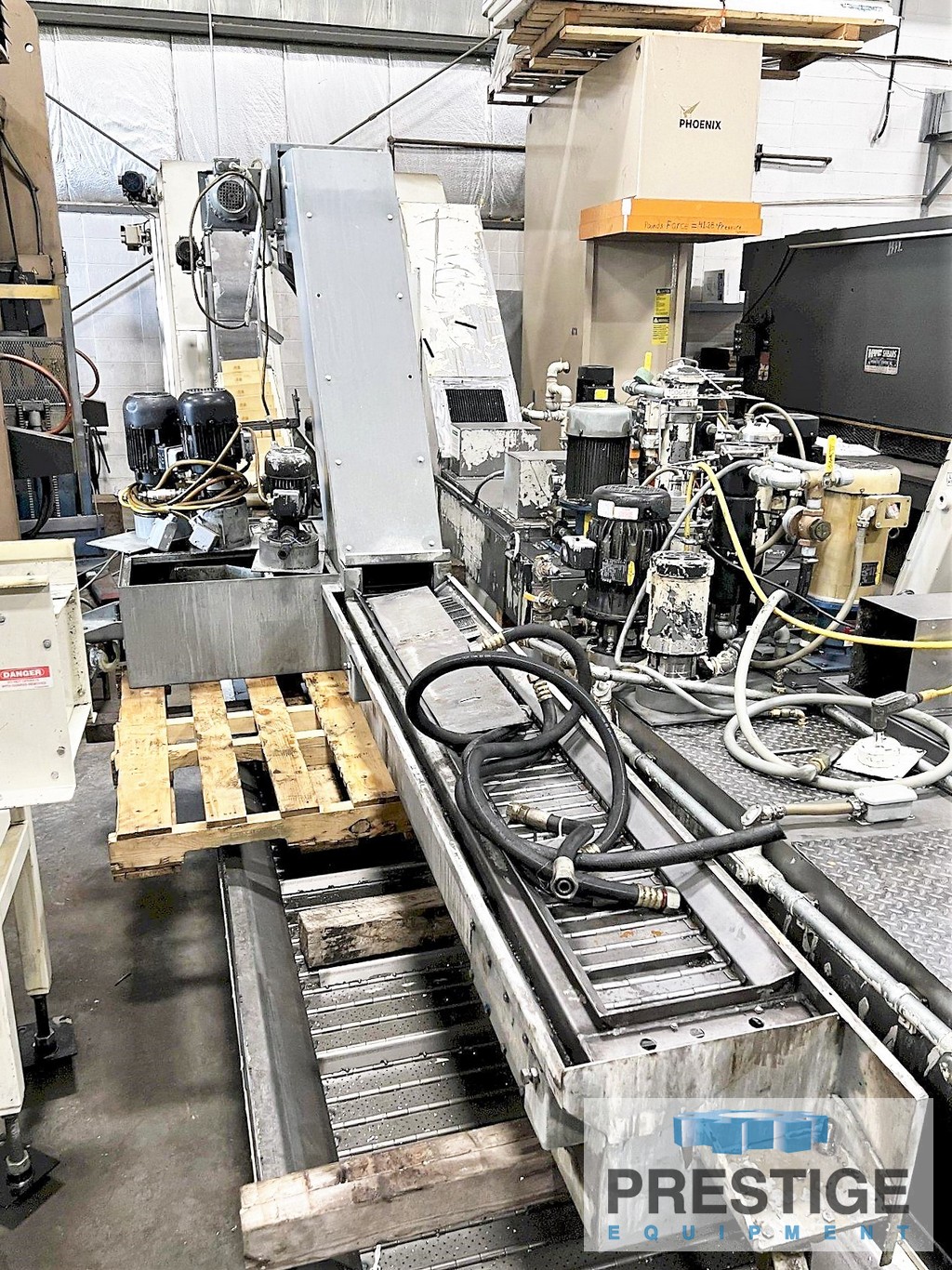

Chip Conveyor
