1997 Accurpress 7608 Hydraulic Press Brake (#4896)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

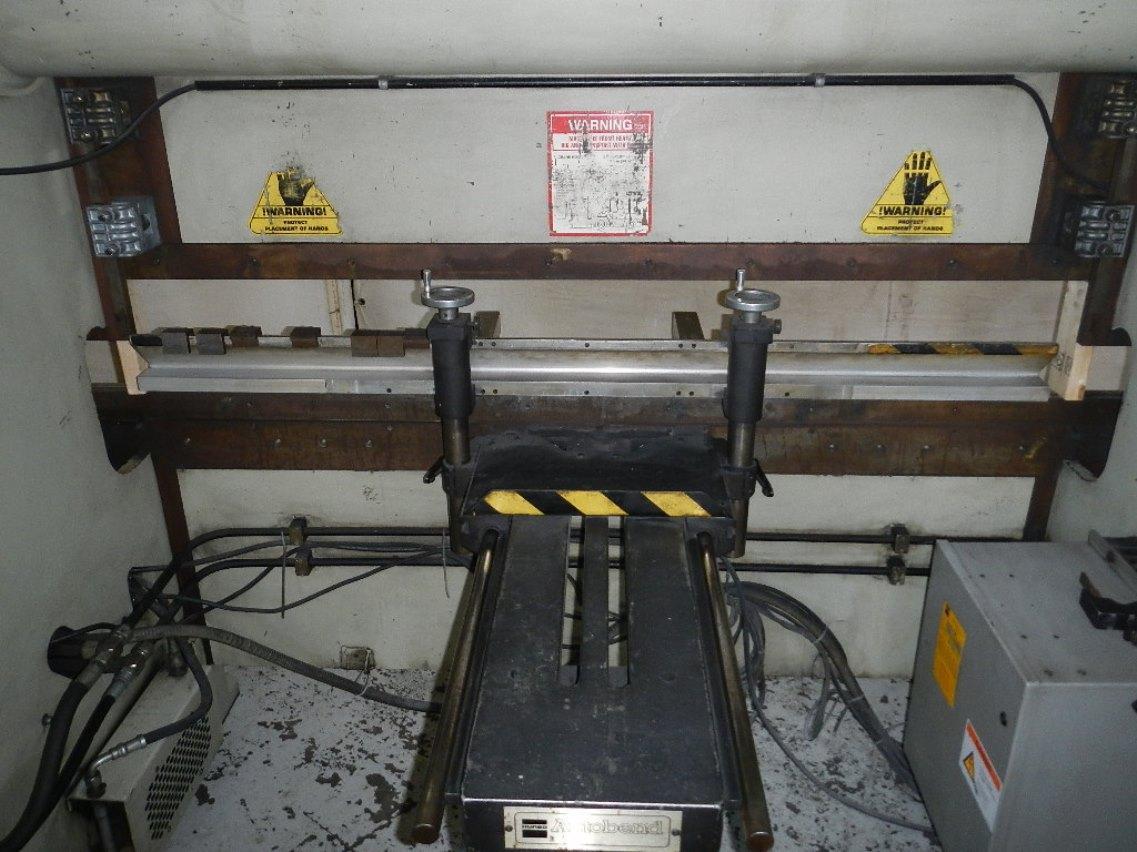

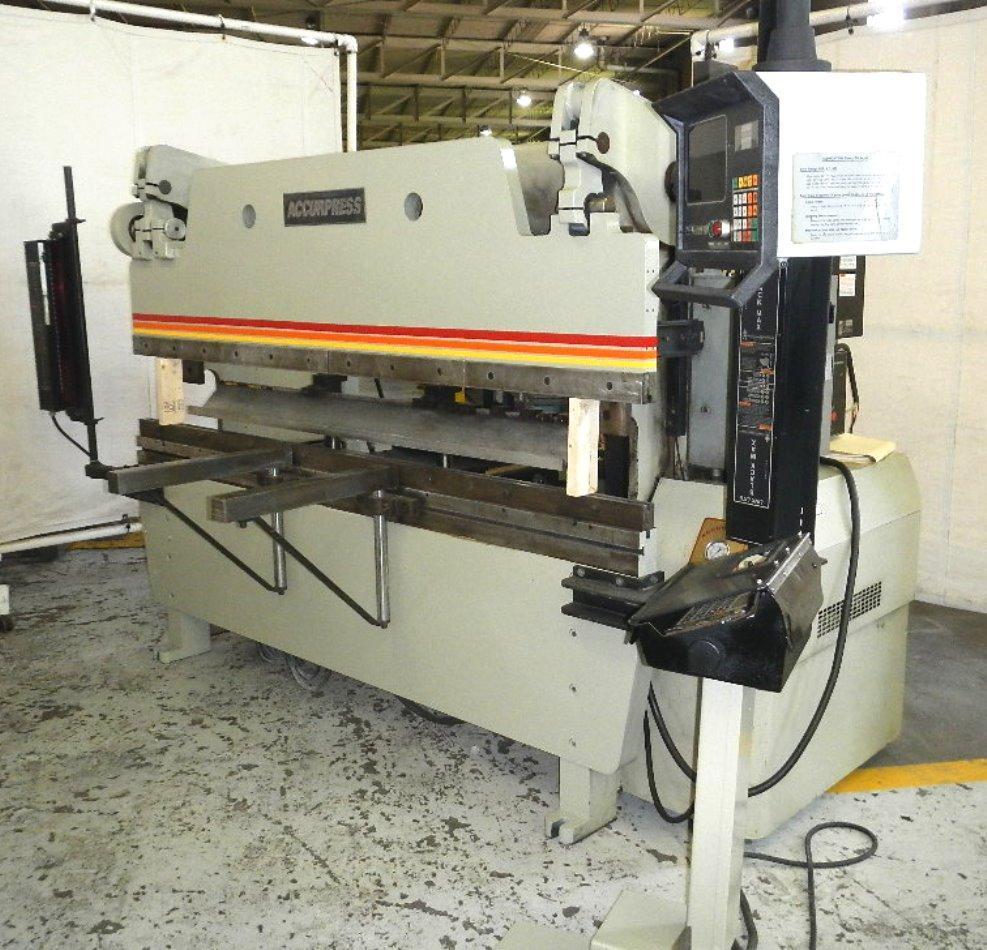

60 Ton X 8’ Hydraulic Press Brake with 2 - Axis CNC Back Gauge System (ETS & Hurco 7), Black Max Light Curtains, Adjustable Back Gauge Fingers, Lower Die Rail, Adjustable Speed Control, Adjustable Front Support Arms, Upper Sectional Ram Clamps, Remote Control Pedestal w/ Palm and Foot Pedal.

GENERAL SPECIFICATIONS
Capacity:                        60 Tons
Overall Length of Bed & Ram:            96”
Distance Between Housings:            76”
Stroke:                        8”
Open Height:                        14”
Throat Depth:                    8”
Ram Fast Approach Speed:                130 IPM
Ram Slow Bend Speed:                24 IPM
Ram Fast Return Speed:                260 IPM
Speed:                        22 SPM
Width of Platen:                    3”
Bed to Floor Distance:                34”
Drive Motor:                        10 HP
Approx. Overall Dimensions:            108” X 50” X 78” H
Approx. Weight:                    8,000 Lbs

INCLUDES: 2 - Axis CNC Back Gauge System (ETS & Hurco 7), Black Max Light Curtains, Adjustable Back Gauge Fingers, Lower Die Rail, Adjustable Speed Control, Adjustable Front Support Arms, Upper Sectional Ram Clamps, Remote Control Pedestal w/ Palm and Foot Pedal.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
