98" Mario Carnaghi TGP.25.30, Ram w/ Live Spindle, C-Axis, Y-Axis, Angle Heads, Siemens 840D SL CNC, New In Stock #32622

Manufacturer

Carnaghi

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32622

Model

TGP.25.3000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32622

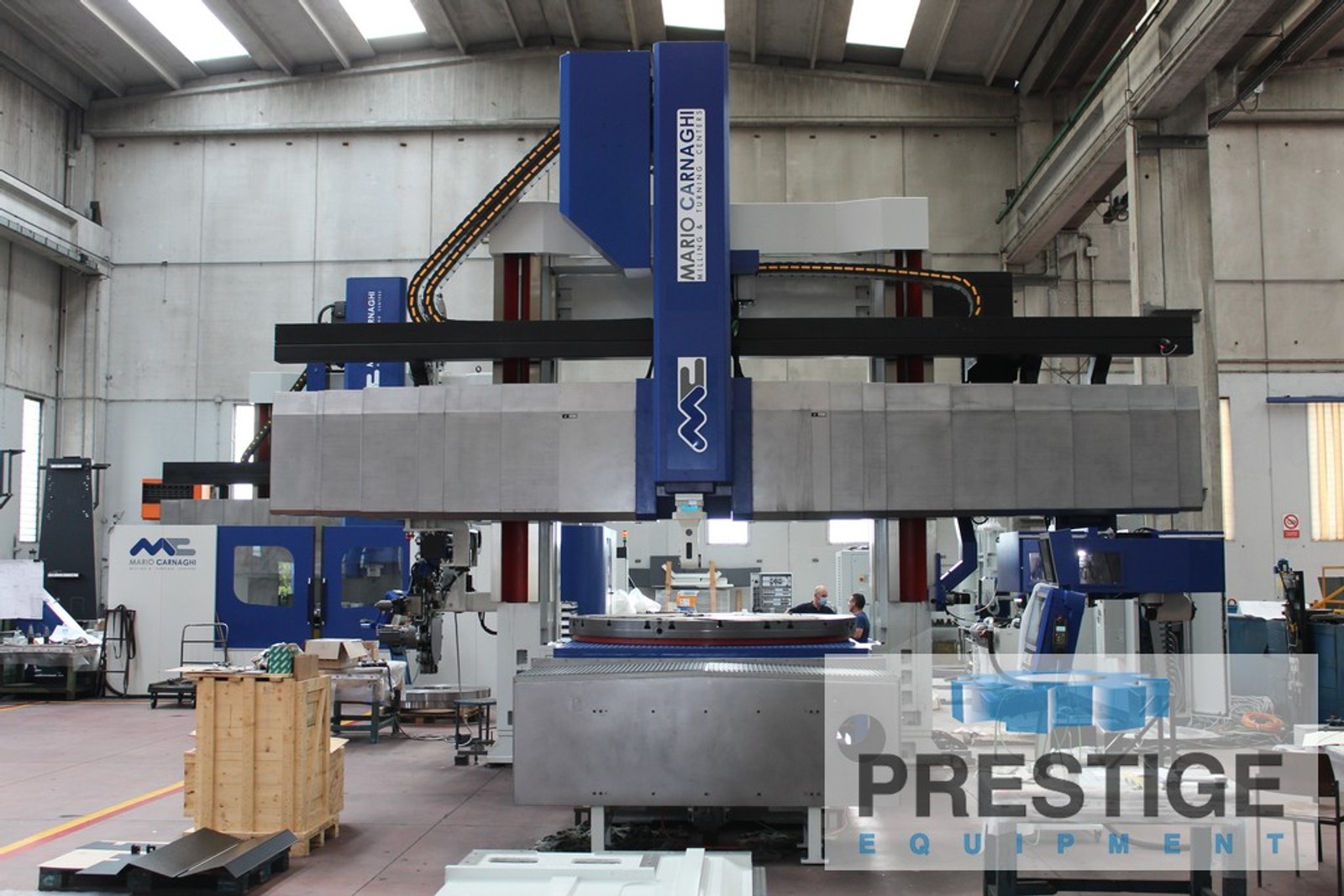

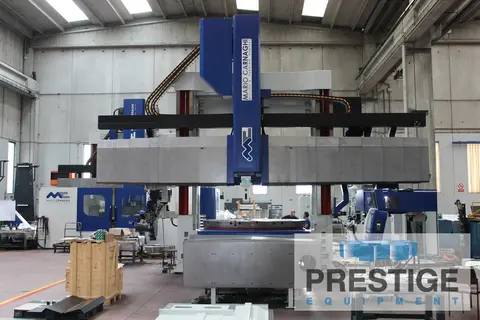

Mario Carnaghi CNC Vertical Boring Mill

FEATURES:
Siemens 840D SL CNC Control
6-Position Automatic Attachment Changer
40-Station Automatic Tool Magazine
Hydrostatic Table

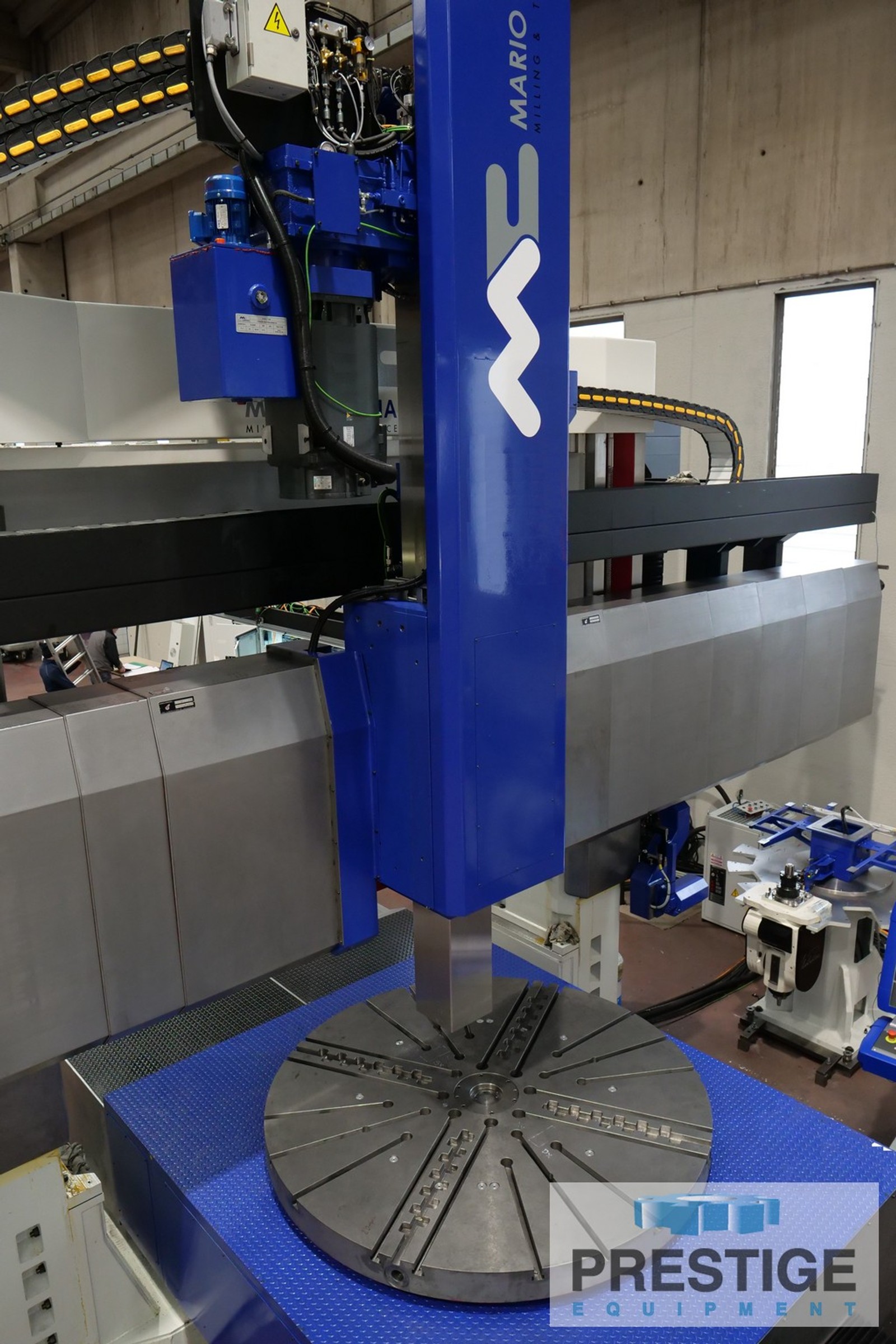

Vertical Ram with Milling Spindle
Vertical Milling & Drilling Attachment
Right Angle Milling Attachment
A-Axis Sweep Milling Attachment
Through Spindle Coolant & Flood Coolant
Dual Dive 59 HP (44 KW) Table Motors
Dual Gear Boxes with Dual Range Speeds
High Resolution Heidenhain Scales & Encoder
Work Piece Probe
Milling Tool Calibration Device
Turning Tool Calibration Device
Full Machine & Operator Enclosure
Full Closed Video Monitoring Circuit
Roto Clear Window
Chip Conveyor

CAPACITY:
Table Diameter ........................ 98.42"
Turning Diameter ...................... 118.11"
Maximum Turning Height ................ 78.74"
Maximum Stroke of Vertical Rams ....... 59.05"
Ram Cross Section ..................... 9.84" x 9.84"
Cross Rail Travel ..................... 47.24"
Ram Saddle Travel, X-Axis ............. 59.05"/78.74" (-/+)
Table Travel, Y-Axis ................. 118.11"
Turning Tool .......................... AF 40x40
Table Load Capacity ................... 77,000 lbs
Table Speed Ranges, Max ............... 0-180 RPM
Table Indexing ........................ .001
Main Motors, 2X........................ 59 HP (44 KW)
Milling Spindle Taper ................. SK 50
Milling Spindle Speeds, Max ........... 4,000 RPM
Milling Spindle Motor ................. 54 HP (41 KW)

EQUIPPED WITH:
Siemens 840D SL CNC Control
6-Position Automatic Attachment Changer
40-Station Automatic Tool Magazine
Hydrostatic Table
Vertical Ram with Milling Spindle
Vertical Milling & Drilling Attachment
Right Angle Milling Attachment
A-Axis Sweep Milling Attachment
Through Spindle Coolant & Flood Coolant
Dual Dive 59 HP (44 KW) Table Motors
Dual Gear Boxes with Dual Range Speeds
High Resolution Heidenhain Scales & Encoder
Work Piece Probe
Milling Tool Calibration Device
Turning Tool Calibration Device
Full Machine & Operator Enclosure
Full Closed Video Monitoring Circuit
Roto Clear Window
Chip Conveyor

Note:
Brand New, In Stock for Immediate Delivery!!
Additional Details Upon Request!
