196"/236" Mario Carnaghi TG.50/6000, Ram w/ Live Spindle, C-Axis, Angle Heads, Siemens 840DE CNC, New in Stock #32623

Manufacturer

Carnaghi

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32623

Model

TG.50/6000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32623

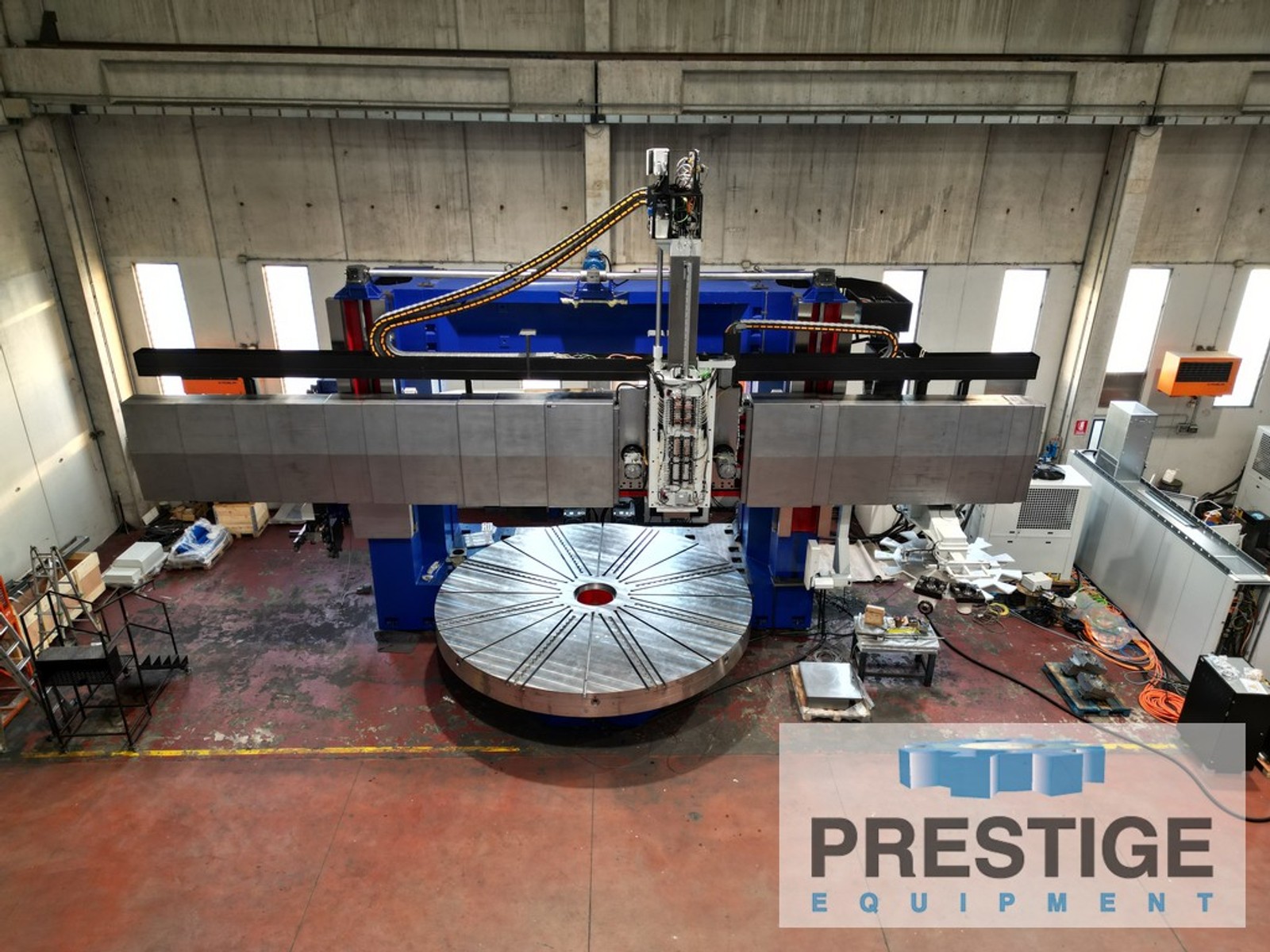

Mario Carnaghi CNC Vertical Boring Mill

FEATURES:
Siemens 840DE SL CNC Control
12-Position Automatic Tool & Attachment Changer
40-Station Automatic Tool Magazine
Hydrostatic Table

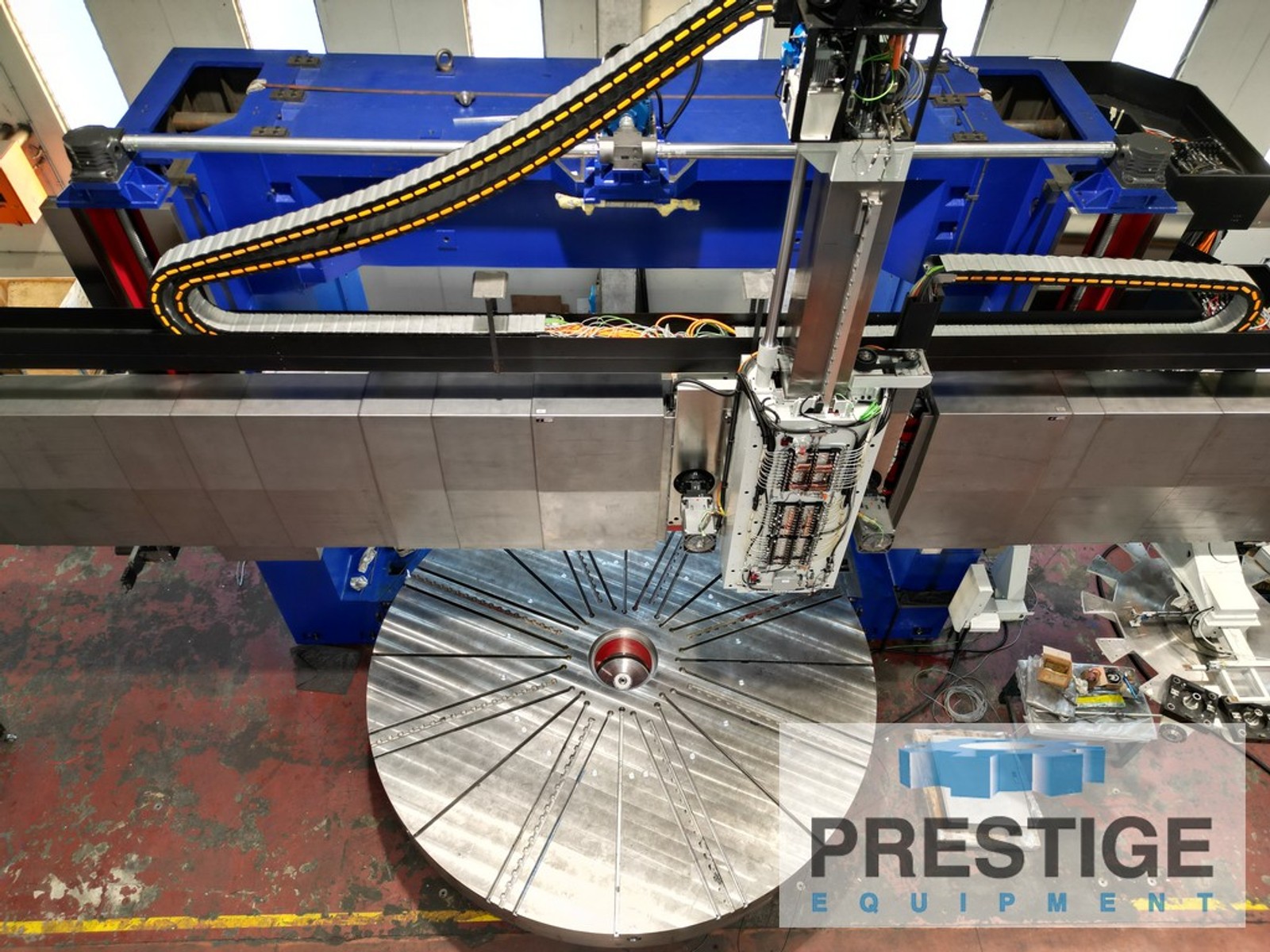

Vertical Ram with Milling Spindle
Vertical Milling & Drilling Attachment
Right Angle Milling Attachment
Universal Milling Attachment
Through Spindle Coolant & Flood Coolant
Dual Dive 108 HP (81 KW) Table Motors
High Resolution Heidenhain Scales & Encoder
Renishaw RMP 60 Probe
Renishaw NC-4 Milling Tool Probe
Full Machine & Operator Enclosure
Chip Conveyor

CAPACITY:
Table Diameter ........................ 196.85"
Turning Diameter ...................... 236.22"
Maximum Turning Height ................ 98.42"
Maximum Stroke of Vertical Rams ....... 59.05"
Ram Cross Section ..................... 13.77" x 13.77"
Cross Rail Travel ..................... 47.24"
Ram Saddle Travel, X-Axis ............. 175"
Turning Tool .......................... Capto C8
Table Load Capacity ................... 264,000 lbs.
Table Speed Ranges, Max ............... 0-60 RPM
Table Indexing ........................ .001
Main Motor, 2X ........................ 108 HP (81 KW)
Milling Spindle Taper ................. HSK-A100
Milling Spindle Speeds, Max ........... 0-3,000 RPM
Milling Spindle Motor ................. 49 HP (37 KW)
Machine Footprint ..................... 626" x 484"
Machine Height ........................ 315"
Machine Weight ........................ 550,000 lbs

EQUIPPED WITH:
Siemens 840DE SL CNC Control
12-Position Automatic Tool & Attachment Changer
40-Station Automatic Tool Magazine
Hydrostatic Table
Vertical Ram with Milling Spindle
Vertical Milling & Drilling Attachment
Right Angle Milling Attachment
Universal Milling Attachment
Through Spindle Coolant & Flood Coolant
Dual Dive 108 HP (81 KW) Table Motors
High Resolution Heidenhain Scales & Encoder
Renishaw RMP 60 Probe
Renishaw NC-4 Milling Tool Probe
Full Machine & Operator Enclosure
Chip Conveyor

Note:
Brand New, In Stock for Immediate Delivery!!
Additional Details Upon Request!
