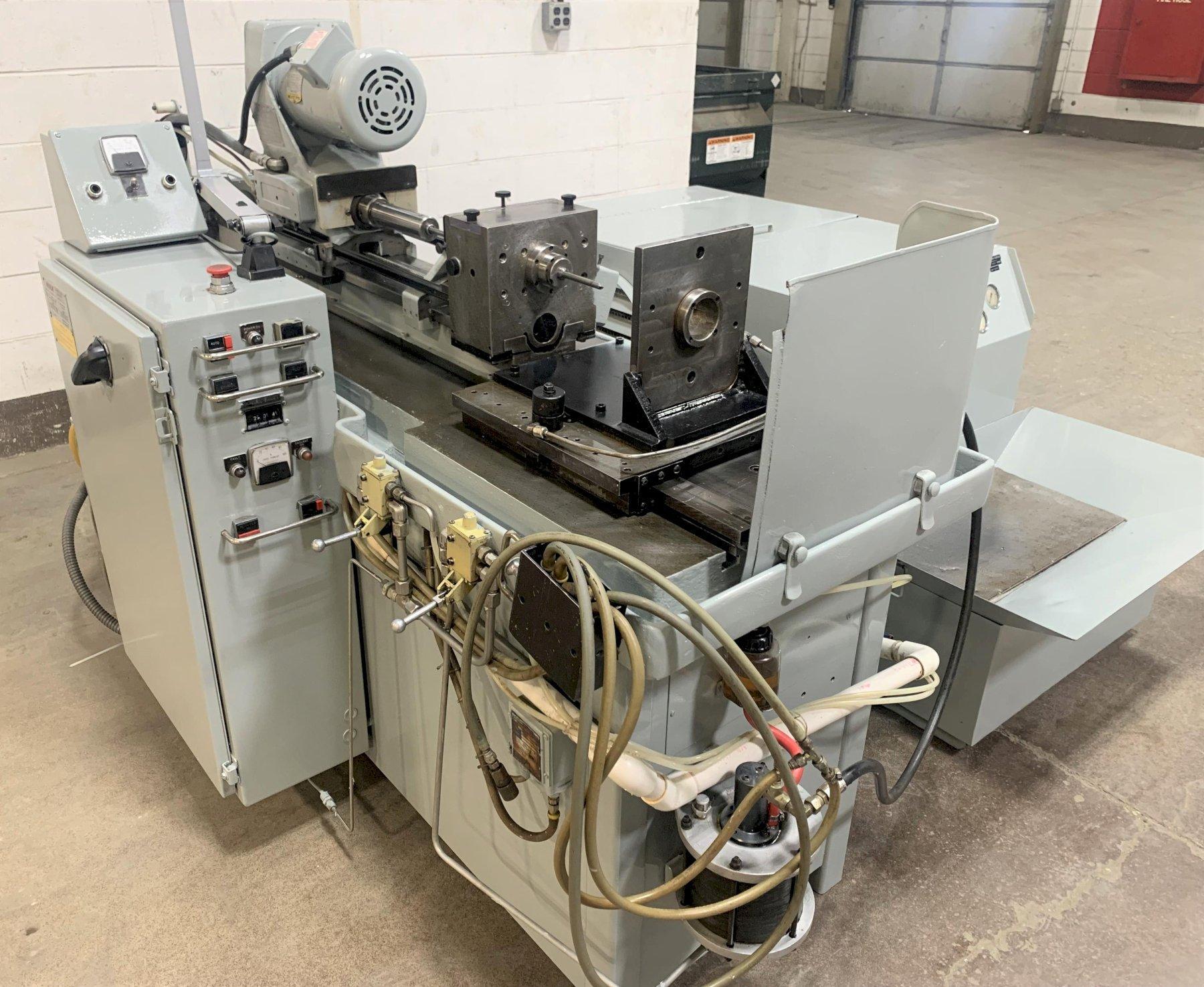

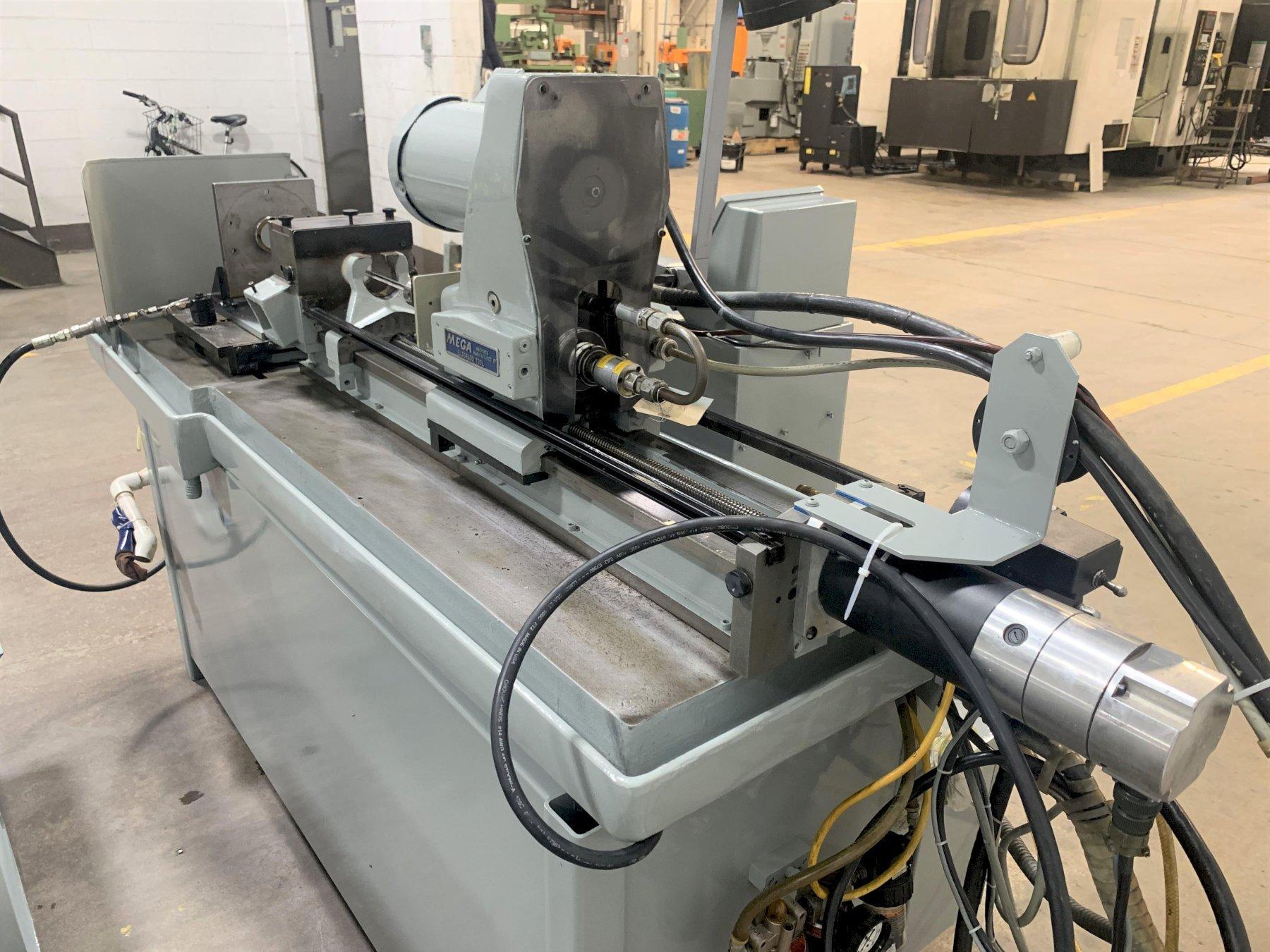

¾” x 30” ElDorado/Mega Model M-75-1041 Precision Deep Hole Gun Drill

Manufacturer

ELDORADO MEGA

Category

Drilling Machines

Type

DRILLS, GUN

Stock

HSD1176

Model

M-75-1041

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Maximum Drilling Diameter - 0.75 inches
Minimum Drilling Diameter - 0.055 inches
Maximum Drilling Depth - 30 inches
Drilling Feed Rate - .1 - 99.9 RPM
Spindle Speed (By Pulley) - 480 – 3,895 RPM
Rapid Feedrate - 200 IPM
Work Table - 22" x 22"
Height of Spindle Centerline - 8 inches
Straightness per 12" - 0.001 inches
Maximum Coolant Pressure - 1500 PSI
Reservoir Capacity - 60 gallons

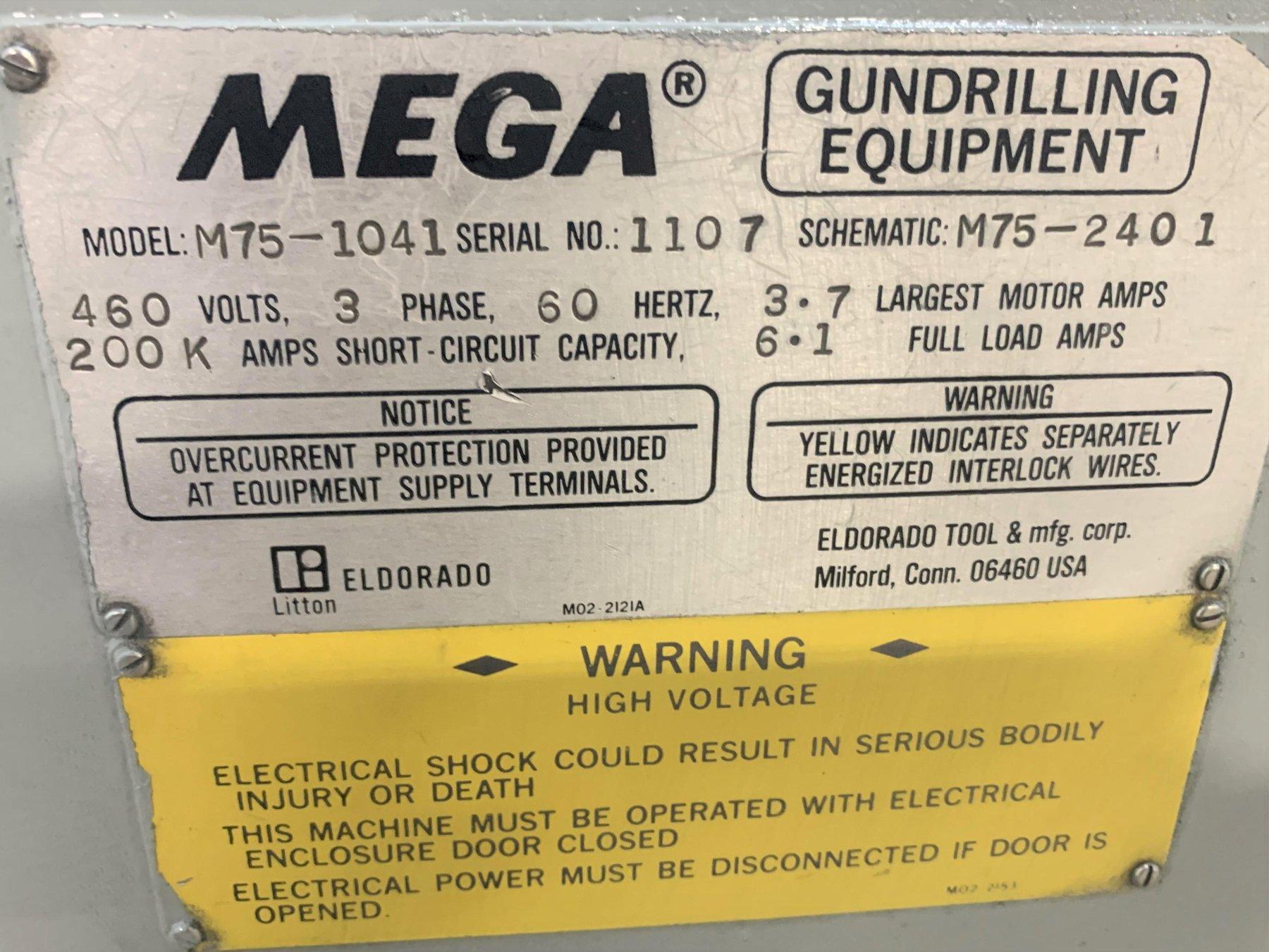

Wired For - 3/60/208-230 V


EQUIPPED WITH:
Motor-Driven With 1.5 HP 1,140 RPM, 3 Phase, 60 Cycle, 460 Volt Spindle Drive. 7.5 HP, 3 Phase, 60 Cycle Coolant System. Complete Electrical Controls. 1 HP Feed Motor.

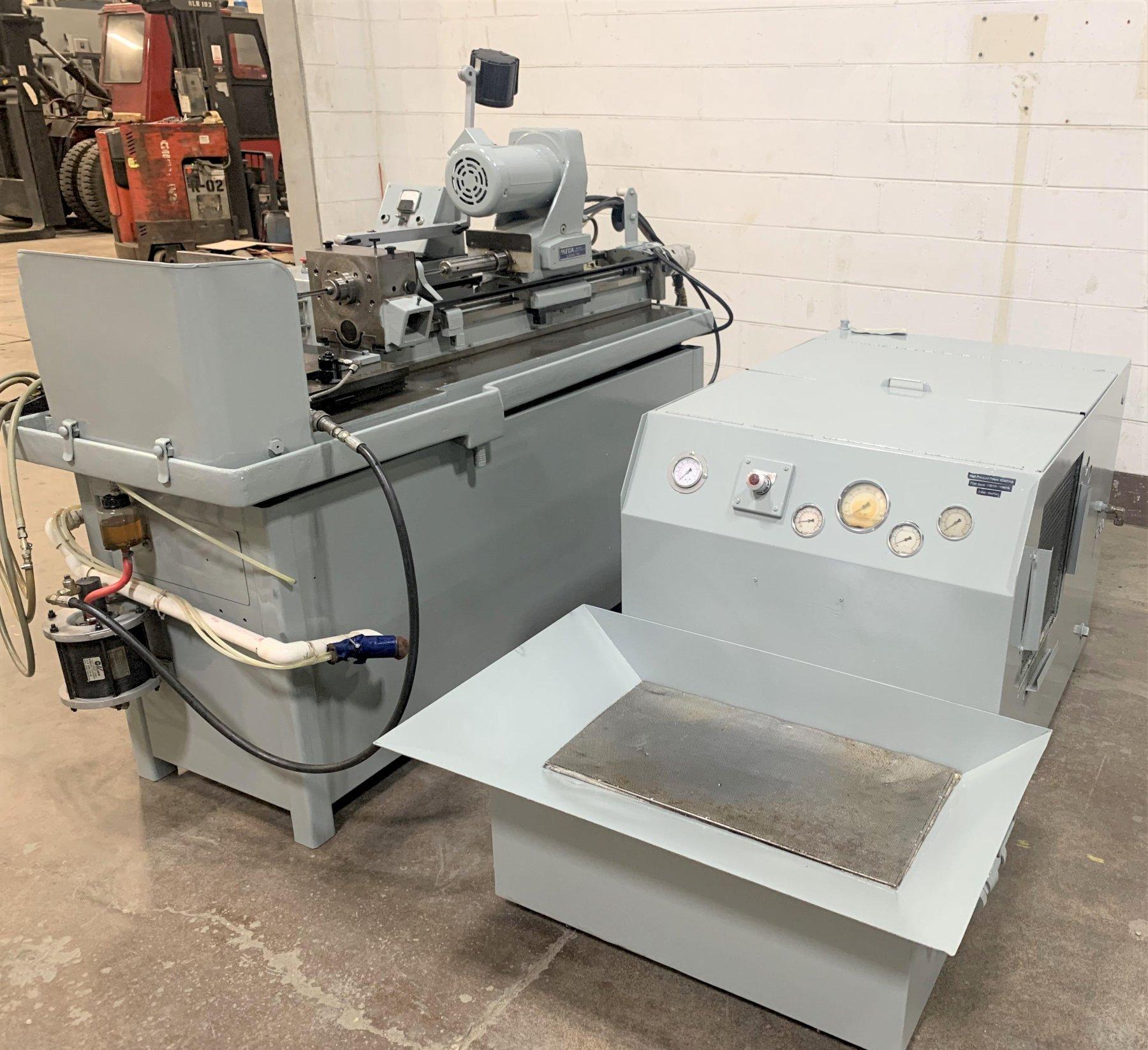

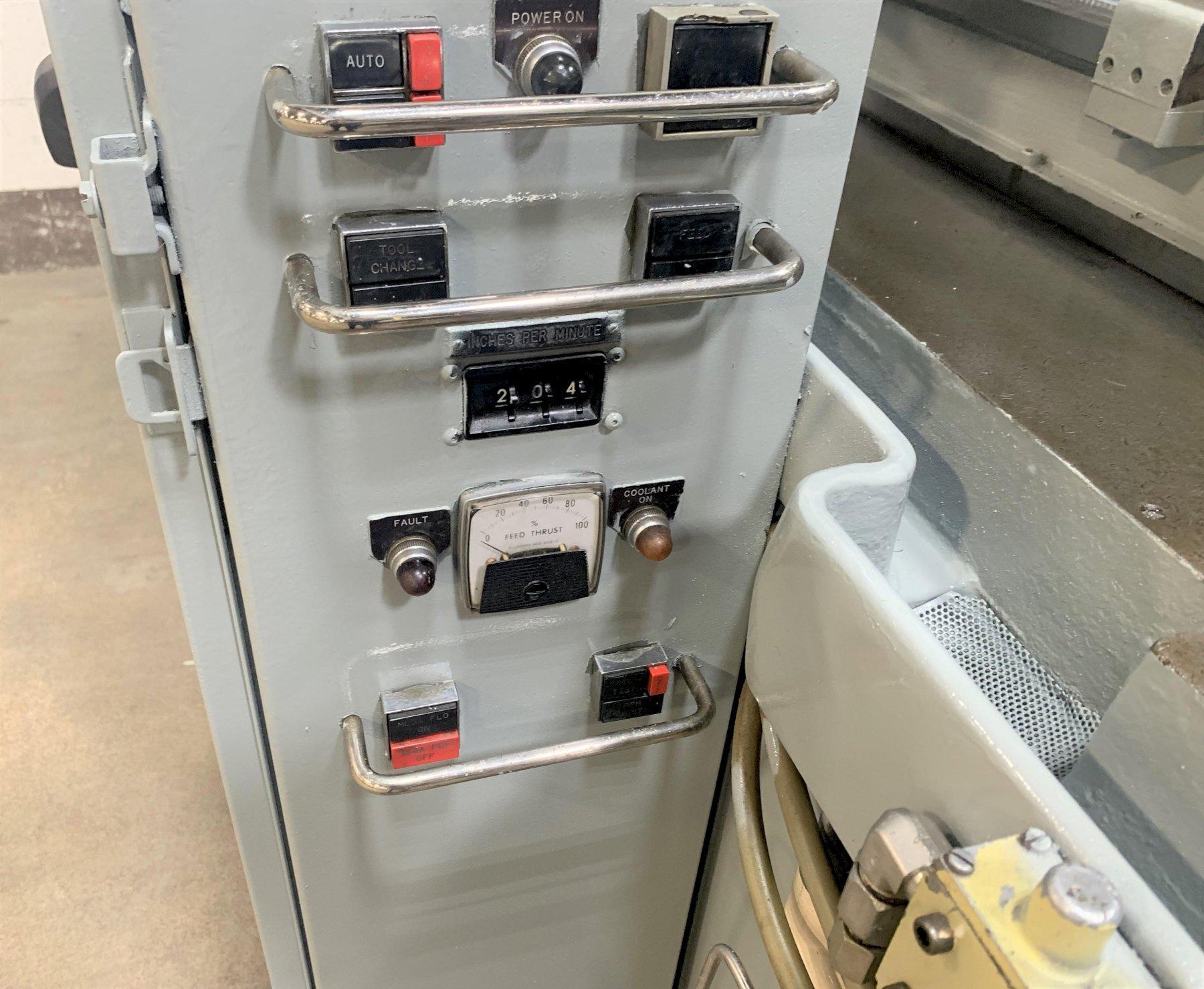

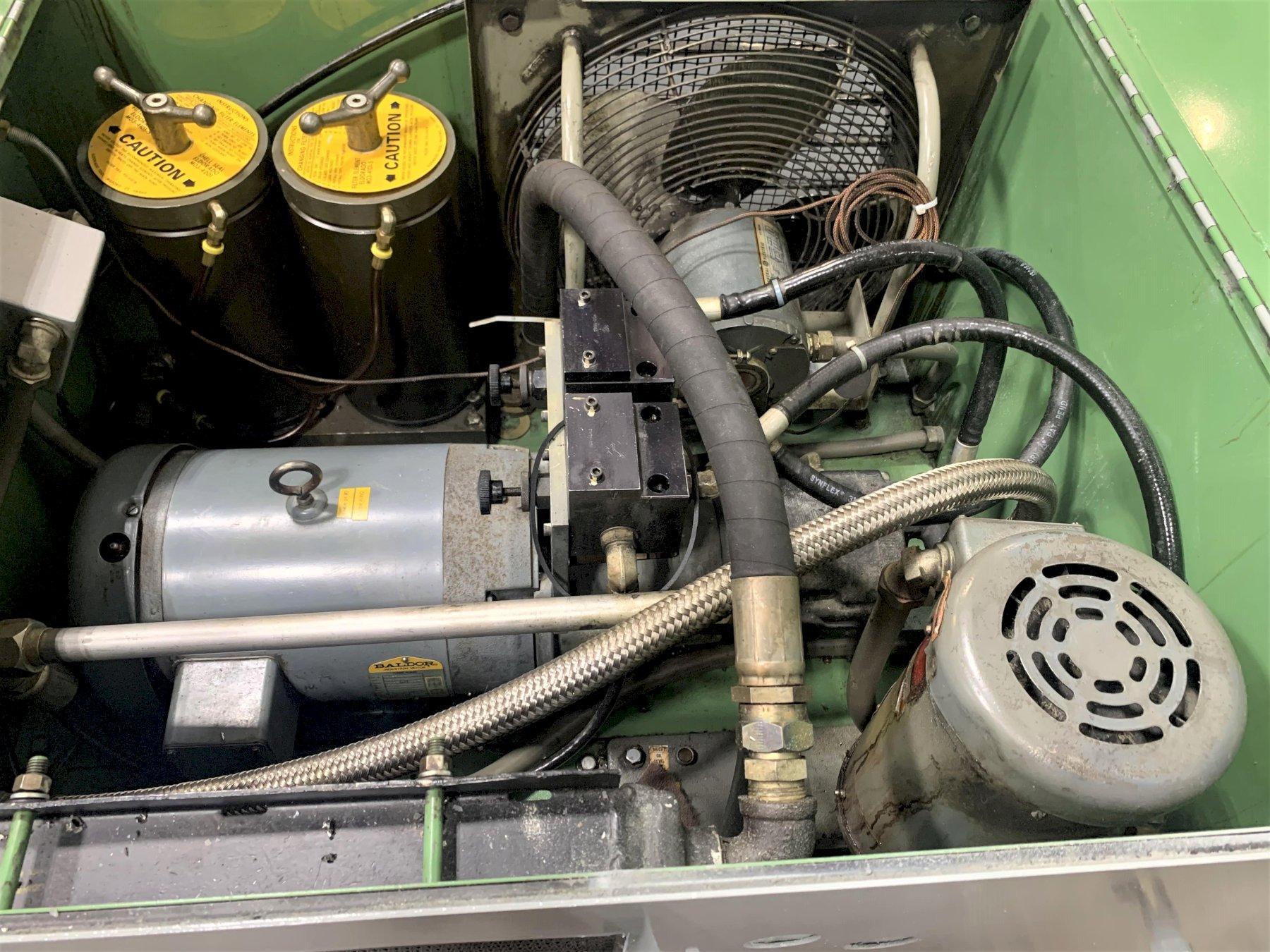

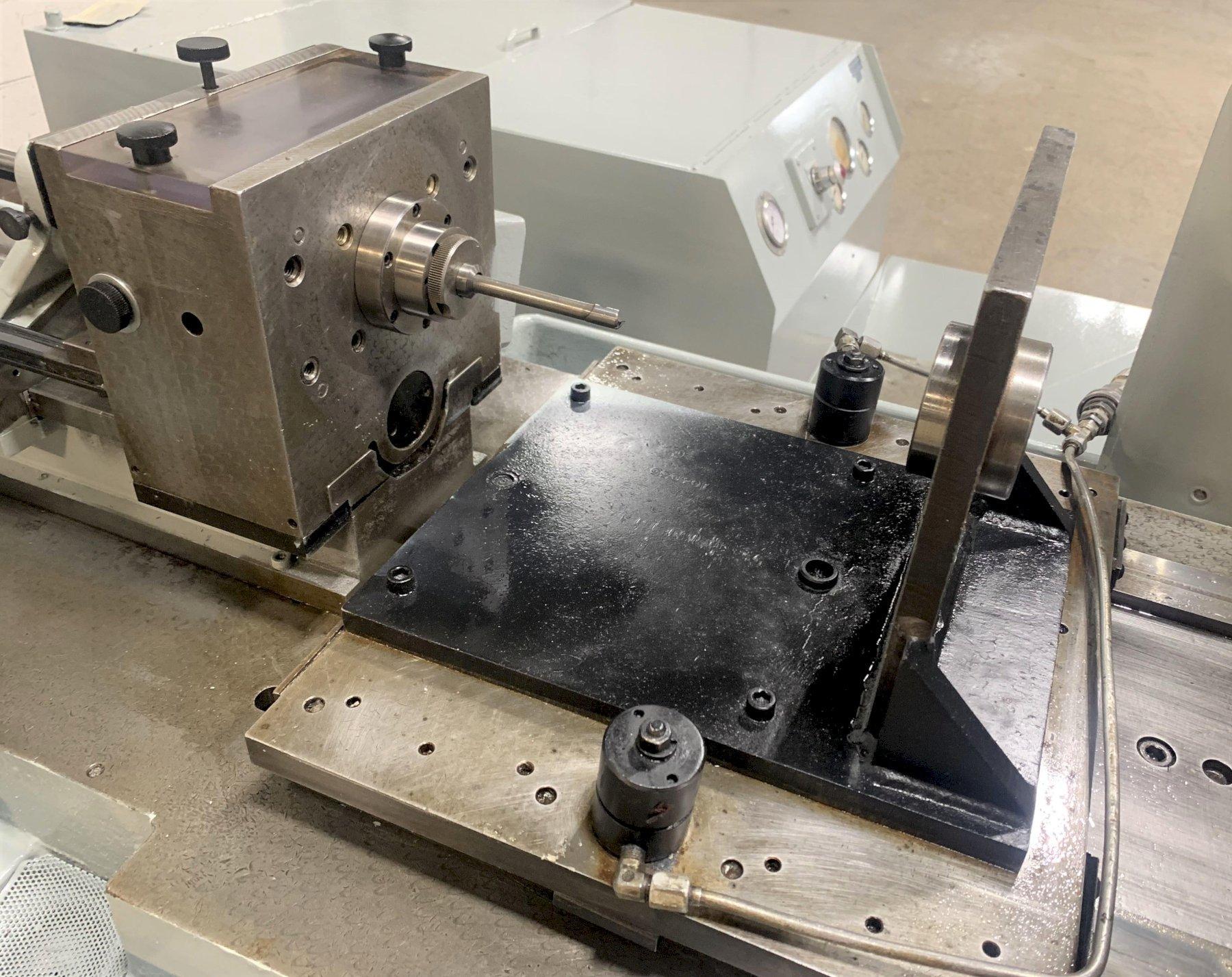

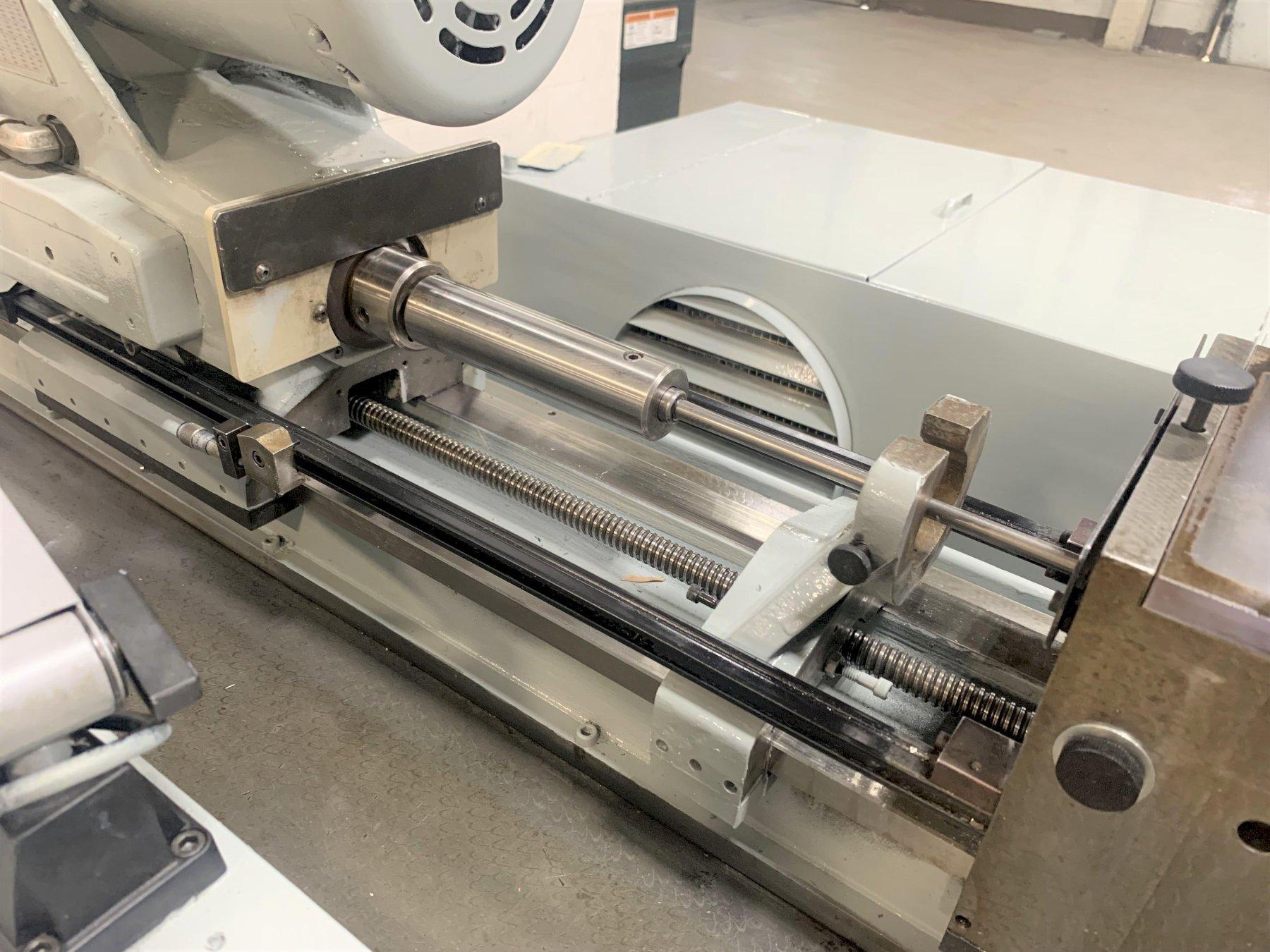

Ball Screw Driven Drill Feed. Eldorado F18 "Mega Flo" High-Pressure Coolant System with Filtration and Heat Exchanger. Ball Screw Driven Headstock Feed System. Thumbwheel Feed Rate. Feed Thrust Load Meter. Chip Box. Automatic Slideway Lubrication. Spindle Load Meter. “Mega Flo” Flo-Minder. Whip Guide. Pneumatic Positioning Fixture Table. Work Light.
