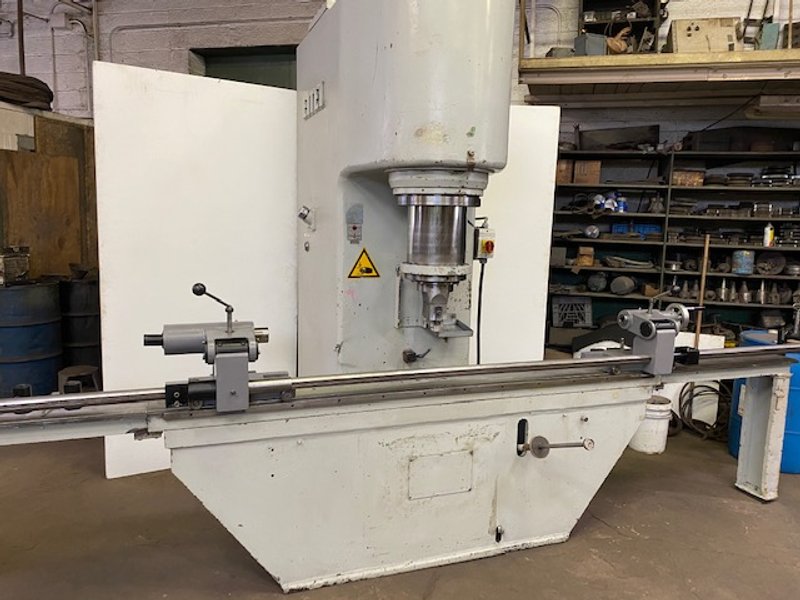

EITEL RP-160 HYDRAULIC STRAIGHTENING PRESS, 175 TONS, WITH ROLLING FIXTURE WITH CENTERS, TABLE EXTENSIONS, RUNS GREAT!, 1977

Manufacturer

EITEL

Category

Presses

Type

PRESSES, STRAIGHTENING

Stock

None

Model

RP-160

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

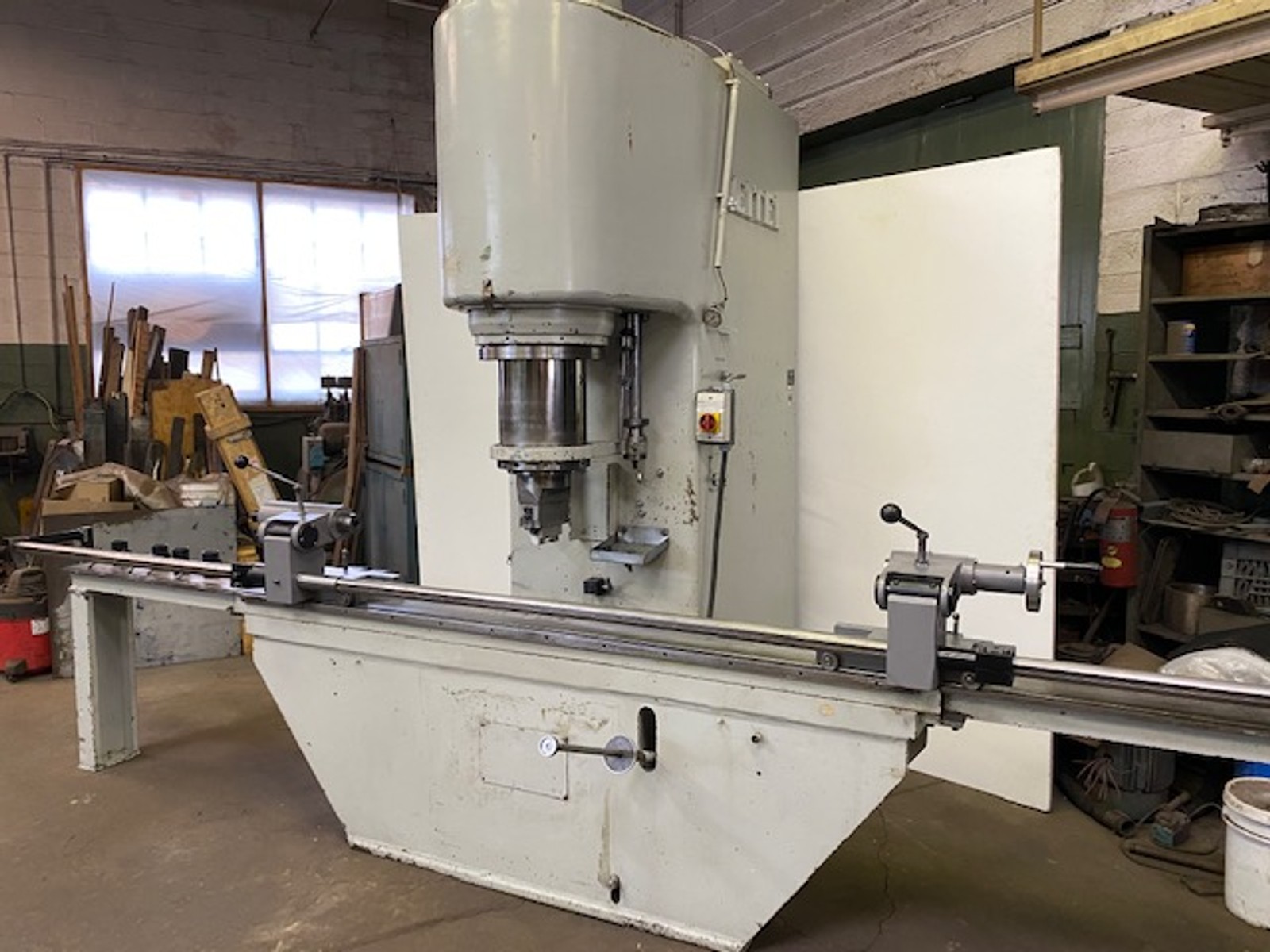

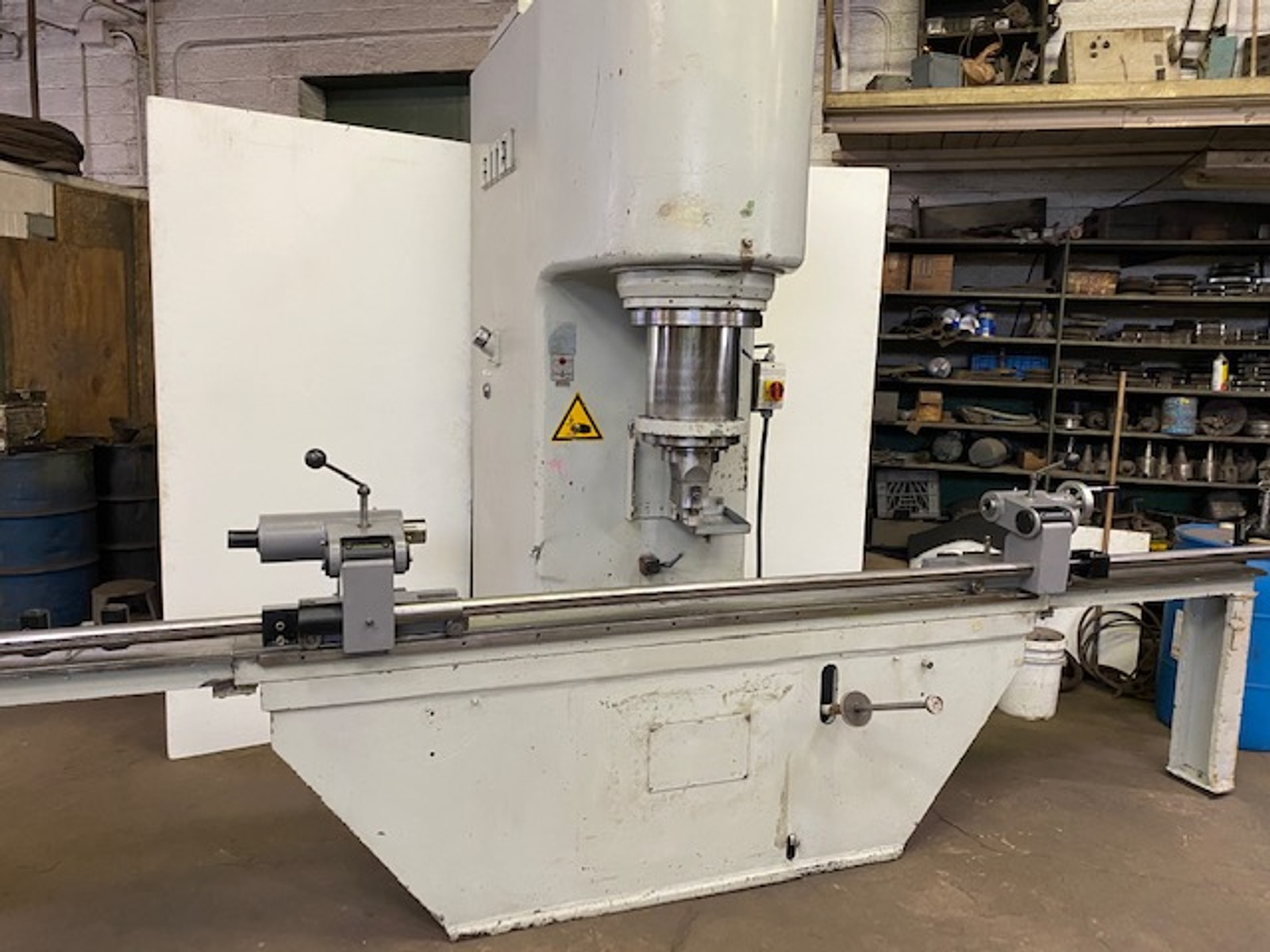

EITEL MODEL RP-160 HYDRAULIC STRAIGHTENING PRESS
SERIAL NO. 14260 BUILT 1977 STOCK NO. 6587

CATALOG SPECIFICATIONS:
CAPACITY: 175 TONS
STROKE: 8"
STRAIGHTENING STROKE, CONTROLLABLE & ADJUSTABLE: 7/8"
DAYLIGHT: 31-1/2"
DEPTH OF THROAT: 13-3/4"
RAM SPEED, DOWNWARDS: 90 IPM
RAM SPEED, UPWARD: 375 IPM

EQUIPPED WITH:

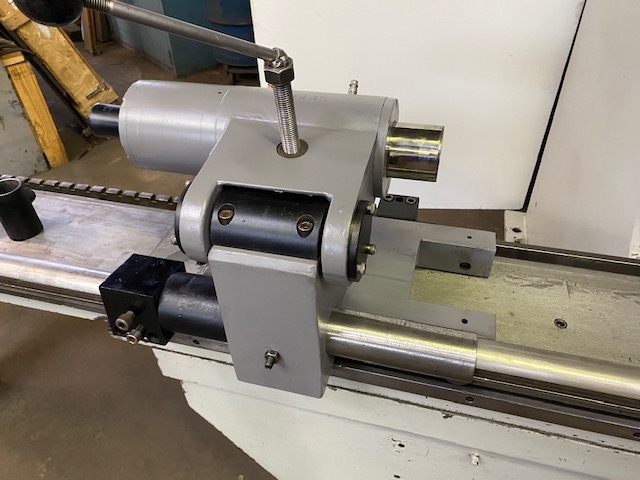

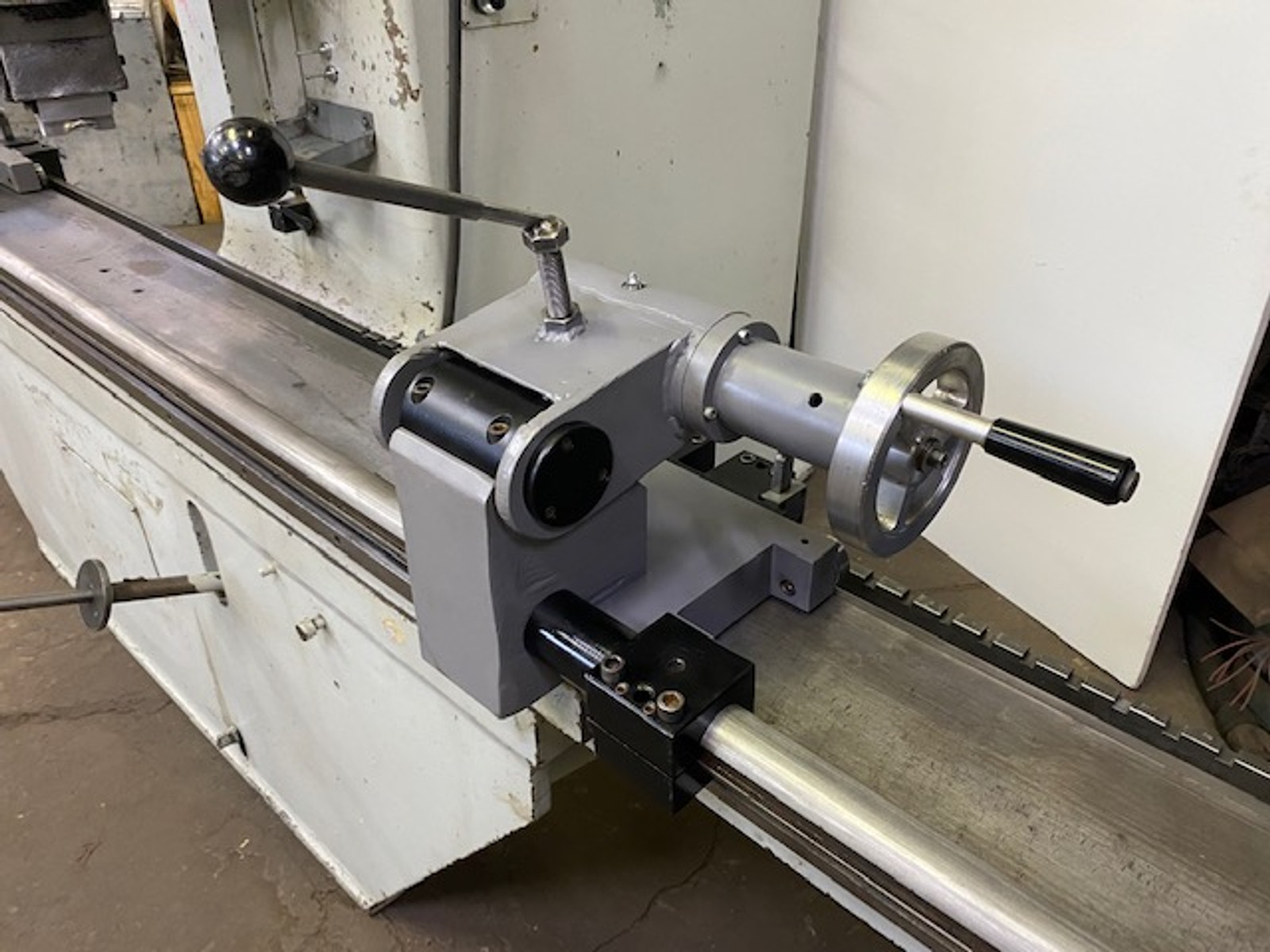

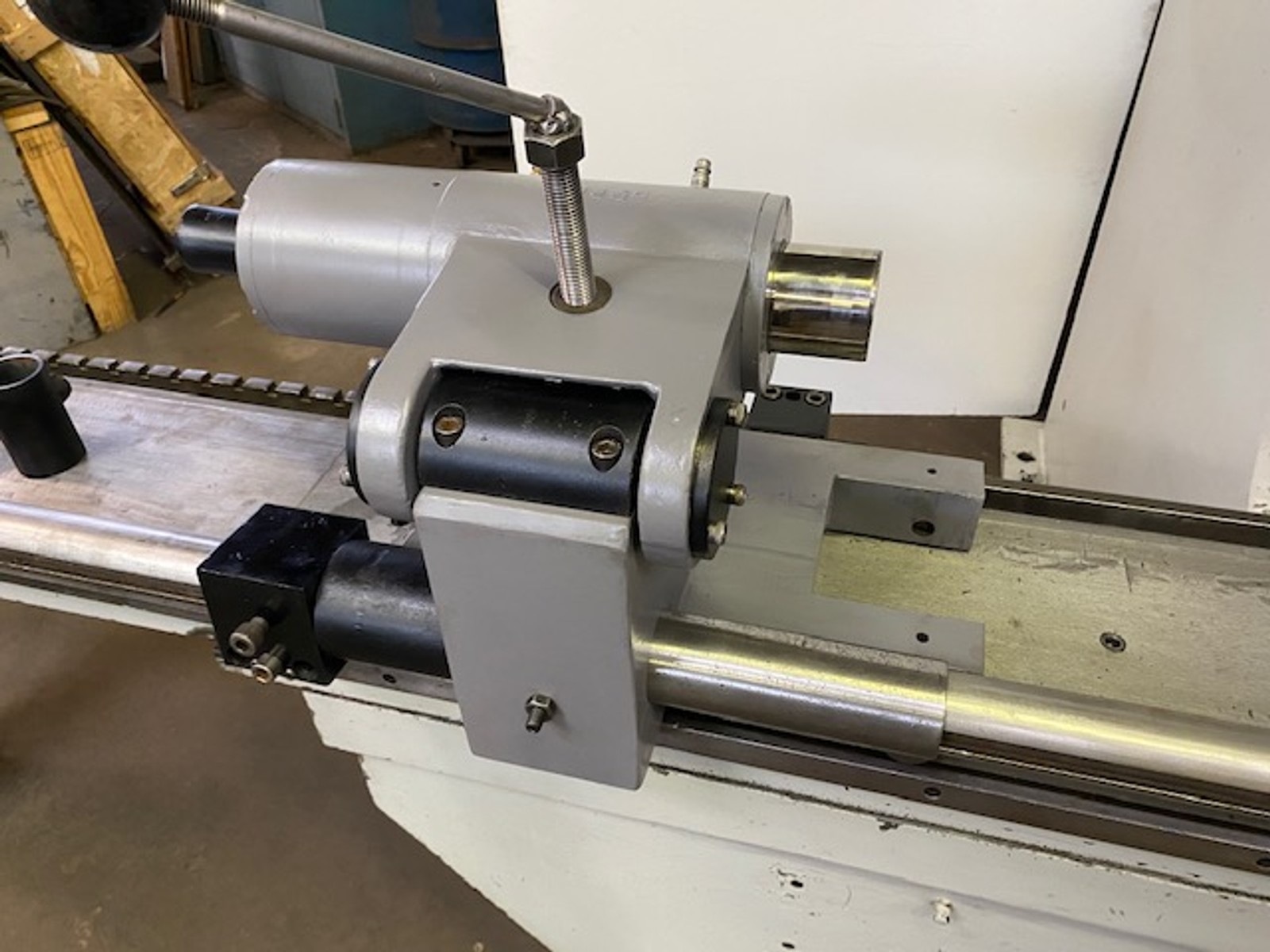

ROLLING FIXTURE WITH CENTERS
11" X 59" MAIN TABLE
(2) 11" x 39" TABLE EXTENSIONS
MISC. ANVILS & MEASURING BRACKETS
25 HP MAIN HYDRAULIC MOTOR

MORE TABLE EXTENSIONS AND MISC. EITEL TOOLING AVAILABLE ON REQUEST

MACHINES MAY BE INSPECTED UNDER POWER

ROBERTS MACHINERY SALES LTD.
930 E. DRAYTON, FERNDALE, MI 48220
TEL: (248)543-4466
E-mail: rmsused@aol.com
Web Site: robertsmachinery.com
