HARDINGE MODEL: HLV-H PRECISION LATHE - NEW: 2000

Manufacturer

HARDINGE

Category

Lathes

Type

LATHES, PRECISION, JEWELERS, TOOLROOM, (Etc.)

Stock

68820

Model

HLV-H

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

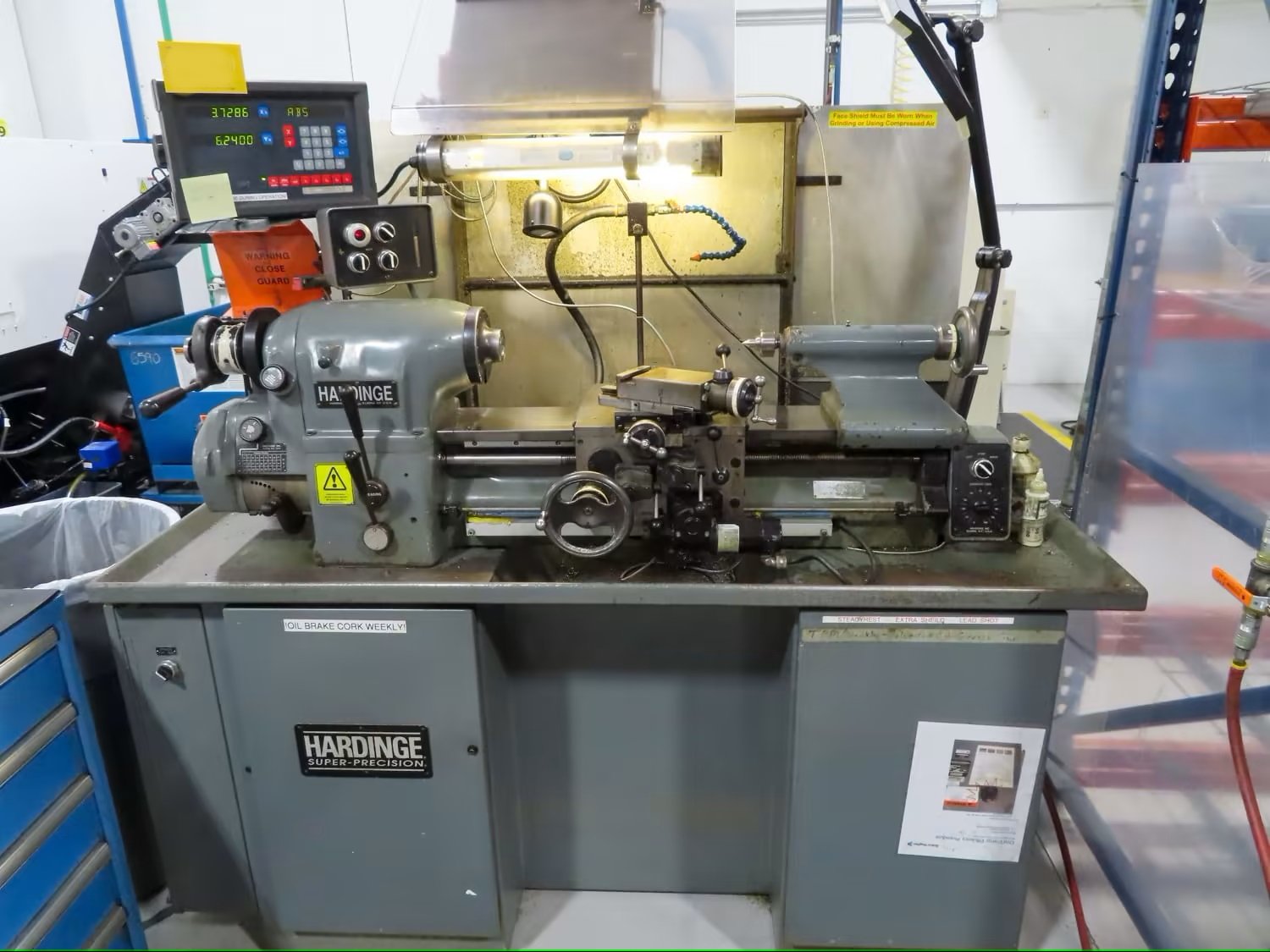

HARDINGE PRECISION LATHE
MODEL: HLV-H - NEW: 2000

SPECIFICATIONS:
SPINDLE CONSTRUCTION.................... HARDINGE BALL BEARING
SPINDLE NOSE THREAD .................... HARDINGE TAPERED
VARIABLE SPINDLE SPEEDS................. 125 - 3000 RPM
HOLE THROUGH SPINDLE.................... 1-1/4"
SWING OVER BED.......................... 11"
SWING OVER CARRIAGE..................... 9"
SWING OVER CROSS SLIDE.................. 6"
DISTANCE BETWEEN CENTERS................ 18"

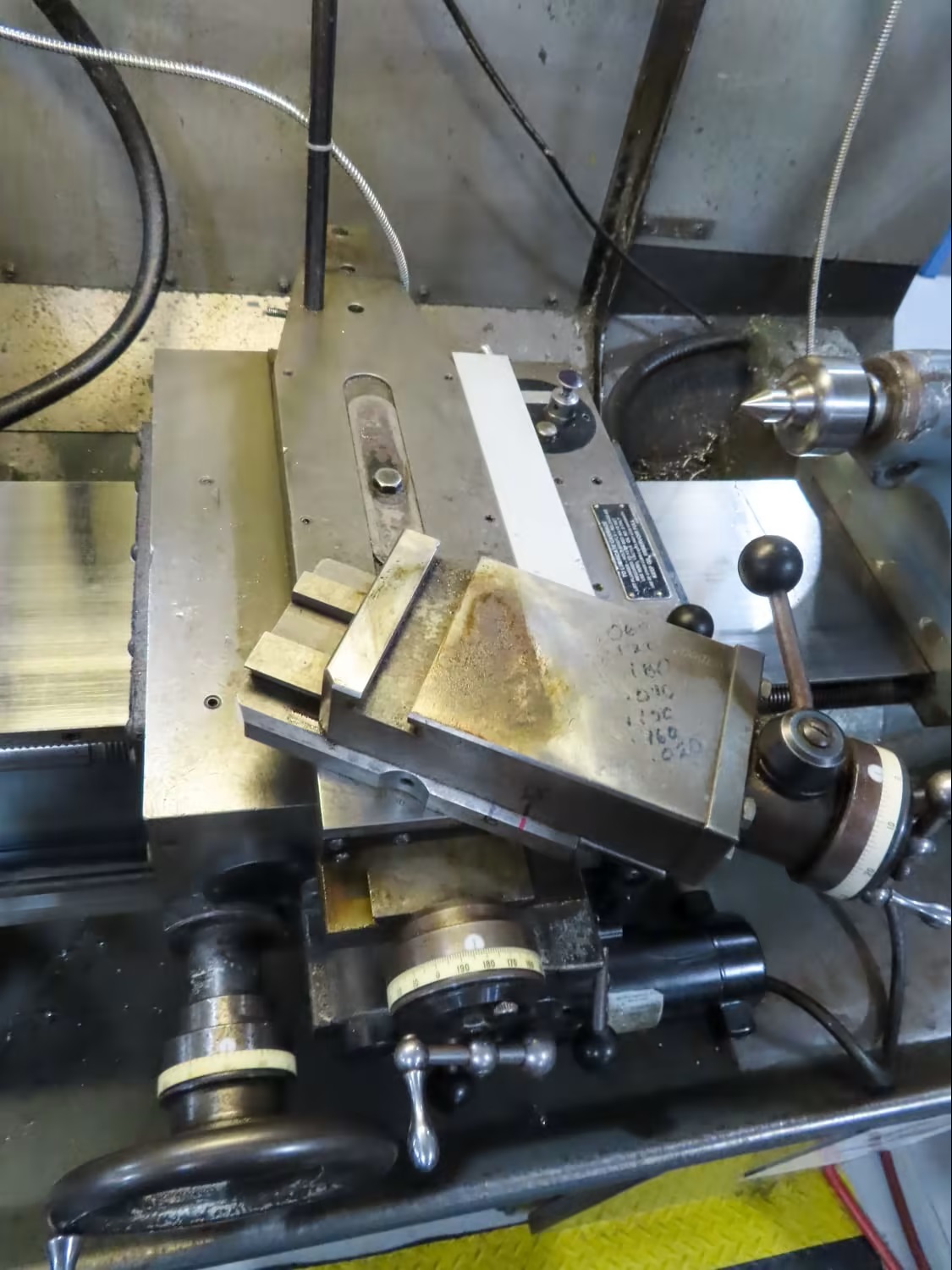

COMPOUND SLIDE TRAVEL................... 3"

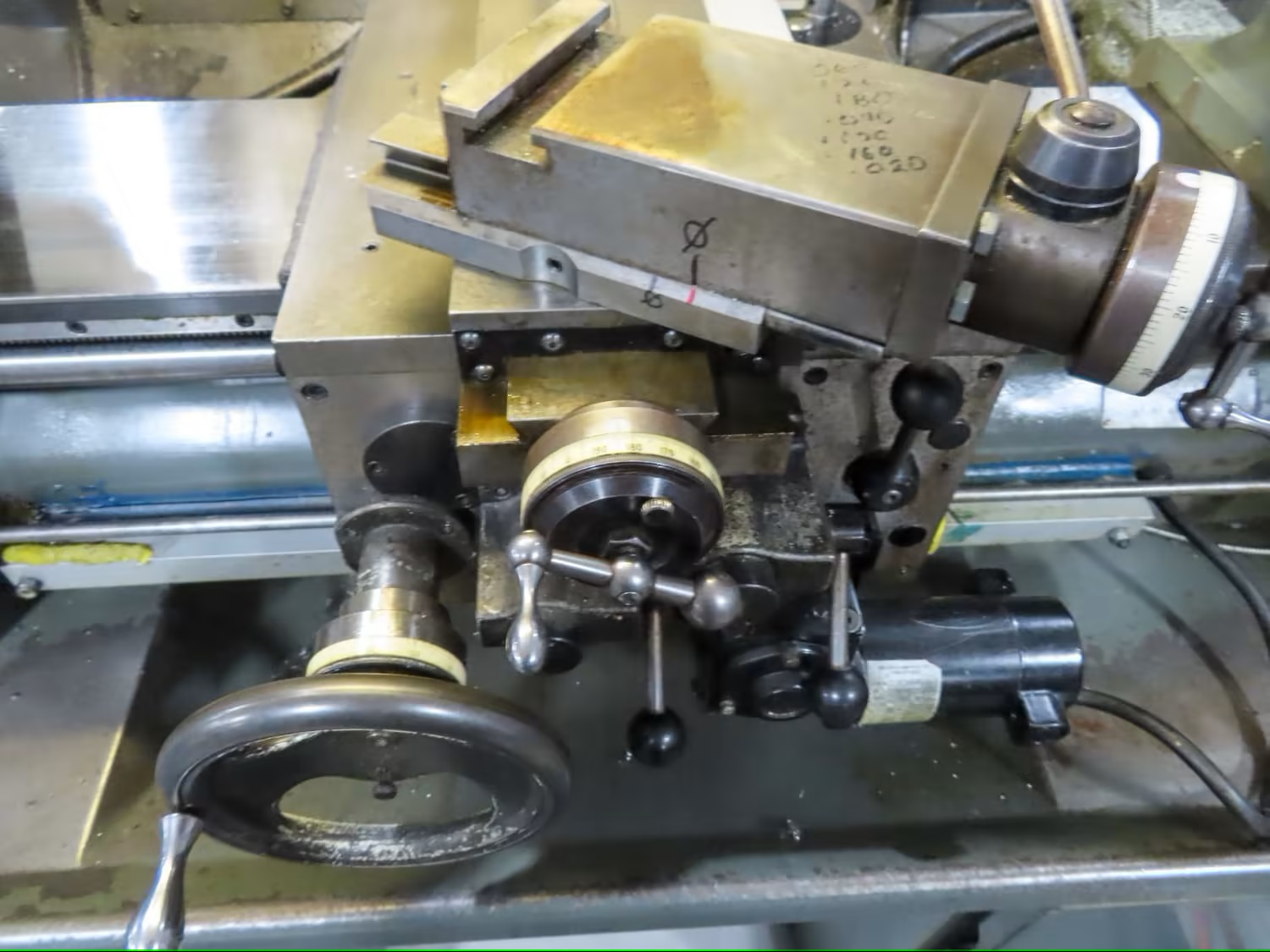

CARRIAGE POWER FEED RANGE............... 5/16- 7 IPM
CROSS SLIDE POWER FEED RANGE............ 3/16- 4 IPM
TAILSTOCK SPINDLE DIAMETER.............. 1-3/8"
TAILSTOCK SPINDLE TAPER................. #2 MT
RANGE OF THREADS IN GEAR BOX............ 11 - 108 TPI
APPROXIMATE WEIGHT ..................... 1,700 LBS.


EQUIPPED WITH:
- BALL BEARING QUICK ACTING 5C COLLET CLOSER

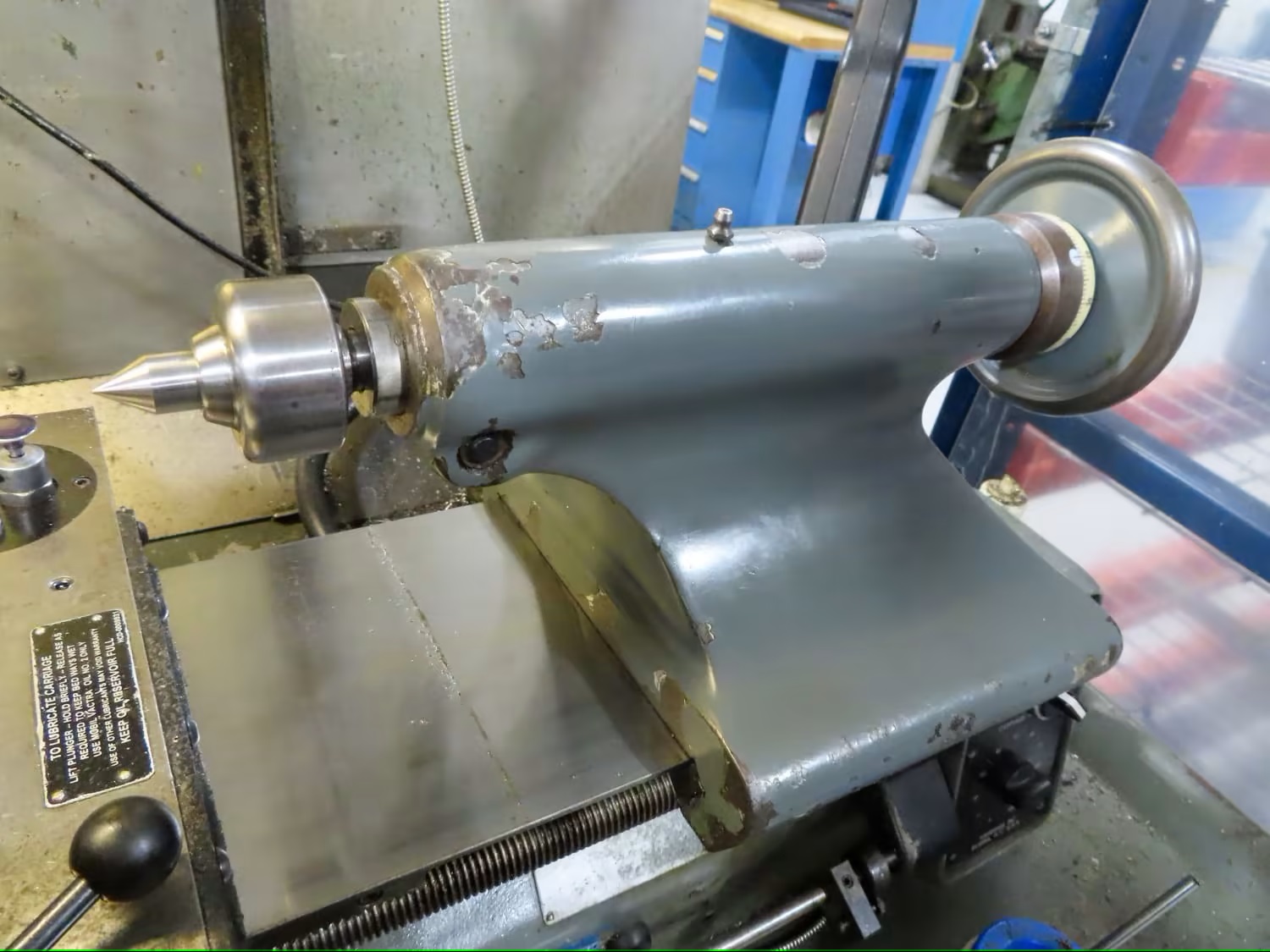

- HEAVY DUTY FULL BEARING TAILSTOCK

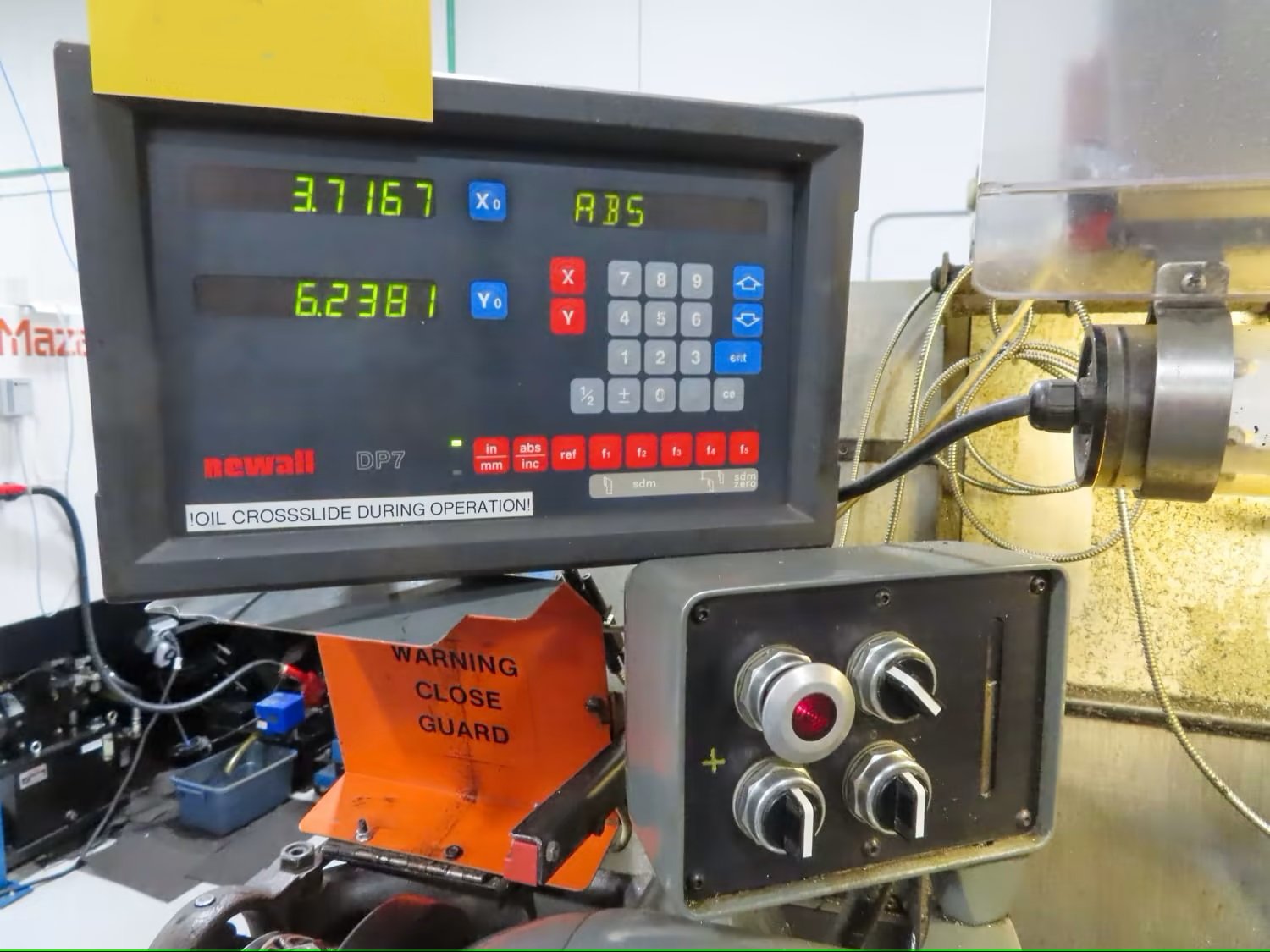

- NEWALL TWO AXIS DIGITAL READOUT
- LIVE CENTER
- ASSORTMENT OF 5C COLLETS
- SELF-CONTAINED COOLANT SYSTEM
- 1 / .5 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR

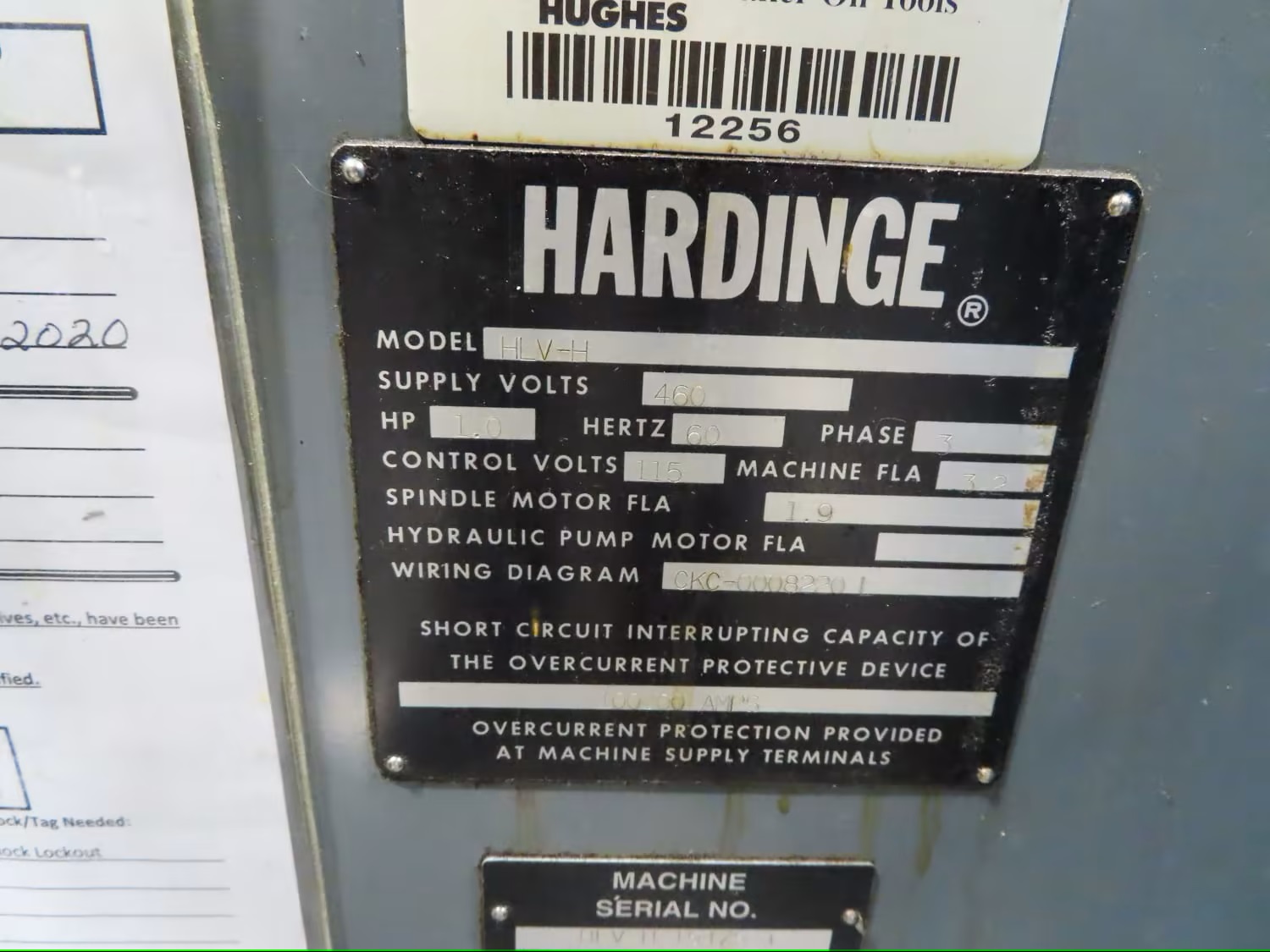

MACHINE IS WIRED FOR 460 VOLT OPERATION

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION: *** EXCELLENT ***
