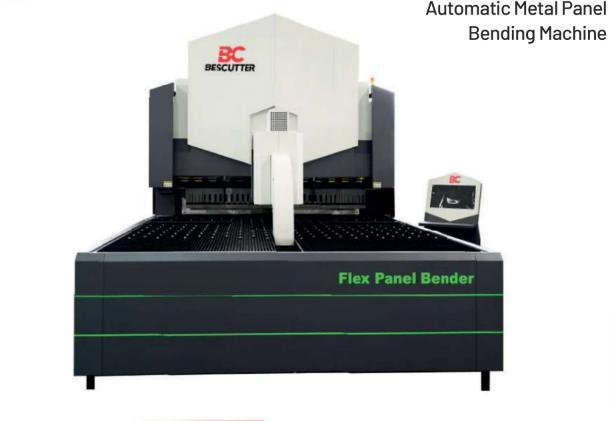

New Bescutter Omni Series 15 Axis Automatic Flexible Panel Bender (#4885)

Manufacturer

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet



1.2mm X 4.5’ Automatic Panel Bender with PC Based Numerical Control System, QT500-7 and Gray Iron 250 Casted Frame and Panel Thickness Detections System.

GENERAL SPECIFICATIONS
Feeding Structure:                    Pressing Arm
Max Bending Width:                    55”
Stainless Steel Max Bending Thickness:        1.2mm
Cold Panel Max Bending Thickness:        1.5mm
Aluminum Panel Max Bending Thickness:    2mm
Min Panel Thickness:                0.014mm
Max Bending Size:                    55” X 55”
Max Bending Height:                6.7” (Customizable 11.8”)
Min Bending Height:                    0.12”
Four Side Forming Min, Inner Size:        ~5.5”
Dimensions:                        173” X 75” X 114”H
Weight:                        12 Tons
Motor Power:                        38 Kw
Bending Angle:                    0 - 180°

INCLUDES: PC Based Numerical Control System, QT500-7 and Gray Iron 250 Casted Frame and Panel Thickness Detections System.
