Cincinnati-Gilbert, 5-3/8" Spindle, X-192", Y-96", Rebuild/Retrofit 1995, Fanuc 16i-M, (4) 3' x 10' Floor Plates, #32604

Manufacturer

CINCINNATI GILBERT

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

32604

Model

JX

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32604

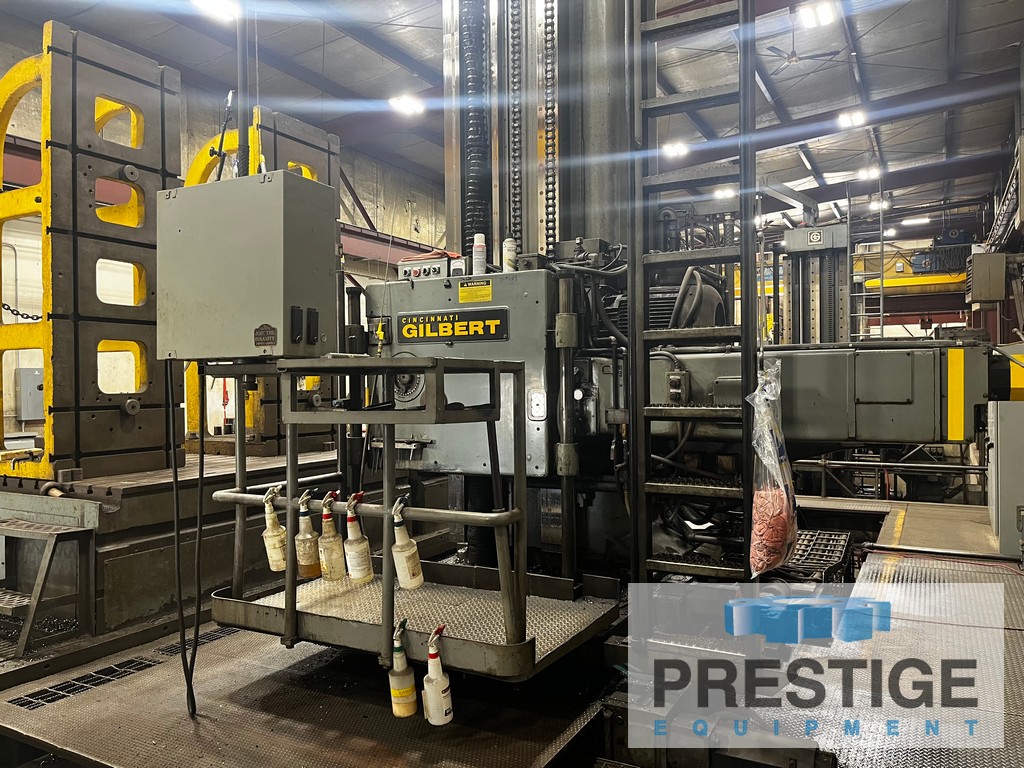

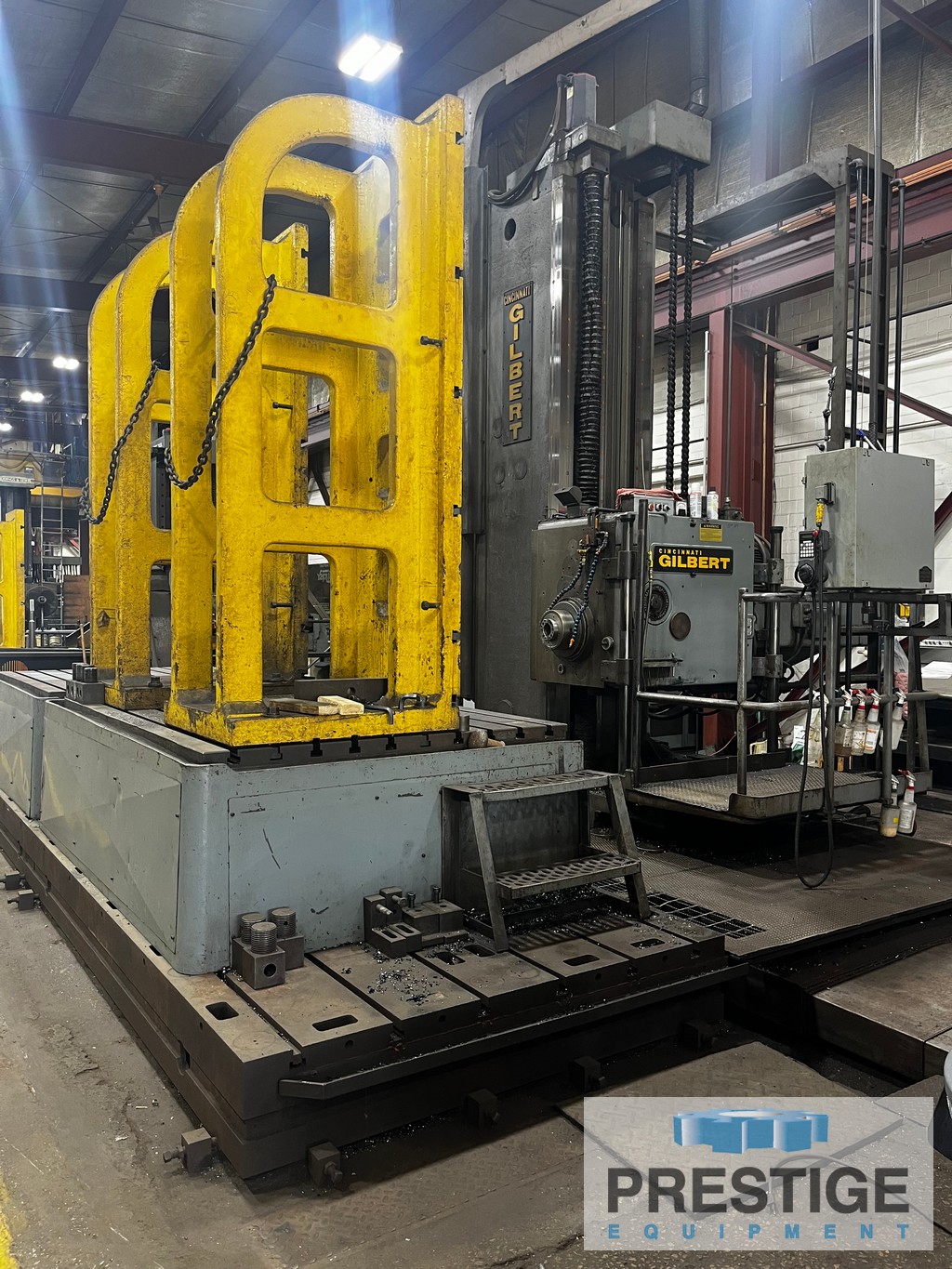

Cincinnati-Gilbert JX CNC Floor Type Boring Mill

FEATURES:

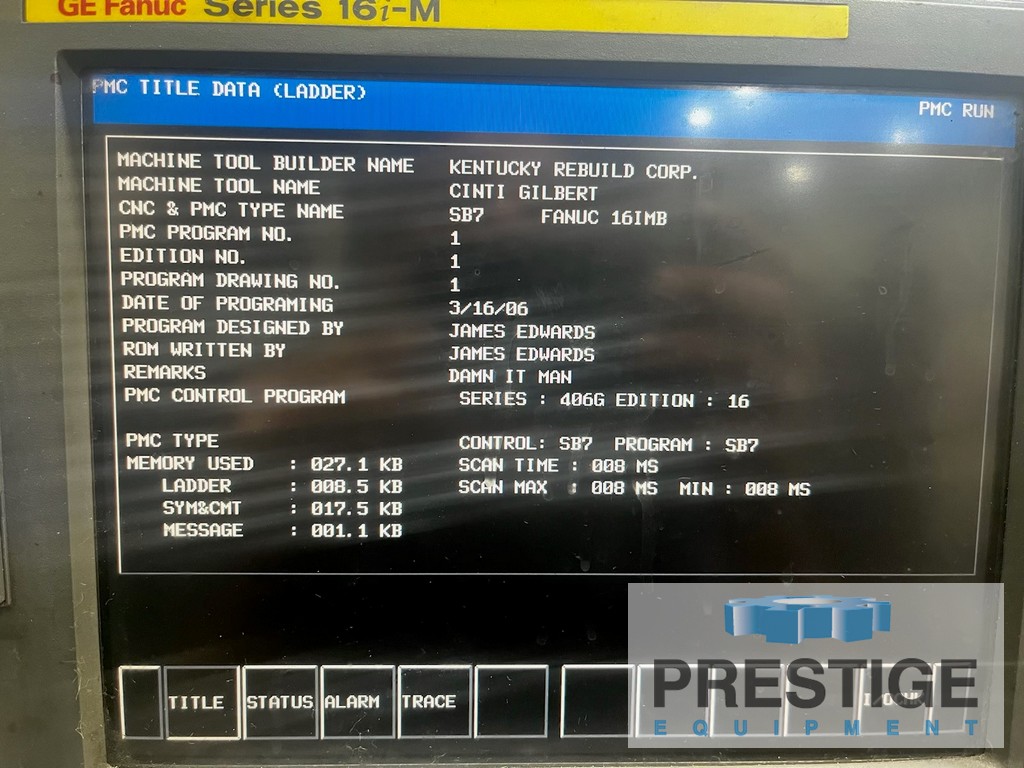

Fanuc 16iM CNC Control

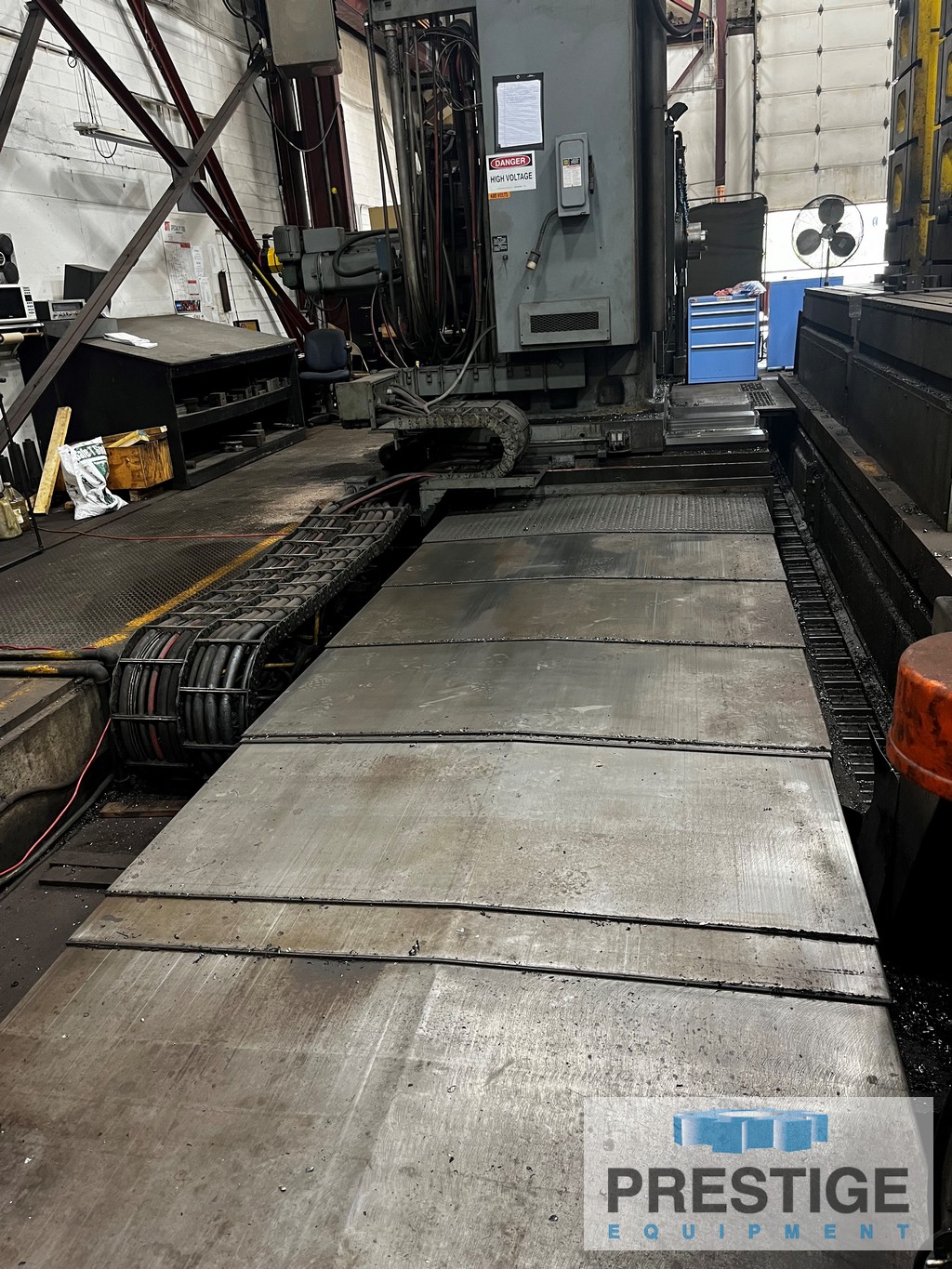

(4) Floor Plates, 3' x 10' (72" x 240" Pad)

CAPACITY:
Spindle Diameter ...................... 5-3/8"
Vertical Head Travel, Y-Axis .......... 96"
Table Travel, X-Axis .................. 192"
Column Infeed Travel, W-Axis .......... 24"
Spindle Travel, Z-Axis ................ 35"
Spindle Speeds ........................ 10-1000 RPM
Spindle Taper ......................... #50


EQUIPPED WITH:
Fanuc 16iM CNC Control
4-Axis Newall Inductive Scales
Power Draw Bar
Hardened Ways
Centralized Lubrication System
(4) Floor Plates, 3' x 10' (72" x 240" Pad)
30 HP Spindle Motor


REBUILD & RETROFITTED 1995:
Runway: Installed New Rack
Column Base: Replaced Turcite, New Centralized Lube Fittings, New Wipers, ReGrind Ways
Column Cross Travel: REplace Turcite & Oil Groove, New Centralized Lube Fittings, New Wipers, Scrape Saddle to Base


NOTE:
Inspect in Plant Under Power
