Hey No. 3 8" X 51" Facing & Centering Machine

Manufacturer

HEY

Category

Centering/Facing Machines

Type

FACING & CENTERING MACHINES

Stock

ET-5513

Model

No. 3

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

STOCK NO. ET-5513

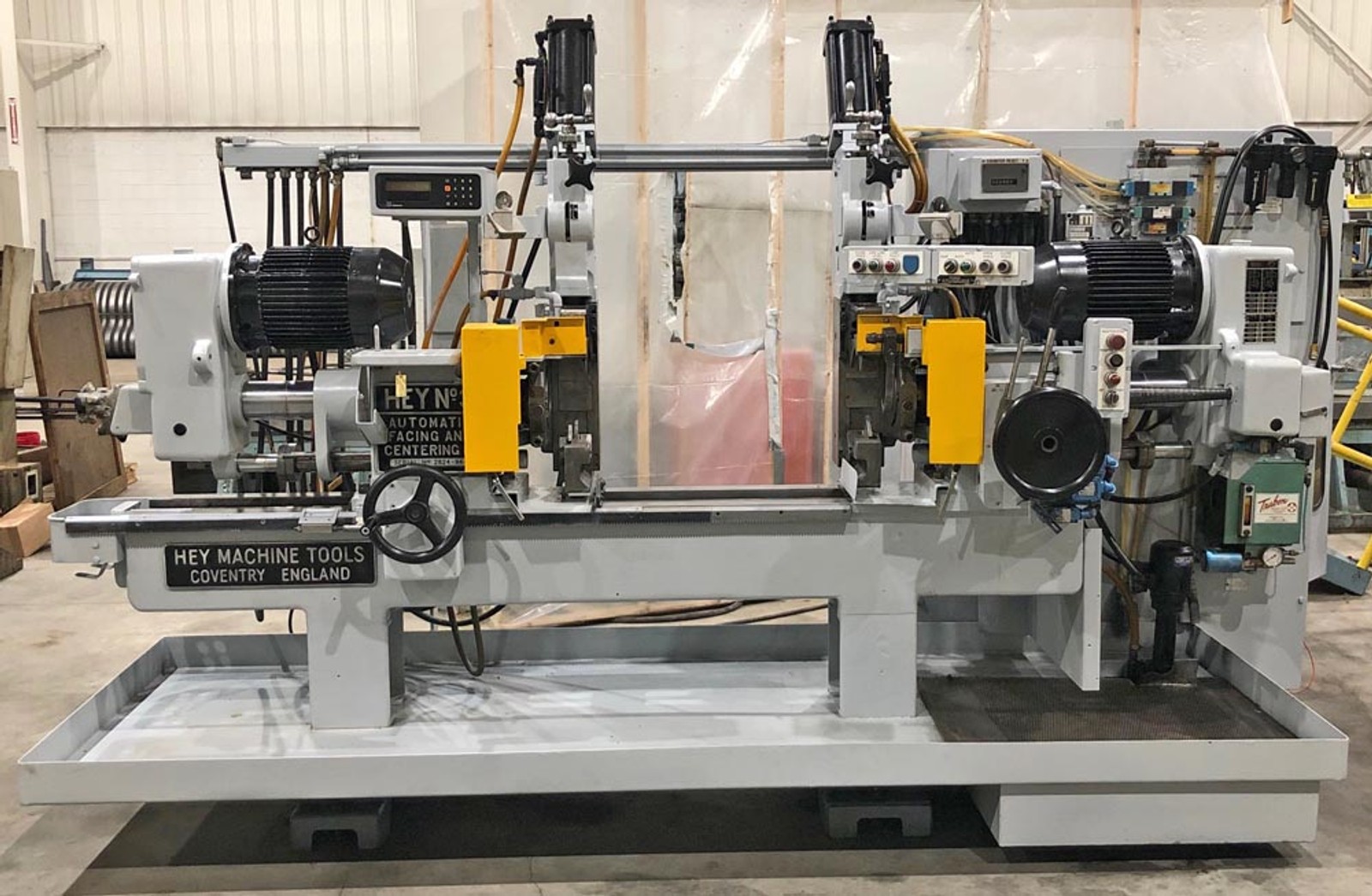

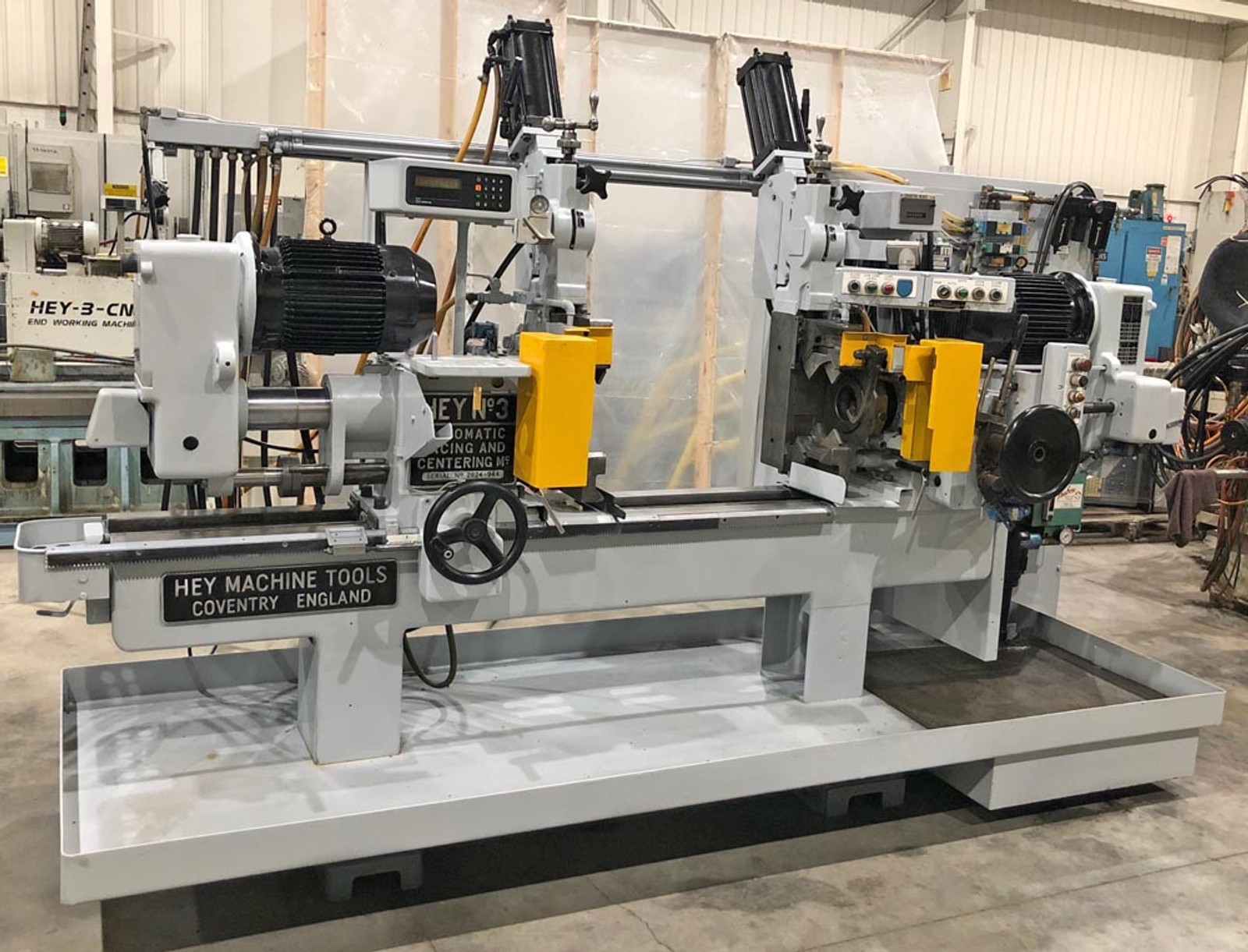

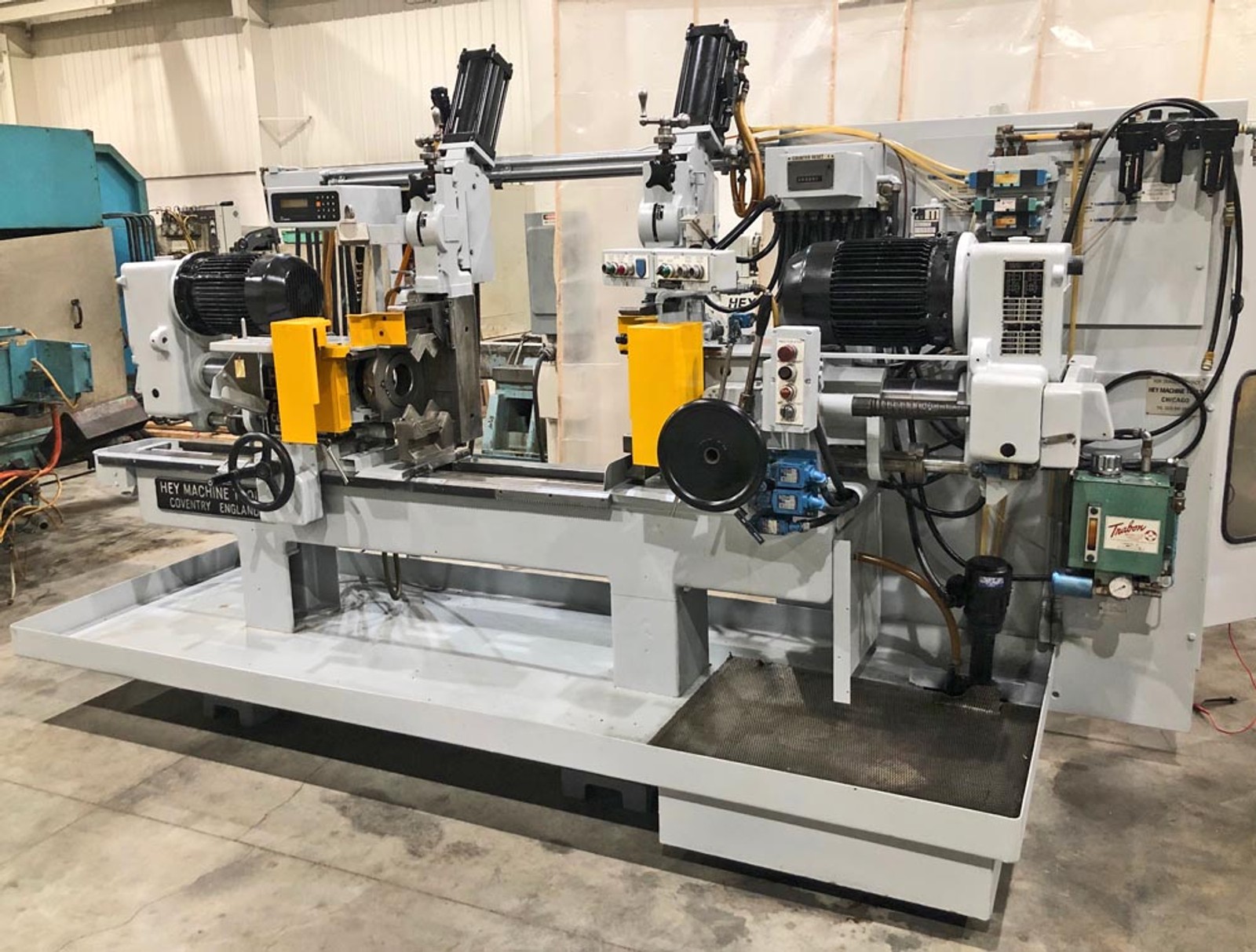

(1) USED HEY NO. 3 8” X 51” DOUBLE ENDED FACING AND
CENTERING MACHINE

Serial No. 2824-944 New: 1992

Maximum diameter of work: 8.5”
Minimum diameter of work: .25”
Maximum workpiece length: 51”
Minimum length of work: 3”
Maximum swing over bed: 21”
Spindle speeds: 80 to1175 RPM in 18 steps
(change gears to produce (1) RPM rate will be supplied with machine)
Length of fine adjustment to cutter: 2”
Feed rates in thousandths of an inch per rev. of spindle:
(16) steps .001 to .460 IPR
Rapid traverse rate: 250”/min.
(2) Pneumatic work hold vises
Spindle drives - 15 HP each
(1) Pair of combination facing and centering cutter bodies to be
supplied with machine.
Heidenhain digital readout for head position
Swing down lateral parts locator
Auto cutter guard doors
Allen Bradley SLC100 PLC
Coolant System
230/460 Volts, 3 Phase, 60 Cycle
Weight: 8600#
Dimensions: FB X RL – 56” X 136”
Height: 82”
