Averex HS-550K, X-31.5", Y-31.5", 19.68" Pallets, 0.001 Deg., 60 ATC, Fanuc Oi-M, Thru Spind Cool, Demo Machine, #32588

Manufacturer

AVEREX

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

32588

Model

HS-550K

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32588

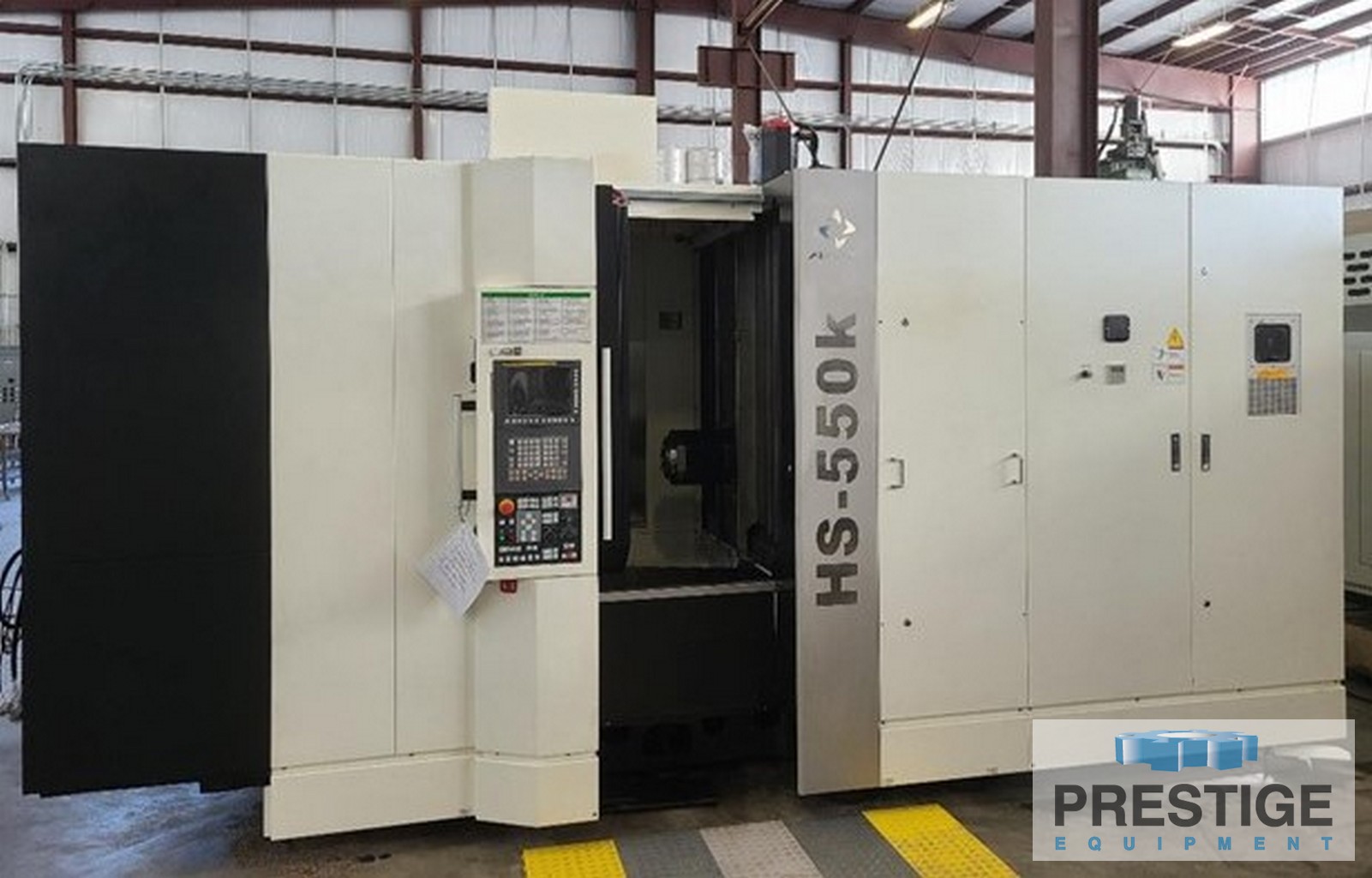

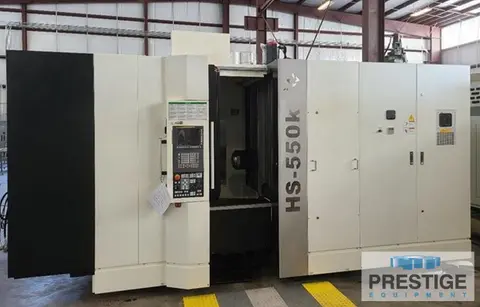

Averex HS-550K CNC Horizontal Machinig Center

FEATURES:

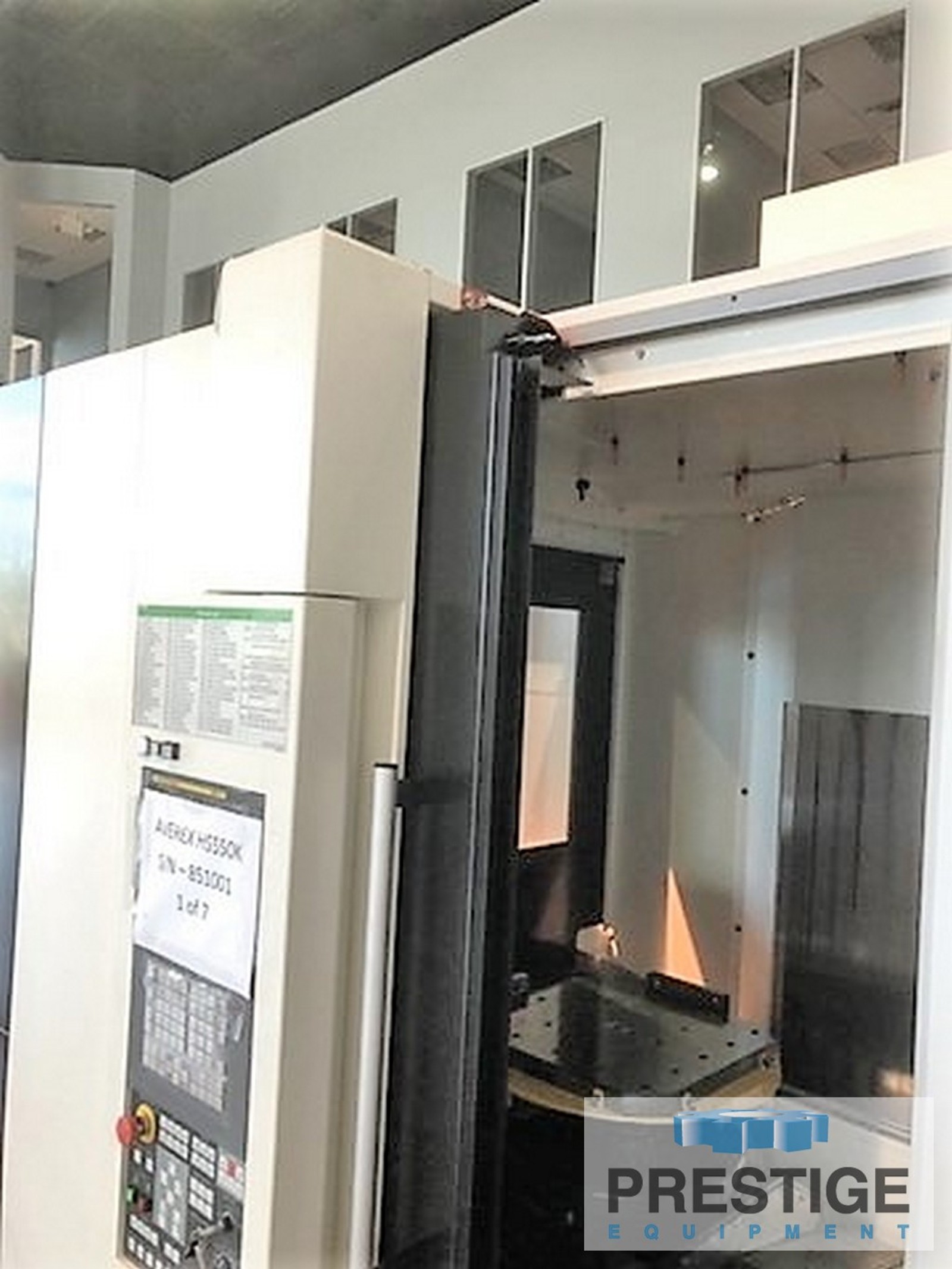

Fanuc Oi-MF CNC Control w/ 10.4" Color LCD

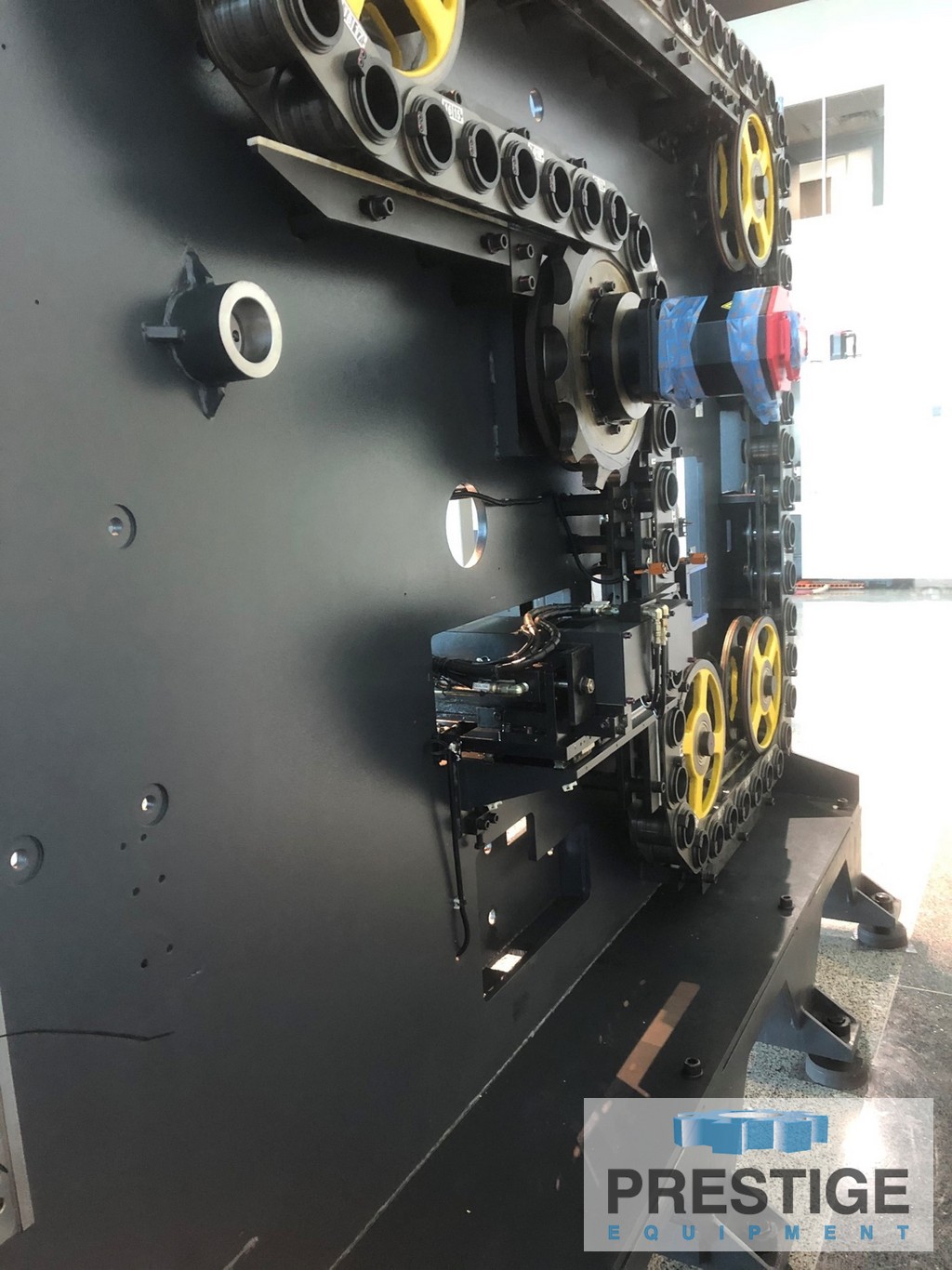

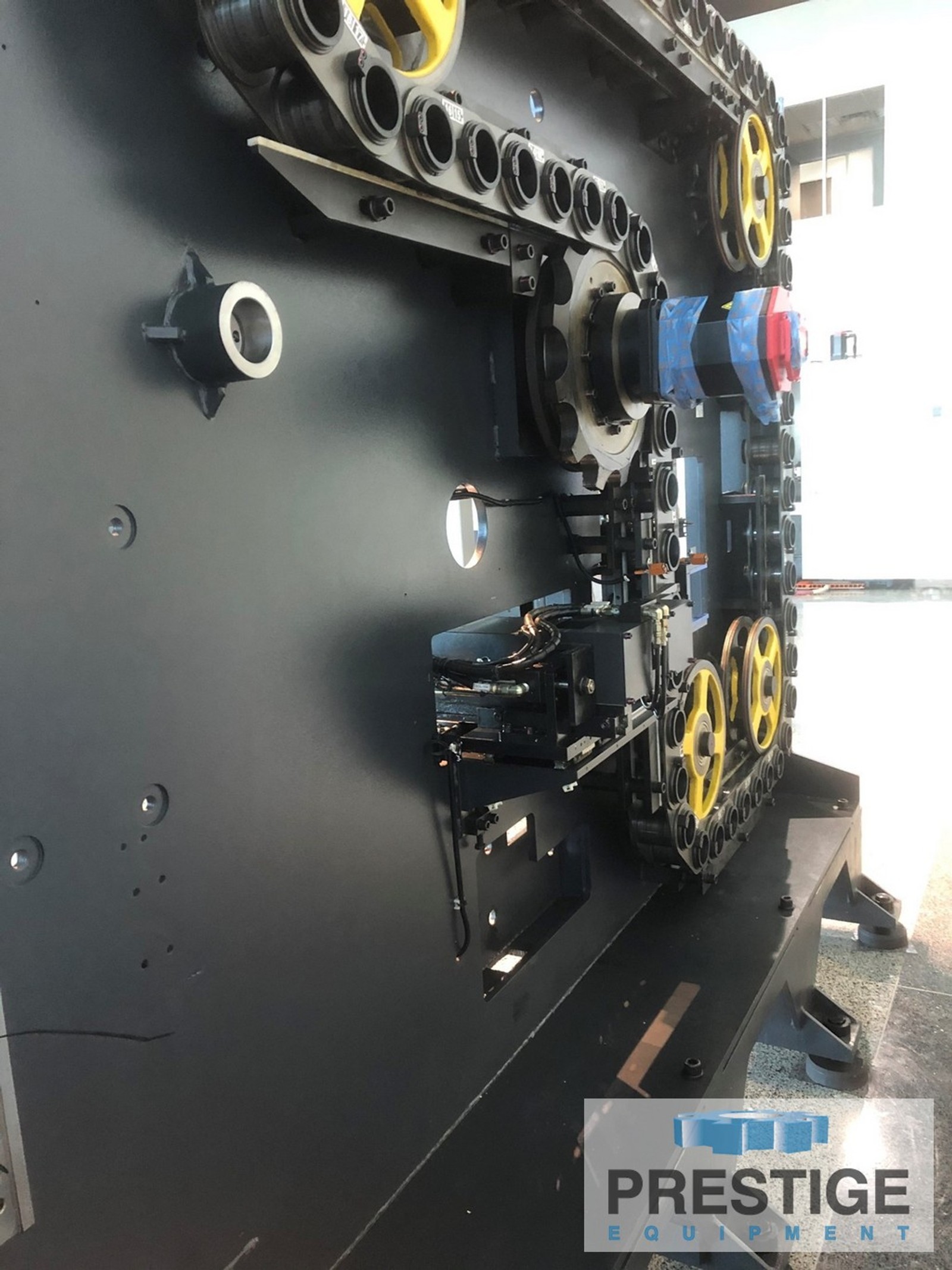

60-Position Automatic Tool Changer
435 PSI High Coolant Thru Spindle
Chip Conveyor

SPECIFICATIONS:
X-Axis Travel ......................... 31.49"
Y-Axis Travel ......................... 31.49"
Z-Axis Travel ......................... 31.49"

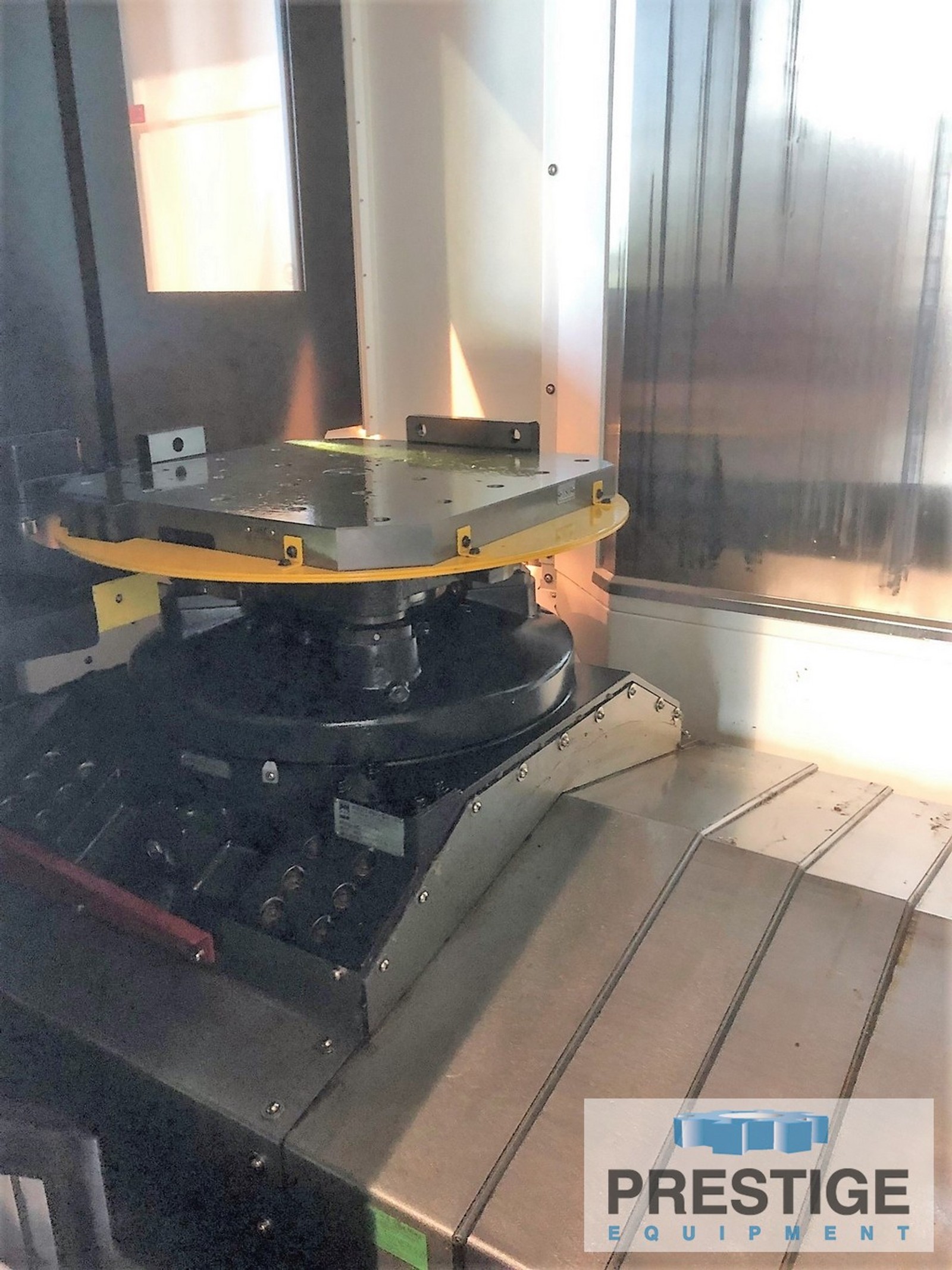

Pallet Size ........................... 19.68" x 19.68"
Number of Pallets ..................... 2
Pallet Indexing ....................... 0.001 Degree
Work Weight Capacity .................. 1,100 Lbs.
Spindle Taper ......................... BBT50 Taper Big Plus
Spindle Speeds (Direct Drive) ......... 10,000 RPM
Spindle Motor ......................... 40 HP
Spindle Center to Pallet Top .......... 1.61"-33.1"
Spindle Nose to Pallet Center ......... 3.94"-35.4"
Rapid Feed Rates ...................... 2,362 IPM
Cutting Feed Rate ..................... 787 IPM
Approximate Machine Dimensions ........ 214" x 511" x 116"
Approximate Weight .................... 32,628 Lbs.

EQUIPPED WITH:
Fanuc Oi-MF CNC Control w/ 10.4" Color LCD
60-Position Automatic Tool Changer
435 PSI High Coolant Thru Spindle
Chip Conveyor

NOTE:
Demo Machine, Never Cut a Chip

WARRANTY:
One Year Parts
One Year Fanuc
