BLANCHARD NO. 22D-42 ROTARY SURFACE GRINDER, REBUILT, NEW SPINDLE BEARINGS, NEW WAYS, NEW SCREW & NUT, 50 HP, 24" UNDER WHEEL, COOLANT TANK & PUMPS

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Vertical Spindle)

Stock

None

Model

22D-42

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

NO. 22D-42 BLANCHARD ROTARY SURFACE GRINDING MACHINE
SERIAL NO. 12841 REBUILT STOCK NO. DB6882

NOW REBUILT & READY TO GO!

CATALOG SPECIFICATIONS:
DIAMETER OF MAGNETIC CHUCK: 42"
GRINDING WHEEL DIAMETER: 22"
MAXIMUM DISTANCE UNDER NEW WHEEL: 24"
TABLE SPEEDS: (6) 6 - 33 RPM
HAND AND POWER ELEVATION TO WHEEL HEAD
AUTOMATIC DOWNFEED TO WHEEL HEAD: .004 - .080 IPM
APPROX. OVERALL WEIGHT: 14,000 LBS.
APPROX. OVERALL DIMENSIONS: 143" x 60" x 104" HIGH

EQUIPPED WITH:
CORTLAND STYLE SEGMENTED WHEEL ADAPTER
NEUTROFIER MAGNETIC CHUCK CONTROL
WHEEL DRESSER

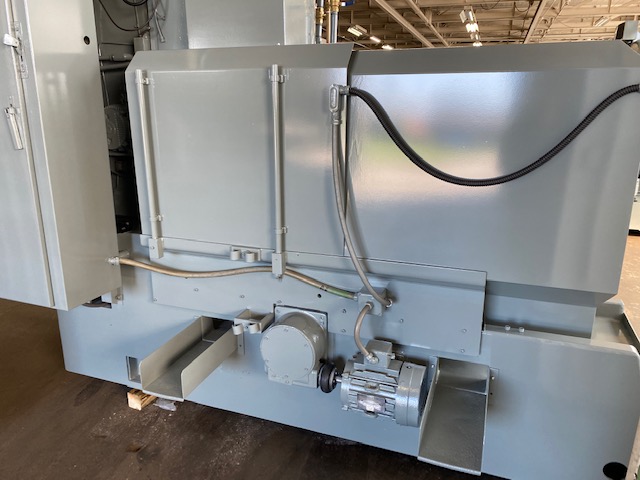

*50 HP SPINDLE DRIVE MOTOR WITH NEW ELECTRICAL WINDINGS & NEW BEARINGS
*NEW ELEVATING SCREW & NUT FOR SPINDLE
*BRAND NEW HARDENED BEDWAYS
*REBUILT LOWER GEAR BOX
*NEW LUBRICATION LINES

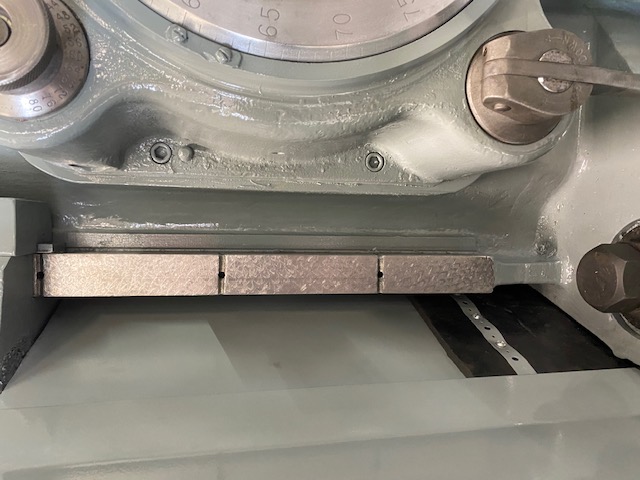

*RESCRAPED VERTICAL WAYS
*RESCRAPED TABLE ROTATION WAYS
*NEW RACK & PINION SADDLE DRIVE

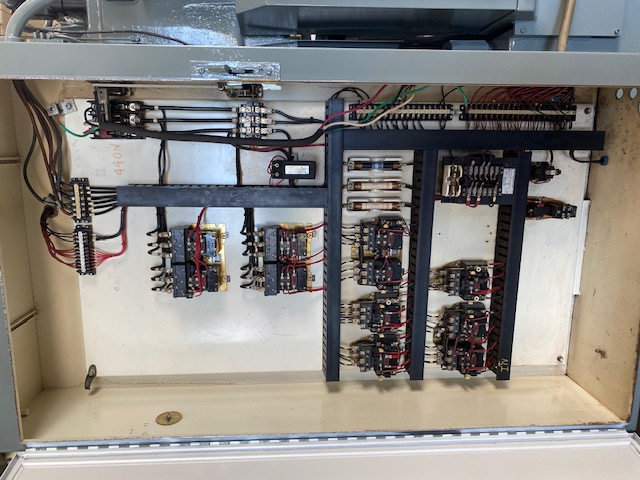

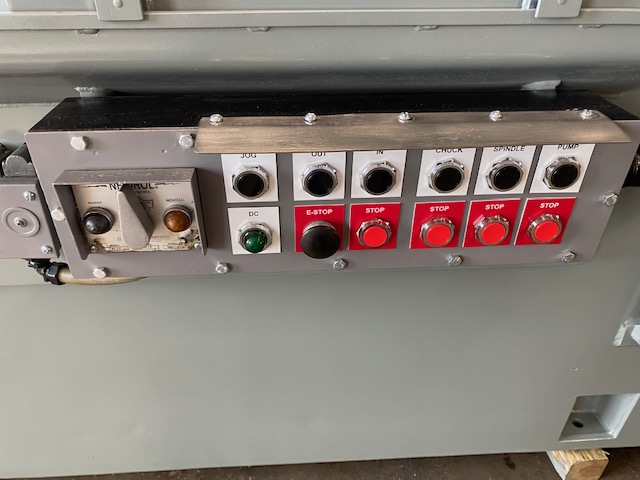

*NEW ELECTRICAL PUSH BUTTONS

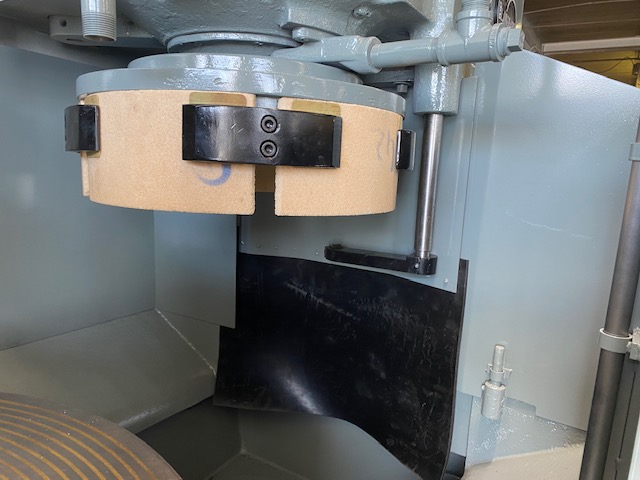

*NEW SEGMENTED STONE CLAMPS
EXTERNAL COOLANT TANK
(2) 3/4 HP COOLANT PUMPS
MISC. SPLASH GUARDING

MACHINE MAY BE INSPECTED UNDER POWER
