AWEA VP-3012, X-118", Y-47", 51.2" B/C, Fanuc OiMF CNC, 40 ATC, #50, 6,000 RPM, New 2020, #32589

Manufacturer

AWEA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32589

Model

VP-3012

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32589

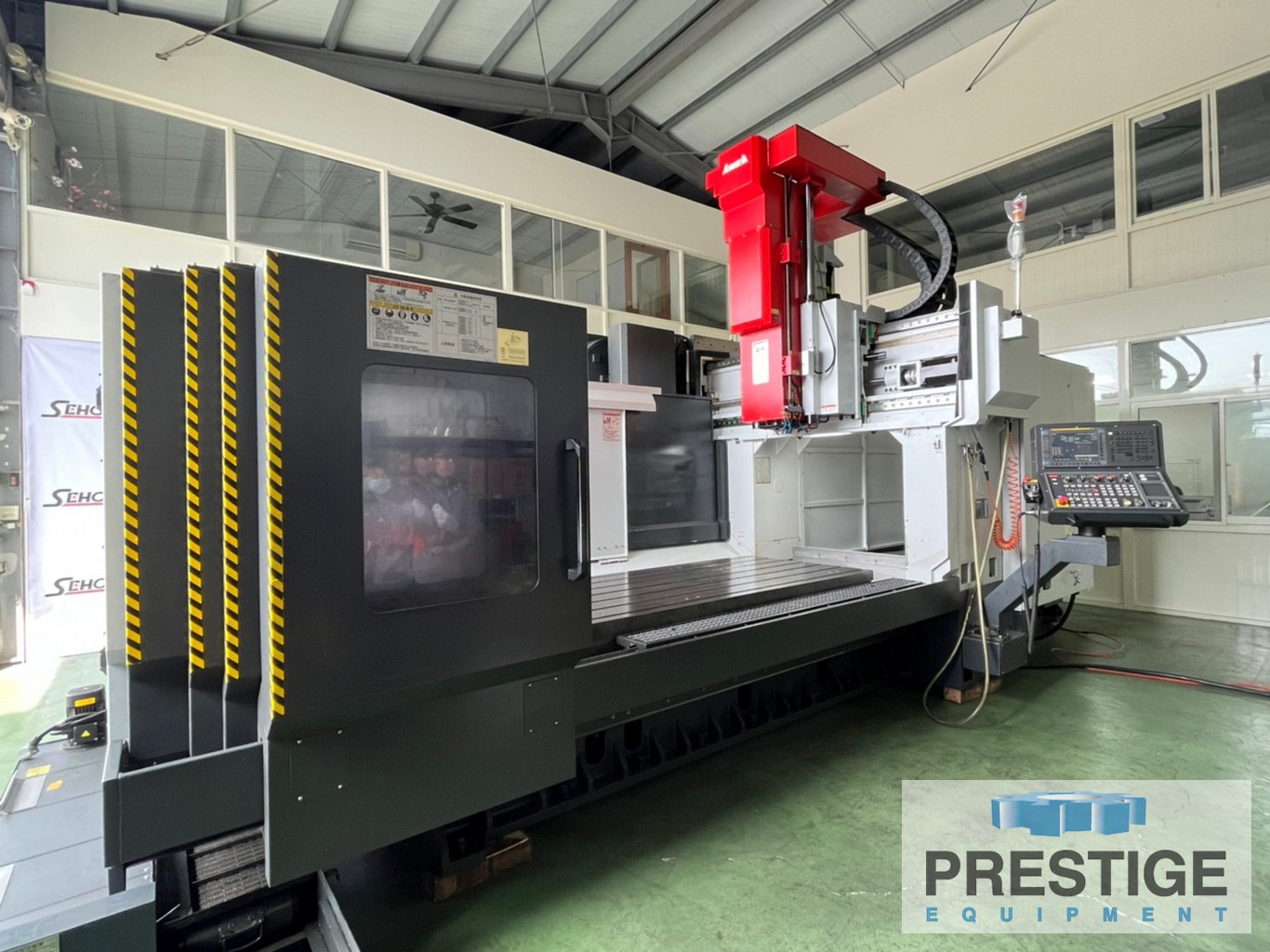

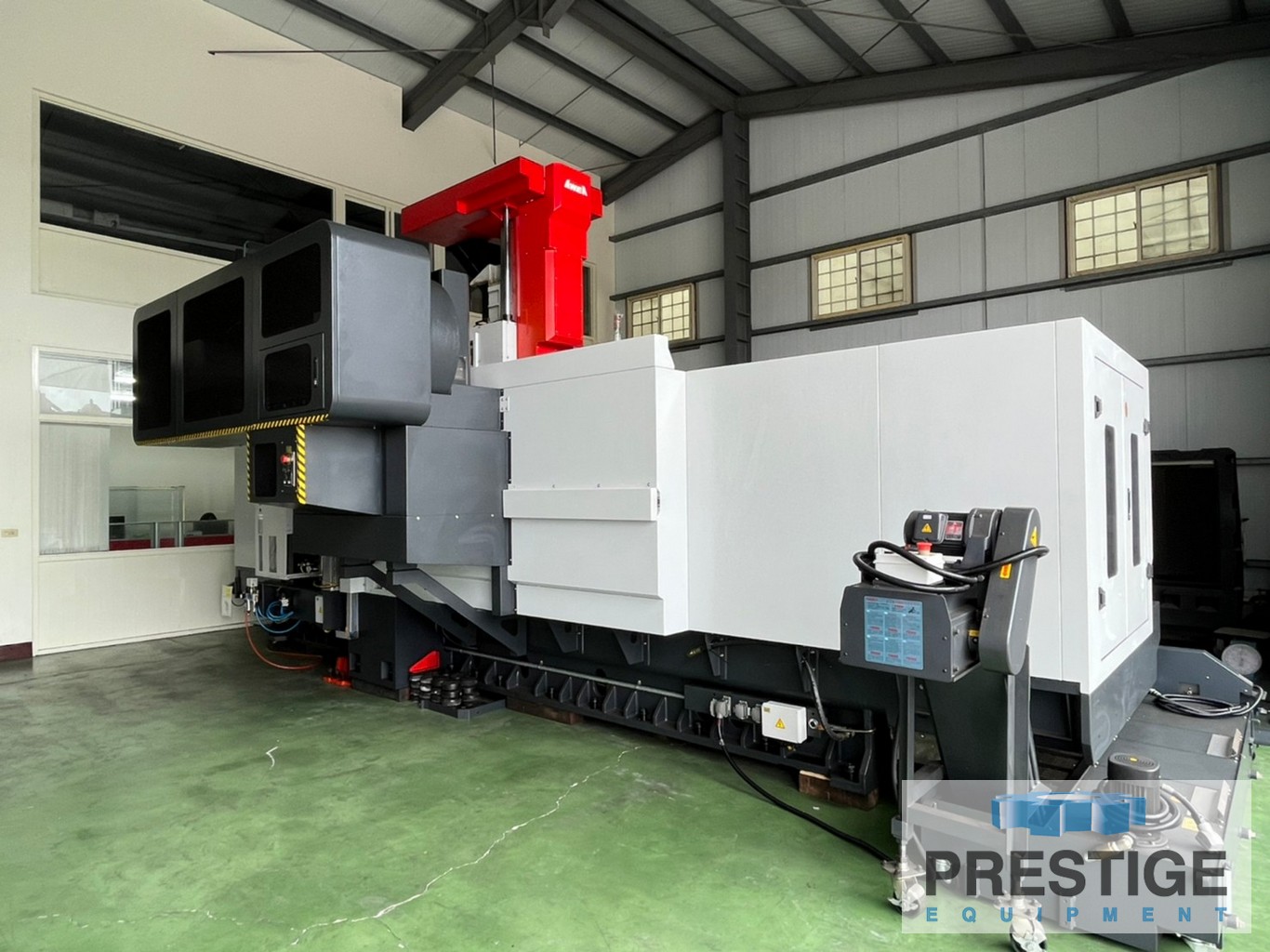

AWEA VP-3012 CNC Bridge Type Vertical Machining Center

FEATURES:

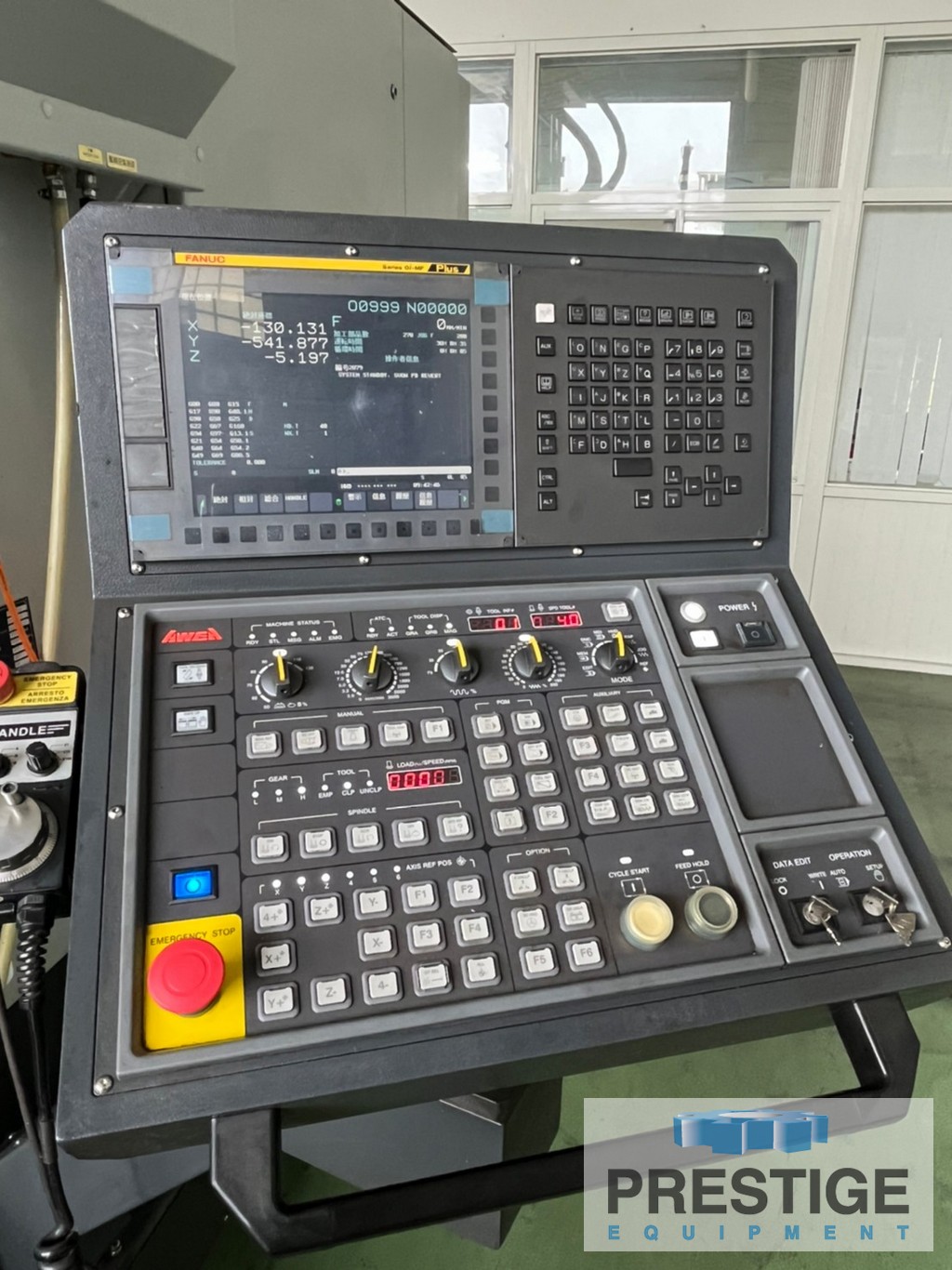

Fanuc OiMF Plus CNC Control

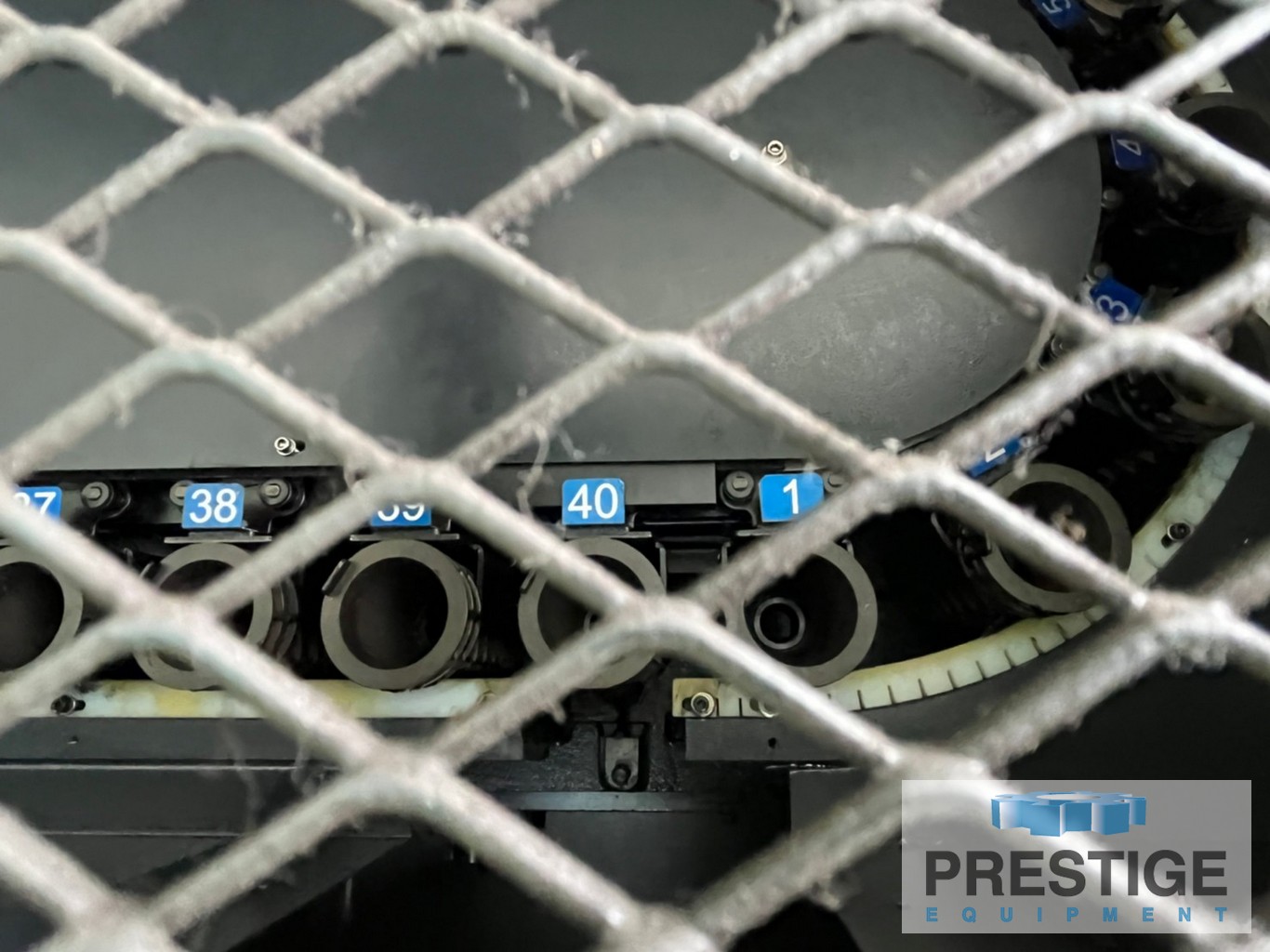

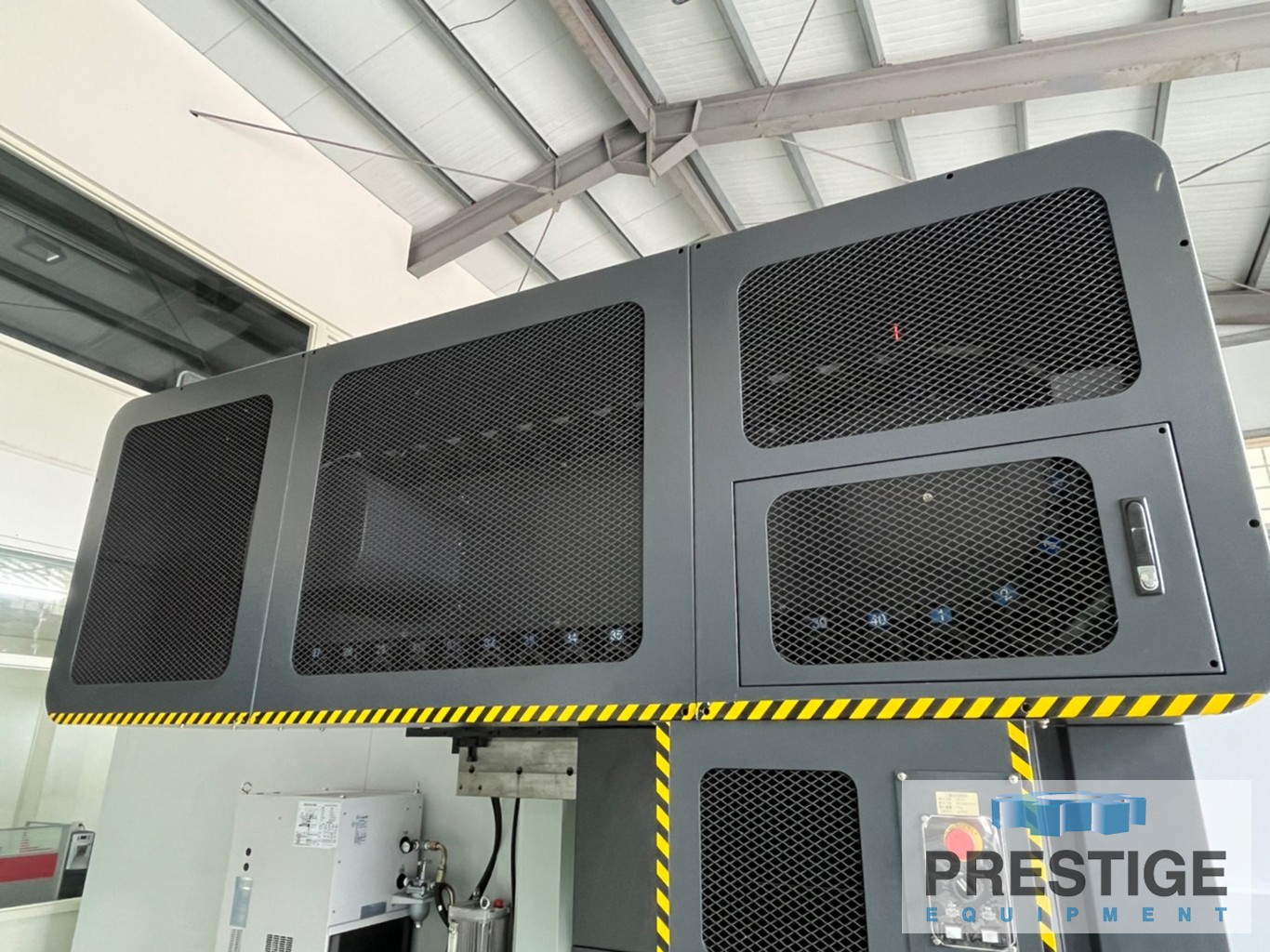

40-Position Automatic Tool Changer

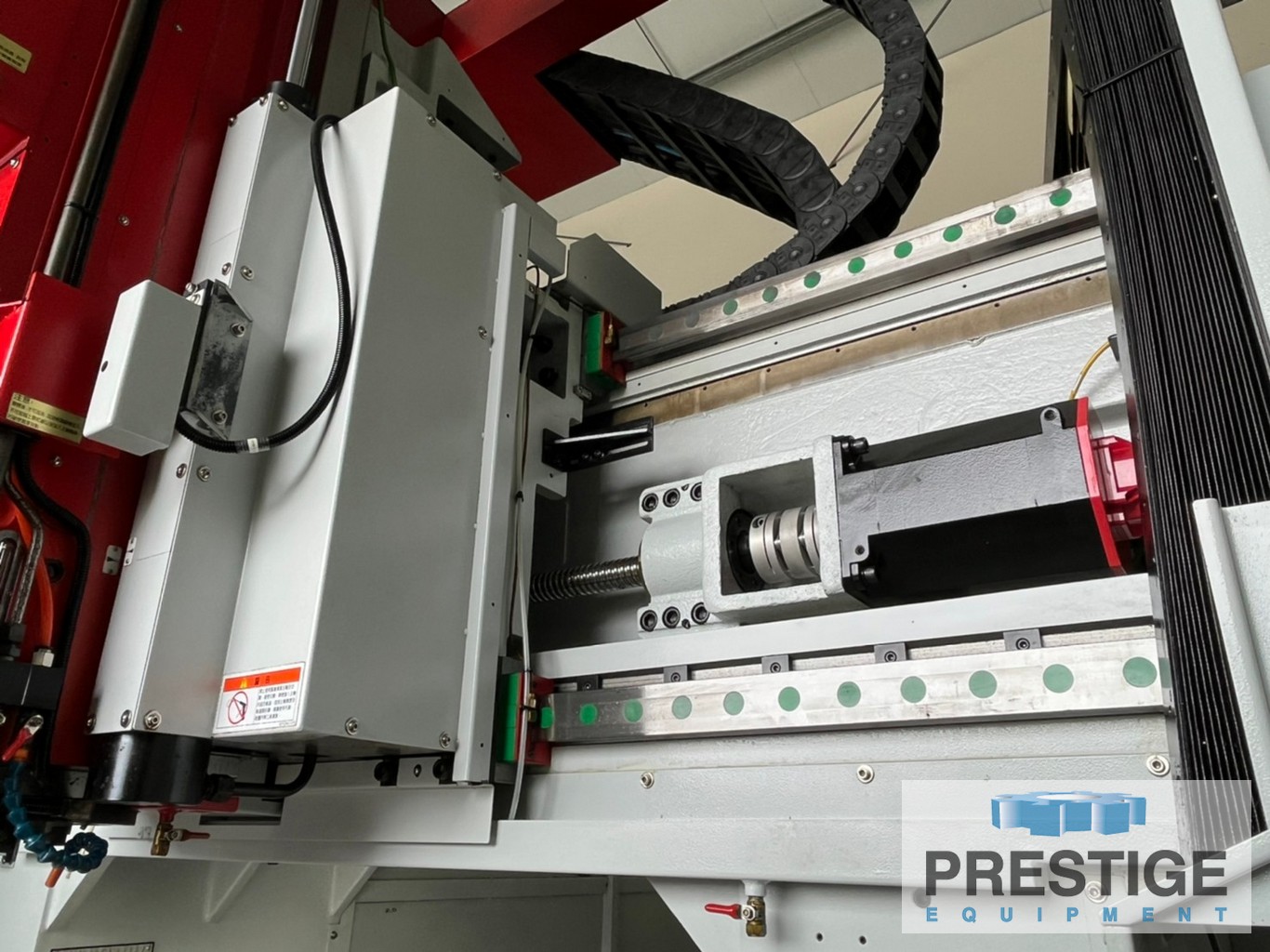

X/Y Axes Linear Guide Ways
Z-Axis Box Ways

CAPACITY:
X-Axis Travel ......................... 118.11"
Y-Axis Travel ......................... 47.2"
Z-Axis Travel ......................... 29.92"
Distance Between Columns .............. 51.2"
Distance from Tbl Surface/Spindle Nose 7.9"-37.8"

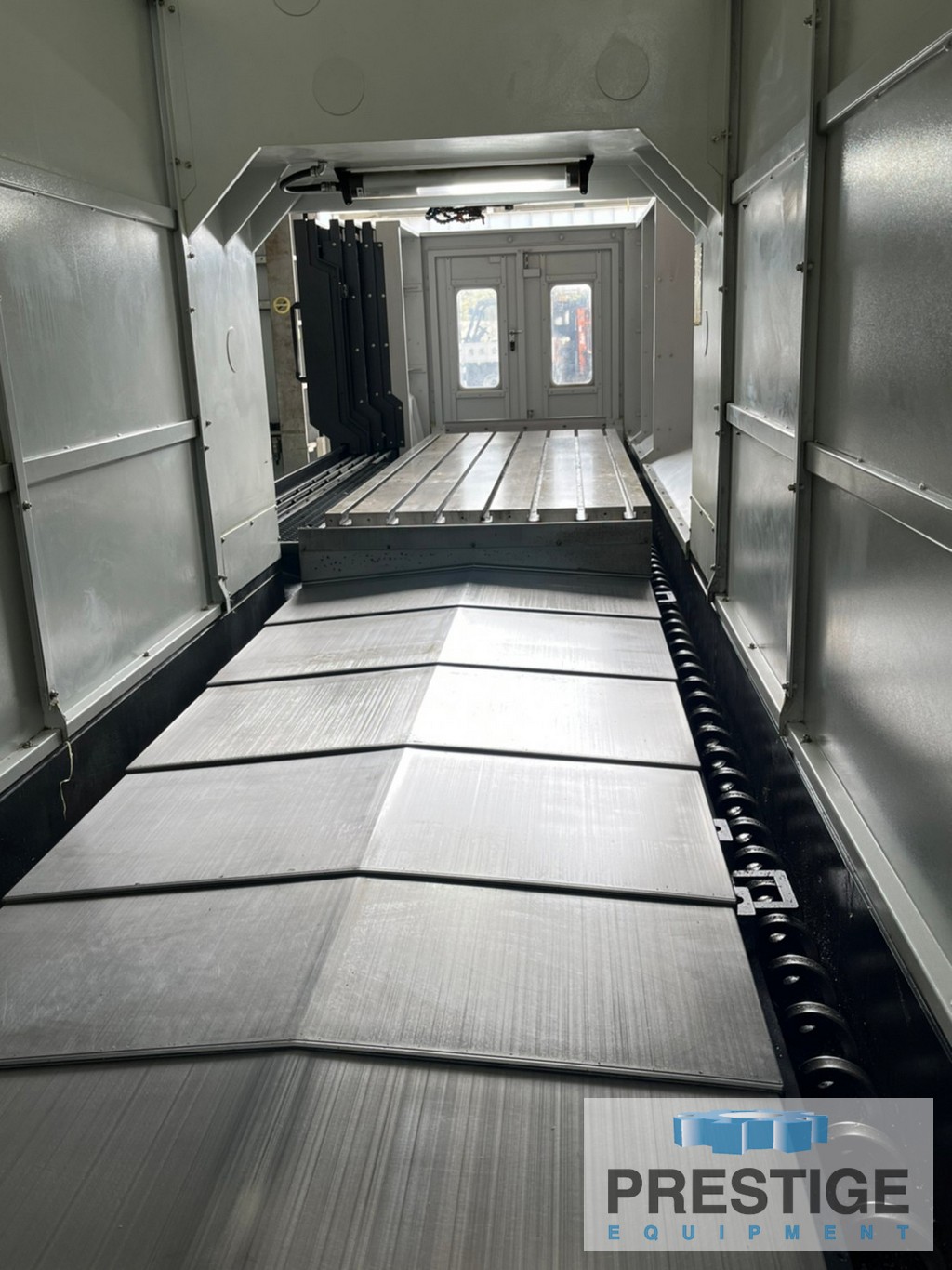

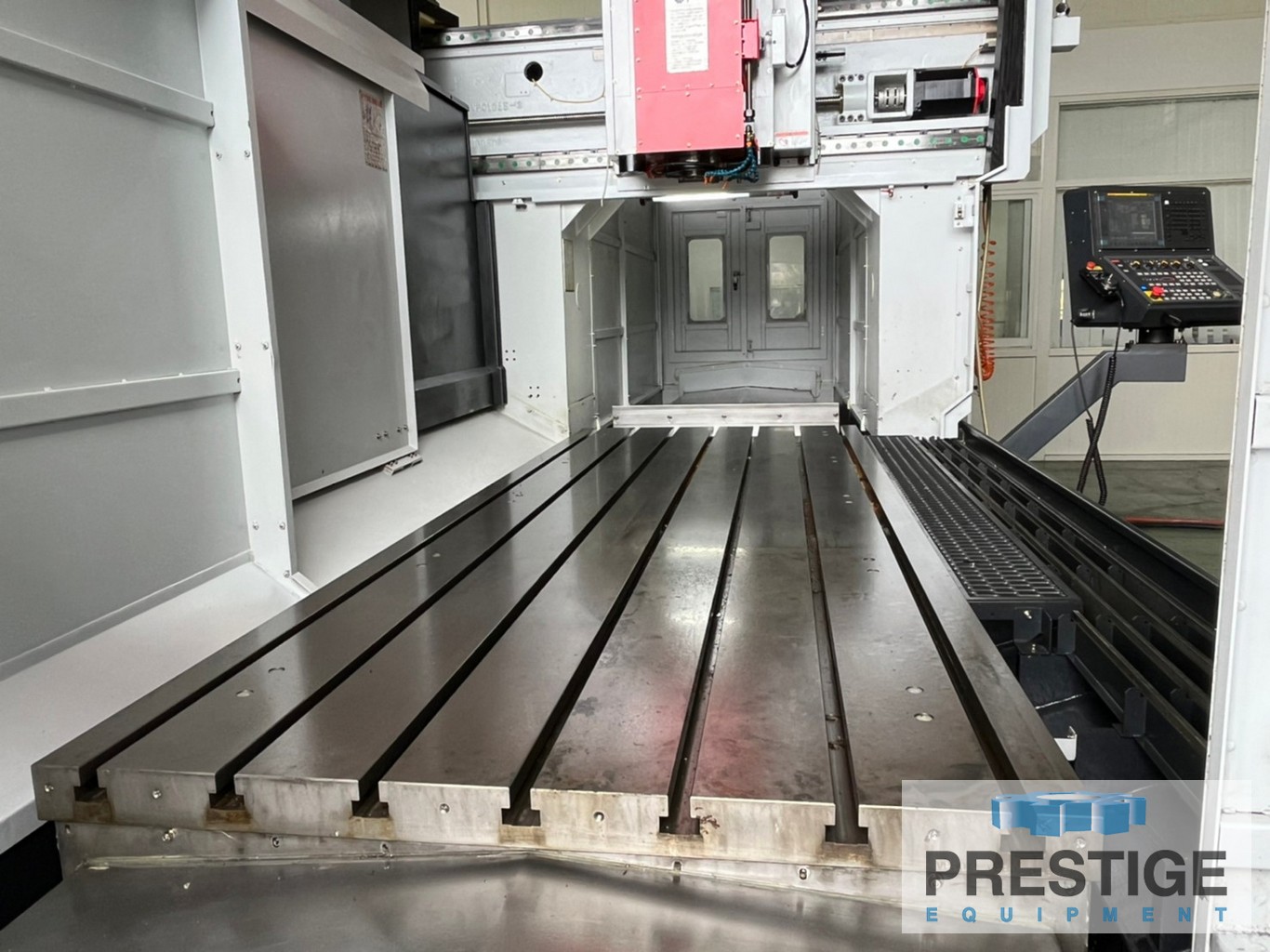

Table Size ............................ 118.11" x 43.3"
Table Load Capacity ................... 9,900 Lbs.
Spindle Speed (Geared Head) ........... 6000 RPM
Spindle Drive Motor (230/60/3) ........ 24 HP / 20 HP
Spindle Taper ......................... BT #50
Tool Changer .......................... 40 ATC
Rapid Traverse (X,Y) .................. 787 IPM
Rapid Traverse (Z) .................... 787 IPM
Approximate Dimensions ................ 310" x 158" x 140"
Approximate Machine Weight ............ 44,100 LBS

EQUIPPED WITH:
Fanuc OiMF Plus CNC Control
40-Position Automatic Tool Changer
X/Y Axes Linear Guide Ways
Z-Axis Box Ways

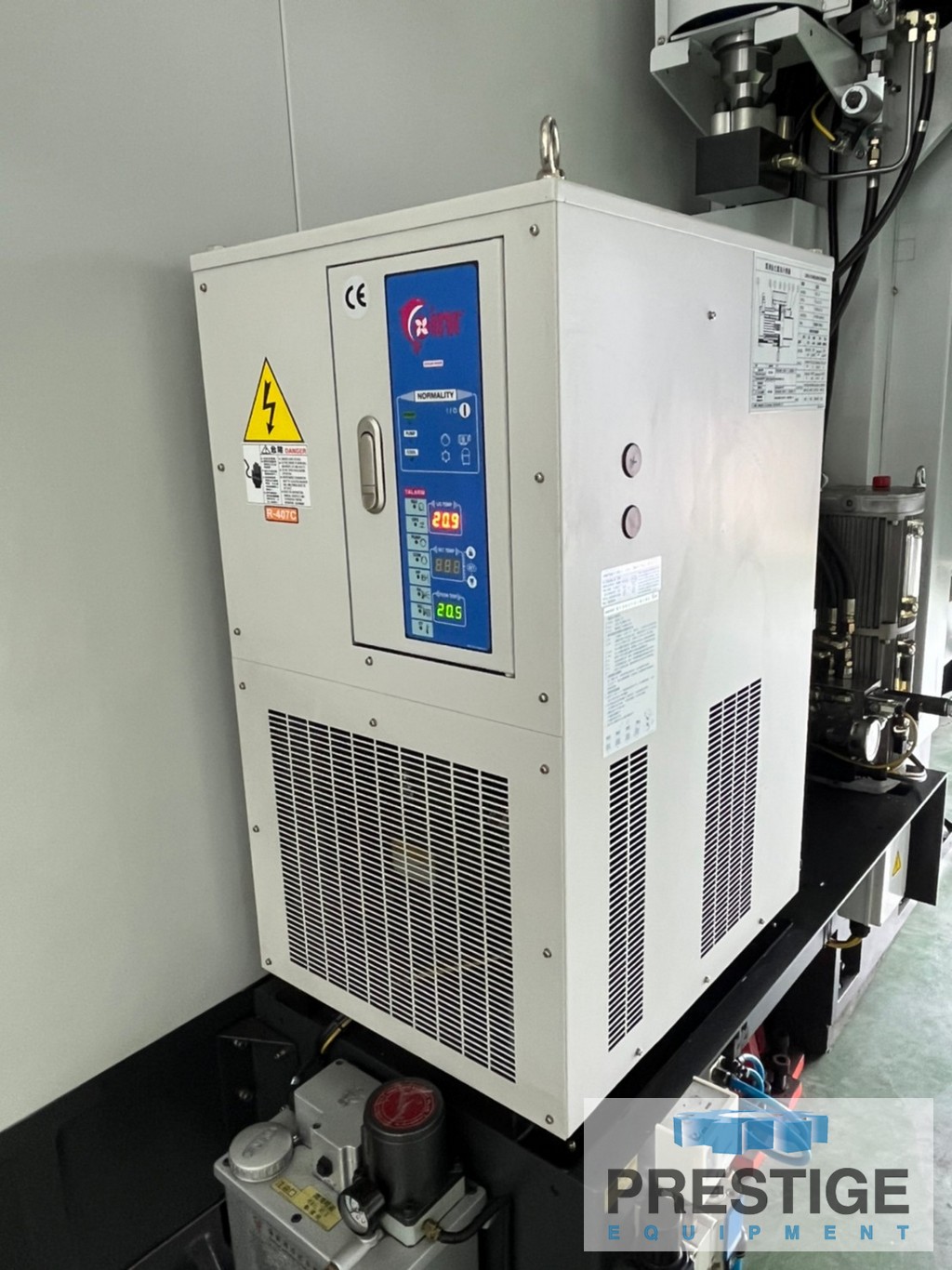

Spindle Oil Cooler

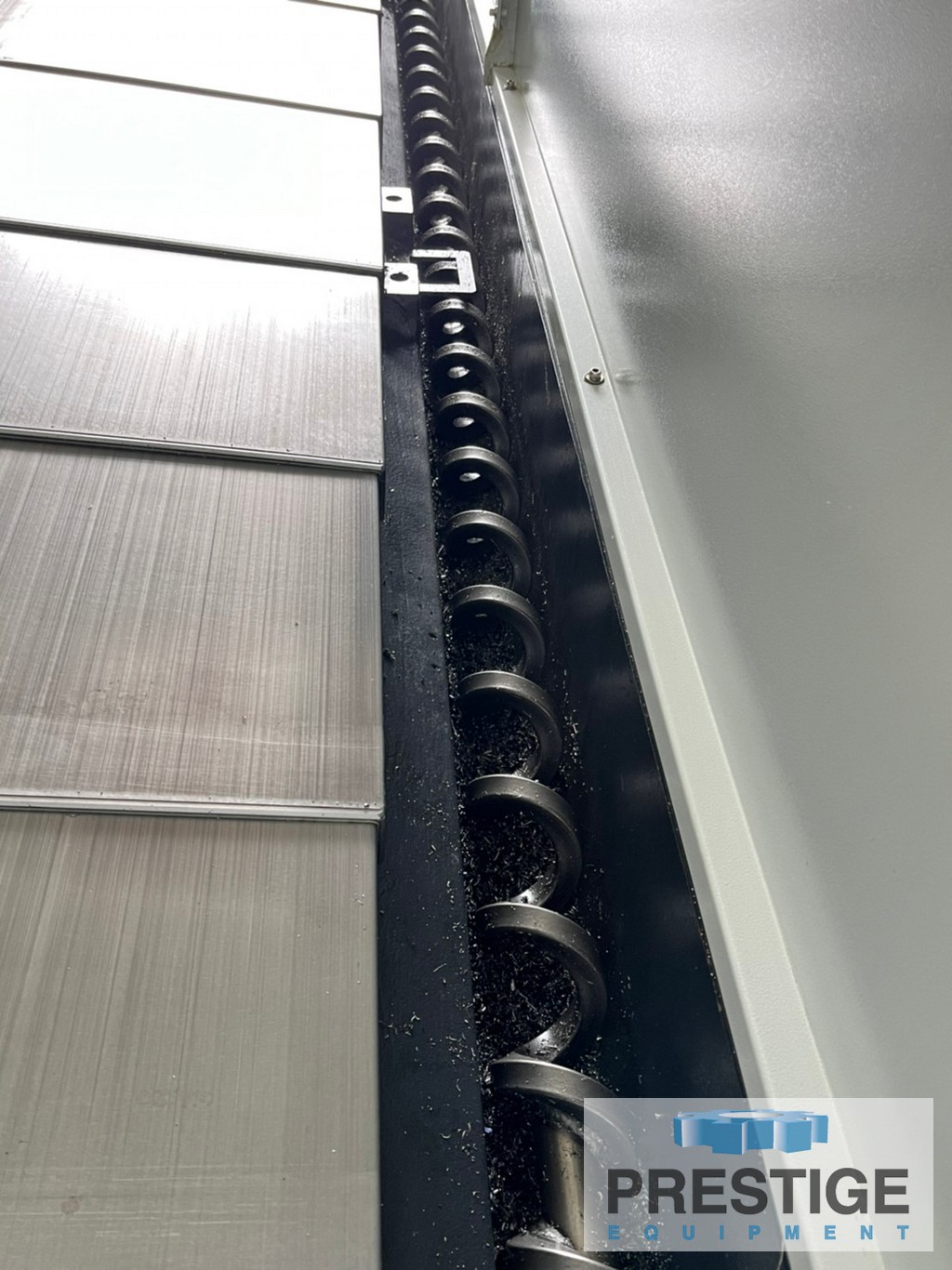

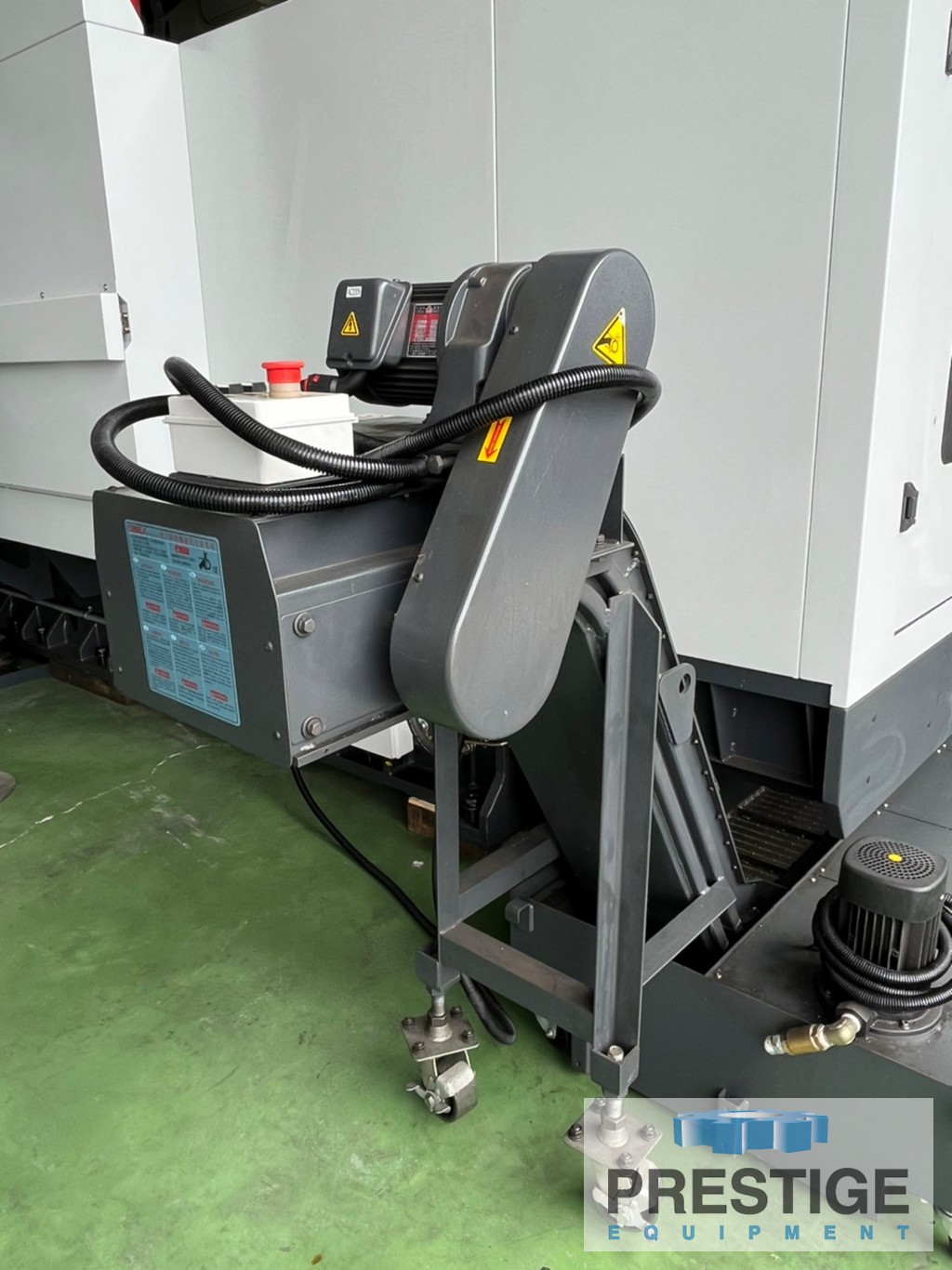

Chip Conveyor
Full Enlcosure
