Mighty Viper B-4000AGDW CNC Bridge Mill, X-160", Y-102", 165" x 100" Tbl, 40 ATC, Mitsubishi M535 CNC, #32534

Manufacturer

MIGHTY VIPER

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32534

Model

B-4000AGDW

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32534

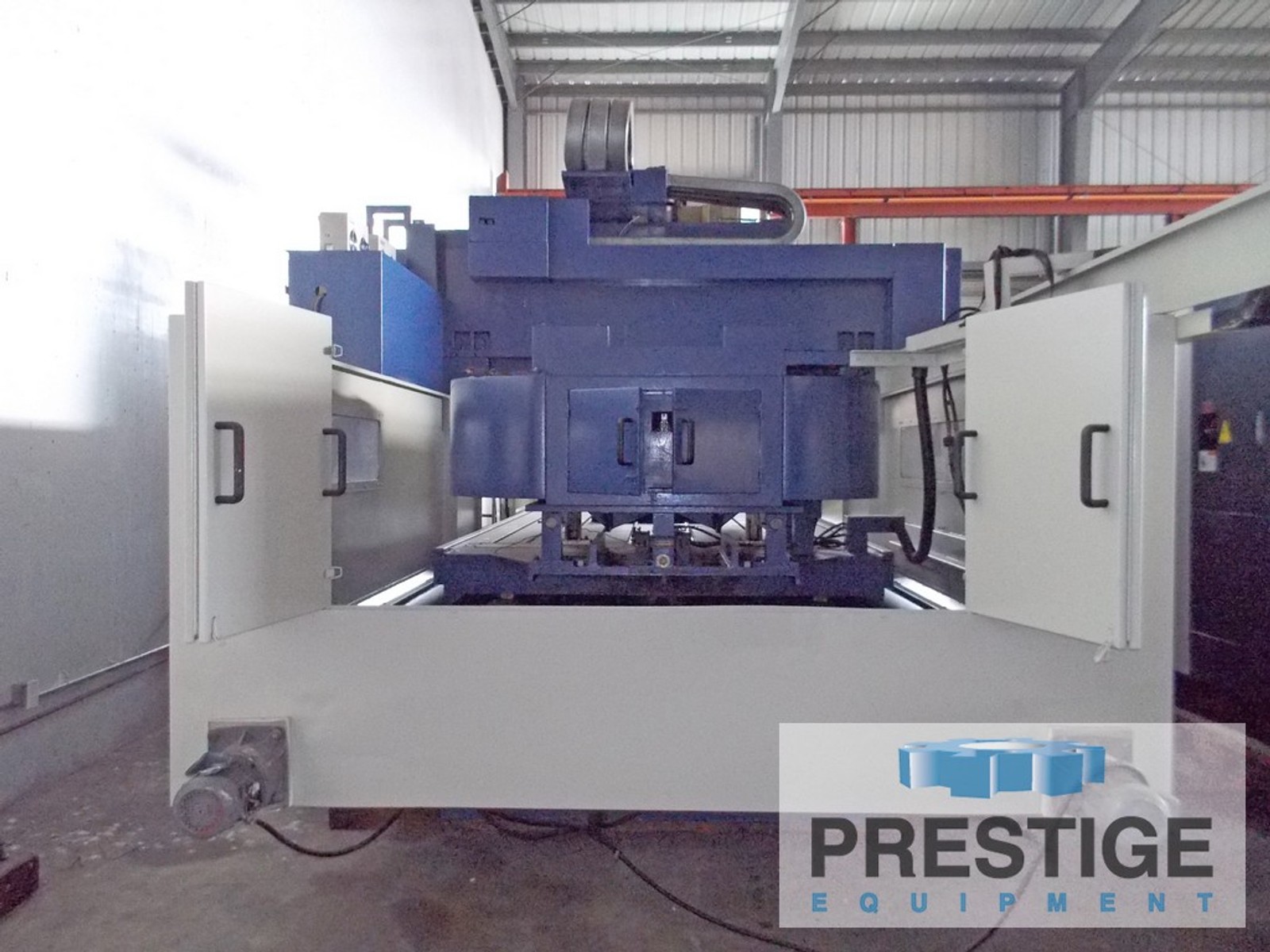

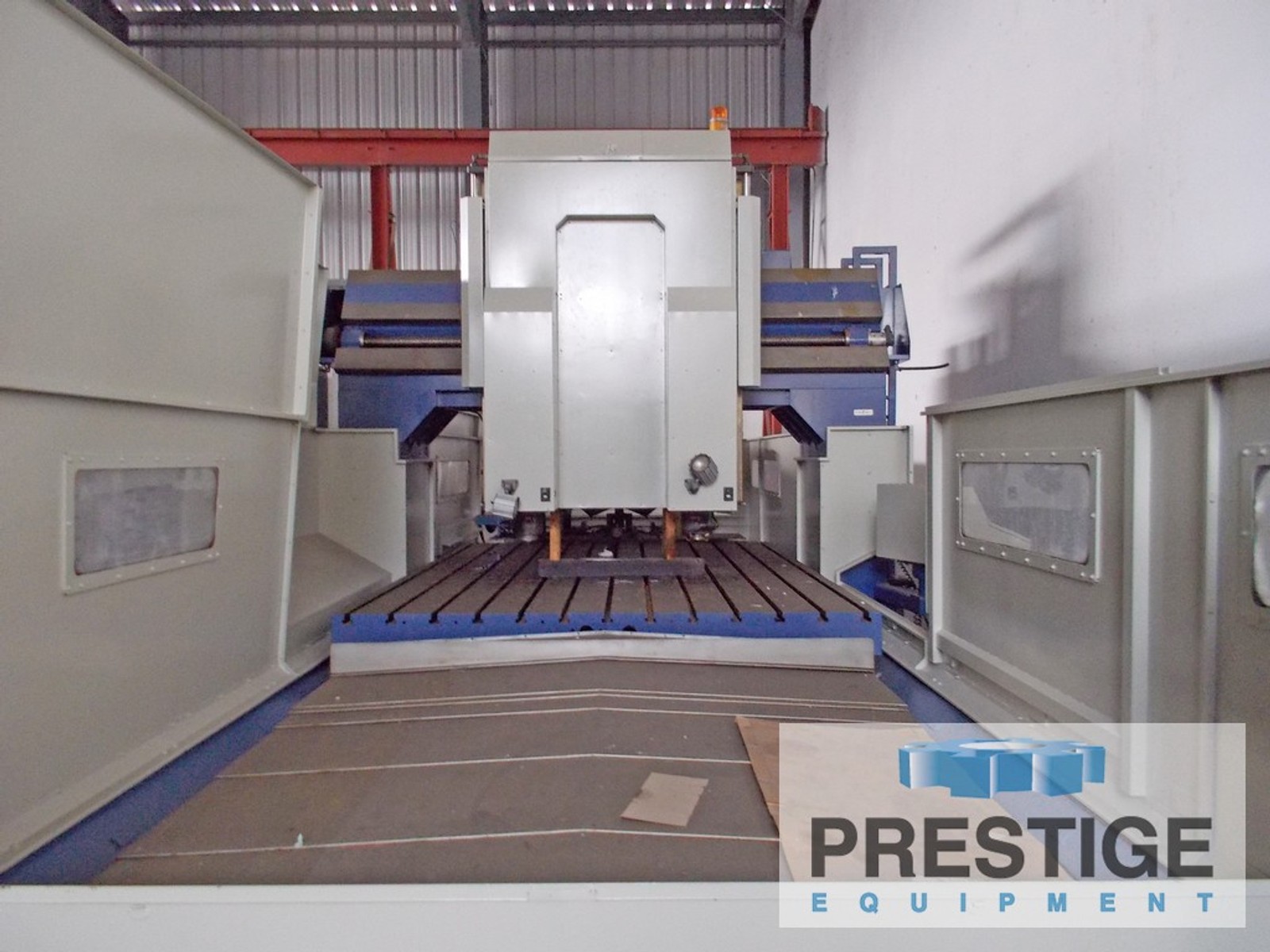

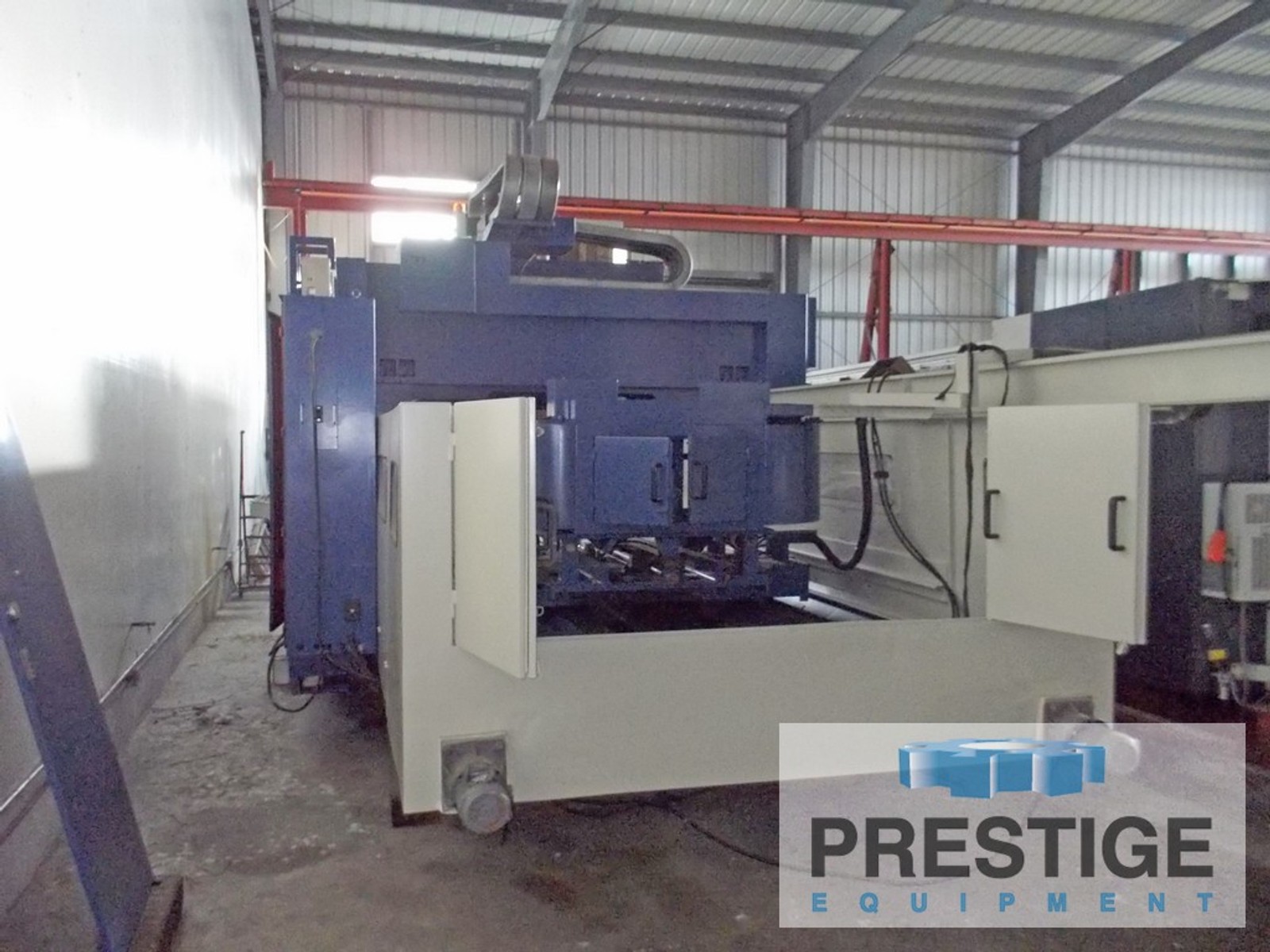

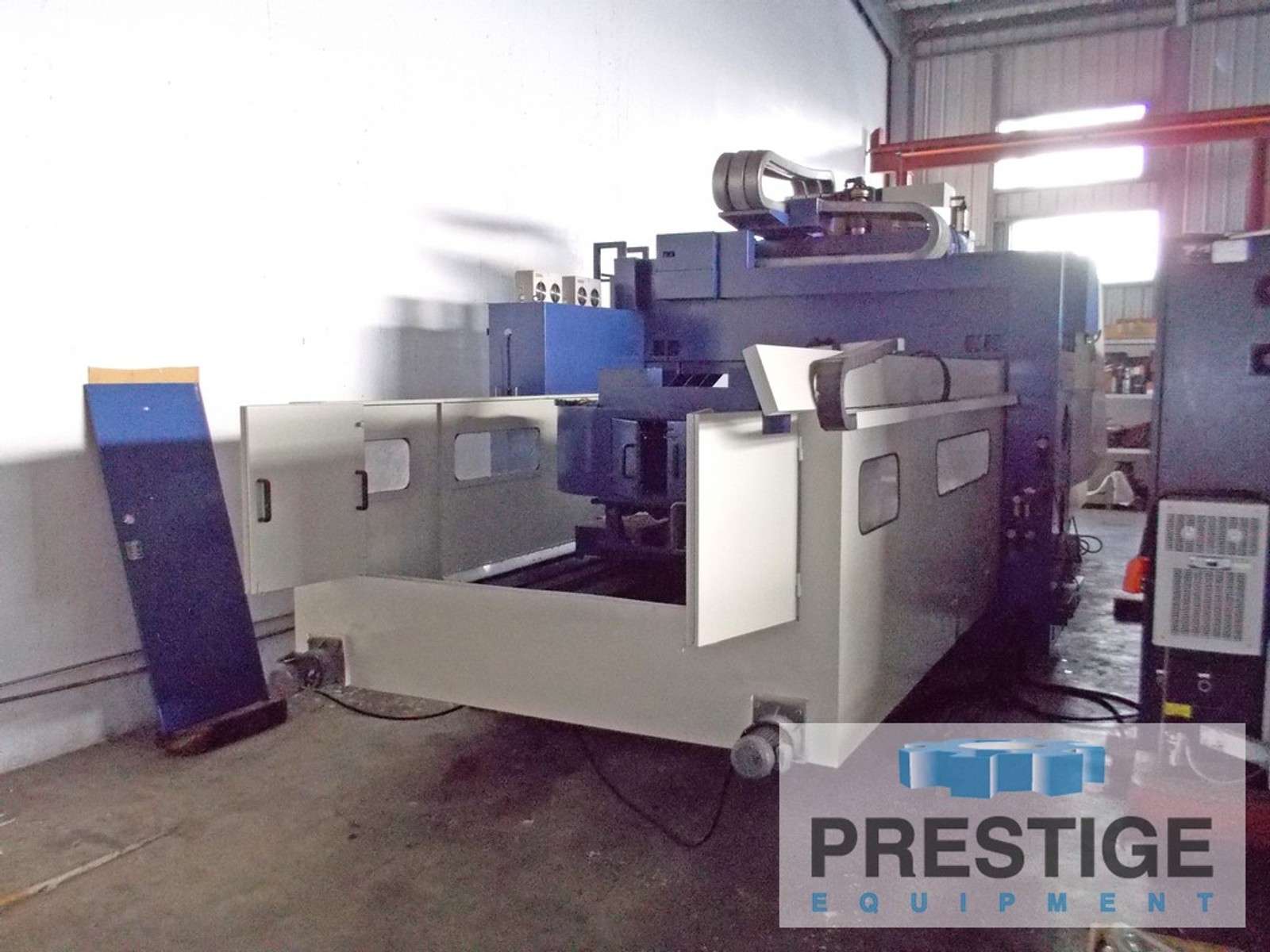

Mighty Viper B-4000AGDW CNC Bridge Mill

FEATURES:
Mitsubishi M535 CNC Control
40 Station Automatic Tool Changer
High Performance Spindle Head with Upgraded 35 HP
Air Blast Through Spindle

SPECIFICATIONS:
X-Axis, Table Travel .................. 159.8"
Y-Axis, Spindle Head Travel ........... 102"
Z-Axis, Vertical Travel ............... 42"
Distance Between Columns .............. 108.3"
Distance from Spindle to Column ....... 15.1"
Distance Spindle Nose to Table ....... 30"-72"
Table Size ............................ 165" x 100"
Table Capacity ........................ 50,000 lbs
Spindle Taper ......................... #50
Maximum Spindle Speed (Geared Head).... 40-3,800 RPM
Spindle Motor ......................... 35 HP
Rapid Feed Rates (X,Y,Z) .............. 393 IPM
Cutting Rate (X,Y,Z) .................. 276 IPM
Approximate Machine Weight ............ 135,000 Lbs.

EQUIPPED WITH:
Mitsubishi M535 CNC Control
40 Station Automatic Tool Changer
High Performance Spindle Head with Upgraded 35 HP
Anti-Friction Turcite B
Telescoping Metal Way Covers
Automatic Lubrication
Air Blast Through Spindle
24" Subplate
Box Ways
Chip Conveyor
