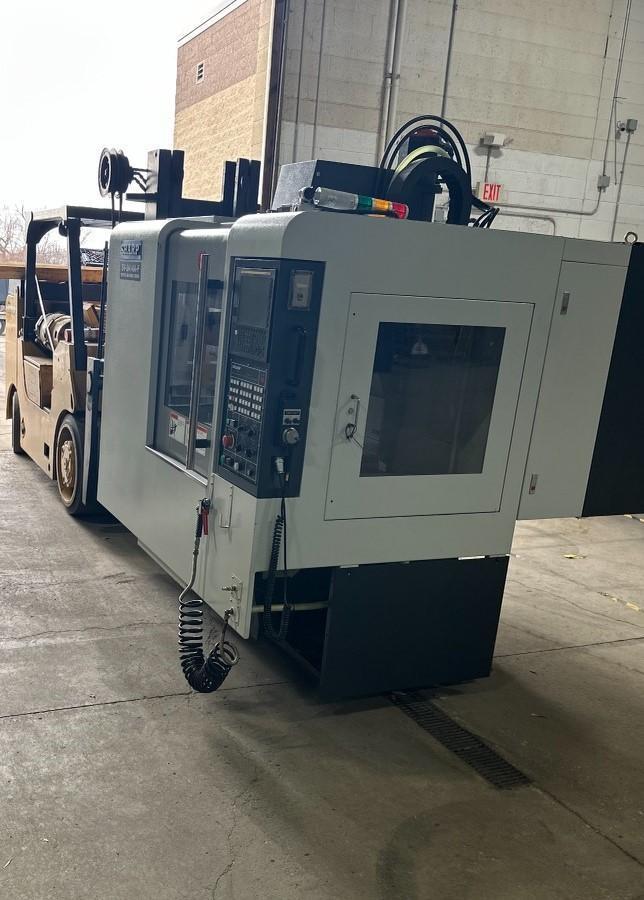

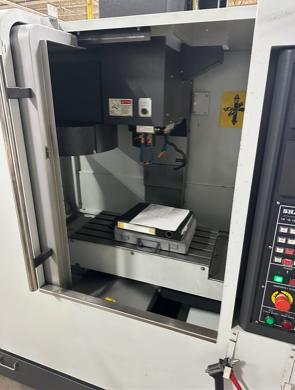

2020 Sharp SV-2414A-F Vertical Machining Center (#4874)

Manufacturer

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



24” X 14” X 18” Vertical Machining Center with Fanuc Oi-MF CNC Control, CAT-40 Taper Spindle w/ 8,000 RPM, Rigid Tapping, Carousel Style 16 Style Tool Capacity Changer, Box Way and Pull-Out Style Chip Pan.

GENERAL SPECIFICATIONS
X - Axis Travel:                24”
Y - Axis Travel:                14”
Z - Axis Travel:                18”
Spindle Nose to Table:            2.8” - 20.9”
Spindle Center to Column:            16.3”
Table Area:                    27.6” X 13.8”
Max Workpiece Weight:            770 LBS
T Slot - Number / Width / Pitch:        5 / 0.63” /2.5
Spindle Speed:                8,000 RPM
Torque:                    52’ / LBS @ 1,500 RPM
Tool Capacity:                16
Max Tool Diameter:                3.7”
Max Tool Duameter w/o Adjacent Tool:    5.9”
Max Tool Length:                11.8”
Max Tool Weight:                15.4 LBS
Tool Change Time (Tool to Tool):        6.8 Seconds
Tool Change Time (Chip to Chip):        8 Seconds
X / Y Rapid Traverse:            787.4 IPM
Z Axis Rapid Traverse:            708.7 IPM
Cutting Feed Rate:                0.04” - 393.7” / Min
Coolant Tank Capacity:            42 Gallons
Dimensions:                    81” X 76” X 106” H
Weight:                        5,500 LBS

INCLUDES: Fanuc Oi-MF CNC Control, CAT-40 Taper Spindle w/ 8,000 RPM, Rigid Tapping, Carousel Style 16 Style Tool Capacity Changer, Box Way and Pull-Out Style Chip Pan.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
