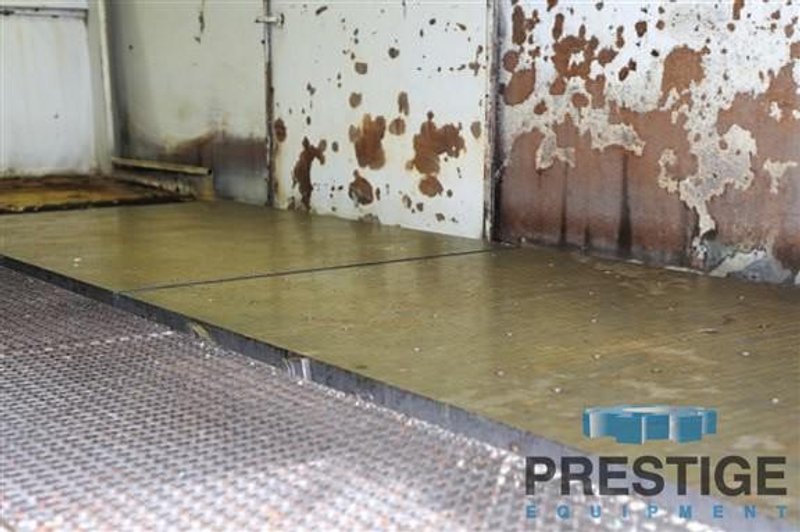

44" x 160" Danobat RTH-4000 CNC, Magnetic Chuck, Auxiliary Head, Dovetail Option, 40" UW, Siemens CNC, R#19980

Manufacturer

DANOBAT

Category

Grinding Machines

Type

GRINDERS, WAY OR RECIPROCATING TABLE, (Vertical Spindle)

Stock

19980

Model

RTH-4000 CNC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #19980

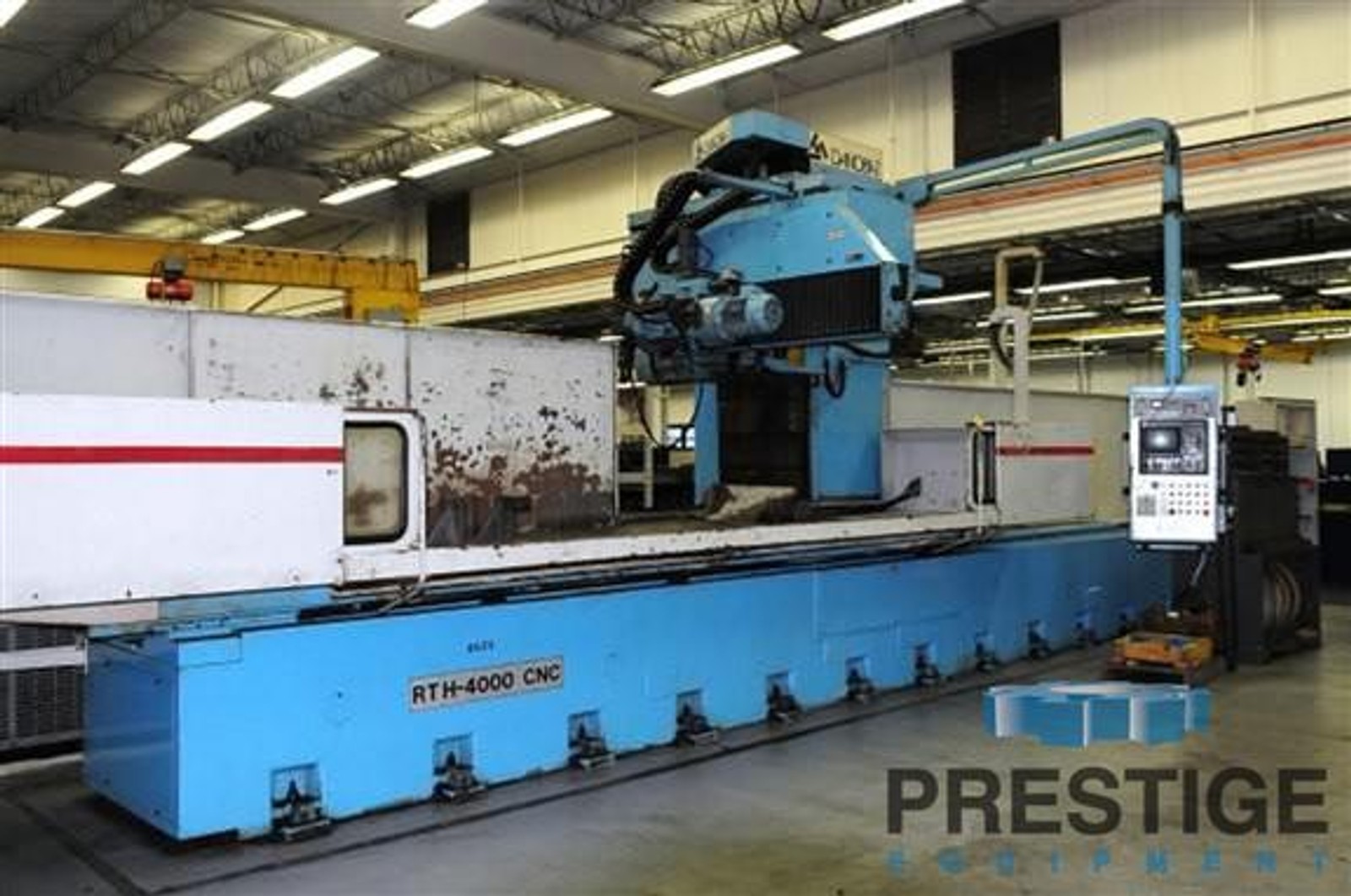

44" x 160" DANOBAT CNC Surface & Way Grinder

CAPACITIES:
Max. Grinding Length .................. 157.48"
Max. Grinding Width with 4" Wheel ..... 43.30"
Distance, Table to Grinding Wheel ..... 40"

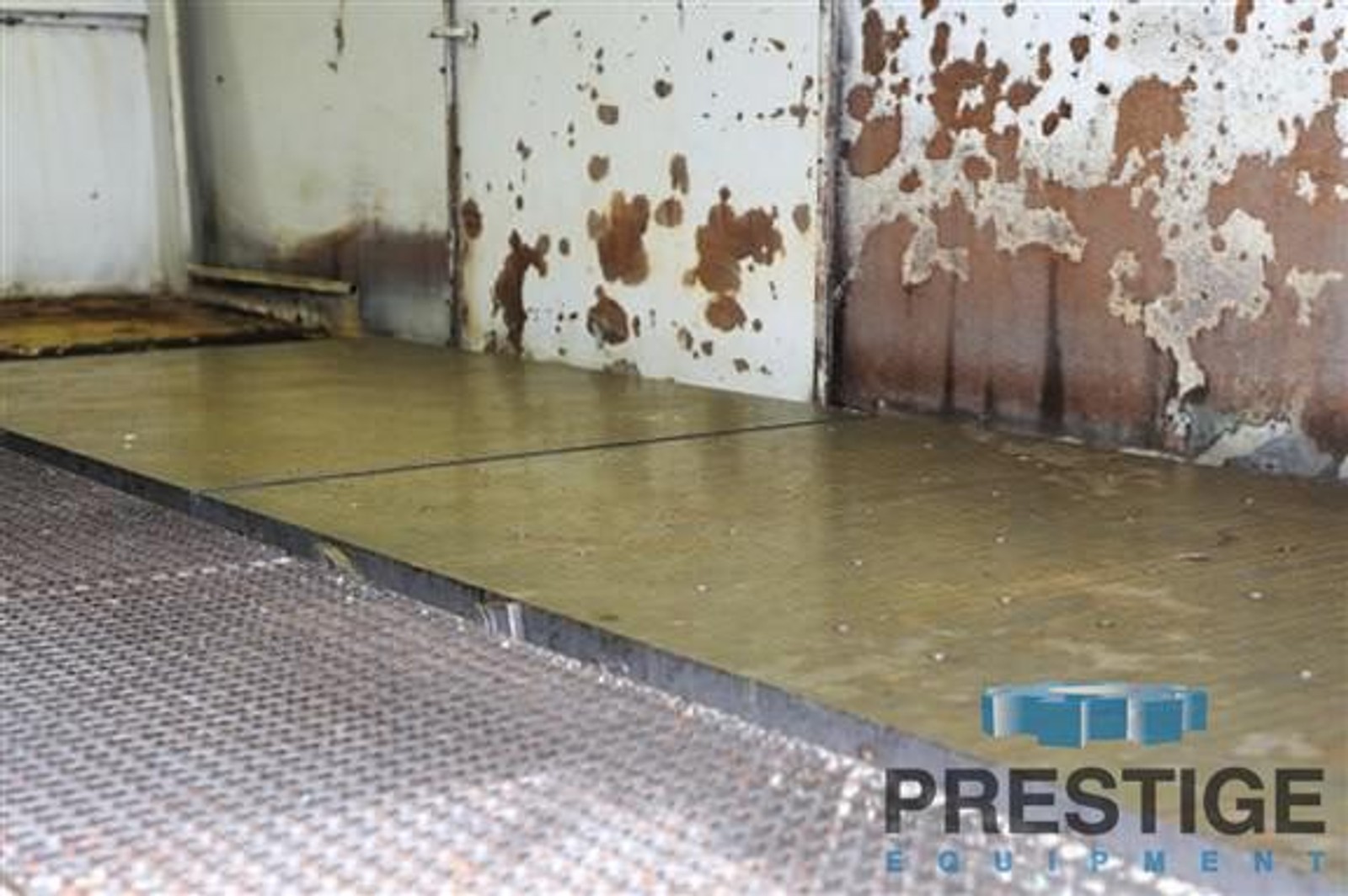

Table Working Surface ................. 157.5" x 39.4"
Max. Weight On Table .................. 9240 Lbs.
Main Grinding Wheel ................... 23.6" x 3.94"
Main Grinding Wheel I.D. .............. 12"

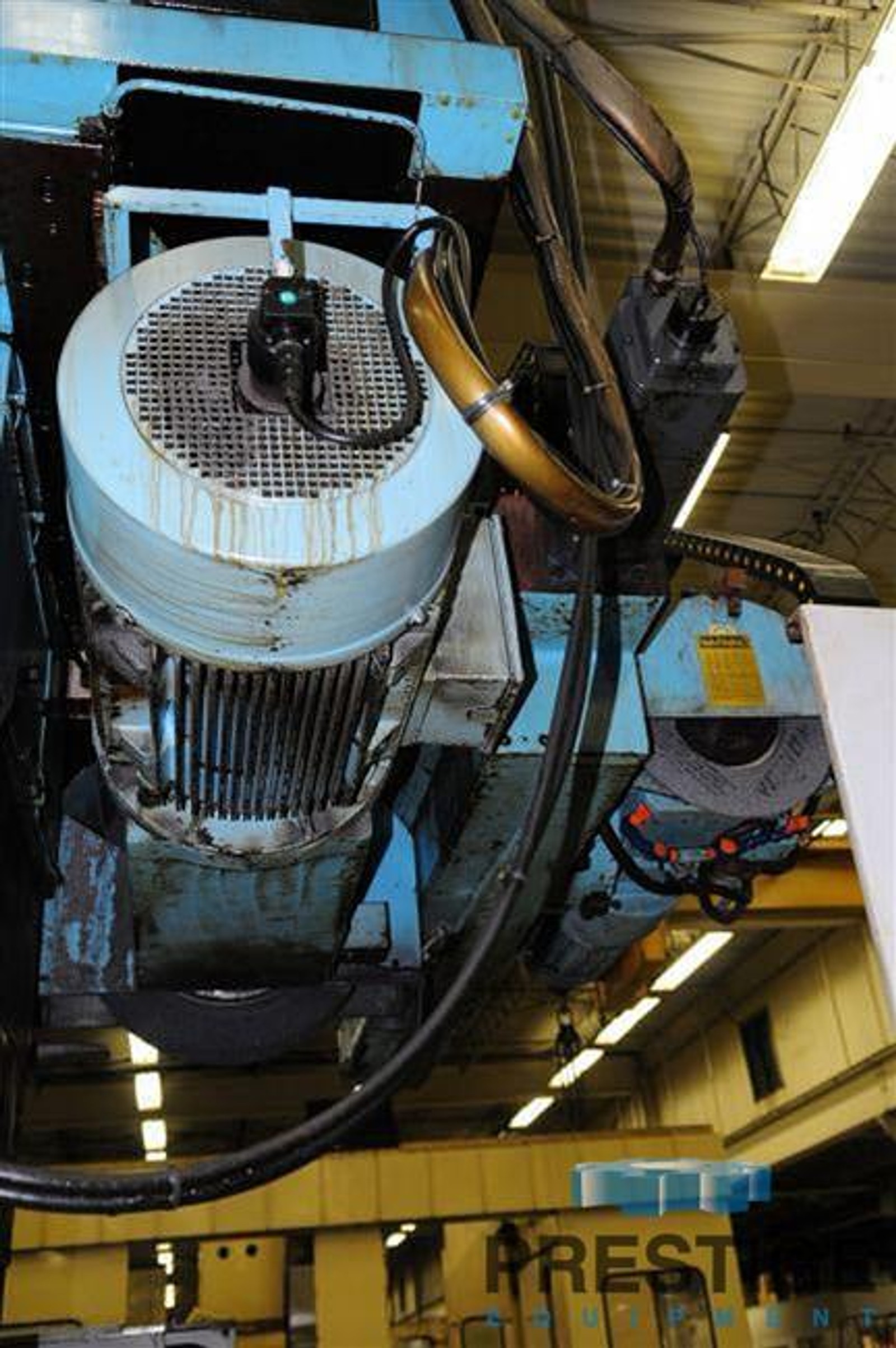

Main Grinding Wheel Motor ............. 30 HP
Main Grinding Wheel Speed ............. 1000 RPM
Longitudinal Travel Rapid Feed ........ 1181 IPM
Cross Travel Rapid Feed ............... 315 IPM
Vertical Travel Rapid Feed ............ 20 IPM
Minimum Programmable Increments ....... 0.039 IPM
Machine Dimensions, L x W ............. 352" x 192"
Machine Height ........................ 165"
Approx. Weight ........................ 84,480 Lbs.

EQUIPPED WITH:

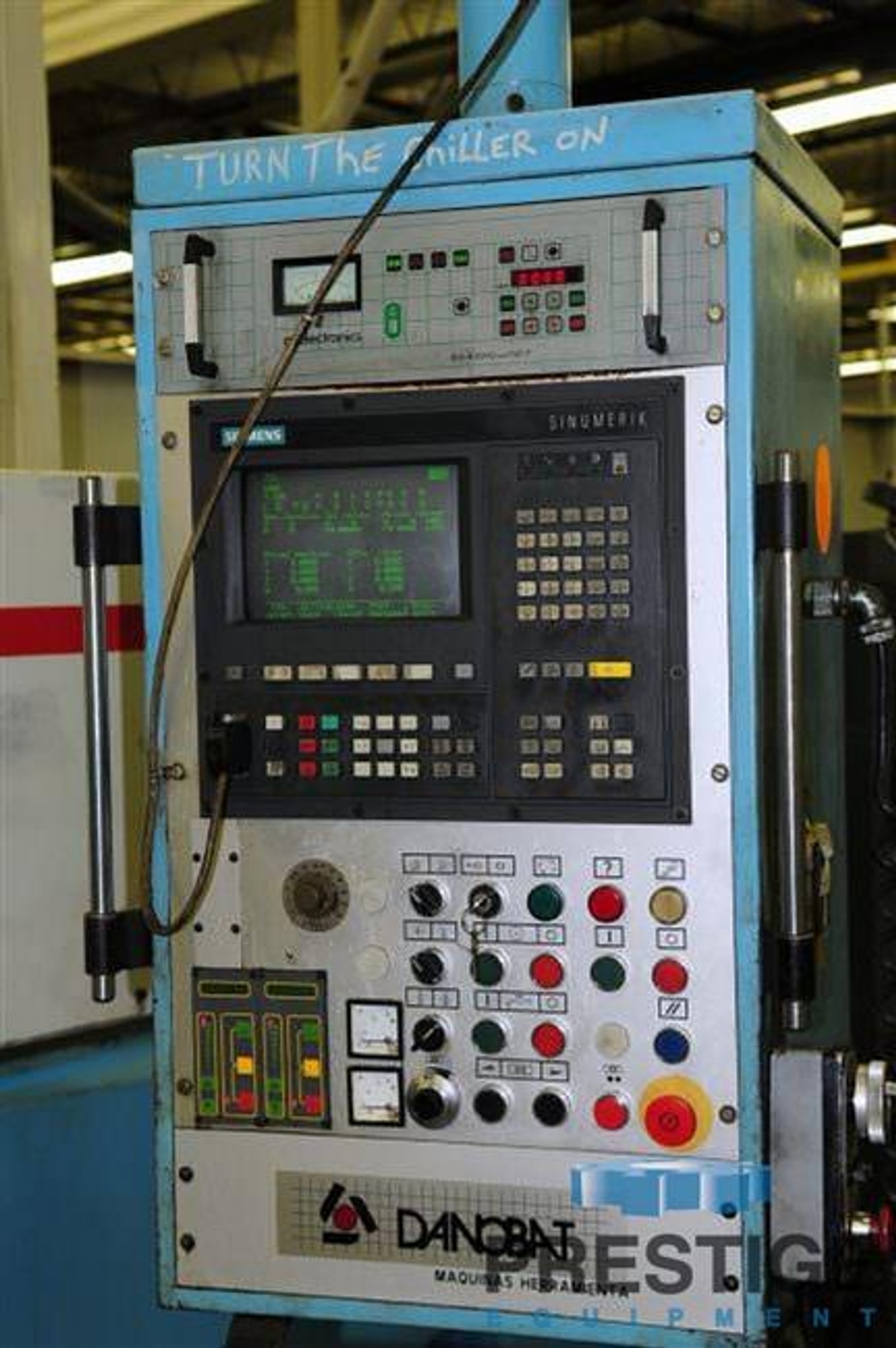

SIEMENS SINUMERIK 810D CNC Control

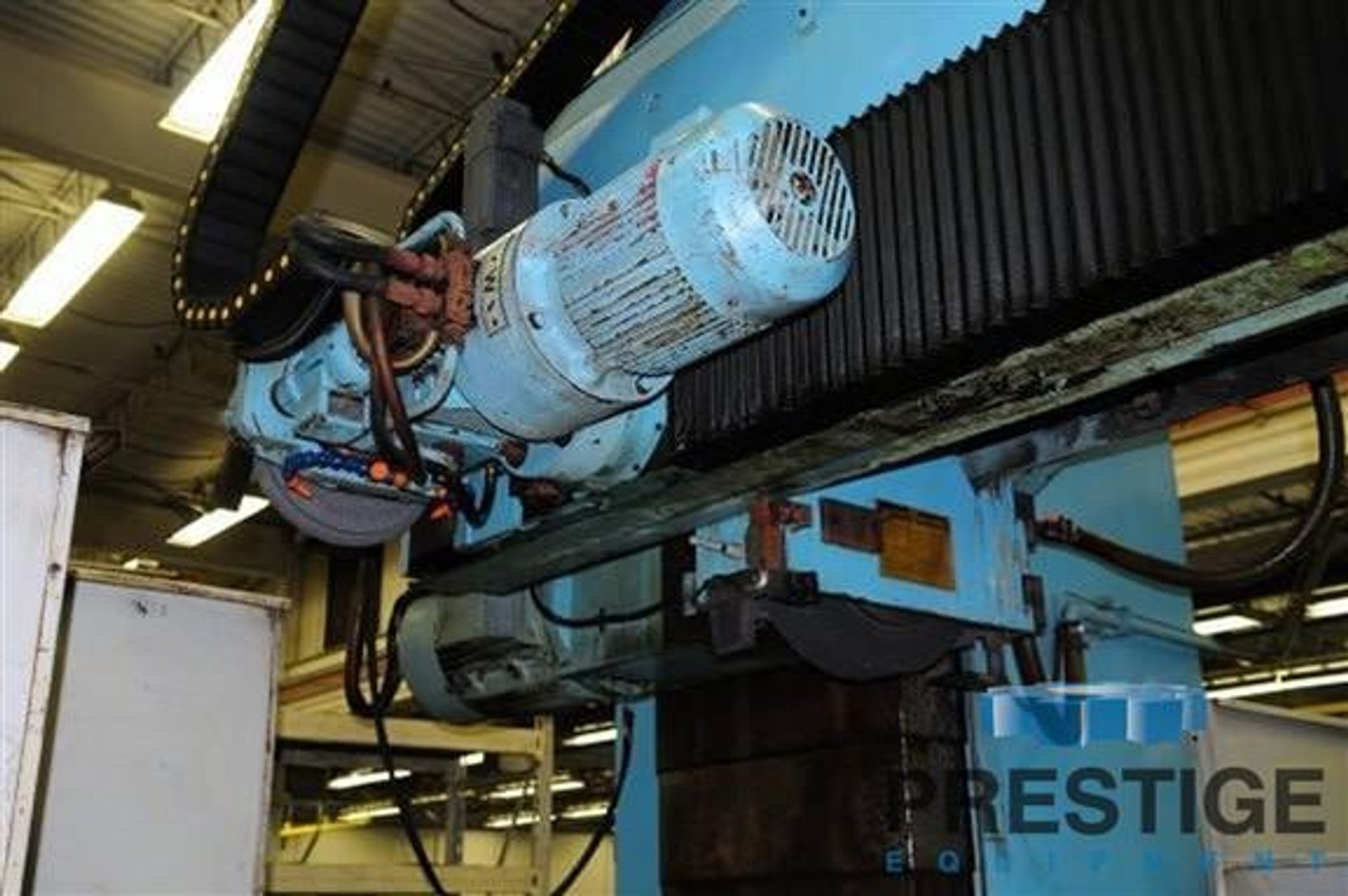

Swiveling Dovetail-Type Auxiliary Grinding Wheel

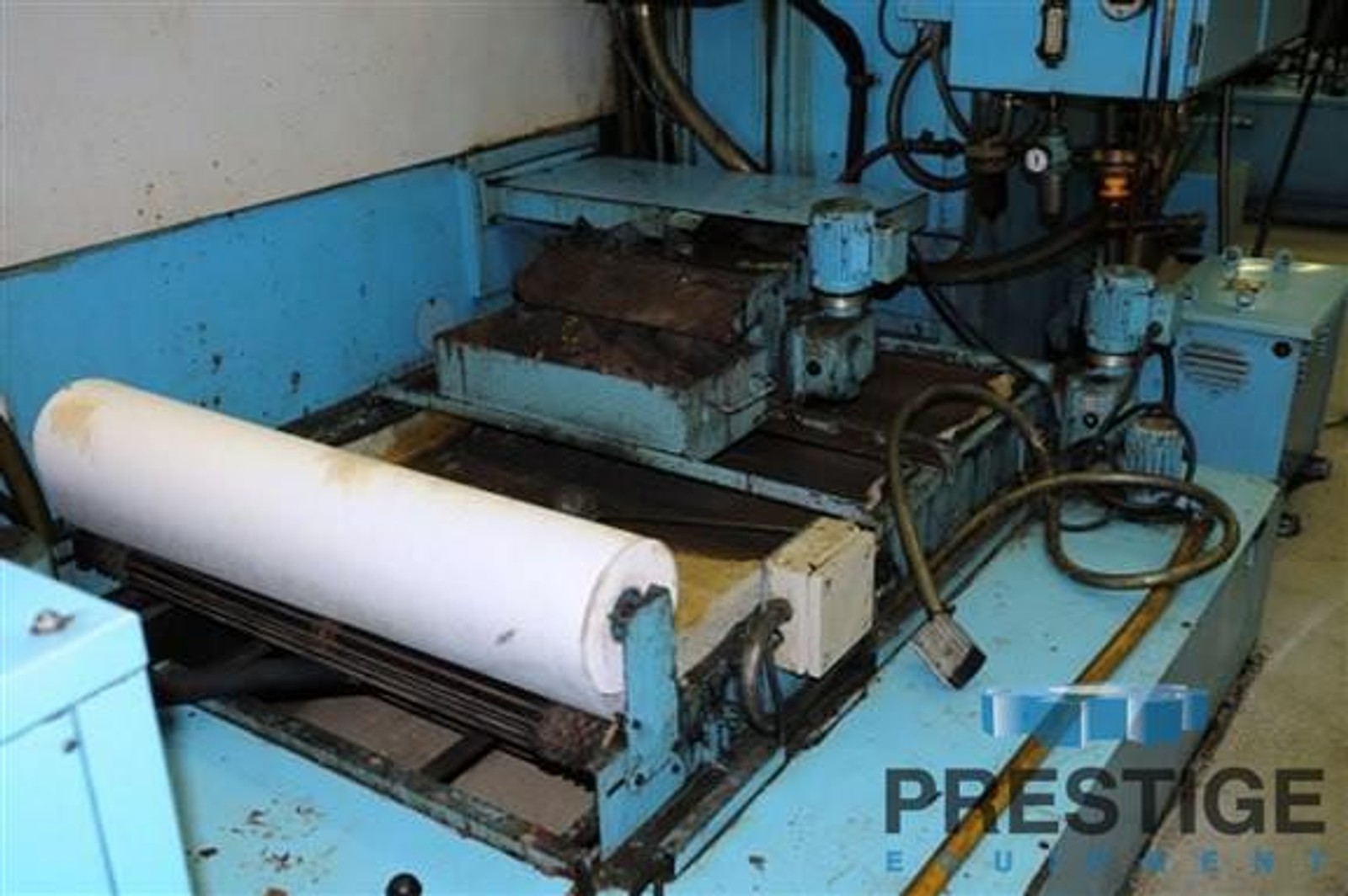

Filber Juma-Gain Magnetic Sludge/Filtration, SN 1110

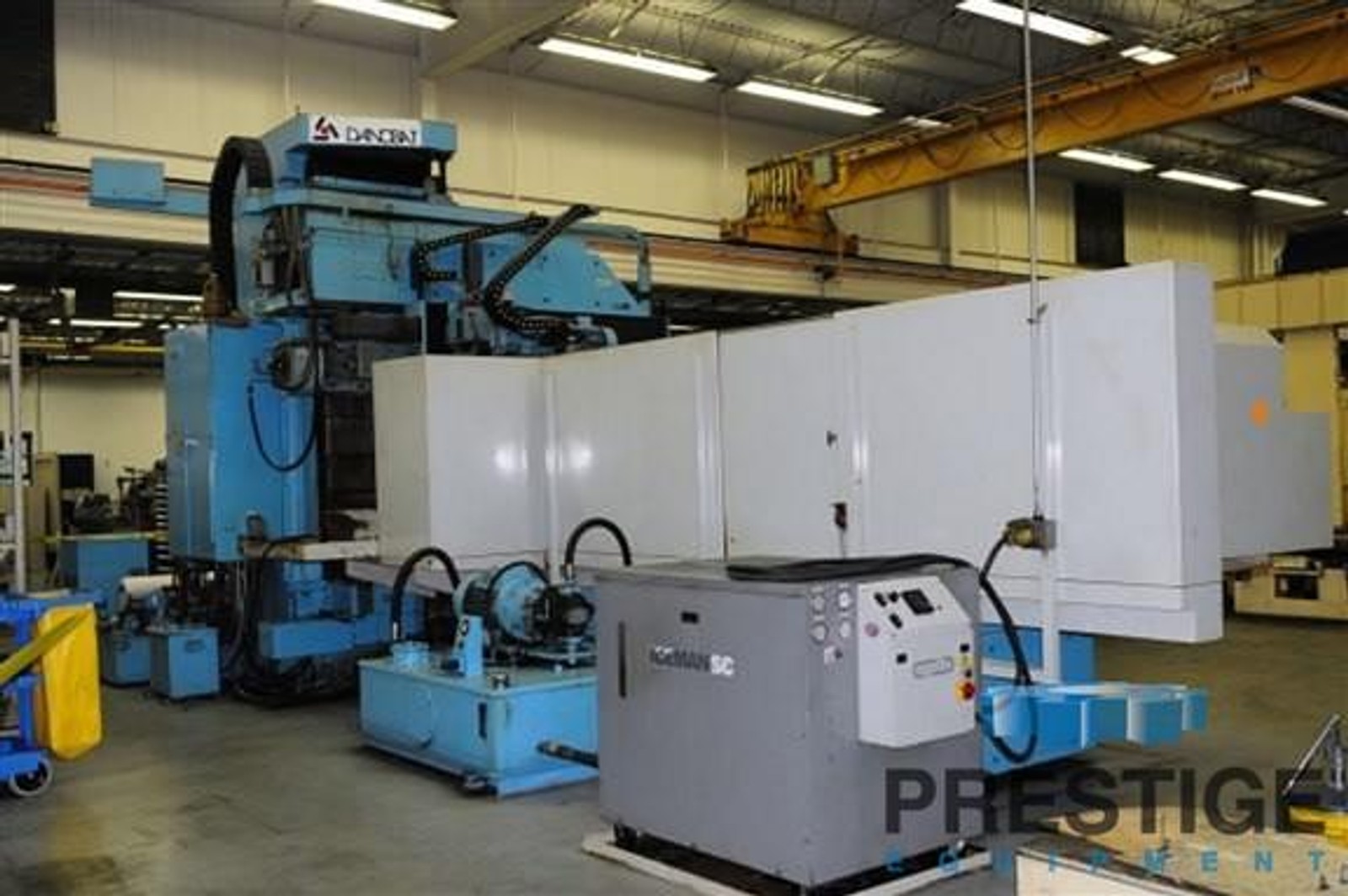

Mokon Chiller, Model AS2AO7, SN 61984
Hydraulic Unit

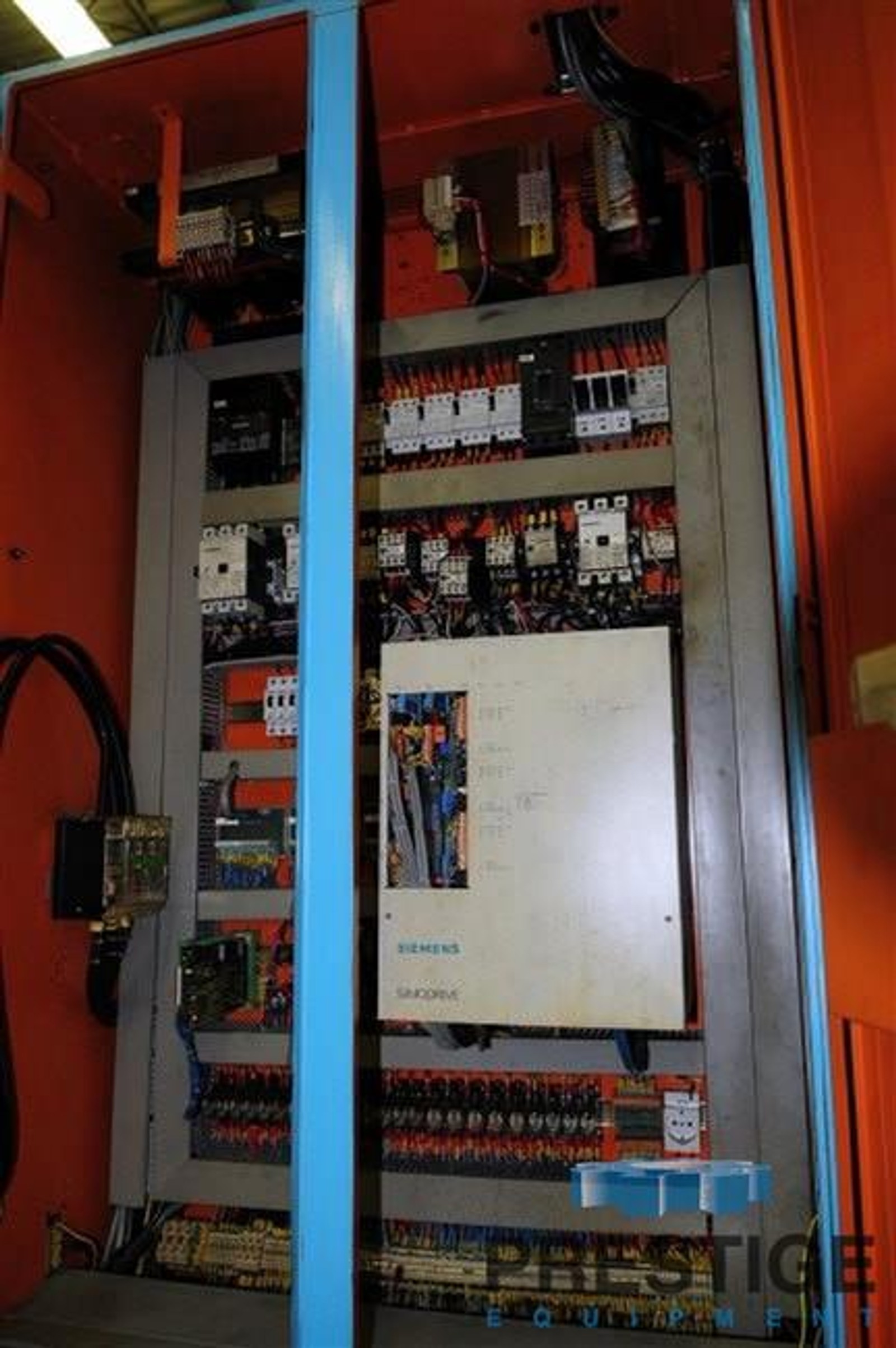

Transformer

NOTE:
Offer Includes Loading to Truck.
Packing for Overseas Shipment is additional Cost.
