Vtec Visionwide SF3120 , 40 ATC, X-125" , Y-80" Z-39", 71" x 118" Table, Geared Head, 6000 RPM, Fanuc 31iMB, 2014 #32435

Manufacturer

Vtec Visionwide

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32435

Model

SF3120

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32435

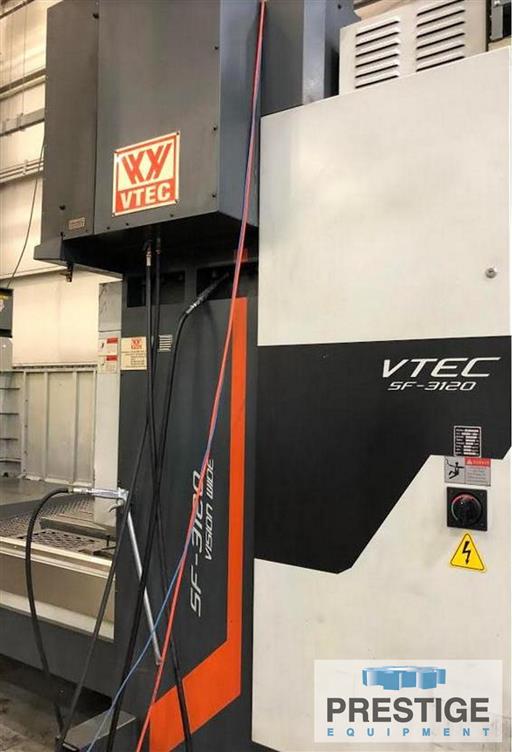

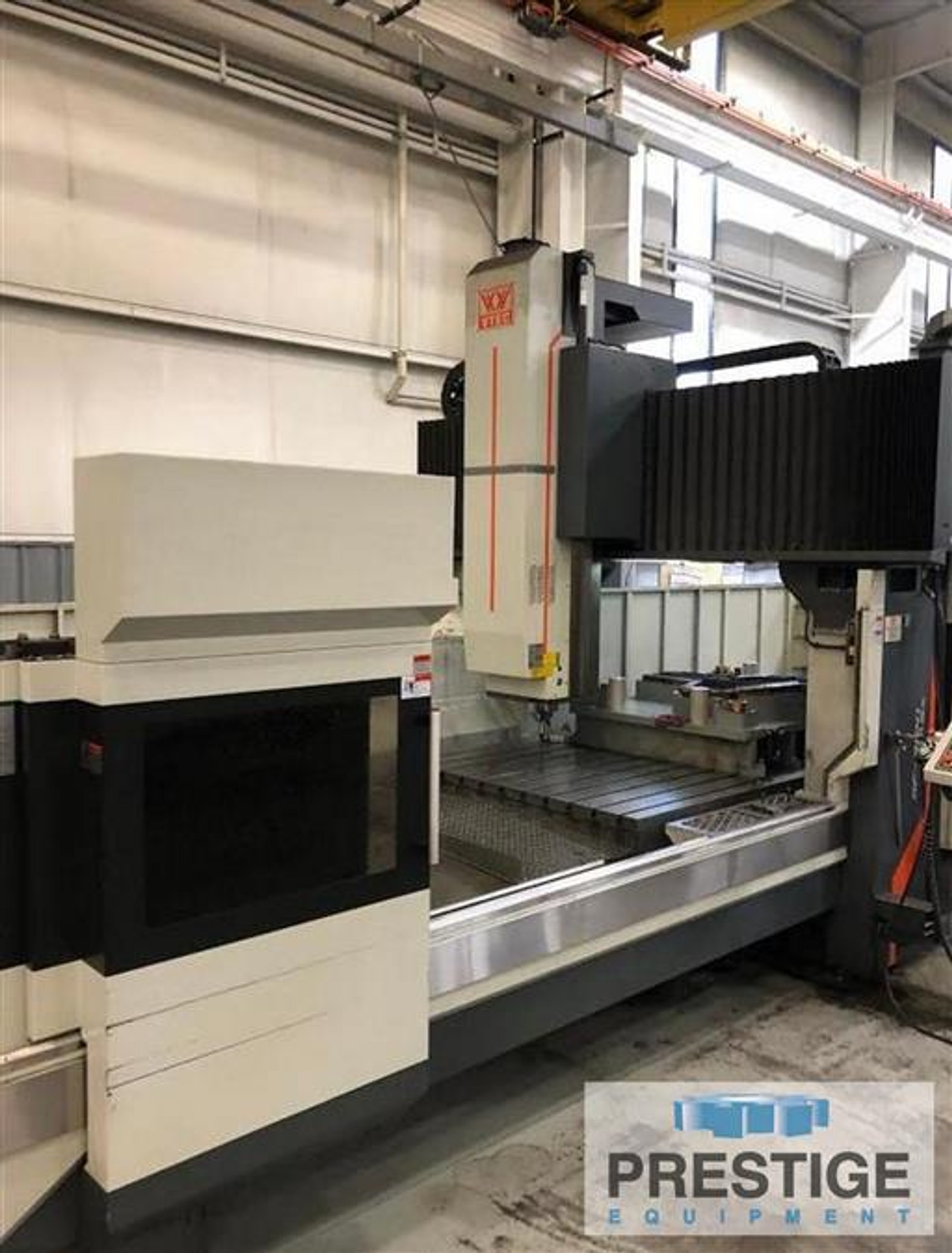

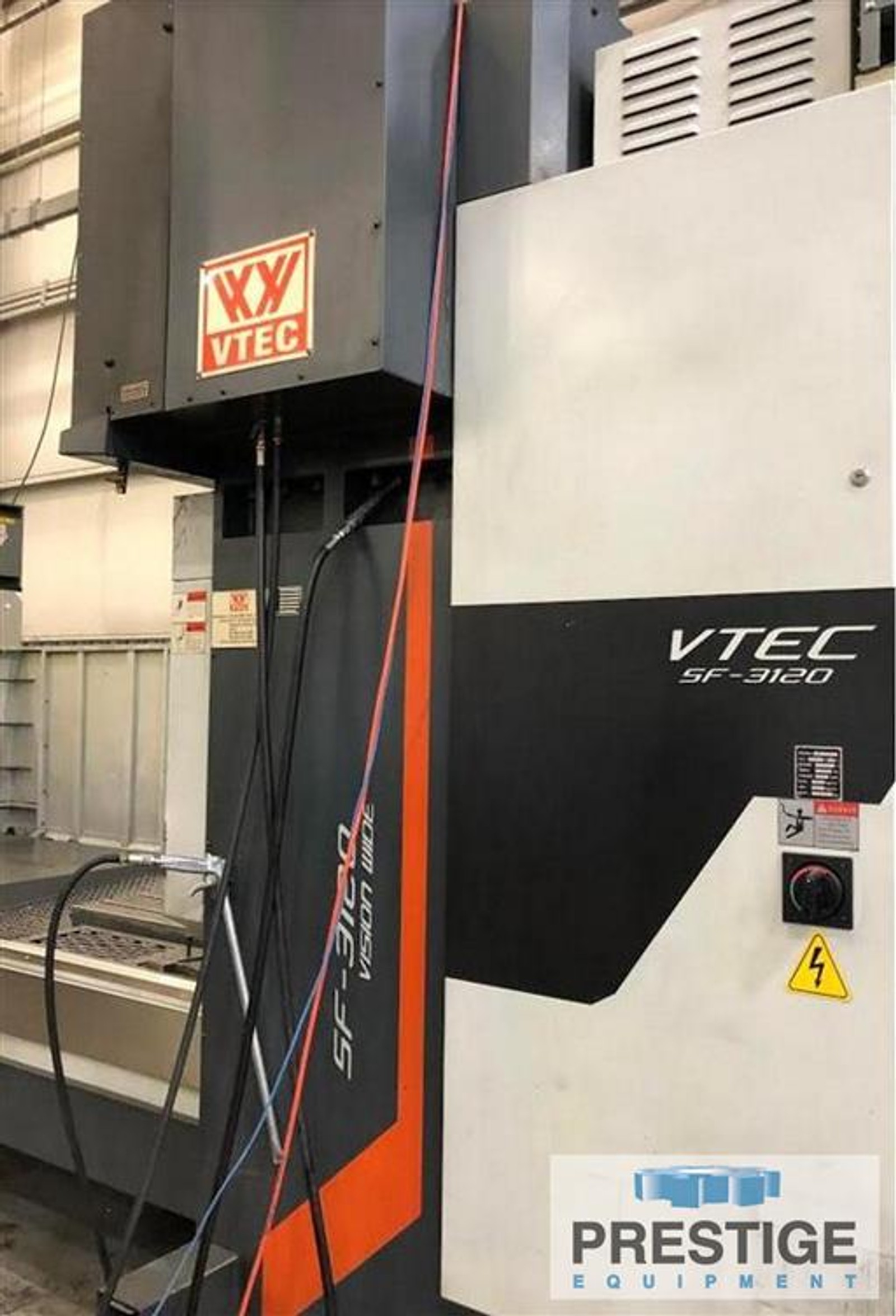

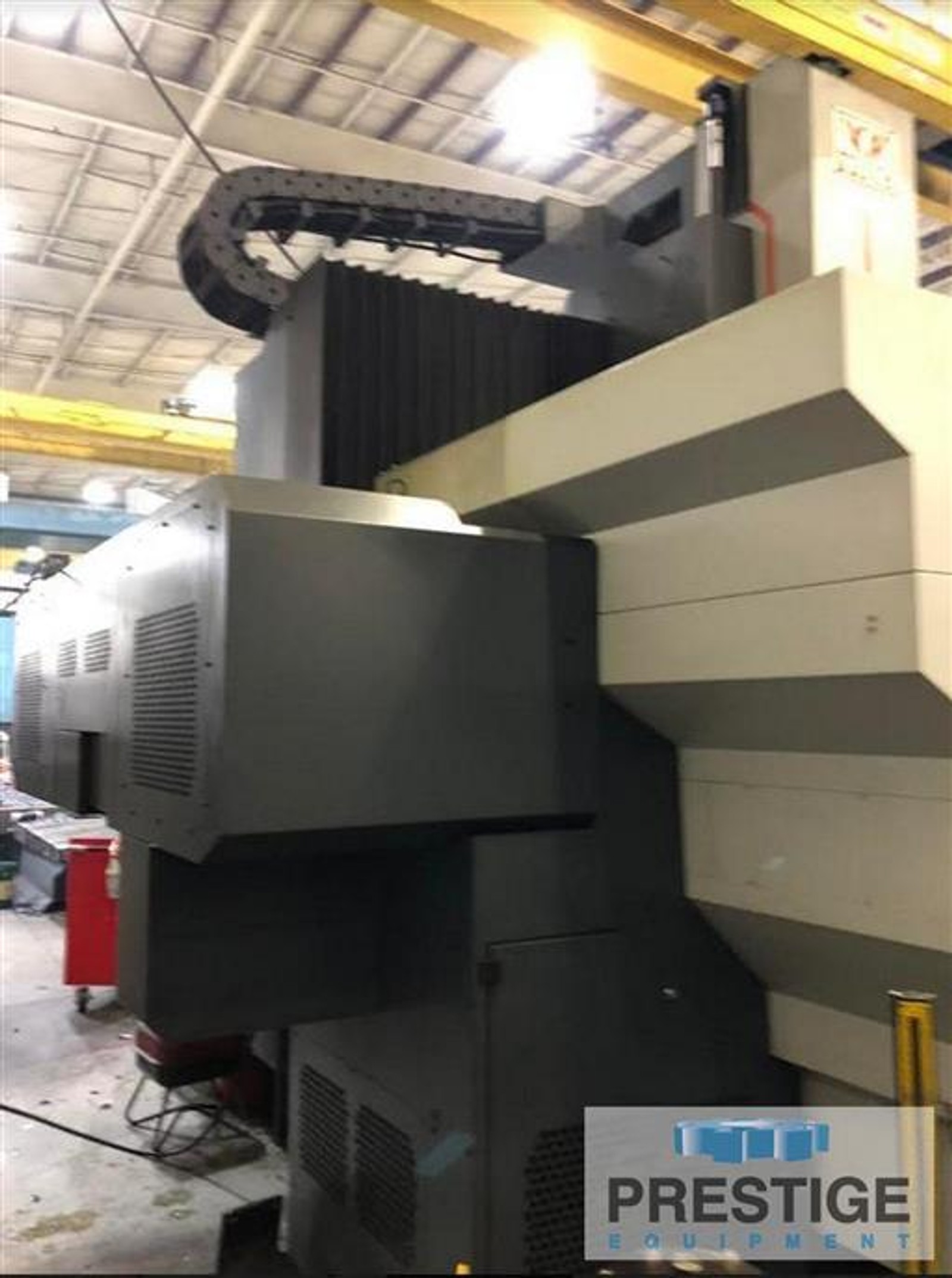

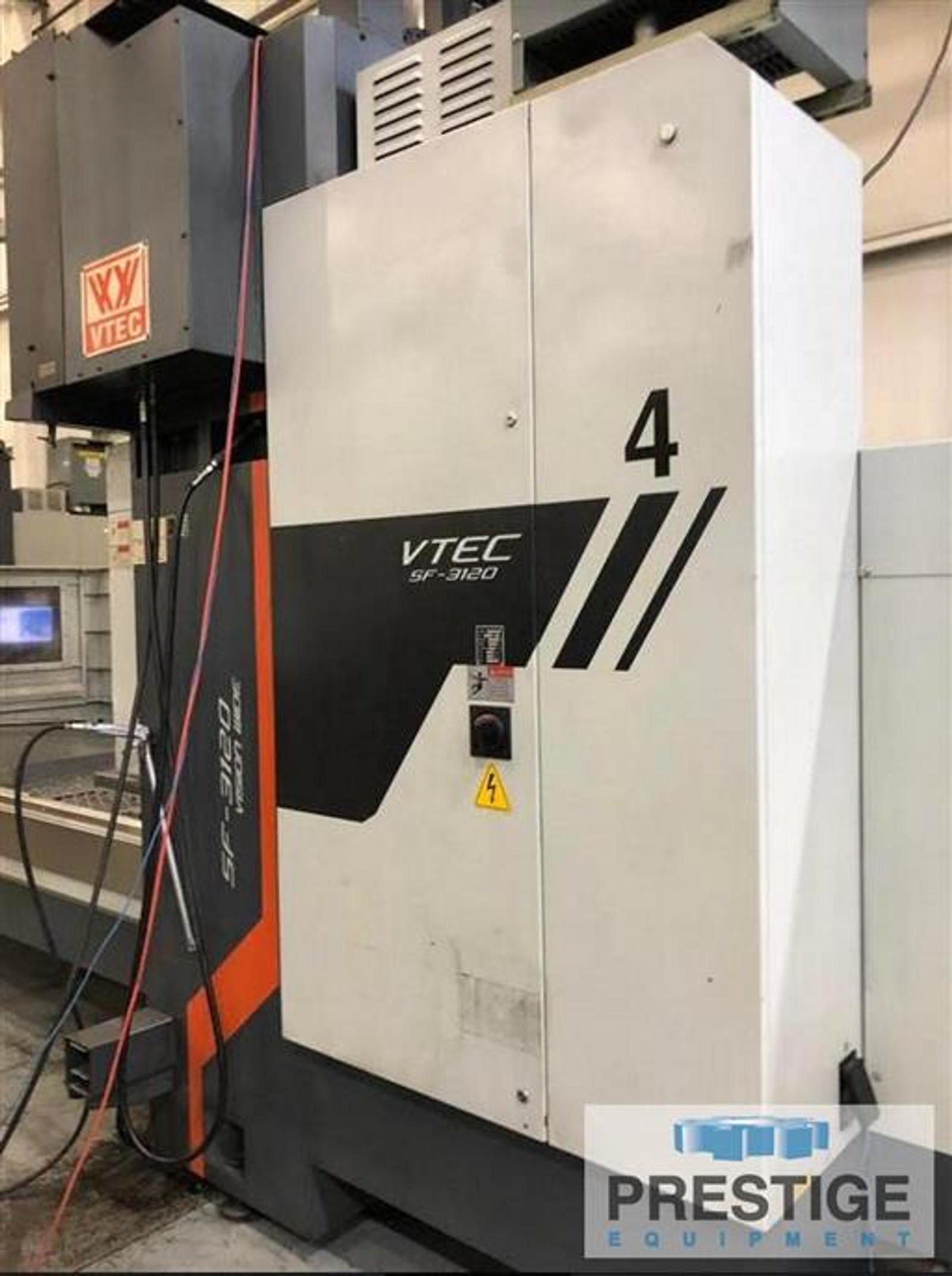

Vtec Visionwide SF3120 CNC Bridge Mill

FEATURES:
Fanuc 31iMB CNC Control
Coolant through spindle 300 PSI
AICC II Nano high speed machining (Look Ahead Machining)
40-Station Automatic Tool Changer
2-Speed geared head
Bag coolant filter system
6000 RPM geared spindle
Chip augers & Chip Conveyor
Linear guides X & Y Axis
Box way Z Axis

CAPACITY:
Table size............................. 118.11" x 71"
Table Travel, X-Axis ................. 125"
Head Travel, Y-Axis .................. 80"
Ram Stroke, Z-Axis ................... 39"
Maximum Distance Bridge to Table ...... 47"
Maximum Distance Spindle to Table...... 45"
Maximum Distance Between Columns ...... 83"
Spindle Speeds ........................ To 6000 RPM
Spindle Speed Range, Geared Head ...... 2
Spindle Taper.......................... Cat #50

EQUIPPED WITH:
Fanuc 31iMB CNC Control
AICC II Nano high speed machining (Look Ahead Machining)
40-Station Automatic Tool Changer
Coolant through spindle 300 PSI
2-Speed geared head
6000 RPM Geared Spindle
Bag coolant filter system geared spindle
Chip augers & Chip Conveyor
Linear guide Ways on X & Y Axis
Box ways Z Axis
