Mighty Viper B-4000GTDW Twin Spindle CNC Bridge Mill, X-160", Y-80", 108" B/C, Mitsubishi M530 CNC, (2) 20 ATC, #32536

Manufacturer

MIGHTY VIPER

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32536

Model

B-4000GTDW

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32536

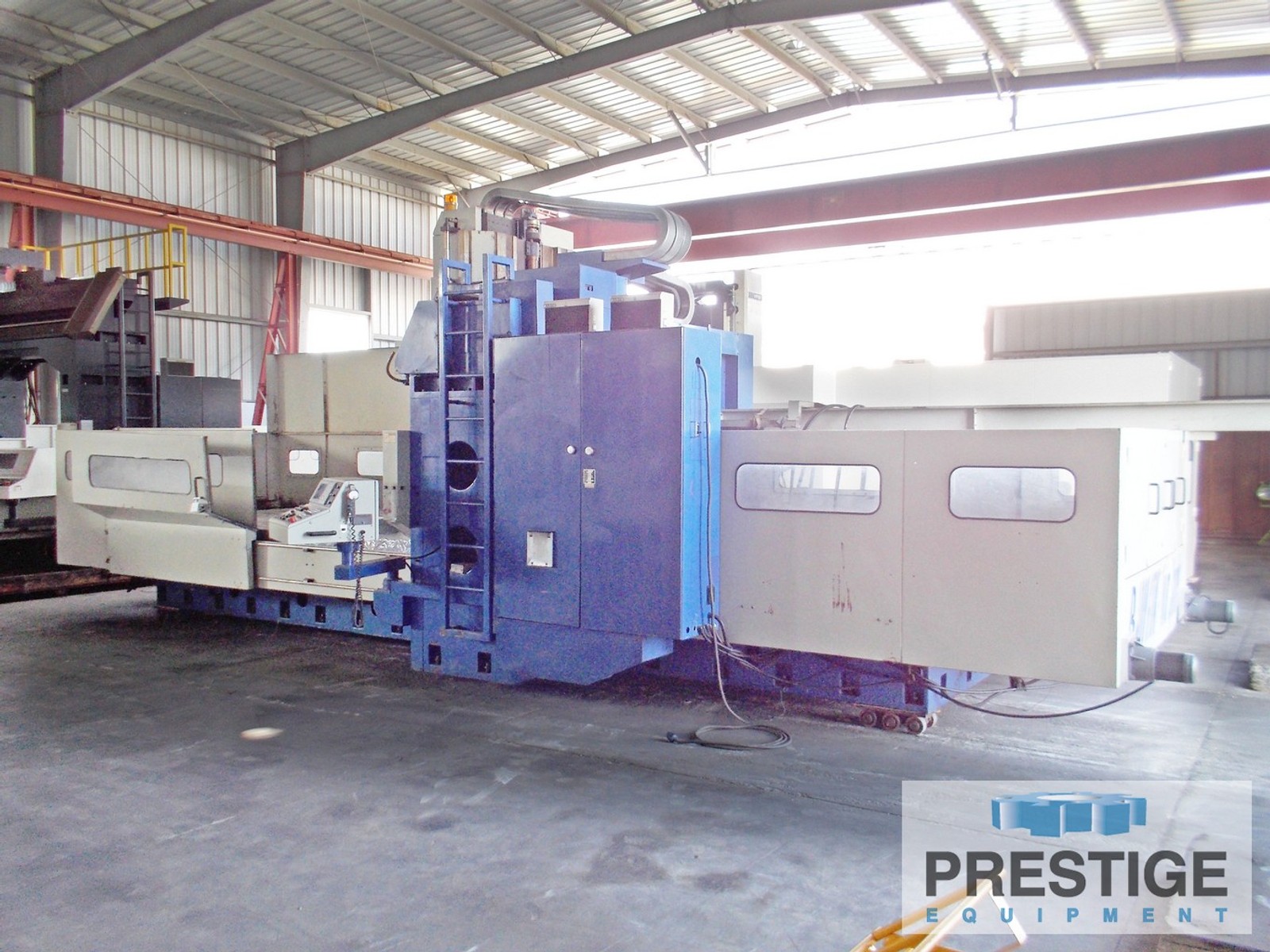

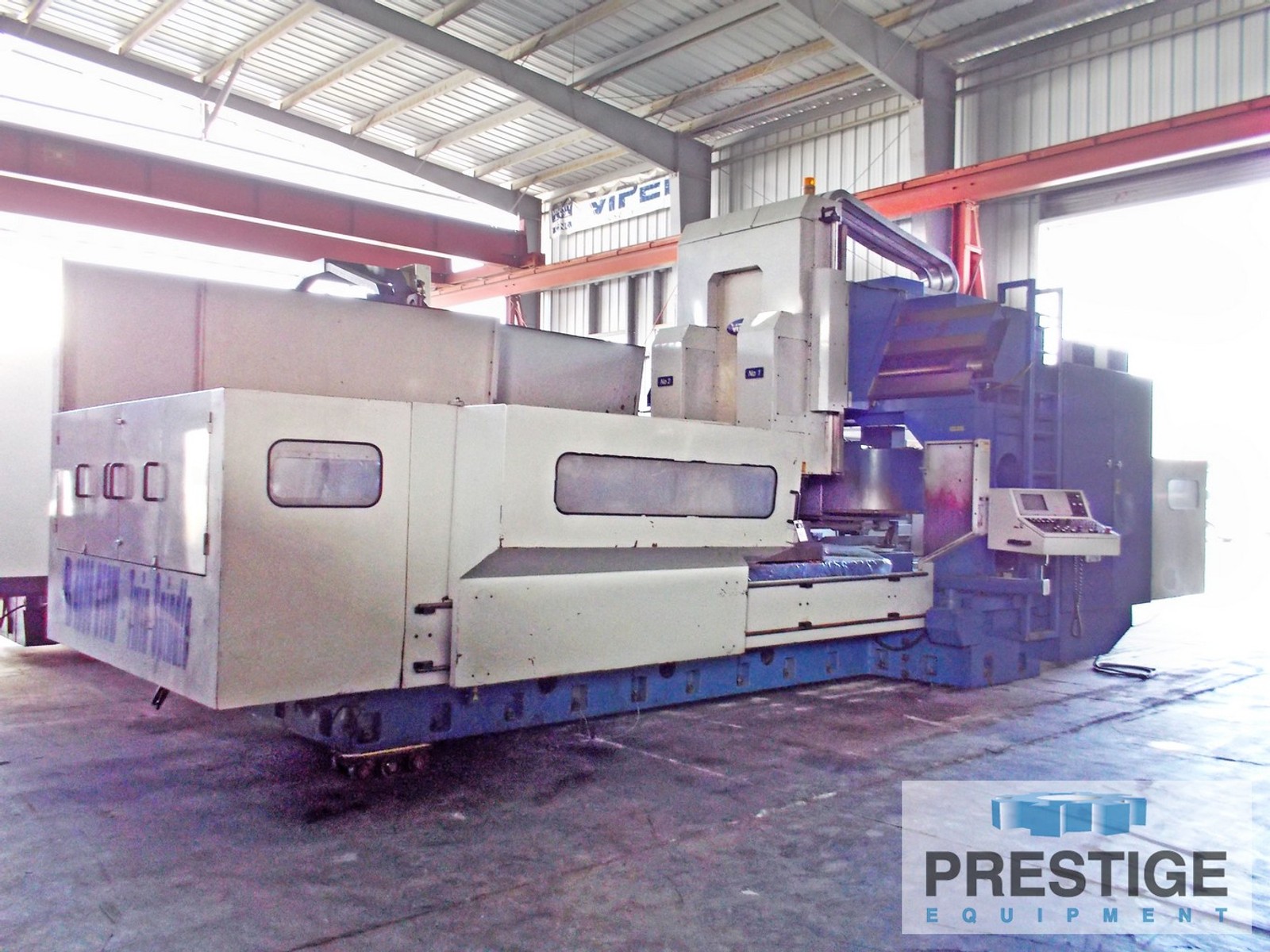

Mighty Viper B-4000GTDW Twin Spindle CNC Bridge Mill

FEATURES:

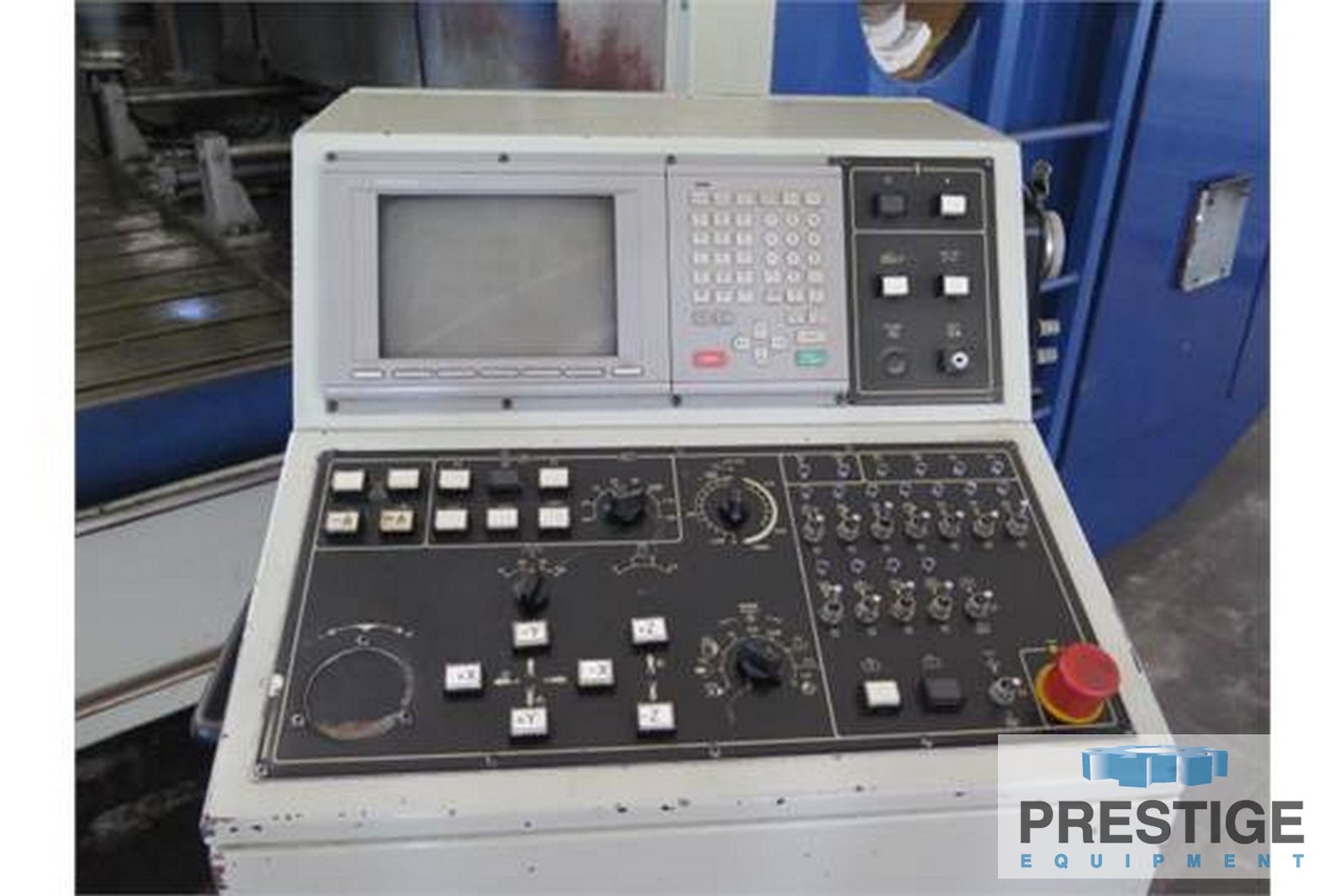

Mitsubishi M530 CNC Control
(2) 20 Station Automatic Tool Changers
Automatic Lubrication System
Chip Conveyor

SPECIFICATIONS:
X-Axis, Table Travel .................. 160"
Y-Axis, Spindle Head Travel ........... 80"
Z-Axis, Vertical Travel ............... 32"
Distance Between Columns .............. 108.3"
Distance Between Spindles ............. 40"
Distance Spindle Nose to Table ....... 5.3"-37.6 "
Distance Between Spindle to Column .... 22.95"

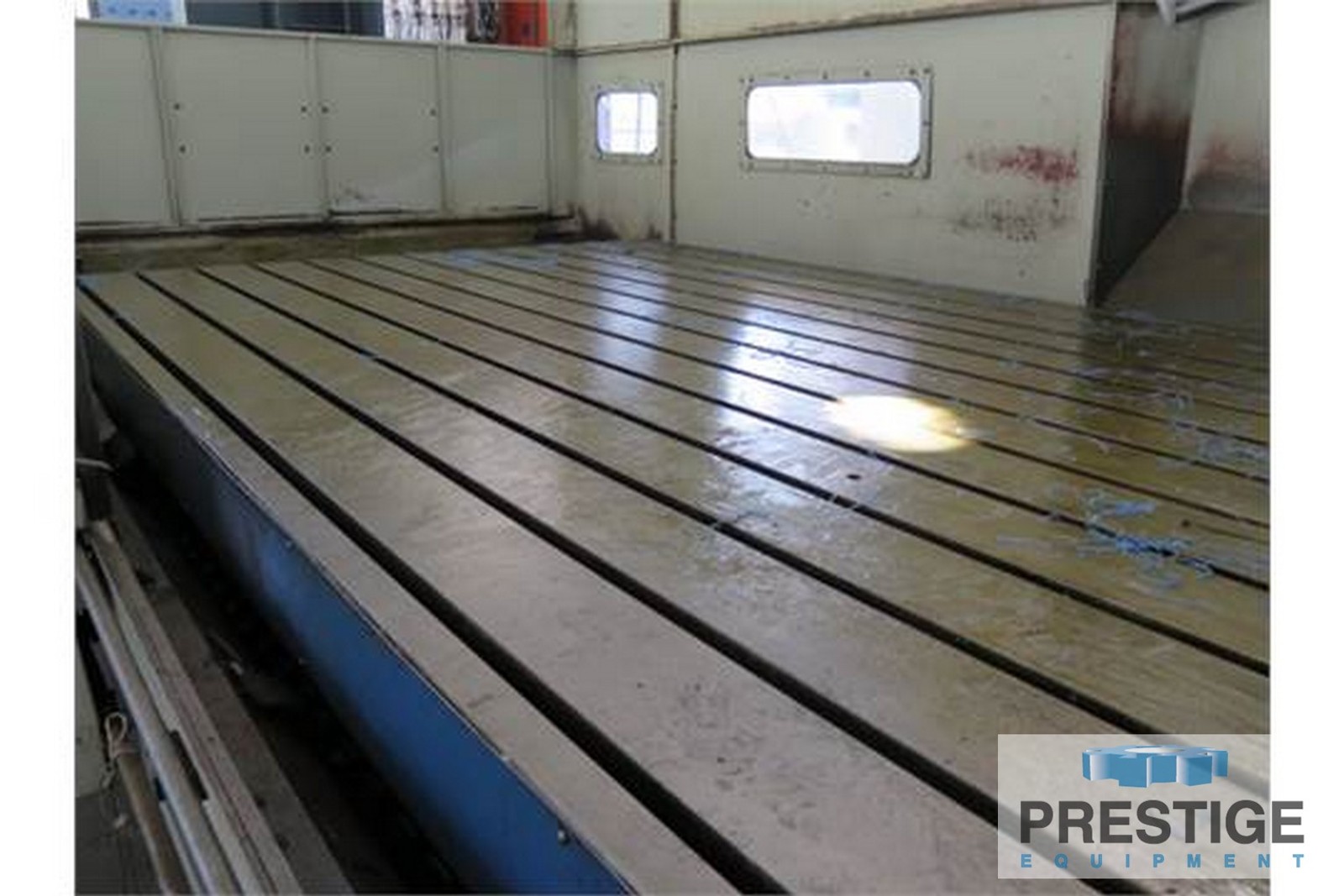

Table Size ............................ 165" x 100"
Table Capacity ........................ 45,000 Lbs
Spindle Taper ......................... CAT #50
Maximum Spindle Speed (Geared)......... 6,000 RPM
Spindle Motor ......................... 35 HP
Rapid Feed Rates (X,Y,Z) .............. 393 IPM
Cutting Feed Rate ..................... 276 IPM

EQUIPPED WITH:
Mitsubishi M530 CNC Control
(2) 20 Station Automatic Tool Changers
Automatic Lubrication System
Spindle Oil Cooler
Coolant System
Automatic Power Off
Chip Conveyor

HOURS: 15,900
