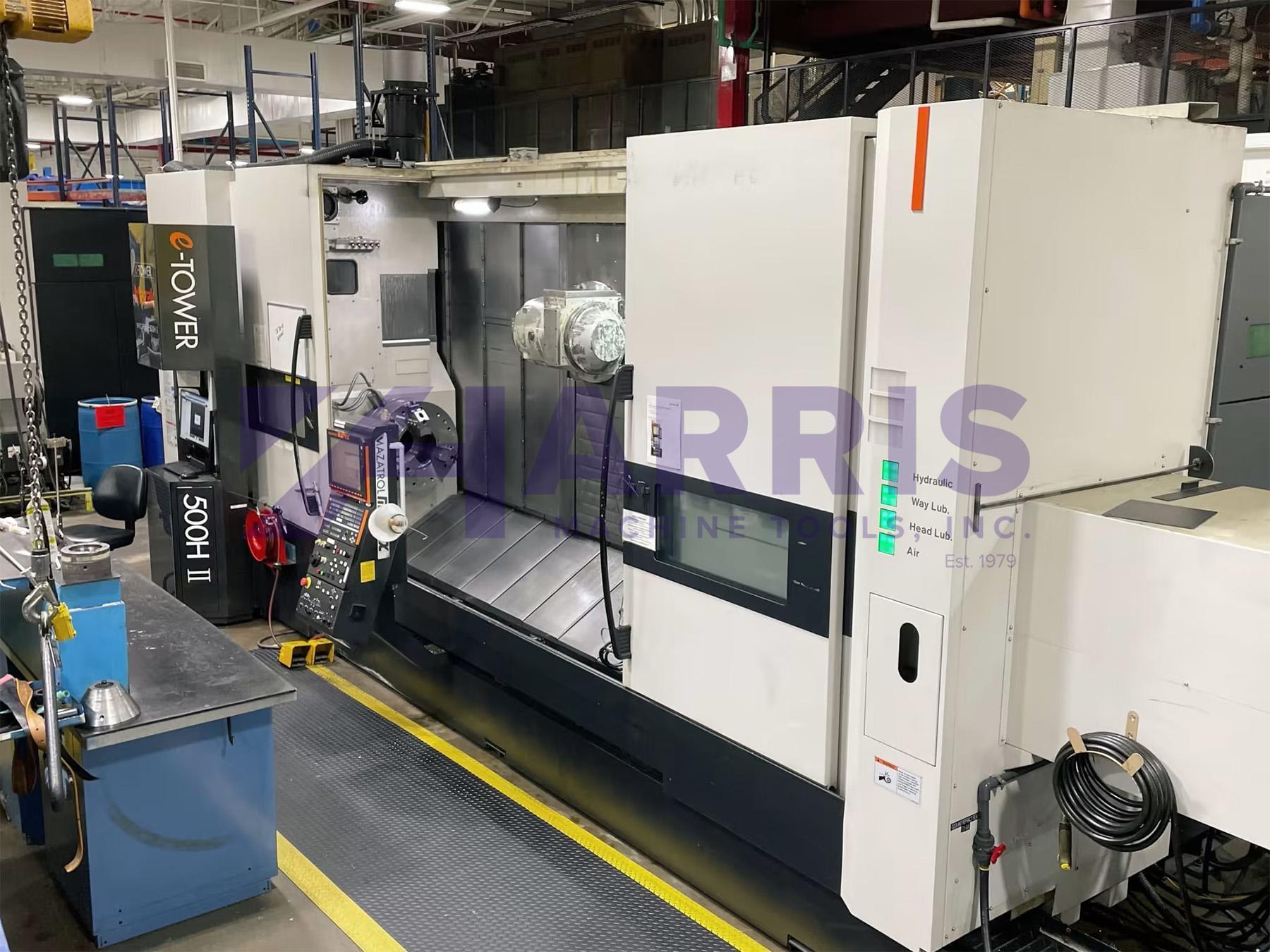

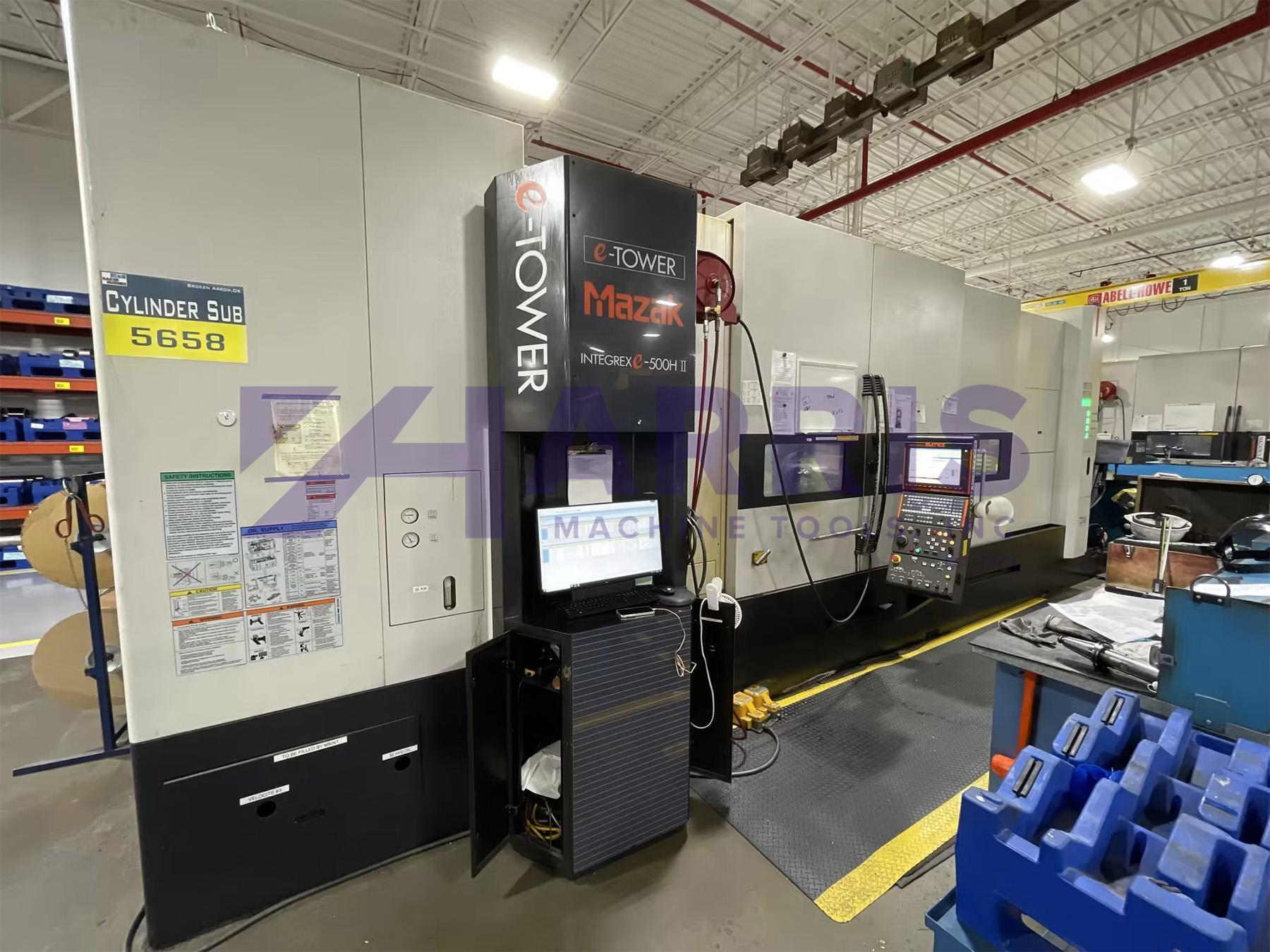

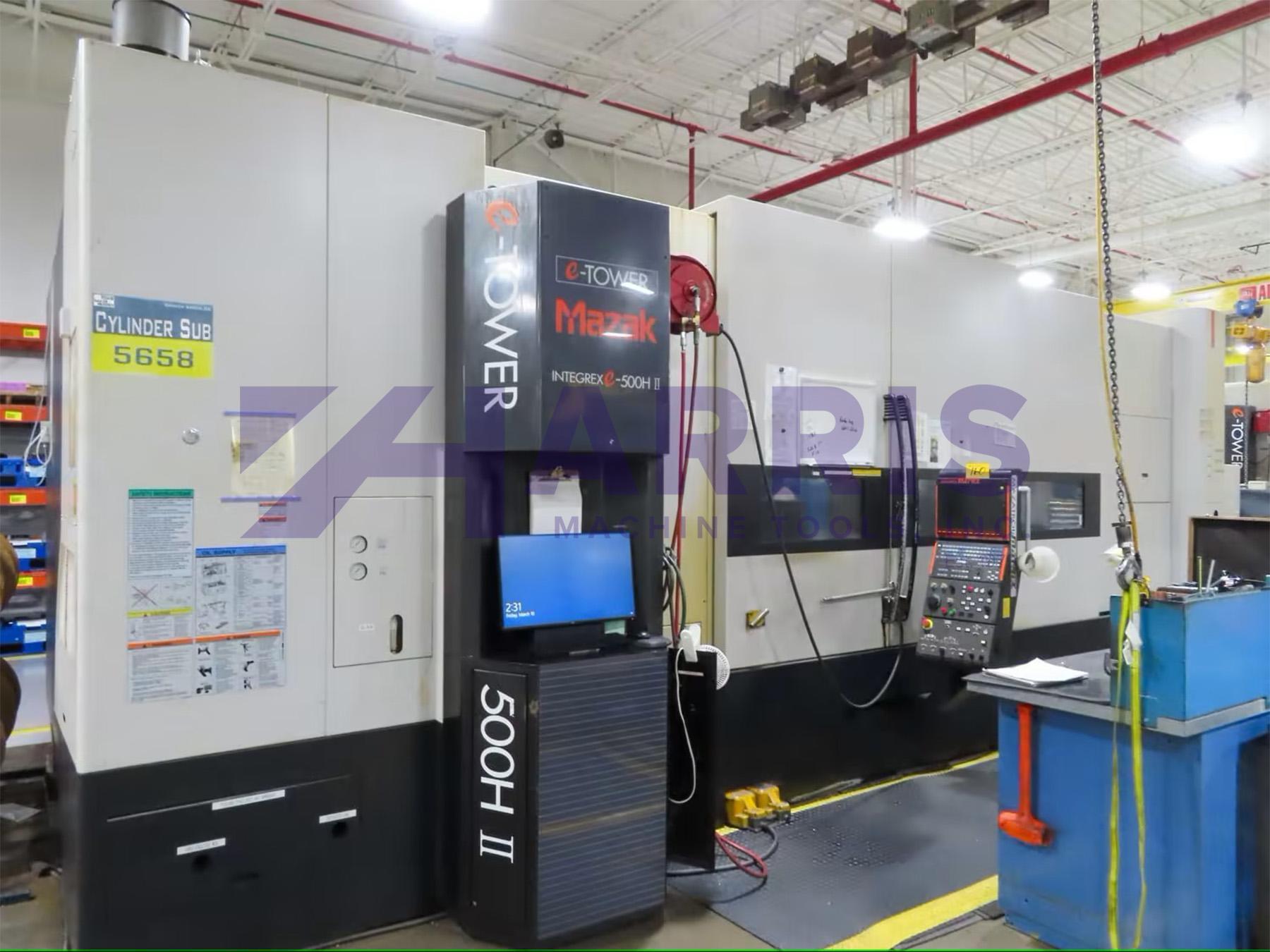

Used, 2007 Mazak Integrex e-500H II CNC Mill/Turn Horizontal Lathe

Manufacturer

MAZAK

Stock

20005

Model

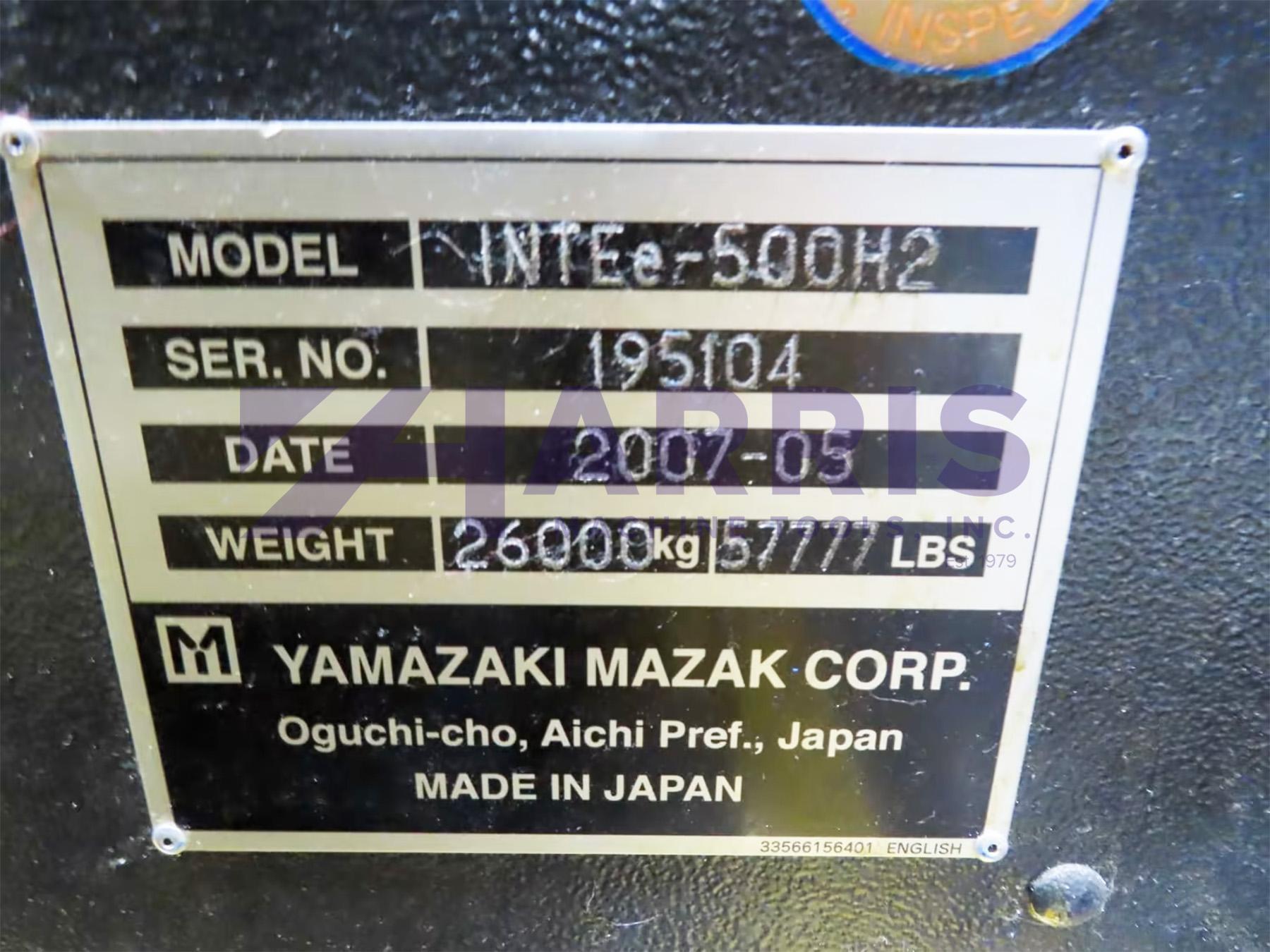

Integrex e-500H II

Dealer Location

Texas

Spec Sheet



Live Tooling / Milling:
C Axis
Y Axis
Live Tooling / Milling
B Axis
B Axis Travel: 0.0001 Deg. / Contouring "

Specifications:

Distance Between Centers: 120"

Spindle:

Chuck Type: Air
Spindle Bore: 7"
Spindle Speeds: 1600 RPM
Spindle Motor:  45 HP

Turret:
120 Positions
Live Milling Speeds: 10,000 RPM

Control:

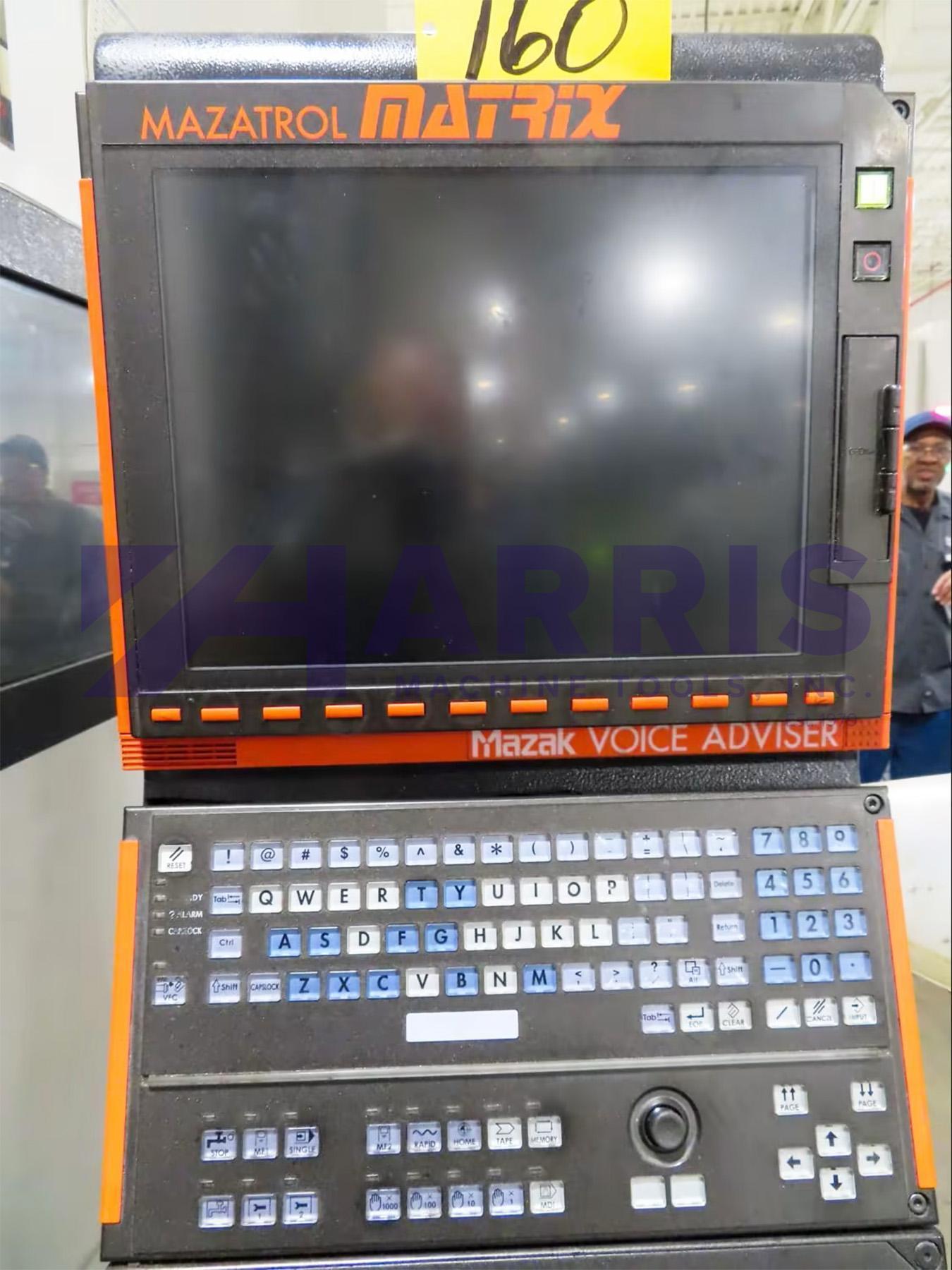

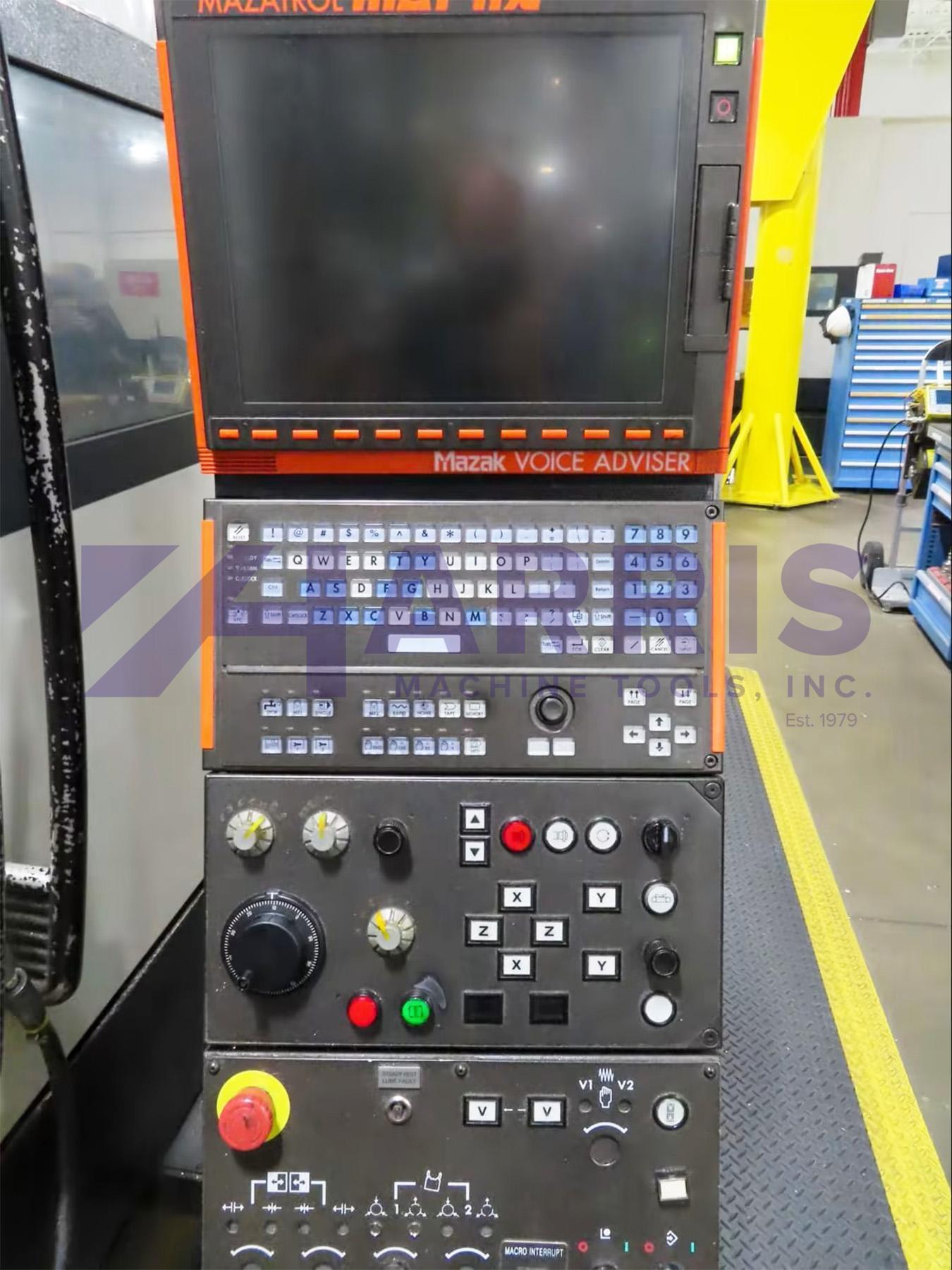

Mazatrol Matrix Nexus CNC Control
Color Monitor

G-Code
Spindle Orientation
USB
Ethernet / LAN
Synchronized Tapping
Inch/Metric Conversion
EIA/ISO Code Input Function

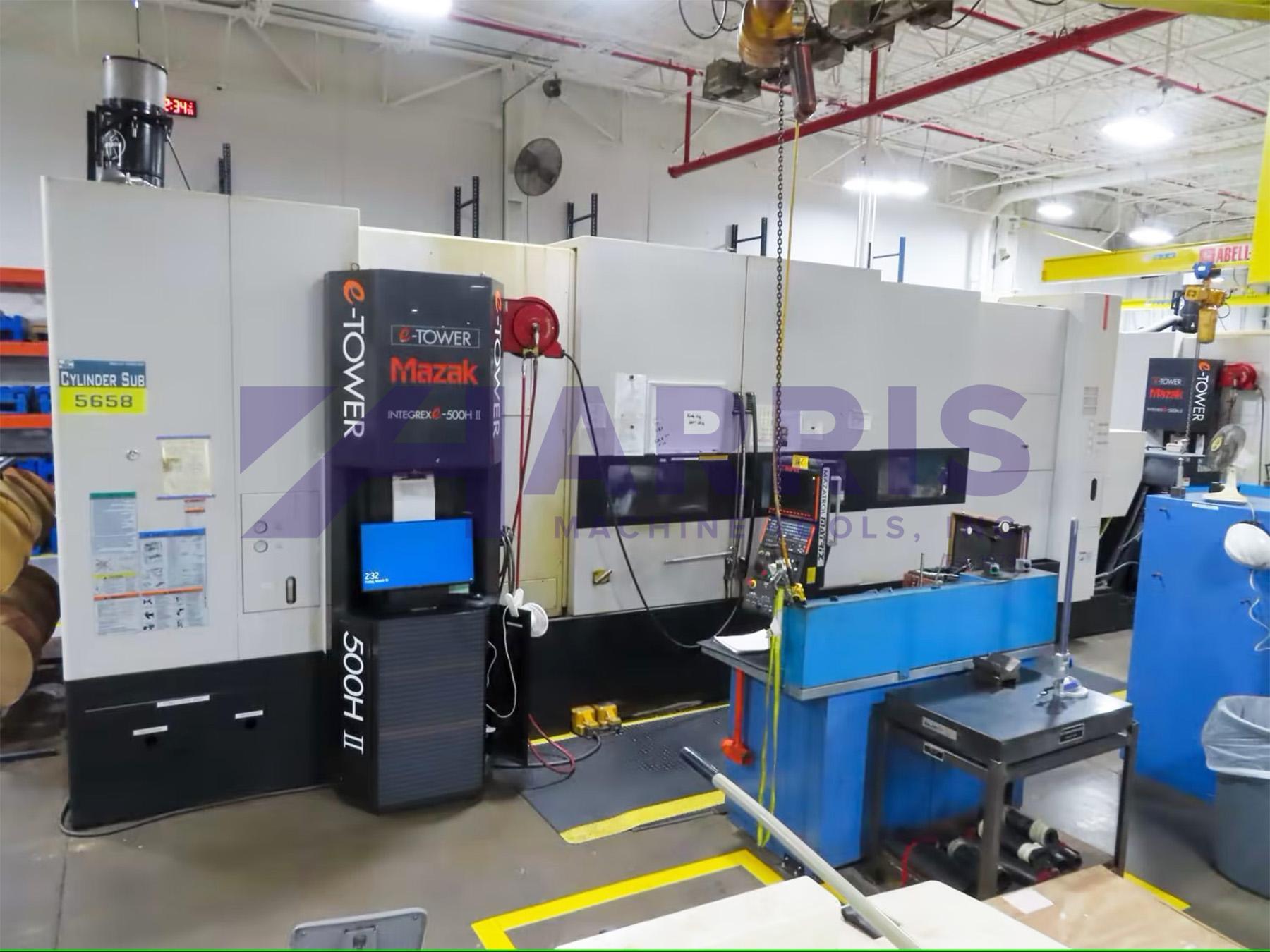

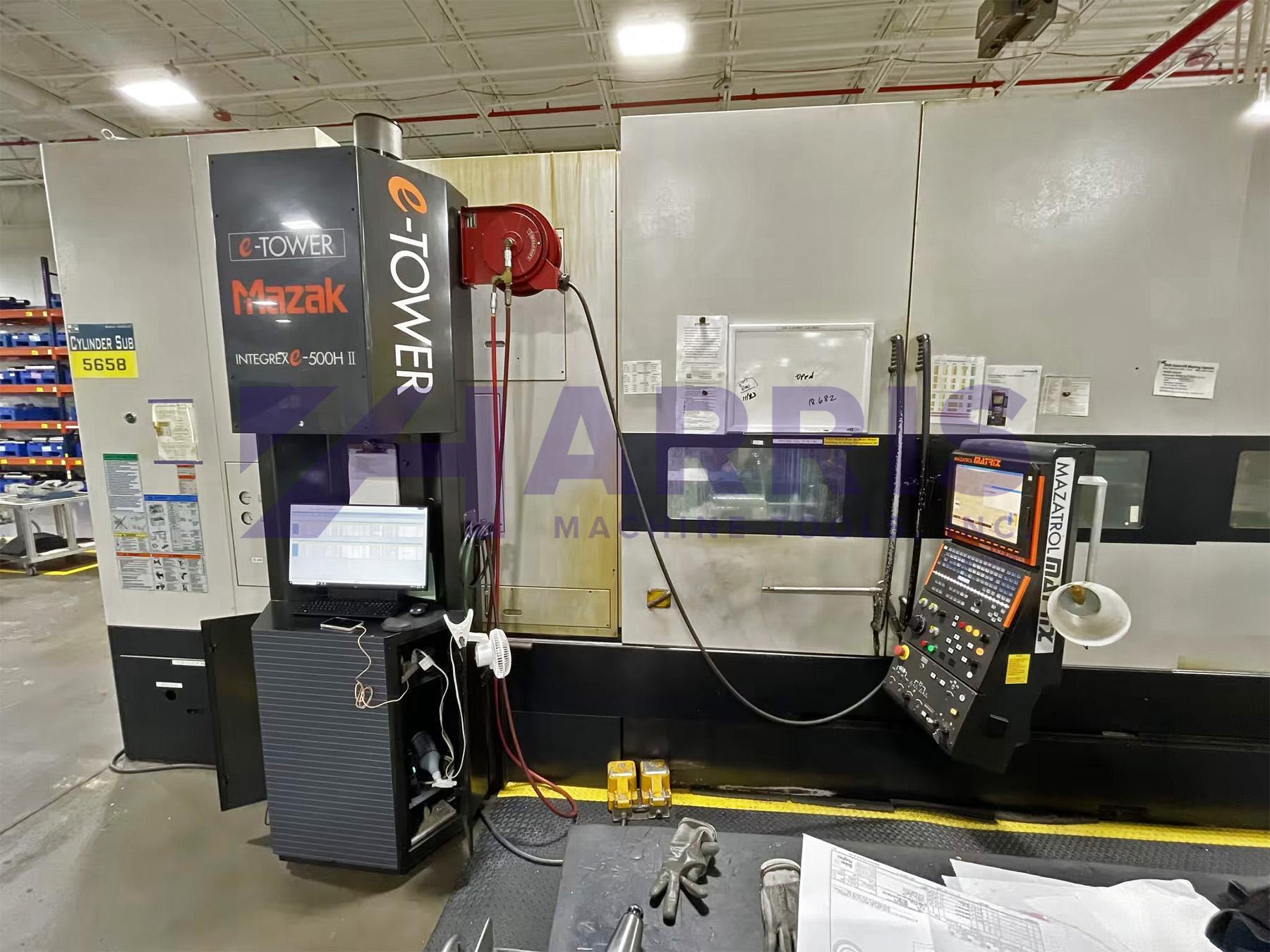

Mazak e-Tower
Windows XP Operation System
15" Color LCD Screen
EIA/ISO Simultaneous 5 Axis
Tool Tip Point Control / Simultaneous 5 Axis
Tool Radius Compensation
3D Coordinate Conversion
Goo Slope Constant
Shape Compensation for Rotary Axis
Cylindrical & Polar Coordinate
Milling Spindle Synchronized Tapping
Re-Threading Function
Thread Start Point Compensation

Tailstock / Steady Rest:
Programmable tailstock
Hydraulic Steady Rest

Additional Machine Specifications:
Y-Axis Travel: 19.68"
C-Axis Travel: 0.0001 Degree
Long Boring Bar Stocker
SMW Autoblock Programmable Hydraulic Steady Rest
Automatic Tool Eye
Renishaw Probe System
Coolant Thru-Milling Head
Flush Coolant
Indicator Lights
Hydraulic Pressure Interlock
Prepped for Flash Tool System
Double Foot Switch Chuck

High Pressure Coolant (1000 PSI)

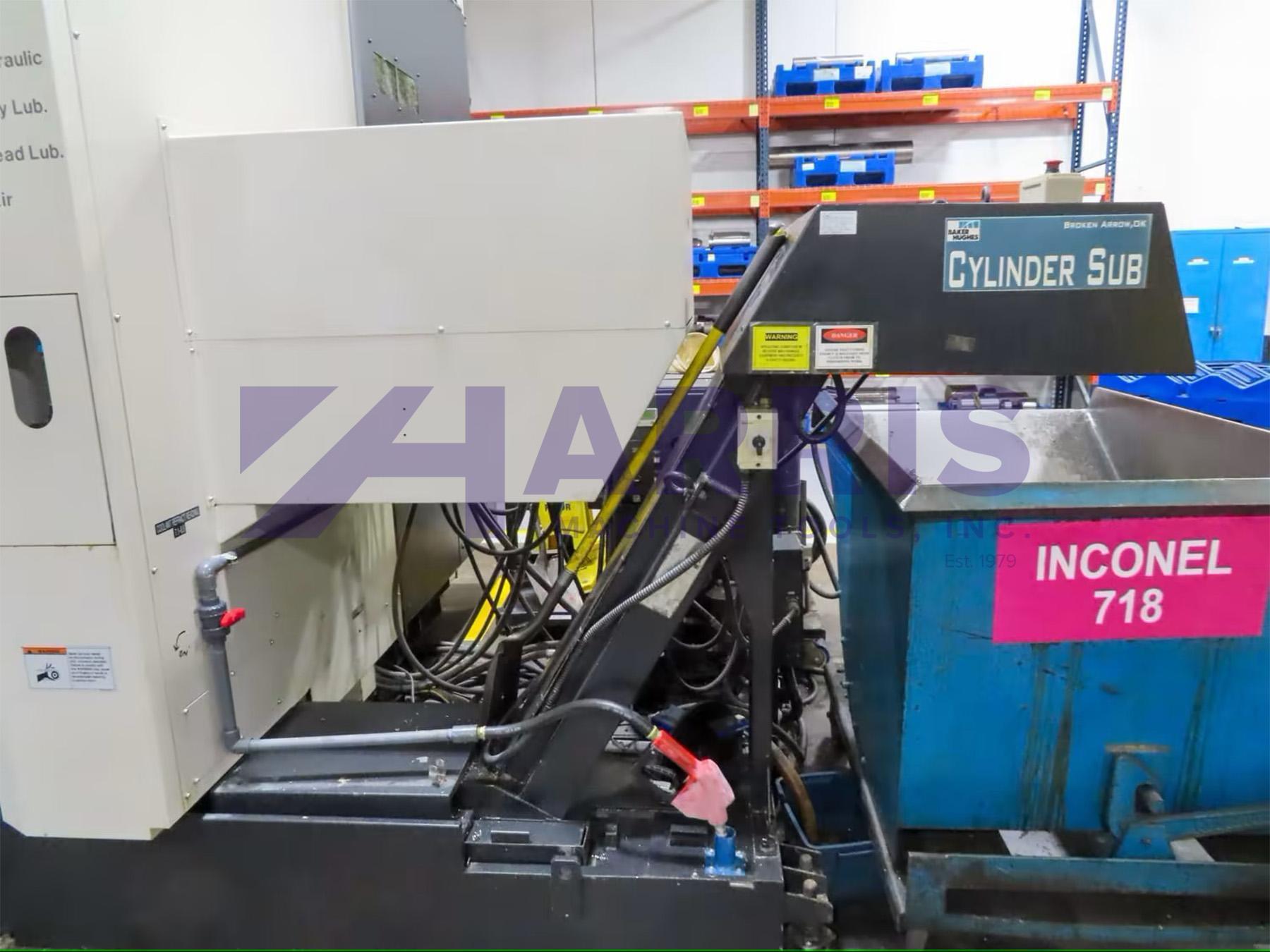

Chip Conveyor
Renishaw TS-27R Probe

Note: All Specifications Subject to Verification
