Peddinghaus PCD1100/3B 40" Beam Drill & Meba 1250 DG Saw Line, Siemens CNC, Conveyor, 2015 #32575

Stock

32575

Model

PCD1100/3B

Dealer Location

New York

Spec Sheet

Reference #32575

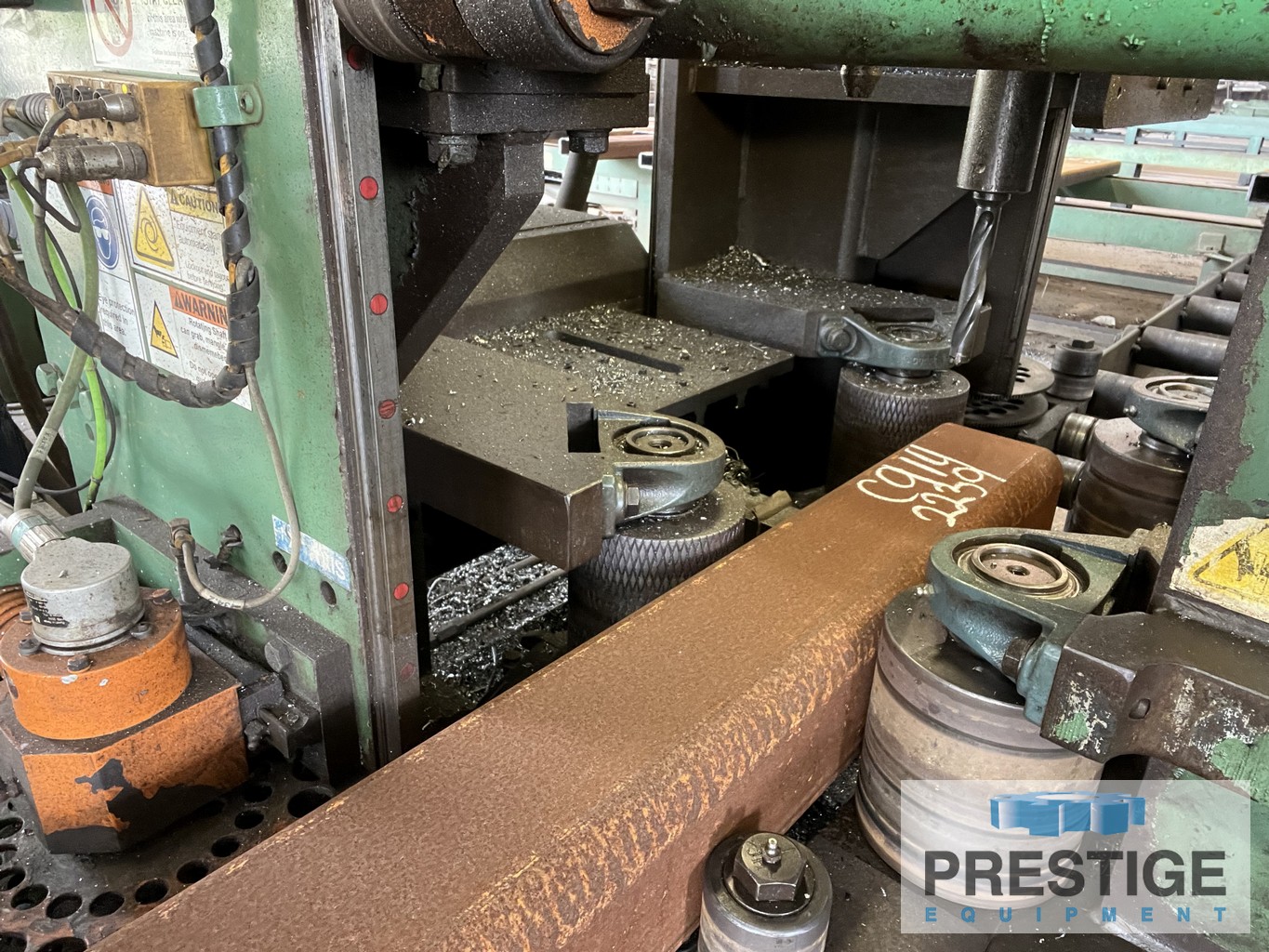

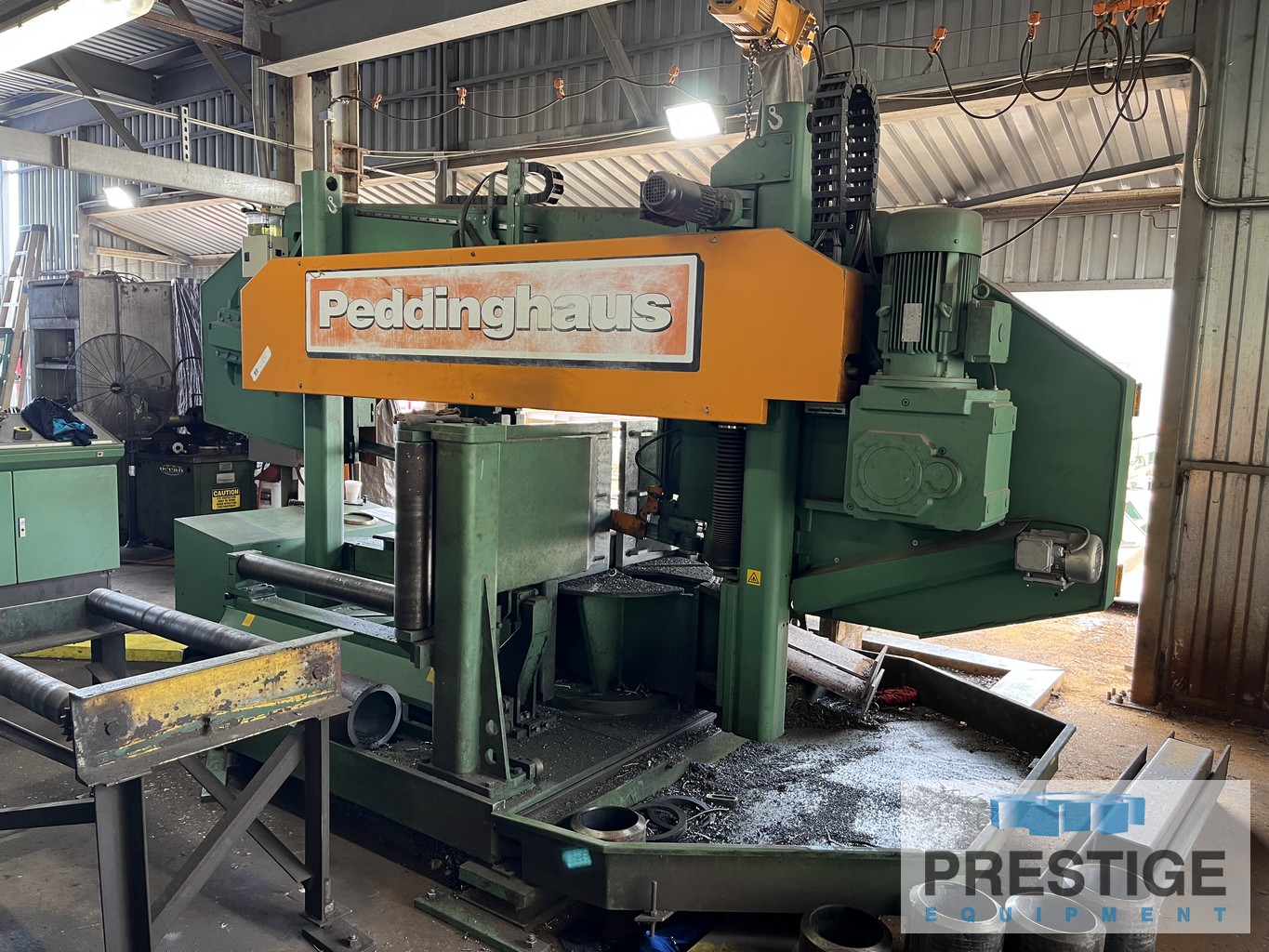

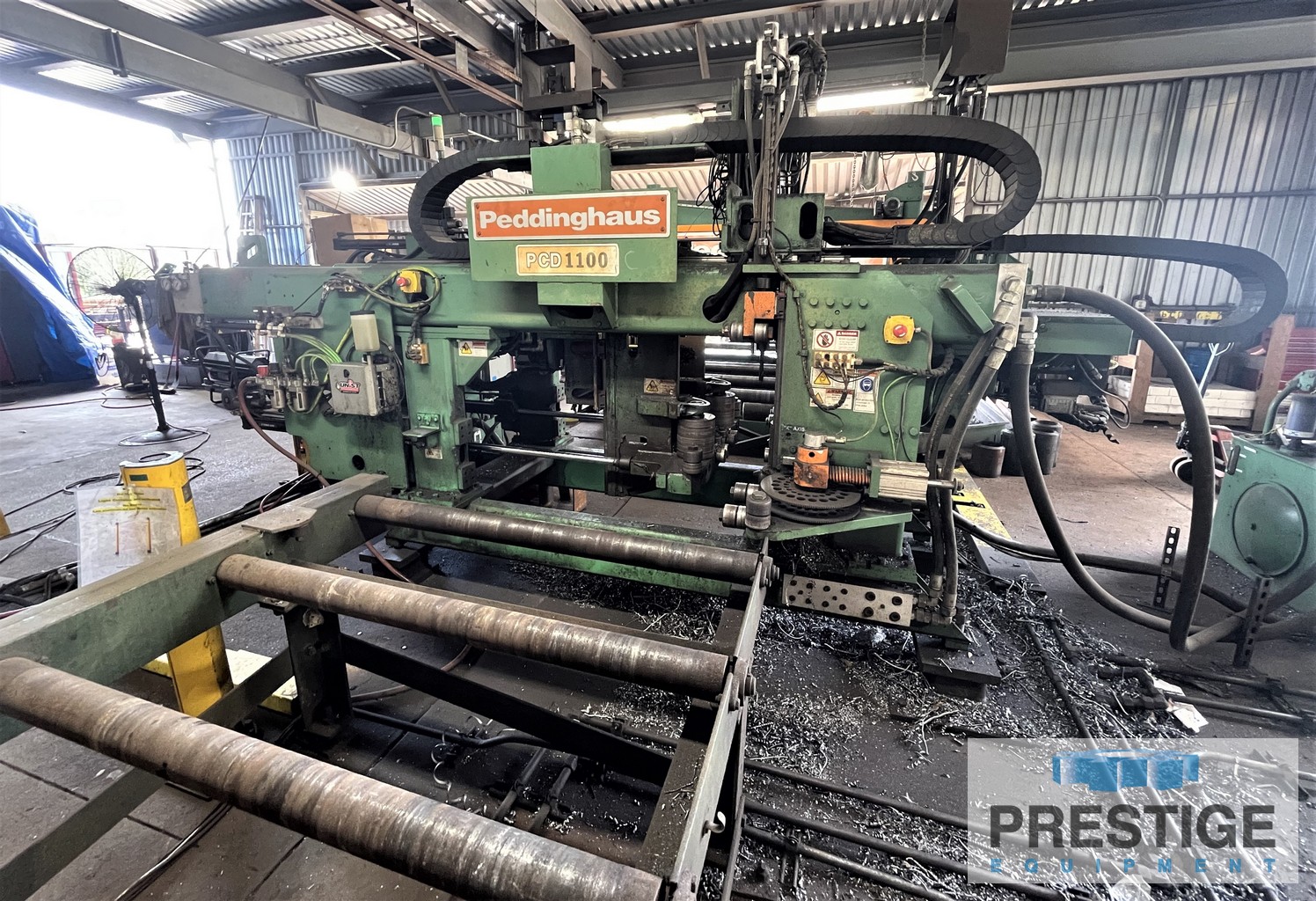

Peddinghaus PCD1100/3B Beam Drill & Meba 1250-510 DG Mitering Saw Line

FEATURES:

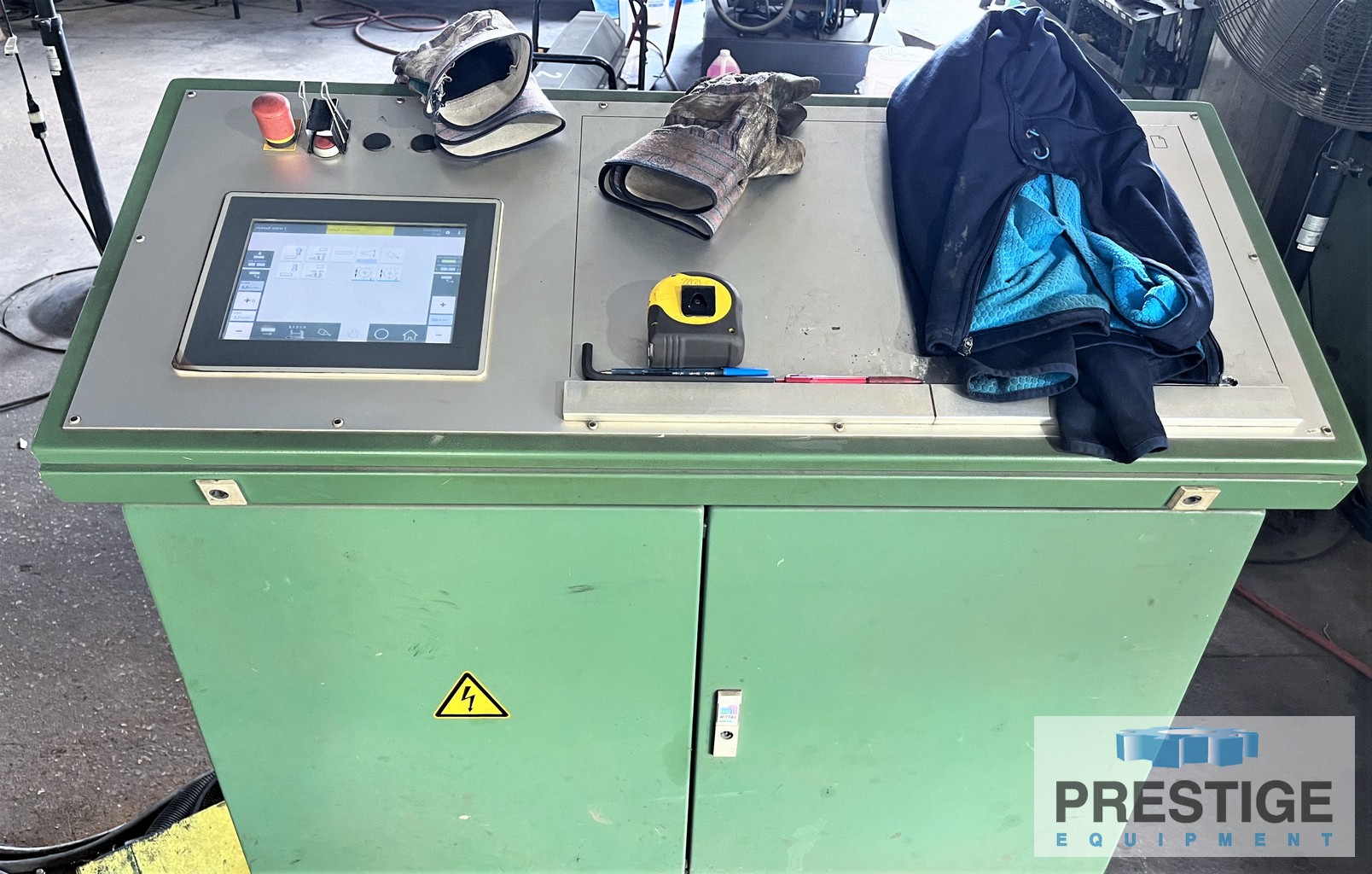

Siemens 840Di CNC Control
Signo Script Marking Device
Unist MQL (Minimum Quantity Lubrication)

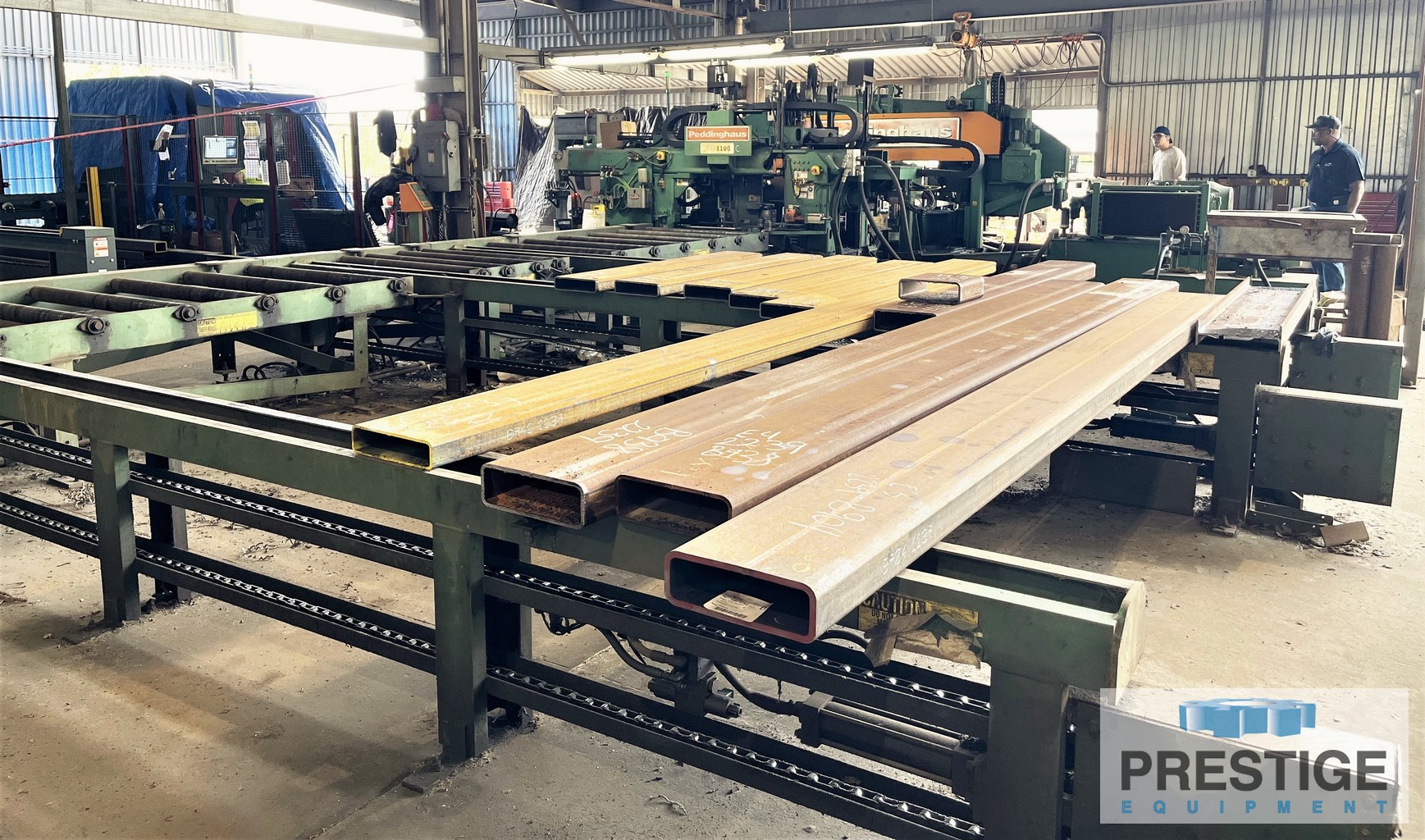

Conveyor & Transfers

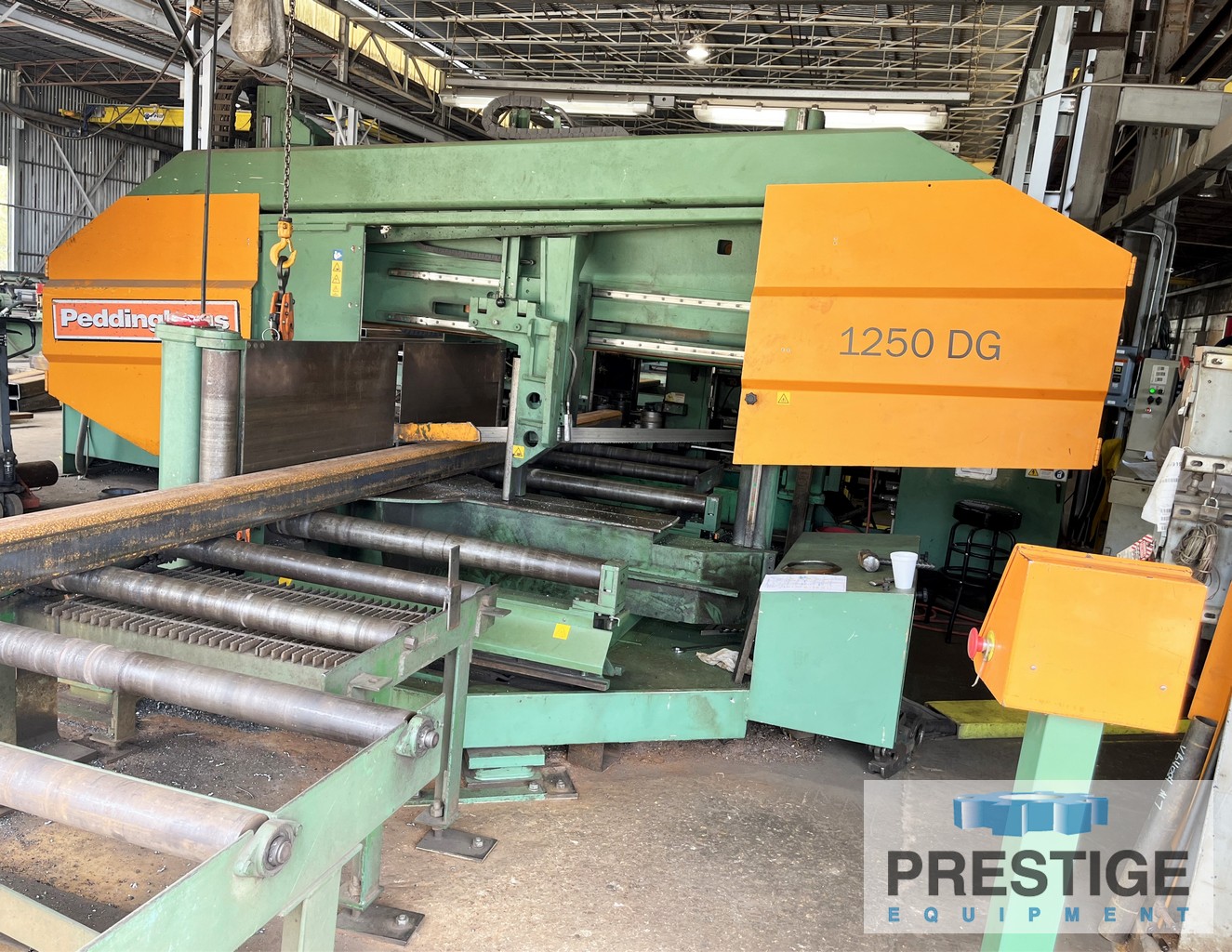

Peddinghaus (Meba) 1250/510DG Mitering Horizontal Band Saw (2019)

CAPACITY:
Maximum Machining Width ............... 43.31"
Maximum Machining Height .............. 18"
Minimum Machining Width ............... 3"
Minimum Length Piece Part ............. 62"
Minimum Bar Stock Thickness ........... 3/4"
Number of Drill Spindles .............. 3
Drill Diameter ....................... 1-9/16"
Power per Spindle ..................... 13.5 HP
Spindle Speeds ........................ 200 - 850 RPM
Spindle Stroke ........................ 13"
Positioning Stroke on Flange Drills ... 0 - 18"
Positioning Stroke on Web Drill ....... 0 - 43.31"
X-Axis Feed ........................... 130 FPM
Maximum Work Piece Weight ............. 18,000 Lbs

EQUIPPED WITH:

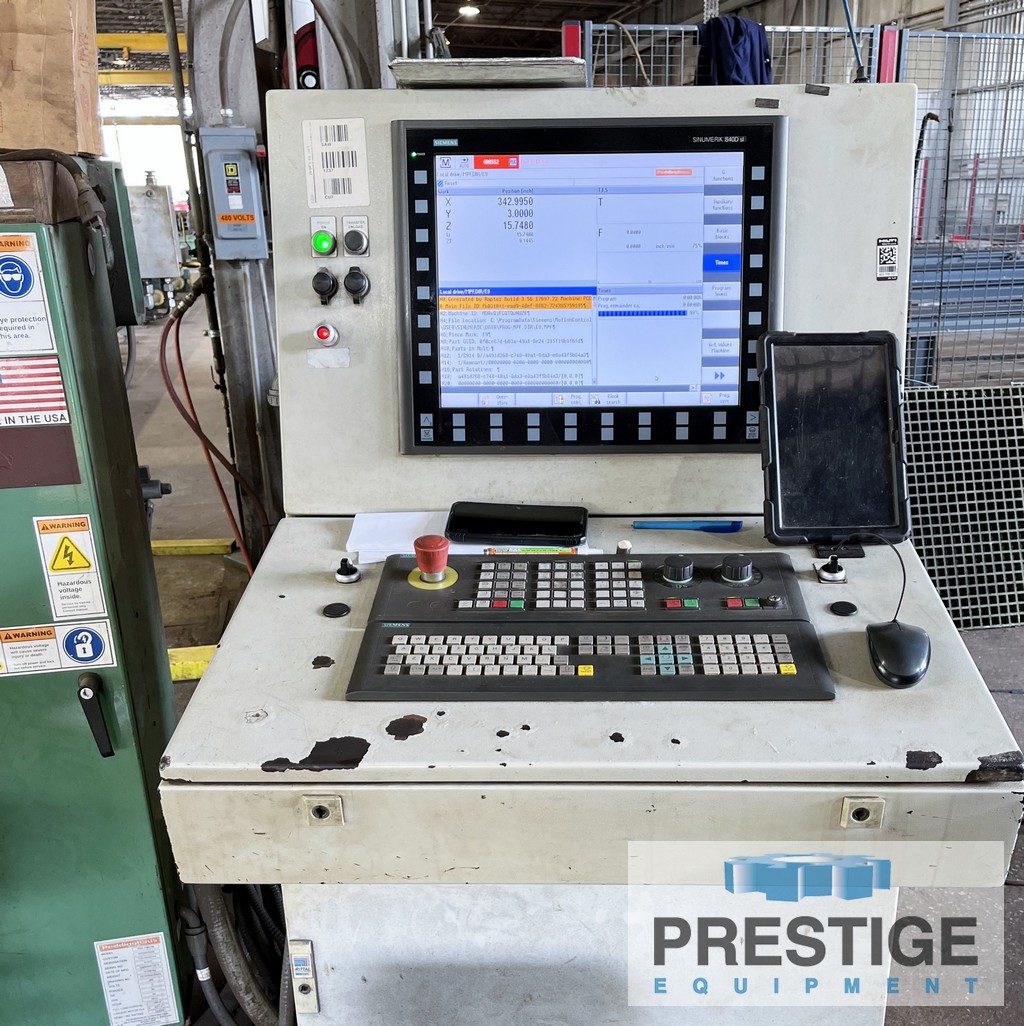

Siemens 840Di CNC Control
Programmable Spindle Feeds
Infinitely Variable Spindle Speeds
Signo Script Marking Device
Unist MQL (Minimum Quantity Lubrication)

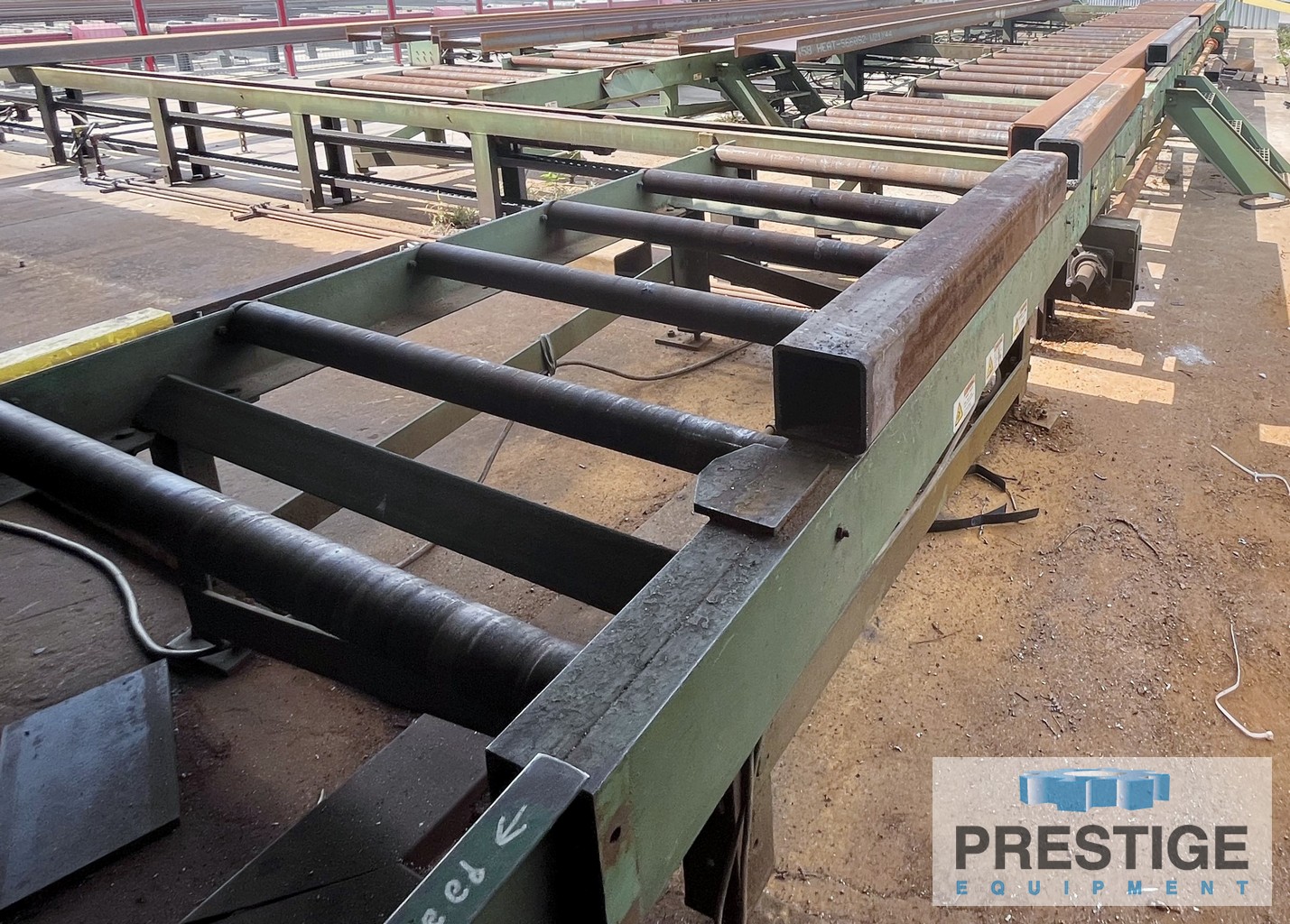

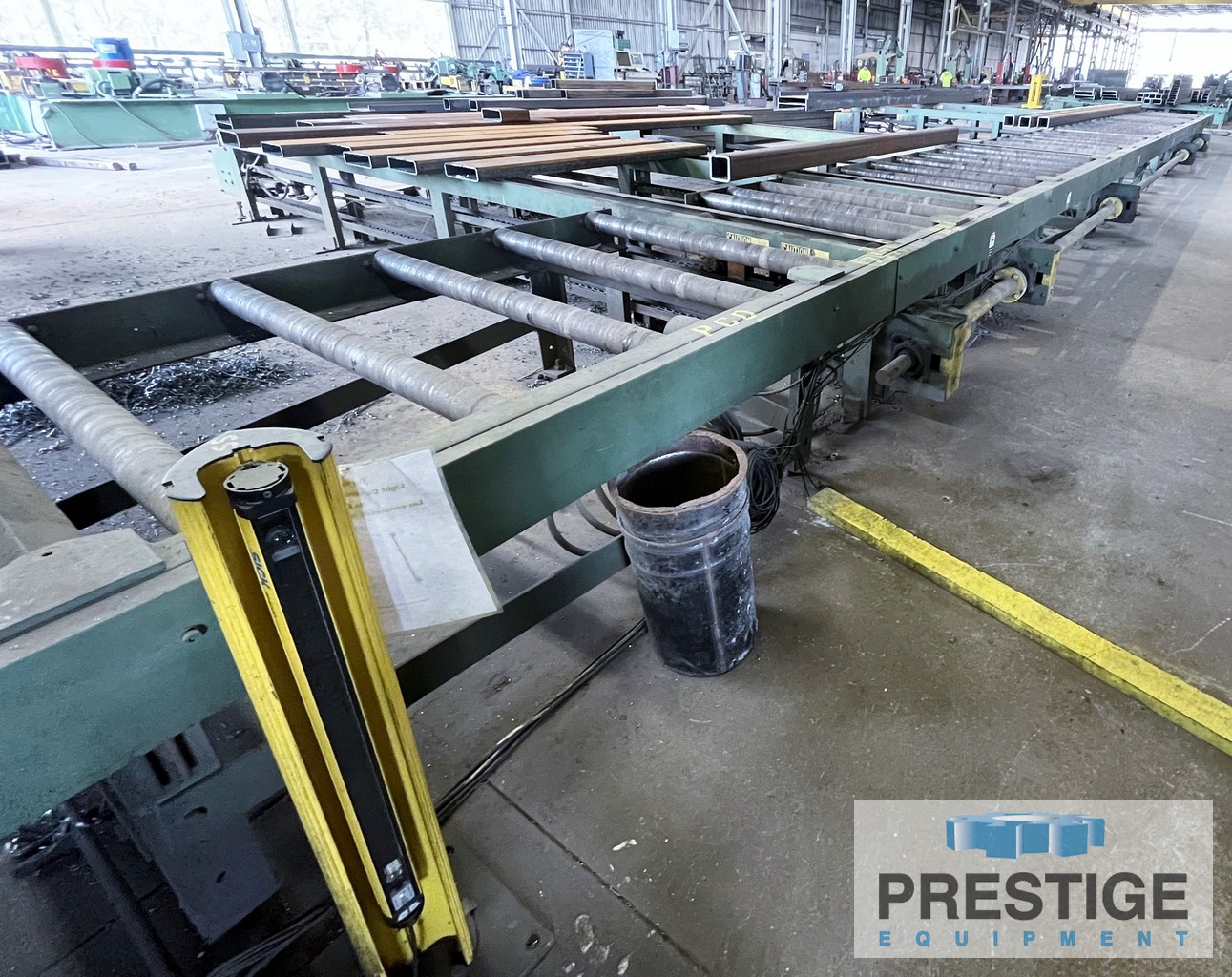

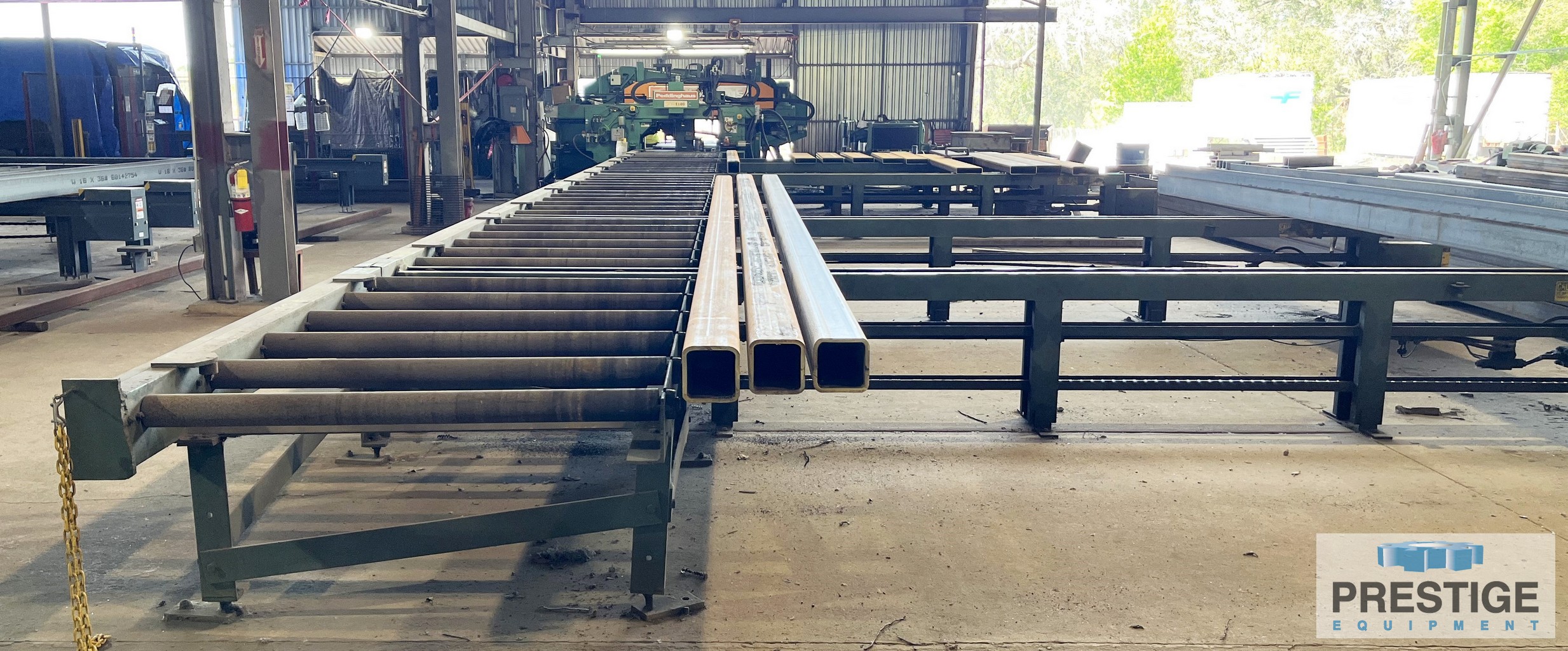

48' In-Feed Conveyor
57' Out-Feed Conveyor
(4) Transfers
Peddinghaus (Meba) 1250/510DG Mitering Horizontal Band Saw (2019)

NOTE:
Inspect Under Power in a Plant

No Video Available
