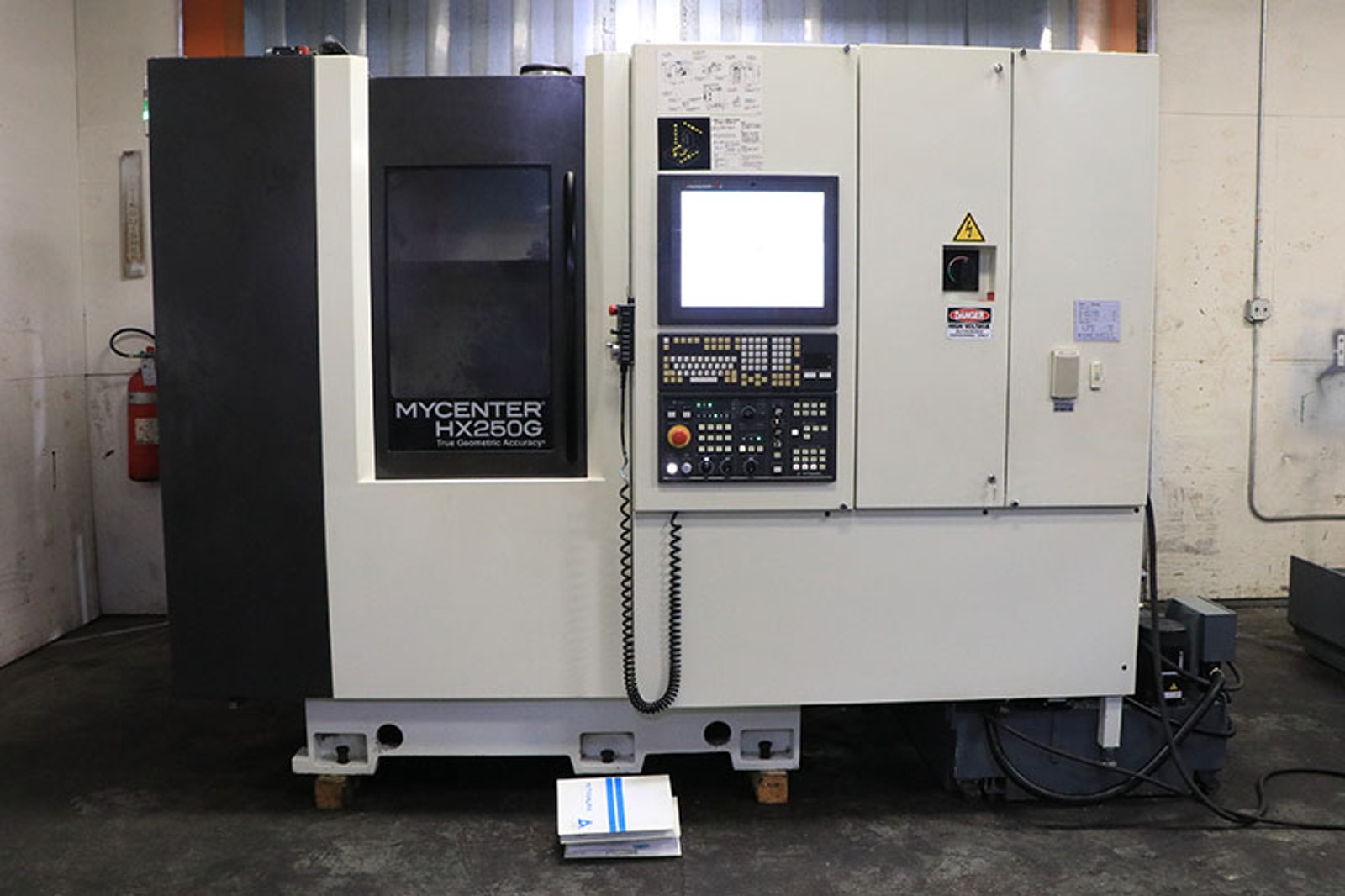

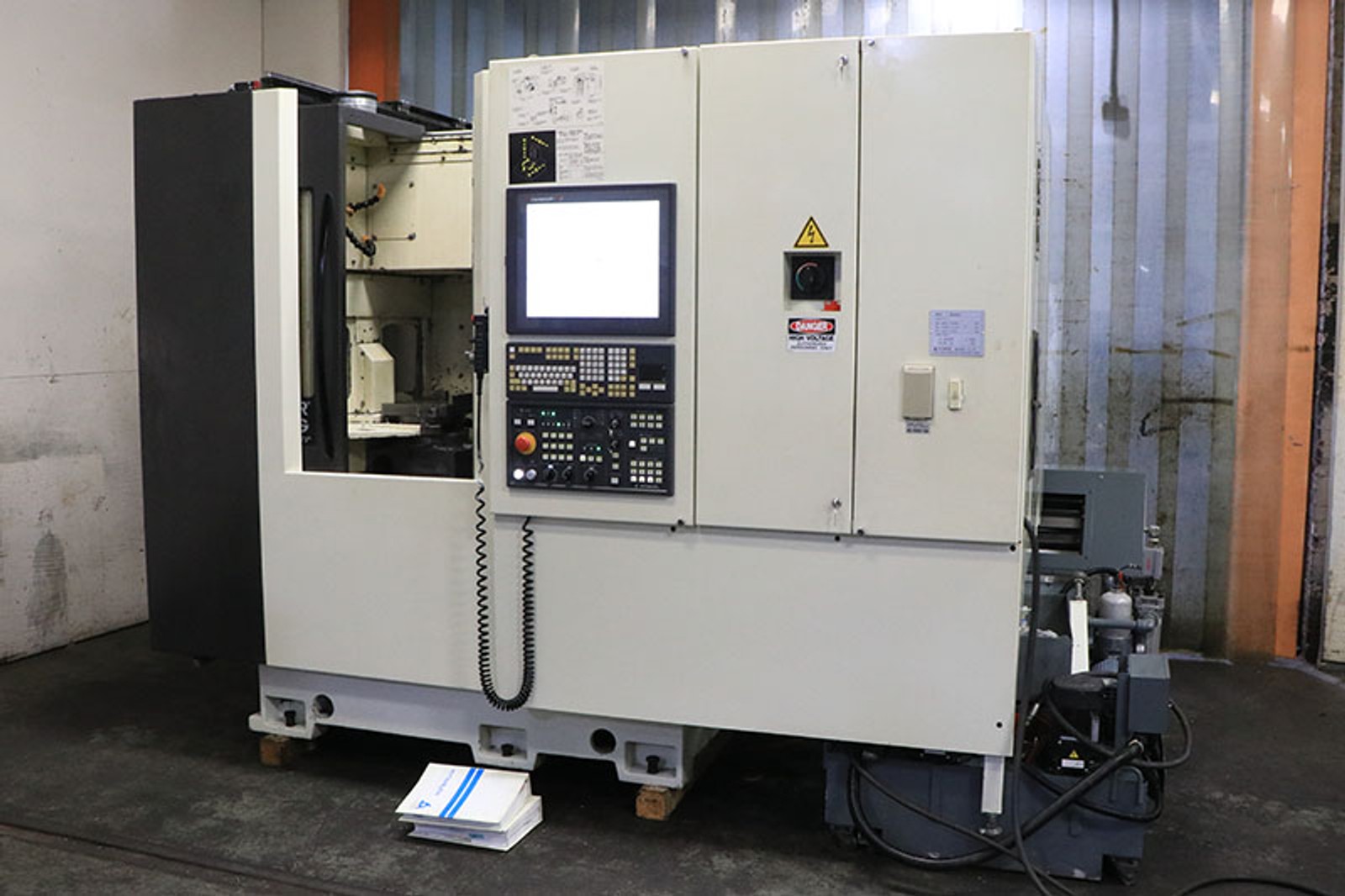

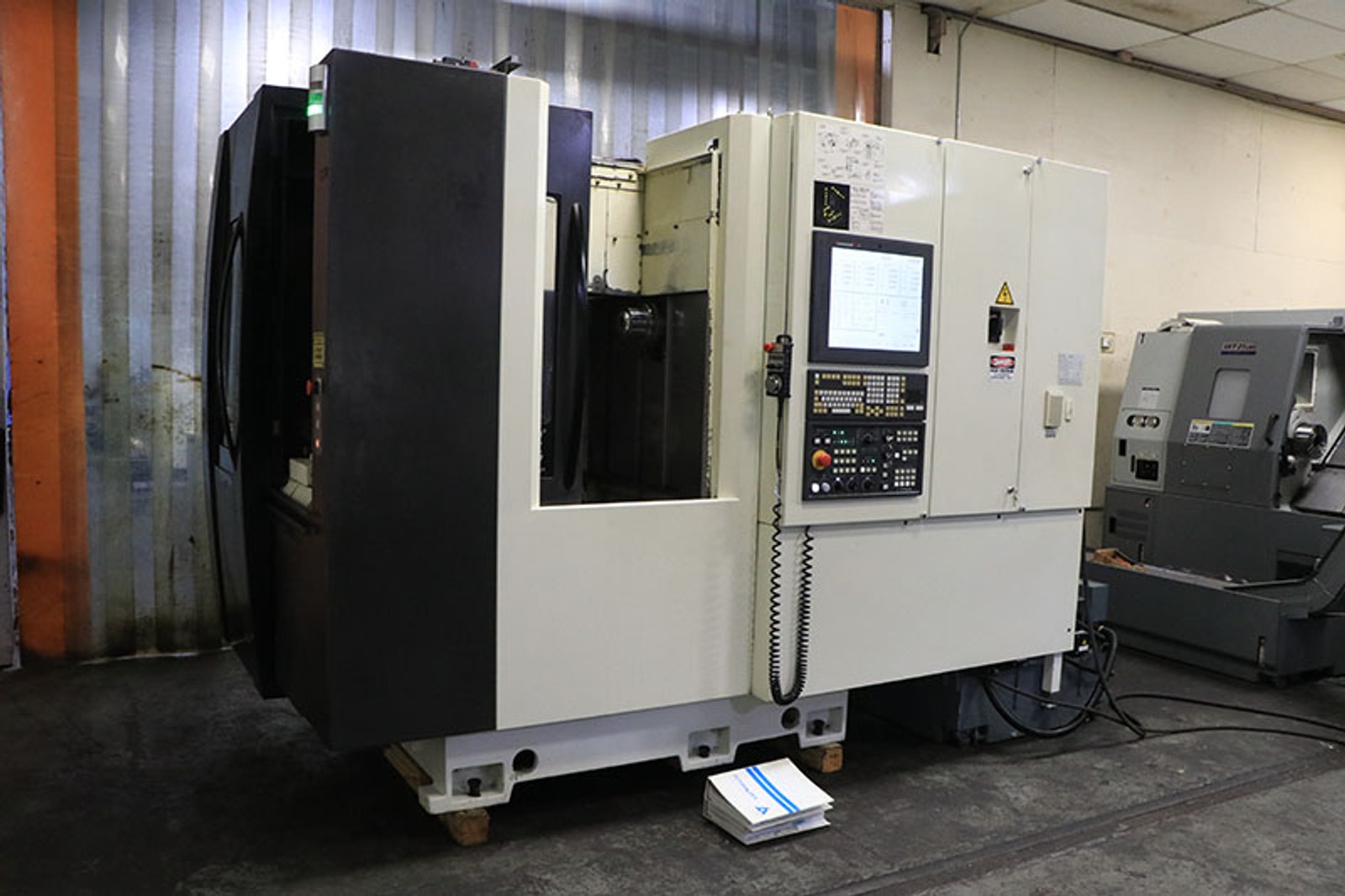

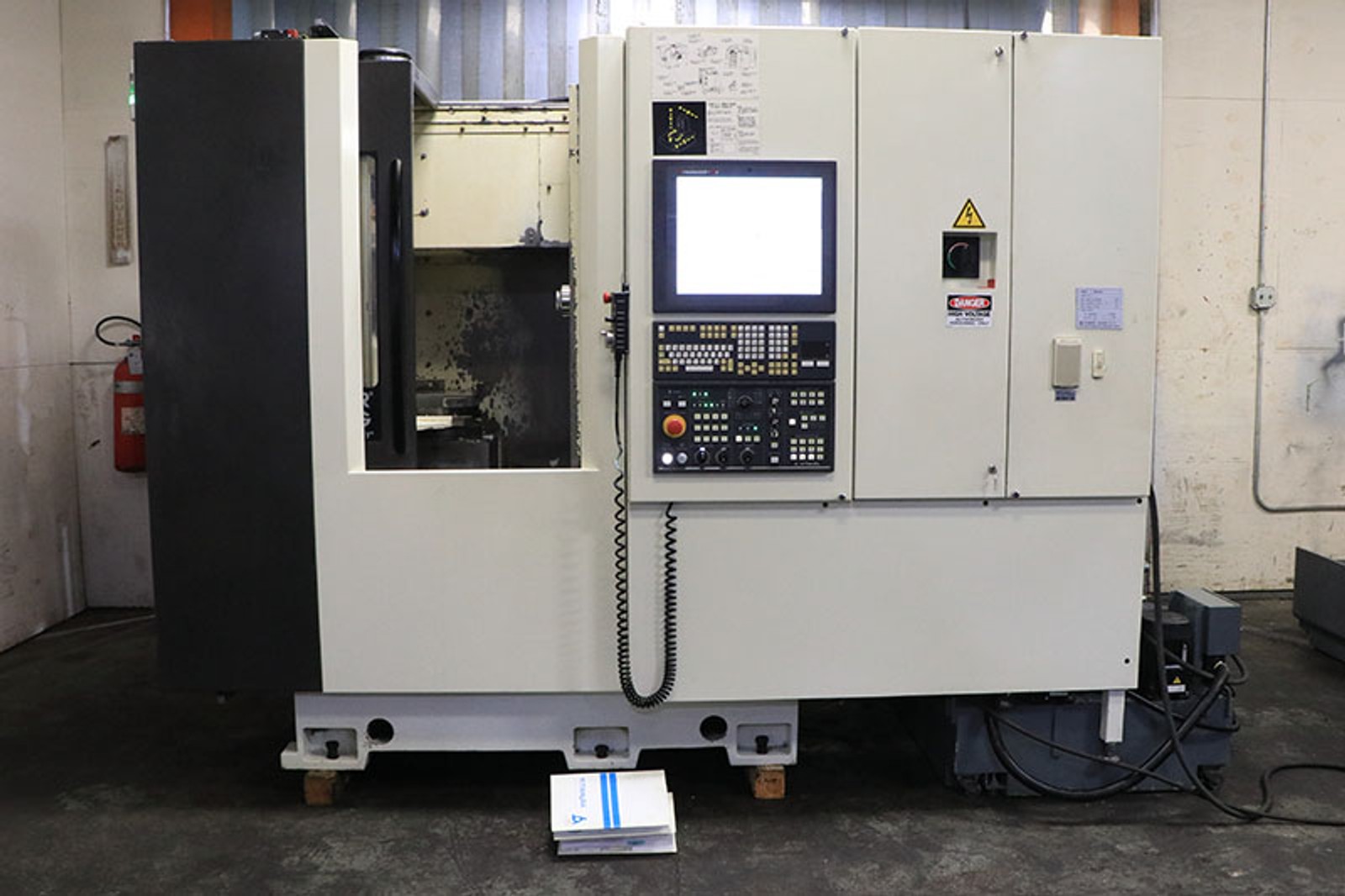

Kitamura Mycenter-HX250G CNC Horizontal Machining Center, 2013, 15,000 RPM, CTS, Full 4th Axis

Manufacturer

KITAMURA

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

68721

Model

MYCENTER HX-250G

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

X-AXIS TRAVEL ....................... 12"
Y-AXIS TRAVEL ....................... 12"
Z-AXIS TRAVEL ....................... 13"
SPINDLE POWER ....................... 15 HP
SPINDLE SPEED ....................... 15,000 RPM

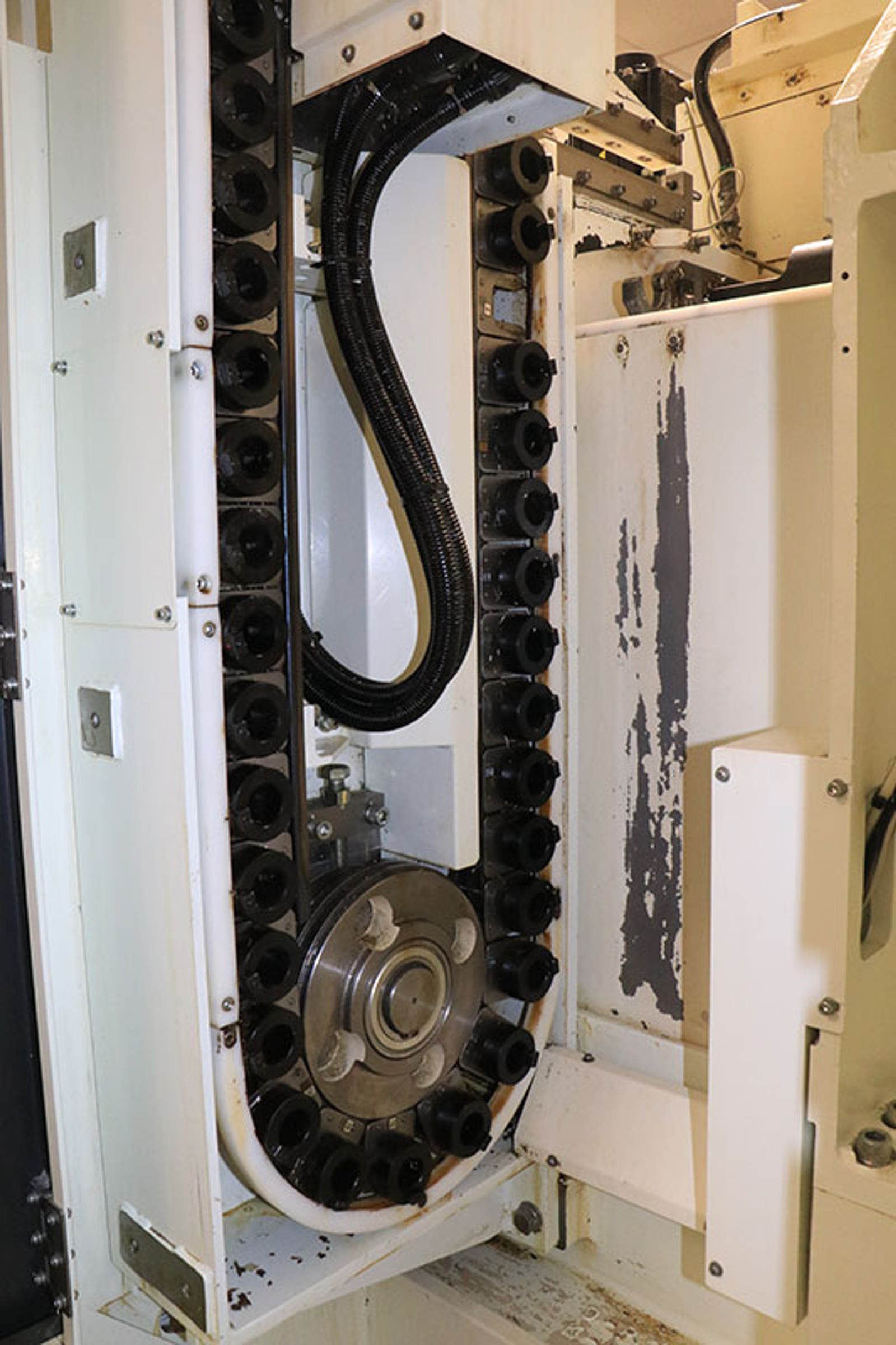

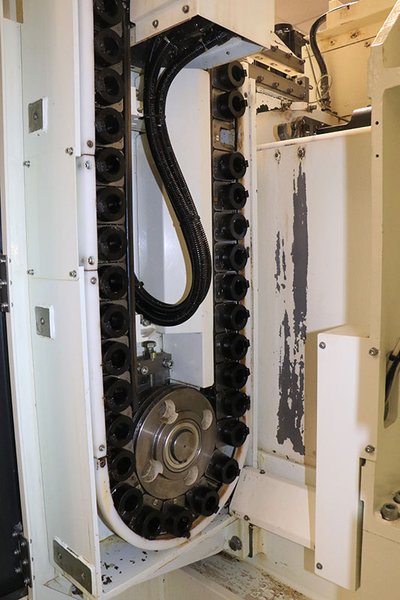

TOOL POSITIONS ..................... 40
SPINDLE TAPER ....................... BT-30
PALLET DIMENSIONS ................... 10" X 10"
NUMBER OF PROGRAMMABLE AXES ......... 4
MAXIMUM WORKPIECE DIAMETER .......... 13.8"
MAXIMUM WORKPIECE HEIGHT ............ 15.8"
RAPID FEED RATES X,Y,Z .............. 2,362 IPM
CUTTING FEED RATE X,Y,Z ............. 2362 IPM
RAPID FEED (B-AXIS) ................. 33.3 RPM

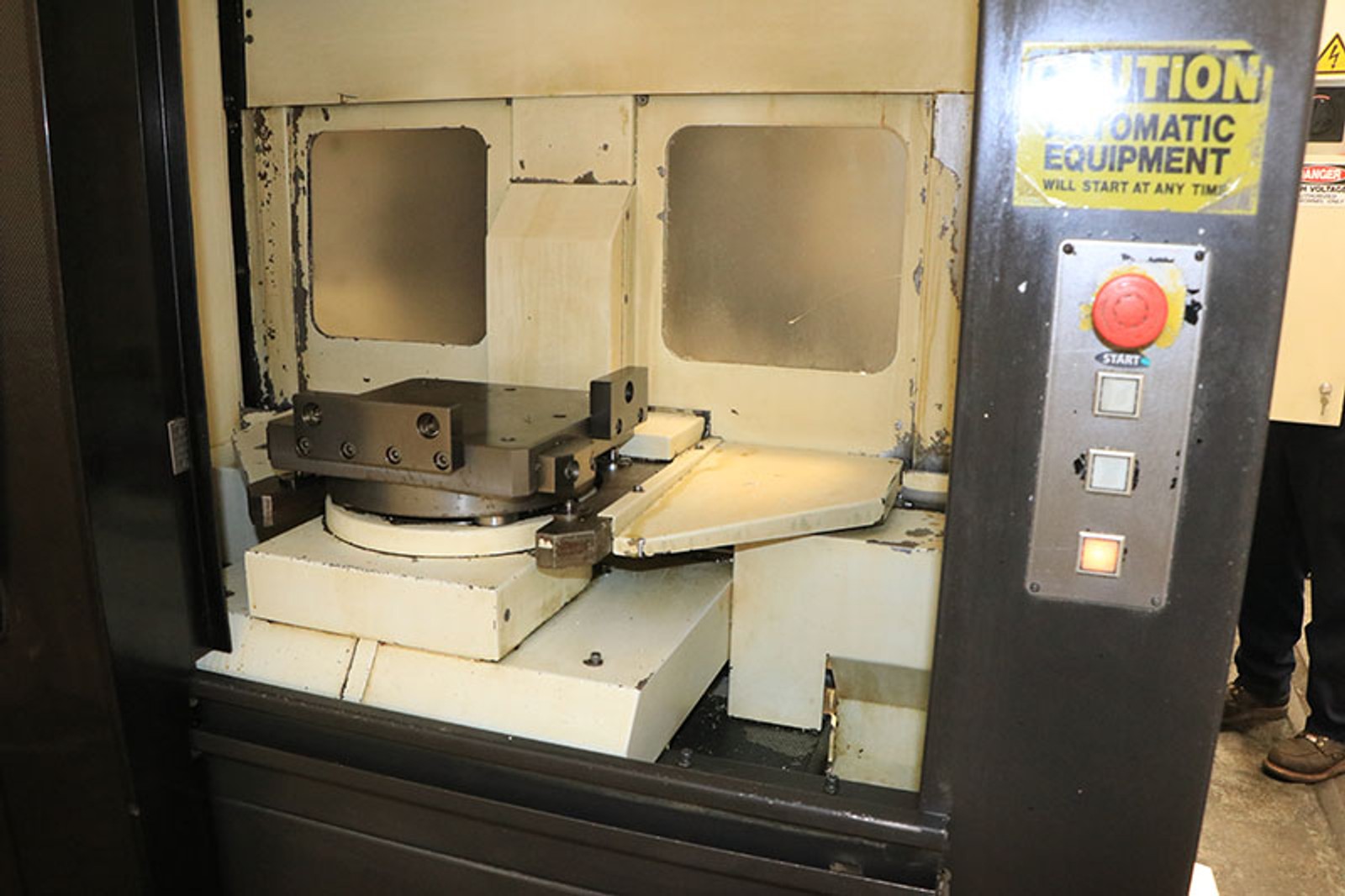

NUMBER OF PALLETS ................... 2
APC CHANGE TIME ..................... 8 SECONDS
REQUIRED FLOOR SPACE .......... 111.5" X 116.1" X 89.9" H
APPROXOMATE MACHINE WEIGHT .......... 12,000 LBS

EQUIPPED WITH:

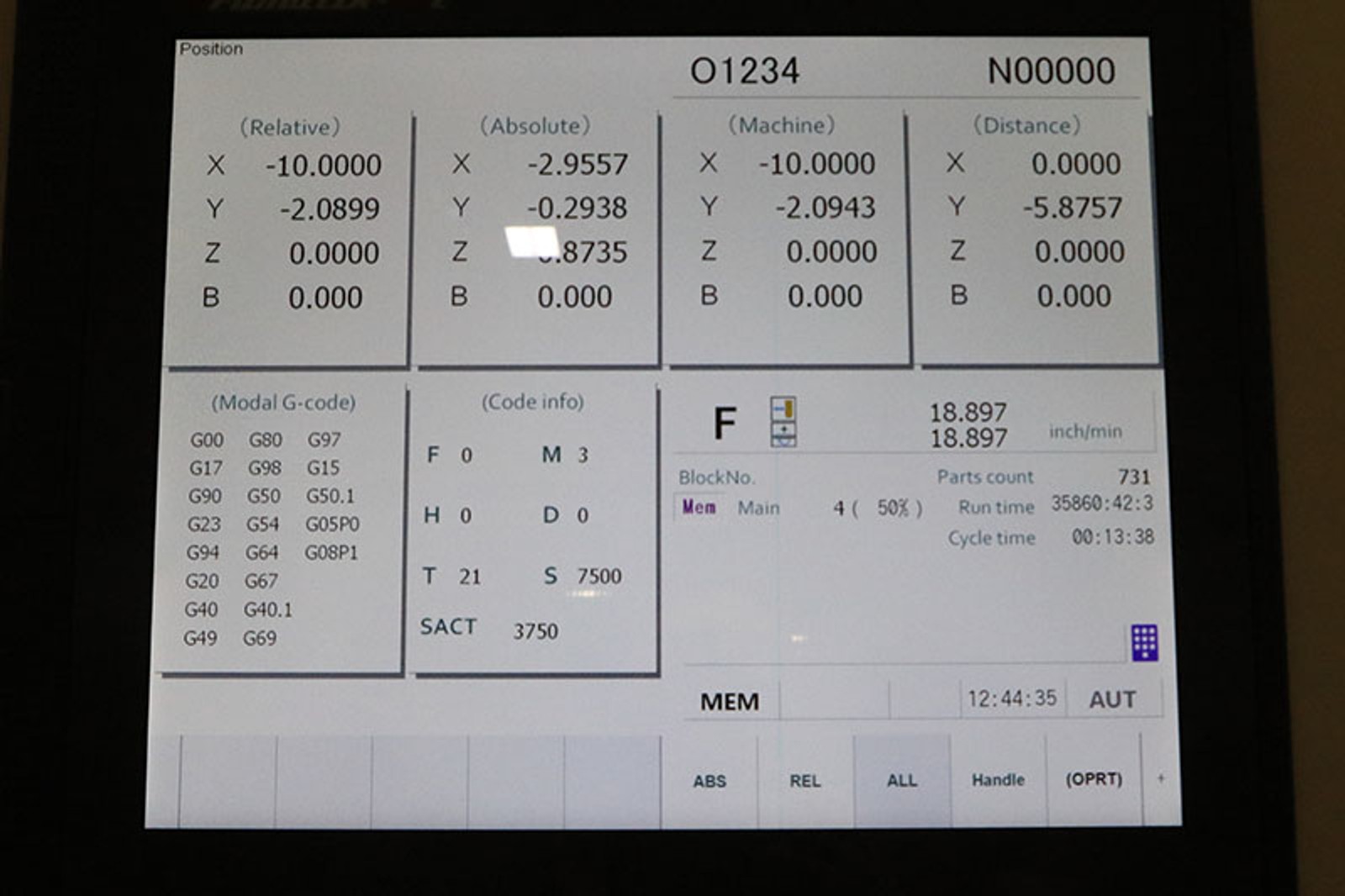

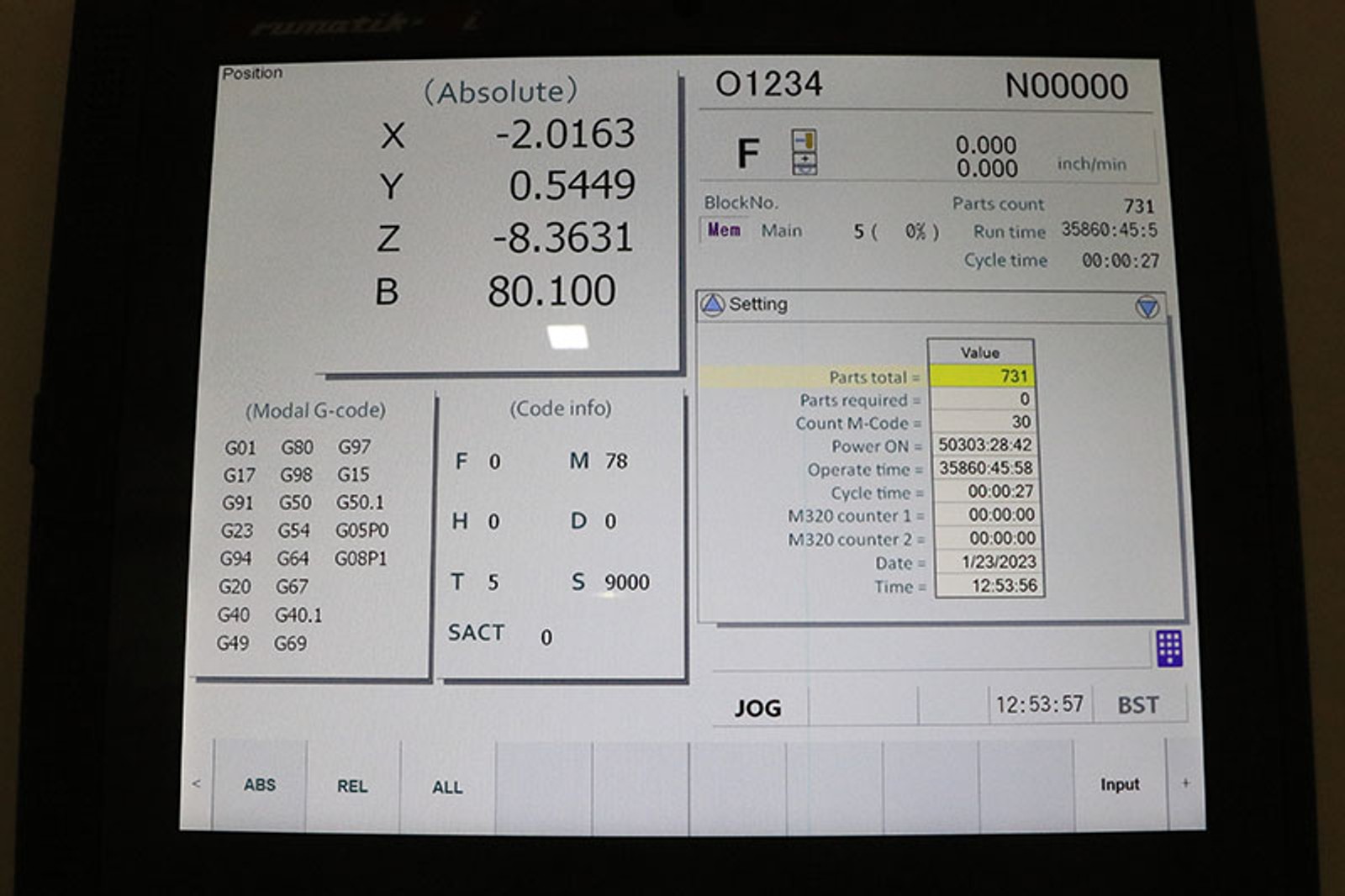

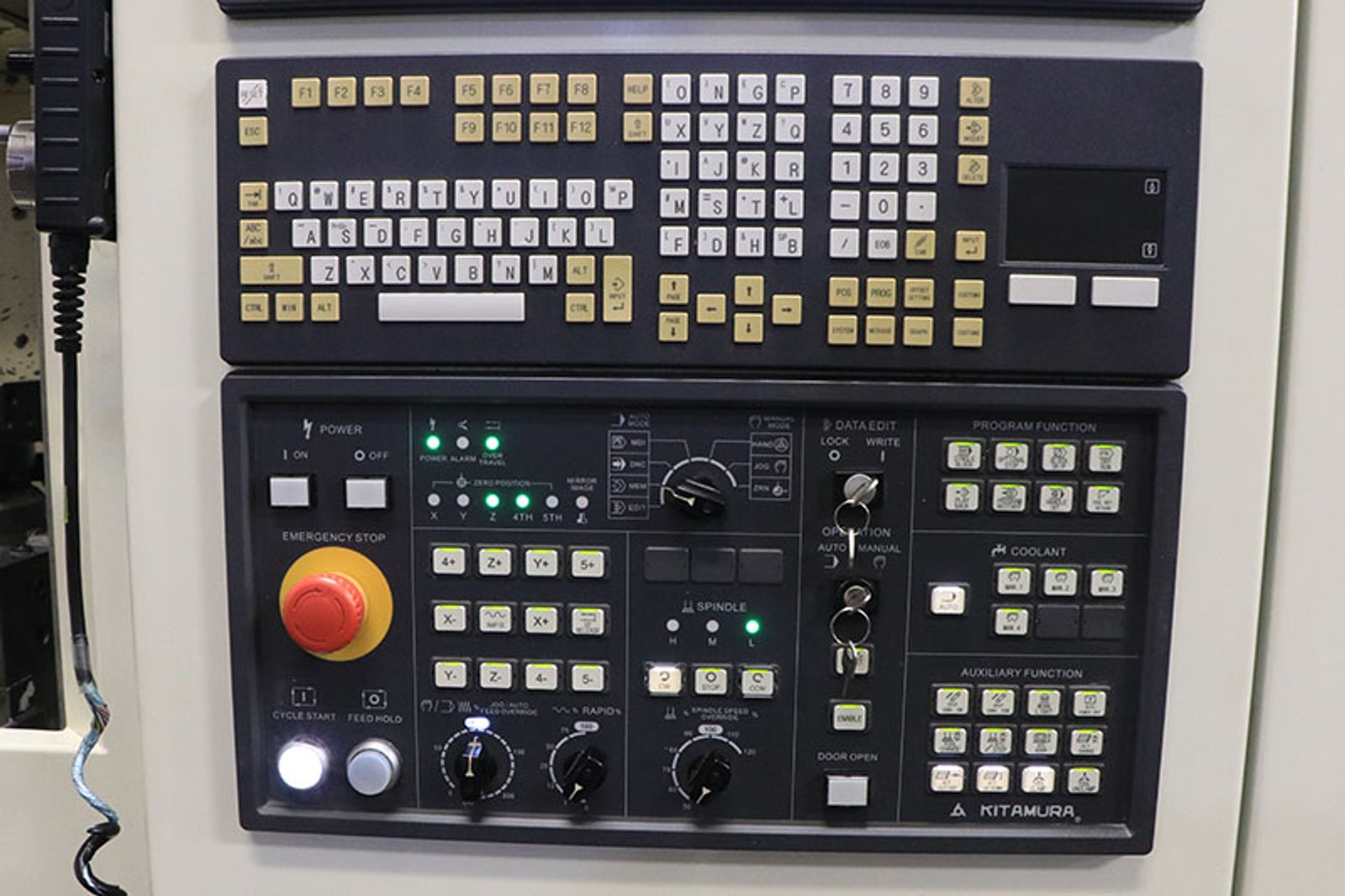

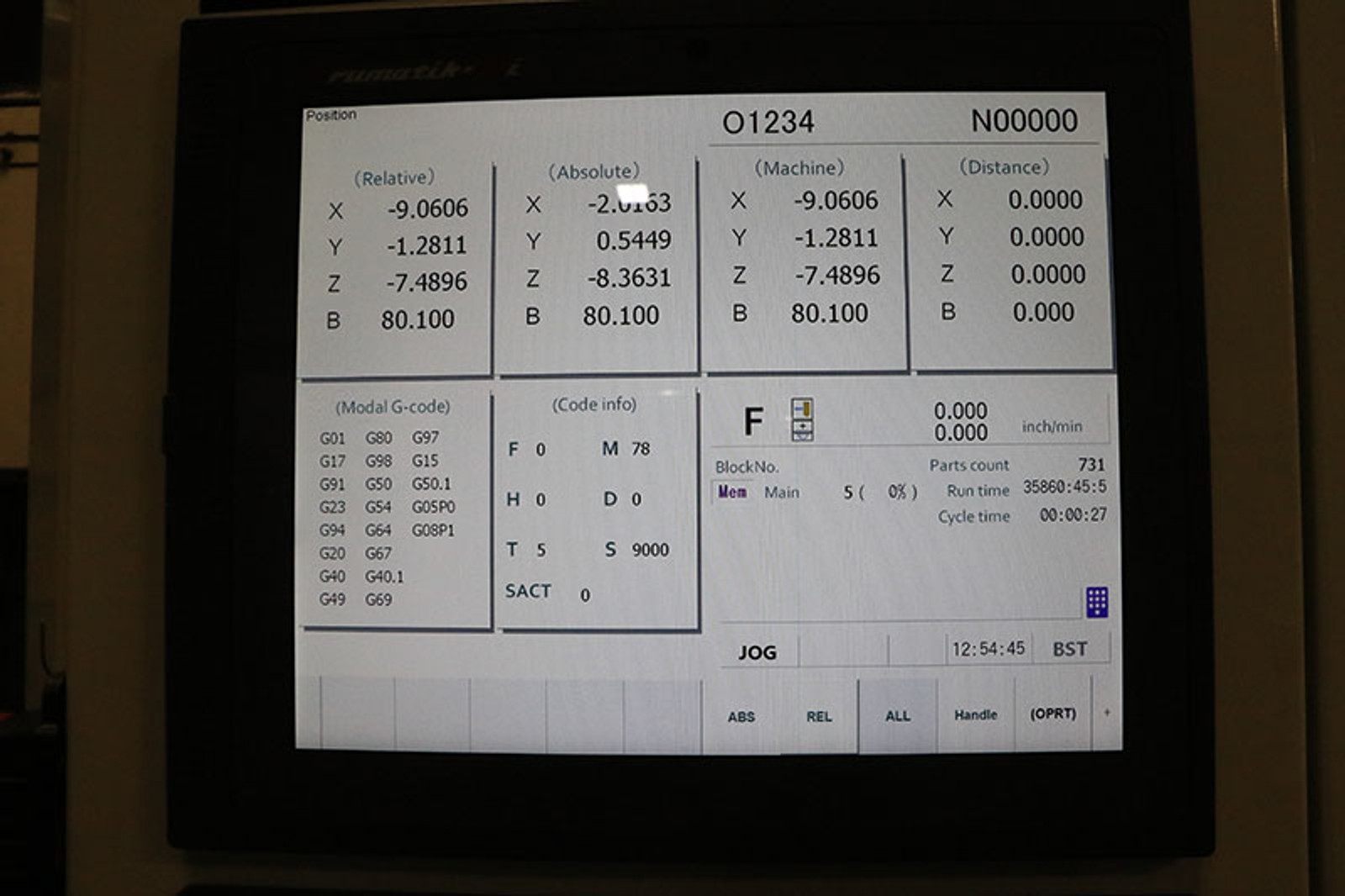

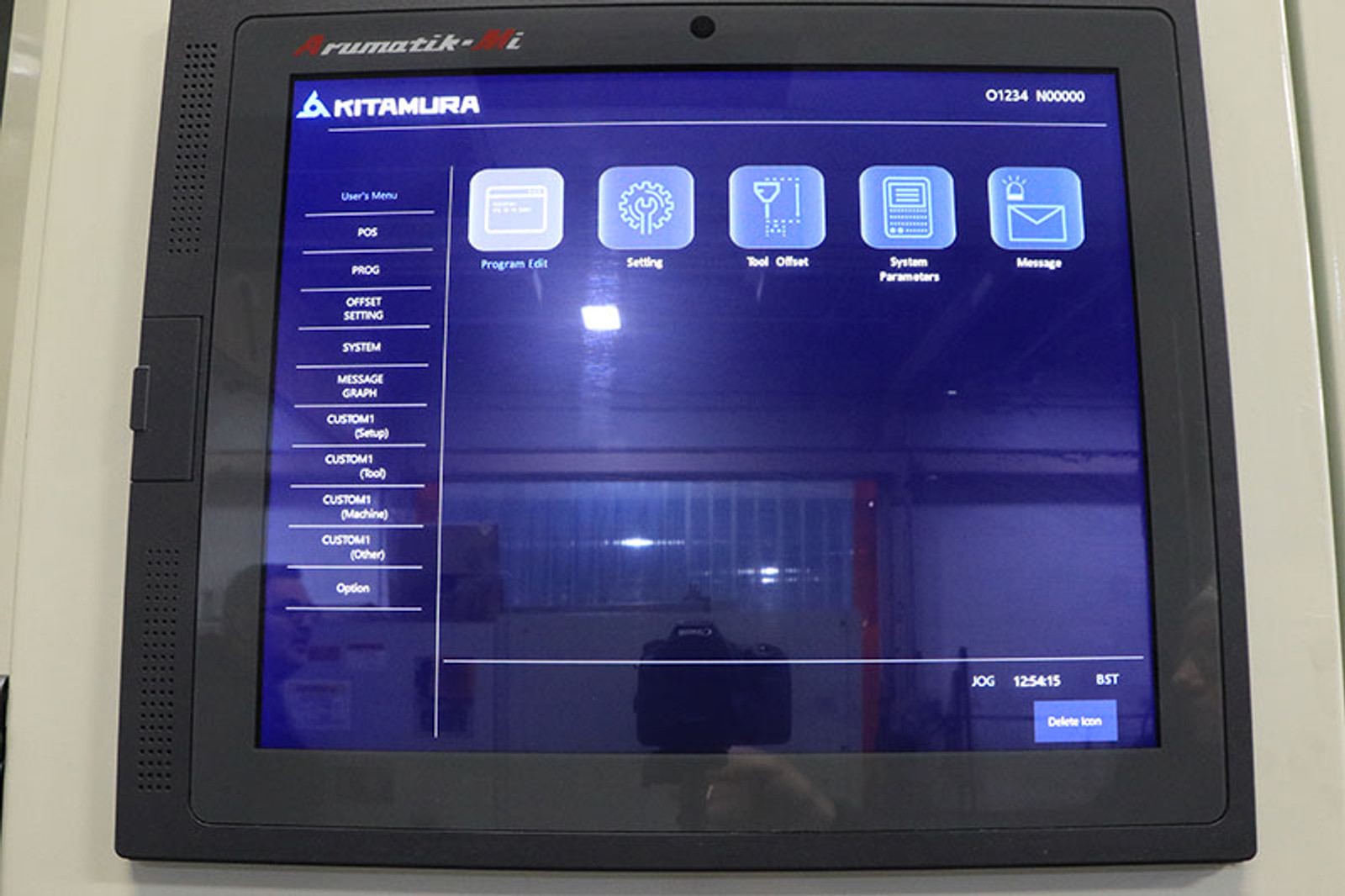

KITAMURA ARUMATIK-MI 4-AXIS CNC CONTROL

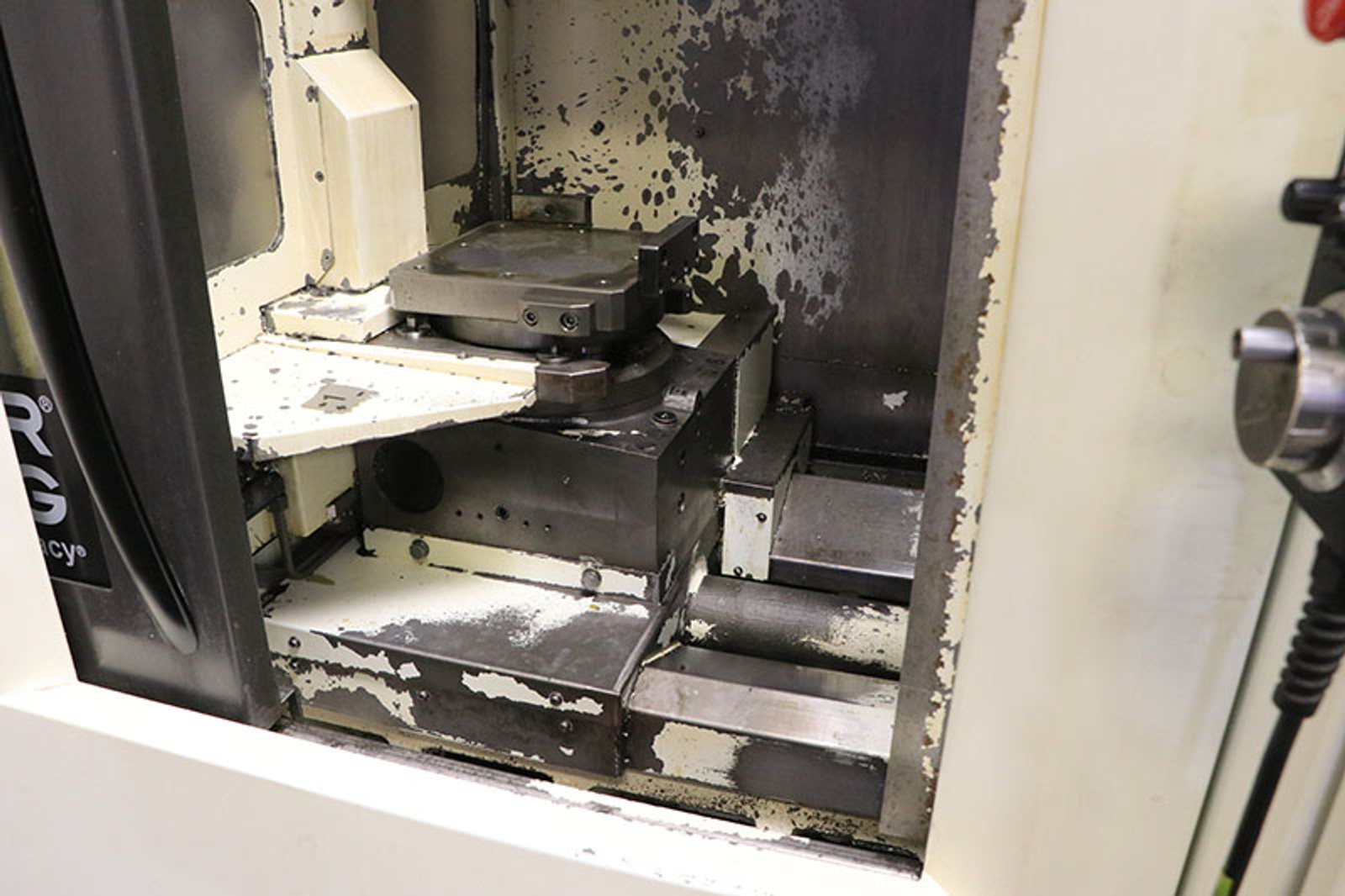

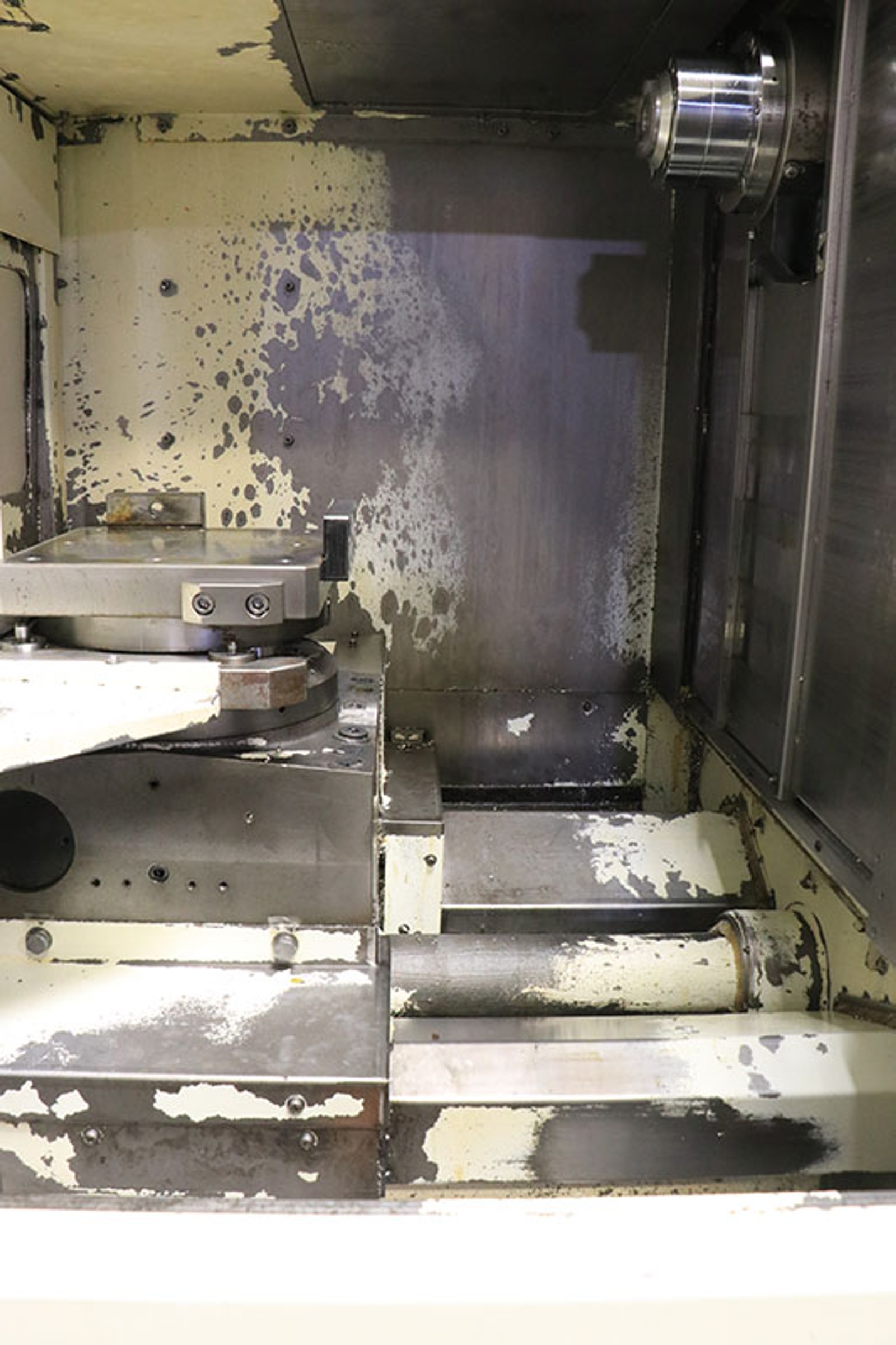

FULL 4TH AXIS
COOLANT THROUGH THE SPINDLE 220 PSI
CHIP CONVEYOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
