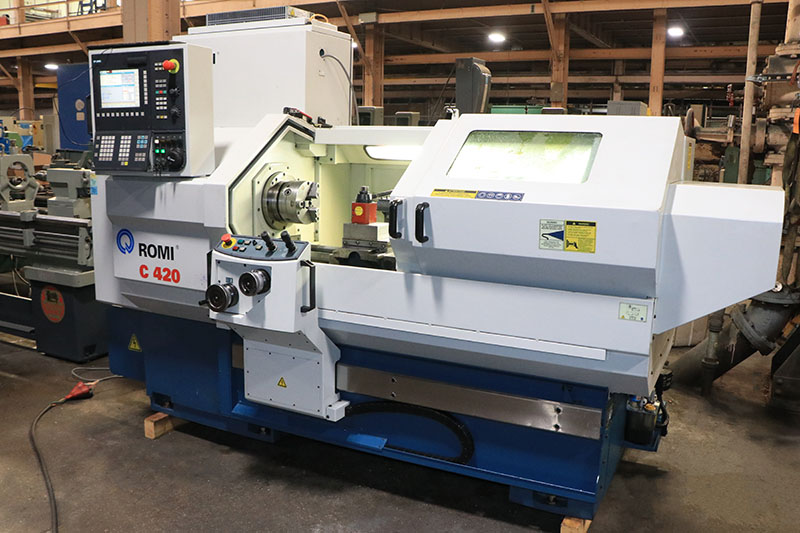

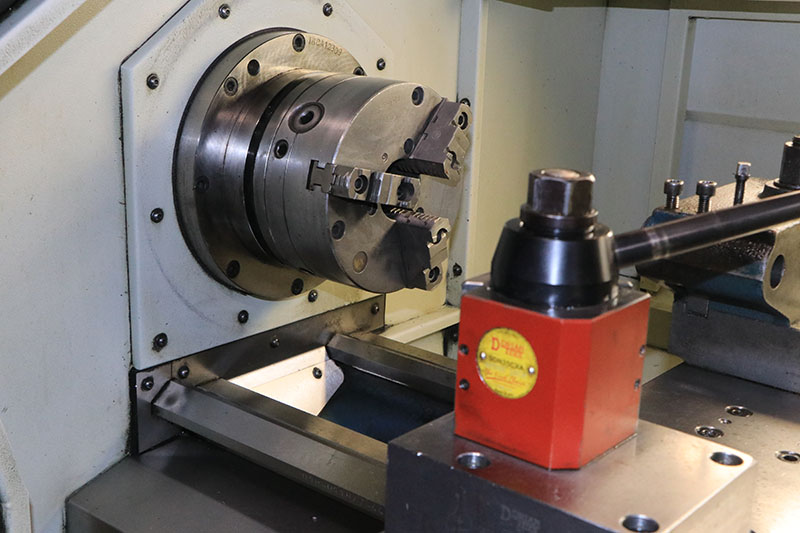

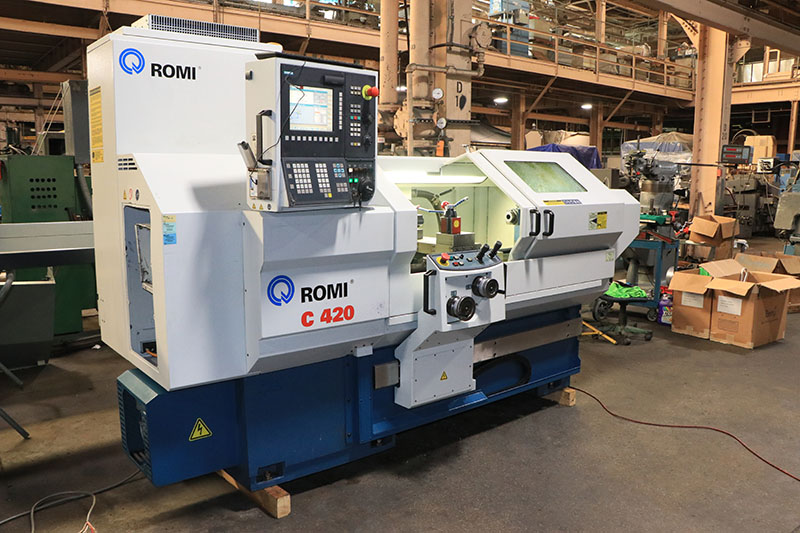

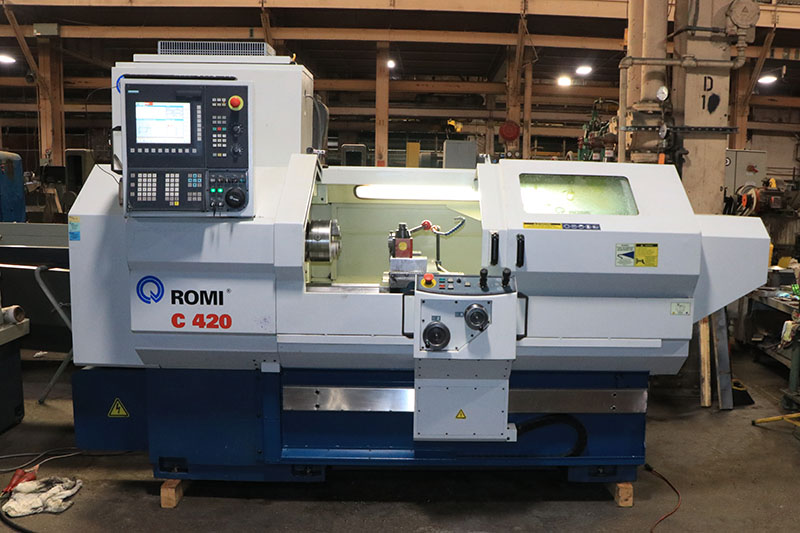

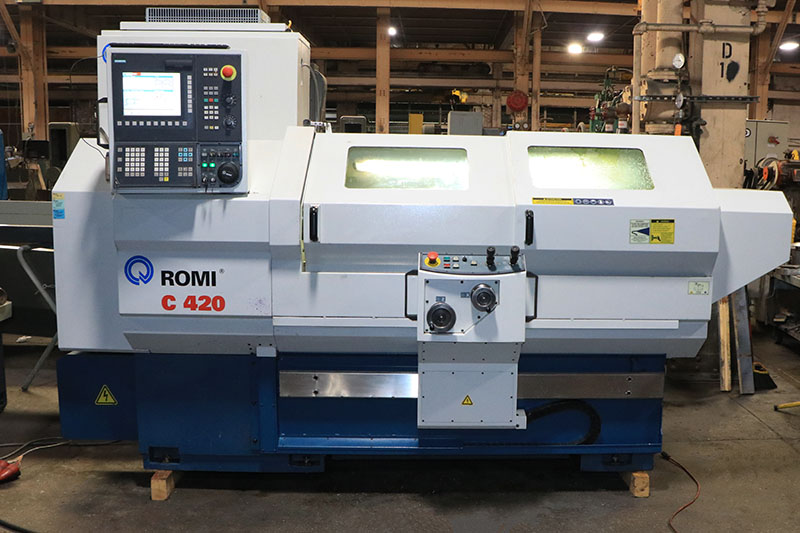

Romi C-420 Combination Manual & CNC Lathe, 8" chuck, Hand wheels, Conversational control, 2010

Manufacturer

ROMI

Category

Lathes

Type

LATHES, FLAT BED, CNC

Stock

68767

Model

C-420

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

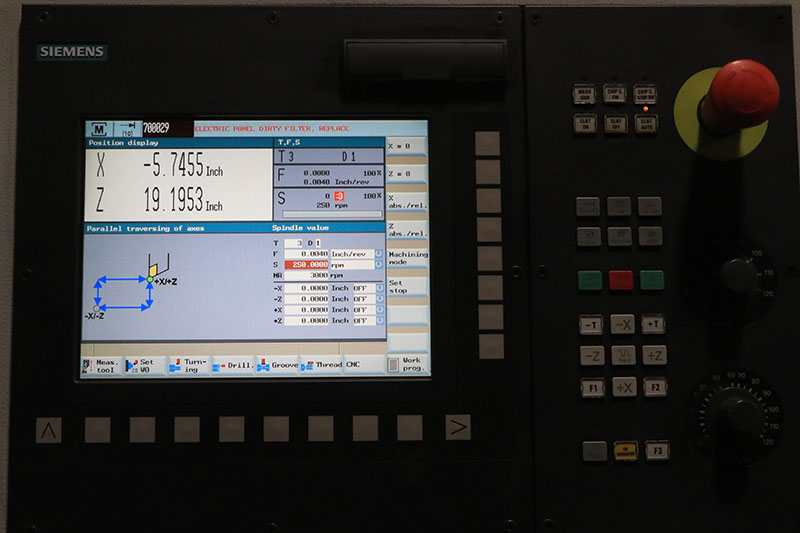

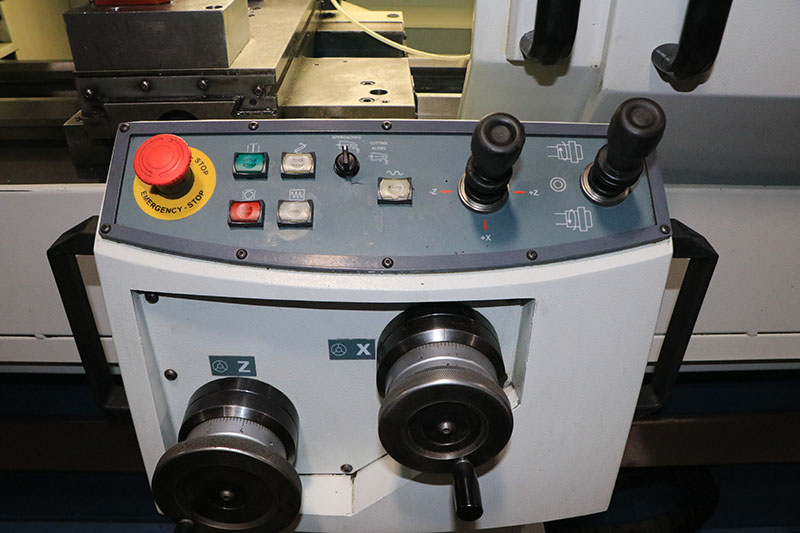

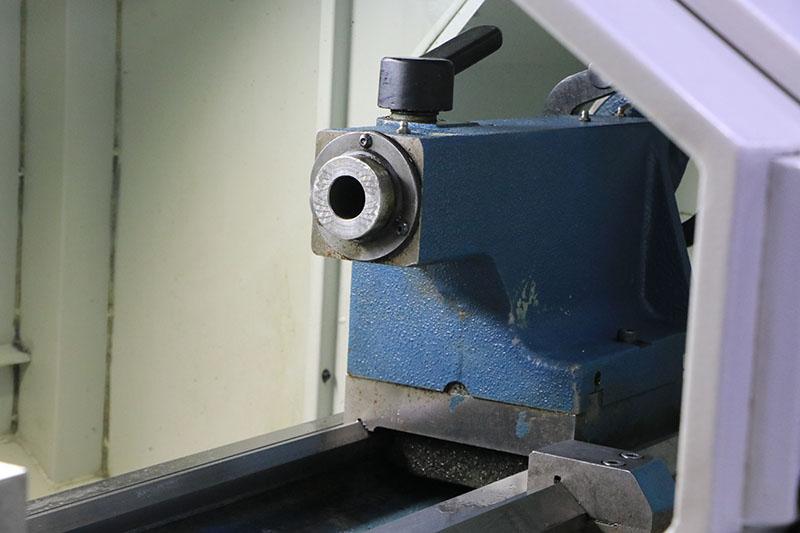

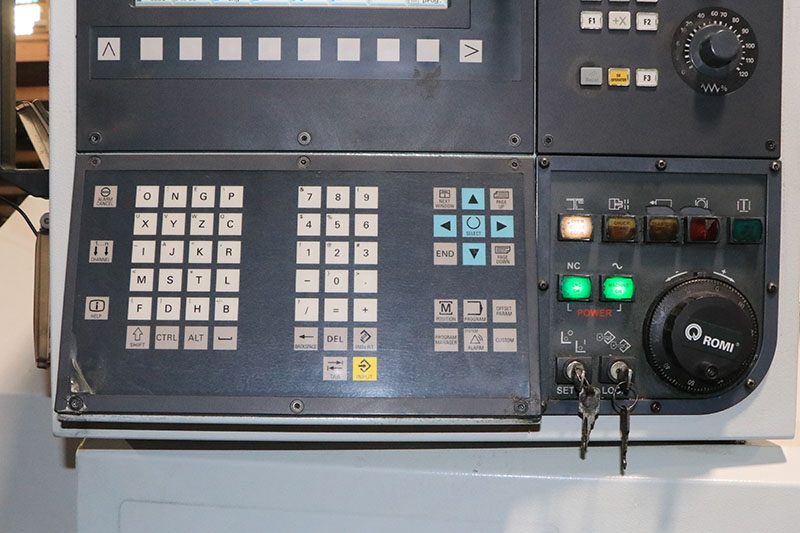

DISTANCE BETWEEN CENTERS..................... 43.46" SWING OVER BED............................... 16.92" SWING OVER CROSS SLIDE....................... 7.87" CROSS SLIDE (X) TRAVEL....................... 8.66" BED WIDTH.................................... 12.00" BED HEIGHT................................... 13.77" SPINDLE NOSE................................. A2-5 ASA HOLE THROUGH SPINDLE......................... 2.08" RANGE OF SPINDLE SPEEDS (INF VARIABLE)....... 4 - 4000 RPM RAPID TRAVERSE (Z)........................... 393.70 IPM RAPID TRAVERSE (X)........................... 393.70 IPM TAILSOCK QUILL TRAVEL........................ 4.72" QUILL DIAMETER............................... 2.36" QUILL TAPER HOLE............................. 4MT MAIN MOTOR................................... 10 HP APPROXIMATE FLOOR SPACE ..................... 122" x 50" APPROXIMATE WEIGHT .......................... 5,500 LBS EQUIPPED WITH: - SIEMENS 802D CONTROL w/MANUAL GUIDANCE SOFTWARE, TOOL PATH& 3D PART SHAPE GRAPHICS, TEACH MODE, CONVERSATIONAL PROGRAMMING, G CODE PROGRAMMING, BUILT-IN DRO - 10 HP VARIABLE SPEED SPINDLE DRIVE - TURN PARTS MANUALLY OR AUTOMATICALLY - DUAL ELECTRONIC HANDWHEEL CONTROLS - "TEACH" 1ST PART, RUN REMAINING PARTS AUTOMATICALLY - USB PORT<, FLASH MEMORY CARD SLOT & RS 232 PORT - 10.4" COLOR LCD DISPLAY - 8" 3-JAW CHUCK - RIGID TAPPING - CONSTANT SURFACE SPEED - INCH/METRIC CONVERSION - MULTI-START THREADING, THREAD REPAIR - DORIAN MODEL: CXA QUICK CHANGE TOOLPOST - BORING BAR HOLDER - COOLANT SYSTEM - AUTOMATIC LUBRICATION SYSTEM INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
