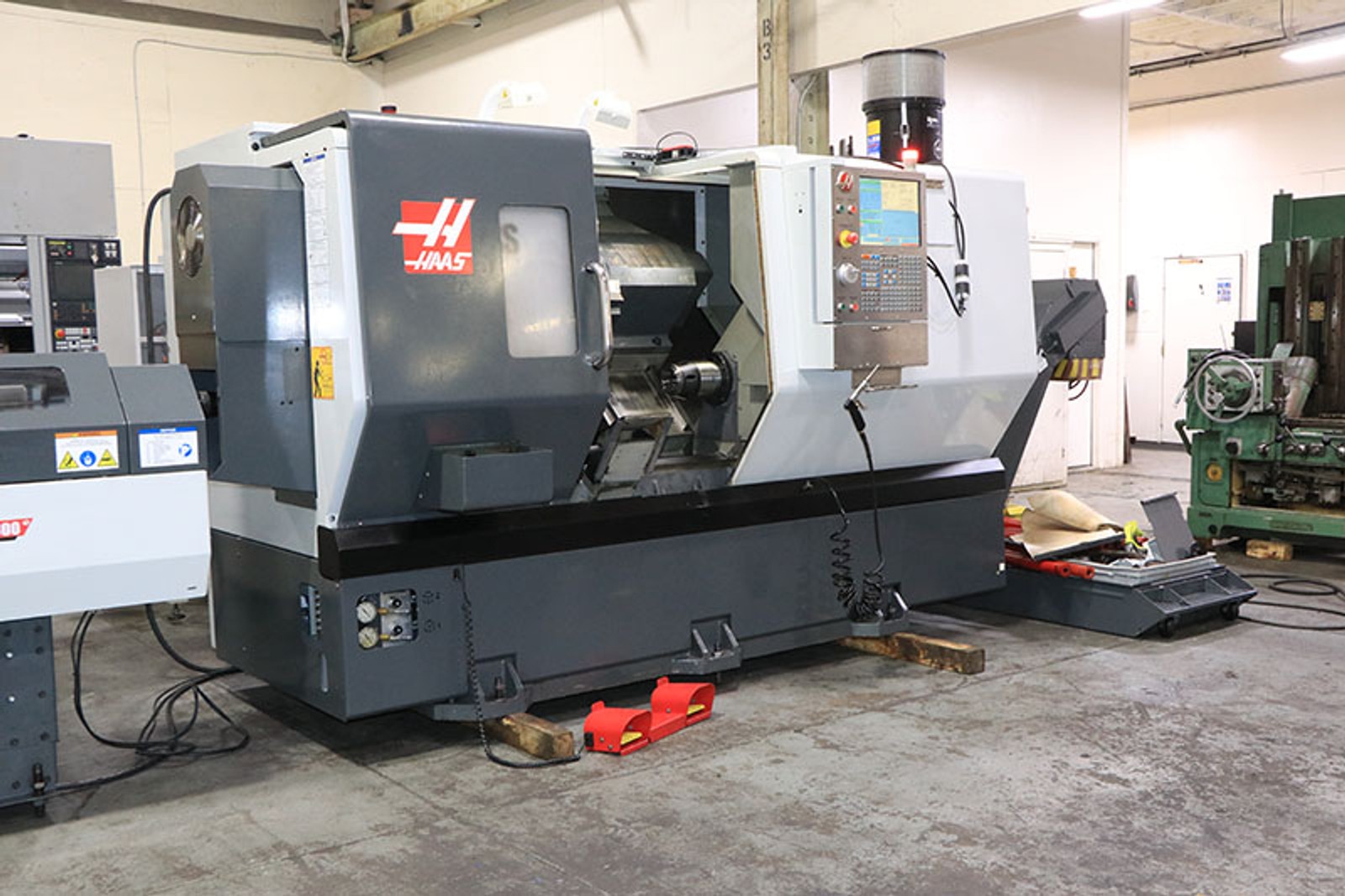

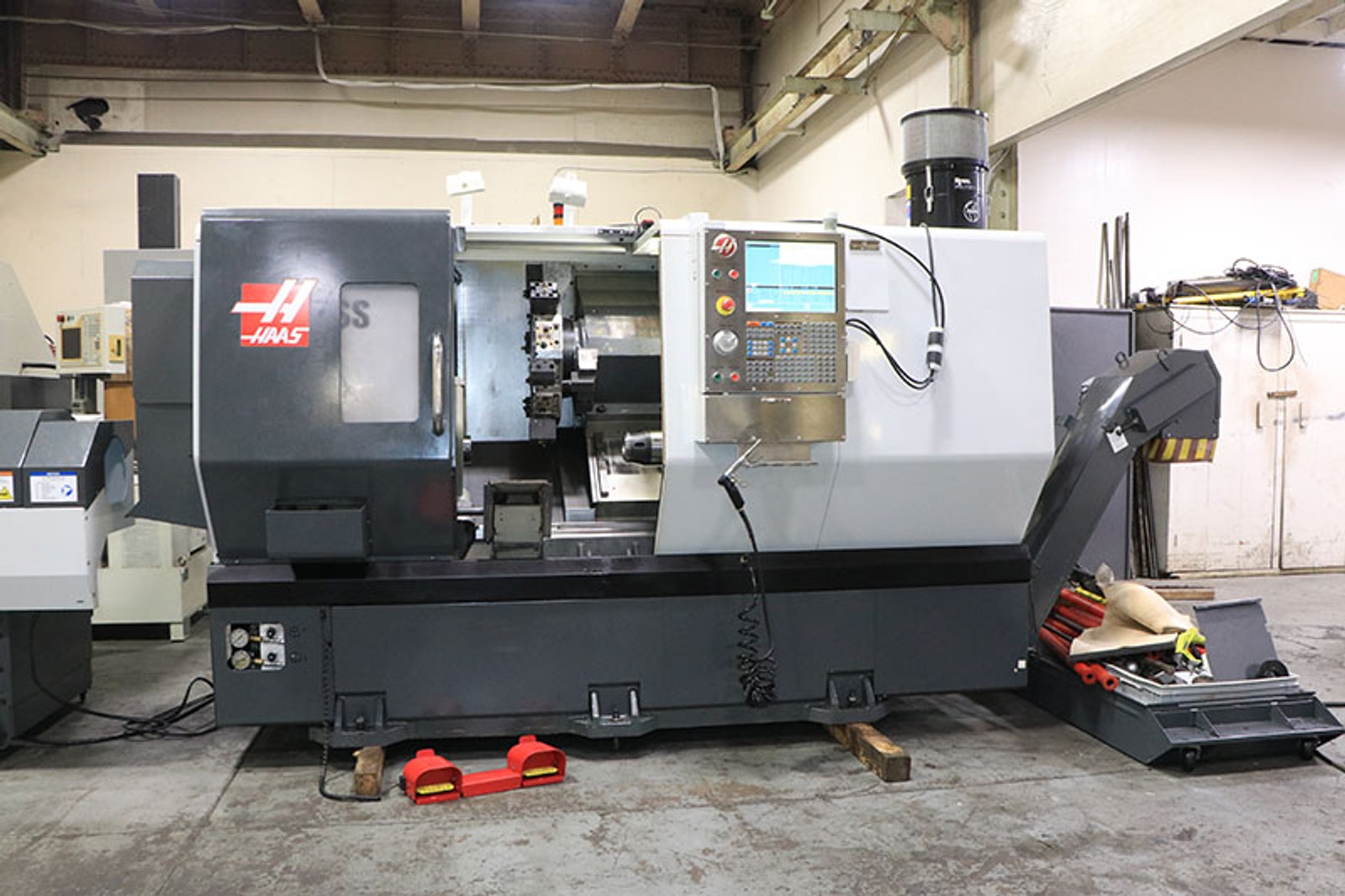

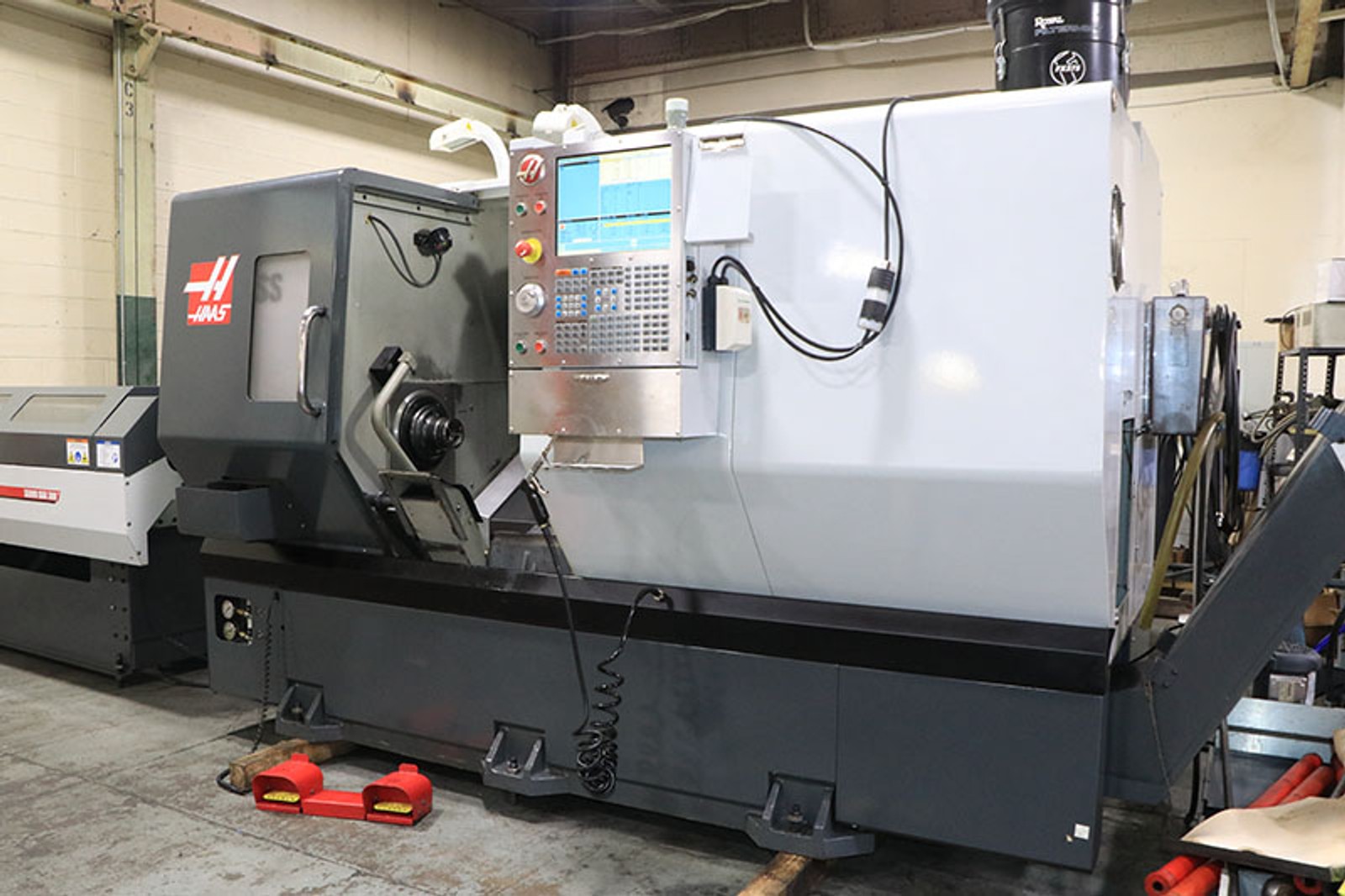

Haas DS-30SS CNC TURNING CENTERS - CNC LATHES - NEW: 2012

Manufacturer

HAAS

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

68779

Model

DS-30SS

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

SPECIFICATIONS:
SWING OVER BED ........................ 31.75"
SWING OVER CROSS SLIDE ................ 20.75"
MAXIMUM TURNING DIAMETER .............. 16"
MAXIMUM TURNING LENGTH ................ 26.11"
X-AXIS TRAVEL ......................... 12.5"
Z-AXIS TRAVEL ......................... 26"
SPINDLE SPEED, MAIN/SUB SPINDLE ....... 4,800 RPM
SPINDLE BORE .......................... 2.44"
SPINDLE NOSE, MAIN .................... A2-6
SPINDLE MOTOR, MAIN ................... 30 HP
SPINDLE NOSE, SUB ..................... A2-5
SPINDLE MOTOR, SUB .................... 20 HP

EQUIPPED WITH:

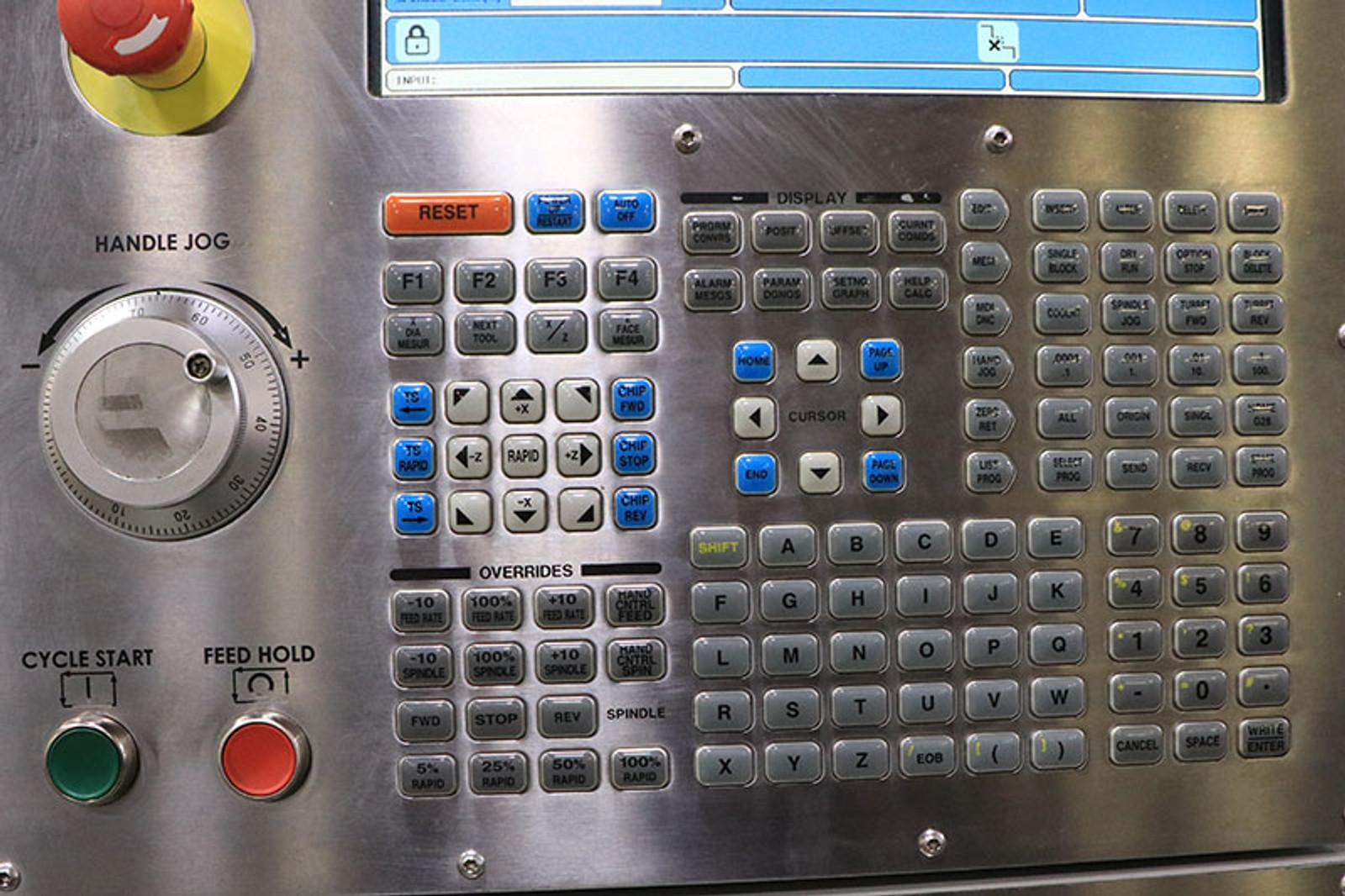

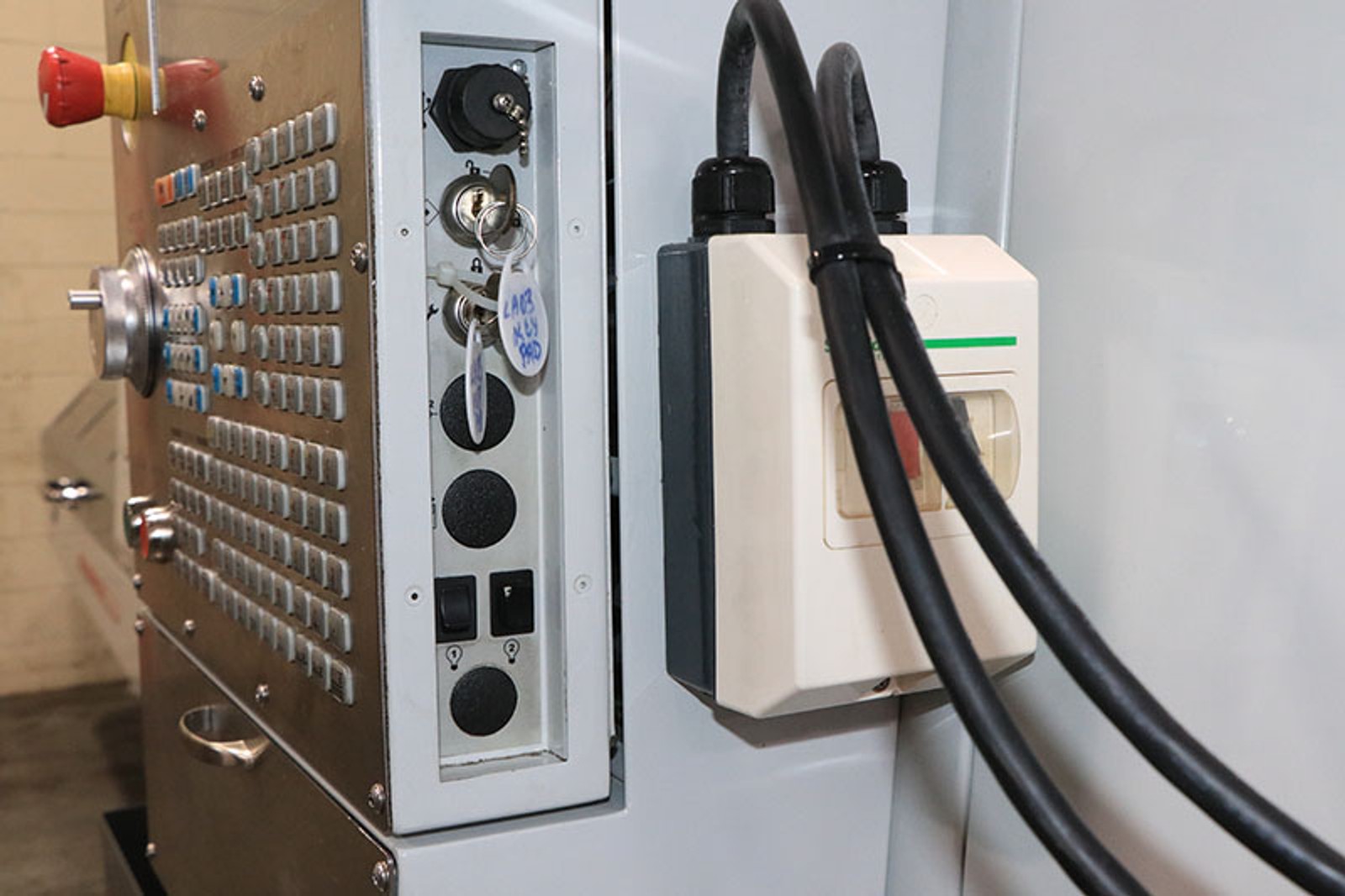

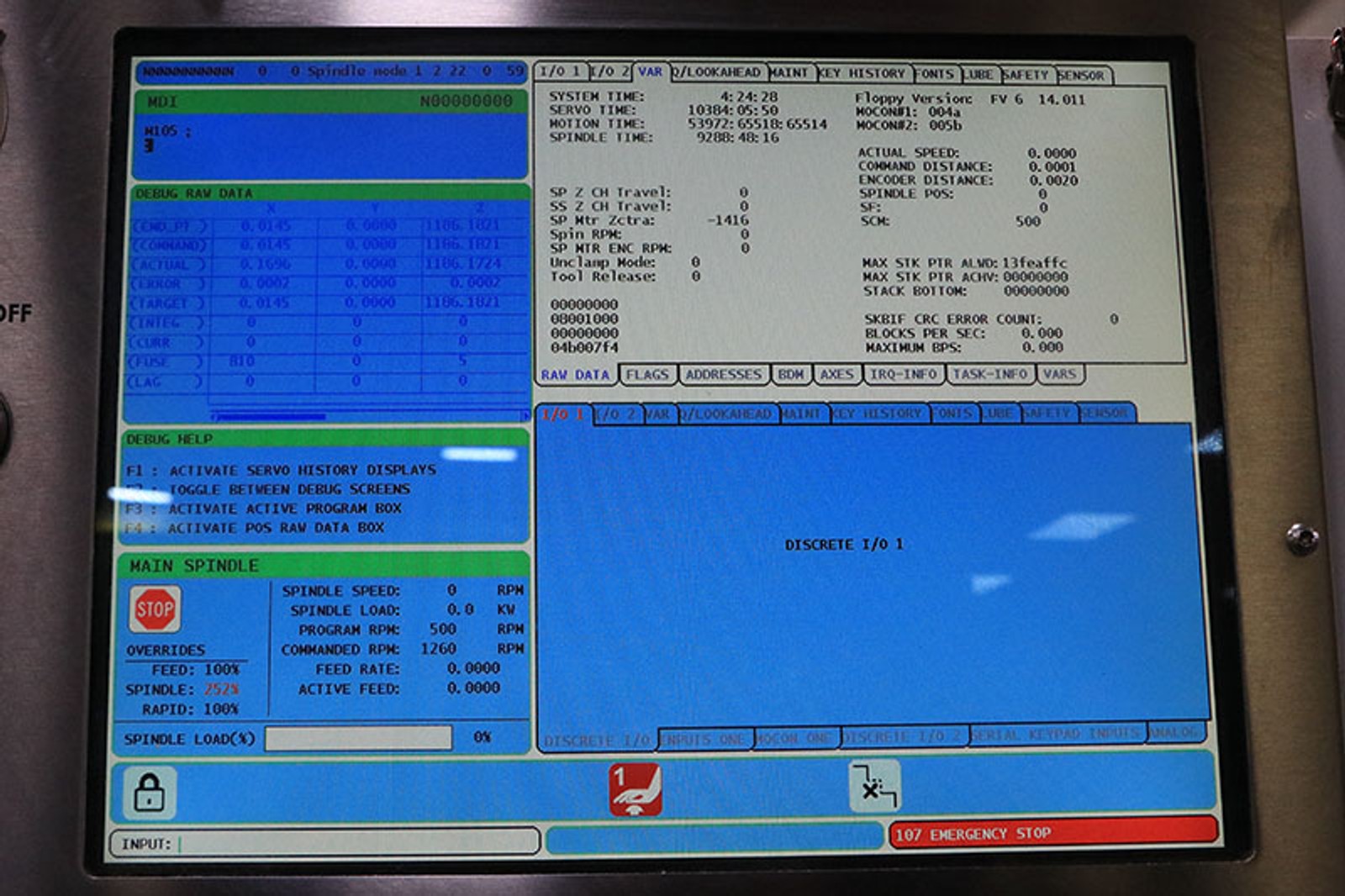

HAAS CNC CONTROL

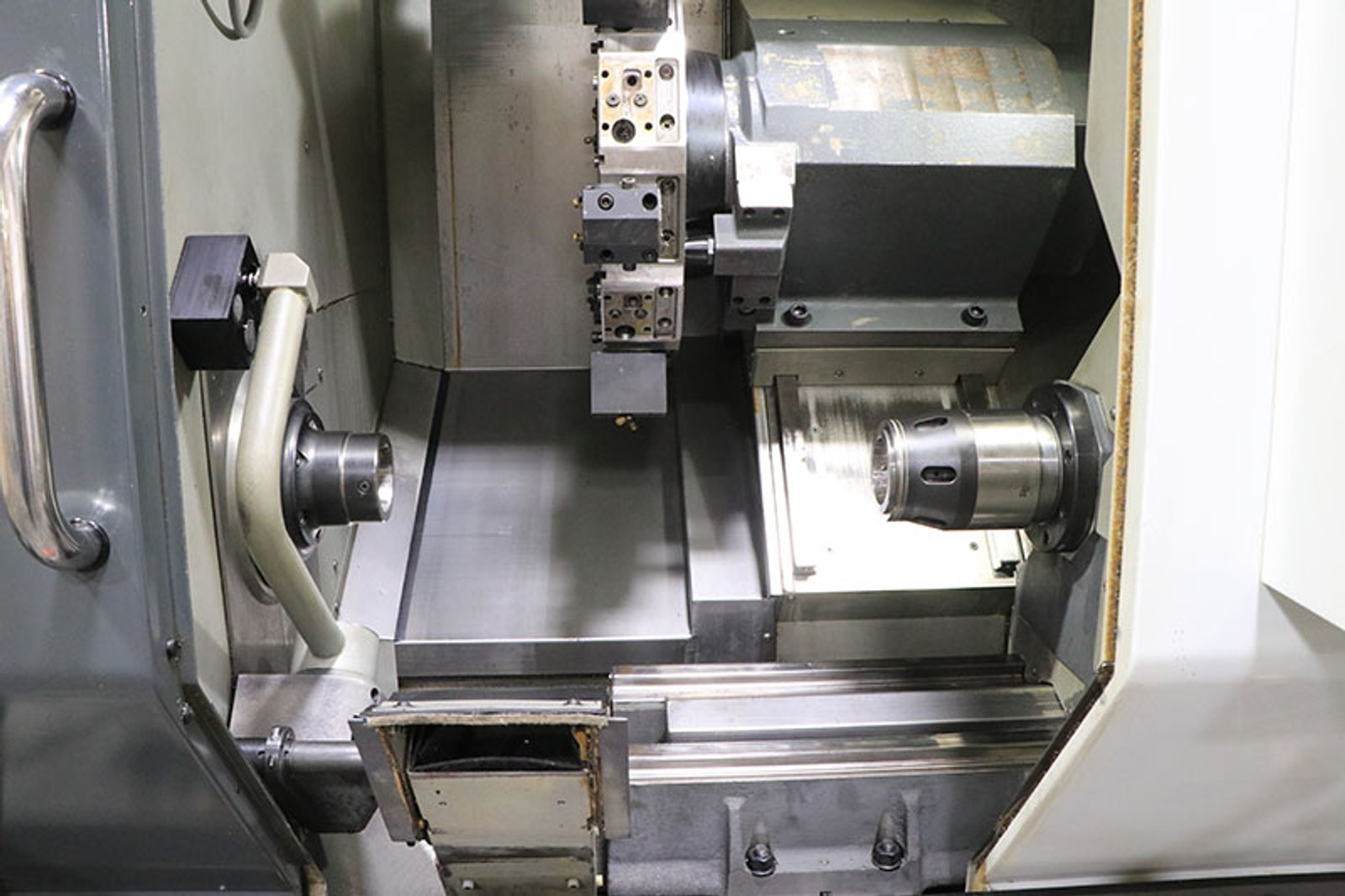

MAIN SPINDLE & SUB-SPINDLE

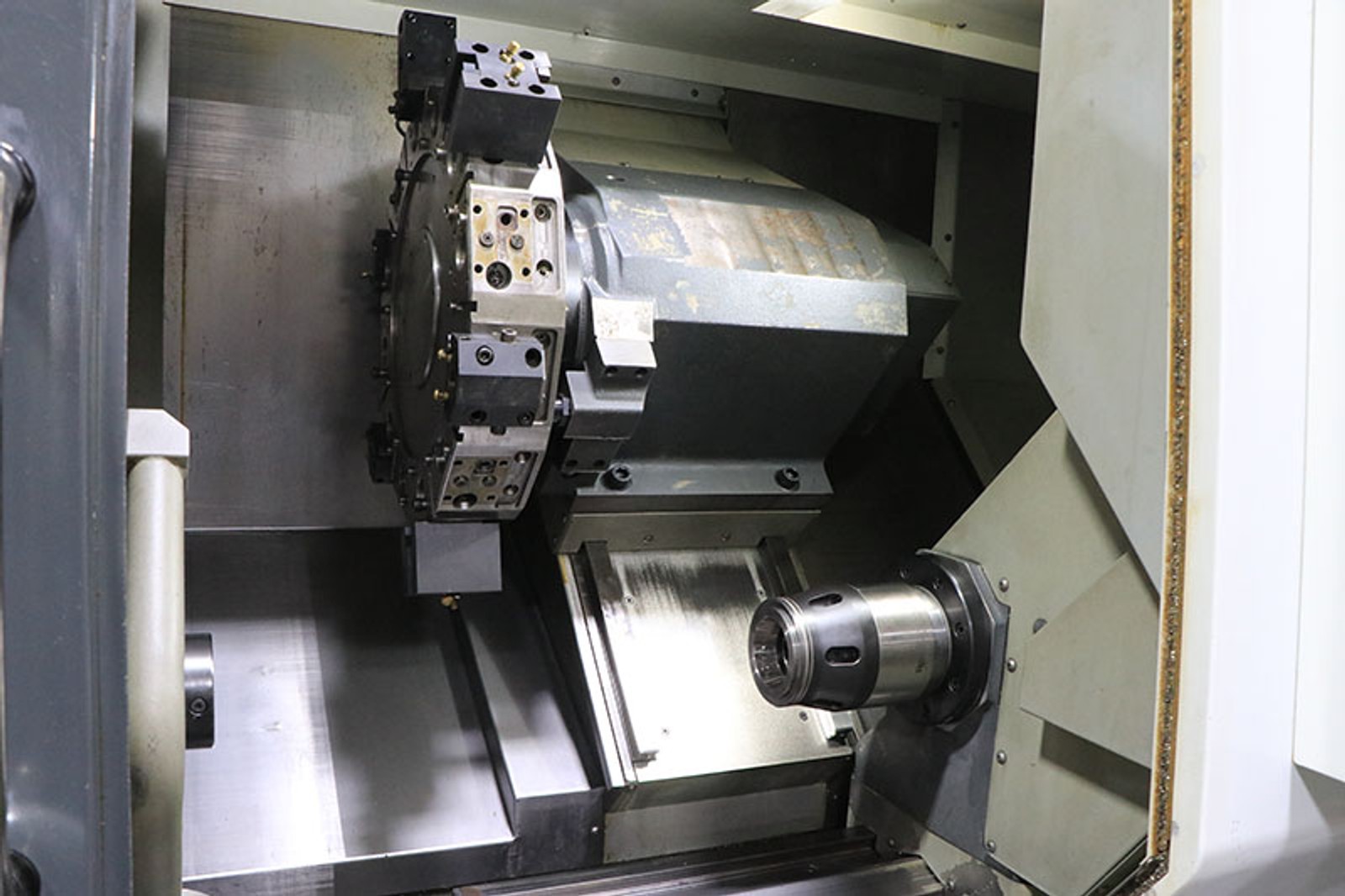

12-STATION TURRET WITH 24-TOTAL POSITIONS

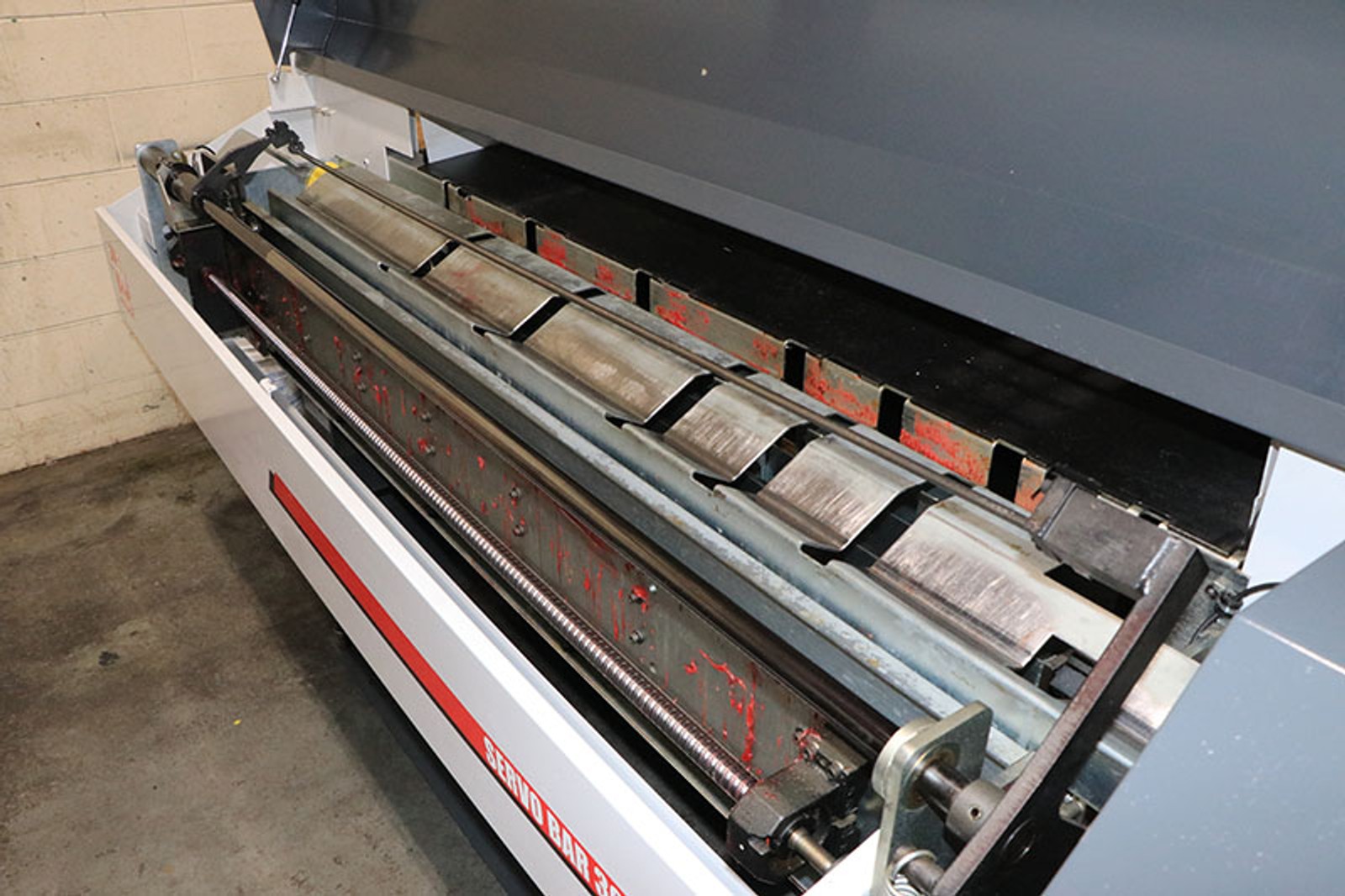

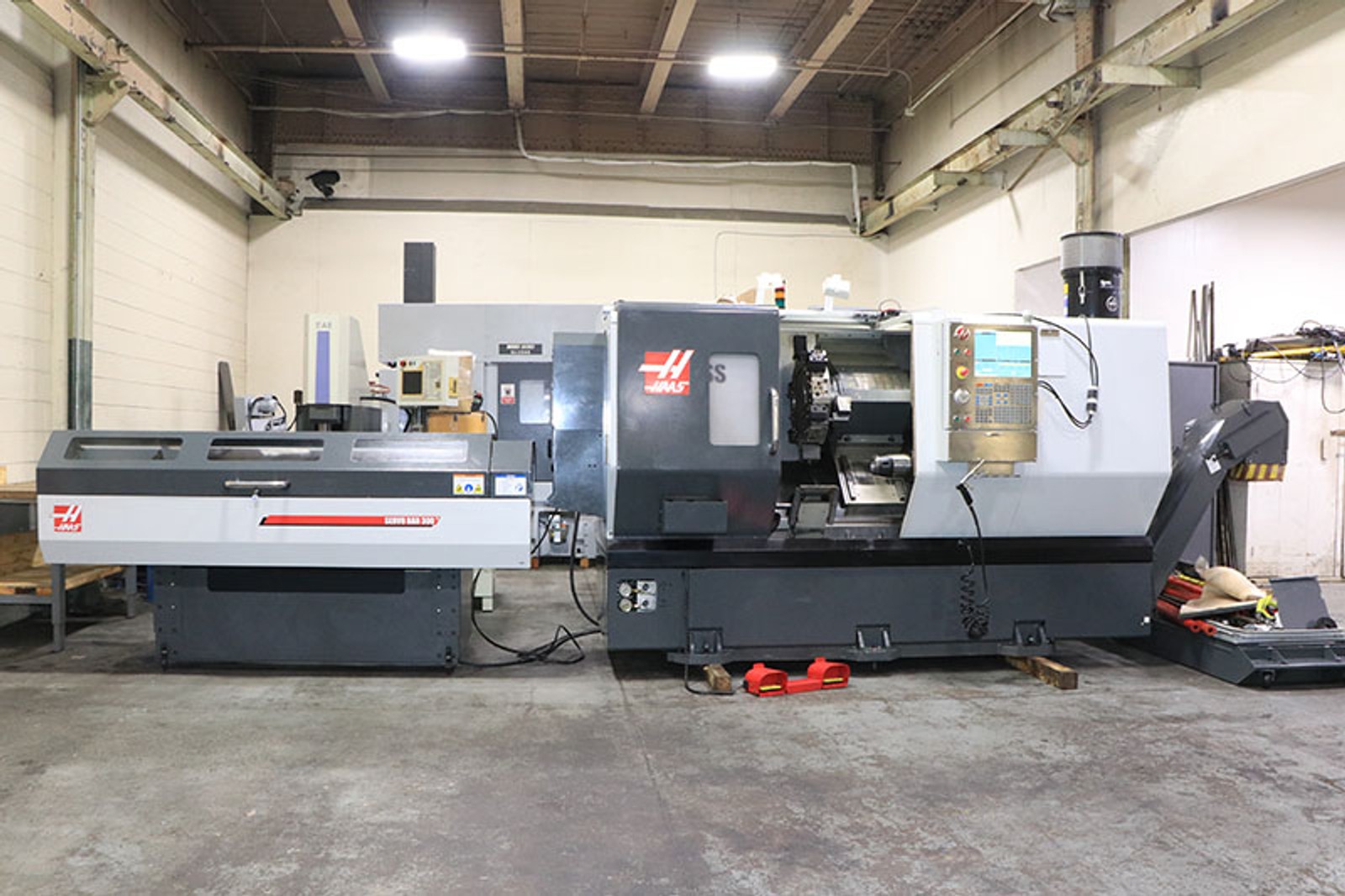

HAAS BARFEEDER - MODEL BAR 48B
TOOLSETTER

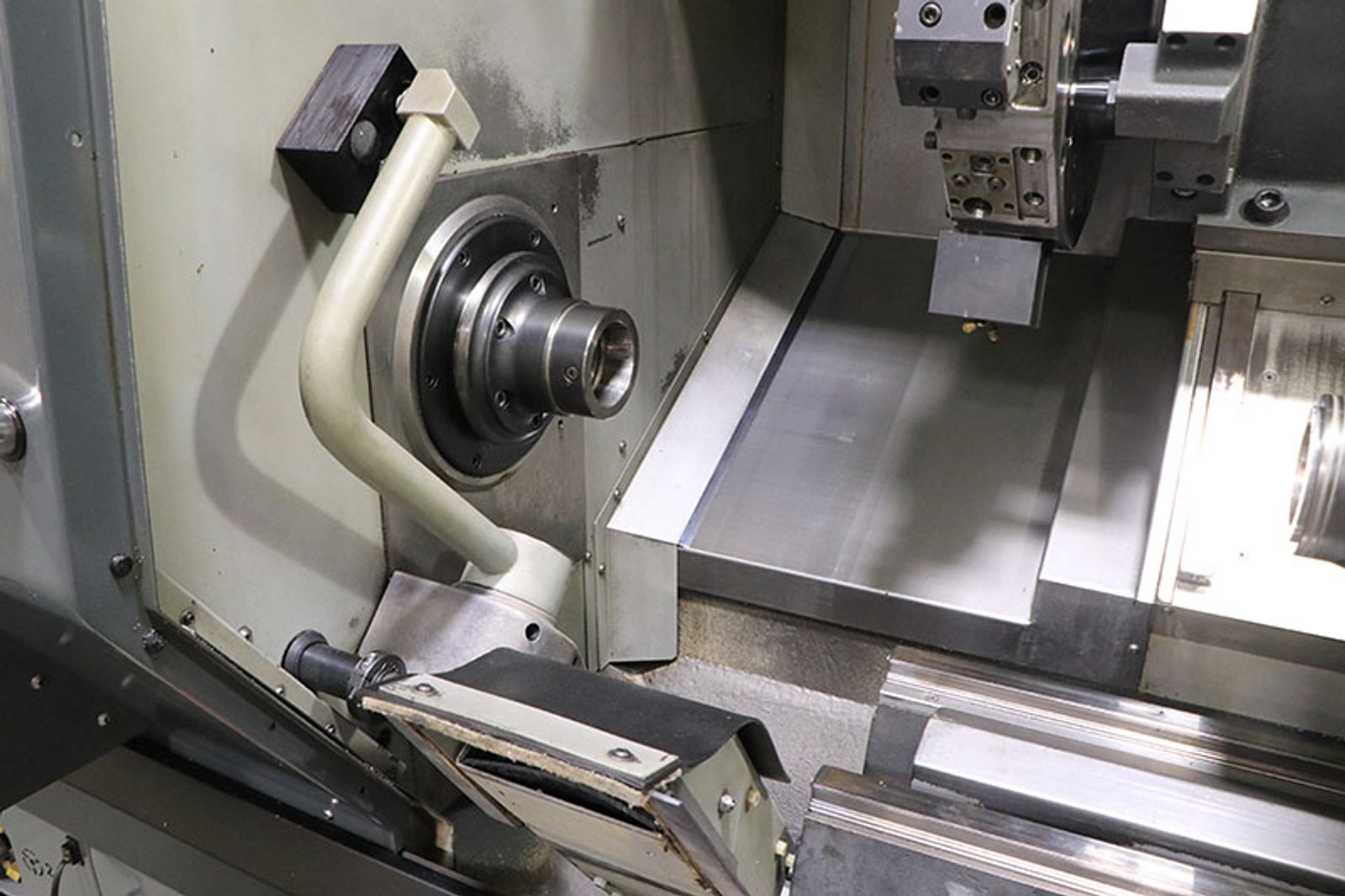

ROYAL QUICK-GRIP 42, A2-6 COLLET CHUCK ON MAIN SPINDLE
ROYAL QUICK-GRP. 42, A2-5 COLLET CHUCK ON SUBSPINDLE
AUTO CHIP BLAST
HIGH PRESSURE COOLANT
RIGID TAPPING
SPINDLE ORIENTATION
PARTS CATCHER

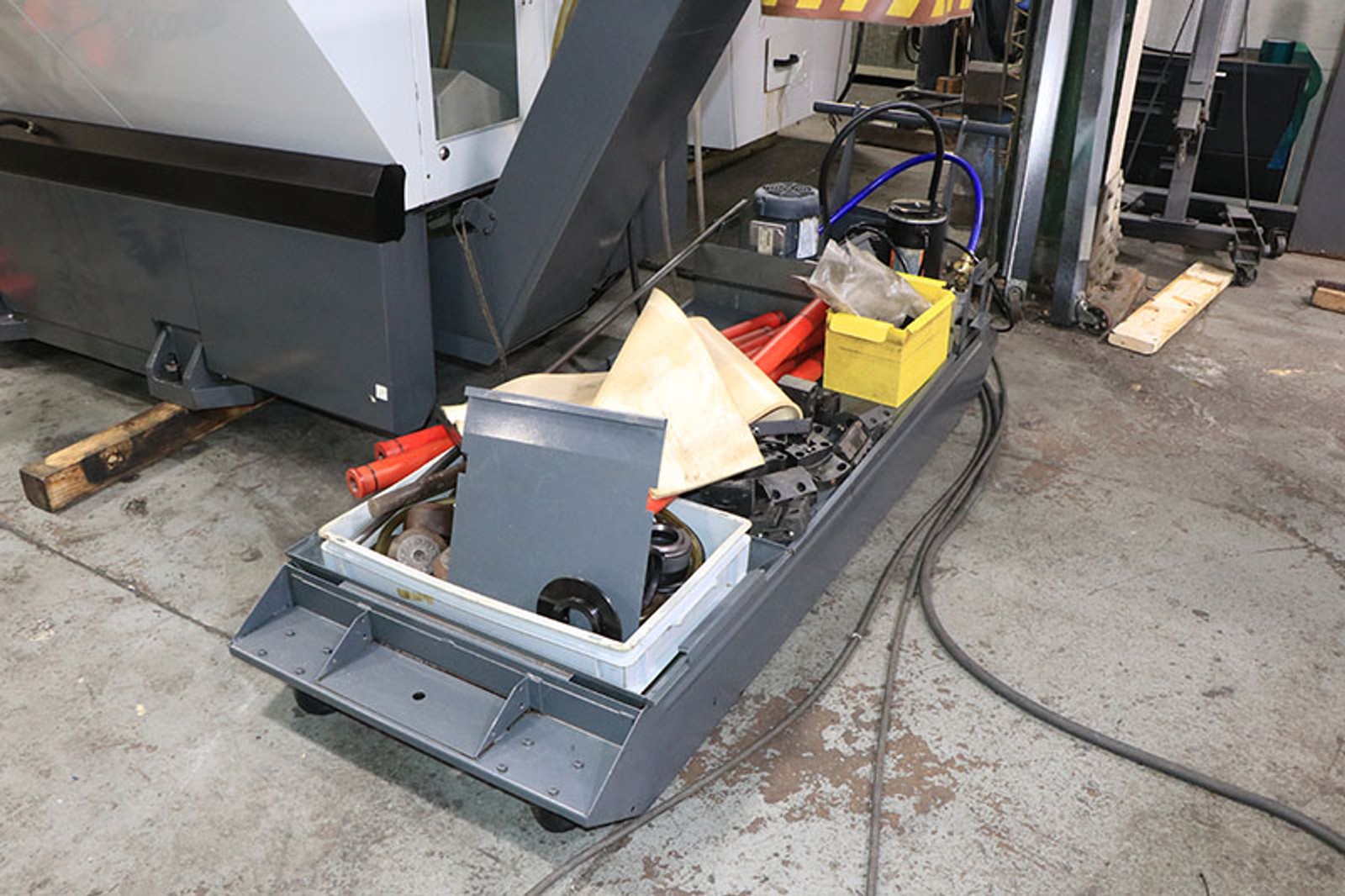

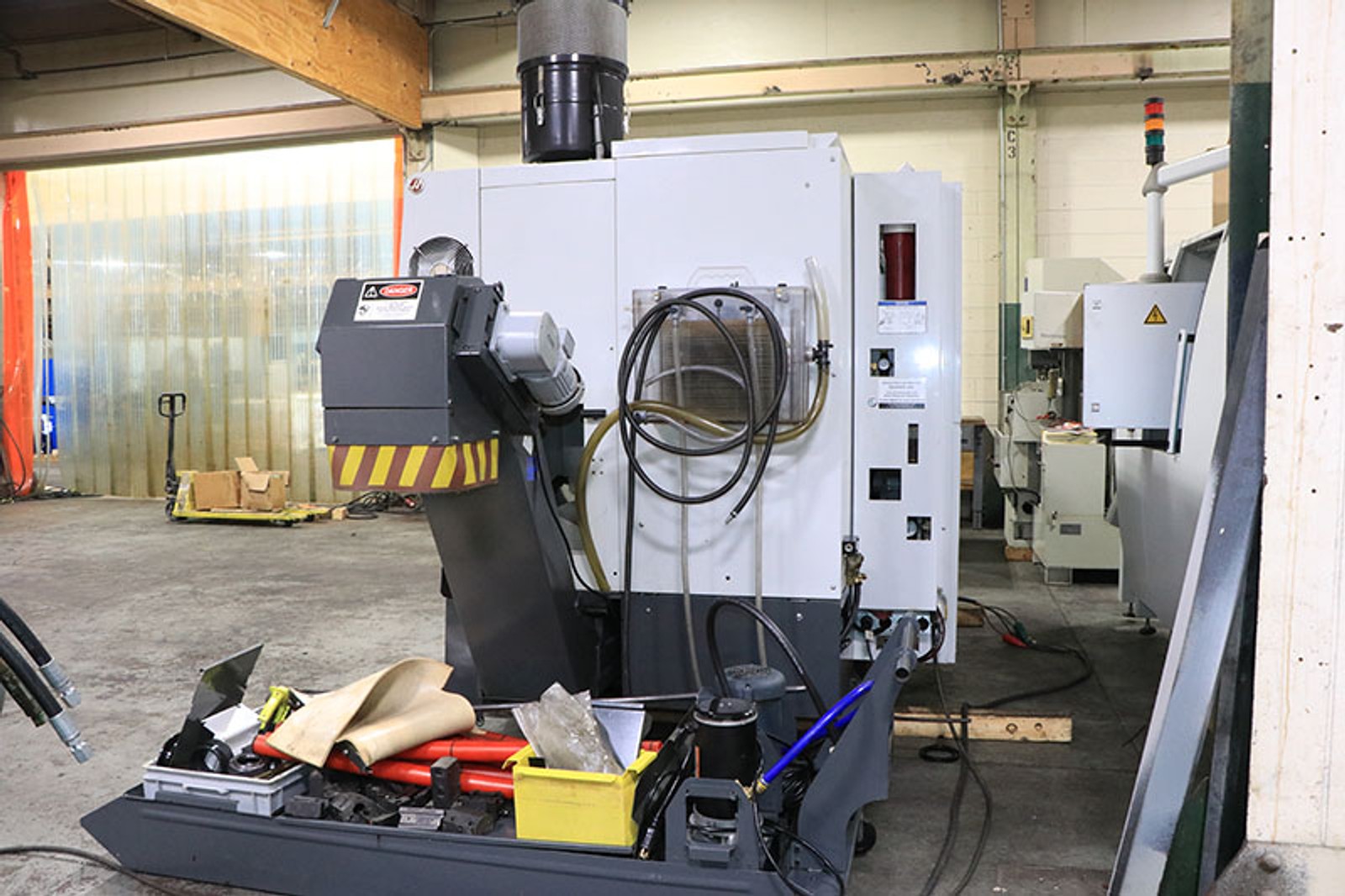

HENNIG CHIP CONVEYOR
ROYAL MIST MIST FILTER
MISCELLANEOUS TOOLING
SPINDLE LINERS
