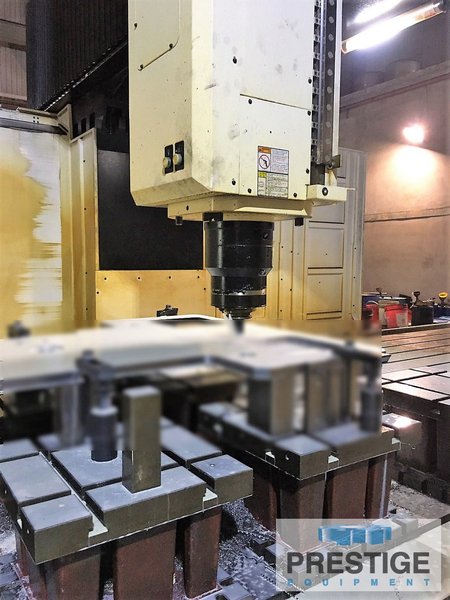

HARTFORD HSA-836EAY, 5-Face, X-315", Y-197", Fanuc OiMF, 32 ATC, Universal Head, Linear Scales, 2017, #32563

Manufacturer

HARTFORD

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32563

Model

HSA-836EAY

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32563

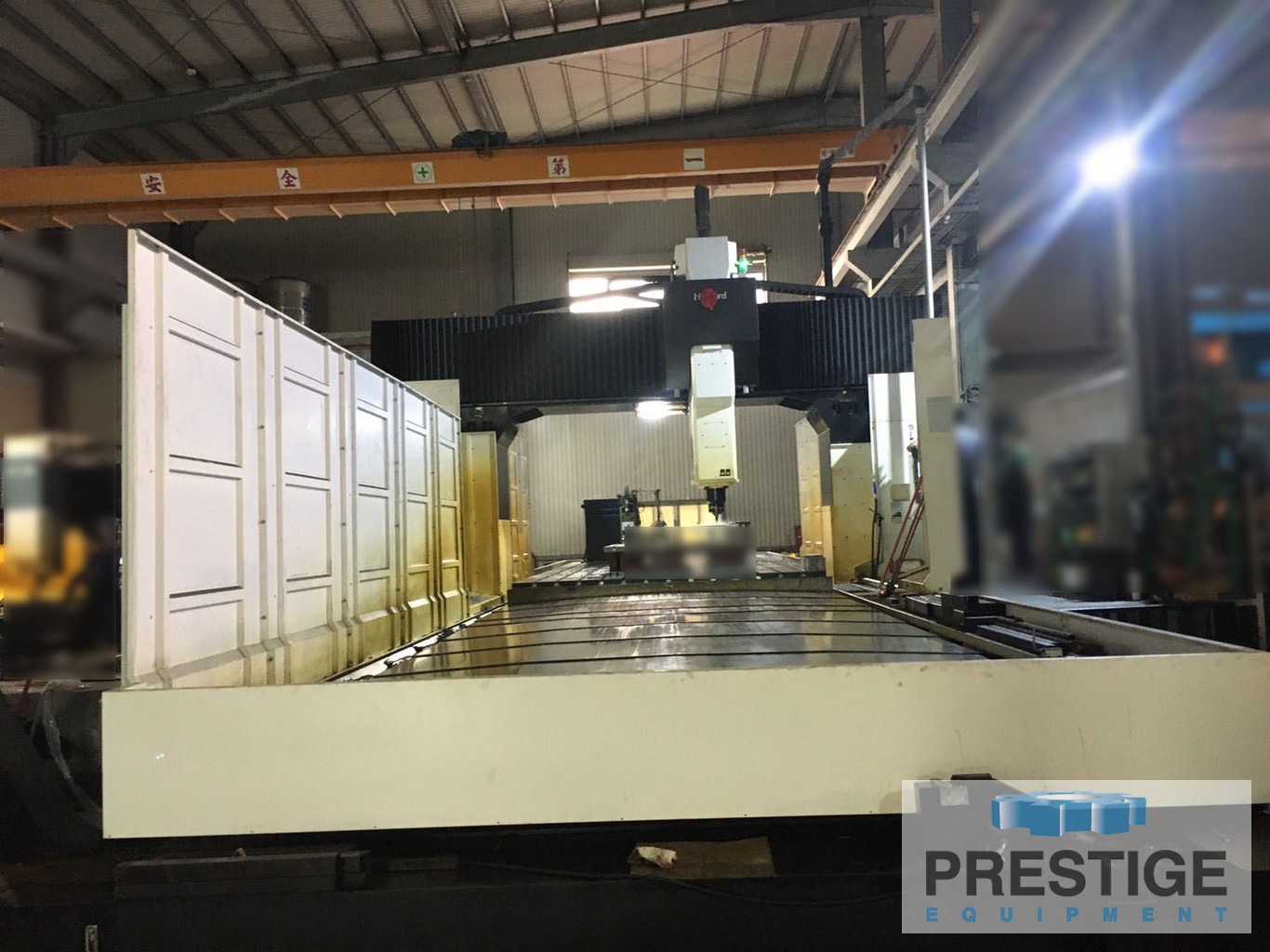

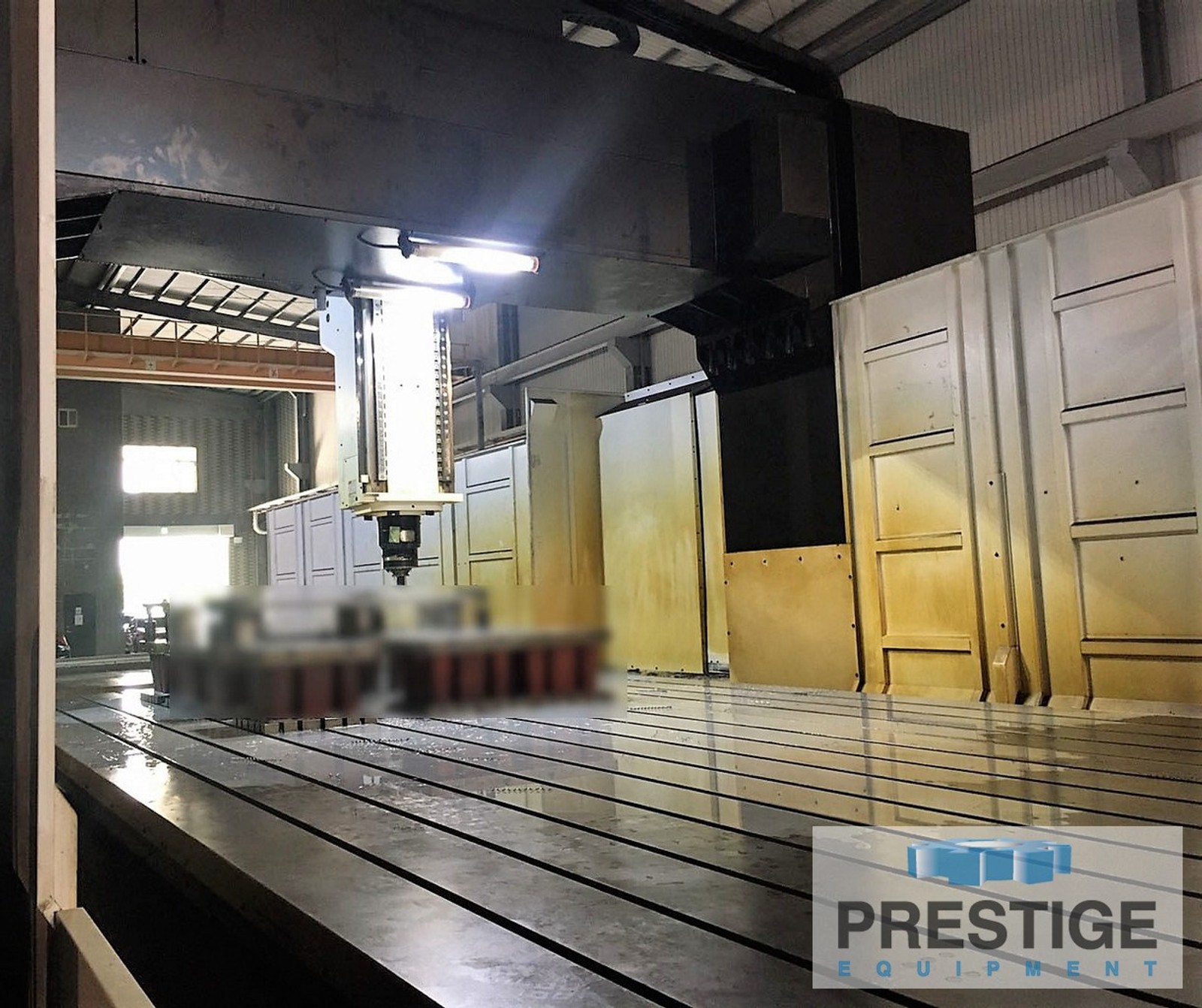

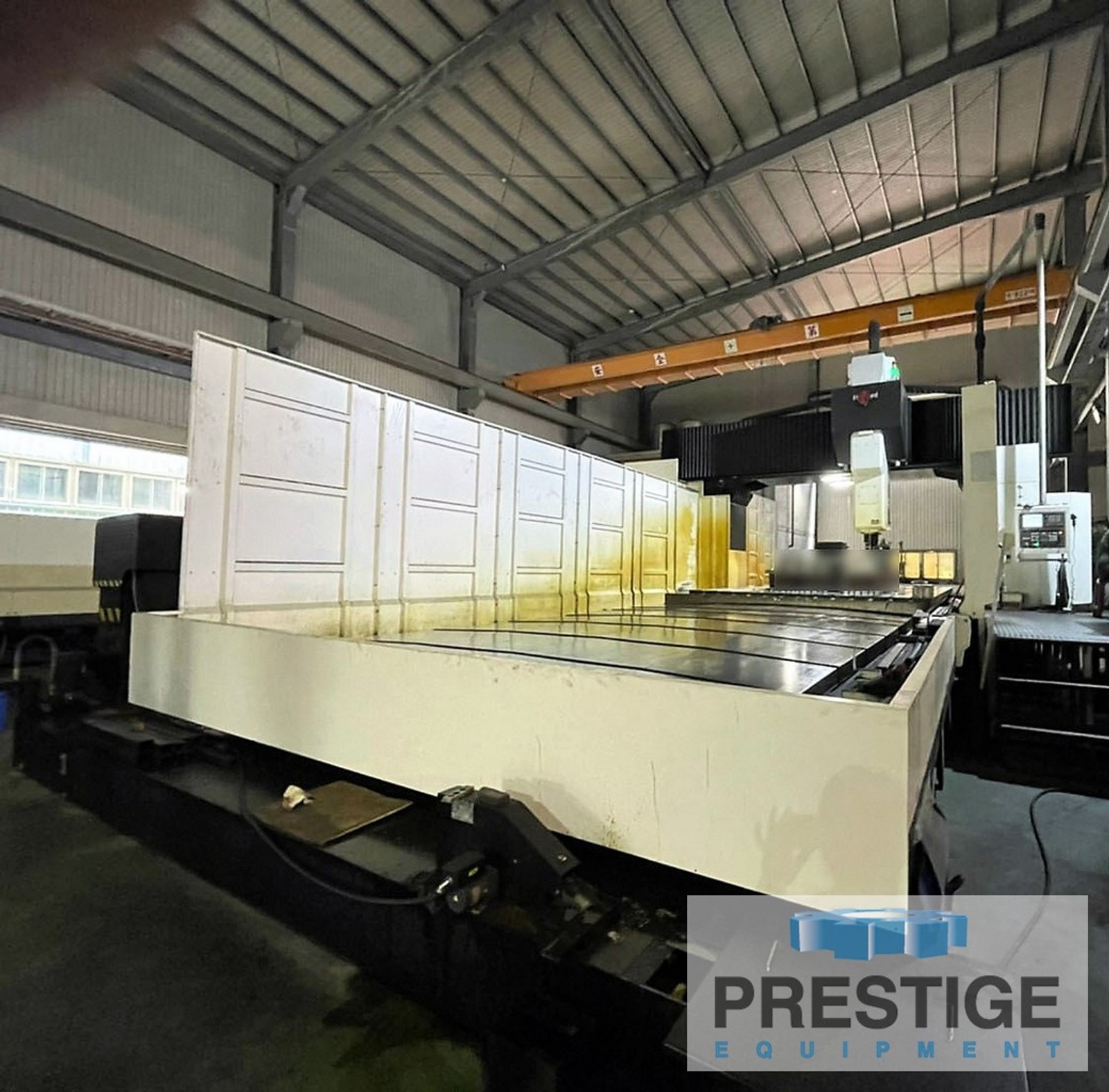

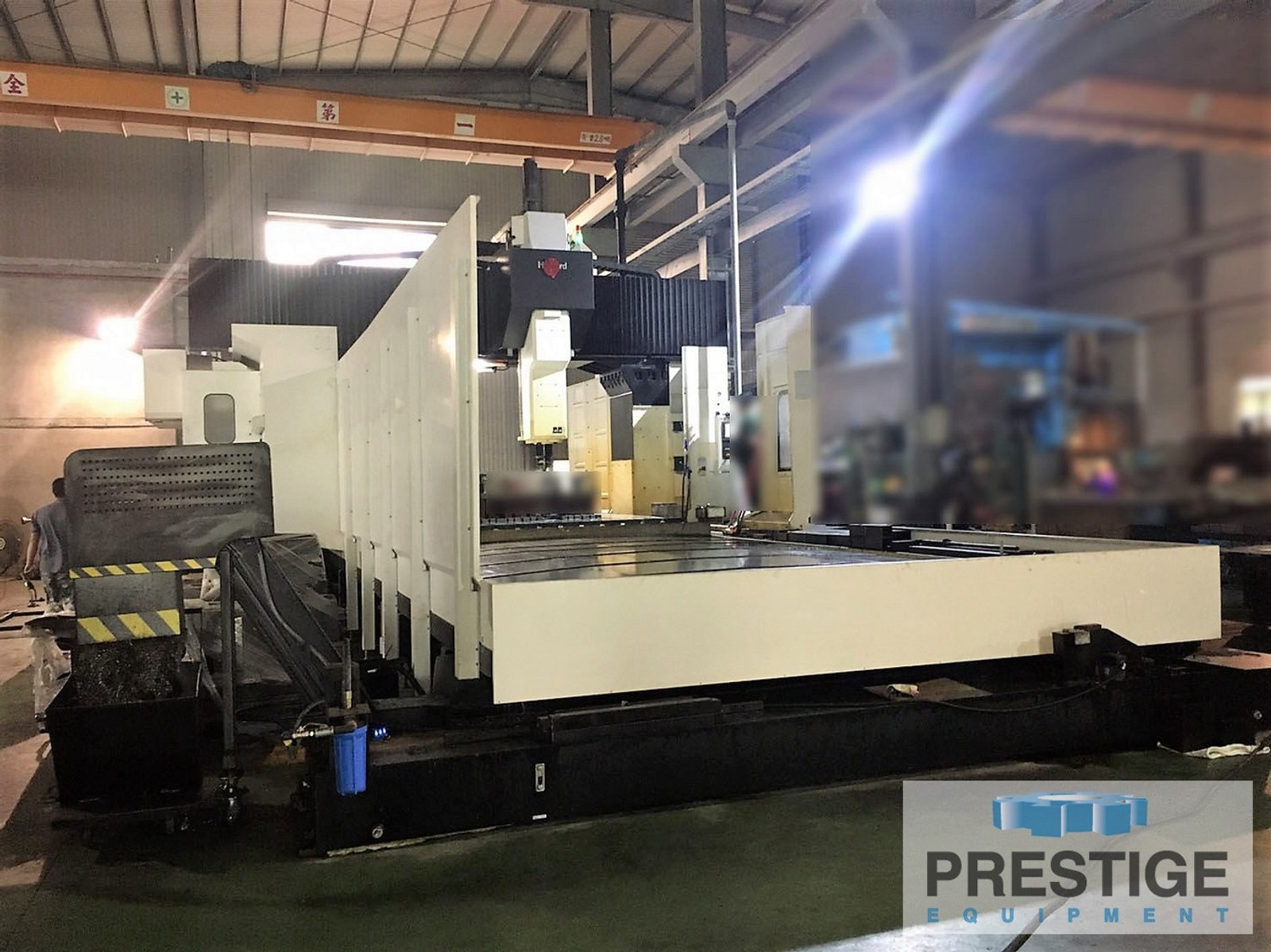

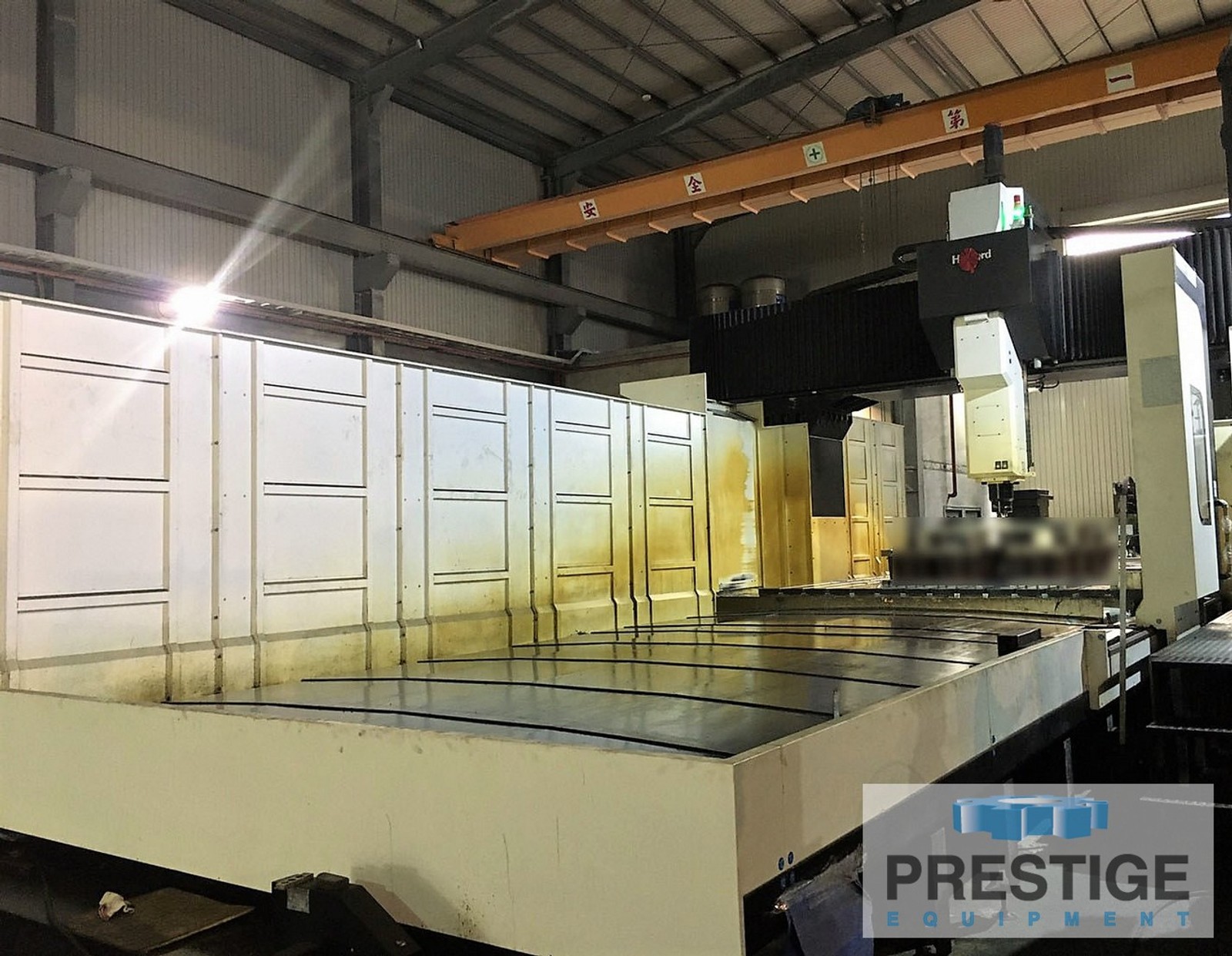

HARTFORD HSA-836EAY 5-Face Double Column Bridge Mill

FEATURES:

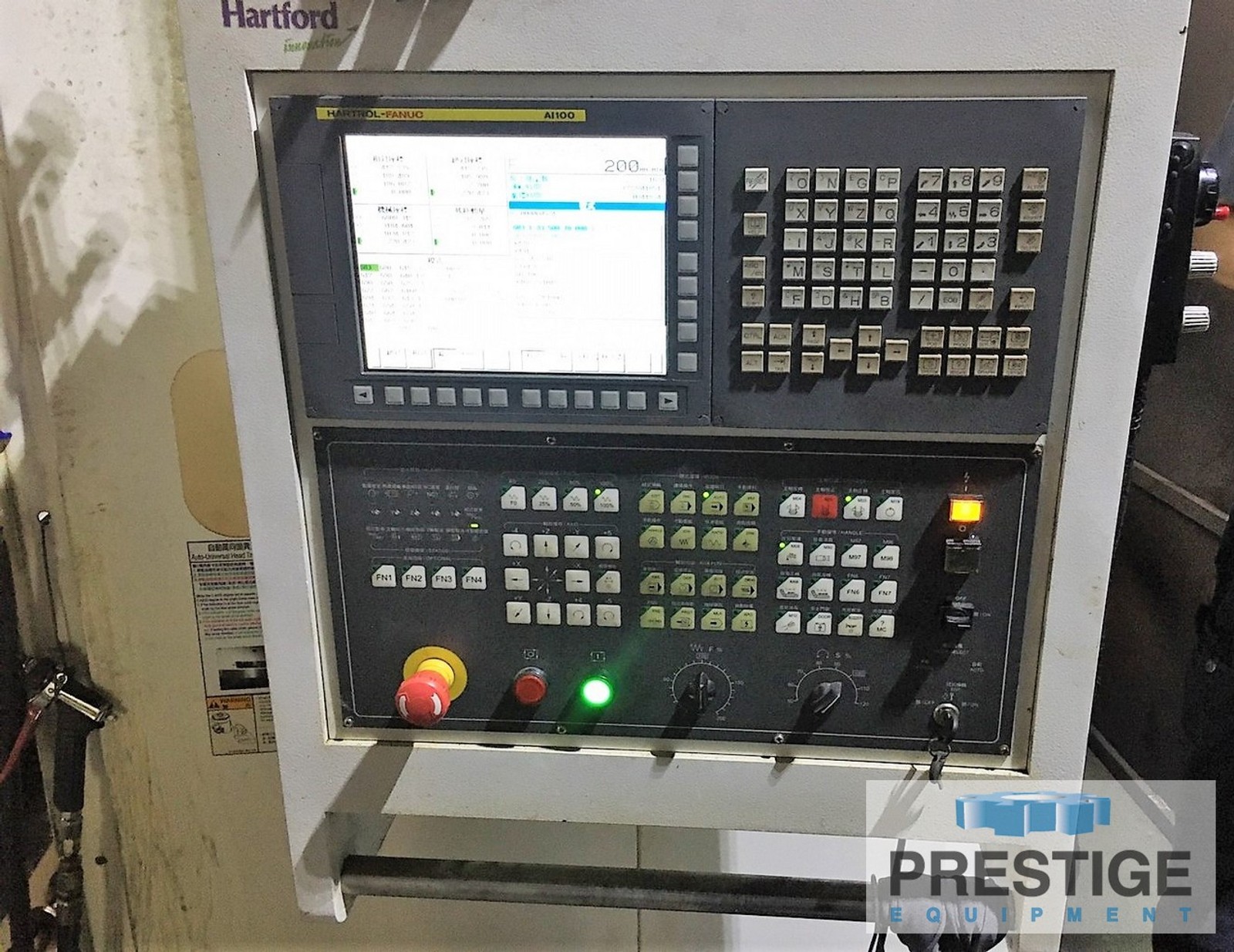

Fanuc OiMF CNC Control
32 Station Automatic Tool Changer
Automatic Universal Head (A/C Axis Auto 5 Degree Indexing)
Extension Head (4,000 RPM)
X/Y/Z Roller Linear Guide Ways
X/Y/Z Linear Scales

SPECIFICATIONS:
X-Axis, Table Travel .................... 314.96"
Y-Axis, Spindle Head Travel ............. 196.85"
Z-Axis, Vertical Travel ................. 47.24"
Distance Between Columns ................ 165.35"
Height Between Table And Spidle ......... 51.57"
Distance from Spindle to Center Column .. 17.71"
Table Size .............................. 318.89" x 137.79"
Table Load Capacity ..................... 66,000 Lbs
Spindle Taper ........................... BT 50
Spindle Speeds (Gear Type) .............. 6,000 RPM
Spindle Motor ........................... 24.6 HP/29 HP
Cutting Feed Rate (X-Axis) .............. 236.22 IPM
Cutting Feed Rate (Y/Z Axis) ............ 393.70 IPM
Rapid Traverse (X-Axis) ................. 314.96 IPM
Rapid Traverse (Y-Axis) ................. 629.92 IPM
Rapid Traverse (Z-Axis) ................. 590.55 IPM
Approximate Floor Space ................. 340.55" x 82.67"
Approximate Machine Weight .............. 163,900 Lbs.

EQUIPPED WITH:
Fanuc OiMF CNC Control
32 Station Automatic Tool Changer

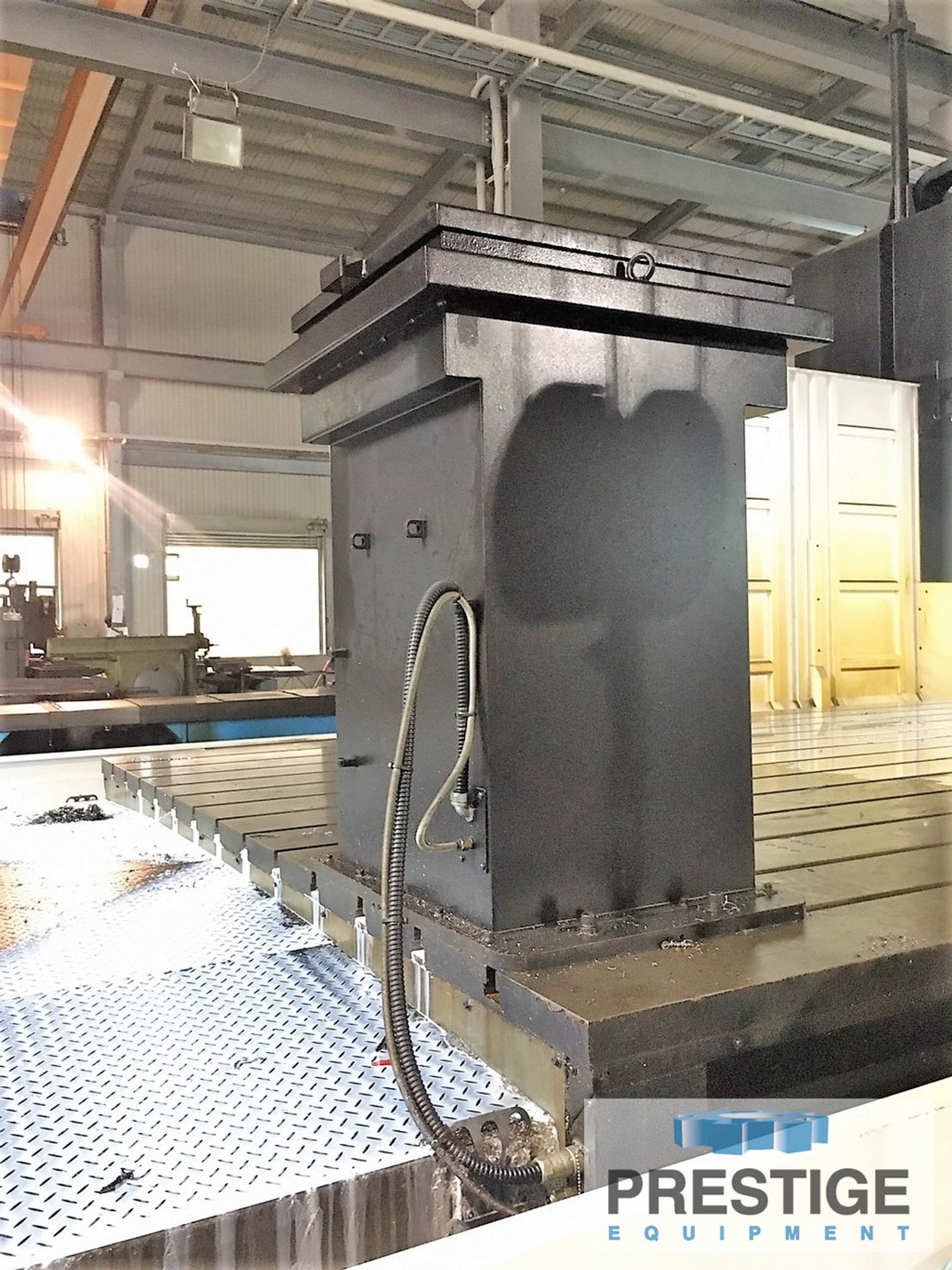

Automatic Universal Head (A/C Axis Auto 5 Degree Indexing)

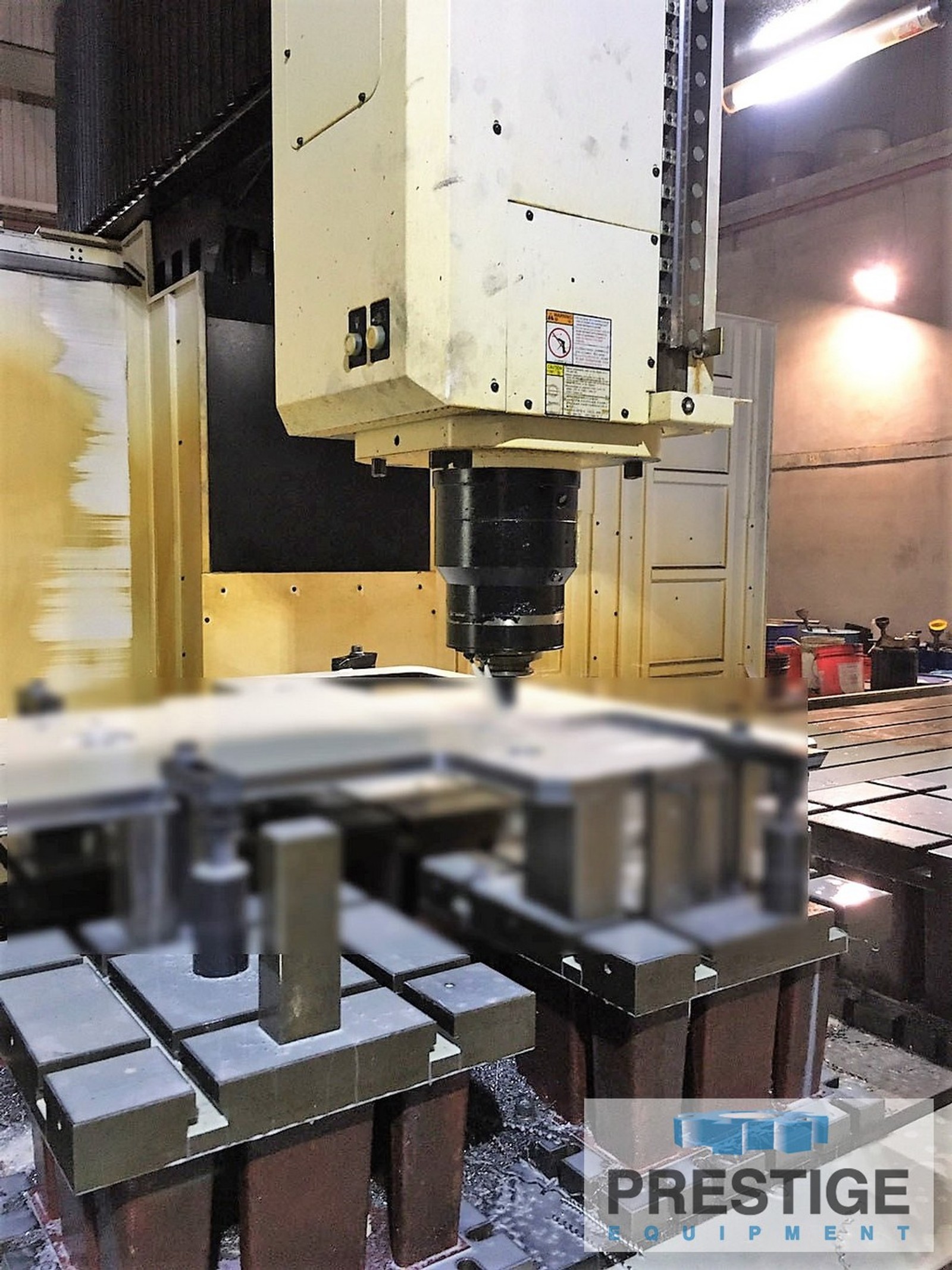

Extensions Head (4,000 RPM)
X/Y/Z Roller Linear Guide Ways
X/Y/Z Linear Scales
Centralized Automatic Lubrication System
Spindle Air Blow Device

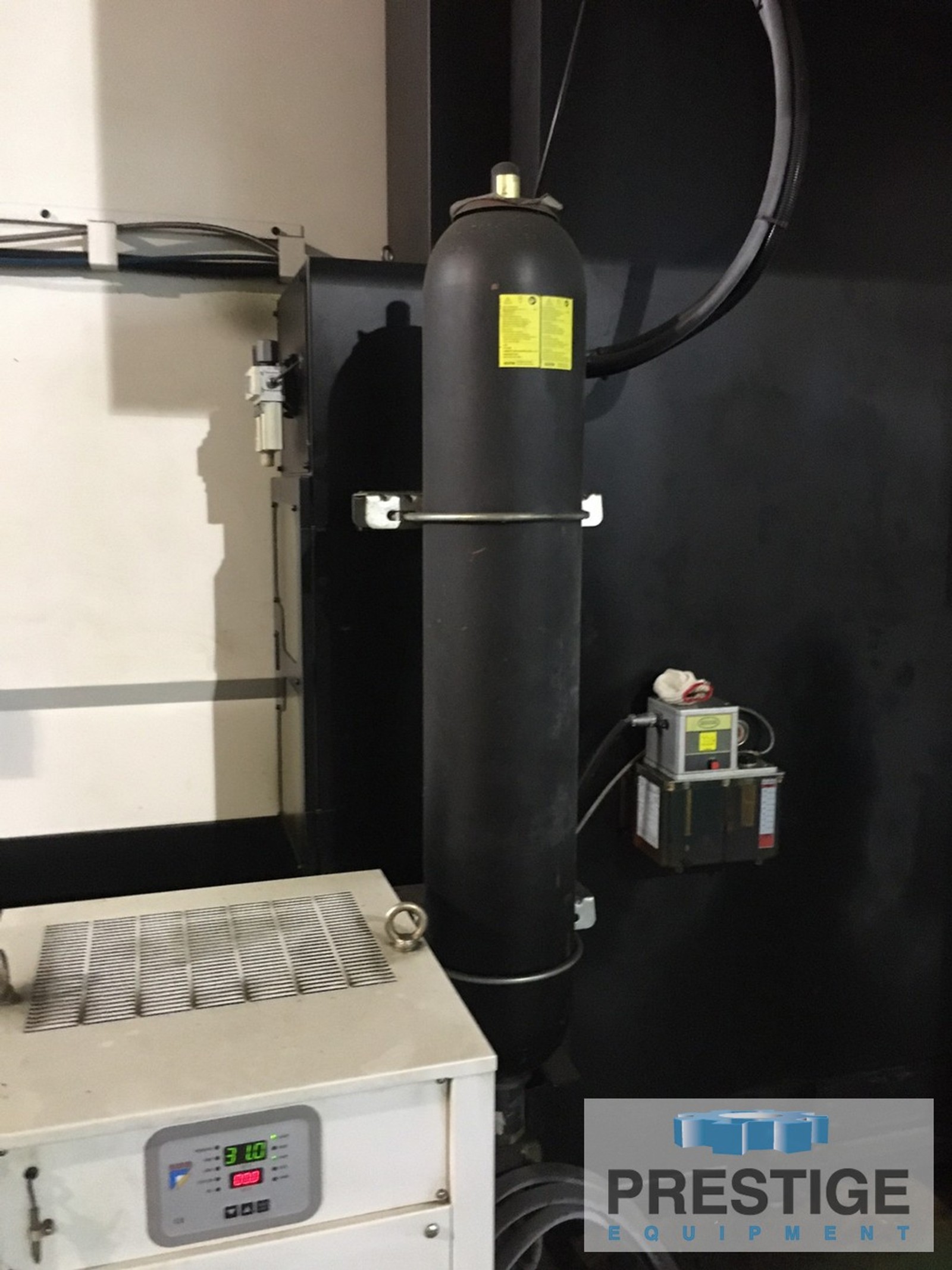

Spindle Oil temperature Cooler

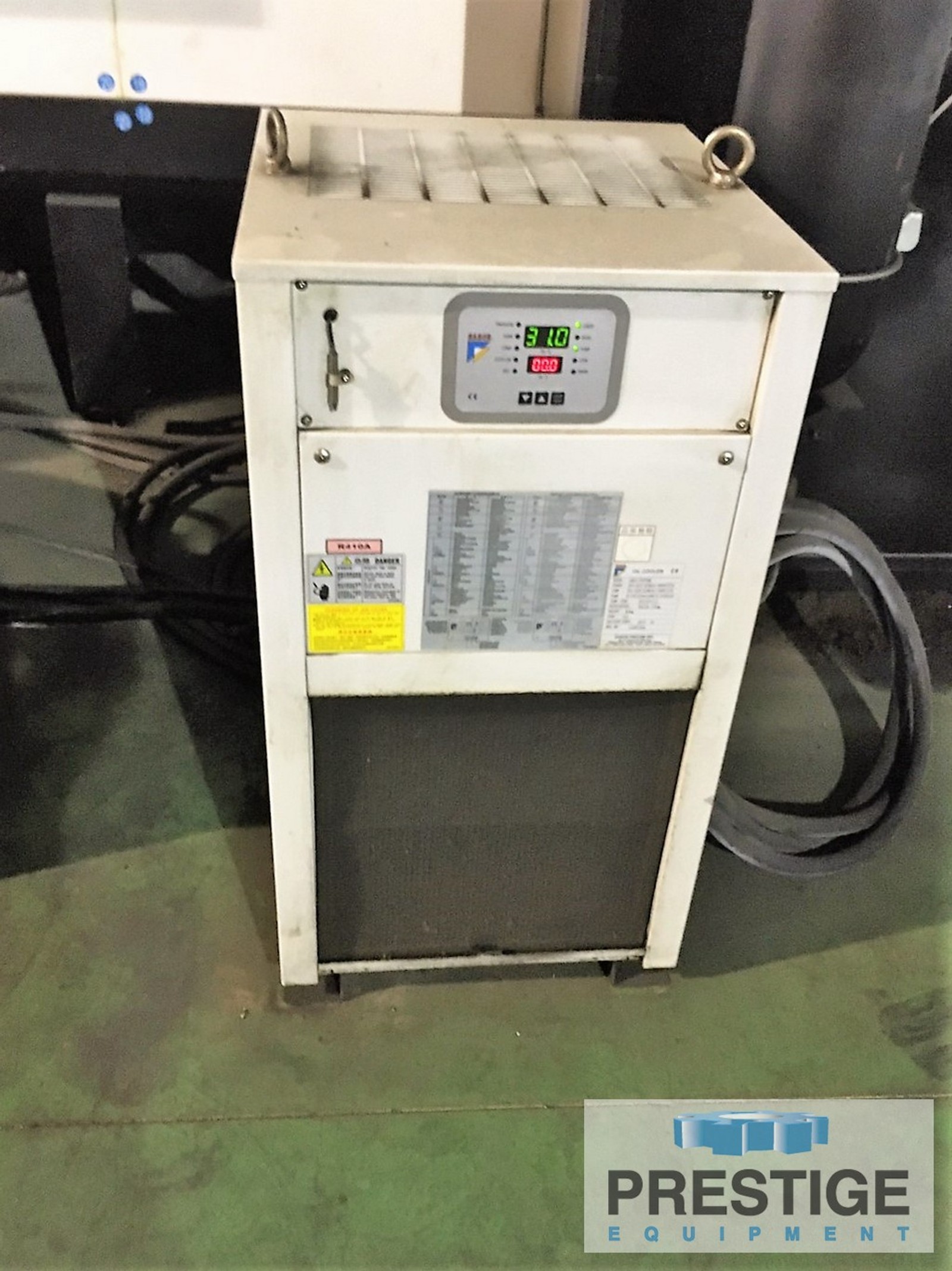

Spindle Oil Cooler
Oil Skimmer

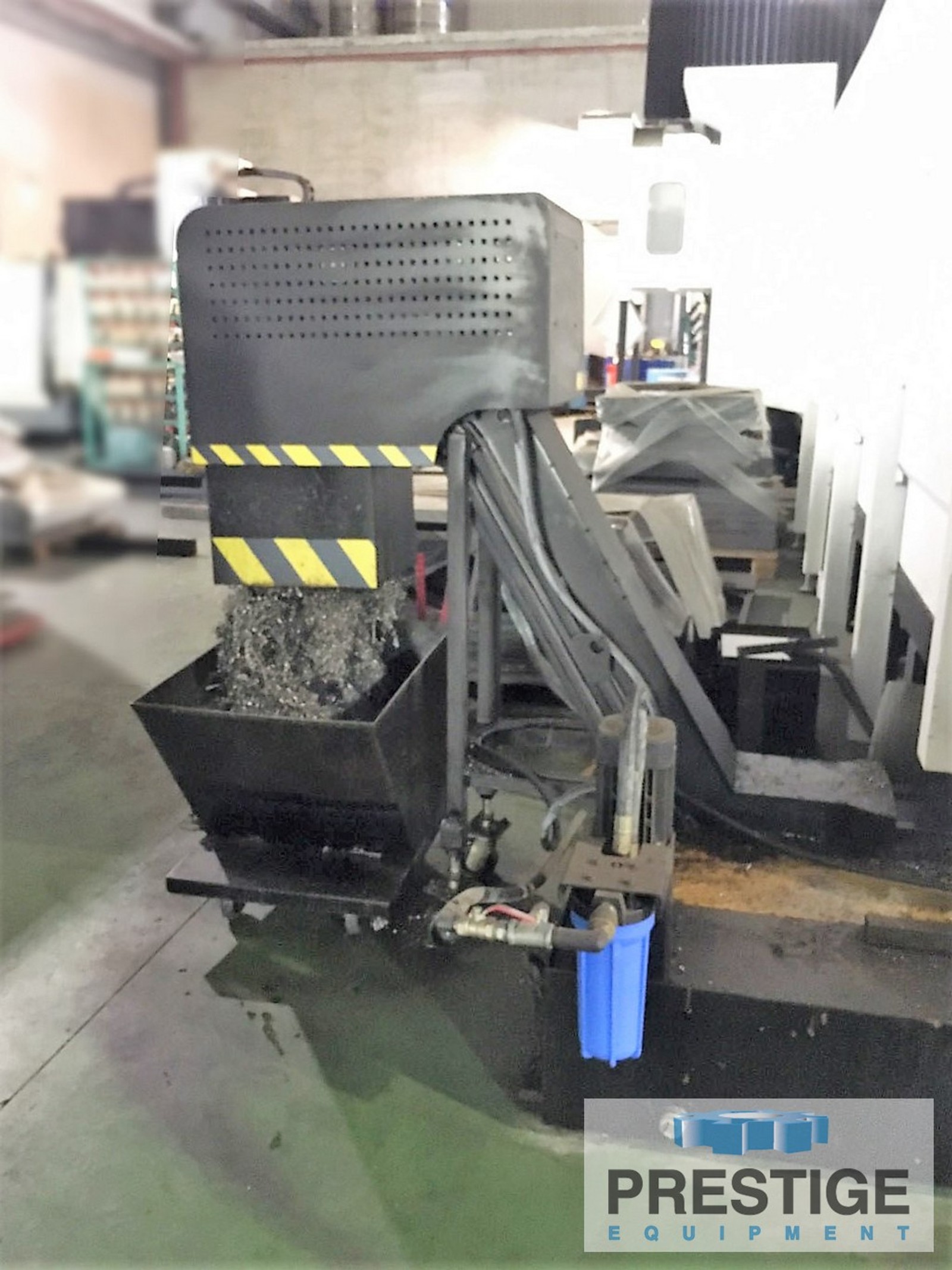

Chip Conveyor
