63",78" Webster Bennett 160/200, Milling, 18 ATC, 91.5" Ht Under Rail, TSC, Chip Conv, Fanuc 30i, 2007, #32214

Manufacturer

WEBSTER & BENNETT

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32214

Model

Revelation 160/200

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32214

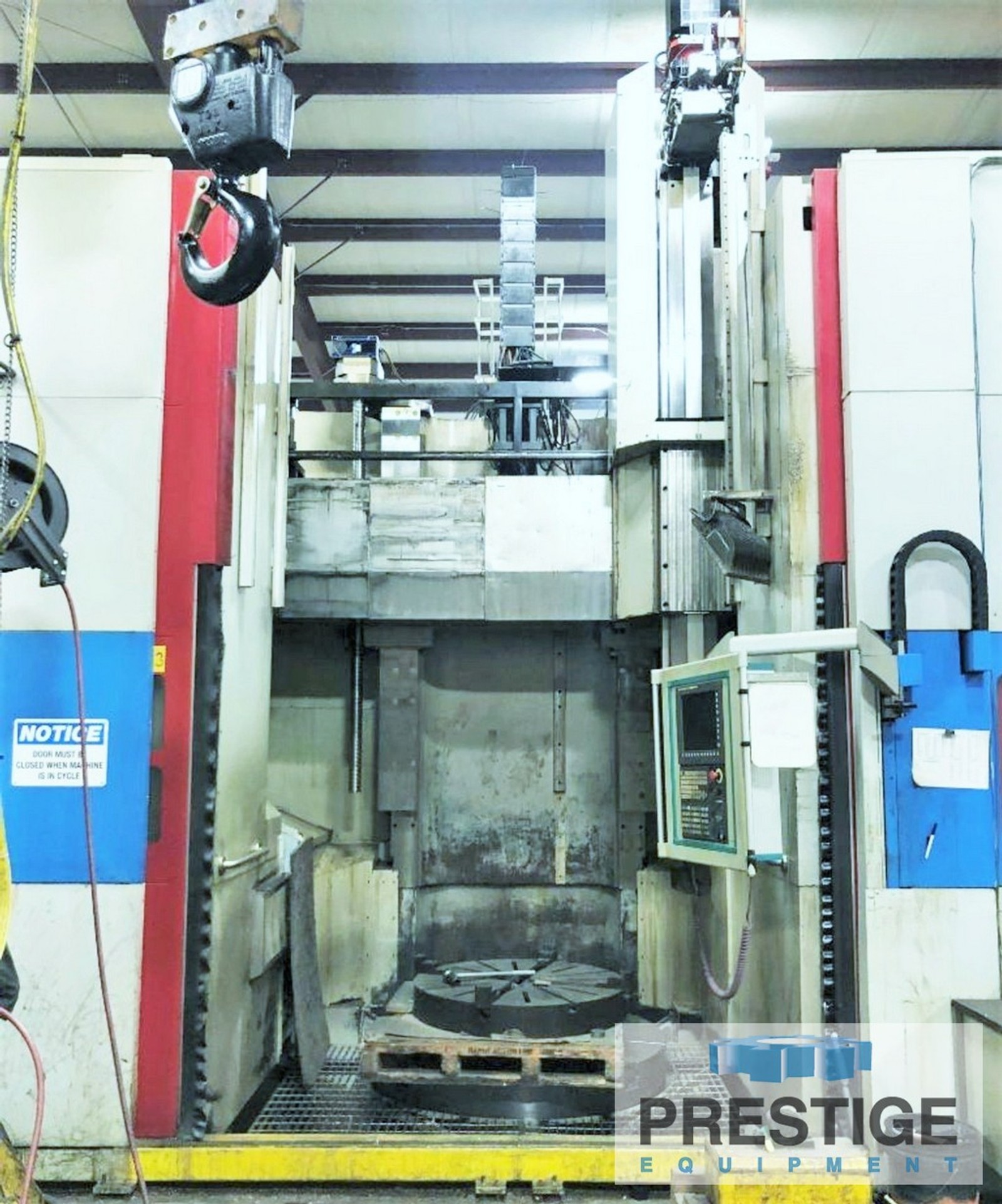

63" Webster Bennet Revalation 160/200 High Column CNC VBM w/ Milling

FEATURES:
Fanuc 30i CNC Control
18-Station Automatic Tool Changer
C-Axis with Milling
91.5" Under The Rail

SPECIFICATIONS:
Table Diameter ....................... 62.99"
Maximum Turning Diameter .............. 78.6"
Maximum Height Under Cross Rail ....... 91.5"
Vertical Travel of Cross Rail ......... 62"
Table Weight Capacity ................. 20,000 lbs
Table Speeds, Max ..................... 500 RPM
Table Motor, Double Pinion Drive ...... 75 HP (2X)

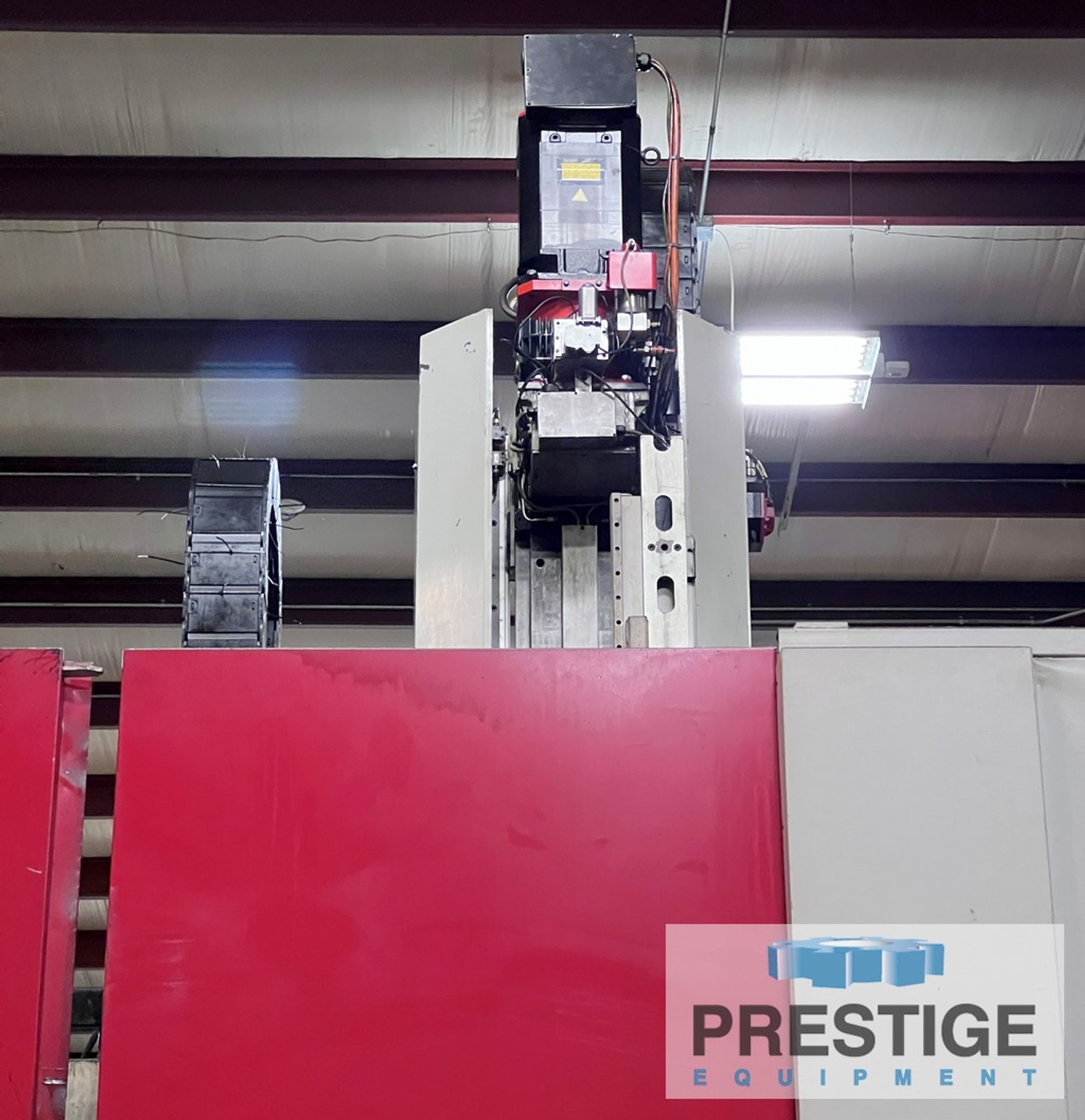

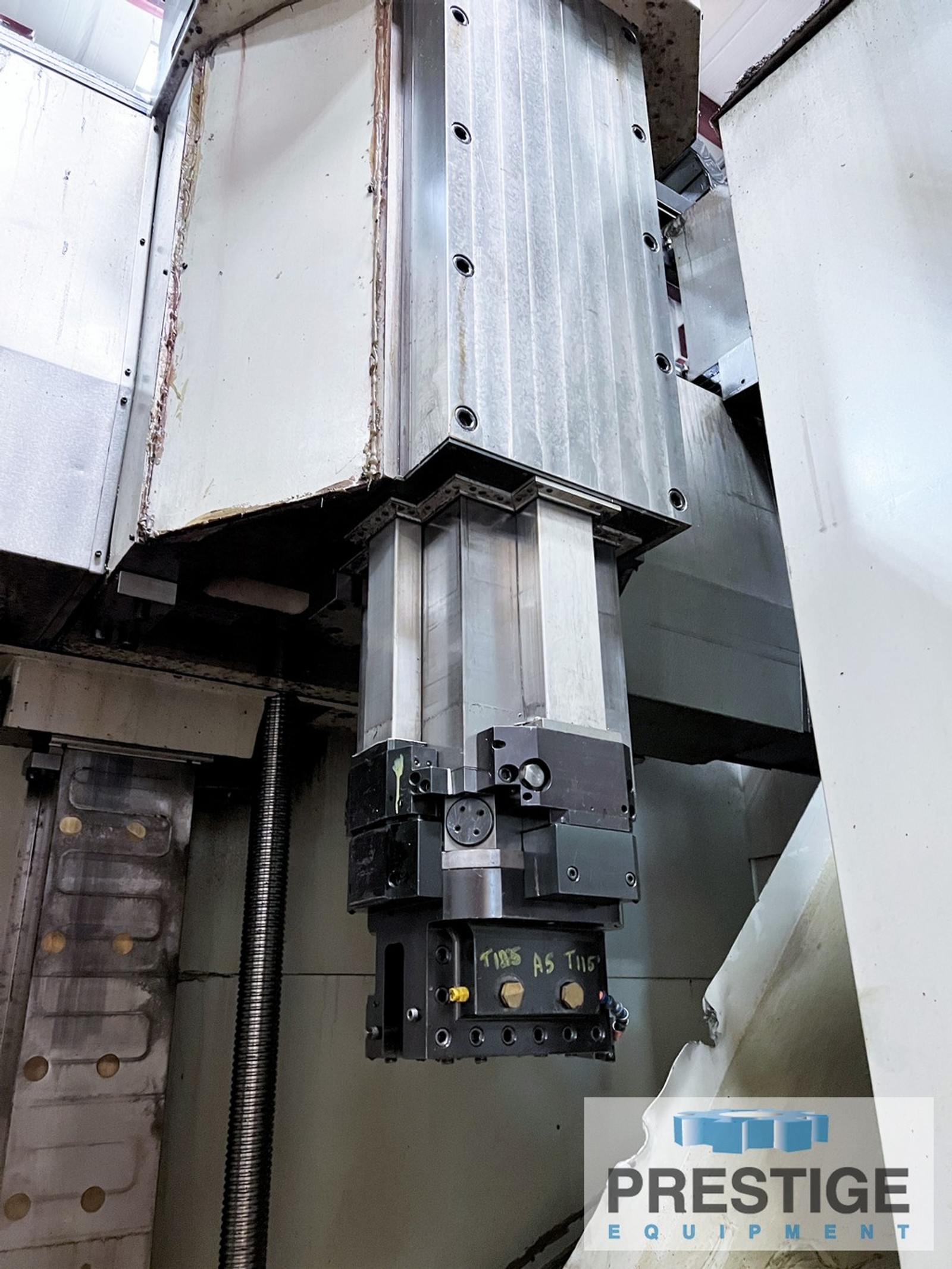

RAM TOOL SLIDE WITH LIVE SPINDLE:
Vertical Ram Stroke, Z-Axis ........... 70.8"
Ram Travel, X-Axis Left/Rt.of Center .. 50.39" / 50.39"
Ram Cross Section ..................... 9.84" x 9.84"
Live Spindle Motor .................... 50 HP
Live Spindle Speeds ................... 4,000 RPM
Tool Holder Taper/Pull Stud ........... #50 ISO

Y-Axis Milling Head Attachment, 30 HP Rated:
Y-Axis Travel ......................... 7.9"
Y-Axis Taper .......................... CAT 50

ACCURACY BUILD X & Z AXES:
Positioning ........................... +/- 5arc/secs
Repeatability, per 40" ................ +/- 2arc/secs

WEIGHT:
Approximate Machine Weight .............. 85,800 Lbs

EQUIPPED WITH:

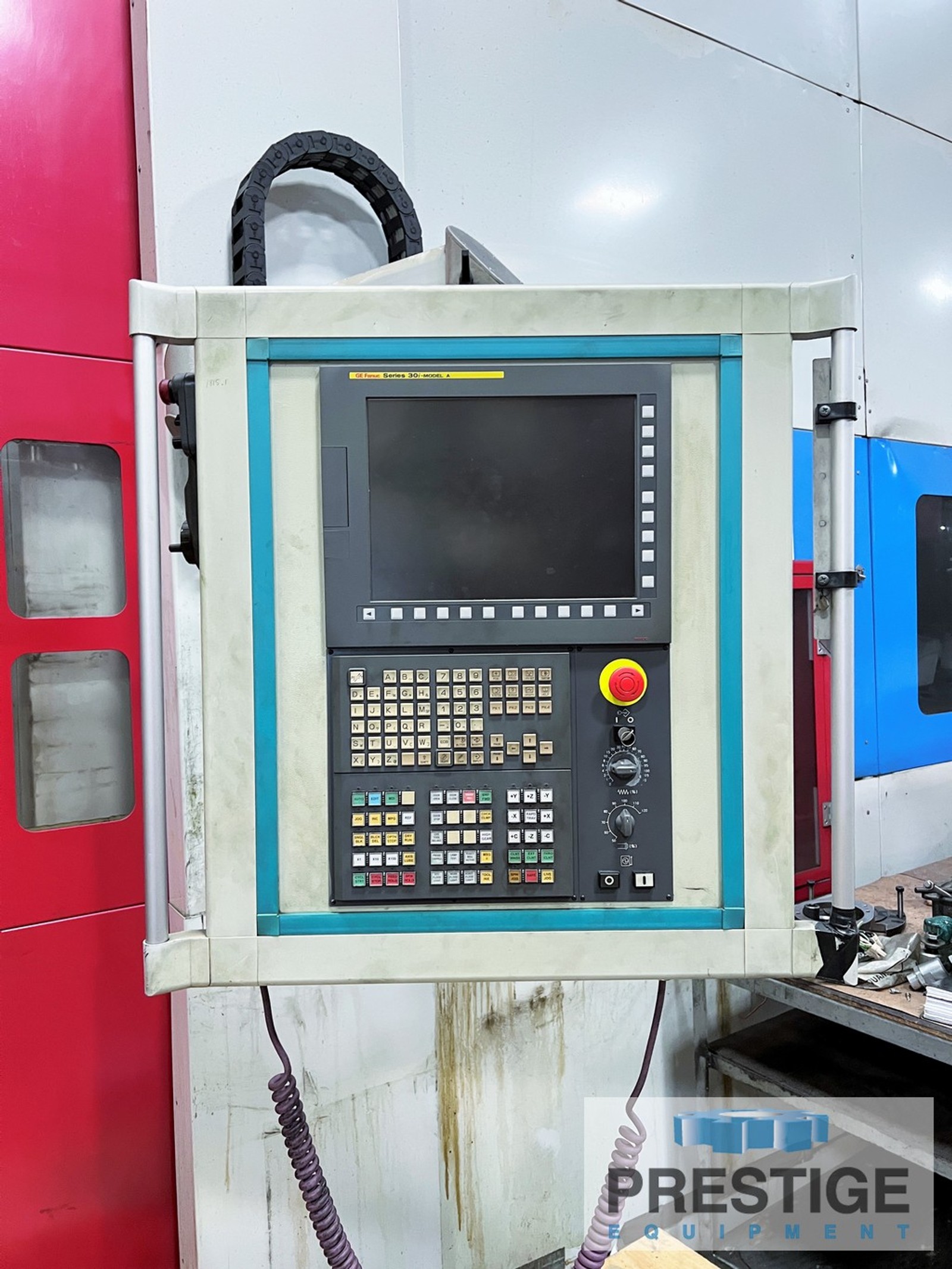

Fanuc 30i-Model A CNC Control w/Remote Pendant
18-Station Automatic Tool Changer
Y-Axis 30 HP Milling Head Attachment
62.9" 4-Jaw Chuck
Chip Blaster Thru-Tool Coolant
Linear Scales on X and Z Axes
Renishaw Tool Probe

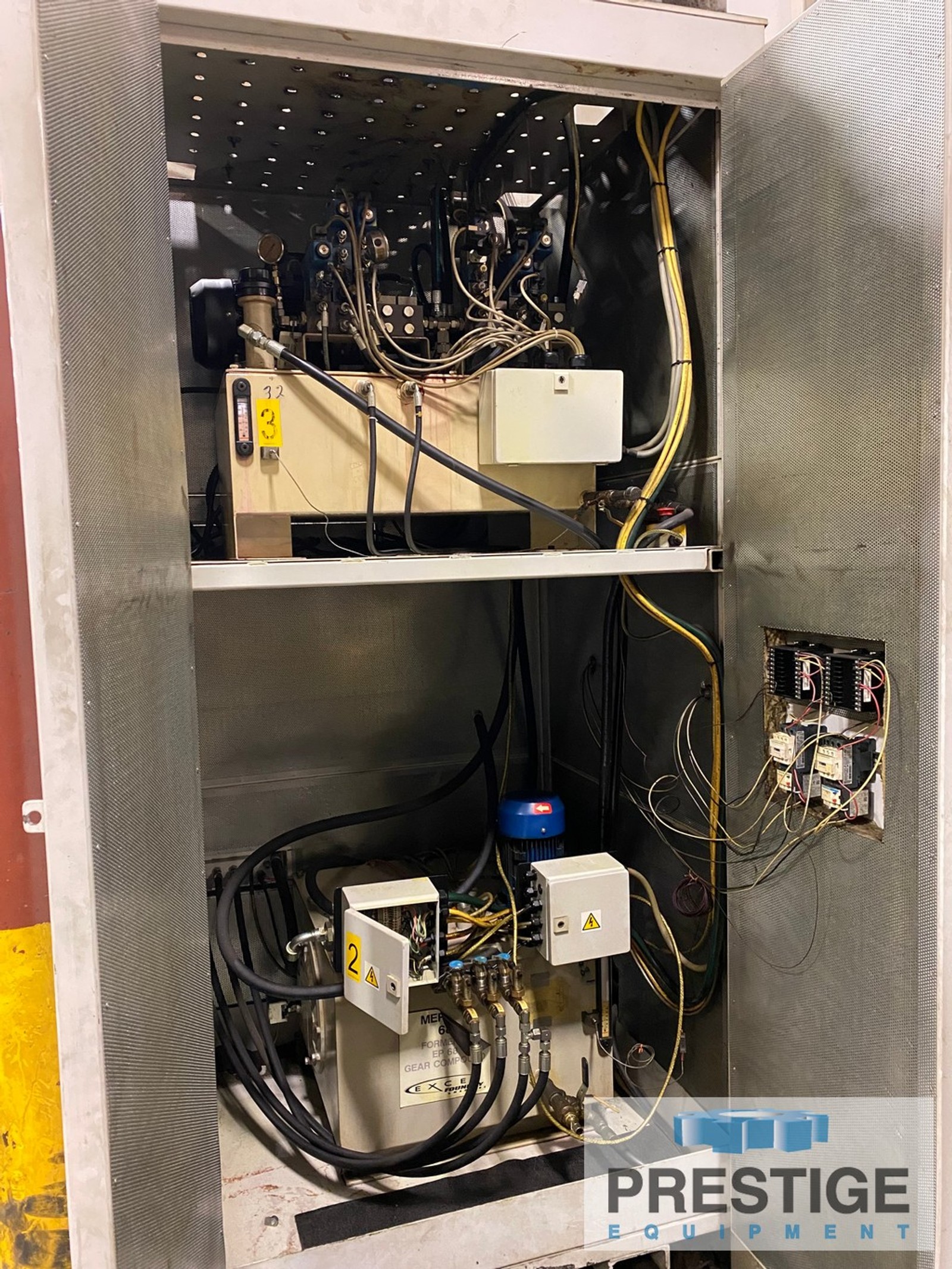

Trabon Lubrication

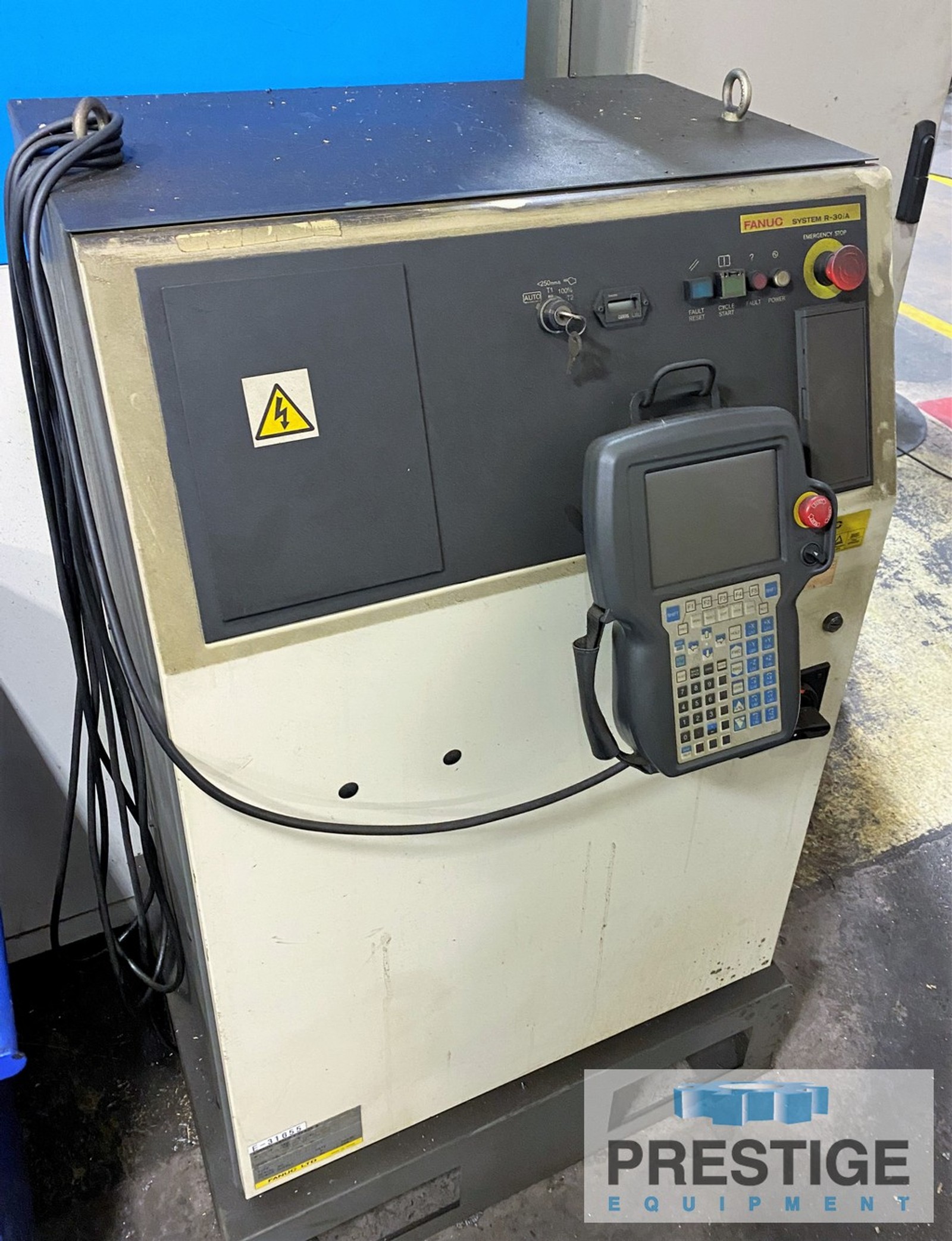

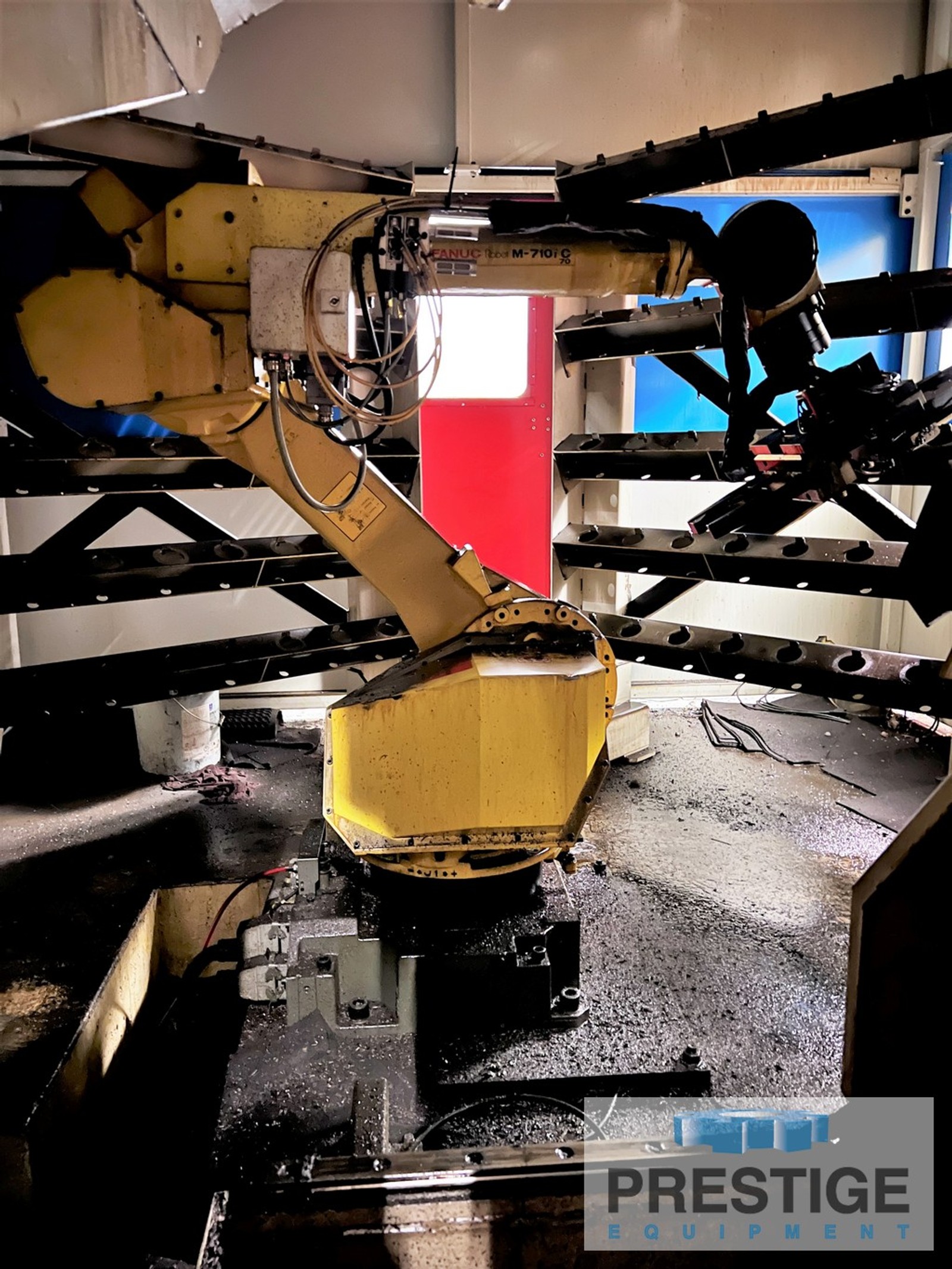

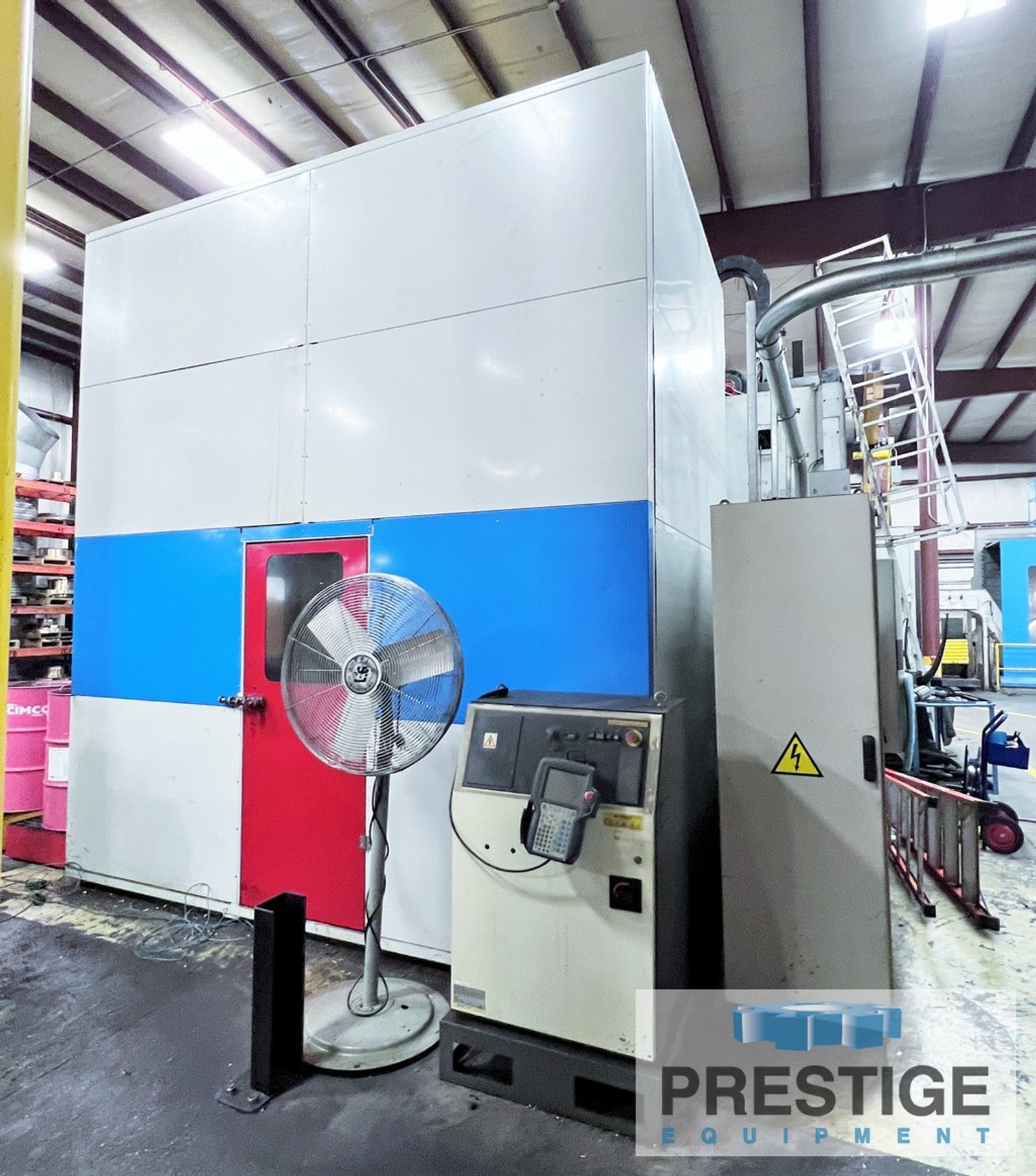

Fanuc M-710iC Robot w/Teach Pendant for CAT 50 Tooling
90 Place Rack for Robot Loaded Tools
Y-Axis Attachment, CAT 50 w/Auto Clamping
90 Degree Milling Head, CAT 50 w/Auto Clamping

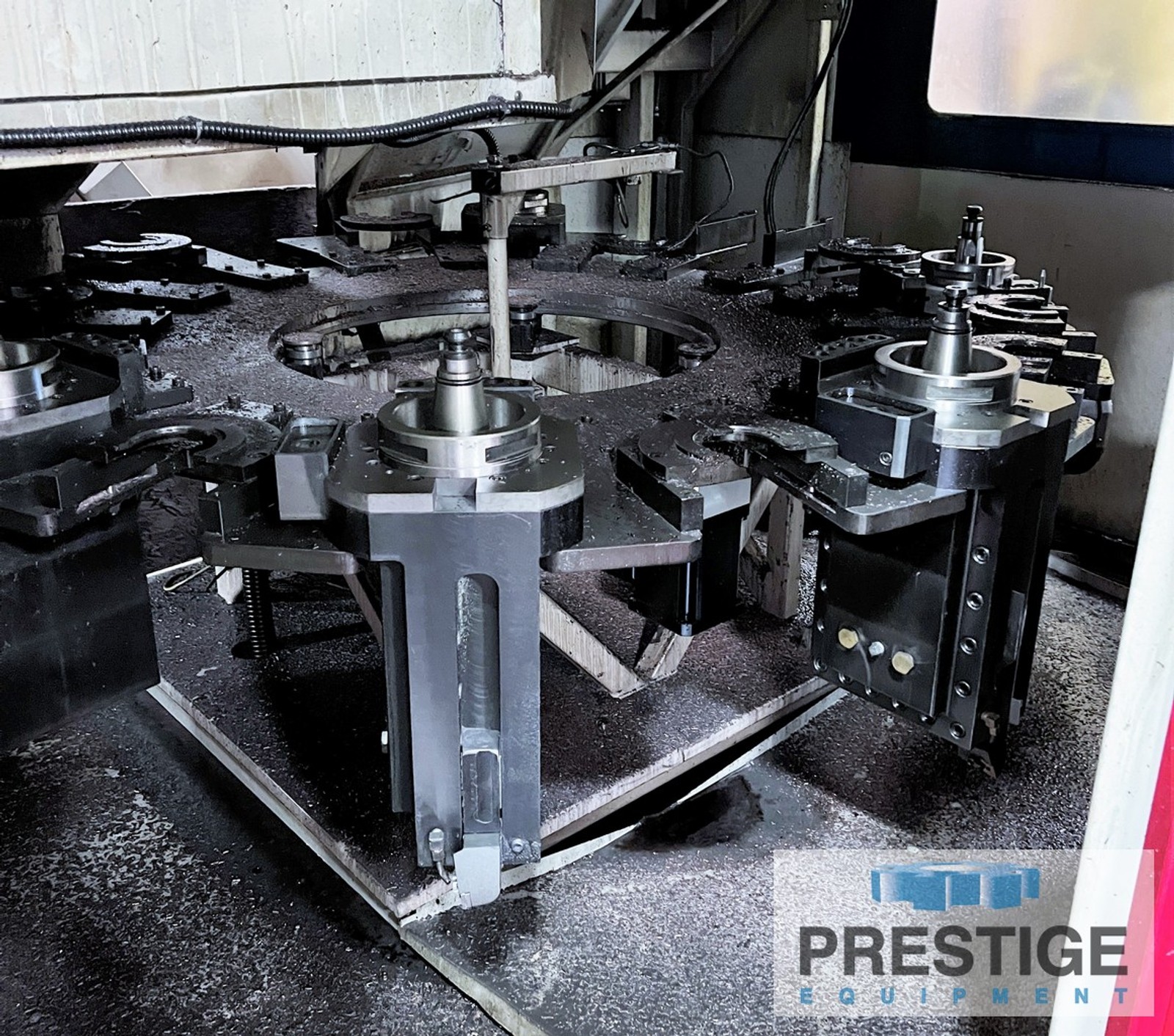

5-Large Turning Tool Holders
1-Block Type Turning Tool Holder
1-Boring Bar Tool Holder

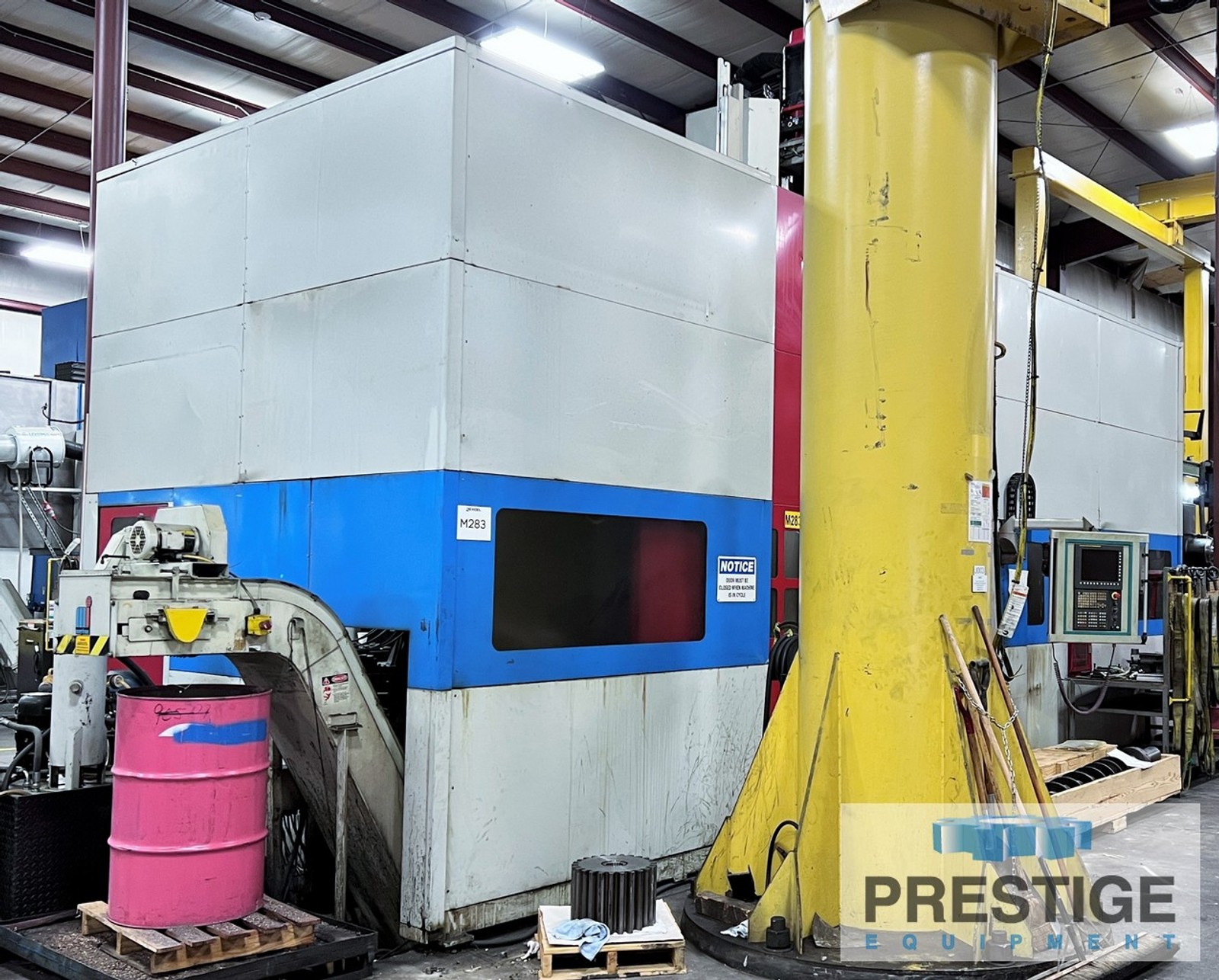

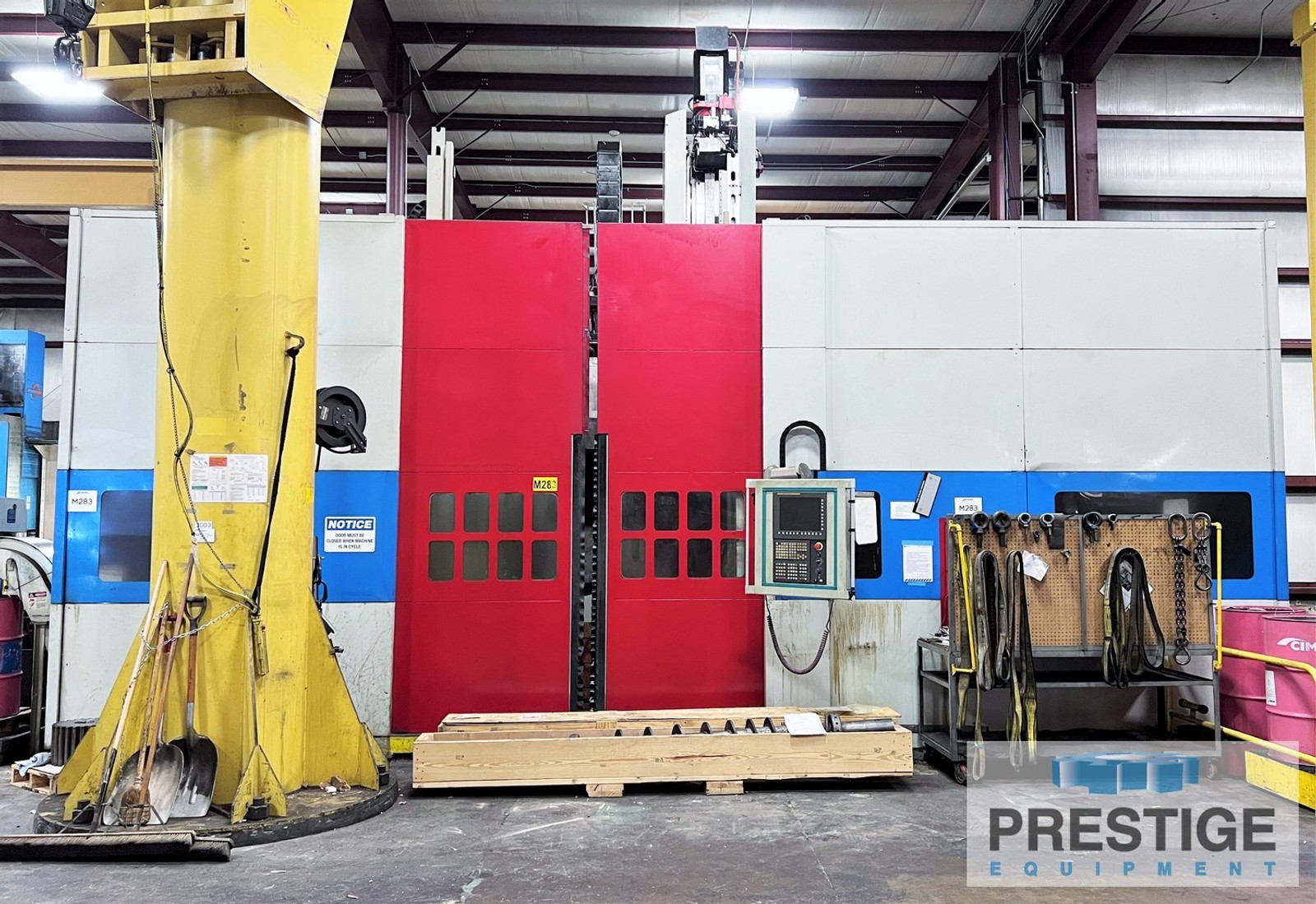

High Level Guarding with Chip Protection
Mayfram Chip Conveyor with Coolant Tank
